DO1064TB - Toothbrush DOMO - Free user manual and instructions

Product Type	Rechargeable electric toothbrush
Brand	DOMO
Model	DO1064TB
Power supply	Rechargeable battery, 100-240 V charger
Brushing modes	Clean, Sensitive, Massage
Timer	2 minutes with 30-second reminders
First charge	24 hours full
Daily maintenance	Rinse the head under running water while operating, clean the handle with running water
Head replacement	Every 2 to 4 weeks (soaking in denture cleaner recommended)
Safety	Do not use if cord damaged; keep out of reach of children; do not repair the charger
Warranty	2 years (device), 6 months (accessories)
Batteries and battery	Use only the original charger; do not incinerate; recycle at collection point
Recycling	Do not dispose with household waste; take to recycling center or store
Included components	Rechargeable handle, two brush heads, charger
Customer service	[phone], [e-mail]

Frequently Asked Questions - DO1064TB DOMO

How to charge the toothbrush for the first time?

Place the handle on the plugged charger. The red light turns on. Let it charge for 24 hours before first use.

How long does a full charge last?

After a full charge, the light turns from red to green. Charging takes about 24 hours for the first charge, then may be shorter.

How to use the different modes?

Press the selection button below the on/off button to choose from modes Clean (daily), Sensitive (gentle), and Massage (gum stimulation).

What to do if the toothbrush does not turn on?

Check that the handle is charged (green light). If the problem persists, contact customer service at [phone].

How to clean the toothbrush?

Rinse the brush head under running water while the brush is operating. Clean the handle with a damp cloth. Avoid blocking the small holes at the back.

When to replace the brush head?

It is recommended to replace the head every 2 to 4 weeks and soak it occasionally in a denture cleaner.

Is the battery replaceable?

The battery is built-in. For safety, have it replaced by a professional or after-sales service. Use only the supplied charger.

What to do in case of technical problem?

First consult the manual. If the problem persists, contact DOMO customer service by email ([e-mail]) or by phone during business hours.

What is the warranty?

The device is guaranteed 2 years from purchase date. Accessories are guaranteed 6 months. Keep your receipt.

How to recycle the old toothbrush?

Do not throw the device in household waste. Drop it at a collection point for electrical waste or in store. Used batteries must be recycled separately.

USER MANUAL DO1064TB DOMO

Two electric toothbrushes with blue filter caps, one white and one black, mounted on a stand (no visible text or symbols)

DO1064TB

Two symbolic icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or labels)

Read all instructions carefully - save this instruction manual for future reference.

Close-up of a white and black handheld device with a black arrow pointing to a small component (no text or symbols visible)

MILIEURICHTLIJNEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electric toothbrush with black base and red arrow indicator (no text or symbols)

MISE AU REBUT

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electric toothbrush with black base and red arrow indicator (no text or symbols)

ENTSORGEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

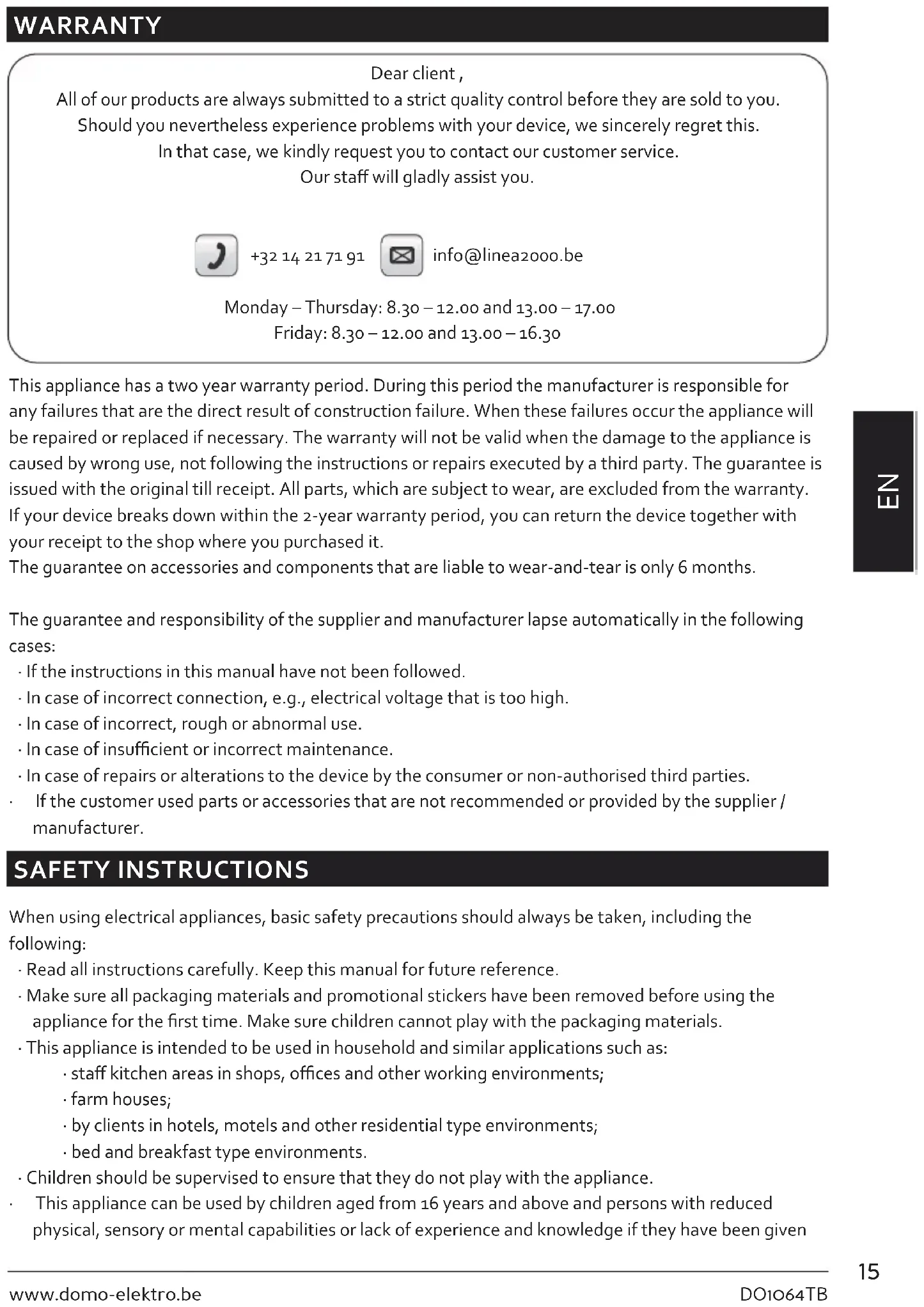

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
  · by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• Regularly check the cord for damage. If it is damaged, pull the plug from the power socket and take the charging cradle to a maintenance department. The maintenance department will completely replace the charging cradle.
• The charging cradle cannot be repaired for reasons of safety. A damaged or non-functioning charging cradle must not be used.
• The device is powered by a rechargeable battery. Before using the device for the first time, charge the battery for a full day.
• To extend the battery's service life, we recommend that you regularly charge the device until it is full and then let it discharge completely.

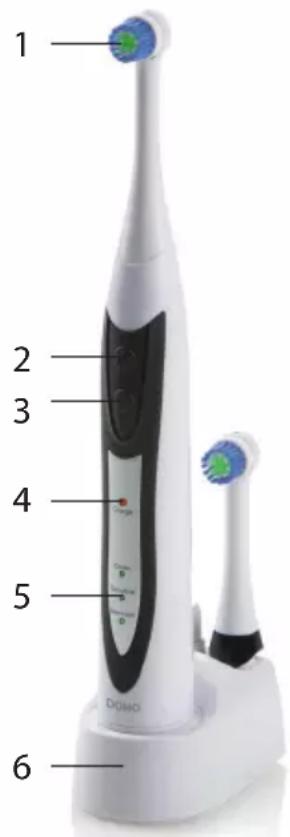

PARTS

1. Brush head
2. On-off switch
3. Selection button
4. Charging indicator lamp
5. Setting indicator lamp
6. Charging cradle

1 2 3 4 5 6 DOSO

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers before using the appliance for the first time.
• The device is powered by a rechargeable battery. Before using the device for the first time, charge the battery for a full day.
• Rinse both brush heads before use.

USE

1. Make sure the hand unit is completely charged.
2. Attach the brush head to the hand unit.
3. Rinse your mouth thoroughly with water and wet the brush head before you brush. You can use normal toothpaste. To avoid splashing, place the brush head on your teeth before you turn on the toothbrush.
4. Now move the brush head on the chewing surfaces of your teeth. Move the brush head on the outside of your teeth and then the inside. Make sure that you brush in the spaces between your teeth as well as your gums. You do not need to press hard. Clinical tests have shown that the best cleaning method is by moving the brush head softly from tooth to tooth without exerting pressure.
5. To remove plaque, brush your teeth for at least 2 minutes. This is the recommended time each time you brush your teeth. The toothbrush has a timer. After 30 seconds, the device will rotate in the other direction to indicate that you brushed for 30 seconds. This will occur again after 1 minute and 1.5 minutes. After 2 minutes, the toothbrush will stop. If you want to brush some more, press the on-switch again. The device will work again for 2 minutes.
6. Rinse your mouth thoroughly after brushing. The brush changing shape after use is normal. This is due to the way you brush your teeth personally. This does not affect the efficiency of the brush.

The device has 3 settings. You select an option by pressing the selection button under the on-off switch until the appropriate lamp is lit:

· Clean: for daily, thorough brushing of your teeth
· Sensitive: clean your teeth softly and mildly, this is the perfect mode for sensitive teeth
- Massage: this brushing option stimulates blood flow and helps heal inflamed gums

Charging

To maximise the capacity and service life of the rechargeable batteries, the batteries should be fully charged for 24 hours before first use and then let it fully discharge during use. Then charge again up to the maximum capacity. The charging/discharging process must occur every six months.

1. Insert the plug of the charging cradle into a power socket. The charging cradle can be connected to any power socket with an output voltage of 100 to 240 Volts.
2. Place the rechargeable hand unit facing forwards in the charging cradle. The red indicator lamp will light up. The lamps above the different programs will start to light up incrementally. This indicates that the device is charging.
3. The red lamp turns green when the battery is fully charged.

The hand unit can warm up a little during the charging process. This does not affect how the hand unit works.

The hand unit cannot be overloaded. To maintain the optimal capacity of the rechargeable hand unit, it must be always placed in the charging cradle after use.

CLEANING AND MAINTENANCE

• To maintain the optimal functioning of the brush head, rinse the brush head after use for several seconds under flowing water with the hand unit turned on.
• Clean the hand unit by holding it under flowing water. Dry off the hand unit. After cleaning, place the hand unit back in the charging cradle.
• Every two to four weeks, keep the brush head hygienic by steep it in denture cleaner (available at a chemist or pharmacy).
• Make sure that the holes at the back of the brush are always kept free. If necessary, remove caked toothpaste.

Close-up of a white electric toothbrush with black base and arrow indicator (no text or symbols)

ENVIRONMENTAL GUIDELINES

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Battery operation:

Batteries store electrical energy in the cells for reuse when needed. To increase the service life and capacity of the batteries so these work properly, you must do the following:

• Make sure the battery is not exposed to direct sunlight or heat for a long time
• Never throw the battery into a fire
• Failure to follow these instructions will damage the battery, which may even explode under certain conditions.
  · Never break open the battery. It does not contain anything that requires maintenance.
  · Avoid dirt and contact with conductive materials, such as chemicals or cleaning agents
  · To charge the battery, only use the original charger supplied.
• You can replace the battery with another battery of the same type or an equivalent battery recommended by the manufacturer.
• The batteries are not biodegradable. Always take used batteries to a collection point.

ZÁRUKA

Close-up of a white electric toothbrush with black base and red arrow indicator (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electric toothbrush with black base and red arrow indicator (no text or symbols)

OHL'AD NA ŽIVOTNÉ PROSTREDIE

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
