Product Type	Two-way passive speaker
Brand	DB Technologies
Model	ARENA 15
Dimensions (W x H x D)	458 x 710 x 453 mm
Weight	23.7 kg
RMS Power	400 W
Peak Power	800 W
Nominal Impedance	8 Ω
Frequency Response (-3 dB)	80 Hz - 19000 Hz
Frequency Response (-6 dB)	70 Hz - 19000 Hz
Crossover Frequency	2000 Hz
Maximum Sound Pressure (SPL max)	129 dB
Components	1x15" woofer (2.5" voice coil), 1 compression driver (1.4" exit, 1" voice coil)
Filters	High-pass 18 dB/oct, low-pass 12 dB/oct
Dispersion (H x V)	90° x 40° (rotatable)
Audio Connectors	2 x Speakon (4-pole) parallel
Rigging Points	12 points (10MA)
Standard Pole Mount	D36 mm
Handles	2 (one on each side)
Enclosure Material	Birch plywood
Thermal Protection	Self-resetting on driver
Cleaning	Dry cloth only, avoid solvents
Safety	Do not use near water, do not suspend by handles

Frequently Asked Questions - ARENA 15 DB Technologies

How to connect the ARENA 15 speaker to the amplifier?

Use the Speakon connectors: connect the signal to 1+ (positive) and 1- (negative). The second connector allows linking another speaker in parallel. Make sure the amplifier is turned off before connecting.

Can I suspend the ARENA 15 speaker?

Yes, thanks to the 12 rigging points (10MA). Use rings or brackets provided by the manufacturer. Never use the handles to suspend the speaker.

How to rotate the horn for horizontal dispersion?

Remove the front grille, unscrew the 8 horn screws, rotate it 90° (without removing it), then retighten. The dispersion then changes from 90°x40° vertical to 40°x90° horizontal.

What is the impedance of the ARENA 15?

The nominal impedance is 8 Ω. Do not connect below the amplifier's minimum impedance.

What power can the speaker handle?

RMS power: 400 W, peak power: 800 W. The self-resetting thermal protection protects the driver in case of prolonged overload.

How to clean the ARENA 15 speaker?

Use a dry cloth only. Avoid thinners, alcohol, gasoline or other volatile substances.

Can I use the speaker outdoors?

Avoid locations exposed to weather. The speaker is not designed for outdoor use without adequate protection.

How to install the speaker on a stand?

Insert the standard pole mount D36 mm into the socket on the bottom of the speaker. Ensure the stand is stable and the speaker is securely attached.

What to do if the sound is distorted or weak?

Check the connections (phase, polarity), load impedance, and that the amplifier is not clipping. Make sure the thermal protection has not triggered.

Can I change the speaker's fuse?

The speaker does not contain an accessible fuse. In case of problem, contact a qualified support service.

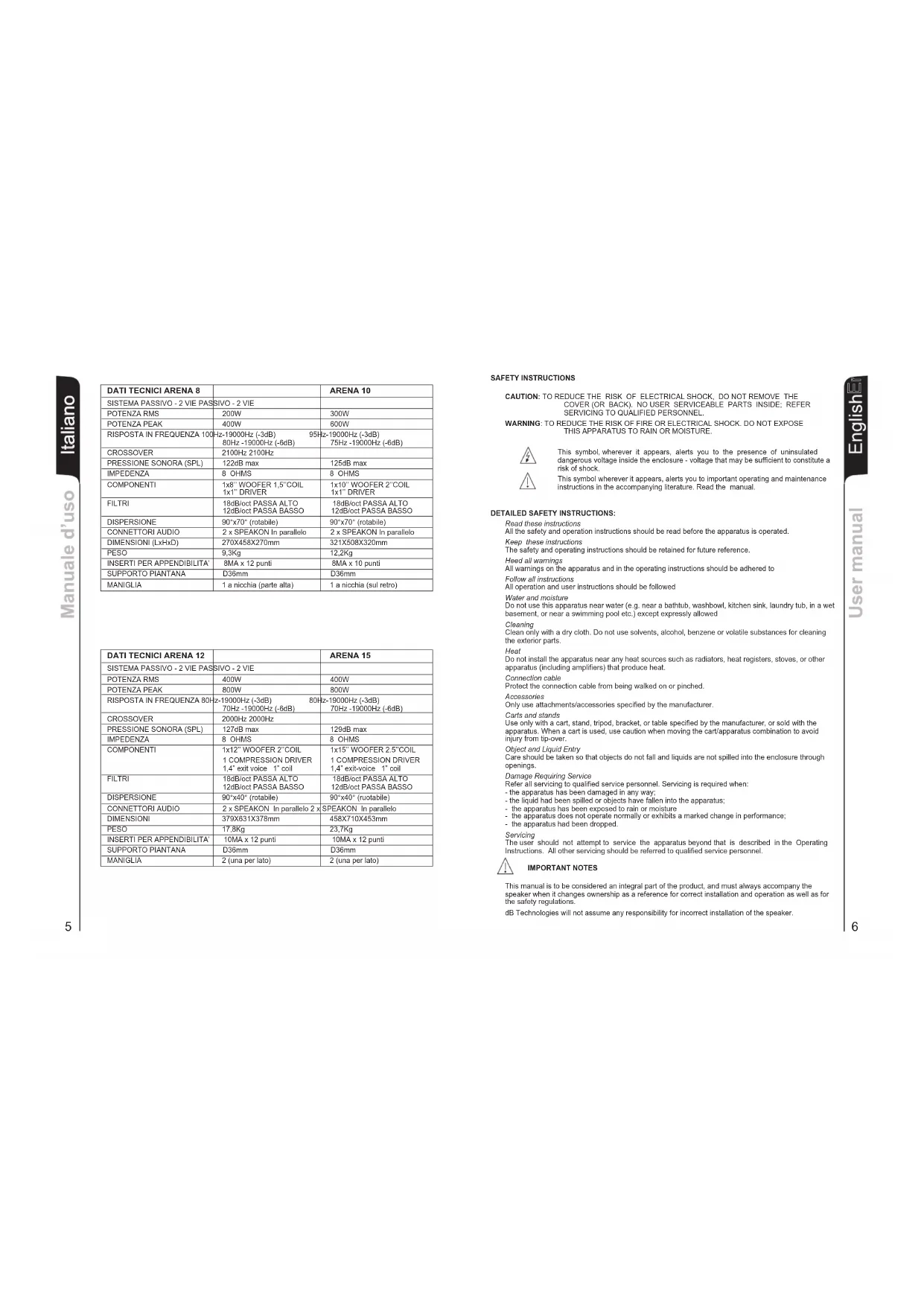

USER MANUAL ARENA 15 DB Technologies

Line drawing of a device casing with internal components and mounting holes (no text or symbols)

Line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

ARENA 10 ARENA 8

Line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

ARENA 15 ARENA 1

MANUALE D'USO

USER MANUAL

BEDIENUNGSANLEITUNG

CARACTERISTIQUES TECHNIQUES

COO. 420120127

Manufactured in India under

dB Technologies control

IMPORTANTI ISTRUZIONI DI SICUREZZA

AVVERTENZA: PER RIDURRE IL RISCHIO DI SCOSSA ELETTRICA, NON TOGLIERE IL COPERCHIO (O IL PANNELLO POSTERIORE). ALL'INTERNO NON SONO CONTENUTE PARTI RIPARABILI DALL'UTENTE; AFFIDARE LE RIPARAZIONI A PERSONALE QUALIFICATO.

ATTENZIONE: PER RIDURRE IL RISCHIO DI INCENDIO O DI SCOSSA ELETTRICA, NON ESPORRE QUESTO APPARECCHIO ALLA PIOGGIA O ALL'UMIDITÀ.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK. DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock.

This symbol wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Read the manual.

DETAILED SAFETY INSTRUCTIONS:

Read these instructions

All the safety and operation instructions should be read before the apparatus is operated.

Keep these instructions

The safety and operating instructions should be retained for future reference.

Heed all warnings

All warnings on the apparatus and in the operating instructions should be adhered to

Follow all instructions

All operation and user instructions should be followed

Water and moisture

Do not use this apparatus near water (e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool etc.) except expressly allowed

Cleaning

Clean only with a dry cloth. Do not use solvents, alcohol, benzene or volatile substances for cleaning the exterior parts.

Heat

Do not install the apparatus near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Connection cable

Protect the connection cable from being walked on or pinched.

Accessories

Only use attachments/accessories specified by the manufacturer.

Carts and stands

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Object and Liquid Entry

Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Damage Requiring Service

Refer all servicing to qualified service personnel. Servicing is required when:

- the apparatus has been damaged in any way;

- the liquid had been spilled or objects have fallen into the apparatus;

- the apparatus has been exposed to rain or moisture

- the apparatus does not operate normally or exhibits a marked change in performance; - the apparatus had been dropped.

Servicing

The user should not attempt to service the apparatus beyond that is described in the Operating Instructions. All other servicing should be referred to qualified service personnel.

IMPORTANT NOTES

This manual is to be considered an integral part of the product, and must always accompany the speaker when it changes ownership as a reference for correct installation and operation as well as for the safety regulations.

dB Technologies will not assume any responsibility for incorrect installation of the speaker.

CAUTION

Installation

Make sure that the speaker is positioned in a stable and secure way in order to avoid any dangerous conditions for persons or objects.

CAUTION

Connection

For connecting the speaker, use only qualified and experienced personnel having sufficient technical knowledge or specific instructions for making the connections correctly and thus preventing electrical dangers.

The entire sound system must be designed and installed in compliance with the current standards and regulations regarding electrical systems.

The loudspeakers must be wired properly in phase (be sure to observe the correct +/ - polarities between amplifier and speaker) to give the correct sound reproduction, especially when the speakers are placed close to each other or in the same room.

The loudspeaker's connecting cable must have wires of adequate gauge (possibly intertwined to minimize the inductive effects caused by the coupling with electromagnetic fields) and proper insulation.

CAUTION

Hearing loss

Excessively high sound levels may cause permanent hearing loss. The sound pressure levels that cause hearing loss vary significantly from one person to another and according to the duration of the exposure. To avoid potentially dangerous exposure to high sound pressure levels, adequate protection must be used by whoever is exposed to such pressure levels.

DESCRIPTION

"ARENA" is a series of wooden two-way passive loudspeakers designed for medium to large sized rooms.

They are all made from birch wood and the various fixing clamps, the pole mount socket and the handles ensure easy installation and transport.

The loudspeakers can be placed on wall shelves or suspended through the fixing clamps placed above, under or on the side of the loudspeakers.

The lower part of the box has a standard pedestal support (D36mm).

The loudspeakers of the ARENA series feature passive crossover filters with a slope of 12dB/oct for the low-pass part, 18dB/oct for the high-pass and a self-resetting thermal protection circuit on the driver to prevent protracted overloading.

CONNECTIONS

WARNING

To avoid electric shocks, ensure that your amplifier is switched off when you plug in the loudspeaker. Before turning on the loudspeaker, be sure that the connections are correct to avoid short circuits or wrong connections.

The connection panel at the back of the loudspeaker features two 4 pole Speakon connectors: the first socket is the sound signal input socket and the second socket may function as an output terminal for the connection with another loudspeaker.

The connections are:

1+ for the positive signal

1- for the negative signal (ground)

2 + not connected

2 - not connected

INPUTOUTPUT NEGATIVE INPUTOUTPUT POSITIVE

If you wish to send the amplified signal from one loudspeaker to the other, be sure that the nominal impedance resulting from the connection is never lower than the minimum impedance of the power amplifier. This is done to prevent overheating or, worse, damages to the amplifier.

The loudspeakers of the ARENA series have a nominal input impedance of 8 ohms and this must taken into account when making the connections.

ROTATING HORN

When used horizontally, the loudspeakers of the ARENA series allow to maintain the same coverage angle through a rotating horn.

Speakers are always supplied by the manufacturer with the horn driver positioned horizontal at 90°.

If you wish to change the coverage angle (FIG. 5):

- undo the fixing screws of the grille

- remove the front protective grille by slightly pressing on one side and taking the

grille off the special slots

- undo the eight fixing screws of the horn

- rotate the horn in the desired position (the horn should never be removed from the loudspeaker)

- tighten the fixing screws of the horn

- put the grille back in the special side slots and tighten the screws of the grille.

LOUDSPEAKER INSTALLATION

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or property.

For safety reasons do not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation.

If you use the loudspeakers outdoors avoid places that are exposed to bad weather.

The loudspeaker has the following mounting options:

bookshelf(FIG. 1)

- floor (monitor) (FIG.2)

- standmount (FIG.3)

- suspended with support rails or brackets supplied by the manufacturer (FIG.4)

The loudspeaker comes with 4 rubber feet positioned in the lower part of the box for vertical use. If placed on shelves it is possible to use the 4 feet (provided) that are mounted on the special clamps.

WARNING

Never use the handles to hang the speaker!

WARNING

To hang the loudspeaker use only one screw for each hanging point

The hanging points are of 8MA in ARENA 8 and ARENA 10 or 10MA in ARENA 12 and ARENA 15

WRONG!

EXACT!

EXACTI

TECHNICAL DATA ARENA 8		ARENA 10
SYSTEM PASSIVE - 2 WAYS PASSIVE - 2 WAYS
RMS POWER 200W 300W
PEAK POWER 400W 600W
FREQUENCY RESPONSE 100Hz-19000Hz (-3dB) 95Hz-19000Hz (-3dB)80Hz -19000Hz (-6dB) 75Hz -19000Hz (-6dB)
CROSSOVER 2100Hz 2100Hz
SOUND PRESSURE (SPL) 122dB max 125dB max
IMPEDENCE 8 OHMS	8 OHMS
COMPONENTS	1x8" WOOFER 1,5" COIL 1x10"1x1" DRIVER	WOOFER 2"COIL1x1" DRIVER
FILTER	18dB/oct HIGH PASS12dB/oct LOW PASS	18dB/oct HIGH PASS12dB/oct LOW PASS
DISPERSION	90"x70" (ROTARY)	90"x70" (ROTARY)
AUDIO CONNECTORS	2 x SPEAKON In parallel	2 x SPEAKON In parallel
DIMENSIONS (HxLxD)	270X456X270mm	321X508X320mm
WEIGHT	9.3Kg 12.2Kg
FLYING SUPPORT	8MA x 12 POINTS	8MA x 10 POINTS
STANDARD STAND STIRRUP	D36mm	D36mm
HANDLE	1 (high side)	1 (back side)

TECHNICAL DATA ARENA 12		ARENA 15
SYSTEM PASSIVE - 2 WAYS PASSIVE - 2 WAYS
RMS POWER 400W 400W
PEAK POWER 800W 800W
FREQUENCY RESPONSE 80Hz-19000Hz (-3dB) 80Hz-19000Hz (-3dB)70Hz -19000Hz (-6dB) 70Hz -19000Hz (-6dB)
CROSSOVER 2000Hz 2000Hz
SOUND PRESSURE (SPL) 127dB max 129dB max
IMPEDENCE 8 OHMS	B OHMS
COMPONENTS	1x12" WOOFER 2"COIL1 COMPRESSION DRIVER1.4" exit voice 1' coil	1x15" WOOFER 2.5"COIL1 COMPRESSION DRIVER1.4" exit-voice 1' coil
FILTER	18dB/oct HIGH PASS12dB/oct LOW PASS	18dB/oct HIGH PASS12dB/oct LOW PASS
DISPERSION	90"x40" (ROTARY)	90"x40" (ROTARY)
AUDIO CONNECTORS	2 x SPEAKON In parallel	2 x SPEAKON In parallel
DIMENSIONS	379X631X378mm	458X710X453mm
WEIGHT	17.8Kg 23.7Kg
FLYING SUPPORT	10MA x 12 POINTS	10MA x 12 POINTS
STANDARD STAND STIRRUP	D36mm	D36mm
HANDLE	2 (one for side)	2 (one for side)

SICHERHEITSHINWEISE

WARNUNG:

UM STROMSCHLAGGEFAHR ZU VERMEIDEN. DEN DECKEL (UND DIE RÜCKPLATTE) NICHT ENTFERNEN. DAS GERÄT ENTHÄLT KEINE TEILE, DIE DER BENUTZER REPARIEREN DARF. REPARATUREN STETS VOM FACHMANN AUSFÜHREN LASSEN.

Line drawing of a portable electronic device with a stand and tripod base (no text or symbols)

FIG. 3

APPENDIBILE CON GOLFARE

SUSPENDABLE WITH EYEBOLTS

MAN KANN DEN LAUTSPRECHER MIT RINGSCHRAUBEN HANGEN

POSSIBILITE DE SUSPENSION AVEC ANNEAUX

Simple line drawing of a rectangular box with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rectangular container with hanging chains and a hanging hook (no text or symbols)

Line drawing of a rectangular industrial cabinet with two light bulbs and a side panel (no text or symbols)

Line drawing of a rectangular industrial enclosure with two hanging chains and a side panel (no text or symbols)

Line drawing of a rectangular box with internal compartments and directional arrows (no text or symbols)

Line drawing of a rectangular box with hanging chains and a small vent, no text or symbols present

The code including eyebolls only.

FIG. 4

APPENDIBILE CON STAFFE

SUSPENDABLE WITH BRACKETS

MAN KANN DEN LAUTSPRECHER MIT HALTEWINKEL

POSSIBILITE DE SUSPENSION AVEC BRAS

Technical line drawing of a mechanical housing or bracket with mounting holes and internal components (no text or symbols)

APPENDIBILE CON STAFFE

SUSPENDABLE WITH BRACKETS

MAN KANN DEN LAUTSPRECHER MIT HALTEWINKEL

POSSIBILITE DE SUSPENSION AVEC BRAS

Technical line drawing of a mechanical device with mounting brackets and mounting holes (no text or symbols)

Line drawing of a mechanical device with handle and mounting bracket (no text or symbols)

DIMENSIONI / DIMENSIONS ABMESSUNGEN / DIMENSIONS
ARENA 8

ARENA 10

ARENA 12

631 379

ARENA 15

710 458
