PAC PAGAUT - Pool Automation POLARIS - Free user manual and instructions

Product Type	Pool Automation
Brand	Polaris
Model	PAC PAGAUT
Power Supply	120 VAC, 60 Hz, 1.67 A
Required Electrical Protection	Ground Fault Circuit Interrupter (GFCI)
Number of Functions	4 (Filter Pump, Heater, Aux1, Aux2, Aux3)
High Voltage Contact	15 A max, 1.5 HP at 120 VAC
Installation Type	Permanent above-ground or in-ground pool
Minimum Distance from Pool	1.52 m (5 ft) above ground; in Canada, 3 m (10 ft)
Minimum Mounting Height	0.6 m (2 ft) from ground
Main Functions	Control of filter pump, heater, lighting, auxiliary equipment, schedule programming, freeze protection, solar priority
Included Sensors	Water temperature probe, air temperature probe, solar sensor (optional)
Connectivity	iAquaLink (optional, via RS-485)
Supported Valve Actuators	Jandy Valve (JVA) up to 1
Screen and Interface	LCD screen with navigation buttons (Up/Down, Select, Back, On/Off)
Available Settings	Temperature, units (°C/°F), language, clock, schedule programming, temperature calibration
Safety	Freeze protection, heater lockout, cool-down delay, automatic shutdown, alert messages
Maintenance	Test GFCI regularly; maintain water chemistry according to manufacturer's guidelines
Warranty	Void if installed or used incorrectly

Frequently Asked Questions - PAC PAGAUT POLARIS

How to adjust the water temperature?

In the main menu, select Temp then use the Up/Down arrows to adjust. The heater turns on automatically if the filter pump is running and the temperature is below the set point.

How to activate freeze protection?

Access the Installation Settings menu (press both arrows simultaneously for 5 seconds), choose Freeze Protection, set the activation temperature (default 38°F) and select the equipment to protect. The filter pump is always protected.

How to program the filter pump?

In the main menu, go to Settings > Schedules > Filter Pump. Select New, set the start and end time, then choose the days (all, weekdays, weekends). Save.

What to do if the screen shows 'Sensor Open'?

This message indicates that a temperature probe is incorrectly installed or defective. Check the probe connections (water, air, solar). If the problem persists, contact a pool technician. The heater will not operate as long as the water sensor is faulty.

Can I use an extension cord?

No, using an extension cord is prohibited. Plug the controller directly into a properly located GFCI outlet within 1.5 m of the unit. Using an extension cord increases the risk of electric shock.

How to change the interface language?

Go to Installation Settings (press the arrows for 5 seconds), select Language, then choose from French, English, Spanish, Italian, German, etc.

Why doesn't the pump stop after turning off the heater?

The system applies a cool-down delay of 5 minutes to protect the heater. The pump continues to circulate water to cool the heat exchanger. It will stop automatically after this delay.

How to install a Jandy valve actuator (JVA)?

Mount the JVA on the piping according to the manual. Route the wire into the low voltage compartment and plug it into the Solar port on the controller. If a solar sensor is installed, the JVA is automatically assigned to solar heating. Otherwise, you can assign it to an auxiliary via Installation Settings > Assign JVA.

How to reset the controller to factory settings?

In Installation Settings, select Clear Memory. Confirm by selecting Yes. All settings (programs, labels, temperatures) will be erased except the time and date.

What does the message 'Service Mode' mean?

Service mode is used by the pool technician for maintenance. The user interface remains active but some automations may be disabled. To exit service mode, set the controller switch back to AUTO position.

USER MANUAL PAC PAGAUT POLARIS

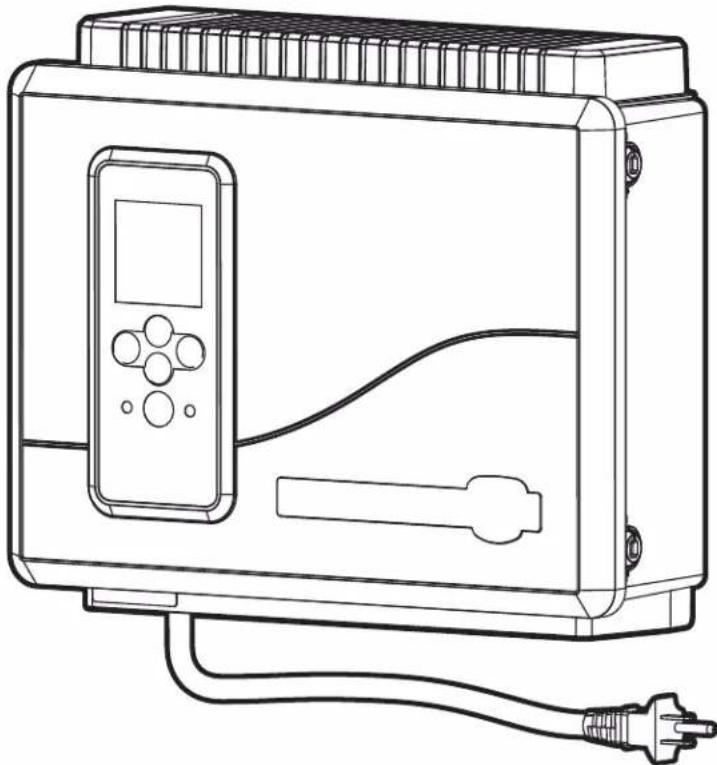

Line drawing of a portable electronic device with control panel, power cord, and plug (no text or symbols)

Above-Ground

Pool Automation Control

PAGAUT

Owner's Manual

English | Français | Español

WARNING

FOR YOUR SAFETY - This product must be installed by a qualified pool professional or personnel who are knowledgeable with the standards and code requirements for above ground pool equipment. The maintainer must be a qualified pool professional or personnel with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly.

Improper installation and/or operation may result in death, serious injury or property damage. DO NOT MODIFY THIS EQUIPMENT.

Before installing this product, read and follow all warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in death, serious injury or property damage. Consult Polaris customer service at 1-800-822-7933 for assistance. Improper installation and/or operation may void the warranty.

Table of Contents

Section 1. Important Safety Instructions....3

Section 2. System Overview....5

2.1 Package Contents....5
2.2 Electrical Specifications 5
2.3 Materials and Tools 5

Section 3. Install Controller Box ....5

3.1 Mount the Controller Enclosure 5
3.2 Bonding the Power Center 6

Section 4. High Voltage Plug In....6

4.1 Plug In Assignment 6

Section 5. Low Voltage Wiring....6

5.1 Wire the Temperature Sensors 6
5.2 Install the Water Temperature Sensor....6
5.3 Install a Solar Sensor (if applicable) 7
5.4 Install Additional Low Voltage Equipment (i.e., Heater Connection) 7
5.5 Install iAquaLink ™ (if applicable) 7
5.6 Mount the iAquaLink Device 7
5.7 Wire the iAquaLink Device....7
5.8 Install Jandy Valve ® Actuators (JVAs) (if applicable) 7

Section 6. User Interface....7

6.1 Navigation Buttons....7

Section 7. Install Settings....8

7.1 Freeze Protect 8
7.2 Units 9
7.3 Languages 9
7.4 Clear Memory 9

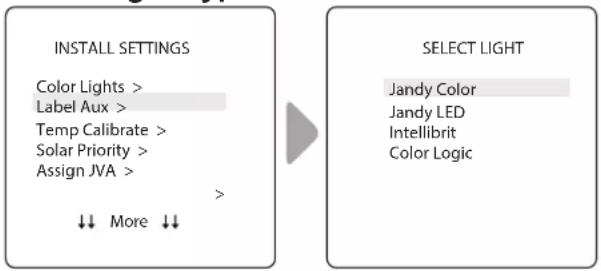

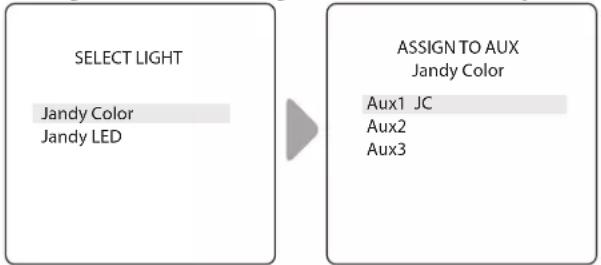

7.5 Color Lights....9

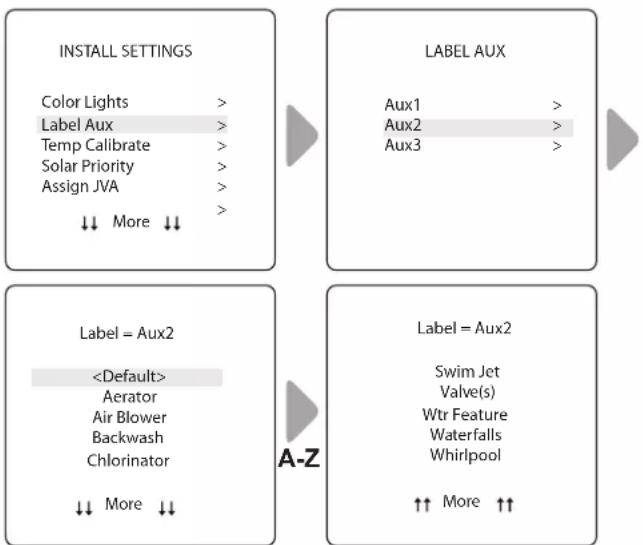

7.6 Label Auxiliary Functions 10

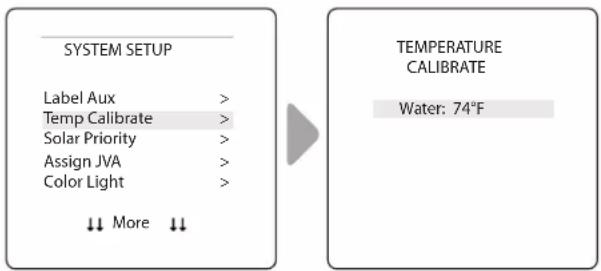

7.7 Temp Calibrate....10

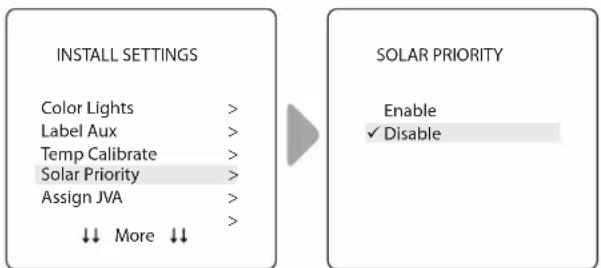

7.8 Solar Priority (if applicable)....10
7.9 Assign JVA....10
7.10 Diagnostics 11

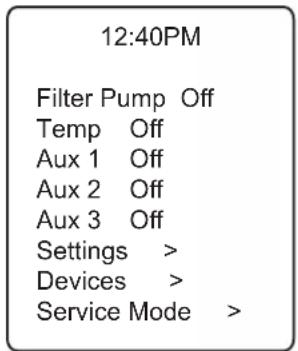

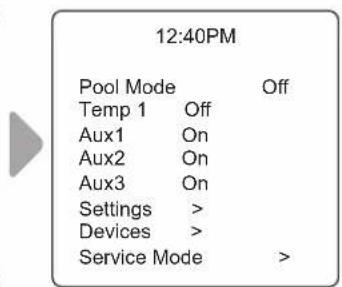

Section 8. Main Menu....12

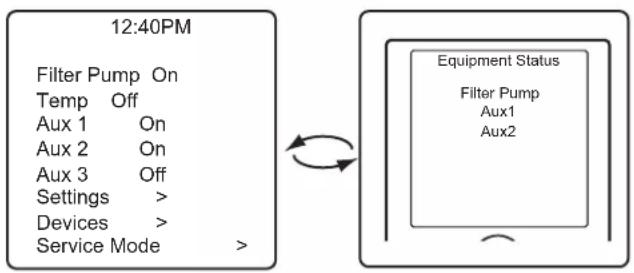

8.1 Equipment Status.... 12
8.2 Filter Pump....12
8.3 Pool Heater On/Off 12
8.4 Turn Aux1, Aux2 or Aux3 On/Off 12

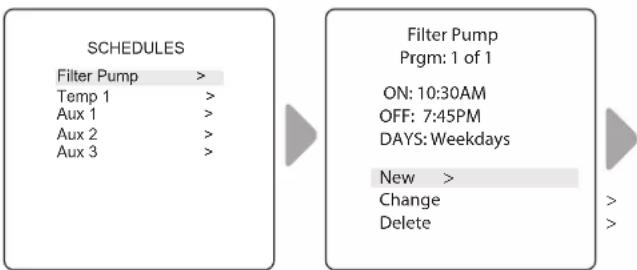

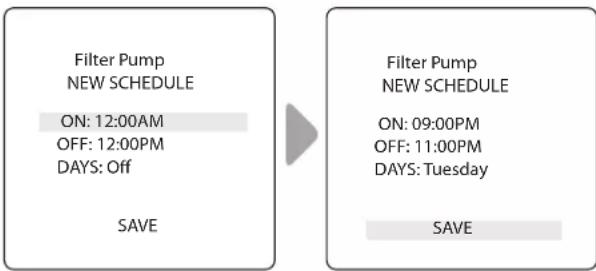

8.5 Turn Specific Equipment On/Off Manually 13
8.6 Turn All Equipment Off 14

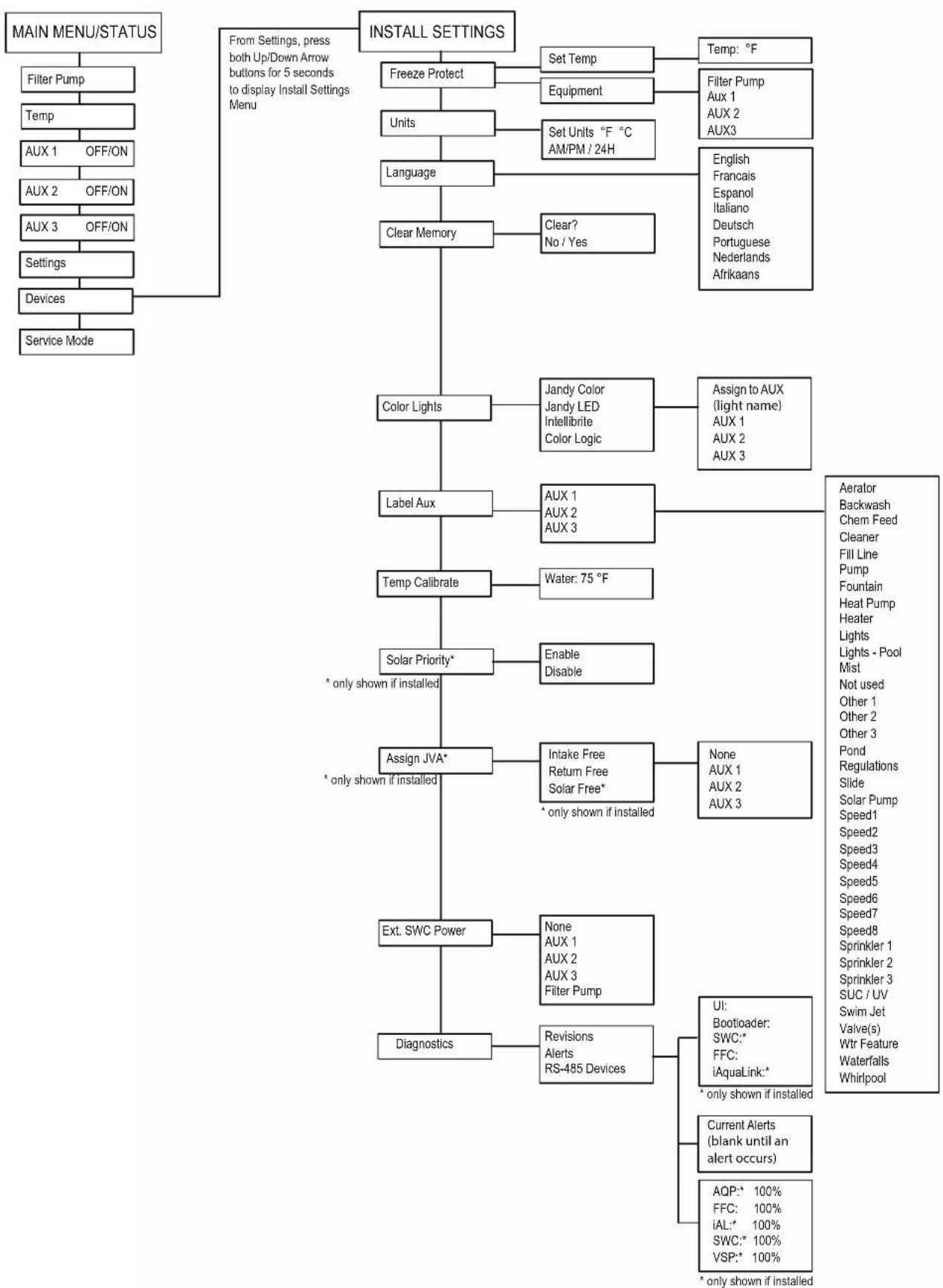

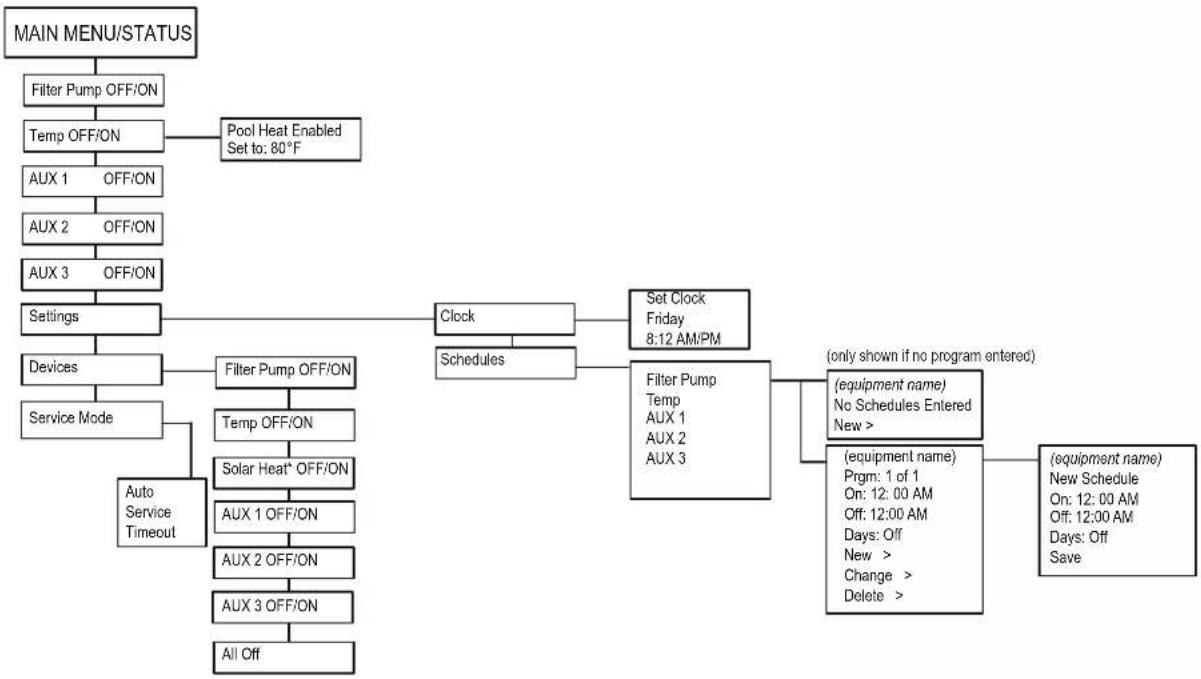

Section 9. Pool Only System Menu Flow Diagrams....15

9.1 Main Menu 15
9.2 Install Settings Menu.... 16

Section 10. Glossaries ....17

10.1 Glossary of Safety Delays and Lockouts 17
10.2 Glossary of Alert Messages 17

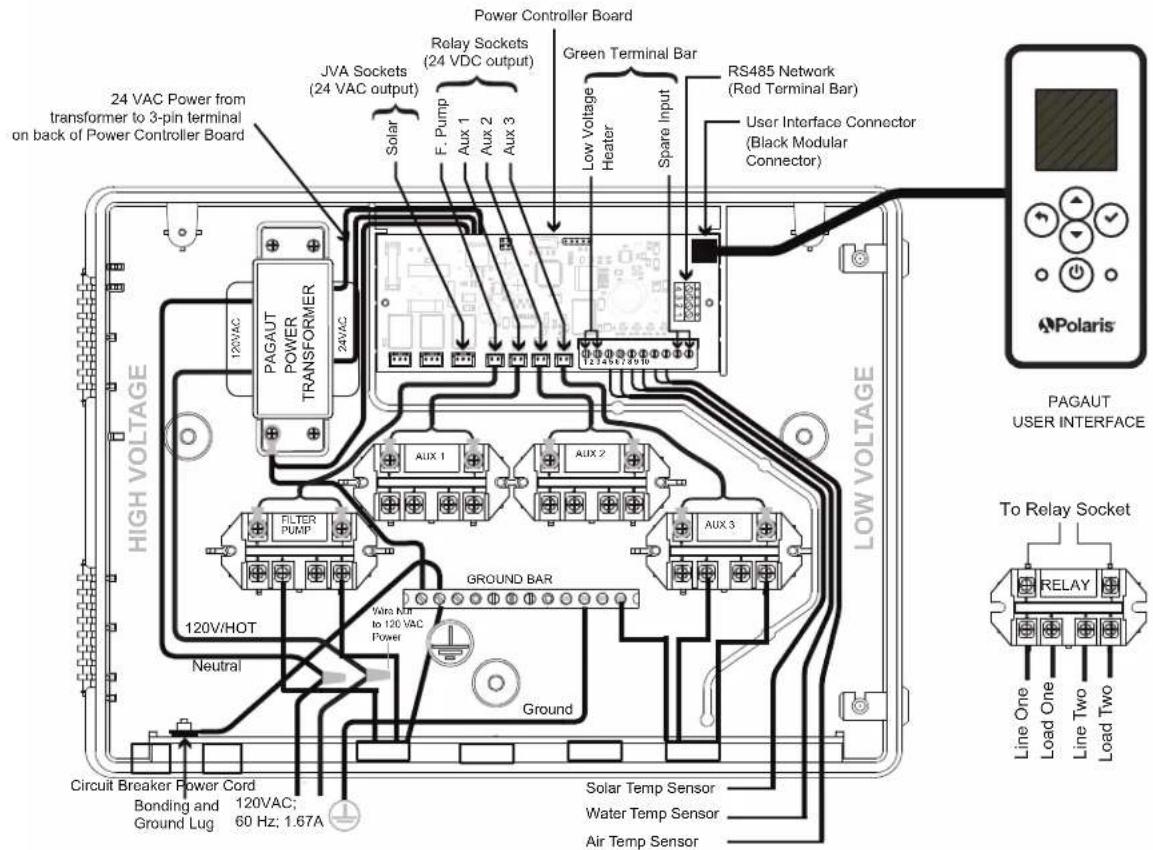

Section 11. Wiring Diagram....18

FCC Regulatory Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation/

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

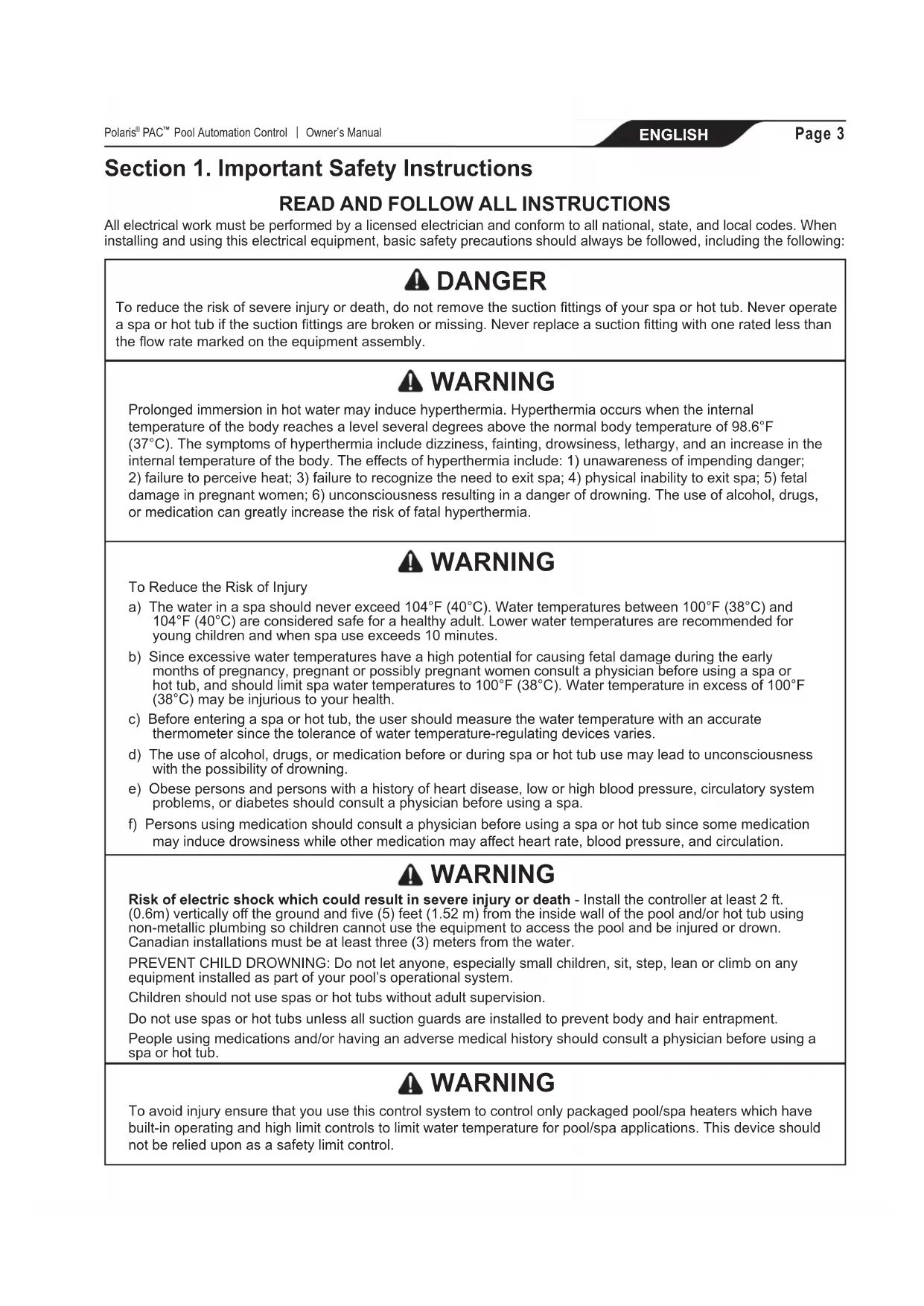

Section 1. Important Safety Instructions

READ AND FOLLOW ALL INSTRUCTIONS

All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

DANGER

To reduce the risk of severe injury or death, do not remove the suction fittings of your spa or hot tub. Never operate a spa or hot tub if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate marked on the equipment assembly.

WARNING

Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6^ F ( 37^ C). The symptoms of hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia include: 1) unawareness of impending danger; 2) failure to perceive heat; 3) failure to recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women; 6) unconsciousness resulting in a danger of drowning. The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia.

WARNING

To Reduce the Risk of Injury

a) The water in a spa should never exceed 104^ F ( 40^ C). Water temperatures between 100^ F ( 38^ C) and 104^ F ( 40^ C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women consult a physician before using a spa or hot tub, and should limit spa water temperatures to 100^ F ( 38^ C). Water temperature in excess of 100^ F ( 38^ C) may be injurious to your health.
c) Before entering a spa or hot tub, the user should measure the water temperature with an accurate thermometer since the tolerance of water temperature-regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa.
f) Persons using medication should consult a physician before using a spa or hot tub since some medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.

WARNING

Risk of electric shock which could result in severe injury or death - Install the controller at least 2 ft. (0.6m) vertically off the ground and five (5) feet (1.52 m) from the inside wall of the pool and/or hot tub using non-metallic plumbing so children cannot use the equipment to access the pool and be injured or drown. Canadian installations must be at least three (3) meters from the water.

PREVENT CHILD DROWNING: Do not let anyone, especially small children, sit, step, lean or climb on any equipment installed as part of your pool's operational system.

Children should not use spas or hot tubs without adult supervision.

Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment.

People using medications and/or having an adverse medical history should consult a physician before using a spa or hot tub.

WARNING

To avoid injury ensure that you use this control system to control only packaged pool/spa heaters which have built-in operating and high limit controls to limit water temperature for pool/spa applications. This device should not be relied upon as a safety limit control.

WARNING

People with infectious diseases should not use a spa or hot tub.

To avoid injury, exercise care when entering or exiting the spa or hot tub.

Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.

Pregnant or possibly pregnant women should consult a physician before using a spa or tub.

Water temperature in excess of 100^ (38°C) may be hazardous to your health.

Before entering a spa or hot tub, measure the water temperature with an accurate thermometer.

Do not use a spa or hot tub immediately following strenuous exercise.

Prolonged immersion in a spa or hot tub may be injurious to your health.

Do not permit any electric appliance (such as a light, telephone, radio, or television) within five (5) feet (1.52 m) of a spa or hot tub.

The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas.

WARNING

A terminal bar marked "GROUND" is provided within the controller. To reduce the risk of electrical shock which can cause serious injury or death, connect this terminal bar to the grounding terminal of your electric service or supply panel with a continuous copper conductor having green insulation and one that is equivalent in size to the circuit conductors supplying this equipment, but no smaller than no. 12 AWG (3.3 mm ^2 ). In addition, a second wire connector should be bonded with a no. 8 AWG (8.4 mm ^2 ) copper wire to any metal ladders, water pipes, or other metal within five (5) feet (1.52 m) of the pool/spa. In Canada the bonding wire must be minimum 6 AWG (13.3 mm ^2 ).

WARNING

To reduce the risk of electric shock, fire or injury, service should only be attempted by a qualified pool service professional.

Risk of Electric Shock. Connect only to a branch circuit protected by a ground-fault circuit-interrupter (GFCI). (in Canada: CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A GROUND FAULT CIRCUIT INTERRUPTER) Contact a qualified electrician if you cannot verify that the circuit is protected by a GFCI.

Such a GFCI should be tested on a routine basis. (In Canada: TEST THE GROUND FAULT CIRCUIT INTERRUPTER BEFORE EACH USE OF THE SPA) To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to this equipment without the test button being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this equipment. Disconnect this equipment and have the problem corrected by a qualified service representative before using.

Do not bury the cords. Locate cords to minimize abuse from lawn mowers, hedge trimmers, and other equipment.

To reduce the risk of electric shock, replace damaged cord immediately and do not use an extension cord to connect unit to electric supply; provide a properly located outlet.

This equipment is for use with permanently-installed pools only. Do not use with storable pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

To reduce the risk of injury, do not permit children to use this product unless they are supervised at all times.

CAUTION

The conductors on the load side of the ground-fault circuit-interrupter shall not occupy conduit, boxes, or enclosures containing other conductors unless the additional conductors are also protected by a ground-fault circuit-interrupter. Refer to local codes for complete details. MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS.

Section 2. System Overview

2.1 Package Contents

• Four Function Controller
  • Water Temperature Sensor Kit
  • Air Temperature Sensor
• Mounting Hardware
• Mounting Bracket
  • Installation Manual/ Owner's Manual

2.2 Electrical Specifications

Power Supply 120 VAC; 60 Hz; 1.67 A

Contact Rating High voltage - 15 A;

1.5HP @ 120 VAC

1500 Watts Incandescent

Low Voltage - Class 2,

1 A @ 24 VAC

2.3 Materials and Tools

Installation Materials Furnished

• Screw Set (includes Plastic Anchors)
  • Metal Mounting Bracket

Tools Needed for Installation

• Power Drill
• 3/16" Drill Bit - Hammer Drill Bit (only necessary to drill into brick or concrete)
• Pencil or Marking Pen
• Flat Head Screwdriver
  • Phillips Head Screwdriver
• Small Flathead or Slotted Screwdriver
  • Protective Safety Eyewear
• Protective Work Gloves

Section 3. Install Controller Box

WARNING

FOR YOUR SAFETY: This product must be serviced by a professional pool/spa service technician as described on the front cover of this manual. The procedures in this manual must be followed exactly.

Failure to follow warning notices and instructions may result in property damage, serious injury, or death. Improper installation and/or operation may void the warranty.

Risk of Electric Shock. Connect only to a branch circuit protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified electrician if you cannot verify that the circuit is protected by a GFCI. To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet.

CAUTION

To reduce the risk of electric shock do not place the power pack closer than 5 feet (1.5 m) from the pool. In Canada, at least 3 meters (10 feet) horizontally from the edge of the pool.

Do not bury the cords. Locate cords to minimize abuse from lawn mowers, hedge trimmers, and other equipment.

When mounting the controller box in the equipment pad, instructions must be followed exactly. Read through the Important Safety Information section completely before beginning installation and before operating the equipment.

Before you begin installation, make sure you have the necessary tools and a suitable location to install the automation system.

NOTE: The controller should be located at or near the equipment pad.

Locate the controller at least five (5) feet or more away from pool and two (2) feet (0.6m) off the ground. In Canada, at least 3 meters (10 feet) horizontally from the edge of the pool. All national, state, and local codes are applicable.

3.1 Mount the Controller Enclosure

1. Using a flat screwdriver, rotate door tumblers counter-clockwise to unlock the front cover of the controller.
2. Open the front cover door and remove the mounting hardware kit.

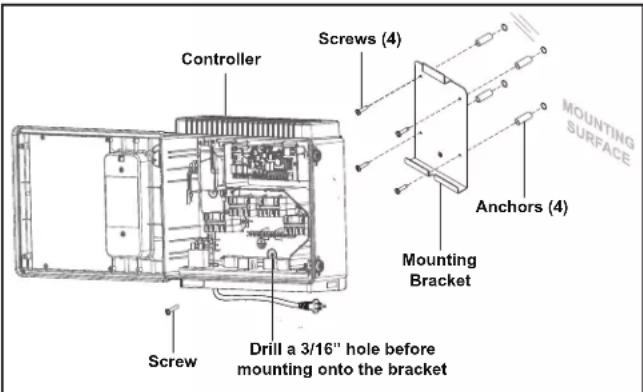

3. Using the holes in the bracket as a guide, mark four (4) dots on the surface where the controller will be mounted. The four (4) mounting holes are 3-15/16" (10 cm) apart center to center.

NOTE: Make sure to mark out the four (4) holes as accurately as possible.

1. Drill four (4) holes in the mounting surface.

2. Press the four (4) plastic anchors firmly into holes.

3. Screw the mounting bracket onto the mounting surface with the four (4) screws provided.

CAUTION

FOR YOUR SAFETY: Make sure to perform the following step BEFORE mounting the enclosure onto the mounting bracket, otherwise, damage to the threaded hole of the mounting bracket may occur.

1. Open the front cover of the controller and locate the fastening hole under the ground bar. Drill a 3/16" hole through the plastic enclosure.
2. Line up the slot in the controller enclosure with the guide in the mounting bracket and hook on to mount.
3. Secure the controller enclosure to the mounting bracket with the single fine thread Phillips screw provided.
4. Plug into the GFCI outlet.

Controller Screws (4) Mounting Surface Anchors (4) Mounting Bracket Screw Drill a 3/16" hole before mounting onto the bracket

3.2 Bonding the Power Center

In addition to being properly grounded per this installation manual, and in accordance with the requirements of the National Electrical Code (NEC), or in Canada the Canadian Electrical Code (CEC), the power center must be bonded to all metal parts of the swimming pool or hot tub structure and to all electrical components and equipment associated with the pool water circulation system. The bonding must be accomplished by using a solid copper conductor, No. 8 AWG or larger. In Canada No. 6 AWG or larger must be used. Bond the power center using the external bonding lug provided on the outer frame.

National Electrical Code® (NEC®) requires bonding of the Pool Water. Where none of the bonded pool equipment, structures, or parts are in direct connection with the pool water; the pool water shall be in direct contact with an approved corrosion-resistant conductive surface that exposes not less than 5800 mm² (9 in²) of the surface area to the pool water at all times. The conductive surface shall be located where it is not exposed to physical damage or dislodgement during usual pool activities, and it shall be bonded in accordance with the bonding requirements of NEC Article 680. Refer to locally enforced codes for any additional bonding requirements.

Section 4. High Voltage Plug In

4.1 Plug In Assignment

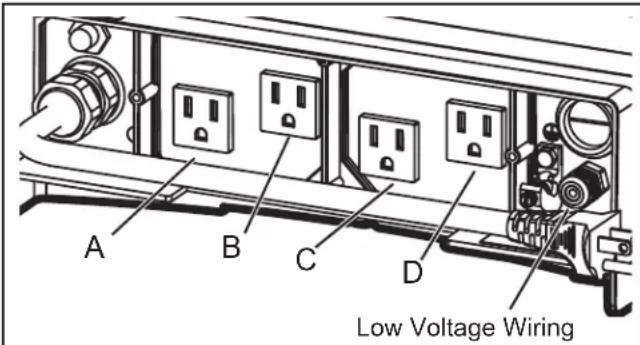

The following call-outs display the plug in assignments of the pool equipment.

A B C D Low Voltage Wiring

A - Filtration Pump: (120 VAC, 60Hz, 10A Max)
B (Aux 2) - Saltwater Chlorinator / Water Sanitizer: (120 VAC, 60Hz, 3A Max)
C (Aux 2) & D (Aux 3) - Low Voltage Light Transformer: (120 VAC, 60Hz, 1A Max)

Section 5. Low Voltage Wiring

All low voltage wiring should be run through the knockouts in the low voltage compartment (right side of controller enclosure).

IMPORTANT: Never run high voltage and low voltage in the same conduit.

5.1 Wire the Temperature Sensors

Wire the temperature sensors on the 10-pin green connector. The air temperature sensor is factory-installed on the 10-pin green connector (pins 7,8). The water temperature sensor and necessary installation hardware is included.

5.2 Install the Water Temperature Sensor

1. Drill a hole (3/8") for mounting the water temperature sensor line in the pipe between the pump and the filter (before the heater).
2. Install the O-ring on the sensor and insert the sensor into the hole. Wrap and tighten metal clamp around the pipe to secure sensor.
3. Feed the sensor wire through the black low voltage wiring knockout.
4. Strip 1/4" of insulation and separate the wires.
5. Connect sensor wires to pins 5 and 6 of the 10-pin green connector.

5.3 Install a Solar Sensor (if applicable)

If there is a solar panel in the equipment configuration, wire the solar panel temperature sensor to the 10-pin green connector. The solar sensor should be installed adjacent to the solar panel so it will sense the same temperature as the solar panels. Do not install in the pipe.

1. Feed the sensor wire through the black low voltage wiring knockout.
2. Strip 1/4" of insulation and separate the wires.
3. Connect sensor wires to pins 3 and 4.

5.4 Install Additional Low Voltage Equipment (i.e., Heater Connection)

If there is additional low voltage equipment installed, such as low voltage heating, wire to pins 1 and 2 on the 10-pin green connector.

5.5 Install iAquaLink ™ (if applicable)

NOTE: For complete instructions and safety information, refer to the iAquaLink Quick Start Guide (included in the iAquaLink packaging), or the full iAquaLink manual (found online at www.PolarisPool.com).

5.6 Mount the iAquaLink Device

Mount the iAquaLink at least 6 feet off the ground and at least 8 feet from motors, such as a blower.

5.7 Wire the iAquaLink Device

Wire the iAquaLink device on the red RS-485 connector.

1. Feed wire through the black low voltage wiring knockout.
2. Connect four (4) separate wires to each terminal.

4 Green 3 Yellow 2 Black 1 Red Red 4-Pin Terminal Bar

NOTE: Wire only two (2) devices (e.g, the iAquaLink™ and one additional device) to the RS-485 connector. If you have more than one additional device in your equipment configuration, use a multiplex board.

5.8 Install Jandy Valve ^® Actuators (JVAs) (if applicable)

You may wire up to a JVA on the PAC to control a water feature or solar panel, for example.

You may wire up to a JVA on the PAC to control a water feature or solar panel, for example.

NOTE: Read and follow complete installation instructions and safety information in the Jandy Valve Actuator owner's manual (included in the JVA packaging).

1. Install JVA on equipment lines according to installation instructions in the owner's manual.
2. Feed intake JVA wire through the black low voltage wiring knockout.
3. Plug JVAs to Solar socket.
4. If the solar sensor is installed the solar JVA will automatically assign to Solar Heat. If solar sensor is not installed the solar JVA may be assigned to one of the three (3) assemblies.

Section 6. User Interface

All system programming and installation setup is performed through the automation system user interface UI.

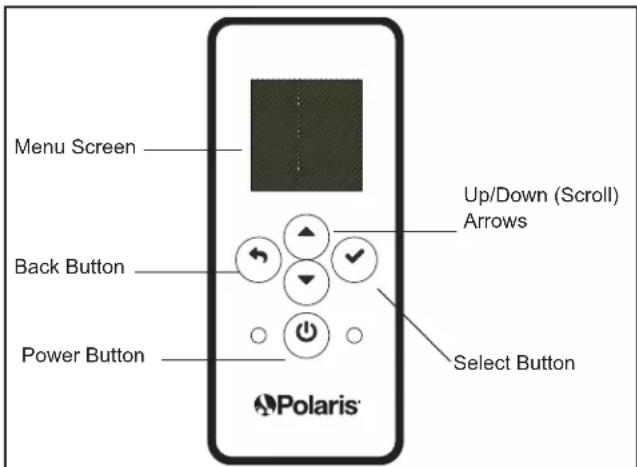

Menu Screen Back Button Power Button Polaris® Up/Down (Scroll) Arrows Select Button

6.1 Navigation Buttons

Use the following buttons on the user interface to access and select all menus and commands:

Scroll up/down within current menu to highlight a specific menu command.

Select

Select current highlighted menu command.

Display the next menu or activate the selected function.

Section 7. Install Settings

Install Settings is a hidden menu, mostly used for setup and reference purposes.

Settings available through this menu:

• Freeze Protect
  Automatically turn specific equipment on to protect against freezing temperatures.

- Units

Change units of measurement displayed on the User Interface (temperature and time format).

- Language

Change language displayed on the User Interface.

- Clear Memory

Clear all programmed data in the controller for all equipment.

- Color Lights

Only available if specific lights are installed in your configuration.

- Label Aux

Assign custom labels to auxiliary equipment, such as an air blower, cleaner, solar pump, etc.

- Temp Calibrate

Adjust temperature displayed on the User Interface up or down by four (4) degrees.

- Solar Priority

Only available if solar heating is installed in your system.

- Assign JVA

Assign Jandy Valve® Actuators (JVAs) to specific AUX relays, as intake or return in Pool Only mode.

- Diagnostics

Display software revision information and alerts for troubleshooting purposes.

To access the Install Settings Menu:

- Press and hold Up/Down arrow keys at the same time for about 5 seconds.

Zodiac 12:40PM Pool Mode On Pool Heater 80°F Aux1 Off Aux2 Off Settings > Devices >

INSTALL SETTINGS Freeze Protect > Units > Language > Clear Memory > Pump > ↓↓ More ↓↓

INSTALL SETTINGS Color Light > Label Aux > Temp Calibrate > Solar Priority > Assign JVA > Assign Hotkeys >

INSTALL SETTINGS Diagnostics >

7.1 Freeze Protect

NOTE By factory default the filter pump circuit is freeze protected. During freeze protection, the filter pump cannot be turned off.

IMPORTANT

Freeze protection is intended to protect equipment and plumbing for short periods of freezing only. It does this by activating the filtration pump and circulating the water to prevent freeze inside equipment or plumbing. Freeze protection does not guarantee that equipment will not be damaged by extended periods of freezing temperatures or power outages. In these conditions, the pool and spa should be shut down completely (e.g. drained of water and closed for the winter) until warmer weather exists.

CAUTION

Activating the spa during freezing conditions will override freeze protection. This means that if you are using your spa when freezing conditions exist, freeze protection will not circulate water to non-spa related equipment that you may have freeze protected (e.g. pool cleaner, booster pump.) Under these circumstances, the potential for equipment damage may exist.

Set Temperature:

INSTALL SETTINGS > FREEZE PROTECT > SET TEMP

Set outside temperature at which freeze protect function is activated. Activation temperature can be adjusted between 34^ F and 42^ F. Default freeze protection activation temperature is 38^ F. The freeze protected equipment will turn off when the temperature increases 2^ F above the activation temperature.

INSTALL SETTINGS Freeze Protect > Units > Language > Clear Memory > ↓↓ MORE ↓↓

FREEZE PROTECT Set Temp > Equipment >

FREEZE PROTECT TEMPERATURE Temp: 38°F

Select Equipment:

INSTALL SETTINGS > FREEZE PROTECT > EQUIPMENT

Assign freeze protection to a selected piece of equipment.

FREEZE PROTECT Set Temp > Equipment >

FREEZE PROTECT EQUIPMENT ✓ Filter Pump Aux1 Aux2 Aux3

7.2 Units

INSTALL SETTINGS>UNITS

Change the temperature units (Fahrenheit - Celcius) and time format (12-hour AM/PM to 24-hour clock).

INSTALL SETTINGS Freeze Protect > Units > Language > Clear Memory >

SET UNITS °F/°C AM/PM 24H

7.3 Languages

MAIN/STATUS>MENU>SYSTEM SETUP>LANGUAGE

Change the language displayed on the user interface. Languages available are:

Clear all stored values (e.g., auxiliary labels, programs, remote settings, and thermostat settings) from the Polaris PAC memory. All settings will be reset to default factory settings. Time and date is not cleared.

INSTALL SETTINGS Freeze Protect > Units > Language > Clear Memory > ↓↓ More ↓↓

Clear? No Yes

CLEAR MEMORY Clear? Are you sure you want to clear? Cancel Yes

• The system asks you to verify you are sure you want to clear memory.
• There is a 15-second delay and *MEMORY CLEARED* message is displayed.

7.5 Color Lights

INSTALL SETTINGS > COLOR LIGHTS

NOTE You will only see this option if colored lights are installed in your system.

Select type of light installed (e.g., Jandy Colors™ or Jandy® LED Light) and assign the light to an available auxiliary relay.

Select Light Type:

Assign Selected Light to an Auxiliary:

• JC is displayed next to AUX if a Jandy Colors light has been assigned.
• JL is displayed next to AUX if a Jandy LED Light has been assigned.
• Press Select button with JC or JL highlighted to toggle control by the auxiliary on or off.

7.6 Label Auxiliary Functions

INSTALL SETTINGS>LABEL AUX

Assign labels to auxiliary equipment to display text in the user interface instead of AUX 1, 2, or 3.

• Choose from labels listed A-Z on each screen.

7.7 Temp Calibrate

INSTALL SETTINGS>TEMP CALIBRATE

Adjust temperature displayed on the Polaris PAC up or down by 4 degrees.

NOTE If the temperature is off by more than four (4) degrees, contact your local service representative.

SYSTEM SETUP Label Aux > Temp Calibrate > Solar Priority > Assign JVA > Color Light > ↓↓ More ↓↓ TEMPERATURE CALIBRATE Water: 74°F

• Use Up/Down arrows to set new temperature value.

7.8 Solar Priority (if applicable)

INSTALL SETTINGS>SOLAR PRIORITY

NOTE: You will only see this option if solar heating is installed in your system.

Enable the system to use solar heat first, when available. If solar heat is no longer available, the system will automatically switch to the alternate heat source.

• When solar and heater are enabled the solar will heat the water until either the thermostat setting has been reached or solar heat is no longer available.
• If the solar panel is not hot enough, solar heat will shut off and the other heat source (usually gas heater) will take over to bring the water up to the thermostat setting.

7.9 Assign JVA

INSTALL SETTINGS>ASSIGN JVA

NOTE: If the system is a pool/spa combination, without solar, only the solar JVA is assignable. If the system is a pool or spa only system, without solar, all three JVAs are assignable. The example shown is for a pool or spa only system without solar.

Allow Jandy Valve® Actuators (JVAs) to be assigned to any auxiliary on the Polaris PAC controller, so that when you select this auxiliary, the valve turns. Assigning JVAs lets the pool owner control certain features like diverting water to a waterfall or bank of spa jets. Multiple JVAs can be assigned to one auxiliary without extra hardware.

INSTALL SETTINGS Color Lights > Label Aux > Temp Calibrate > Solar Priority > Assign JVA > ↓↓ More ↓↓ >

ASSIGN JVA Solar Free

ASSIGN JVA Solar None Aux1 Aux2 Aux3

7.10 Diagnostics

INSTALL SETTINGS>DIAGNOSTICS

For troubleshooting purposes, view diagnostic information relating to current firmware revisions, system alerts or error messages, and status of devices connected to the RS-485 controller.

View Revision Number:

INSTALL SETTINGS>DIAGNOSTICS>REVISIONS

View your system firmware revision number for troubleshooting.

INSTALL SETTINGS Diagnostics > ↑↑ More ↑↑

DIAGNOSTICS Revisions > Alerts > RS-485 Devices >

REVISIONS UI: 1.3 Bootloader: 0.26 SWC: FFC: 0.18 iAquaLink: 2.1.4

View Alert Messages

INSTALL SETTINGS>DIAGNOSTICS>ALERTS

View alerts or error messages. See Section 10. Glossaries for a complete list and explanation of all system messages.

DIAGNOSTICS Revisions > Alerts > RS-485 Devices >

CURRENT ALERTS [BLANK UNTIL AN ALERT OCURS]

- Screen is blank if the controller has no errors to report.

View RS-485 Device Status:

INSTALL SETTINGS>DIAGNOSTICS>RS-485 DEVICES

View status of devices connected to the RS-485 controller. Depending on your equipment configuration, any combination of the following equipment may be displayed:

• FFC - Polaris PAC Controller
- iAL - iAquaLink

DIAGNOSTICS Revisions > Alerts > RS-485 Devices >

RS-485 DEVICES FFC: 100% iAL: 100%

Section 8. Main Menu

From the Main menu, access commands to turn equipment on/off, program scheduled times to turn equipment on/off automatically, and view current operating status for specific equipment in your configuration.

12:40PM Filter Pump Off Temp Off Aux 1 Off Aux 2 Off Aux 3 Off Settings > Devices > Service Mode >

MAIN MENU

8.1 Equipment Status

If any of the equipment is currently enabled in your system, the screen alternately displays the Main menu and the Equipment Status screen.

8.2 Filter Pump

MAIN > FILTER PUMP

Turn on Filter Pump whenever you want to filter the pool. Filter Pump enables the filter pump to circulate water through the filter and pool heater.

12:40PM Filter Pump On Temp Off Aux 1 Off Aux 2 Off Aux 3 Off Settings > Devices > Service Mode >

Equipment Status Filter Pump

- When Filter Pump is activated, the Equipment Status menu is displayed indicating the Filter Pump is ON.

8.3 Pool Heater On/Off

MAIN > POOL HEATER

Enable the heater for the pool. Heater will turn on automatically as long as the filter pump is on and the water temperature is below the temperature set point.

12:40PM Settings > Devices > Service Mode >

POOL HEAT Enabled Set to: 75°F

12:40PM Settings > Devices > Service Mode >

• Increase or decrease current pool temperature by pressing Select to highlight the setting. Press Up/Down arrows to increase or decrease temperature.
• To turn pool heater OFF, press Select when Pool Heater is highlighted in the Main menu.

8.4 Turn Aux1, Aux2 or Aux3 On/Off

MAIN > AUX1, AUX2, AUX3

NOTE: If you have assigned labels to auxiliary equipment, the label will be displayed in the Main menu.

Turn ON or OFF auxiliary equipment, for example pool lights, salt chlorinator, or UV system.

12:40PM Pool Mode Off Temp 1 Off Aux1 Off Aux2 Off Aux3 Off Settings > Devices > Service Mode >

12:40PM Pool Mode Off Temp 1 Off Aux1 On Aux2 On Aux3 On Settings > Devices > Service Mode >

Settings Clock Schedule

Set the System Clock:

$$ M A I N > S E T T I N G S > C L O C K $$

Set the current day of the week and time. This setting is the time clock basis for defining schedules for the filter pump and other equipment.

• Current programmed day flashes when selected. Scroll through days of the week to display desired day, then press Select.
• Current programmed time (hour) flashes when selected. Scroll through 24 hours to display desired time, then press Select.
• Current programmed time (minutes) flashes when selected. Scroll through 60 minutes to display desired time, then press Select.

Define Specific Equipment ON/OFF Schedules:

$$ \text { MAIN } > \text { SETTINGS } > \text { SCHEDULES } $$

Define automatic ON and OFF times for specific equipment in your installation. You may set different schedules for any single day, weekdays, weekends, or assign the same schedule for all days. Set a maximum of ten programs combined.

Define schedules for the following equipment as applicable:

• Filter Pump
• Pool Heater
  • Solar Heater (if applicable)
• Aux1, Aux2, and Aux3 (as applicable)

NOTE: You will only see equipment listed in the menu if it is installed as part of your system.

Example: Define Filter Pump Schedule

$$ \text { MAIN } > \text { SETTINGS } > \text { SCHEDULES } > \text { FILTER PUMP } $$

NOTE: Example shown is for defining the filter pump schedule. The procedure to define or change ON / OFF times for all equipment listed in Schedules Menu is identical to defining Filter Pump schedule.

• Choose CHANGE to change the current displayed schedule for selected equipment.

• Choose DELETE to remove the current schedule from system programming. The system asks for verification: Delete? No Yes.

• If there is no schedule currently set up for the selected equipment, the system displays the message: No Schedules Entered. Choose NEW to begin programming a schedule.

• If there is more than one schedule currently set up for the selected equipment, the system indicates total number of programs currently entered for this equipment (e.g., Program 2 of 2).
• Set ON time and OFF times:

- Current programmed time (hour) flashes when selected. Scroll through 24 hours to display desired time, then press Select.

- Current programmed time (minutes) flashes when selected. Scroll through 60 minutes to display desired time, then press Select.

- Set DAYS:

– Current programmed day flashes when selected. Scroll through days of the week to display desired day, ALL DAYS, WEEKENDS, or WEEKDAYS, then press Select.

- When you select SAVE to enter new program data, the system indicates total number of programs currently entered for this equipment (e.g., Program 2 of 2).

8.5 Turn Specific Equipment On/Off Manually

MAIN > DEVICES

Example: Define Filter Pump Schedule

Filter Pump Prgm: 2 of 2 ON: 09:00PM OFF: 11:00PM DAYS: Tuesday New > Change > Delete >

- Choose NEW to keep the schedule displayed and program an additional schedule for selected equipment.

Turn selected equipment ON and OFF manually. The following equipment may be displayed depending on your pool's configuration:

• Filter Pump
• Temp1
• Solar Heat (*only displayed if a solar heater and solar sensor is part of your configuration)
• Aux1, Aux2, and Aux3 (* only if unlabeled auxiliaries; labeled equipment is displayed by name)

8.6 Turn All Equipment Off

MAIN > DEVICES > ALL OFF

Manually turn OFF all equipment that is currently turned on or enabled in your system.

Air 78°F
Filter Pump Off
Temp 1	>
Aux 1	>
Aux 2 >
Aux3	>
Settings	>
Devices	>
Service Mode >

Devices
Filter Pump	>
Temp 1	>
Aux1	Off
Aux2	Off
Aux3	On
All Off
↑↑	↑↑

Section 9. Pool Only System Menu Flow Diagrams

9.1 Main Menu

    C --> R["Pool Heat Enabled Set to: 80°F"]

    G --> S["Clock"]
    S --> T["Set Clock Friday 8:12 AM/PM"]
    T --> U["Filter Pump Temp AUX 1 AUX 2 AUX 3"]

    U --> V["(only shown if no program entered)"]
    V --> W["(equipment name) No Schedules Entered New >"]
    V --> X["(equipment name) Prgm: 1 of 1 On: 12:00 AM Off: 12:00 AM Days: Off New > Change > Delete >"]

    W --> Y["(equipment name) New Schedule On: 12:00 AM Off: 12:00 AM Days: Off Save"]

9.2 Install Settings Menu

    J["From Settings, press both Up/Down Arrow buttons for 5 seconds to display Install Settings Menu"] --> K["INSTALL SETTINGS"]
    K --> L["Freeze Protect"]
    L --> M["Units"]
    M --> N["Language"]
    N --> O["Clear Memory"]
    O --> P["Color Lights"]
    P --> Q["Label Aux"]
    Q --> R["Temp Calibrate"]
    R --> S["Solar Priority*"]
    S --> T["Assign JVA*"]
    T --> U["Ext. SWC Power"]
    U --> V["Diagnostics"]

    K --> W["Set Temp"]
    K --> X["Equipment"]
    K --> Y["Set Units °F °C AM/PM / 24H"]

    K --> Z["Clear? No / Yes"]

    K --> AA["Temp: °F"]
    K --> AB["Filter Pump Aux 1 AUX 2 AUX3"]
    K --> AC["English Francais Espanol Italiano Deutsch Portuguese Nederlands Afrikaans"]

    K --> AD["Jandy Color Jandy LED Inellibrite Color Logic"]
    K --> AE["Assign to AUX (light name) AUX 1 AUX 2 AUX 3"]

    R --> AF["AUX 1 AUX 2 AUX 3"]

    R --> AG["Water: 75 °F"]

    S --> AH["Enable Disable"]

    T --> AI["Intake Free Return Free Solar Free* * only shown if installed"]

    U --> AJ["None AUX 1 AUX 2 AUX 3"]

    V --> AK["None AUX 1 AUX 2 AUX 3"]

    AL["Assign JVA*"] --> AM["Intake Free Return Free Solar Free* * only shown if installed"]

    AK --> AN["UI: Bootloader: SWC:* FFC: iAquaLink:* * only shown if installed"]

    AL --> AO["Current Alerts (blank until an alert occurs)"]

    AP["AOP:* 100% FFC: 100% iAL:* 100% SWC:* 100% VSP:* 100%"] --> AQ["* only shown if installed"]

    style A fill:#f9f,stroke:#333
    style J fill:#ccf,stroke:#333
    style K fill:#cfc,stroke:#333
    style R fill:#fcc,stroke:#333
    style S fill:#cff,stroke:#333
    style T fill:#ffc,stroke:#333
    style U fill:#fcc,stroke:#333
    style AK fill:#ffc,stroke:#333

Section 10. Glossaries

10.1 Glossary of Safety Delays and Lockouts

Heater Cool Down Delay

When the system is heating and the Filter Pump is turned off, the Filter Pump will remain on for five (5) minutes, and will continue to circulate the water. This delay allows water to cool the heater down by circulating water through it, preventing equipment damage. The five (5) minute delay starts counting down when the heater goes off. If the heater has been off for five (5) minutes or more, prior to turning off the Filter Pump, there will not be a delay.

Heater Start-up

The heater will only come on if the water is circulating (for example, the filter pump is on and has been circulating for 15 seconds) and the actual water temperature is below the temperature you set with Temp Set in the Menu. If these conditions are not met, the heater will be enabled (ready to go), but will not fire.

Heater "Short Cycling" Prevention

When the heater is activated and the desired temperature is reached, heater will turn off and remain off for three (3) minutes, even if the temperature falls below the desired temperature. This feature prevents heater short cycling (in other words, the heater turning off and on in rapid succession).

Cleaner Lockout

The pool cleaner will only activate if the Filter Pump is on and water is circulating. The pool cleaner requires that water is circulating to the pool in order for it to operate.

Enabled

When activated allows the function to work.

Disabled

When activated does not allow the function to work.

10.2 Glossary of Alert Messages

FREEZE PROTECT

This message indicates that freezing conditions have been detected by the freeze protection sensor, and that equipment assigned to freeze protection are active (for example, the filter pump). See Freeze Protection Menu for more information.

NOTE: The filter pump is always protected; auxiliary circuits can be assigned to freeze protection. If a freeze protected Auxiliary is turned off during freeze protection, a message will be displayed indicating that item is off but will turn on in X amount of minutes. The minutes will vary depending on how long freeze mode has been active from one (1) to 15 minutes.

SENSOR OPEN

This error message indicates that the sensor is not installed properly or is malfunctioning. Call your pool service person to resolve this problem.

NOTE: If the message reads Water TEMP Open, the heater will not fire. If message Air TEMP OPEN is displayed, freeze protection will not operate correctly.

This message is displayed when you attempt to turn off the filter pump while a spa spillover is on. Since the filter pump is necessary for spillover operation, the pump will remain on until the spillover is turned off.

This message indicates that the filter pump is circulating water to cool down the heater. The filter pump will continue to run for five minutes to protect the heater from damage, whenever the heater has fired and has been off for less than five (5) minutes.

SERVICE MODE

Service mode is used by the pool service person to aid them in servicing the pool.

SENSOR SHORT

This error message indicates that the sensor is not installed properly or is malfunctioning. Call your pool service person to resolve this problem.

NOTE: If the message reads WATER TEMP SHORT, the heater will not fire. If the message AIR TEMP SHORT is displayed, freeze protection will not operate correctly.

TIME-OUT MODE

Time Out mode is used by the pool service person to aid them in servicing the pool. The automation system user interface will not be functional for three (3) hours, or until the switch at the Controller is turned back to AUTO mode. The time remaining for TIME OUT mode is displayed on the user interface screen

Section 11. Wiring Diagram

24 VAC Power from transformer to 3-pin terminal on back of Power Controller Board PAGAUT POWER TRANSFORMER 120VAC 24VAC JVA Sockets (24 VAC output) Solar F. Pump Aux 1 Aux 2 Aux 3 Relay Sockets (24 VDC output) Green Terminal Bar Low Voltage Heater Spare Input RS485 Network (Red Terminal Bar) User Interface Connector (Black Modular Connector) HIGH VOLTAGE AUX 1 AUX 2 AUX 3 GROUND BAR Wired to 120 VAC Power Ground Neutral Circuit Breaker Power Cord Bonding and Ground Lug 120VAC; 60 Hz; 1.67A Solar Temp Sensor Water Temp Sensor Air Temp Sensor LOW VOLTAGE PAGAUT USER INTERFACE To Relay Socket Line One Load One Line Two Load Two

NOTES

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010, USA

1.800.822.7933

PolarisPool.com

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway, Burlington,

ON L7M 1A6, Canada

1.800.822.7933

PolarisPool.ca

©2022 Zodiac Pool Systems LLC. All rights reserved. Polaris® and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems LLC. All other trademarks referenced herein are the property of their respective owners.

H0770000_REVB

Line drawing of a portable electronic device with control panel, power plug, and cable (no text or symbols)

1 500 watts incandescent

Basse tension - Classe 2,

1 A à 24 V. c.a.

Zodiac 12:40PM Pool Mode On Pool Heater 80°F Aux1 Off Aux2 Off Settings > Devices >

INSTALL SETTINGS Freeze Protect > Units > Language > Clear Memory > Pump > ↓↓ More ↓↓

INSTALL SETTINGS Color Light > Label Aux > Temp Calibrate > Solar Priority > Assign JVA > Assign Hotkeys >

INSTALL SETTINGS Diagnostics > ↑↑ ↑↑

7.2 Unités

PARAMÈTRES D'INSTALLATION>UNITÉS

ASSIGN JVA Solar Free

ASSIGN JVA Solar None Aux1 Aux2 Aux3

7.10 Diagnostics

PARAMÈTRES D'INSTALLATION > DIAGNOSTICS

Section 8. Menu principal

12:40PM Settings > Devices > Service Mode >

POOL HEAT Enabled Set to: 75°F

12:40PM Settings > Devices > Service Mode >

12:40PM Pool Mode Off Temp 1 Off Aux1 Off Aux2 Off Aux3 Off Settings > Devices > Service Mode >

12:40PM Pool Mode Off Temp 1 Off Aux1 On Aux2 On Aux3 On Settings > Devices > Service Mode >

Settings Clock Schedule

Filter Pump Prgm: 2 of 2 ON: 09:00PM OFF: 11:00PM DAYS: Tuesday New > Change Delete

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010, USA

1.800.822.7933

PolarisPool.com

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway, Burlington,

ON L7M 1A6, Canada

1.800.822.7933

PolarisPool.ca

Line drawing of a portable electronic device with control panel, power plug, and cable (no text or symbols)

FREEZE PROTECT Set Temp > Equipment >

FREEZE PROTECT TEMPERATURE Temp: 38°F

Seleccionar equipo:

FREEZE PROTECT Set Temp > Equipment >

FREEZE PROTECT EQUIPMENT ✓ Filter Pump Aux1 Aux2 Aux3

7.2 Unidades

Clear? No Yes

CLEAR MEMORY Clear? Are you sure you want to clear? Cancel Yes

ASSIGN TO AUX Jandy Color Aux1 JC Aux2 Aux3

LABEL AUX Aux1 > Aux2 > Aux3 >

Label = Aux2 Aerator Air Blower Backwash Chlorinator ↓↓ More ↓↓

Label = Aux2 Swim Jet Valve(s) Wtr Feature Waterfalls Whirlpool ↑↑ More ↑↑

ASSIGN JVA Solar Free

ASSIGN JVA Solar None Aux1 Aux2 Aux3

7.10 Diagnóstico

Set to: 75^ F

12:40PM

Settings >

Devices >

Service Mode

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway, Burlington,

ON L7M 1A6, Canadá

1.800.822.7933

PolarisPool.ca
