Thank you for purchasing this Vacmaster ^® wet/dry vacuum cleaner. Feel confident that with Vacmaster ^® you are obtaining a high-quality product engineered for optimal performance.

This vacuum is capable of picking up liquids and dry materials.

IMPORTANT INFORMATION

GALLONS

"Tank Size" refers to the actual tank volume and does not reflect capacity available during operation.

PEAK HP

"Peak Horsepower" is a term used in the wet-dry vac industry for consumer comparison purposes. It does not denote the operational horsepower output of a wet-dry vac, but rather the horsepower output of a motor, including the motor's inertial contribution, achieved in laboratory testing. In actual use, motors do not operate at the peak horsepower shown.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

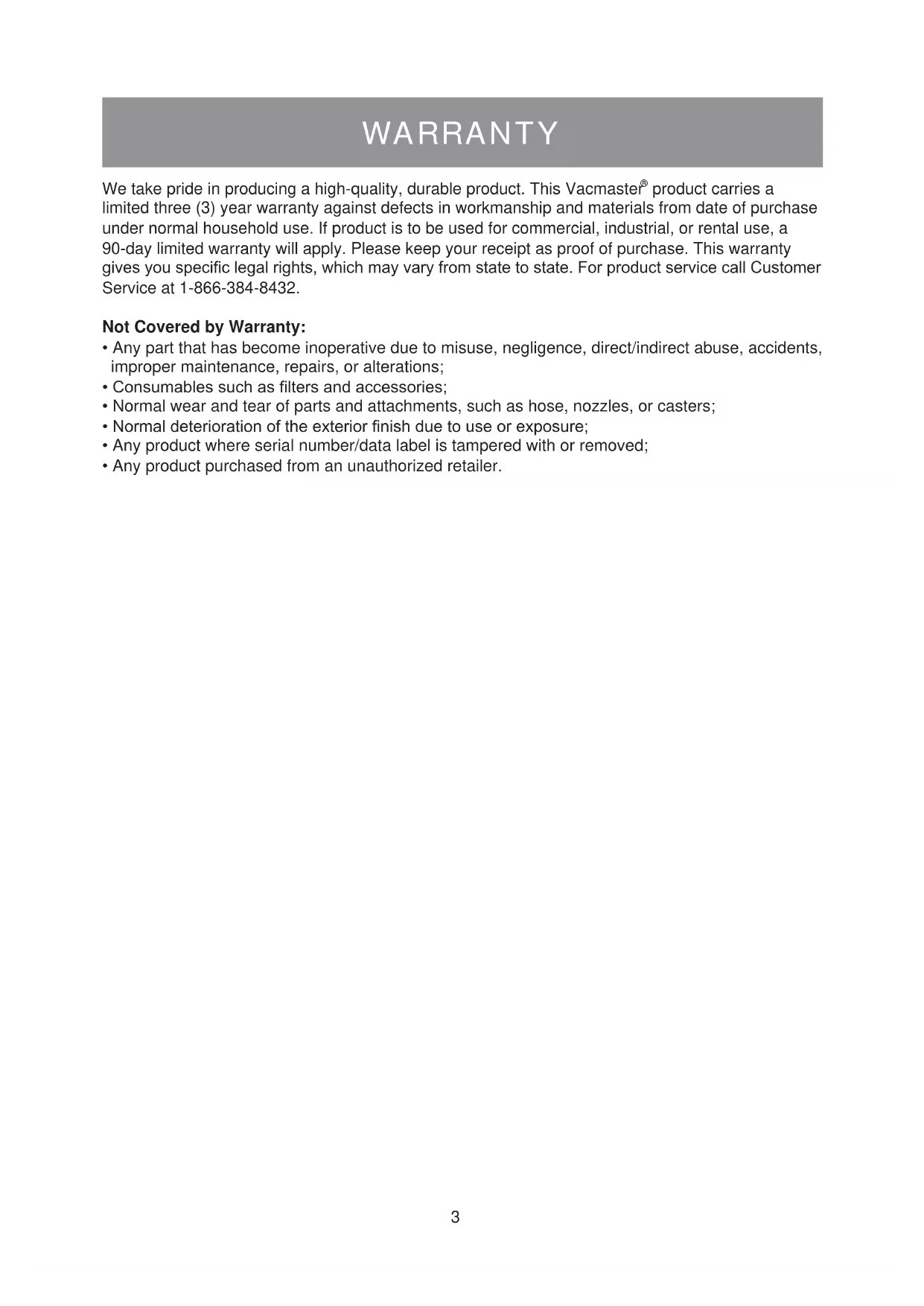

WARRANTY

We take pride in producing a high-quality, durable product. This Vacmaster® product carries a limited three (3) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial, or rental use, a 90-day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, which may vary from state to state. For product service call Customer Service at 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs, or alterations;
• Consumables such as filters and accessories;
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
• Normal deterioration of the exterior finish due to use or exposure;
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

Read and understand this operator's manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this vacuum only as described in this manual. To reduce the risk of personal injury or damage to your vacuum, use only manufacturer recommended accessories.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

When using a vacuum, basic precautions should always be followed including the following. Failure to follow the warnings and instructions may result in explosion, fire and/or serious injury.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Do not run vacuum unattended.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not vacuum, or use this vacuum near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite flammable vapors or dust.
  • To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
• Do not use without filters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.

CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing.

WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing.

When using as blower:

• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.

SAVE THESE INSTRUCTIONS

For Household Use Only

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vacuum is double insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacuums before servicing. Use this vacuum as described in this manual.

Observe the following warnings that appear on the motor housing of your vacuum.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR'S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE, OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION: DO NOT VACUUM DRYWALL DUST OR FIREPLACE SOOT OR ASH WITH STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY NOT BE CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER.

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUMS WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PART FOR A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS 'DOUBLE INSULATED' AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

EXTENSION CORDS

When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.

		Length of Extension Cord
120V 25ft (7.62m)		50ft (15.24m) 100ft (30.48m) 150ft (45.72m)
Ampere rating		A.W.G. Wire Size
More than N	Not more than
0 6 18 1	6 16 14
6	1	0		1	8
10 12	16 16	14 12
12 16	14 12	Not recommended

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
	DANGER	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	NOTICE	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

UNPACKING & CHECKING CARTON CONTENTS

A

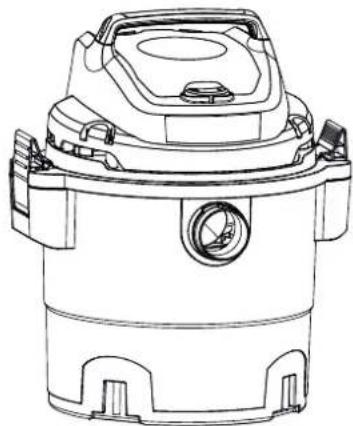

Line drawing of a mechanical device with no visible text or symbols

B

Illustration of a coiled hose with a connector (no text or symbols)

Remove all contents from the box. Remove the powerhead and take out any contents inside the collection tank. Check each item against the carton contents list.

Carton Contents List:

C

D

E

H

F

G

J

K

L

Key

Description .... Qty.

A Vacuum Assembly....1

B Hose....1

C Locking Extension Wand....2

D Locking Utility Nozzle.... 1

E Locking Floor Brush/Squeegee Nozzle. 1

F Hose Storage Rack.... 2

G Foam Wet Filter.... 1

H Cartridge Filter.... 1

I Filter Retainer.... 1

J Caster Foot Assembly......4

K 4 Screws (Bag).... 1

L Operator's Manual.... 1

Power Cord
Storage Blower Port

Illustration of a person wearing harnesses inside a circular frame with mechanical components (no text or symbols)

NOTE: The hose and accessories for this vacuum are 1-7/8" (47.6 mm) diameter.

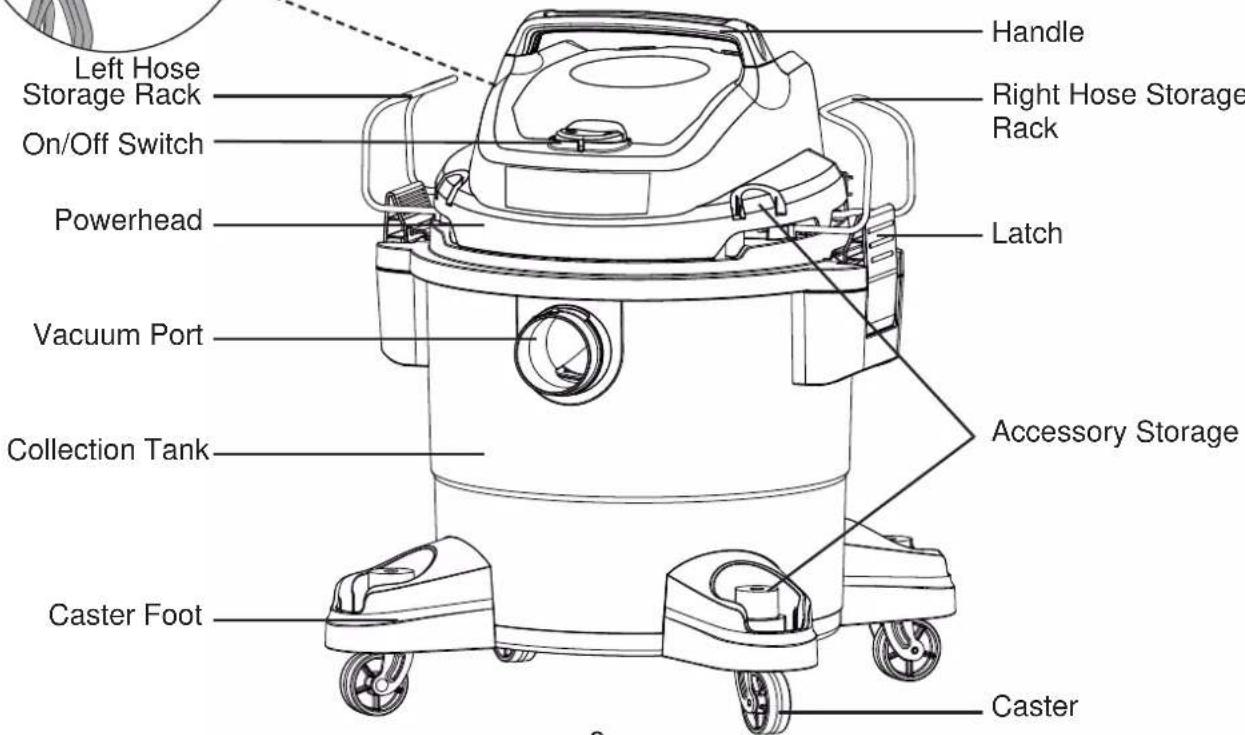

Handle Right Hose Storage Rack Left Hose Storage Rack On/Off Switch Powerhead Latch Vacuum Port Collection Tank Accessory Storage Caster Foot Caster

GENERAL ASSEMBLY INSTRUCTIONS

A Philips head screwdriver is required.

Illustration of a plug with a circular socket and an open socket, showing internal components (no text or symbols)

Line drawing of a mechanical device with a scroll wheel and directional arrow (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

Illustration of a mechanical assembly with gears and components, no visible text or symbols

Mechanical component diagram showing a cylindrical part with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

7

8

Hand holding a mechanical component, no visible text or symbols

10

Diagram of a cylindrical object with a base and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

13

Diagram of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Mechanical diagram showing a hand holding a threaded pipe connected to a valve or pump component (no text or symbols visible)

Diagram of a kitchen sink with a curved arrow indicating direction, no text or symbols present

Illustration of a vacuum cleaner performing a valve operation (no text or symbols)

Simple line drawing of a mop with a handle and base (no text or symbols)

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the powerhead off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed on page 8 (Fig. 4).
5. Turn the collection tank on its side and insert the four caster feet into the slots on the collection tank and tighten with supplied screws. Verify that the caster feet are mounted correctly. Do not over-tighten screws (Fig. 5).
6. Position the left hose storage rack on the front side of the powerhead, just above the top edge of the tank, as illustrated in Fig. 6. Squeeze the open sides of the left hose storage rack inward and insert the open ends into the allocated slot. Verify that the rack is secured in place as shown in Fig. 7. Install the right hose storage rack in the same way on the other side of the powerhead as shown in Fig. 9, ensuring it is secured (Fig. 6 – 10).

NOTE: Hose storage rack may come pre-installed on some models.

1. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 15 for installation instructions (Fig. 11 & 12).
2. For wet vacuum cleaning, remove the cartridge filter, and install the supplied foam wet filter. See page 16 for the foam wet filter installation instructions (Fig. 13).
3. Place the powerhead back on the collection tank and secure into place using the latches (Fig. 14 & 15).
4. Insert the locking end of the hose into the vacuum port on the collection tank and turn clockwise to lock into place (Fig. 16).
5. The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and push together until they lock into place (Fig. 17). To remove the attachment, press down on the locking tab and slide it off (Fig. 18).

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double insulation ☐ eliminates the need for the three-wire grounded power cord and grounded power supply system.

Illustration of an electrical plug with a socket and plug, showing internal components (no text or symbols)

2

Diagram of a cylindrical mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of a mechanical device being inserted into a base, showing a handle and arrow (no text or symbols)

7 1

Illustration of a plug and its internal socket, showing a separate socket and a separate plug with an arrow indicating direction (no text or symbols)

9

DRY VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED "IMPORTANT SAFETY INSTRUCTIONS". DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUST INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER (INCLUDED).

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. In order to prepare your vacuum for dry vacuuming, make sure the cartridge filter completely covers the filter cage against the powerhead. Your wet/dry vacuum comes with the cartridge filter pre-installed. For installation instructions, see page 15 (Fig. 2 & 3).
3. Place the filter retainer on the top of the cartridge filter and tighten down by turning the retainer handle clockwise (Fig. 4).
4. Place the powerhead back on the collection tank and secure it in place using the latches (Fig. 5).

OPERATING INSTRUCTIONS: DRY VACUUMING

1. Insert the locking end of the hose into the vacuum port on the collection tank and turn clockwise to lock into place.
2. The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and push together until they lock into place (Fig. 6).
3. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet (Fig. 7 & 8).
4. Turn the vacuum on by flipping the switch to the 'I' ON position and begin vacuuming (Fig. 9).
5. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.

$$ O = O F F \quad I = O N $$

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

Illustration of an electrical plug with a socket and plug, showing internal components (no text or symbols)

2

Diagram of a cleaning or cleaning operation showing a tool interacting with a mounted device (no text or symbols present)

4

Illustration of a plug and its internal socket, showing a separate socket and a separate plug with an arrow indicating direction (no text or symbols)

6 O

Illustration of a mechanical device with hoses and connectors (no text or symbols)

LIQUID VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED "IMPORTANT SAFETY INSTRUCTIONS". DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUST INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is clean and free of dust and dirt (Fig. 1).
2. Remove the cartridge filter, then carefully install the foam wet filter over the filter cage and place the powerhead back on the collection tank. For foam wet filter installation instructions, see page 16 (Fig. 2).

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

OPERATING INSTRUCTIONS: WET VACUUMING

1. The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and push together until they lock into place (Fig. 3).
2. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet (Fig. 4 & 5).
3. Turn the vacuum on by flipping the switch to the 'I' ON position and begin vacuuming (Fig. 6).
4. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.
5. After use, empty the collection tank, clean and dry the inside and outside of the collection tank (Fig. 7).

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the powerhead to the collection tank. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the collection tank, clean and dry the inside and outside before storage.

REMEMBER! The foam wet filter must be removed after wet vacuuming and the cartridge filter must be installed before dry vacuuming again.

BLOWER OPERATION

Illustration of a plug with a socket and plug, showing internal components (no text or symbols)

Illustration of a hand holding a tool next to a device with no visible text or symbols

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

4

Illustration of a wall socket connected to an electric plug with a right-hand rule (no text or symbols)

6 O

Illustration of a plug and socket with a separate outlet, no text or symbols present

This Wet/Dry Vacuum has blowing capabilities. To use the blower feature, follow the instructions listed below.

WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.

CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Make sure the collection tank is empty before using as a blower. Clear all dirt and debris from the hose and collection tank.
3. Remove the hose from the vacuum port.
4. Insert the locking end of the hose into the blower port on the back of the powerhead and lock into place (Fig. 2).

5. The included attachments lock together to prevent them from detaching during use. Connect the desired attachment onto the end of the hose or extension wand by aligning the tabs and push together until they lock into place (Fig. 3).

6. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet (Fig. 4 & 5).

7. Before turning on the vacuum, firmly hold the loose end of the hose. Turn the vacuum on by flipping the switch to the 'I' ON position (Fig. 6).
8. Once you have completed blowing, flip the on/off switch to the 'O' OFF position and unplug the power cord from the outlet (Fig. 7).

MAINTENANCE

Illustration of a plug with a socket and plug, showing internal components (no text or symbols)

Mechanical assembly diagram showing a threaded pipe joint with a valve and clamped components (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

Illustration of a spacecraft with exhaust plumes and a helmet, no text or symbols present

EMPTYING THE COLLECTION TANK

WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWERHEAD FROM COLLECTION TANK.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the vacuum (Fig. 2).
3. Undo the latches and remove the powerhead from the collection tank (Fig. 3). Place powerhead on a soft, clean surface upside down.
4. Clear all dirt or debris from the collection tank and hose into a proper waste container (Fig. 4).
5. Clean or replace the filters.
6. Check the hose, accessories, and power cord to ensure that they have not been damaged.
7. Place the powerhead back onto the collection tank and secure latches.

IMPORTANT! Clean or change the filter regularly for best performance. ALWAYS USE THE CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the cartridge filter, the motor will burn out and the warranty will be voided. Always keep spare filters on hand.

NOTICE! The filters included are made of high-quality materials designed to stop small dust particles. The cartridge filter should be used for dry pick-up only. A dry cartridge filter is necessary to pick up dust. If the cartridge filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through and out of the filter. Do not use a filter with holes or tears; replace it immediately.

STORAGE

Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be cleaned and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.

REPAIRS

Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only identical replacement parts.

INSTALLING & CLEANING CARTRIDGE FILTER

Illustration of a plug and its internal socket connected to a wall socket (no text or symbols)

2

Diagram of a cylindrical object with a base and an arrow indicating direction (no text or symbols)

Diagram of a cylindrical component with a lid and an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

6

INSTALLING CARTRIDGE FILTER

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the powerhead and place in an upside-down position.
3. Install the cartridge filter over the filter cage making sure the cage is completely covered (Fig. 2 & 3).
4. Place the filter retainer on the top of the cartridge filter over the raised lip and tighten down by turning the retainer clockwise; do not over-tighten (Fig. 4 & 5).
5. Place the powerhead back onto the collection tank.

REMOVING & CLEANING CARTRIDGE FILTER

1. Unlock and remove the filter retainer by turning the retainer handle counterclockwise.
2. With the removed powerhead in an upside-down position, carefully remove the cartridge filter from the filter cage (Fig. 6).
3. Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance, a new filter is recommended.
4. Install the cleaned or new filters as above in steps 2-4 of Installing Cartridge Filter.

INSTALLING & CLEANING FOAM WET FILTER

Illustration of a plug with a socket and plug plug, showing internal components (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component and a base, no text or symbols present

Diagram of a cylindrical container with particles on top, connected to a directional arrow (no text or symbols)

4

Illustration of two hands pouring liquid from a container onto a surface, no text or symbols present

INSTALLING FOAM WET FILTER

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the powerhead and place in an upside-down position. Follow instructions to remove the cartridge filter on page 15.
3. Carefully slide the foam wet filter down over the filter cage making sure the cage is completely covered (Fig. 2 & 3).
4. Place the powerhead onto the collection tank.

CLEANING FOAM WET FILTER

1. With the removed powerhead in an upside-down position, carefully remove the foam wet filter (Fig. 4).
2. Use a mild soap and water solution to wash the foam wet filter and rinse with clean water (Fig. 5).
3. Allow the wet filter to air dry completely before storing or installing onto the filter cage.

TROUBLESHOOTING

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING.

PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry vacuum will not operate.	No power supply.	Check the power supply, cord, breakers, and fuses.
	Faulty power cord.	Unplug and check the power cord. If damaged, have it repaired by a professional.
	Collection tank is full. Empty the collection tank.
	Switch in the wrong position.	Press the ON ‘I’ button on the powerhead.
The dust comes out from the motor cover.	The cartridge filter is missing or damaged.	Attach or replace the cartridge filter.
	Vacuum has been used to collect fine dust, such as dry wall dust, fireplace soot, or ash, without a fine dust filter.	Remove the standard cartridge filter and install the appropriate fine dust filter.
Reduced efficiency and motor/speed vibration.	There are blockages in the nozzle, hose, or the collection tank inlets.	Unplug and check nozzle, hose and collection tank inlets for blockages.
	The cartridge filter is clogged by fine dust.	Take off the filter and clean it or install a new cartridge filter.

EXPLODED VIEW

PARTS LIST

Part	Part Number	Description	Quantity
1 55	1489101 Handle Assembly	1
2 55	1643103 Hose Storage Rack	2
3 Powerhead Assembly	1
4 55	1005103 Float	1
5 55	1437105 Filter Cage	1
6 55	1489105 Latch Assembly	2
7		Collection Tank		1
8	551011106	Vacuum Port		1
9 55	1436105	Caster Foot Assembly	4
10	551436107	Hose		1
11	551436108	Locking Extension Wand		2
12	551436109	Locking Floor Brush/Squeegee Nozzle		1
13	551436110	Locking Utility Nozzle		1
14	551254103	Cartridge Filter		1
15	551002118	Foam Wet Filter		1
16	551437107	Filter Retainer 1

TABLA DE CONTENIDOS

SECCIÓN PÁGINA

Garantía.... 3

Technical line drawing of a vacuum cleaner (no text or symbols)

B

Illustration of a coiled hose with a cylindrical connector (no text or symbols)

Illustration of a plug with a socket and plug, showing internal components (no text or symbols)

2

Diagram of a cylindrical mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of a mechanical device with an arrow indicating upward motion (no text or symbols)

7

Illustration of a plug with an open socket and a separate plug with internal circuitry, no text or symbols present.

9

ASPIRADO EN SECO

Illustration of a plug with two plates and a separate socket, showing internal components (no text or symbols)

2

Diagram of a vacuum cleaner performing a lift operation, showing blade and handle (no text or symbols)

4

Illustration of a plug and its internal socket with an arrow indicating direction (no text or symbols)

6 O

Illustration of a mechanical device with a mesh-like surface and attached components (no text or symbols)

ASPIRADO EN MOJADO

Illustration of a plug with a socket and plug, showing internal components and a downward arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical device (no text or symbols visible)

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

Diagram of a mechanical component with an arrow pointing to a circular feature (no text or symbols)

Illustration of a plug and outlet with an arrow indicating direction (no text or symbols)

6 O

Illustration of an electrical plug with a socket and plug, showing internal components (no text or symbols)

Illustration of an electrical plug with a socket and plug, showing internal components (no text or symbols)

Mechanical assembly diagram showing a threaded pipe connected to a valve and housing (no text or symbols visible)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of a cartoon character wearing a helmet with swirls and hearts, no text or symbols present

Illustration of an electrical plug with a socket and plug, showing internal components (no text or symbols)

2

Diagram of a cylindrical object with a base and an arrow indicating direction (no text or symbols)

Diagram of a cylindrical component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

6

Illustration of an electrical plug with a separate socket and a separate plug inserted (no text or symbols)

Diagram of a mechanical press or spring assembly with a downward arrow indicating compression (no text or symbols present)

Diagram of a cylindrical container with granular material and a downward arrow, no text or symbols present

4

Illustration of two hands pouring liquid from a container into a bowl (no text or symbols)

Technical line drawing of a vacuum cleaner (no text or symbols)

B

Illustration of a coiled hose with a connector (no text or symbols)

C

D

E

F

G

广力云

H

J

K

L

INSTRUCTIONS RELATIVES AU MONTAGE GÉNÉRAL

Illustration of a plug with a wall socket and a separate plug inserted into it (no text or symbols)

2

Simple line drawing of a cylindrical object with an arrow indicating upward motion (no text or symbols)

Diagram of a cylindrical mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of a vacuum cleaner inserting a device into a base, with an arrow indicating the process (no text or symbols present)

7

Illustration of a plug with an open socket and a separate plug with a lightning bolt, no text or symbols present.

9 0 1

ASPIRATION DE POUSSIÈRES

AVERTISSEMENT : VEILLEZ À LIRE, À ASSIMILER ET À METTRE EN APPLICATION LES CONSIGNES INTITULÉES « CONSIGNES IMPORTANTES DE SÉCURITÉ ». NE PAS UTILISER L'ASPIRATEUR DANS DES ZONES OÙ L'AIR CONTIENT DES GAZ ET VAPEURS INFLAMMABLES OU DES POUSSIÈRES EXPLOSIVES. LES GAZ OU VAPEURS INFLAMMABLES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : L'ESSENCE POUR BRIQUETS, LES PRODUITS DE NETTOYAGE DE TYPE SOLVANTS, LA PEINTURE À L'HUILE, L'ESSENCE, L'ALCOOL OU LES SPRAYS AÉROSOLS. LES POUSSIÈRES EXPLOSIVES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : LE CHARBON, LE MAGNÉSIUM, LES GRAINS OU LA POUDRE À CANON. AFIN DE RÉDUIRE LES RISQUES POUR LA SANTÉ PROVENANT DES VAPEURS OU POUSSIÈRES, N'ASPIREZ PAS DE MATIÈRES TOXIQUES.

AVERTISSEMENT : NE PAS BRANCHER LE CORDON D'ALIMENTATION À UNE PRISE DE COURANT. ASSUREZ-VOUS QUE LA FICHE EST DÉBRANCHÉE AVANT DE REMPLACER LES FILTRES.
ATTENTION : NE PAS ASPIRER DE LA POUSSIÈRE DE PLACOPLÂTRE, DE LA SUIE OU DES CENDRES DE CHEMINÉE À L'AIDE D'UN FILTRE POUR MATÉRIAUX HUMIDES/À POUSSIÈRE ORDINAIRES. CES POUSSIÈRES SONT TRÈS FINES ET NE SERONT PAS RETENUES PAR LE FILTRE, CE QUI POURRAIT ENTRAÎNER DES DOMMAGES DU MOTEUR. POUR L'ASPIRATION DE POUSSIÈRES FINES, UTILISEZ UN FILTRE À POUSSIÈRES FINES (FOURNI).

Illustration of a plug with two internal components and an open socket, showing no text or symbols.

2

Simple line drawing of a cleaning or repair operation with a tool and bracket (no text or symbols)

4

Illustration of a plug and socket with an arrow indicating direction (no text or symbols)

6

Illustration of a mechanical device with a handle and spray pattern (no text or symbols)

ASPIRATION DE LIQUIDES

AVERTISSEMENT : VEILLEZ À LIRE, À ASSIMILER ET À METTRE EN APPLICATION LES CONSIGNES INTITULÉES « CONSIGNES IMPORTANTES DE SÉCURITÉ ». NE PAS UTILISER L'ASPIRATEUR DANS DES ZONES OÙ L'AIR CONTIENT DES GAZ ET VAPEURS INFLAMMABLES OU DES POUSSIÈRES EXPLOSIVES. LES GAZ OU VAPEURS INFLAMMABLES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : L'ESSENCE POUR BRIQUETS, LES PRODUITS DE NETTOYAGE DE TYPE SOLVANTS, LA PEINTURE À L'HUILE, L'ESSENCE, L'ALCOOL OU LES SPRAYS AÉROSOLS. LES POUSSIÈRES EXPLOSIVES COMPRENNENT, SANS POUR AUTANT S'Y LIMITER : LE CHARBON, LE MAGNÉSIUM, LES GRAINS OU LA POUDRE À CANON. AFIN DE RÉDUIRE LES RISQUES POUR LA SANTÉ PROVENANT DES VAPEURS OU POUSSIÈRES, N'ASPIREZ PAS DE MATIÈRES TOXIQUES.

AVERTISSEMENT : NE PAS BRANCHER LE CORDON D'ALIMENTATION À LA PRISE DE COURANT. ASSUREZ-VOUS QUE LA FICHE EST DÉBRANCHÉE AVANT DE REMPLACER LES FILTRES.

Illustration of a plug with a switch and two plates, no text or symbols present

Illustration of a hand holding a hose next to a device with no visible text or symbols

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

4

Illustration of a plug and its socket connected to a wall socket, with an arrow indicating direction (no text or symbols)

6 O

Illustration of a plug with a wall socket and a separate plug inserted, showing internal components (no text or symbols)

Illustration of a plug with a wall socket and a separate plug inserted into it (no text or symbols)

Mechanical assembly diagram showing a threaded pipe joint with directional arrows indicating motion (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of a cartoon-style alarm clock with cloud patterns and a numbered label (4), no readable text or symbols beyond the number.

VIDANGE DU RÉSERVOIR COLLECTEUR

AVERTISSEMENT : DÉBRANCHEZ TOUJOURS LA FICHE DE LA PRISE DE COURANT AVANT DE RETIRER LE BLOC-MOTEUR DU RÉSERVOIR COLLECTEUR.

Illustration of a plug and its internal socket connected to a wall socket (no text or symbols)

2

Diagram of a cylindrical object with a base and an arrow indicating direction (no text or symbols)

Diagram of a cylindrical component with a lid and an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

6

INSTALLATION DU FILTRE À CARTOUCHE

Illustration of a plug with a socket and a separate outlet, showing internal components (no text or symbols)

Diagram of a mechanical press or spring assembly with a downward arrow indicating compression (no text or symbols present)

Diagram of a cylindrical container with particles on top, connected to a directional arrow (no text or symbols)

4

Illustration of two hands pouring granular material from a container onto a surface (no text or symbols)

INSTALLATION DU FILTRE EN MOUSSE POUR MATÉRIAUX HUMIDES

Exploded view diagram of a vacuum cleaner with numbered parts for identification

LISTE DES PIÈCES
