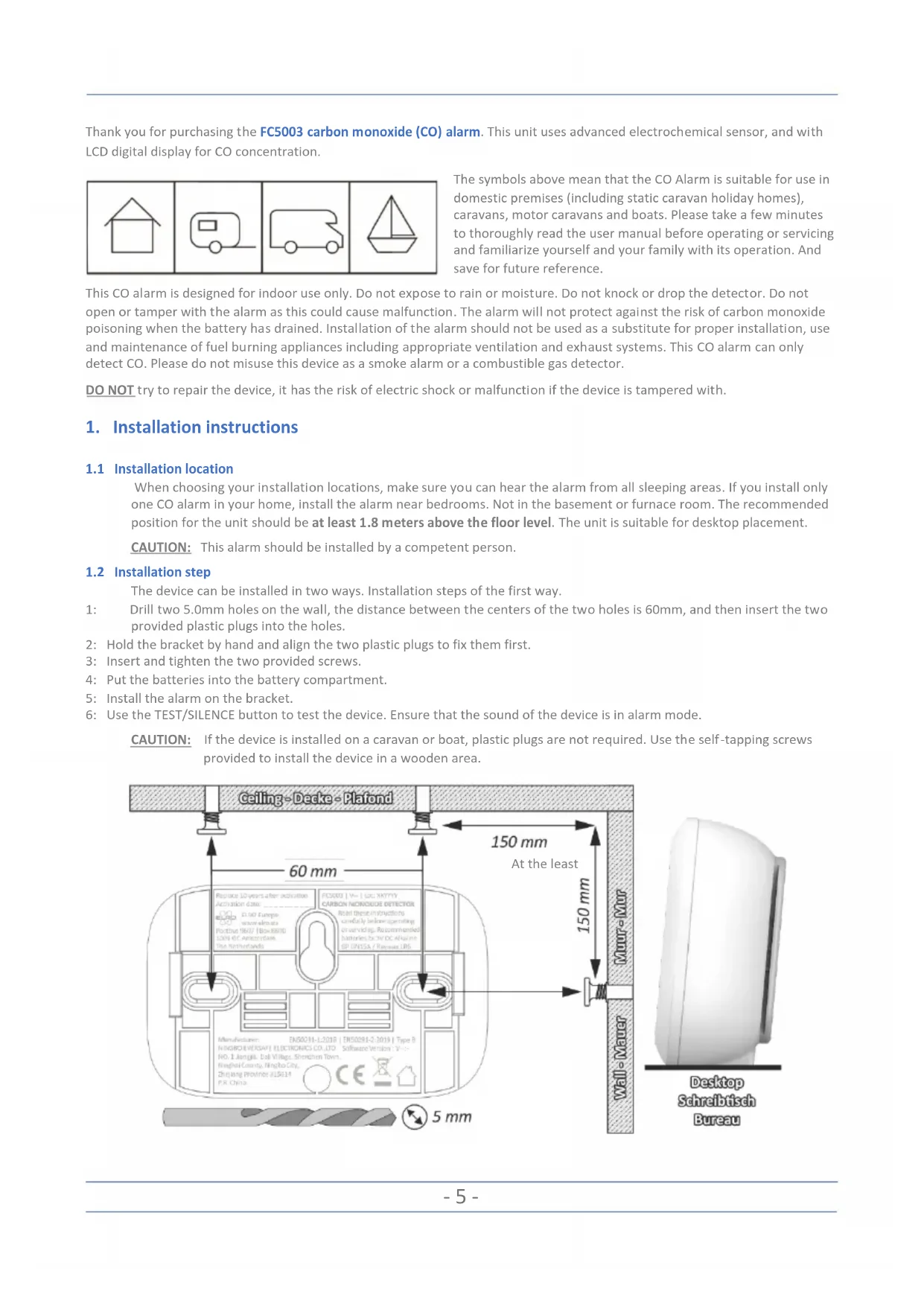

1. Installation instructions

1.1 Installation location

When choosing your installation locations, make sure you can hear the alarm from all sleeping areas. If you install only one CO alarm in your home, install the alarm near bedrooms. Not in the basement or furnace room. The recommended position for the unit should be at least 1.8 meters above the floor level. The unit is suitable for desktop placement. CAUTION: This alarm should be installed by a competent person.

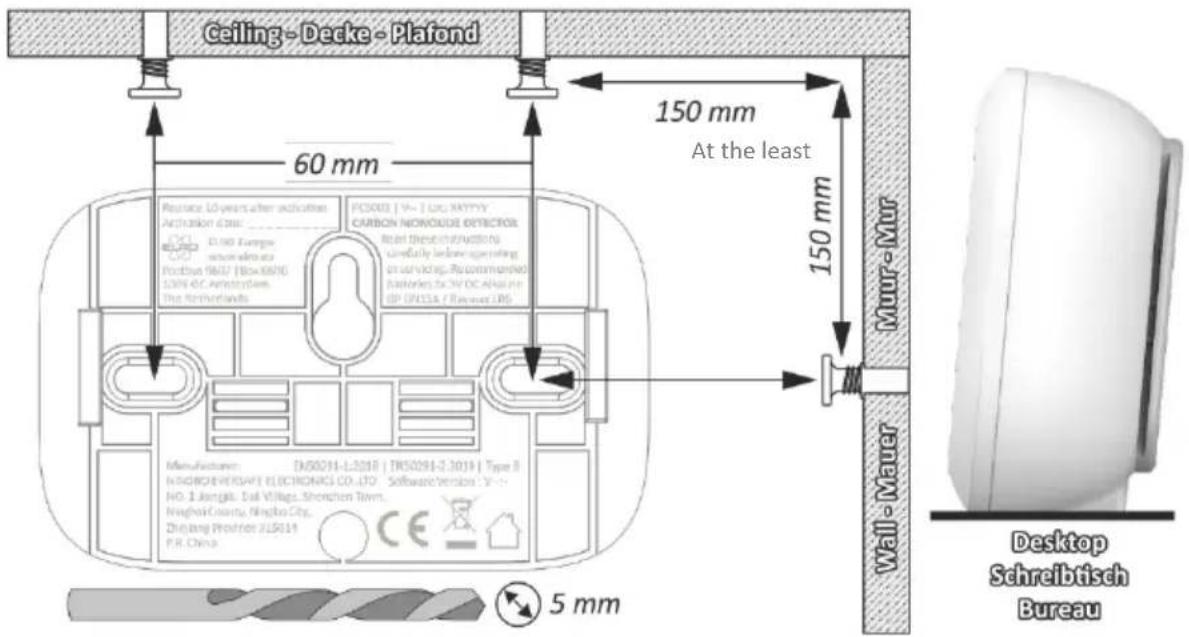

1.2 Installation step

The device can be installed in two ways. Installation steps of the first way. 1: Drill two 5.0mm holes on the wall, the distance between the centers of the two holes is 60mm, and then insert the two provided plastic plugs into the holes. 2: Hold the bracket by hand and align the two plastic plugs to fix them first. 3: Insert and tighten the two provided screws. 4: Put the batteries into the battery compartment. 5: Install the alarm on the bracket. 6: Use the TEST/SILENCE button to test the device. Ensure that the sound of the device is in alarm mode. CAUTION: If the device is installed on a caravan or boat, plastic plugs are not required. Use the self-tapping screws provided to install the device in a wooden area.

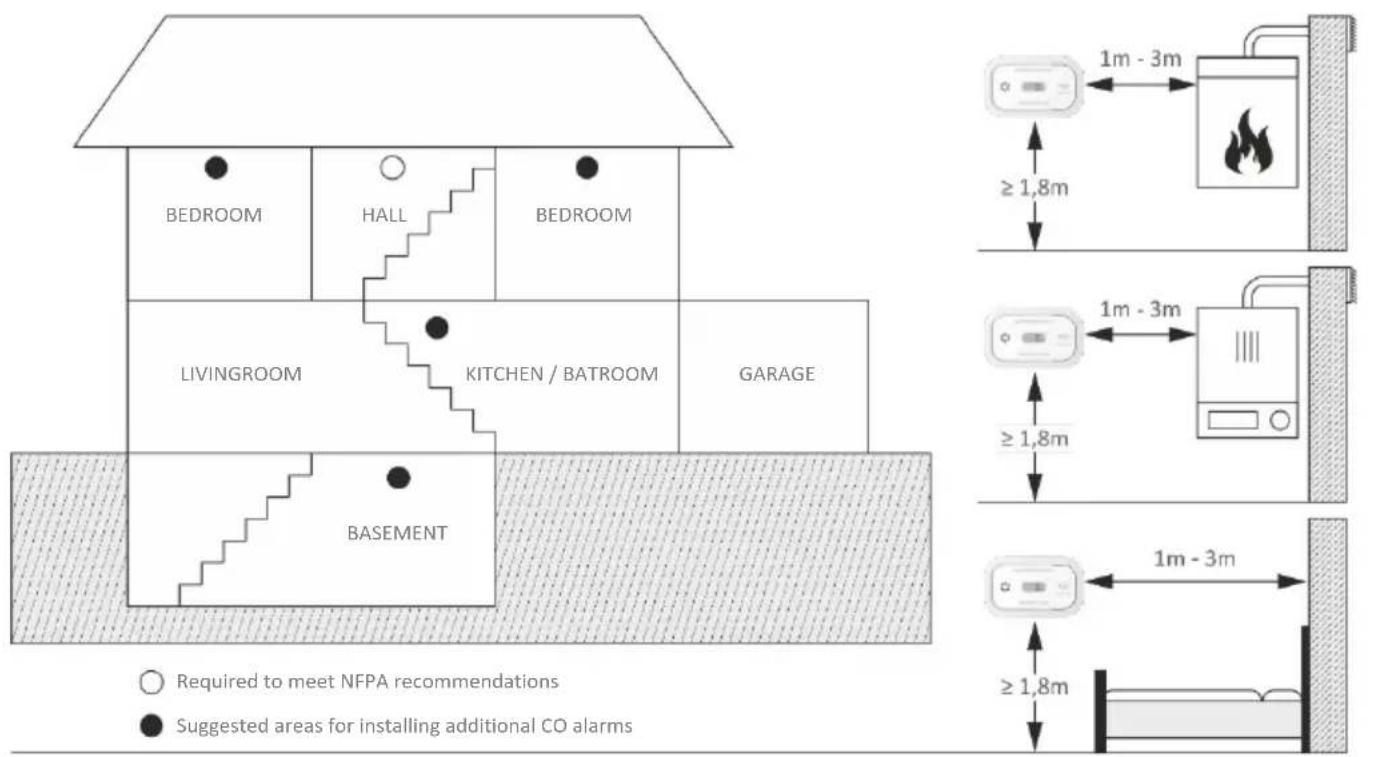

1.3 Recommended installation locations

• Place out of the reach of children. Under no circumstance should children be allowed to handle the CO alarm.

• Install in a bedroom or hallway located close to the sleeping area. Take special care to verify the alarm can be heard in sleeping areas.

• It is recommended that a CO alarm be installed on each level of a multilevel home.

• Locate 1~3 meter away from all fuel burning appliances.

• Placing at eye level allows for optimum monitoring of the red and green indicator lights.

• Ensure that all vents of the unit are unobstructed.

• Do not install in dead air spaces such as peaks of vaulted ceilings, or gabled roofs.

• Do not install in turbulent air from ceiling fans.

• Do not place near fresh air vents or close to doors and windows that open to the outside. Keep the CO alarm away from excessively dusty, dirty, or greasy areas such as kitchens, garages and furnace rooms.

• Dust, grease and household chemicals can affect the sensor.

• Keep out of damp and humid areas such as the bathroom.

• Avoid spraying aerosols near the CO alarm.

• Do not install in areas where the temperature is below-10°C or hotter than 40°C.

• Do not place behind curtains or furniture. CO must be able to reach the sensor for the unit to accurately detect CO. Caravans & Boats Caravans & boats have additional risks due to the presence of other vehicles, engines, generators or barbecues, however this does not change the basic guidance on locating the alarm. Caravans & boats should have an alarm in the same room as any fuel-burning appliance, located in accordance with advice above. If the caravan has a single living space, one alarm is sufficient. However, any sleeping accommodation which is in a separate room from the fuel-burning appliance should also contain an alarm. LIVINGROOM KITCHEN / BATROOM GARAGE BASEMENT Required to meet NFPA recommendations Suggested areas for installing additional CO alarms BEDROOM HALL BEDROOM- 7 -

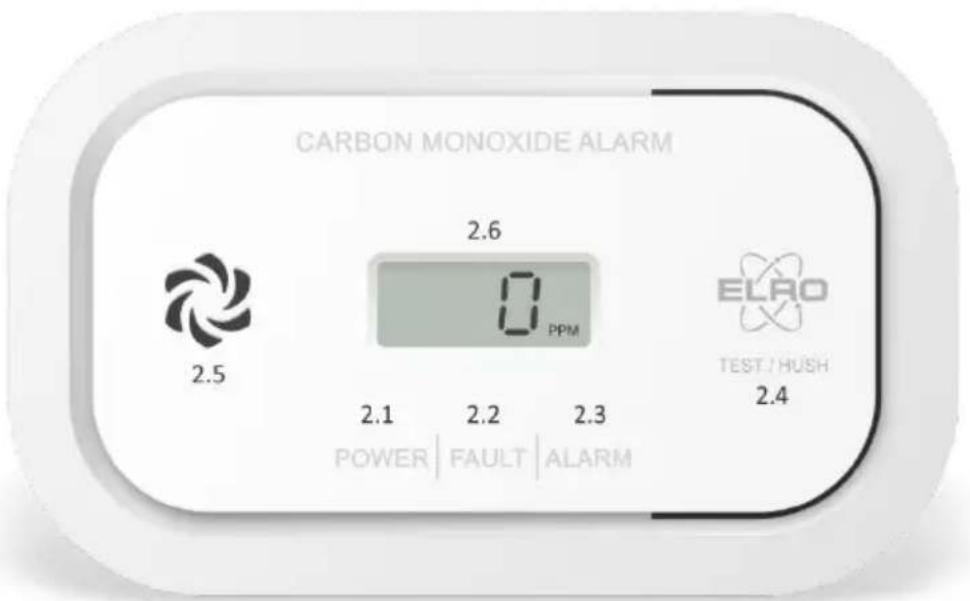

The POWER indicator (green LED) is used to indicate power status of the CO alarm. The POWER indicator flash every 40 seconds.

The two most important considerations when positioning your alarm are: - Not to place the alarm directly above a source of heat or steam. - Positioning the alarm at a distance of 1-3 m from the nearest edge of the potential source. - The FAULT indicator (yellow LED) is used to indicate fault or warning status of the CO alarm.

The ALARM indicator (red LED) is used to indicate alarm status of the CO alarm.

2.4 TEST/SILENCE button

The TEST/SILECNE button is used to test the unit. Press and hold to enable TEST function.

The alarm sounder is used to send out CO alarm warning and fault warning information.

Indicates CO concentration and alarm status.

3. Understanding your CO alarm

When first power on, the ALARM indicator (red), FAULT indicator (yellow) and POWER indicator (green) will flash once in turn, and then the buzzer will sound once, LCD will display for 4S. This is the power on prompt. Then the LCD screen will display the countdown of 56s, and the POWER indicator (green) will flash once every second. This is preheated state, 60 seconds later the POWER indicator (green) flashing every 40 seconds indicates the unit is functioning properly. During the preheated state, LCD displays count down, when the countdown is "0", the product goes into normal operation. NOTE: The purpose of LCD full segment code display during power on prompt is to check whether the LCD screen is good or not. NOTE: When the LCD is fully displayed, the " " does not mean that the battery is low, the " " does not mean that the sound is muted, and " "PPM does not mean that there is dangerous carbon monoxide concentration around.- 8 -

3.2 Normal operation

The POWER indicator (green) flashing once every 40 seconds. The LCD displays current CO concentration. CO concentration display range: 0~999 PPM. If the CO concentration is under 23 PPM, the LCD will display "0 PPM ". NOTE: When the CO concentration detects an ultra-high concentration and is detected for more than 30s, the LCD screen will display " "------" until the alarm exits.

When the device detects a dangerous level of CO, the device will emit a loud alarm pattern. The alarm signal pattern is 4 beeps followed about 2.5 seconds of silence. The ALARM indicator (red) will flash the same pattern. This cycle repeats as long as a dangerous CO condition exists. Alarm sensitivity setting: Conforms to EN 50291-1:2018 30PPM : Without alarm before 120 minutes 50PPM : Alarm between 60 to 90 minutes 100PPM : Alarm between 10 to 40 minutes 300PPM : Alarm within 3 minutes NOTE: Refer to “4. What to do if the alarm sounds” when you hear the sounds of the CO alarm warning.

During the device under CO alarm mode, pressing the TEST/SILENCE button, it will be paused alarm sound of the device about 10 minutes. The ALARM indictor (red) will keep flash as CO alarm mode, it indicates the device is running into the CO alarm silence mode. NOTE: The audible alarm signal will reactivate about 10 minutes from the time the TEST/SILENCE button is operated where the concentration of CO surrounding the alarm remains at 50 PPM or greater. NOTE: The audible alarm signal cannot to silence if the alarm at concentration above 200 PPM. NOTE: The alarm silencing activation to once throughout a CO alarm period. WARNING! Before enable feature of CO alarm warning silence, you should be confirmed that the alarm is due to dangerous levels of carbon monoxide and the dwelling should be ventilated.

3.5 Low battery voltage warning

If the device chirps once every 40 seconds, with FAULT indicator (yellow) will be flash. It indicates the battery is low. The LCD displays always displays " ". NOTE: When the low battery voltage warning is occurred, the device has capable of producing a CO alarm signal for at least 4 min or 30 days of low battery voltage warning signal operation. NOTE: The device will not protect against the risk of carbon monoxide poisoning when the battery has drained.

When the device is under the low battery warning, pressing the TEST/SILENCE button, it will enter the low battery voltage warning silence status for about 10 hours, meanwhile it will appear " " on LCD, and FAULT indicator (yellow) keep flashing. NOTE: The silence feature of low battery voltage warning is temporary action to cancel warning sound effect, you need replace temporary action to cancel warning sound effect, you need to replace the battery as soon as possible.- 9 -

If the device chirps twice every 40 seconds with FAULT indicator (yellow) will be flash. It indicates the CO alarm is in malfunction condition. The LCD displays " Err ", that means your CO alarm have no detecting function and no respond CO. NOTE: Maybe the sensor is missing, replace the device immediately. Please contact us to more service.

When the device is in a fault state, press the TEST/SILENCE button, it will enter the fault warning mute state for about 10 hours, while displaying " " on the LCD, and the FAULT indicator (yellow) remains flashing. NOTE: The silence feature of fault warning is a temporary action to cancel warning sound effect, you need replace the device as soon as possible.

3.9 End of life warning

If the device chirps three times every 40 seconds with FAULT indicator (yellow) flash 3 times and the LCD displays ‘End’. It indicates end of life of CO alarm. You need to immediately replace the CO alarm.

3.10 Test the device

When the device under normal operation status, you can test the device by TEST/SILENCE button, press and hold the TEST/SILENCE button, you should hear alarm sound pattern (<85dB) and with a corresponding ALARM indicator (red) flash. After the eight sound, the device will issuing a normal alarm volume (≥85dB). Test process will stop when release the button, but the alarm will ring for at least two cycles. The LCD displays current CO concentration during testing. NOTE: After the TEST/SILENCE button is enabled, the alarm sounds and the red alarm light flashes. This does not indicate that CO is present. NOTE: If the device is in failure state and end of life state, the device cannot be tested. NOTE: Test the device every week! If at any time your device does not perform as described, replace it immediately.

Recommend test the alarm weekly by pressing the TEST/SILENCE button to ensure the normal operation of the equipment.

7 days alarm memory function. When the device detects CO and alarms, after the device exits the alarm, it will chirps once every 40 seconds with ALARM indicator (red) will be flash. And when the CO concentration <23 PPM , the LCD will displays "AL". After pressing the TEST/SILENCE button, the product will clear the alarm memory warning, and respond to the corresponding function of the button. Short press the button to display the maximum CO concentration recorded on the LCD for 4 seconds, press and hold the button to enter the test alarm state. Or 7 days later, the device will automatically clear the alarm memory prompt. NOTE: Press and hold the TEST/SILENCE button during the display period to clear the maximum concentration value memorized and enter the test alarm state.- 10 -

4. What to do if the alarm sounds

WARNING! Actuation of your CO alarm indicates the presence of Carbon Monoxide (CO) which can KILL YOU. WARNING! Action of this device indicates the presence of dangerous levels of CO! CO can be fatal! If the alarm sounds: 4.1 Keep calm and open all doors and windows to increase the rate of ventilation. Stop using all fuel burning appliances and ensure, if possible, that they are turned off, e.g. for gas appliances, isolate the emergency control valve;

4.2 If the alarm continues to be activated, then evacuate the premises. Leave the doors and windows open, and only

reenter the building when the alarm has stopped. In multi occupancy and multistorey premises, ensure that all the occupants are alerted to the risk;

4.3 Get medical help f or anyone suffering the effects of carbon monoxide poisoning, and advise that carbon monoxide

inhalation is suspected;

4.4 Telephone the appropriate appliance servicing and/or maintenance agency or, when necessary, the relevant fuel

supplier on their emergency number or the national Gas Emergency Service Provider, if appropriate, so that the source of carbon monoxide emissions can be identified and corrected. Unless the reason for the alarm is obviously spurious, do not use the fuel burning appliances again, until they have been checked and cleared for use by a competent person according to national regulations.

5. Battery installation/replacement

Once chirps with corresponding FAULT indicator (yellow LED) flashing once every 40 seconds indicates that the battery is low battery, you must replace with battery specified, please see “8. Specification” To install or replace the battery in unit, please perform the following steps:

5.1 Remove the device from the wall.

5.2 Remove the old battery and replace it with a new one.

5.3 Put the battery into the battery box.

5.4 Install the alarm back to the bracket.

5.5 Use the TEST/SILENCE button to test the alarm. If the test alarm is normal, it means that the device can work normally. WARNING! Use only the battery specified. Use of different battery may have a detrimental effect on the CO alarm. A good safety measure is to replace the battery at least once a year. NOTE: Constant exposure to high or low humidity or temperatures may reduce battery life. CAUTION: Please replace new 2pcs same type batteries in the meantime. CAUTION: Test the alarm for correct operation using the TEST/SILENCE button, whenever the battery is replaced!

6. General maintenance

To keep your CO alarm in good working order, please follow these simple steps:

6.1 Verify the unit's alarm sound and indicators operation by enable the TES T/SILENCE button once a week.

6.2 Remove the unit from the wall and clean the alarm cover and vents with a soft brush attachment once a month to

remove dust and dirt.

6.3 Never use detergents or other solvents to clean the unit.

6.4 Avoid spraying air fresheners, hair spray, or other aerosols near the CO alarm.

6.5 Do not paint the unit. Paint will seal the vents and interfere with the sensor's ability to detect CO. Never attempt to disassemble the unit or clean inside. This action will void your warranty.

6.6 As soon as possible, place the CO alarm back in its proper location to assure continuous protection from carbon

6.7 When household cleaning supplies or similar contaminants are used, the area should be ventilated.

6.8 A list of materials that may be expected to be found in recreational vehicles that may produce vapors or gases, e.g. oils, cleaning fluids, polishes, paints, greases, cooking operations, etc. which may affect the reliability of the apparatus in the short or long term. WARNING! The following substances can affect the sensor and may cause false actions: methane, propane, isobutene, isopropanol, ethylene, benzene, toluene, ethyl acetate, hydrogen sulfide, sulfur dioxides, alcohol based products, paints, thinner, solvents, adhesives, hair sprays, after shaves, perfumes and some cleaning agents. WARNING! Your CO alarm will not be operational and will not monitor for CO levels without battery.- 11 - WARNING! This apparatus is designed to protect individuals from the acute effects of carbon monoxide exposure. It will not fully safeguard individuals with specific medical conditions. If in doubt consult a medical practitioner.

Carbon monoxide (CO) is a colorless, odorless, nonirritating gas classified as a chemical asphyxiant and whose toxic action is a direct result of the hypoxia produced by a given exposure. CO is rapidly absorbed through the lungs, diffuses across the alveolar capillary membrane and is reversibly bound with hemoglobin as carboxyhemoglobin (COHb), however, a minute amount is present in the plasma. The affinity of hemoglobin for CO is over 200 times its affinity for oxygen. This reduces the oxygen carrying capacity of the blood, and has an effect on the dissociation of oxyhemoglobin, which further reduces the oxygen supply to the tissues. CO is chemically unchanged in the body and is eliminated in expired air. The elimination is determined by the same factors that applied during absorption. The half-life while breathing room air is 2 h 6,5 h depending on the initial COHb level. If the CO level in the inhaled air is constant, the level of COHb in the blood will approach an equilibrium (saturation) state after several hours. However, the rate at which the equilibrium is reached depends on many factors, e.g. lung ventilation rate (physical activity) and alveolar capillary transfer, cardiac parameters, blood hemoglobin concentration, barometric pressure, oxygen and carbon dioxide concentration in the inhaled air, but the two most important factors in determining the COHb level are the CO concentration and the duration of exposure. The effects of different saturation blood COHb levels on healthy adults are shown. % COHb Effects

Normal range in non smokers due to endogenous CO production

Cardio-vascular changes in cardiac patients 4 – 6 Usual values observed in smokers, impairment in psychomotor tests 7 – 10 Cardio vascular changes in non cardiac patients (increased cardiac output and coronary blood flow) 10 – 20 Slight headache, weakness, potential burden on foetus 20 – 30 Severe headache, nausea, impairment in limb movements 30 – 40 Severe headache, irritability, confusion, impairment in visual acuity, nausea, muscular weakness, dizziness 40 – 50 Convulsions and unconsciousness 60 – 70 Coma, collapse, death Source U.S. Environmental Protection Agency 1984

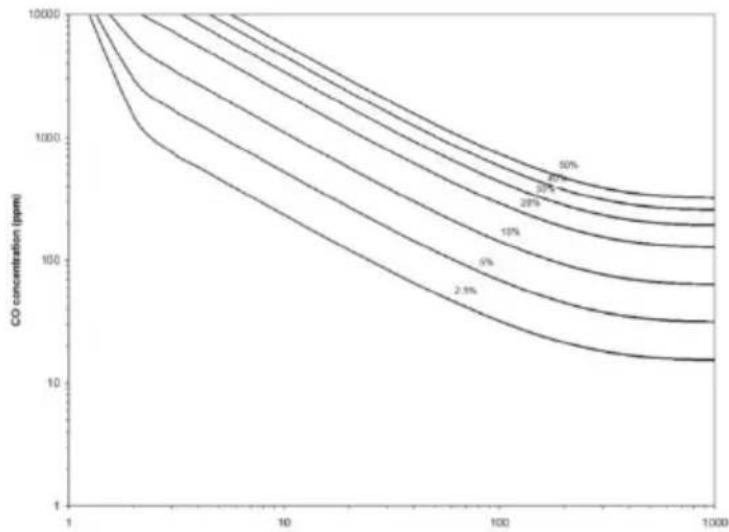

The relationship between the CO concentration and the duration of exposure can be calculated for a given %COHb, by parameterizing the above factors. Figure 7.1 shows examples for a person undertaking light/moderate exercise.

Figure 7.1 Relationship between CO concentration and exposure time for various %COHb (light/moderate exercise)- 12 -

7.2 Chronic effects on high risk groups

Individuals with coronary artery disease exposed to low levels of CO show reduced ability to exercise and the time of onset of exercise induced angina pectoris in such patients exposed to low levels of CO is reduced. Carbon monoxide readily crosses the placental barrier and may endanger the normal development of the fetus. A number of high risk groups are particularly sensitive to the effects of CO because of various organ impairments or specific changes, mainly: a) those whose oxygen carrying capacity is decreased due to anaemia or other haemoglobin disorders; b) those with increased oxygen needs such as those encountered in fever, hyperthyroidism or pregnancy; c) those with systemic hypoxia due to respiratory insufficiency; d) those with heart disease and any vascular insufficiency. World Health Organization guidance states that in order to protect non smoking, middle aged and elderly population groups with documented or latent coronary artery disease from acute ischemic heart attacks, and to protect the foetuses of non smoking pregnant women from untoward hypoxic effects, a COHb level of 2 .5% should not be exceeded. The following WHO guideline values and periods of time weighted average exposures have been determined in such a way that the COHb level of 2.5% is not exceeded, even when a normal subject engages in light or moderate exercise: 100 mg/m³ (90 ppm) for 15 min; 60 mg/m³ (50 ppm) for 30 min; 30 mg/m³ (25 ppm) for 1 h; 10 mg/m³ (10 ppm) for 8 h.

7.3 Normal COHb levels

Under normal conditions, humans typically have low levels of COHb of between 0.3% and 0.7% present within the body. These levels are considered neither beneficial nor harmful.

Tobacco smokers are exposed to significant concentrations of CO. In cigarette smokers, the COHb concentration varies between 5% 9%, while heavy cigar smokers may exceed 10%. WARNING! Exposure to high levels of carbon monoxide can be fatal or cause permanent damage and disabilities. WARNING! The device may not prevent the chronic effects of carbon monoxide exposure, and that the device will not fully safeguard individua ls at special risk.

Model FC5003 Product standards: EN 50291 1:2018 / EN 50291 2:2019 Type of apparatus: Type B Power supply: 3V (2*AA alkaline battery) Recommend battery type: Raymax LR6/GP GN15A (The normal service life is 3 years) Raymax LR6 Premium (The normal service life is 10 years) Sensor type: Electrochemical Product service life: 10 years after manufacture Sensitivity setting: Conforms to EN 50291 1:2018 standard 30PPM Without alarm before 120 minutes 50PPM Alarm between 60 to 90 minutes 100PPM Alarm between 10 to 40 minutes 300PPM Alarm within 3 minutes Standby current: <20<20µμA (average) A (average) Alarm current: <50mA (average) <50mA (average) Operation ambient condition: -10 ~ + 40°C, 25 ~ 95%RH Storage/Transport ambient condition: -20 ~ +50°C, 25 ~ 95%RH Alarm sound: ≥85dB(A) at 3m Low battery warning silence: About 10 hours about 10 hours Installation location: Ceiling, wall or desktop placement Detection range: Max. 40m² within a room Size: 120 x 73 x 34.2 mm Weight: 100 ± 5g (net) NOTE: This CO alarm is designed to detect carbon monoxide gas from any source of combustion. It is not designed to detect any from any source of combustion. It is not designed to detect any other gas.- 13 -
