EMH463CGB - Cooker EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EMH463CGB
Product type	Gas cooker (hob)
Dimensions (W x D x H)	600 x 510 x 110 mm
Power supply	220-240 V ~ 50/60 Hz, 2 W
Gas type	G30 (butane) 29 mbar / G20 (natural gas) 20 mbar
Number of burners	4 (1 Wok, 2 semi-rapid, 1 auxiliary)
Total power	7.8 kW
Ignition	Automatic with safety device (thermocouple)
Hob material	Glass
Gas connection	Thread G1/2
Included accessories	Gas hose elbow, instruction manual
Safety	Safety device in case of flame failure on each burner
Cleaning	Disconnect before cleaning; use a soft cloth and mild detergent; clean regularly
Burner maintenance	Disassemble, soak in warm soapy water, dry, check flame holes
Warranty	3 years (Spain and Portugal)
Environment	Do not dispose with household waste; recycle via selective collection (WEEE)

Frequently Asked Questions - EMH463CGB EAS Electric

How to light a burner?

Press the burner knob and turn it counterclockwise to the maximum position. Hold down for 15 seconds after the flame appears. If the burner does not light, wait 1 minute before trying again.

What to do in case of gas smell?

Stop using the appliance and close the main valve. Open windows to ventilate. Do not use electrical appliances. Contact technical service from outside the room.

What types of gas are compatible?

The appliance can operate on butane (G30, 29 mbar) or natural gas (G20, 20 mbar). Conversion must be done by a qualified technician.

How to clean the glass hob?

Use a soft cloth soaked in warm water with a little mild soap. Dry completely after cleaning. Avoid abrasive cleaners.

How to maintain the burners?

Disassemble the burners and soak them in warm soapy water. Clean the flame holes. Dry thoroughly before reassembling. Ensure the nozzle is not blocked.

Why is the flame yellow?

This may be due to clogged diffuser ports or inappropriate gas. Clean the diffuser. Check the type of gas used.

What to do if the burner does not light?

Check the power supply, gas is open, and the burner cap is properly mounted. If the ignition spark plug is dirty, wipe it with a dry cloth.

What is the warranty for this appliance?

The appliance is warranted for 3 years against manufacturing defects in Spain and Portugal, upon presentation of the invoice.

Can I use glass utensils?

Yes, provided they are suitable for cooking. If the glass surface is broken, turn off the appliance to avoid electric shock.

How to save energy?

Use lids on pots, match the utensil diameter to the burner, and reduce the flame as soon as it boils.

USER MANUAL EMH463CGB EAS Electric

Simple geometric diagram with four circles arranged in a 2x2 grid, one circle empty and two circles inside, one circle empty and one circle empty.

EMH463CGB

QR code with embedded logo and text 'eRAS' and 'www.eRAS.com'

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Prefacio

Illustration showing a woman using a fan mask to interact with another person, both demonstrating a warning symbol.

Cartoon illustration of a smiling refrigerator with a hand pointing at it (no text or symbols)

Cartoon illustration of a smiling car with a hand waving, next to a covered vehicle (no text or symbols)

Cartoon illustration of a sad face with a thumbs-down gesture, waving (no text or symbols)

Precaución

Cartoon illustration of a child reacting to a large smartphone displaying a sad face (no text or symbols present)

Precaución

Cartoon illustration of a hand holding a tablet with a sad face and chopsticks, no text or symbols present.

Cartoon illustration of a smiling computer monitor with a hand pointing to it (no text or symbols)

Cartoon illustration of a distressed hand emerging from a cloud with smoke, symbolizing environmental stress or pollution (no text or symbols present)

Cartoon illustration of a hand holding a tablet with a smiling face and pointing at it, surrounded by expressive gestures (no text or symbols)

Cartoon illustration of a person reacting to a phone screen with a sad face, showing frustration (no text or symbols present)

Illustration of a woman using a hand mixer with a frying pan and a cartoon character (no text or symbols)

Cartoon illustration of a frowning face with a magnifying glass above a tablet, surrounded by hands and expressive gestures (no text or symbols)

Durante el uso

Illustration of a hand cleaning a tray with a sad face, accompanied by a smaller container labeled 'Planner' and a bottle (no text or symbols on main objects)

Illustration of a person spraying water from a steaming document with flames (no text or symbols)

Cartoon illustration of a smiling character on a keyboard with five control buttons (no text or symbols)

⚠️ Peligro

Cartoon illustration of a smiling computer monitor with a hand gesture (no text or symbols)

Line drawing of a mechanical component with three parallel grooves (no text or symbols)

Soporte (4)

Esponja (4)

Tornillo (4)

Inyector (4)

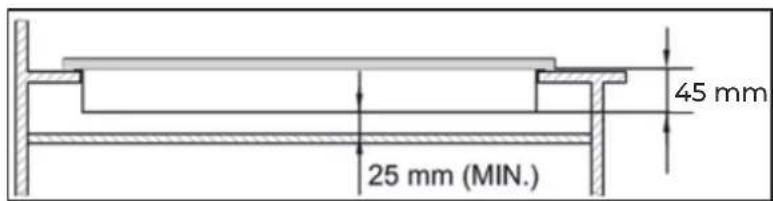

25 mm (MIN.) 45 mm

Simple line drawing of a hand holding a pen near a laptop with a cross mark (no text or symbols)

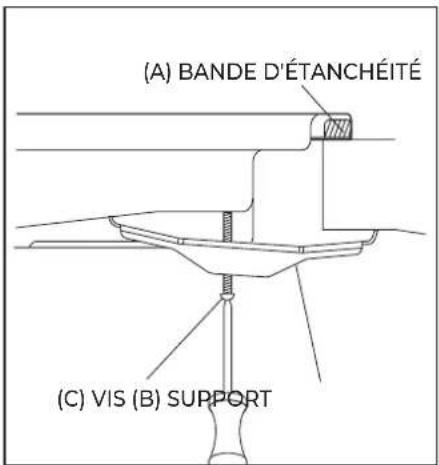

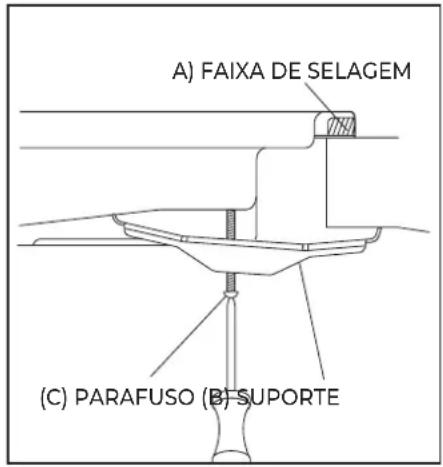

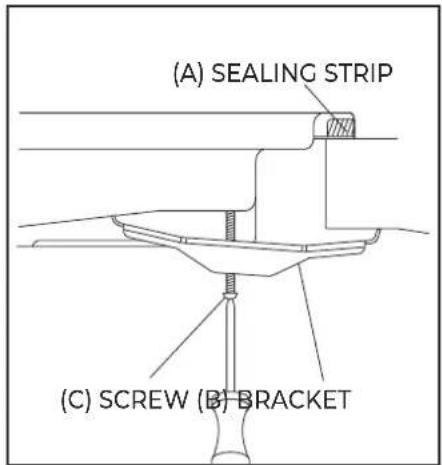

(A) TIRA DE SELLADO (C) TORNILLO (B) SOPORTE

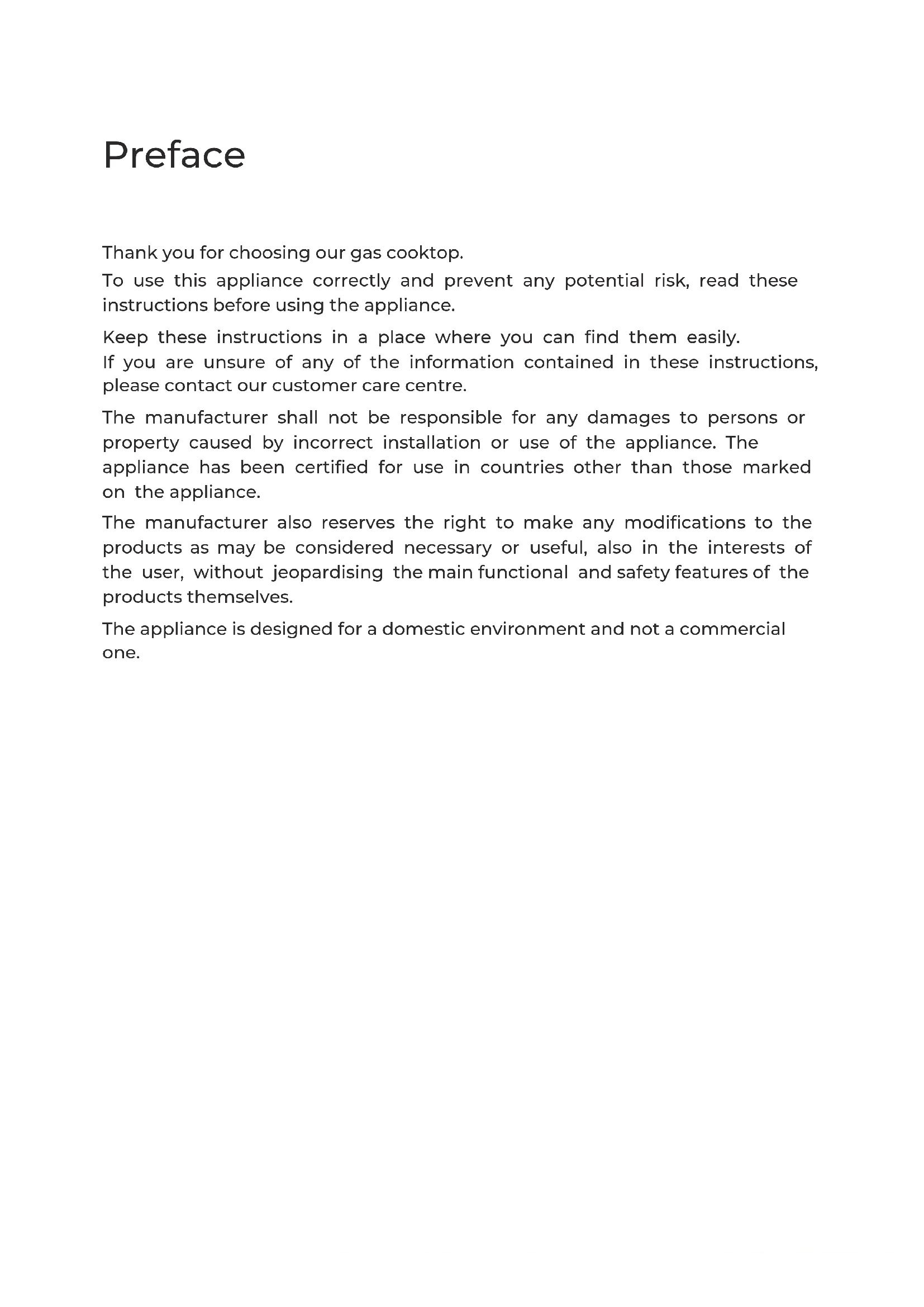

Thank you for choosing our gas cooktop.

To use this appliance correctly and prevent any potential risk, read these instructions before using the appliance.

Keep these instructions in a place where you can find them easily.

If you are unsure of any of the information contained in these instructions, please contact our customer care centre.

The manufacturer shall not be responsible for any damages to persons or property caused by incorrect installation or use of the appliance. The appliance has been certified for use in countries other than those marked on the appliance.

The manufacturer also reserves the right to make any modifications to the products as may be considered necessary or useful, also in the interests of the user, without jeopardising the main functional and safety features of the products themselves.

The appliance is designed for a domestic environment and not a commercial one.

Contents

PREFACE

SAFETY WARNING

3 Safety instructions
4 Installation
5 Child and people safety
6 During Use
8 Cleaning and service
8 Environmental information

USE AND MAINTENANCE

9 Description of the appliance
10 How to use the appliance
12 Safety and energy saving advice
13 Cleaning and maintenance

TECHNICAL INSTRUCTIONS

15 Using instructions
16 Positioning
17 Installing the appliance
18 Gas connection
19 Gas specification
20 Electrical connection
21 Gas adjustment
22 Trouble shooting

23 GUARANTEE

Safety Instructions

• Please take the time to read this Instruction Manual before installing or using the appliance.
• This instruction booklet must be kept with the appliance for any future reference. If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user.
• The manufacturer declines any liability should these safety measures not be observed.
• The following marks are made to be easily understood so that you can prevent any accident caused by misuse in advance, and use the appliance more conveniently. Read the following contents thoroughly and ensure you understand them.

Danger/Warning	Neglect of this mark may result in severe personal injury or death.
Caution	Neglect of this mark may result in minor personal injury or property damage.

■ The following marks are used in the Instruction Manual as follows:

Caution

No Fire Tool

No Access

Must Do

Danger

■ If gas seems to leak, take the actions as follow:

• Do not turn on the light.
• Do not switch on/off any electrical appliance and do not touch any electric plug.
• Do not use a telephone.
• Stop using the product and close the middle valve.
• Open the window to ventilate.
• Contact our service centre by using a phone outside.

Illustration showing a woman using a fan mask to prevent facial symptoms, with warning symbols and process steps.

* The fuel gas contains mercaptan, so that you can smell the gas leak (smell of rotten garlic or egg) even where only 1/1000 of the gas is in the air.

Installation

Warning

This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space.

Cartoon illustration of a smiling refrigerator with a hand pointing at it (no text or symbols)

Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating plate.

NG LPG 220V-240V

Where this appliance is installed in marine craft or in caravans, it should not be used as a space heater.

Cartoon illustration of a smiling van with a hand waving, no text or symbols present

The gas pipe and electrical cable must be installed in such a way that they do not touch any parts or the appliance.

Cartoon illustration of a sad face emerging from a computer monitor with a thumbs-down gesture (no text or symbols)

Caution

• This appliance should be installed by a qualified technician or installer.
• The adjustment conditions for this appliance are stated on the label or data plate.
• After unpacking the appliance, make sure the product is not damaged and that the connection cord is in perfect condition. Otherwise, contact the dealer before installing the appliance.
• The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85^ above the ambient temperature of the room it is located in, whilst in use.
• In the event of burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least one minute.
• The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation when present.

Child and People Safety

Warning

• Do not allow children to play near or with the appliance. The appliance gets hot when it is in use.
• Children should be kept away until it has cooled.

with it has cooled.

Caution

• This appliance is designed to be operated by adults.
• Children can also injure themselves by pulling pans or pots off the appliance.
• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safety without supervision or instruction by a responsible person to ensure that they can use the appliance safety.

During Use

Warning

Only use the appliance for preparing food.

0°C

Do not modify this appliance. Burner panel is not designed to operate from an external timer or separate remote control system.

Cartoon illustration of a hand holding a tray with a sad face and a knife, no text or symbols present

The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device

(mechanical extractor hood).

Do not use this appliance if it comes in contact with water. Do not operate this appliance with wet hands.

Cartoon illustration of a distressed hand holding a phone with smoke and steam rising (no text or symbols)

The heating and cooking surfaces of the appliance become hot when they are in use, take all due precautions.

Cartoon illustration of a hand holding a tablet with a smiling face and a pointing gesture (no text or symbols)

Do not use large cloths, tea towels or similar as the ends could touch the flames and catch fire.

Cartoon illustration of a sad face on a phone with a cloud above, no text or symbols present

Never leave the appliance un-attended when cooking.

Illustration of a woman using a pipe to smoke while being heated by a stovetop with steam rising (no text or symbols)

Unstable or misshapen pans should not be used on the appliance as they can cause an accident by tipping or spillage.

Cartoon illustration of a hand holding a magnifying glass over a phone screen, with no text or symbols present.

During Use

Do not use or store flammable materials in the storage drawer near

Illustration of a hand cleaning a tray with a cartoon mouse, accompanied by small containers labeled 'thinner' (no text or symbols on main objects)

Perishable food plastic items and aerosols may be affected by heat and should not be stored above or below the

low the plastic aerosol

Do not spray aerosols in the vicinity of this appliance while it is in operation.

Illustration of a person spraying water from a steaming appliance with flames (no text or symbols)

Ensure the control knobs are in the ‘●’ position when not in use.

Cartoon illustration of a smiling face with arms and legs, holding a tablet with four control buttons (no text or symbols)

Caution

This appliance is intended for domestic cooking only. It is not designed for commercial or industrial purposes.

Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or increasing the level of mechanical ventilation where present.

Use heat-resistant pot holders or gloves when handling hot pots and pans. Do not let pot holders come near open flames when lifting cookware. Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer through the material quicker with the risk of burning yourself.

Only ever use the burners after placing pots and pans on them. Do not heat up any empty pots or pans.

Never use plastic or aluminium foil dishes on the appliance.

When using other electrical appliances, ensure the cable does not come into contact with the appliance surfaces of the cooking appliance.

If you have any mechanical parts eg. a heart pacemaker in your body, consult a doctor before using the appliance.

Do not use a tea towel or similar materials in place of a pot holder. Such cloths can catch fire on a hot burner.

When using glass cookware, make sure it is designed for top plate cooking. If the glass surface is cracked, switch off the appliance to avoid defeat electrocution.

To minimise the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or center of the top plate without extending over adjacent burners.

Always turn burner controls off before removing cookware.

Carefully watch foods being fried at a high flame setting.

Always heat fat slowly and watch as it heats.

Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is completely cool.

Cleaning and Service

Warning

Never use abrasive or caustic cleaning agents.

benzenes thinner

This appliance should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.

Caution

■ Before attempting to clean the appliance, it should be disconnected from the mains and cooled.
- You should not use a steam jet or any other high pressure cleaning equipment to clean the appliance.

Environmental Information

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

Cartoon illustration of a smiling face on a tablet with a hand gesture (no text or symbols)

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Description of the appliance

Top Plate	Dimension (W*D*H)	Ignition device	Gas connection	Electric supply	Burner Feature	ΣQn
Glass	600*510*110	Continuous Ignition Type	G1/2 thread	220-240Vac, 50Hz-60Hz, 2W	Wok(1), Semi-rapid (2), Auxiliary (1)	7.8kW

Description of the appliance

Accessories

Bracket (4)

Sponge (4)

Screw (4)

Injector (4)

Gas-pipe bend (1)

Instruction Manual (1)

How to Use the appliance

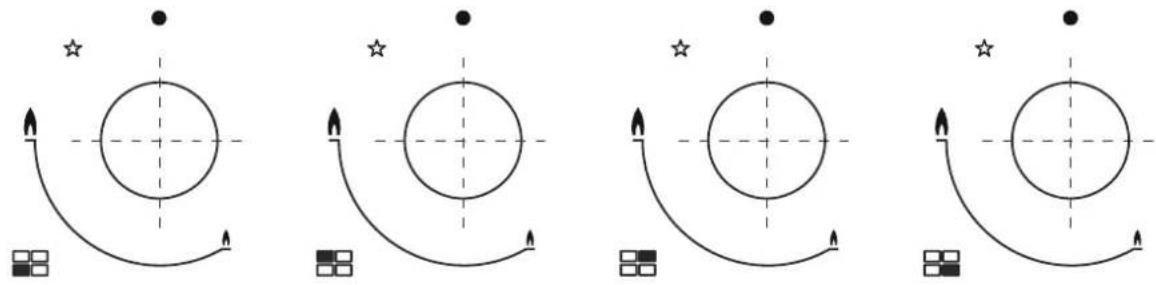

The following symbols will appear on the control panel, next to each control handle:

- Black circle: gas off

▲ Large flame: maximum setting

A Small flame: minimum setting

Simple diagram with a circle, star, and curved arrows (no text or symbols)

- The minimum setting is at the end of the anti-clockwise rotation of the control handle.

- All operation positions must be selected between the maximum and minimum position.

- The symbol on the control panel, next to the control handle will indicate which burner it operates.

Automatic ignition with flame failure safety device

The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out.

How to Use the appliance

Automatic ignition with flame failure safety device

The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out.

To ignite a burner:

- Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position.

- If you keep the control knob depressed, the automatic ignition for the burner will operate.

- You should hold down the control knob for 15 seconds after the flame on the burner has lit. If after 15s the burner has not lit, stop operating the device and open the compartment door and/or wait at least 1 min before attempting a further ignition of the burner. After this 15-second interval, to regulate the flame you should continue turning the control knob anti-clockwise until the flame is at a suitable level. The operating position MUST be at a position between the maximum and minimum position.

- To switch the burner off, turn the control knob fully clockwise to the gas off position.

- In case of power failure, the burners can be lit by carefully using a match.

Safety and Energy saving advice

- The diameter of the bottom of the pan should correspond to that of the burner.

BURNERS	PANS
	min.	max.
Triple-Crown	200mm	240mm
Rapid	200mm	240mm
Semi-Rapid	160mm	180mm
Auxiliary	120mm	160mm

■ Do not use cookware that overlaps the edge of the burner.

NO YES
	Do not use small diameter cookware on large burners. The flame should never come up the sides of the cookware.	Always use cookware that is suitable for each burner, to avoid wasting gas and discolouring the cookware.
	Avoid cooking without a lid or with the lid half off as this wastes energy	Place a lid on the cookware.
	Do not use a pan with a convex or concave bottom.	Only use pots,saucepans and frying pans with a thick,flat bottom.
	Do not place cookware on one side of a burner,as it could tip over.	Always place the cookware right over the burners,not to one side.
	Do not use cookware with a large diameter on the burners near the controls,which when placed on the middle of the burner may touch the controls or be so close to them that they increase the temperature in this area and may cause damage.
	Never place cookware directly on top of the burner.	Place the cookware on top of the trivet.
	Do not place anything,eg.flame tamer,asbestos mat,between pan and pan support as serious damage to the appliance may result.
	Do not use excessive weight and do not hit the cooktop with heavy objects.	Handle cookware carefully when they are on the burner.

• It is not recommended to use roasting pans, frying pans or grill stones heated simultaneously on several burners because the resulting heat build-up may damage the appliance. Avoid prolonged use of griddles, earthenware pans, etc. at maximum power.
• Do not touch the top plate and trivet whilst in use for a certain period after use.
• As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.

Cleaning and Maintenance

■ Cleaning operations must only be carried out when the appliance is completely cool.
■ The appliance should be disconnected from your mains supply before commencing any cleaning process.
■ Clean the appliance regularly, preferably after each use.
■ Abrasive cleaners or sharp objects will damage the appliance surface; you should clean it using water and a little washing up liquid.

Usable		Unusable
	Soft cloth		Nylon Brush Metal Brush
	Neutral Detergent		Edible Oil Acidic/Alkali Detergent
			Abrasive Thinner/Benzene

Pan support, control handles

■ Take off the Pan support.
- Clean these and the control handles with a damp cloth, washing up liquid and warm water. For stubborn soiling, soak beforehand.
- Dry everything with a clean soft cloth.

Top plate

• Regularly wipe over the top plate using a soft cloth well wrung-out in warm water to which a little washing up liquid has been added.
• Dry the top plate thoroughly after cleaning.
• Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid the risk of corrosion.
• Stainless steel parts of the appliance may become discoloured over time. This is normal because of the high temperatures. Each time the appliance is used, these parts should be cleaned with a product that is suitable for stainless steel.

Cleaning and Maintenance

BURNERS

• Remove the burner lids and flame spreaders by pulling them upwards and away from the top plate.
• soak them in hot water and a little detergent or washing up liquid.
  ■ After cleaning and washing them, wipe and dry them carefully. Make sure that the flame holes are clean and completely dry.
• Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards.
• Gently wipe the ignition device and flame supervision device with a well wrung-out cloth and wipe dry with a clean cloth.
  ■ Before placing the burners back on the top plate, make sure that the injector is not blocked.

Re-assemble the auxiliary, semi-rapid, rapid and triple-crown burners as follows:

Exploded view diagram of a mechanical assembly with numbered parts for identification

1. Place the flame spreader (4) on to the burner cup (5) so that the ignition device and the flame supervision device extend through their respective holes in the flame spreader. The flame spreader must click into place correctly.

2. Position the burner lid (1, 2, 3) onto the flame spreader (4) so that the retaining pins fit into their respective recesses.

Replace parts in the correct order after cleaning.

- Do not mix up the top and bottom.

- The locating pins must fit exactly into the notches.

Using instructions

Warnings

■ Do not modify this appliance.
■ This appliance must be installed by an authorised technician or installer.
■ Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
■ The adjustment conditions for this appliance are stated on the label (or data plate).
■ This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilation.
■ Before installing, turn off the gas and electricity supply to the appliance.
■ All appliances containing any electrical components must be earthed.
■ Ensure that the gas pipe and electrical cable are installed in such a way that they do not touch any parts of the appliance which may become hot.
■ Gas pipe or connector shouldn't be bent or blocked by any other appliances.
- Check the dimensions of the appliance as well as the dimensions of the gap to be cut in the kitchen unit.
■ The panels located above the work surface, directly next to the appliance, must be made of non-flammable material. Both the stratified surfacing and the glue used to secure it should be heat resistant, to prevent deterioration.
■ Turn on appliance tap and light each burners. Check for a clear blue flame without yellow tipping. If burners show any abnormalities check the following:
- Burner lid on correctly
- Flame spreader positioned correctly
- Burner vertically aligned with injector nipple
■ A full operational test and a test for possible leakages must be carried out by the fitter after installation.
■ The flexible hose shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit and does not pass through any space susceptible of becoming congested.
■ Grease cranes produced at the factory to meet the requirement of all life hob.

Positioning

CLEARANCES REQUIRED WHEN FITTING THE HOB WITH A COOKER HOOD ABOVE 600mm 700mm 400mm 60mm 400mm 200 mof 4mm 560mm 480mm

■ This appliance is to be built into a kitchen unit or 600mm worktop, providing the following minimum distances are allowed;

• The edges of the hob must be a minimum distance of 60 mm from a side or rear wall.
• 700 mm between the highest point of the hob surface (including the burners) and the underside of any horizontal surface directly above it.
• 400 mm between the hob surfaces, providing that the underside of the horizontal surface is in line with the outer edge of the hob. If the underside of the horizontal surface is lower than 400 mm, then it must be at least 50 mm away from the outer edges of the hob.
• 50 mm clearance around the appliance and between the hob surface and any combustible materials.
• You must have a gap of at least 25 mm and at most 74 mm between the underneath of the appliance and any surface that is below it.

25 mm (MIN.) 45 mm

• An oven must have forced ventilation to install a hob above it.
• Check the dimensions of the oven in the installation manual.
• The cut out size must obey the indication.

Installing the appliance

Illustration of a hand holding a pen near a laptop with a black X mark (no text or symbols)

(A) SEALING STRIP (C) SCREW (B) BRACKET

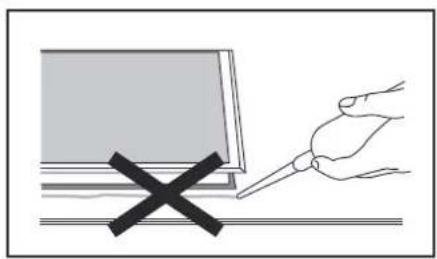

Do not use a silicon sealant to seal the appliance against the aperture.

This will make it difficult to remove the appliance from the aperture in future, particularly if it needs to be serviced.

1. Place the bracket (B) over the holes that match the size of the screws. There are one set of screw holes in each corner of the hob (H). Slightly tighten a screw (C) through the bracket (B) so that the bracket is attached to the hob, but so that you can still adjust the position.

2. Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out.

3. On the underneath of the hob, adjust the brackets into a position that is suitable for your worktop. Then fully tighten the screws (C) to secure the hob into position.

Gas Connection

■ This appliance must be installed and connected in accordance with installation regulations in force in the country in which the appliance is to be used.
■ This appliance is supplied to run on LPG and natural gas. Conversion for use on LPG and natural gases must only be undertaken by a qualified person.

Gas supply replacement and installation guidelines:
LPG > NG
NG > LPG

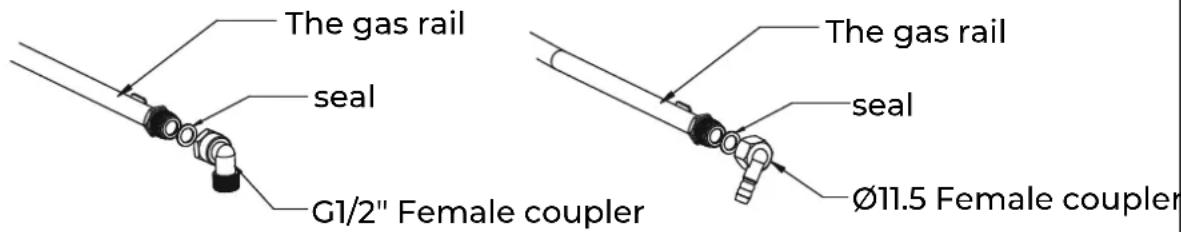

The gas rail seal G1/2" Female coupler The gas rail seal Ø11.5 Female coupler

• It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations.
• It is in your interest and that of safety to ensure compliance with the law.
• In the UK, GASSAFE registered installers work to safe standards of practice. The hob must also be installed in accordance with the current edition of BS 6172. Failure to install the cooker correctly could invalidate the warranty, liability claims and lead to prosecution.

Gas Specification

Gas type & pressure	Heat input and orifice size marked (mm)
	Wok burner Rapid burner		Semi-rapid	Auxiliary-rapid
	220-240V~50-60Hz	-	220-240V~50-60Hz	220-240V~50-60Hz
G30 29mbar	0.93	-	0.66	0.50
G20 20mbar	1.28	-	1.00	0.78

Electrical Connection

■ This appliance must be earthed.
■ This appliance is designed to be connected to a 220-240V, 50Hz-60Hz AC electricity supply.
■ The wires in the mains lead are coloured in accordance with the following code;

• Green/yellow = Earth
• Blue = Neutral
• Brown = Live

connected to the terminal which is marked with the letter E or by the earth symbol.

Gas adjustment

■ Take precautions on the operations and adjustments to be carried out when converting from one gas to another.
■ All work must be carried out by a qualified technician.
■ Before you begin, turn off the gas and electricity supply to the appliance.

7

Change the injector of the burners.

Injector

Remove the pan support, Burner lid and Flame spreader.

Unscrew the injector using a 7mm box spanner and replace it with the stipulated injector for new gas supply. Carefully reassemble the all components.

After injectors are replaced, it is advisable to strongly tighten the injector in place.

2

Adjustment of minimum level of the flame.

Control handle

① Turn the taps down to minimum.
② Remove the knob from the tap and place a small blue bladed screwdriver in the centre of the tap shaft.

③ The correct adjustment is obtained when the flame has a length of about 3 - 4 mm.

• For butane/propane gas, the adjusting screw must be tightly screwed in.
• Refit the control knob.
• Make sure that the flame does not go out by quickly turning from maximum flow to minimum flow. If it does then remove the control knob and make further adjustments to the gas flow, testing it again once the adjustment has been made.

Adjustment screw

④ Repeat this process for each one of the gas taps.

!

■ Do not dismantle the tap shape: in the event of a malfunction, change the whole tap.
■ Before placing the burners back on the top place, make sure that the injector is not blocked.
■ A full operational test and a test for possible leakages must be carried out after gas conversion. (such as soap water or gas detector)

After completing conversion, a qualified technician or installer has to mark "V" on the right gas category setting to match with the setting in rating plate. Remove the previous "V" mark.

Trouble shooting

• Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others.
• However, some minor problems can be resolved as follows:

Problem	Probable cause	Solution
Not ignited	No spark.	Check the electricity supply.
	The burner lid is badly assembled.	Assemble the lid correctly.
	The gas supply is closed.	Open the gas supply completely.
Badly ignited	The gas supply is not completely open.	Open the gas supply completely.
	The burner lid is badly assembled.	Assemble the lid correctly.
	The ignition plug is contaminated with alien substance.	Wipe alien substance with a dry cloth.
	The burners are wet.	Dry the burners lids carefully.
	The holes in the flame spreader are clogged.	Clean the flame spreader.
Noise made when combusted and ignited	The burner lid is badly assembled.	Assemble the burner lid correctly.
Flame goes out when in use.	The flame supervision device is contaminated with alien substance.	Clean the flame supervision device.
	Product being cooked has boiled over and extinguished the flame.	Turn off burner knob. Wait one minute and reignite zone.
	A strong draught may have blown the flame out.	Please turn off zone and check cooking area for draught such as open windows. Wait one minute and reignite zone
Yellow Flame	The holes in the flame spreader are clogged.	Clean the flame spreader.
	Different gas is used.	Check the gas used.
Unstable Flame	The burner lid is badly assembled.	Assemble the burner lid correctly.
Gas Smell	Gas leakage	Stop using the product and close the middle valve. Open the window to ventilate. Contact our service centre by using a phone outside.

■ If problem is not solved, please contact customer care centre.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

aesthetic parts or components that do not affect the internal functioning of the appliance.

climatic circumstances. Not suitable for outdoor use.

bulbs when their failure or breakage is not attributable to a manufacturing defect.

of abnormal, negligent or inappropriate use of the device.

malfunction.

suffer.

parts.

instructions for use and maintenance.

cannot be claimed.

machine or its connection points.

of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Préface

Illustration showing a woman using a fan mask to interact with a window and screen, before and after warning.

Cartoon illustration of a smiling refrigerator with a hand pointing at it (no text or symbols)

Cartoon illustration of a smiling car with a hand waving, next to a covered vehicle (no text or symbols)

Cartoon illustration of a smiling computer monitor with a hand waving, no text or symbols present

Attention

Cartoon illustration of a child reacting to a large cartoon smartphone displaying a frowning face (no text or symbols present)

Attention

Cartoon illustration of a hand holding scissors cutting a tray with a sad face (no text or symbols)

Cartoon illustration of a smiling face on a rectangular plate with a hand gesture (no text or symbols)

Cartoon illustration of a hand crushing a device with smoke and a pipe (no text or symbols)

Cartoon illustration of a hand holding a tablet with a smiling face, pointing at it (no text or symbols present)

Cartoon illustration of a person reacting to a phone screen with a sad face, showing frustration (no text or symbols)

Illustration of a woman using a hand mixer with a stovet and another person reacting to its side (no text or symbols)

Cartoon illustration of a person frying on a smartphone while waving, with no text or symbols present.

Illustration of a person spraying water from a fire on a steaming board (no text or symbols)

Cartoon illustration of a smiling book with five buttons on a stand, no text or symbols present

Danger

Cartoon illustration of a smiling computer monitor with a hand gesture (no text or symbols)

Line drawing of a mechanical component with three parallel grooves (no text or symbols)

Support (4)

Éponge (4)

Vis (4)

Injecteur (4)

25 mm (MIN.) 45 mm

Simple line drawing of a hand holding a pen over a laptop with a black X mark (no text or symbols)

(A) BANDE D'ÉTANCHÉITÉ (C) VIS (B) SUPPORT

Three-step diagram showing a hand operating a tool on a circular component, with no visible text or symbols.

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Illustration showing a woman's food safety process with warning symbols and three sequential steps

Cartoon illustration of a smiling computer monitor with a hand pointing at it (no text or symbols)

Cartoon illustration of a smiling car with a hand waving beside a vehicle (no text or symbols)

Cartoon illustration of a sad face with a thumbs-down gesture, waving to a computer screen (no text or symbols)

Cuidado

Cartoon illustration of a child reacting to a large cartoon smartphone displaying a frowning face (no text or symbols present)

Cuidado

Cartoon illustration of a hand holding a tablet with a sad face and a pointing gesture, no text or symbols present.

Cartoon illustration of a smiling computer monitor with a hand pointing to it (no text or symbols)

Cartoon illustration of a hand holding a phone with a smiling face, reacting to a phone screen (no text or symbols present)

Cartoon illustration of a person reacting to a phone screen with a sad face, showing frustration (no text or symbols present)

Illustration of a woman using a hand mixer with a stove and a cartoon character (no text or symbols)

Cartoon illustration of a sad face with a frying pan and pointing to a smartphone screen (no text or symbols)

plastic aerosol

Illustration of a person spraying water from a fire while holding a spray bottle (no text or symbols present)

Cartoon illustration of a smiling computer with five control buttons (no text or symbols)

⚠️ Perigo

Cartoon illustration of a smiling computer monitor with a hand pointing to it (no text or symbols)

Technical line drawing of a mechanical component with three parallel grooves (no text or symbols)

Suporte (4)

Esponja (4)

Parafuso (4)

Injetor (4)

Cotovelo de tubo de gás(1)

45 mm 25 mm (MIN.)

Simple line drawing of a hand holding a pen over a flat surface with a black X mark (no text or symbols)

A) FAIXA DE SELAGEM (C) PARAFUSO (B) SUPORTE

Diagram illustrating three-step mechanical assembly steps: top view, bottom view, and tool insertion.

Scan for manual in other languages and further updates:
