USER MANUAL EMH750CGB EAS Electric

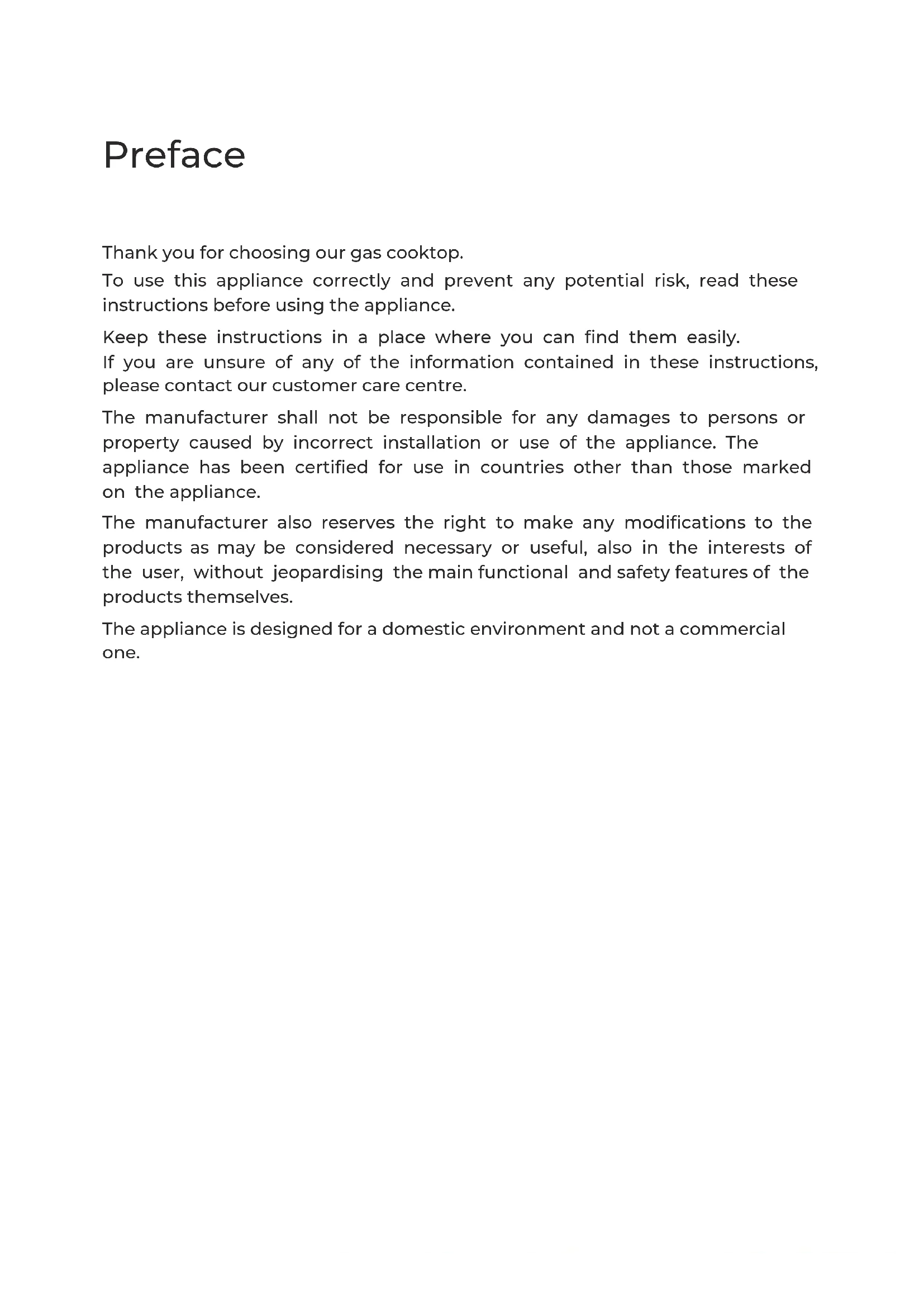

PREFACE SAFETY WARNING Safety instructions Installation Child and people safety During Use Cleaning and service Environmental information COMMERCIAL GUARANTEE

TECHNICAL INSTRUCTIONS Using instructions Positioning Installing the appliance Gas connection Gas specification Electrical connection Gas adjustment Trouble shooting

Description of the appliance How to use the appliance Safety and energy saving advice Cleaning and maintenance

V.6Danger/Warning Caution Neglect of this mark may result in minor personal injury or property damage. Caution No Access Must Do Danger - Do not turn on the light. - Do not switch on/off any electrical appliance and do not touch any electric plug. - Do not use a telephone.

1. Stop using the product and close the middle valve.

2. Open the window to ventilate.

3. Contact our service centre by using a phone outside.

The following marks are used in the Instruction Manual as follows: If gas seems to leak,take the actions as follow: Neglect of this mark may result in severe personal injury or death. Safety Instructions Please take the time to read this Instruction Manual before installing or using the appliance. This instruction booklet must be kept with the appliance for any future reference. If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user. The manufacturer declines any liability should these safety measures not be observed. The following marks are made to be easily understood so that you can prevent any accident caused by misuse in advance, and use the appliance more conveniently. Read the following contents thoroughly and ensure you understand them

V.6Installation Warning This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space. Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating plate. The gas pipe and electrical cable must be installed in such a way that they do not touch any parts or the appliance. Caution 220V-240V This appliance should be installed by a qualified technician or installer. The adjustment conditions for this appliance are stated on the label or data plate. After unpacking the appliance, make sure the product is not damaged and that the connection cord is in perfect condition. Otherwise, contact the dealer before installing the appliance. The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85ºC above the ambient temperature of the room it is located in, whilst in use. In the event of burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least one minute. The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation when present. Where this appliance is installed in marine craft or in caravans, it should not be used as a space heater.

V.6Child and People Safety Do not allow children to play near or with the appliance. The appliance gets hot when it is in use. Children should be kept away until it has cooled. Warning Caution This appliance is designed to be operated by adults. Children can also injure themselves by pulling pans or pots off the appliance. This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safety without supervision or instruction by a responsible person to ensure that they can use the appliance safety.

V.6During Use Warning Never leave the appliance un- attended when cooking. Do not modify this appliance. Burner panel is not designed to operate from an external timer or separate remote control system. Only use the appliance for preparing food. Do not use this appliance if it comes in contact with water. Do not operate this appliance with wet hands. The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated : keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). The heating and cooking surfaces of the appliance become hot when they are in use, take all due precau- tions. Do not use large cloths, tea towels or similar as the ends could touch the flames and catch fire. Unstable or misshapen pans should not be used on the appliance as they can cause an accident by tipping or spillage.

V.6Do not spray aerosols in the vicinity of this appliance while it is in operation. ‘ ’ position when not in use. Caution During Use Do not use or store flammable materials in the storage drawer near this appliance. Perishable food plastic items and aerosols may be affected by heat and should not be stored above or below the appliance. This appliance is intended for domestic cooking only. It is not designed for commercial or industrial purposes. Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or increasing the level of mechanical ventilation where present. Use heat-resistant pot holders or gloves when handling hot pots and pans. Do not let pot holders come near open flames when lifting cookware. Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer through the material quicker with the risk of burning yourself. Only ever use the burners after placing pots and pans on them. Do not heat up any empty pots or pans. Never use plastic or aluminium foil dishes on the appliance. When using other electrical appliances, ensure the cable does not come into contact with the appliance surfaces of the cooking appliance. If you have any mechanical parts eg. a heart pacemaker in your body, consult a doctor before using the appliance. Do not use a tea towel or similar materials in place of a pot holder. Such cloths can catch fire on a hot burner. When using glass cookware, make sure it is designed for top plate cooking. If the glass surface is cracked, switch off the appliance to avoid defeat electrocution. To minimise the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or center of the top plate without extending over adjacent burners. Always turn burner controls off before removing cookware. Carefully watch foods being fried at a high flame setting. Always heat fat slowly and watch as it heats. Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan. Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is completely cool. Ensure the control knobs are in the

V.6Cleaning and Service Environmental Information Warning Before attempting to clean the appliance, it should be disconnected from the mains and cooled. You should not use a steam jet or any other high pressure cleaning equipment to clean the appliance. This appliance should only be repaired or serviced by an autho- rised Service Engineer and only genuine approved spare parts should be used. Caution Never use abrasive or caustic cleaning agents. The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

V.6Description of the appliance

220-240Vac, 50Hz-60Hz, Ignition device Gas connection Electric supply Burner Feature Dimension (W*D*H) Top Plate Rapid (1), Semi-rapid(2), Auxiliary (1), Triple-Crown(1) 10.8kW Glass V.6Description of the appliance Accessories Black circle: gas off Large flame: maximum setting Small flame: minimum setting Bracket (4) Sponge (4) Screw (4) Instruction Manual (1) The minimum setting is at the end of the anti-clockwise rotation of the control handle. All operation positions must be selected between the maximum and minimum position. The symbol on the control panel,next to the control handle will indicate which burner it operates. Automatic ignition with flame failure safety device The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. Injector (5) Gas-pipe bend (1) How to Use the appliance The following symbols will appear on the control panel, next to each control handle:

V.6How to Use the appliance Automatic ignition with flame failure safety device The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. To ignite a burner: Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. If you keep the control knob depressed, the automatic ignition for the burner will operate. You should hold down the control knob for 15 seconds after the flame on the burner has lit. If after 15s the burner has not lit, stop operating the device and open the compartment door and/or wait at least 1 min before attempting a further ignition of the burner. After this 15-second interval, to regulate the flame you should continue turning the control knob anti-clockwise until the flame is at a suitable level. The operating position MUST be at a position between the maximum and minimum position. To switch the burner off, turn the control knob fully clockwise to the gas off position. In case of power failure, the burners can be lit by carefully using a match.

V.6Safety and Energy saving advice - The diameter of the bottom of the pan should correspond to that of the burner. BURNERS 200mm 240mm 200mm 240mm 160mm NO YES 120mm 160mm 180mm Triple-Crown Rapid Semi-Rapid Auxiliary PANS min. max. Do not use small diameter cookware on large burners. The flame should never come up the sides of the cookware. Avoid cooking without a lid or with the lid half off as this wastes energy Do not use a pan with a convex or concave bottom. Do not place cookware on one side of a burner,as it could tip over. Do not use cookware with a large diame- ter on the burners near the controls,which when placed on the middle of the burner may touch the controls or be so close to them that they increase the temperature in this area and may cause damage. Never place cookware directly on top of the burner. Do not place anything,eg.flame tamer,asbestos mat,between pan and pan support as serious damage to the appliance may result. Do not use excessive weight and do not hit the cooktop with heavy objects. Always use cookware that is suitable for each burner, to avoid wasting gas and discolouring the cookware. Place a lid on the cookware. Only use pots,saucepans and frying pans with a thick,flat bottom. Always place the cookware right over the burners,not to one side. Place the cookware on top of the trivet. Handle cookware carefully when they are on the burner. ■ Do not use cookware that overlaps the edge of the burner. It is not recommended to use roasting pans,frying pans or grill stones heated simultaneously on several burners because the resulting heat build-up may damage the appliance. Avoid prolonged use of griddles, earthenware pans, etc. at maximum power.

Do not touch the top plate and trivet whilst in use for a certain period after use.

As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.

V.6Cleaning and Maintenance Soft cloth Neutral Detergent Edible Oil Abrasive Metal Brush Acidic/Alkali Detergent Thinner/ Benzene Take off the Pan support. Clean these and the control handles with a damp cloth, washing up liquid and warm water. For stubborn soiling, soak beforehand. Dry everything with a clean soft cloth. ■ Cleaning operations must only be carried out when the appliance is completely cool.

The appliance should be disconnected from your mains supply be- fore commencing any cleaning process.

Clean the appliance regularly, preferably after each use.

Abrasive cleaners or sharp objects will damage the appliance sur- face; you should clean it using water and a little washing up liquid. Pan support, control handles Top plate Regularly wipe over the top plate using a soft cloth well wrung-out in warm water to which a little washing up liquid has been added. Dry the top plate thoroughly after cleaning. Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid the risk of corrosion. Stainless steel parts of the appliance may become discoloured over time. This is normal because of the high temperatures. Each time the appliance is used, these parts should be cleaned with a product that is suitable for stainless steel. Nylon Brush

V.6Cleaning and Maintenance

1. Place the flame spreader (4) on to the burner cup (5) so that the ignition

device and the flame supervision device extend through their respective holes in the flame spreader. The flame spreader must click into place correctly.

2. Position the burner lid (1, 2, 3) onto the flame spreader (4) so that the

retaining pins fit into their respective recesses. Remove the burner lids and flame spreaders by pulling them upwards and away from the top plate. soak them in hot water and a little detergent or washing up liquid. After cleaning and washing them, wipe and dry them carefully. Make sure that the flame holes are clean and completely dry. Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards. Gently wipe the ignition device and flame supervision device with a well wrung-out cloth and wipe dry with a clean cloth. Before placing the burners back on the top plate, make sure that the injector is not blocked. Replace parts in the correct order after cleaning.

Do not mix up the top and bottom. - The locating pins must fit exactly into the notches. BURNERS Re-assemble the auxiliary, semi-rapid, rapid and triple- crown burners as follows:

V.6Warnings Using instructions ■ Do not modify this appliance.

This appliance must be installed by an authorised technician or installer.

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.

The adjustment conditions for this appliance are stated on the label (or data plate).

This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be givento the relevant requirements regarding ventilation.

Before installing, turn off the gas and electricity supply to the appliance.

All appliances containing any electrical components must be earthed.

Ensure that the gas pipe and electrical cable are installed in such a way that they do not touch any parts of the appliance which may become hot. ■ Gas pipe or connector shouldn’t be bent or blocked by any other appliances.

Check the dimensions of the appliance as well as the dimensions of the gap to be cut in the kitchen unit.

The panels located above the work surface, directly next to the appliance, must be made of non-flammable material. Both the stratified surfacing and the glue used to secure it should be heat resistant, to prevent deterioration.

Turn on appliance tap and light each burners. Check for a clear blue flame without yellow tipping. If burners shows any abnormal

ties check the following:

Burner vertically aligned with injector nipple

A full operational test and a test for possible leakages must be carried out by the fitter after installation.

The flexible hose shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit and does not pass through any space susceptible of becoming congested.

Grease cranes produced at the factory to meet the requirement of all life hob.

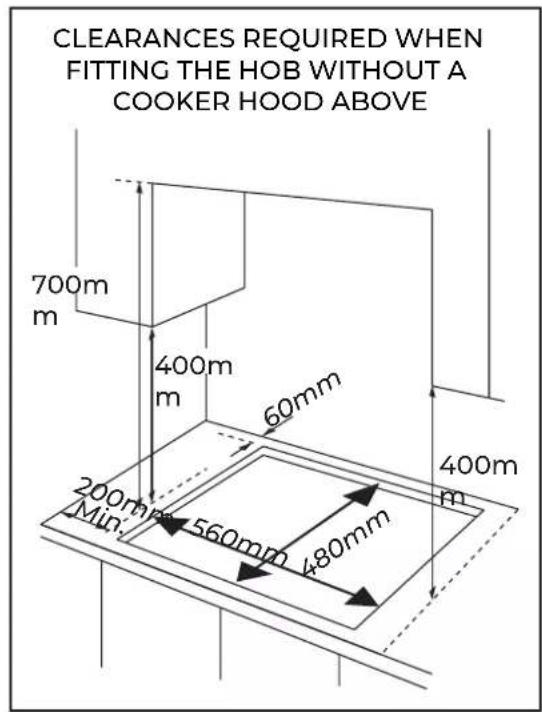

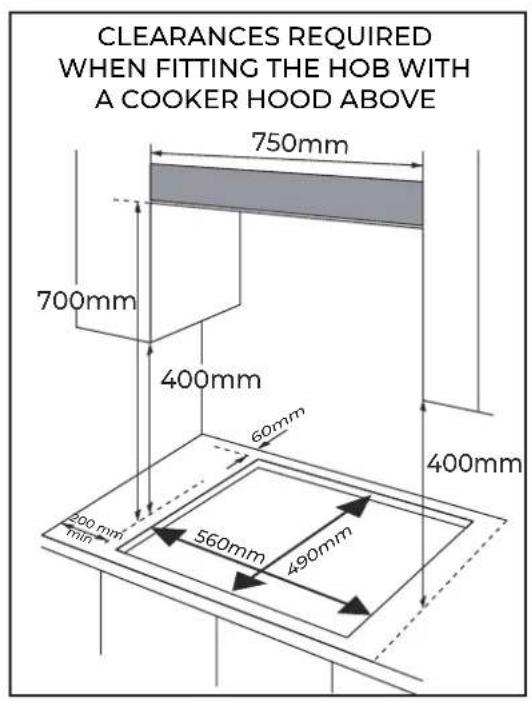

V.6Positioning 45 mm The edges of the hob must be a minimum distance of 60 mm from a side or rear wall. 700 mm between the highest point of the hob surface (including the burners) and the underside of any horizontal surface directly above it. 400 mm between the hob surfaces, providing that the underside of the horizontal surface is in line with the outer edge of the hob. If the underside of the horizontal surface is lower than 400 mm, then it must be at least 50 mm away from the outer edges of the hob. 50 mm clearance around the appliance and between the hob surface and any combustible materials. You must have a gap of at least 25 mm and at most 74 mm between the underneath of the appliance and any surface that is below it. CLEARANCES REQUIRED

WHEN FITTING THE HOB WITH

750mm 700mm 400mm 400mm 60mm 490mm 200 mm min This appliance is to be built into a kitchen unit or 600mm worktop, providing the following minimum distances are allowed; - An oven must have forced ventilation to install a hob above it. - Check the dimensions of the oven in the installation manual. - The cut out size must obey the indication. 560mm 400m

FITTING THE HOB WITHOUT A

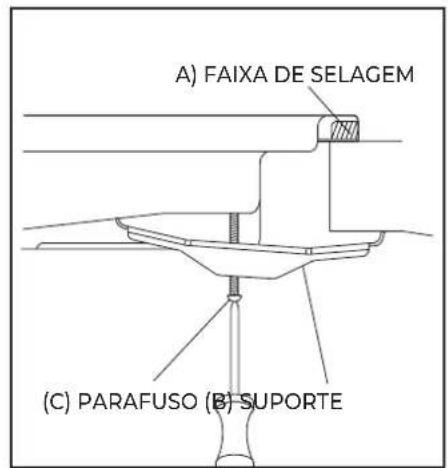

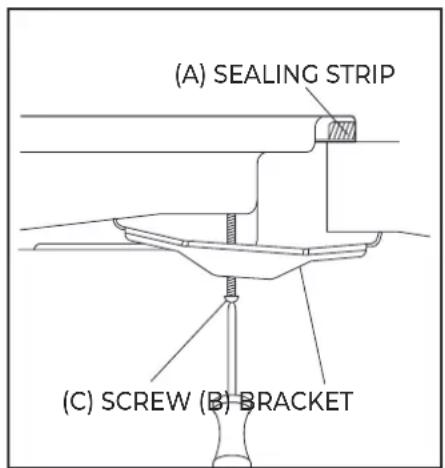

1. Place the bracket (B) over the holes that

match the size of the screws.There are one set of screw holes in each corner of the hob (H). Slightly tighten a screw (C) through the bracket (B) so that the bracket is attached to the hob, but so that you can still adjust the position.

2. Carefully turn the hob back over and then

gently lower it into the aperture hole that you have cut out.

3. On the underneath of the hob, adjust the

brackets into a position that is suitable for your worktop. Then fully tighten the screws (C) to secure the hob into position.

1.Remove the pan supports, the burner lid and flame spreader and carefully turn the appliance upside down and place it on a cushioned mat. Take care that the Ignition devices and flame supervision devices are not damaged in this operation. 2.Apply the sponge provided around the edge of the appliance. 3.Do not leave a gap in the sealing agent or overlap the thickness. Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the appliance from the aperture in future, particularly if it needs to be serviced.

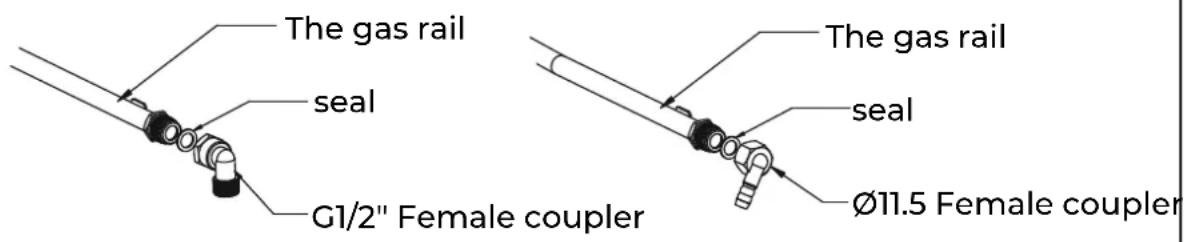

V.6Gas Connection ■ This appliance must be installed and connected in accordance with installation regulations in force in the country in which the appliance is to be used.

This appliance is supplied to run on LPG and natural gas. Conversion for use on LPG and natural gases must only be undertaken by a qualified person. It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations. It is in your interest and that of safety to ensure compliance with the law. In the UK, GASSAFE registered installers work to safe standards of practice. The hob must also be installed in accordance with the current edition of BS 6172. Failure to install the cooker correctly could invalidate the warranty, liability claims and lead to prosecution. seal G1/2" Female coupler The gas rail seal The gas rail Ø11.5 Female coupler

Gas supply replacement and installation guidelines:

V.6Electrical Connection ŶThe wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol. ■ This appliance must be earthed. ■ This appliance is designed to be connected to a 220-240V, 50Hz-60Hz AC electricity supply. ■ The wires in the mains lead are coloured in accordance with the following code; - Green/yellow = Earth - Blue = Neutral - Brown = Live

InjectorControl handle Tap Sealing ringRemove the pan support, Burner lid and Flame spreader.Unscrew the injector using a 7mm box spanner and replace it with the stipulated injector for new gas supply. Carefully reassemble the all components. After injectors are replaced, it is advisable to strongly tighten the injector in place. Adjustment of minimum level of the flame. Turn the taps down to minimum.Remove the knob from the tap and place a small bladed screwdriver in the centre of the tap shaft. The correct adjustment is obtained when the flame has a length of about 3 - 4 mm. For butane

propane gas, the adjusting screw mustbe tightly screwed in. Refit the control knob. Make sure that the flame does not go out byquickly turning from maximum flow to minimumflow. If it does then remove the control knob andmake further adjustments to the gas flow, testing itagain once the adjustment has been made. Repeat this process for each one of the gas taps.

Take precautions on the operations and adjustments to be carriedout when converting from one gas to another. All work must be carried out by a qualified technician. Before you begin, turn off the gas and electricity supply to theappliance.After completing conversion, a qualified technician or installer has to mark “V” on the right gas category setting to match with the setting in rating plate. Remove the previous “V” mark. Change the injector of the burners.

Do not dismantle the tap shape:in the event of a malfunction,change the whole tap. Before placing the burners backon the top place, make sure thatthe injector is not blocked. A full operational test and a testfor possible leakages must becarried out after gas conversion.(such as soap water or gasdetector)

V.6Trouble shooting Not ignited No spark. Check the electricity supply. Badly ignited The gas supply is closed. The ignition plug is contaminated with alien substance. Noise made when combusted and ignited Flame goes out when in use. Yellow Flame Different gas is used. Check the gas used. Unstable Flame Gas Smell Wipe alien substance with a dry cloth. Gas leakage Stop using the product and close the middle valve. Open the window to ventilate. Contact our service centre

using a phone outside. Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. However, some minor problems can be resolved as follows: The burner lid is badly assembled. Assemble the lid correctly. The gas supply is not completely open. Open the gas supply completely. The burners are wet. Dry the burners lids carefully. The holes in the flame spreader are clogged. Clean the flame spreader. The burner lid is badly assembled. Assemble the burner lid correctly. The flame supervision device is contaminated with alien substance. Open the gas supply completely. The burner lid is badly assembled. Assemble the lid correctly. Clean the flame supervision device. Product being cooked has boiled over and extinguished the flame. Turn off burner knob. Wait one minute and reignite zone. A strong draught may have blown the flame out. Please turn off zone and check cooking area for draught such as open windows. Wait one minute and reignite zone The holes in the flame spreader are clogged. Clean the flame spreader. The burner lid is badly assembled. Assemble the burner lid correctly. Problem Probable cause Solution ■ If problem is not solved, please contact customer care centre.

V.623 WARRANTY CONDITIONS This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of

aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use

of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light

bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence

of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of

all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer. 10.Faults caused by incorrect or illegal installation, inadequate ventilation, lack of groun-ding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly

of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the

equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with

liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force , such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations

INSTALAR A PLACA SEM
