Product Type	Home trainer (indoor bike trainer)
Brand	Kinetic
Model	T-2700
Resistance Type	Fluid (resistance unit with flywheel)
Roller	Rubber roller
Attachment Mechanism	Quick release with left and right tension knobs
Included Adapters	Standard Cone Cup (T-2111) and Slotted Cone Cup (T-2103) installed, T-740 axle
Optional Accessories	Riser rings, floor mat, storage cover, specific tire, heavier flywheel
Bike Compatibility	Bikes with standard or thru-axle rear (optional adapters for BMX, track, etc.)
Usage	Indoor, on flat surface
Maintenance	Wipe after use to prevent corrosion from sweat
Storage	Indoors, away from rain and extreme temperatures
Safety	Do not touch hot resistance unit; keep children and pets away; consult a doctor before training
Warranty	Lifetime warranty for first owner on frame and resistance unit (registration required within 30 days)
Accident Replacement Policy	Crash replacement up to $50 for accidental damage (conditions apply)
Repairability	Spare parts available via customer service; do not disassemble resistance unit or warranty will be voided
Serial Number	On the resistance unit (e.g., T-699W 07017)
Customer Service	Hotline: [phone]; email: [e-mail]
Website	www.kurtkinetic.com
Manual Available	36 pages, free PDF download

Frequently Asked Questions - T-2700 Kinetic

How do I install my bike on the Kinetic T-2700?

Loosen the roller preload knob, place the rear wheel on the roller, tighten the left fixation knob to center, then close the quick release on the right side. Adjust the roller tension knob until it touches the tire, then add 2-3 full turns.

How to center the wheel on the roller?

Use the left fixation knob to adjust the lateral position of the bike. Tighten the locking ring once the wheel is centered. The right knob allows fine adjustment.

How to adjust the roller tension?

Turn the roller preload knob until it touches the tire, then add 2-3 full turns. Do not over-tighten to avoid damaging the tire.

What if my bike slips on the roller?

Increase tension by turning the roller preload knob an extra half turn. Ensure the tire is clean and use a specific home trainer tire if necessary.

How to remove my bike from the home trainer?

Release the resistance unit adjustment knob to move the roller away, then loosen the right knob at least two turns. Disengage the quick release and slide the axle knob to open position. Remove the bike.

What accessories are available for the T-2700?

Riser rings for front wheel, floor mat, storage cover, specific tire, heavier flywheel (Pro Flywheel). Visit kurtkinetic.com.

How to maintain my Kinetic home trainer?

Wipe the home trainer after each use to prevent corrosion from sweat. Store indoors, away from moisture and extreme temperatures.

What if the resistance unit heats up?

The resistance unit can become hot during use. Never touch it when hot. Allow it to cool before any contact.

How to benefit from the lifetime warranty?

Register your warranty at www.kurtkinetic.com within 30 days of purchase. Keep the receipt. The warranty covers manufacturing defects of the frame and resistance unit for the first owner.

Where to find the serial number of the Kinetic T-2700?

The serial number is on the resistance unit (e.g., T-699W 07017). It is required for warranty claims and spare parts requests.

USER MANUAL T-2700 Kinetic

ROAD MACHINE | SMART KINETIC RISER RING AND BIKE NOT INCLUDED WITH TRAINER TRAIN WITH POWER 135 128 CABINET 479 SWEET 14.5 13.27 UPLOAD + TRACK RESULTS LANGUAGES: English 01

©2015 KINETIC BY KURT ALL RIGHTS RESERVED

LANGUAGES:

English 01

German 07

Spanish 13

French 19

Italian 25

Dutch 31

REGISTER WARRANTY ONLINE: WWW.KURTKINETIC.COM/WARRANTY

AND RECEIVE A FREE TRAINING VIDEO DOWNLOAD

TRAINER DETAILS

LOCK RING NON-DRIVE SIDE CONE CUP DRIVE SIDE CONE CUP QUICK RELEASE LEVER LEFT TENSIONING KNOB RIGHT TENSIONING KNOB LEG BOLT RESISTANCE UNIT FLYWHEEL INRIDE SENSOR ROLLER TENSION KNOB KINETT

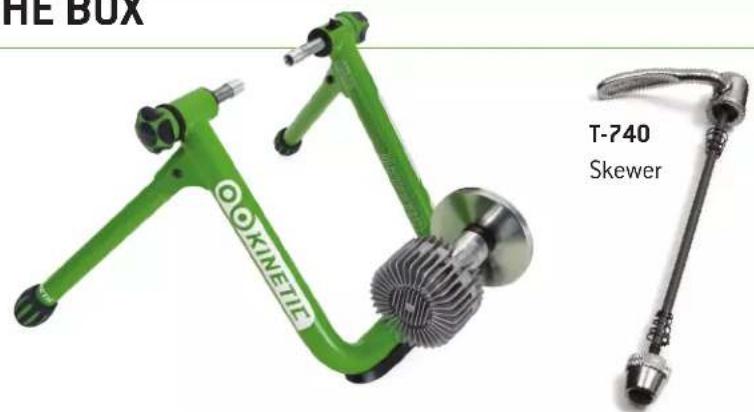

IN THE BOX

HE BOX OXINETIC T-740 Skewer

When unpacking, check that the following components are present

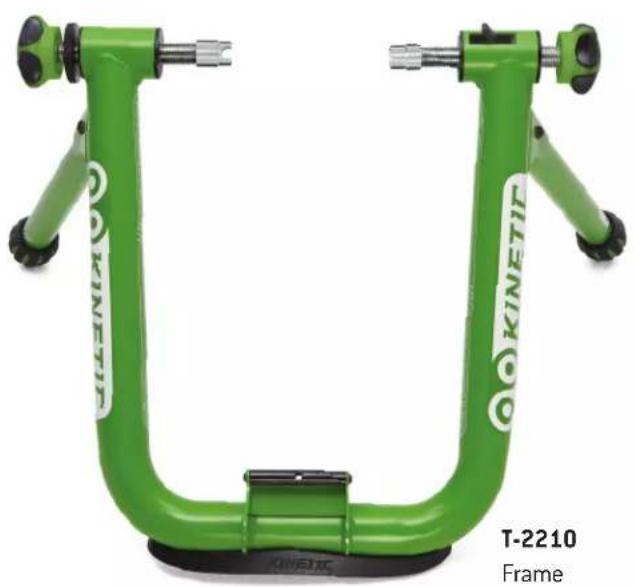

TRAINER PARTS

Green KINETIE bicycle brake lever with U-shaped body and black base (no text or symbols on the device itself)

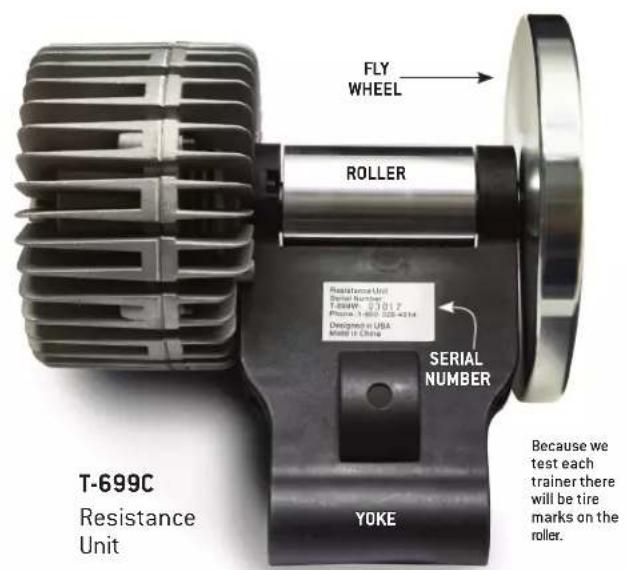

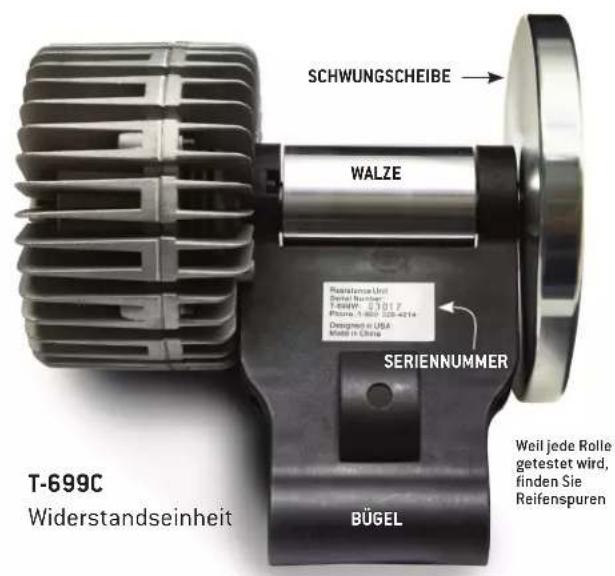

FLY WHEEL ROLLER RESISTANCE Unit Serial Number T-699C 2.3017 Phone: [phone] Designed in USA Model in China SERIAL NUMBER T-699C Resistance Unit Yoke Because we test each trainer there will be tire marks on the roller.

T-2201
Cross bar and screws

Black cylindrical mechanical component with two screws, one hole and one end (no text or symbols visible)

T-2203
Spring

T-2204
Mounting Bolt and Nut

Black cylindrical bolt with two small flutes, labeled 'g Bolt' on the left (no other text or symbols)

Close-up of a green and black rubber bolt with a white washer, labeled T-2202 (no other text or symbols)

T-2111
Standard Cone Cup (Installed on trainer)

T-2103

Slotted Cone Cup (Installed on trainer)

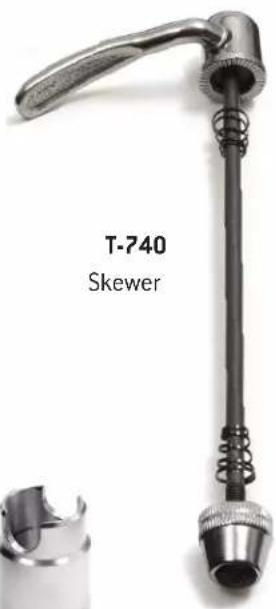

Close-up of a metallic mechanical tool labeled 'T-740 Skewer' with no other visible text or symbols.

REGISTER YOUR TRAINER:

www.kurtkinetic.com/warranty

If any components listed here are missing, please contact Customer Service at www.kurtkinetic.com/contact

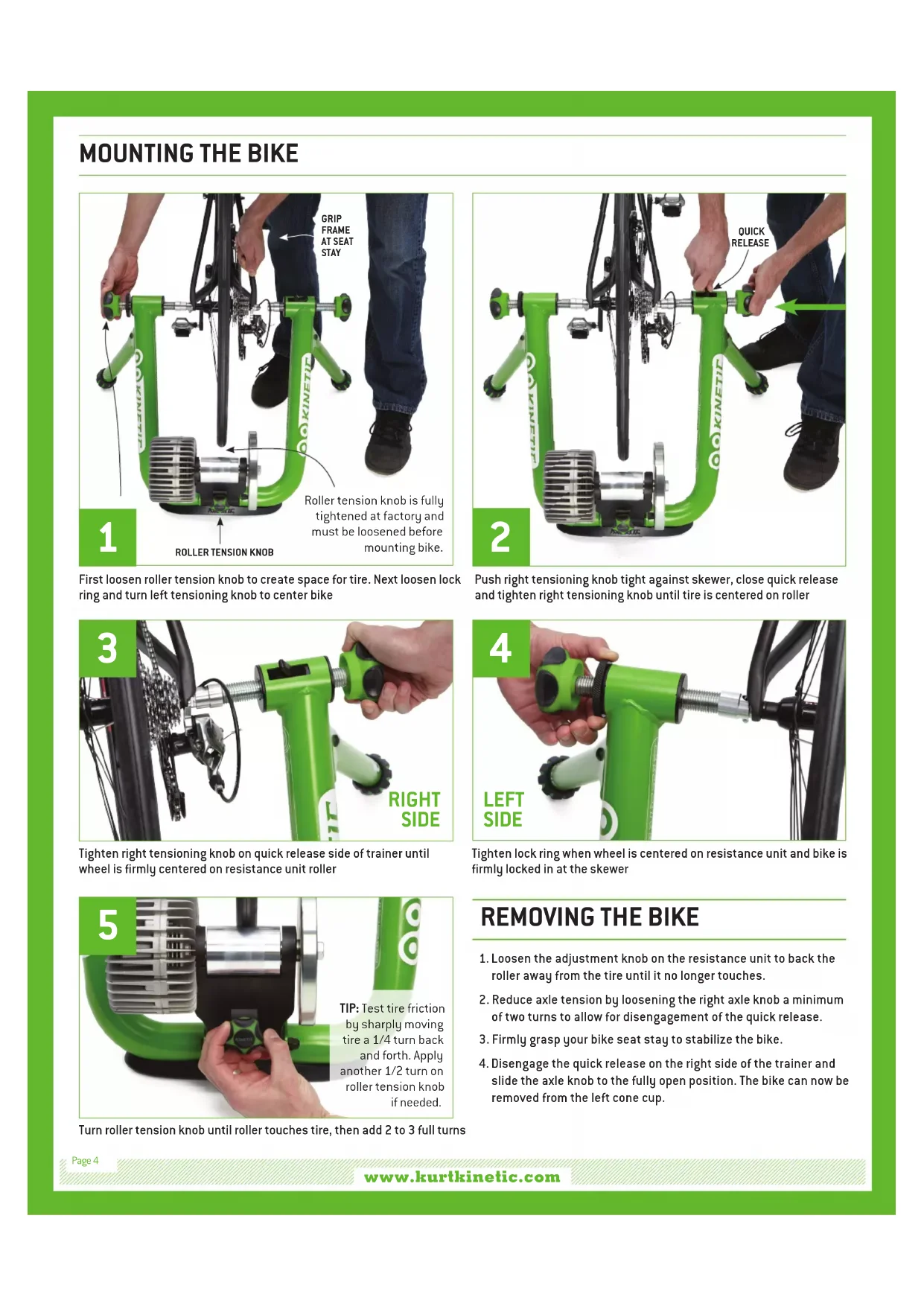

MOUNTING THE BIKE

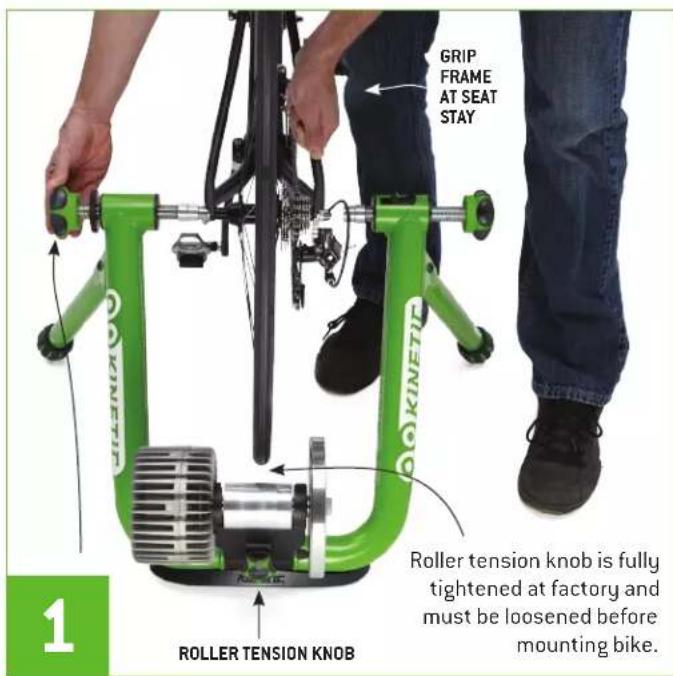

GRIP FRAME AT SEAT STAY ROLLER TENSION KNOB ROLLER TENSION KNOB 1

First loosen roller tension knob to create space for tire. Next loosen lock ring and turn left tensioning knob to center bike

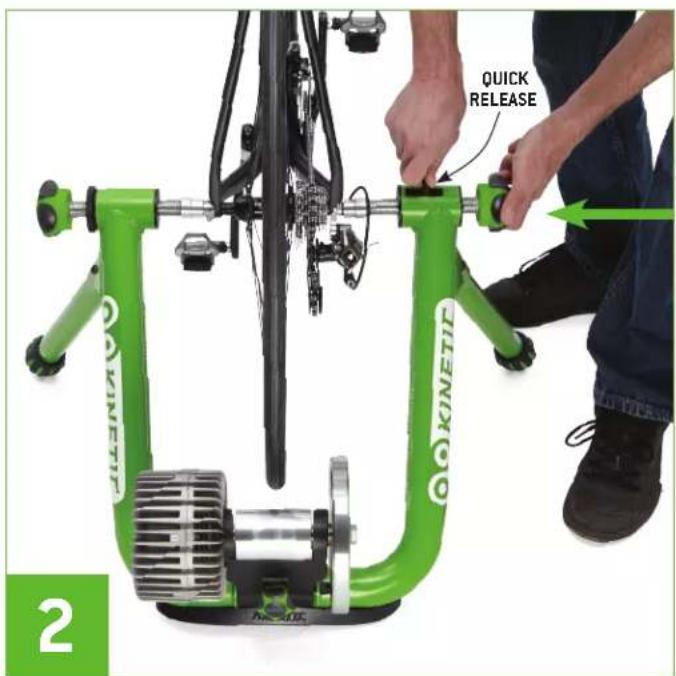

QUICK RELEASE 2

Push right tensioning knob tight against skewer, close quick release and tighten right tensioning knob until tire is centered on roller

Close-up of a green bicycle brush head with a hand adjusting the cable, labeled 'RIGHT SIDE' (no other text or symbols visible)

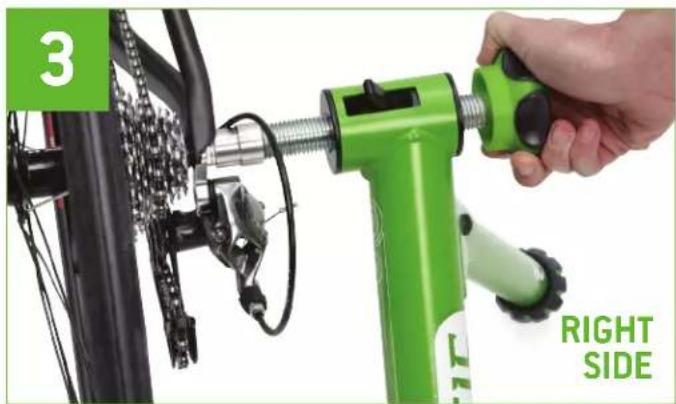

Tighten right tensioning knob on quick release side of trainer until wheel is firmly centered on resistance unit roller

Close-up of a hand using a green bicycle brush to adjust the left side of a bicycle (no text or symbols visible)

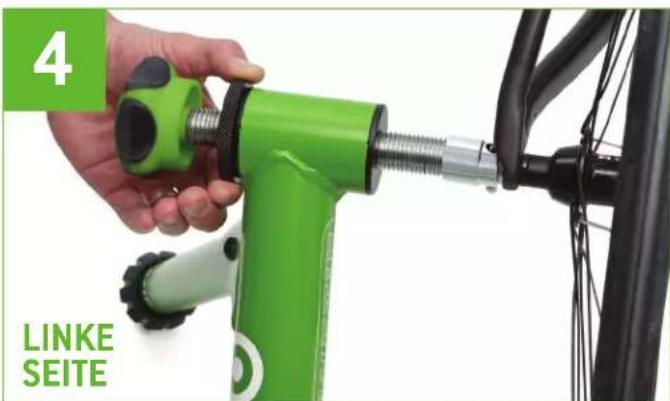

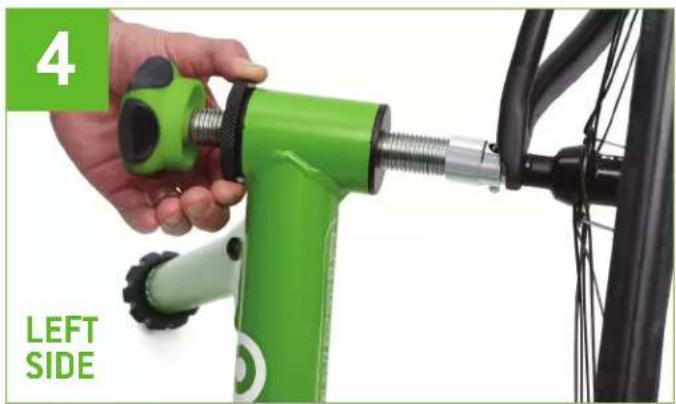

Tighten lock ring when wheel is centered on resistance unit and bike is firmly locked in at the skewer

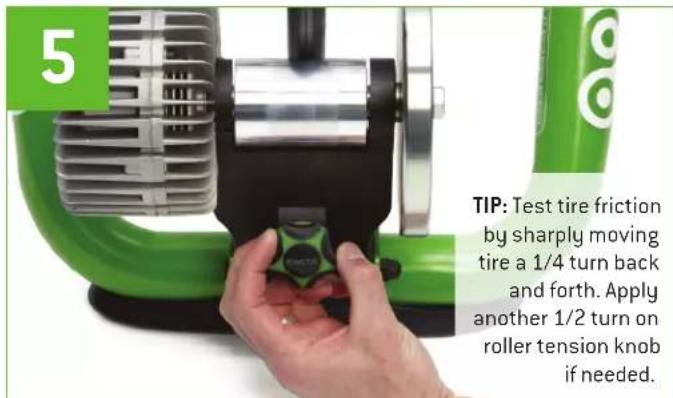

5 TIP: Test tire friction by sharply moving tire a 1/4 turn back and forth. Apply another 1/2 turn on roller tension knob if needed.

Turn roller tension knob until roller touches tire, then add 2 to 3 full turns

REMOVING THE BIKE

1. Loosen the adjustment knob on the resistance unit to back the roller away from the tire until it no longer touches.
2. Reduce axle tension by loosening the right axle knob a minimum of two turns to allow for disengagement of the quick release.
3. Firmly grasp your bike seat stay to stabilize the bike.
4. Disengage the quick release on the right side of the trainer and slide the axle knob to the fully open position. The bike can now be removed from the left cone cup.

SAFETY WARNINGS

RECOMMENDED SKEWER AND CONE COMBINATION*

T-740 SHIPSIN TRAINER BOX

*FOR YOUR SAFETY

We recommend using the skewer that was included with your trainer.

»Be sure that your bike is correctly installed and securely locked into the trainer before riding.

» Do not over-tighten the roller tension knob. Over-tightening will cause both tire and unit damage. Tighten only enough to avoid tire slippage.

»When using the trainer for normal use or for extended periods of time, the resistance unit will get hot. DO NOT touch the resistance unit while it is in use or while it is hot.

»Always consult a doctor before beginning any exercise routine or using any fitness product including the Kinetic Trainer. Should you become ill, feel dizzy, light-headed or nauseous while riding the trainer, stop riding immediately and seek medical attention.

»While in use, the wheel of your bike and the resistance unit may be spinning at high speeds. For this reason keep children, pets and all items safely away from your trainer while in use.

»Always use the trainer on a flat surface.

»Single-speed bikes with nutted axles require an additional standard cone cup for proper use.

ADDITIONAL BIKE MOUNTING SOLUTIONS [Ordering & information: kurtkinetic.com]

STANDARD CONE CUP PART NO: T-2111	SLOTTED CONE CUP PART NO: T-2103	TRACK CONE CUP PART NO: T-2104	SHALLOW CONE CUP PART NO: T-2105	INTERNAL CA CONE CUP PART NO: T-2106	BMX CONE CUP PART NO: T-2107
Pre-installed on all Kinetic trainers and fits most nutted axles and track bikes.	Comes in the trainer box and works with many non-Kinetic quick release skewers.	An oversized version of the Standard Cone Cup for track axle nuts larger than 15mm.	Designed with a shallow outside diameter to work on any frame with a tight drive-side dropout tolerance.	Works with chain-actuated internal hubs like Sturmey Archer. Great for Brompton bikes.	For oversized 14mm bmx axles with axle nuts 19mm and larger.

KINETIC TRAXLE FINE
PART NO: T-2100

For fine-threaded 12mm thru-axle systems including: Syntace X-12, DT SWISS (Tapered and Flat) and Specialized

KINETIC TRAXLE FINE XL PART NO: T-2120

Same thread pitch as Fine Traxle, with wider width. For Santa Cruz bikes with closed dropout on the drive side - requires removal of hex cap in drive side dropout.

KINETIC TRAXLE MEDIUM
PART NO: T-2102

For medium-threaded 12mm thru-axle systems including: SHIMANO SM-AX75 and SM-AX65 142mm x 12mm

KINETIC TRAXLE COARSE
PART NO: T-2101

For coarse-threaded 12mm thru-axle systems including: RockShox Maxle, Trek APB Maxle and others

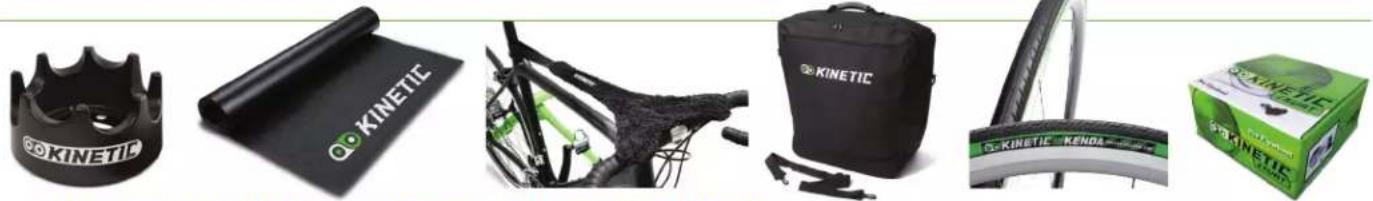

ACCESSORIES [Available at kurtkinetic.com and Kinetic dealers]

Product lineup featuring six bicycle components including a KINETIC helmet, mat, bicycle, backpack, tire, and box (no visible text or labels)

RISER RINGS TRAINER MATS SWEAT GUARDS TRAINER BAGS TRAINER TIRES PRO FLYWHEEL

WARRANTY

Kinetic by Kurt offers the original owner a lifetime warranty against manufacturing defects for the frame and the resistance unit. This warranty is not applicable to damage caused by misuse, abuse, neglect, accident or unauthorized modification of materials or parts. If the unit is disassembled by the consumer, this warranty is void. There are no other warranties, expressed or implied.

It is the responsibility of the purchaser to file a warranty card via mail or on-line with Kinetic in the event that repairs are needed. It is also the responsibility of the purchaser to retain receipts for proof of purchase in the event that repairs are needed. No warranty repairs will be accepted without the warranty registration and the serial number of the trainer located on the resistance unit.

WARRANTY REGISTRATION

Please complete the warranty within 30 days of purchase at www.kurtkinetic.com.

WARRANTY CLAIMS/REPLACEMENT PARTS

If you experience problems with your trainer, please call our Customer Service Hotline at 877-226-7824 or email us at [e-mail]. To help us handle your call as efficiently as possible, please have your trainer's serial number ready to give to the customer service representative.

After determining what repairs or replacement parts may be needed, you will be provided with procedures for returning your product to Kinetic.

In some cases replacement parts may be shipped directly to you, depending on the nature of the problem.

RECORD THE SERIAL NUMBER OF YOUR KINETIC TRAINER HERE

CRASH REPLACEMENT POLICY

Kinetic trainers come with a lifetime warranty on the frame and the resistance unit to the original owner.

However, we understand that accidents can happen involving our products, so we also offer a crash replacement policy for incidents not covered by our lifetime warranty. Here is how it works: Kinetic will replace any part or parts on your Kinetic Trainer that are damaged due to an accident, regardless of the cause of that accident, and within reason for a \$50.00 cost plus the cost of parts and shipping charges.

We reserve the right to reject any product that has been so severely

damaged that it cannot be rebuilt. To be eligible, you must complete the warranty registration process online. Crash replacement repairs require warranty information and the serial number of your unit. This crash replacement policy and its related charge may be subject to change without notice.

To process a claim, please call our Customer Service Hotline at 877-226-7824 or email us at [e-mail]. You will be given instructions for returning the product to us. In some cases replacement parts may be shipped to you.

CARING FOR YOUR TRAINER

By purchasing the Kinetic Trainer you've made an investment in a top-quality piece of equipment. When used according to the manufacturer's instructions and cared for with common sense, your Kinetic trainer will

provide a lifetime of training. Store the trainer indoors, out of the rain and away from temperature extremes. Since sweat is corrosive, you can extend the life of your trainer by wiping it off after your workout.

KINETIC®

5280 Main Street NE Minneapolis, MN 55421 • 1.877.226.7824

www.kurtkinetic.com

MODEL T-2700

KINETIC®

GEBRAUCHSANWEISUNG

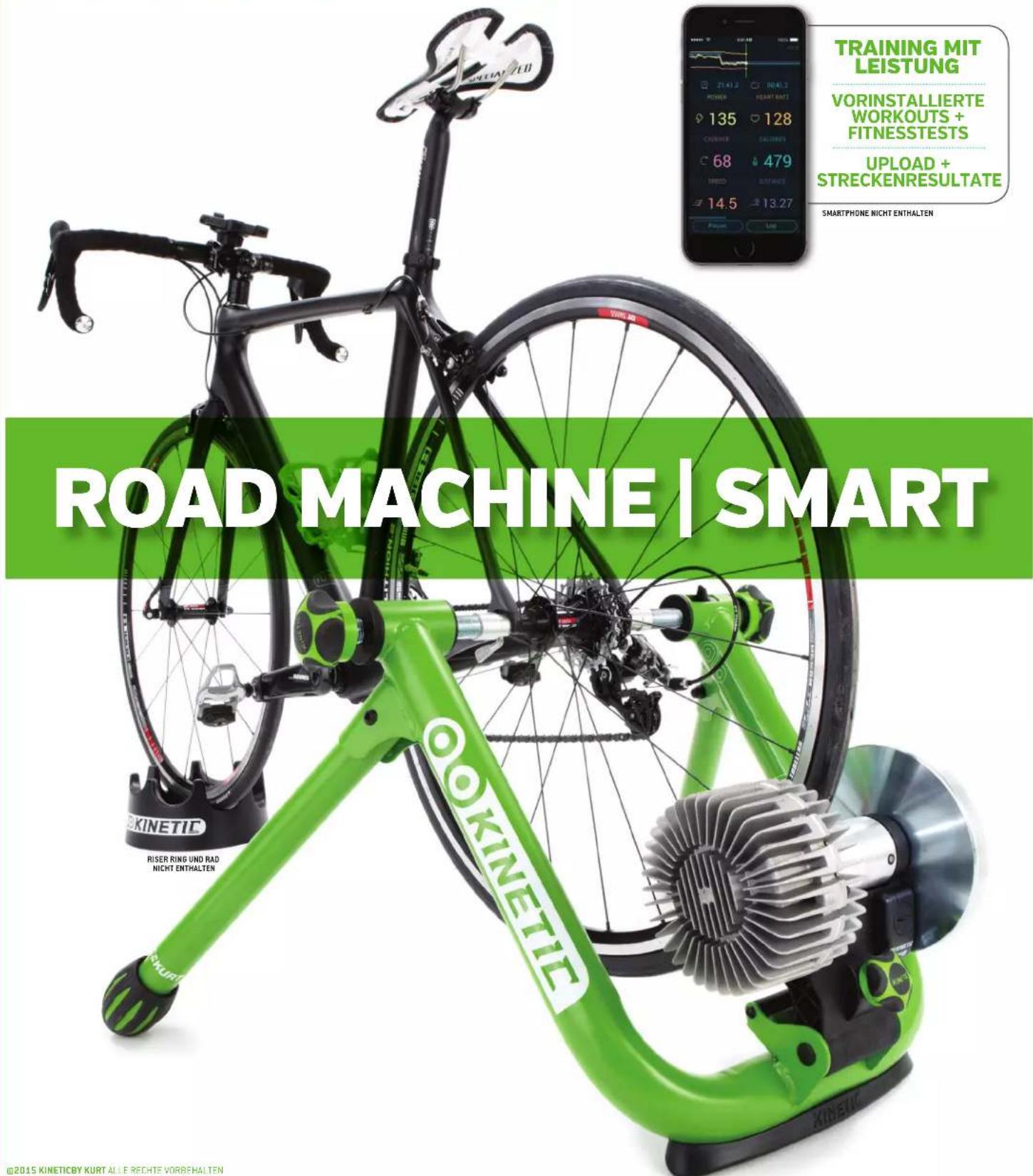

TRAINING MIT LEISTUNG VORINSTALLIERTE WORKOUTS + FITNESSTESTS UPLOAD + STRECKENRESULTATE SMARTPHONE NICHT ENTHALTEN ROAD MACHINE | SMART ©2015 KINETICBY KURT ALLE RECHTE VORBEHALTEN KINETIC RISER RING UND RAD NICH T ENTHALTEN ©2015 KINETICBY KURT ALLE RECHTE VORBEHALTEN

©2015 KINETICBY KURT ALLE RECHTE VORBEHALTEN

REGISTRIEREN SIE IHR GERÄT: WWW.KURTKINETIC.COM/WARRANTY UND ERHALTEN SIE EIN KOSTENLOSES TRAININGSVIDEO

Seite 7

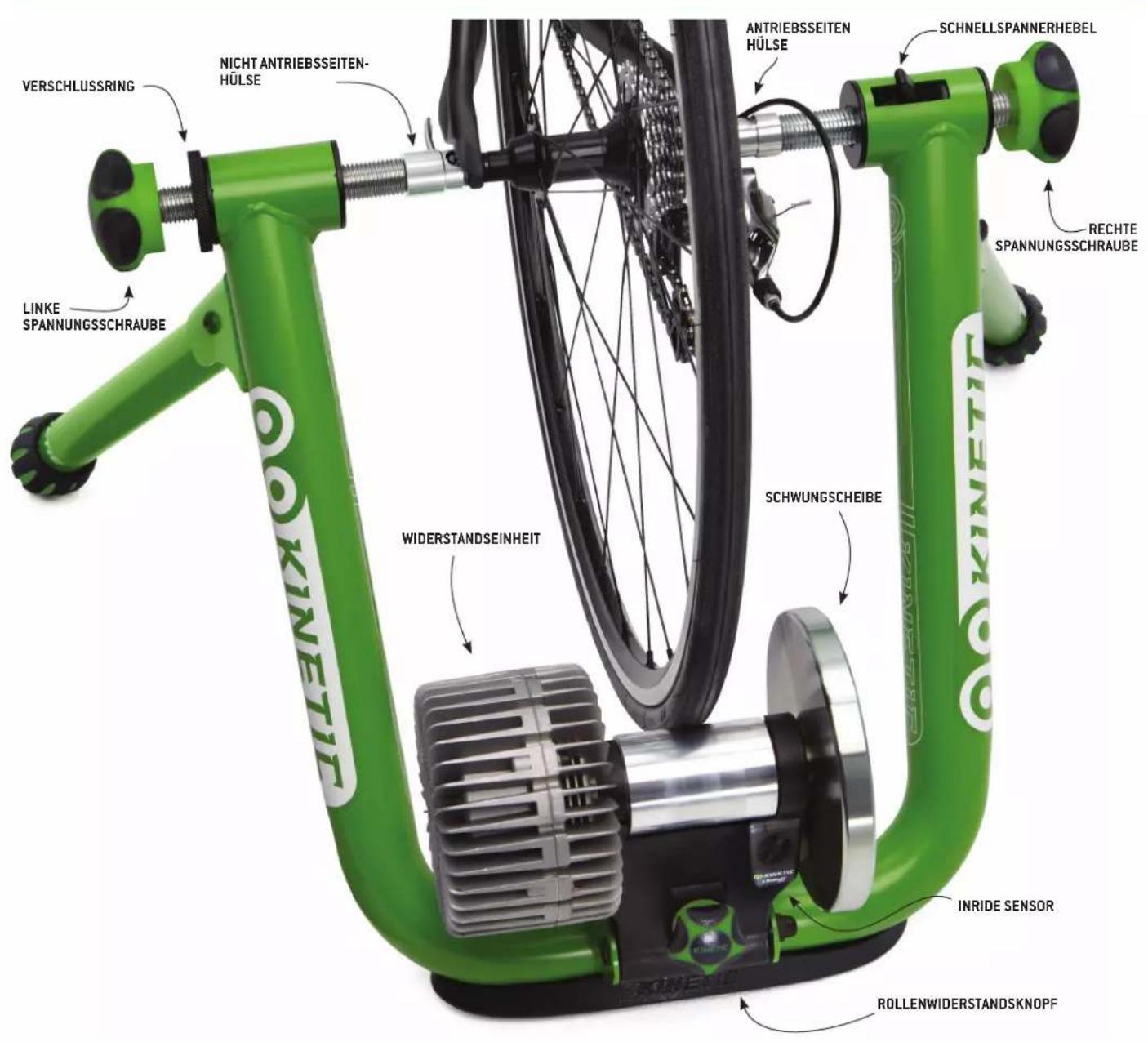

TRAINER DETAILS

Green KINETIE bicycle brake lever with U-shaped body and black base (no text or symbols on the device itself)

Black cylindrical mechanical component with two screws, one hole and one end (no text or symbols visible)

T-2203
Feder

Black mechanical bolt and two small flutes, no text or symbols visible

www.kurtkinetic.com/warranty

Push right tensioning knob tight against skewer, close quick release and tighten right tensioning knob until tire is centered on roller

Green bicycle mount架 (T-740 IM Karton) with attached metal bracket and handle, no visible text or symbols on the main body.

Product lineup of KINETIC bicycles including helmet, leather strap, bicycle, battery pack, and box (no visible text or labels)

Green KINETIE bicycle brake lever with U-shaped body and black base (no text or symbols on the device itself)

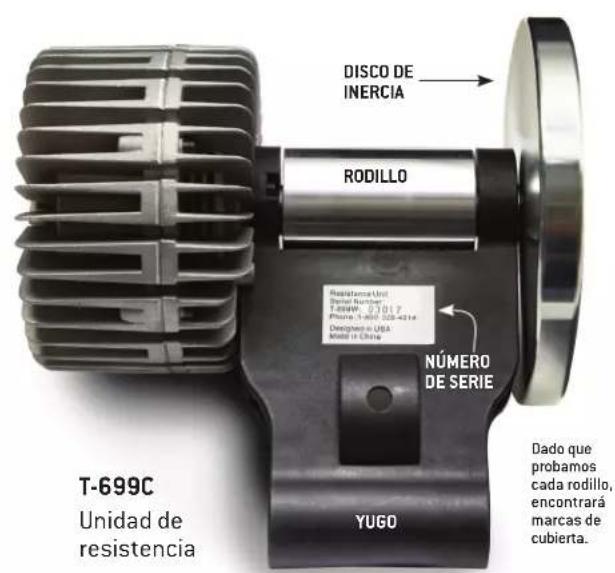

DISCO DE INERCIA RODILLO RESISTANCE Unit Serial Number T-699C 27017 Phone: [phone] Designed in USA Model 11 China NÚMERO DE SERIE T-699C Unidad de resistencia YUGO Dado que probamos cada rodillo, encontrará marcas de cubierta.

Black cylindrical mechanical component with two screws, one hole and one end (no text or symbols visible)

T-2203
Muelle

Black cylindrical object with a small protrusion, possibly a tool or connector (no text or symbols visible)

www.kurtkinetic.com/warranty

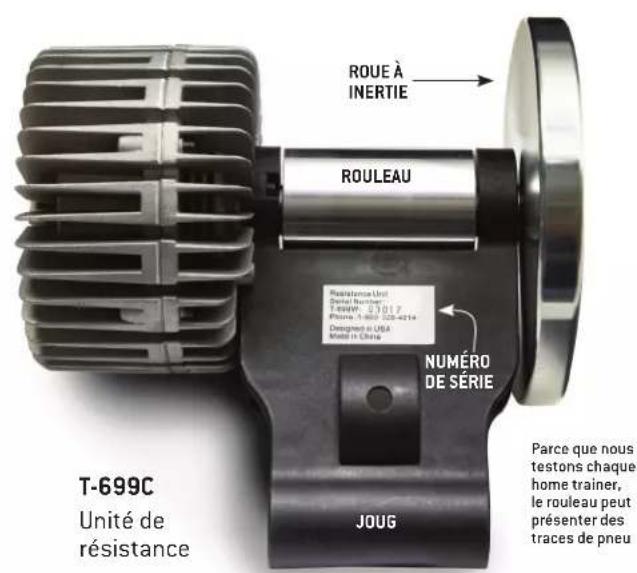

BAGUE DE VERROUILLAGE CÔNE DE LOGEMENT D'AXE CÔTE OPPOSE À LA CASSETTE MOLETTE DE SERRAGE GAUCHE UNITÉ DE RÉSISTANCE CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINET T CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETT CO KINETt DE PRÉCONTRAINTE DU ROULEAU

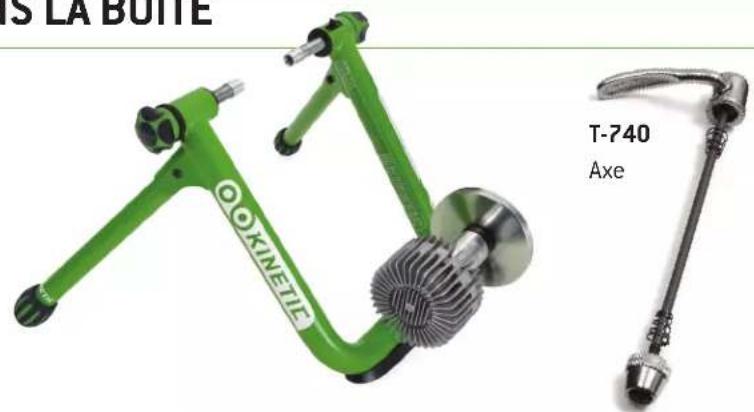

DANS LA BOÎTE

S LA BOITE OOXINETIC T-740 Axe

Green KINETIC bicycle brake lever with U-shaped body and black base (no text or symbols on the device itself)

Black cylindrical mechanical component with two screws, one hole and one end (no text or symbols visible)

T-2203
Ressort

www.kurtkinetic.com/warranty

3 CÔTÉ DROIT

KINETIC TRAXLE COARSE ART N°: T-2101

Roll of black athletic mat with 'KINETIL' branding on front (no additional text or symbols visible)

Close-up of a bicycle's front wheel and side-mounted sensors (no visible text or symbols)

SWEAT GUARDS : Toile anti-transpiration

Close-up of a bicycle tire with visible branding (no text or symbols on the tire itself)

Green KINETIE bicycle brake lever with U-shaped body and black base (no text or symbols on the device itself)

Black cylindrical mechanical component with two screws, one hole and one end (no text or symbols visible)

T-2203
Molla

T-2204
Dado e Bullone

Black cylindrical mechanical component with a small flange, labeled 'ullone' in the corner (no other text or symbols)

T-740 Vite

REGISTRAZIONE GARANZIA ONLINE:

www.kurtkinetic.com/warranty

www.kurtkinetic.com/contact

Roll of black athletic mat with 'KINETIL' branding on the cover (no additional text or symbols visible)

Close-up of a bicycle frame with black structural elements and a green-lit safety belt (no text or symbols visible)

SUDORE

BORSE RULLO PNEUMATICI PER

RULLO

VOLANO PRO FLYWHEEL

GARANZIA

E DOUS OOXINETIC T-740 As

Green KINETIC bicycle brake lever with U-shaped body and black base (no text or symbols on the device itself)

Black cylindrical mechanical component with two screws, one hole and one end (no text or symbols visible)

T-2203
Voorjaar

T-2204
Montage bout en moer

Black mechanical component with a small protrusion labeled 'bout' (no other text or symbols)

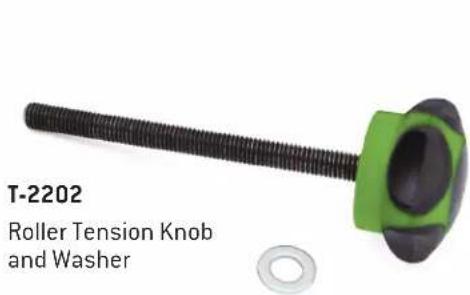

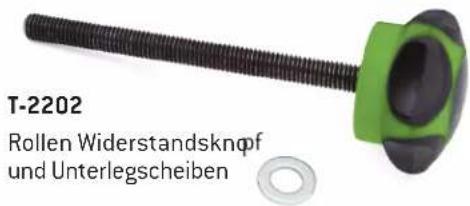

T-2202 Roller spanknop en ring

Close-up of a metallic mechanical tool with a handle and spring, labeled T-740 As (no other text or symbols visible)

REGISTREER GARANTIE ONLINE:

www.kurtkinetic.com/warranty

www.kurtkinetic.com/contact

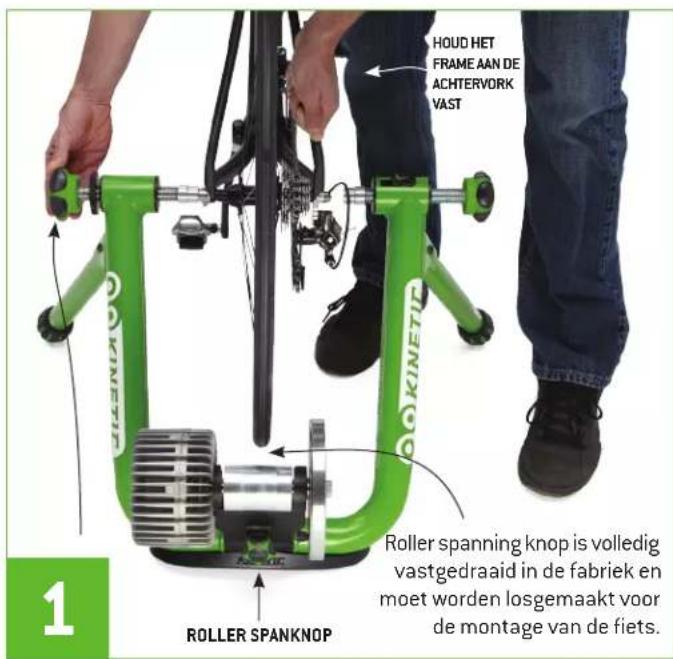

MONTAGE VAN DE FIETS

Close-up of a hand using a green Rechterkant bicycle shaver to adjust the bicycle wheel (no text or symbols visible on the diagram itself)

Close-up of a green LINKERKANT bicycle brush tool with a black handle, no visible text or symbols on the tool itself.

VEILIGHEIDSWAARSCHUWINGEN

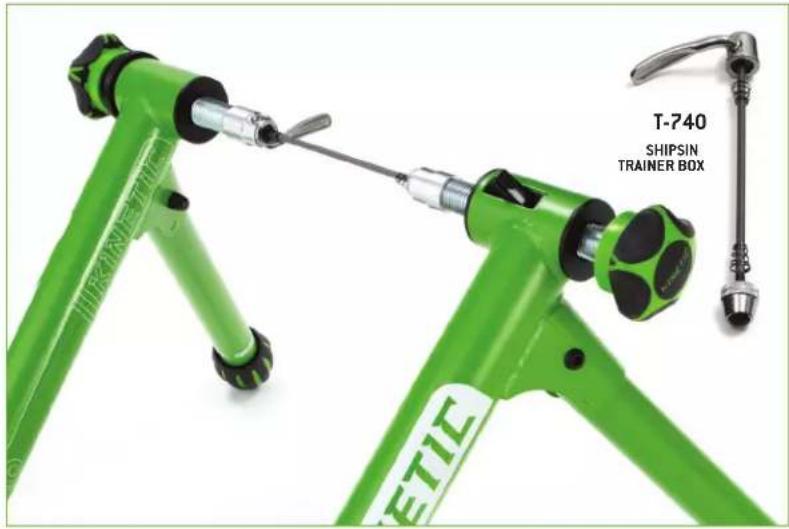

AANBEVOLEN AS EN CUP COMBINATIE *

T-740 SHIPSIN TRAINER BOX ETIC

* VOOR UW VEILIGHEID

Roll of black athletic mat with 'KINETIL' branding on front (no additional text or symbols visible)

Close-up of a bicycle frame with black structural elements and green accents (no visible text or symbols)

Close-up of a bicycle tire with visible branding (no text or symbols on the tire itself)

VOORWIELSTEUNEN TRAINER MATTEN ZWEETVANGERS TRAINERTASSEN TRAINER BANDEN PRO VLIEGWIEL

GARANTIE

CRASH REPLACEMENT BELEID
