Mi Body Composition Scale 2 - Scale Xiaomi - Free user manual and instructions

USER MANUAL Mi Body Composition Scale 2 Xiaomi

Mi Body Composition Scale 2 User Manual ·1

Read this manual carefully before use, and retain it for future reference.

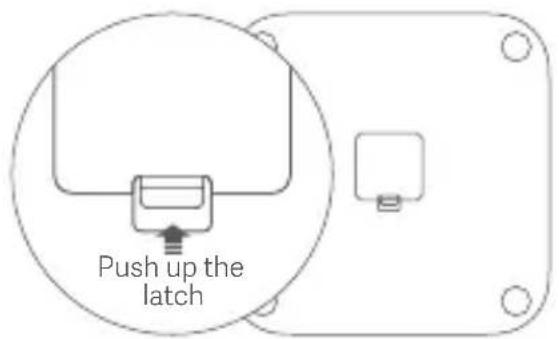

Installing the Batteries

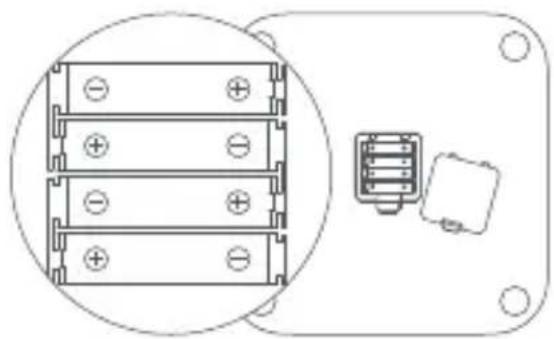

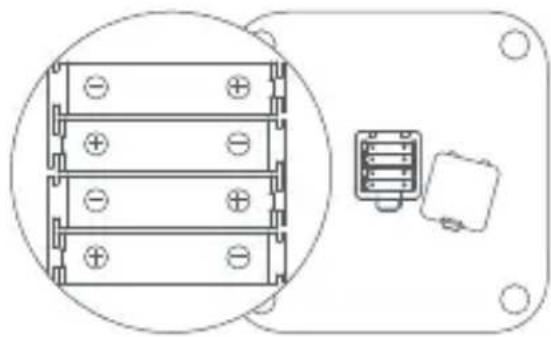

Open the battery cover and insert four AAA batteries in the directions indicated inside the battery compartment.

Push up the latch

Technical line drawing of a mechanical component with three stacked blocks and a separate internal component (no text or symbols)

Installing the App

Scan the QR code to download and install the app. Add the Mi Body Composition Scale 2 to the app first before you start using it.

QR code image containing encoded data, no visible human-readable text

Pairing the Scale

Open the app and sign in using your Mi account, then pair the scale with your account and enter your personal data according to the on-screen instructions.

After pairing the scale, you can check the weighing records and body composition information via the app.

Personal data is used to analyze your body composition. To ensure the accuracy of the results, please enter accurate personal data.

Weighing and Measuring Body Fat

Place the scale on a hard, flat floor.

Step barefoot onto the scale as shown in the figure. Make sure the skin of your feet makes good contact with the four metal electrodes on the scale.

After your weight is measured, the scale will begin calculating your body composition. The process is completed when the status bar below the indicated weight starts blinking. You can then view your body composition results on your phone.

5 120 m

The body composition data provided by this scale is for reference only and does not constitute medical advice.

Weighing Items

Place the scale on a hard, flat surface. Press on the scale to turn it on. Wait until "0.00" is displayed and place the item you want to weigh onto the scale. Moving or bumping the scale may affect the accuracy, in which case you should weigh the item again to make sure the measurement is accurate.

Alert Indications

When weighing, a blinking "L" indicates a low battery level, and you should replace the batteries as soon as possible.

L m

When weighing, a blinking "OL" indicates the scale is overloaded beyond its maximum capacity of 150 kg.

0L m1

Selecting a Weighing Unit

The scale calculates weight in kilograms (kg) by default. You can change the scale's weighing unit via the device settings in the app.

The scale can display weight in kilograms (kg) and pounds (lbs).

Precautions

1. To prevent slipping, do not place the scale on a slippery floor, and do not use it when your feet or the scale are wet.
2. Always stand in the middle of the scale, to prevent it from accidentally flipping over while weighing yourself.
3. Only use the scale in a dry environment, and do not immerse it in water.
4. Wipe the surface of the scale with a damp cloth and mild detergent to clean it. Do not use any organic solvents or other chemicals.
5. After the batteries are depleted, immediately remove them to avoid potential leaking and corrosion.
6. Do not replace a battery with an incorrect type. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
7. This scale is not recommended for persons with a pacemaker or other implanted medical devices. The accuracy of the body composition data may vary when used by professional athletes, pregnant women, and certain other individuals with special conditions.
8. You can go to app to experience the function of One-foot-stand with Eyes Closed Measurement. When you are feeling off balance, please be sure to open your eyes and stand on your feet firmly to prevent from accidentally flipping over and causing a fall. Anyone including children, elderly, expectant mother, and others with physical or balance disorders should use this function with caution.

Disposal and Recycling Information

The following symbol signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose the electronic equipment at recycling centers so as to help conserve the natural resources.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio equipment type XMTZC05HM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio equipment type XMTZC05HM is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://www.mi.com/uk/service/support/declaration.html

The product is in compliance with UK PSTI regulations, the full text of declaration of conformity is available at the following internet address: https://www.mi.com/global/service/support/declaration.html

Specifications

Dimensions: 300 × 300 × 24 mm	Wireless Connectivity: Bluetooth 5.0
Net Weight: 1.5 kg	Operating Temperature: 0°C to 40°C
Weighing Range: 100 g - 150 kg	Frequency: 2402 - 2480 MHz
Weighing Units: kg / lbs	Max. Output: <20 mW
Increments: 0.1 kg / lbs	Power Source: 1.5 V AAA batteries × 4

Casing Material: Tempered glass, engineering plastic

Compatible with: Android 4.4 or iOS 10.0 (iPhone 5S and later) and above, and

Bluetooth 4.0 and above

Mi Body Composition Scale 2

Model: XMTZC05HM

Manufactured for: Xiaomi Communications Co., Ltd.

Manufactured by: Anhui Huami Information Technology Co., Ltd.

(a Mi Ecosystem company)

Address: 7/F, Building B2, Huami Global Innovation Center, No. 900, Wangjiang West

Road, High-tech Zone, Hefei City, China (Anhui) Pilot Free Trade Zone

For further information, please go to www.mi.com

Technical line drawing of a mechanical or electrical component with three stacked blocks and a separate internal component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Simple diagram with four circles arranged in a square frame, no text or symbols present.

http://www.mi.com/global/service/support/declaration.html

Especificaciones

Dimensiones: 300 x 300 x 24 mm

Peso neto: 1,5 kg

Technical line drawing of a mechanical component with three stacked blocks and a separate housing (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Simple diagram with four circles arranged in a square frame, no text or symbols present.

Адрес: 7/F, Building B2, Huami Global Innovation Center, No. 900, Wangjiang West

Technical line drawing of a mechanical component with mounting holes and a central spring-like housing (no text or symbols)

QR code image containing encoded data, no visible human-readable text

http://www.mi.com/global/service/support/declaration.html

Specifiche tecniche

Indirizzo: 7/F, Building B2, Huami Global Innovation Center, No. 900, Wangjiang West

Road, High-tech Zone, Hefei, Cina (Anhui) Pilot Free Trade Zone

Technical line drawing of a mechanical component with mounting holes and a central internal structure (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Simple diagram of a four-hole table with 'mi' at the center and 'L' above it (no text or symbols beyond basic labels)

Simple diagram with four circles arranged in a square frame, no text or symbols present.

Adresse: 7/F, Building B2, Huami Global Innovation Center, No. 900, Wangjiang

West Road, High-tech Zone, Hefei City, China (Anhui) Pilot Free Trade Zone

Push up the latch

Technical line drawing of a mechanical or electrical component with three stacked blocks and a separate internal component (no text or symbols)

Installer l'application

QR code image containing encoded data, no visible human-readable text

Appariement de la balance

Graduation: 0,1 kg/lbs

Alimentation: 4 piles AAA 1,5 V

Adresse : 7/F, Building B2, Huami Global Innovation Center, No. 900, Wangjiang West

Road, High-tech Zone, Hefei, Chine (Anhui) Zone de libre-échange pilote

Technical line drawing of a mechanical component with three stacked blocks and a separate internal component (no text or symbols)

アプリのインストール

QR code image containing encoded data, no visible human-readable text

体組成計を関連付ける

Simple diagram of a four-hole table with 'L' and 'M' labels, no text or symbols beyond the labels

Simple diagram with four circles arranged in a square (no text or symbols)

計量単位

所在地:7/F, Building B2, Huami Global Innovation Center, No. 900, Wangjiang West Road, High-tech Zone, Hefei City, China (Anhui) Pilot Free Trade Zone

Technical line drawing of a mechanical component with mounting holes and a central internal structure (no text or symbols)

APP 설치

QR code image containing encoded data, no visible human-readable text

Simple diagram of a four-hole table with 'L' and 'M' labels, no additional text or symbols present.

Simple diagram with four circles arranged in a square, no text or symbols present

무게 단위 설정

상품업체: Xiaomi Communications Co., Ltd.

제조업체: Anhui Huami Information Technology Co., Ltd.

(Mi 에코시스템 기업)

Technical line drawing of a mechanical component with mounting holes and a central connector (no text or symbols)

下載App

QR code image containing encoded data, no visible human-readable text

綁定體脂計

Simple diagram of a four-hole table with 'L' and 'M' labels, no additional text or symbols

CL ml

設定稱重單位

產品尺寸: 300mm x 300mm x 24mm

無線連接: 藍牙5.0

產品淨重: 1.5kg

頻段: 2402-2480MHz

稱量範圍: 100g-150kg

最大輸出: <20 mW

稱重單位: 公斤/磅/斤
