1036W - Electric grill Vulcan - Free user manual and instructions

Product Type	Electric Grill (Salamander)
Brand	Vulcan
Model	1036W
Use	Browning, glazing, keeping food warm
Width	927 mm
Depth	438 mm
Height	387 mm
Estimated Weight	32 kg
Power Supply	Single-phase 208-240 V, 50-60 Hz
Total Power	3600 W (2 elements of 1800 W)
Heating Elements	2 infrared tubes, self-cleaning
Grid	Removable, height-adjustable (multiple tilt notches)
Fan	Yes, integrated
Indicator Light	Yes, power-on indicator
Electrical Connection	Terminal block with grounding, 25 mm knockouts
Mounting	Wall-mounted (back panel included) or on counter with legs
Material	Stainless steel
Cleaning	Soapy water, do not immerse heating elements
Safety	Automatic shutdown of elements in standby mode (25% power)
After-Sales Service	Contact Hobart maintenance service

Frequently Asked Questions - 1036W Vulcan

How to install the 1036W salamander on the wall?

Remove the back panel by removing the two retaining screws and pulling downward. Use the panel as a template to drill the mounting holes, then securely fasten it to the wall with lag screws (not provided). Replace the insulation, hang the unit, and secure it with the screws.

What types of food can be prepared with this electric grill?

The salamander can brown, glaze or keep warm food. Low grid positions are suitable for reheating, high positions for gratinating.

How to adjust the height of the grid?

Insert the left pivot of the grid into the desired notch on the rack, then align the grid and push it fully to the rear until the pivots engage in the tilt notches.

What to do if the heating elements do not turn on?

First check that the product is placed on the front part of the grid (to activate the switch). Make sure the grid is properly inserted into the notches. If the indicator light is on but the elements are not heating, the unit may be in standby mode (25% power). If the problem persists, contact Hobart service.

How to clean the 1036W salamander?

Unplug the unit and allow it to cool. Clean with soapy water, rinse and wipe with a soft cloth. Remove the grid and wash it like a kitchen utensil. The heating elements are self-cleaning: do not immerse them in water.

What safety precautions should be followed?

Disconnect the power supply before any intervention. The unit must be grounded in accordance with local codes. During use, components are very hot: wear gloves and avoid any contact.

Can I use the salamander on a counter?

Yes, provided you screw in the four supplied feet and place the unit on a flat, level surface. Note that the 1036W model can also be wall-mounted.

What is the required electrical power?

The unit operates on single-phase 208 or 240 V, 50-60 Hz. Total power is 3600 W (2 elements of 1800 W). A circuit protected by an appropriate fuse or circuit breaker is required.

How to know if the unit is in standby mode?

In standby mode, the elements heat at only 25% of full power and may glow faintly. The indicator light stays on and the fan runs. If no food is on the grid, the elements are in standby mode.

Where to find spare parts or repair service?

Contact the nearest Hobart maintenance service. Parts such as heating elements, grid, or switches are available from this service.

USER MANUAL 1036W Vulcan

Exterior view of a VULCAN model air fryer with control panel and side legs (no text or symbols on the device itself)

TABLE OF CONTENTS

GENERAL....4

Specifications 4

INSTALLATION 5

Unpacking 5

Location 5

Installation Codes and Standards 6

Wall Mounting 6

Heater Installation 8

Rack Installation 8

Electrical Connections 9

OPERATION 10

Cleaning 10

TROUBLESHOOTING 11

PLEASE KEEP THIS MANUAL FOR FUTURE USE

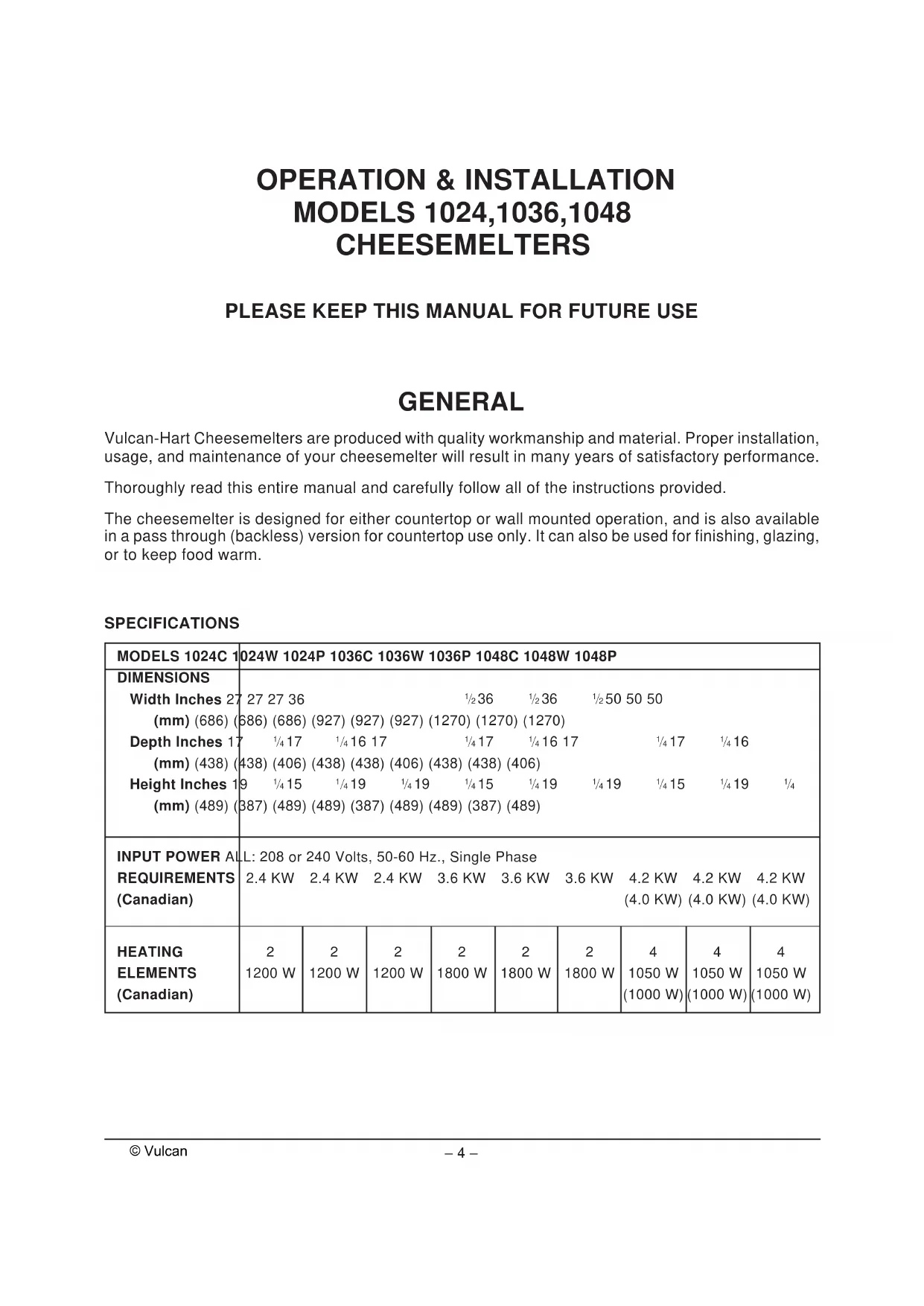

GENERAL

Vulcan-Hart Cheesemelters are produced with quality workmanship and material. Proper installation, usage, and maintenance of your cheesemelter will result in many years of satisfactory performance.

Thoroughly read this entire manual and carefully follow all of the instructions provided.

The cheesemelter is designed for either countertop or wall mounted operation, and is also available in a pass through (backless) version for countertop use only. It can also be used for finishing, glazing, or to keep food warm.

SPECIFICATIONS

MODELS 1024C	1024W	1024P	1036C	1036W	1036P	1048C	1048W	1048P
DIMENSIONS
Width Inches 27 (mm) (686)	27	27	36 (686)	(927)	(927)	(1270)	(1270)	(1270)	12	36	12	36
Depth Inches 17 (mm)	14	17 (438)	14	16 (438)	17 (406)	14	17 (438)	14	16 (406)	14	17 (406)
Height Inches 19 (mm)	14	15 (489)	14	19 (489)	14	19 (489)	14	19 (489)	14	19 (489)	14
INPUT POWER ALL REQUIREMENTS (Canadian)	LL: 208 or 240 Volts, 50-60 Hz., Single Phase
	2.4 KW	2.4 KW	2.4 KW	3.6 KW	3.6 KW	3.6 KW	4.2 KW	4.2 KW	4.2 KW	4.2 KW
							(4.0 KW)	(4.0 KW)	(4.0 KW)
HEATING ELEMENTS (Canadian)	21200 W	21200 W	21200 W	21800 W	21800 W	21800 W	41050 W(1000 W)	41050 W(1000 W)	41050 W(1000 W)

UNPACKING: This unit was inspected before leaving the factory. The carrier assumes full responsibility for the safe delivery upon acceptance of the shipment. Check for possible shipping damage immediately after receipt. If the unit is found to be damaged, complete the following steps:

1. Carrier must be notified within 5 business days of receipt.

2. Carrier's local terminal must be notified immediately upon discovery (note time, date, and who was spoken to), and follow up and confirm with written or electronic communication.

3. All original packing materials must be kept for inspection purposes.

4. The unit cannot have been moved, installed, or modified.

5. Notify Vulcan Customer Service immediately at 800-814-2028 of any missing or damage

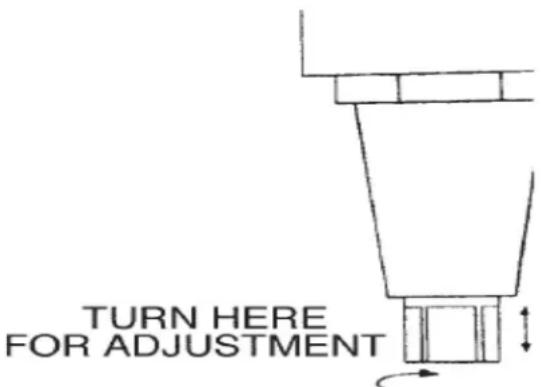

TURN HERE FOR ADJUSTMENT

LOCATION

Do not install pass through cheesemelters on a wall. Pass through cheesemelters must be installed with adequate clearances for servicing and proper operation.

Do not operate countertop and pass through cheesemelters without the legs in place. Damage to the countertop may result.

It is recommended that the cheesemelter not be installed directly over or directly adjacent to charbroilers, griddles or fryer banks. Quartz elements can be susceptible to the effects of grease laden smoke and installation in these locations may shorten element life. The cheesemelter must be installed so that it is level side to side and front to back

INSTALLATION CODES AND STANDARDS

The cheesemelter must be installed in accordance with:

In the United States of America:

1. State and local codes.
2. National Electrical Code, ANSI/NFPA-70 (latest edition). Copies may be obtained from The National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

In Canada:

1. Local codes.
2. Canadian Electric Code, CSA C22.1 (latest edition). Copies may be obtained from The Canadian Standard Association, 178 Rexdale Blvd., Etobicoke, Ontario, Canada M9W 1R3.

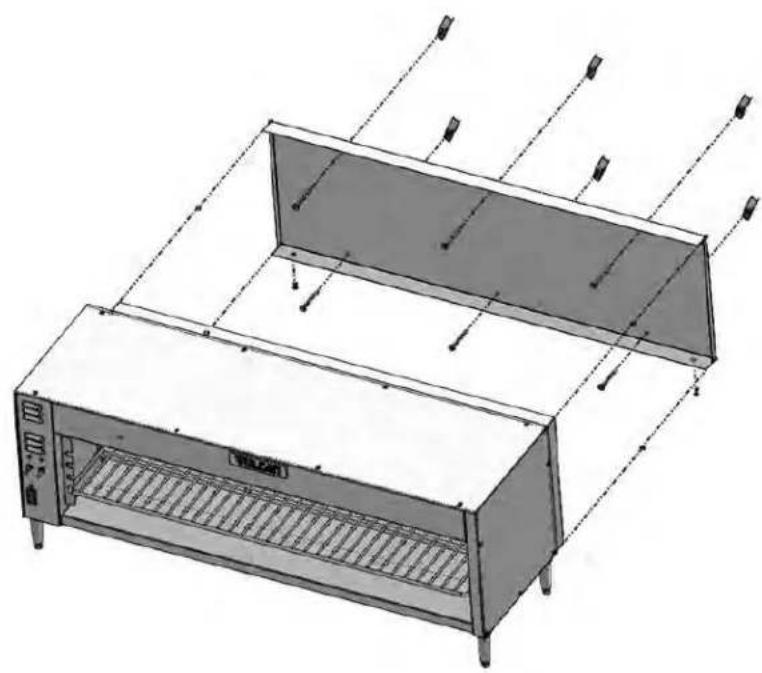

WALL MOUNTING (MODELS 1024, 1036 & 1048W ONLY)

1. Remove the two back retaining bolts on the bottom of the cheesemelter along the rear.
2. Pry out the back from the bottom of the cheesemelter.
3. Remove the back by pulling out and down.
4. Remove (but DO NOT discard) the insulation.
5. Use the back as a template to locate holes for wall attaching lag bolts.
6. Fasten the back to the wall with lag bolts or with anchor fasteners (not provided). Make sure that the back is level and securely fastened.
7. Replace the insulation.
8. Hang the cheesemelter onto the wall mounted back.
9. Replace the two back retaining bolts in the bottom of the cheesemelter.

Technical line drawing of a portable oven with ventilation ducts and control panel (no text or symbols)

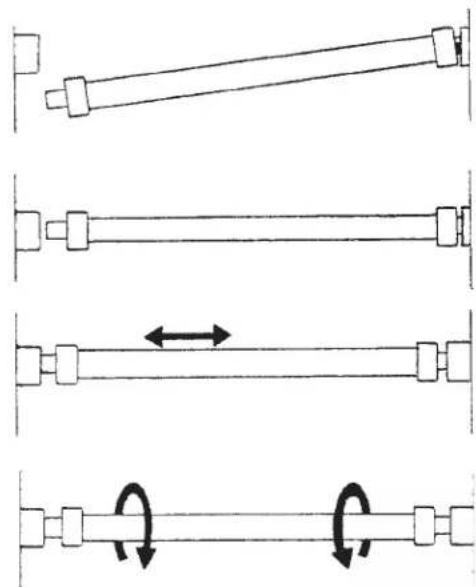

HEATER INSTALLATION

1. Push one end of the heater into one socket as far as it will go.
2. Swing the other end of heater up until it lines up with the opposite socket.
3. Release heater and it will snap into place.
4. Grasp the heater and move it back and forth to ensure that it is centered correctly.
5. Rotate the heater clockwise, then counterclockwise, to ensure that it is seated correctly.

Pure mechanical diagram showing four sequential configurations of a shaft with circular end notches, no text or symbols present.

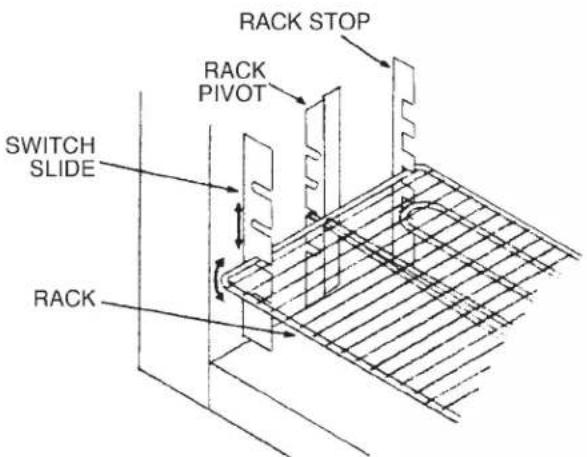

RACK INSTALLATION

1. Insert the rack by placing the left pivot point just behind the switch slide.
2. Line up the rack evenly and push it straight back until the pivot points can be inserted into the rack pivots.
3. The rack should tilt smoothly and readily.

RACK STOP RACK PIVOT SWITCH SLIDE RACK

ELECTRICAL CONNECTIONS

WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH TO INDICATE YOU ARE WORKING ON THE CIRCUIT.

Two 1" (25 mm) knockouts are provided at the left rear for conduit installation. The terminal block and grounding lug are located behind the access cover on the left side.

OPERATION

WARNING: THE CHEESEMELTER AND ITS PARTS ARE HOT. BE VERY CAREFUL WHEN OPERATING, CLEANING, OR SERVICING THE CHEESEMELTER.

1. Push the main switch to ON.

2. Pilot lights.

3. Cooling fan runs.

4. Place the product on the front of the rack. The heaters will automatically come on full power.

- If the heaters do not come on full power when the product is placed on the rack:

a. Be sure that the product is on the front half of the rack. The rack is balanced to trip the actuating switch, but the weight must be on the front half of the rack to trip the switch.
b. Check that the rack is at same level on both sides and is correctly inserted.
c. If the rack operates freely, the failure of the actuating switch is the probable cause. Contact your local Vulcan-Hart servicer.

1. Remove the product.

- Heaters will revert to "standby" with 25% of its heat on. (A slight glow may be visible.)

On the 1048, one or both of the two top switches must be on before the heaters will light.

• Top switch is for the left side.
• Bottom switch is for the right side.

The amount of heat may be changed by changing the rack height.

• Lower levels are for food warming.
  • Upper levels are for finishing, glazing, or cheese melting.

CLEANING

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING.

1. Allow cheesemelter to cool before cleaning.
2. Clean cheesemelter with soap and water, rinse, and dry with a soft dry cloth.
3. Remove rack and clean as you would any normal utensil.

The heaters are self-cleaning. DO NOT immerse heaters in water.

TROUBLESHOOTING

IF THE CHEESMELTER BLOWS A FUSE OR TRIPS A CIRCUIT BREAKER

1. Check the capacity of the circuit.
2. Contact your local Hobart Food Equipment Group office.

IF THE HEATERS DO NOT LIGHT

1. If the pilot light does not come on, and the cooling fan does not run, check for a blown fuse or an open circuit breaker.
2. If the pilot light is lit, and the cooling fan is running, but the heaters do not light, the cheesemelter may be in standby. When cheesemelter is in standby with no product on the rack, the heaters may not glow, but will still emit some heat.
3. If one heater is lit, but the other is not, a burnout or a loose connection is the probable cause. Contact your local Hobart Food Equipment Group office.

IF THE COOLING FAN DOES NOT RUN

1. If the pilot light is not lit, and the heaters do not light, check for a blown fuse or an open circuit breaker.
2. If the pilot light is lit and the heaters function, the probable cause is a loose connection. Contact your local Hobart Food Equipment Group office.

NOTES

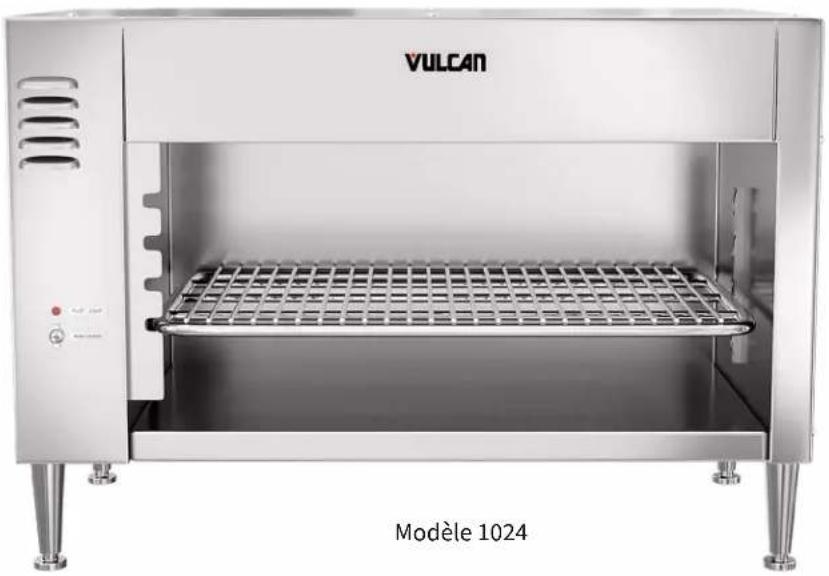

SALAMANDRES 1024, 1036, 1048

MODÈLES:

1024C ML-103833

1024W ML-103834

1024P ML-103835

1036C ML-103836

1036W ML-103837

1036P ML-103838

1048C ML-103839

Canadian ML-126600

1048W ML-103840

Canadian ML-126602

1048P ML-103841

Canadian ML-126601

Exterior view of a VULCAN portable oven with cooling grating and control panel (no visible text or symbols on the device itself)

TABLE DES MATIÈRES

GÉNÉRALITÉS 4

Pure mechanical diagram showing four sequential configurations of a shaft with rotational and linear motion indicators (no text or symbols)

INSTALLATION DE LA GRILLE
