USER MANUAL Silent Vino Klarstein

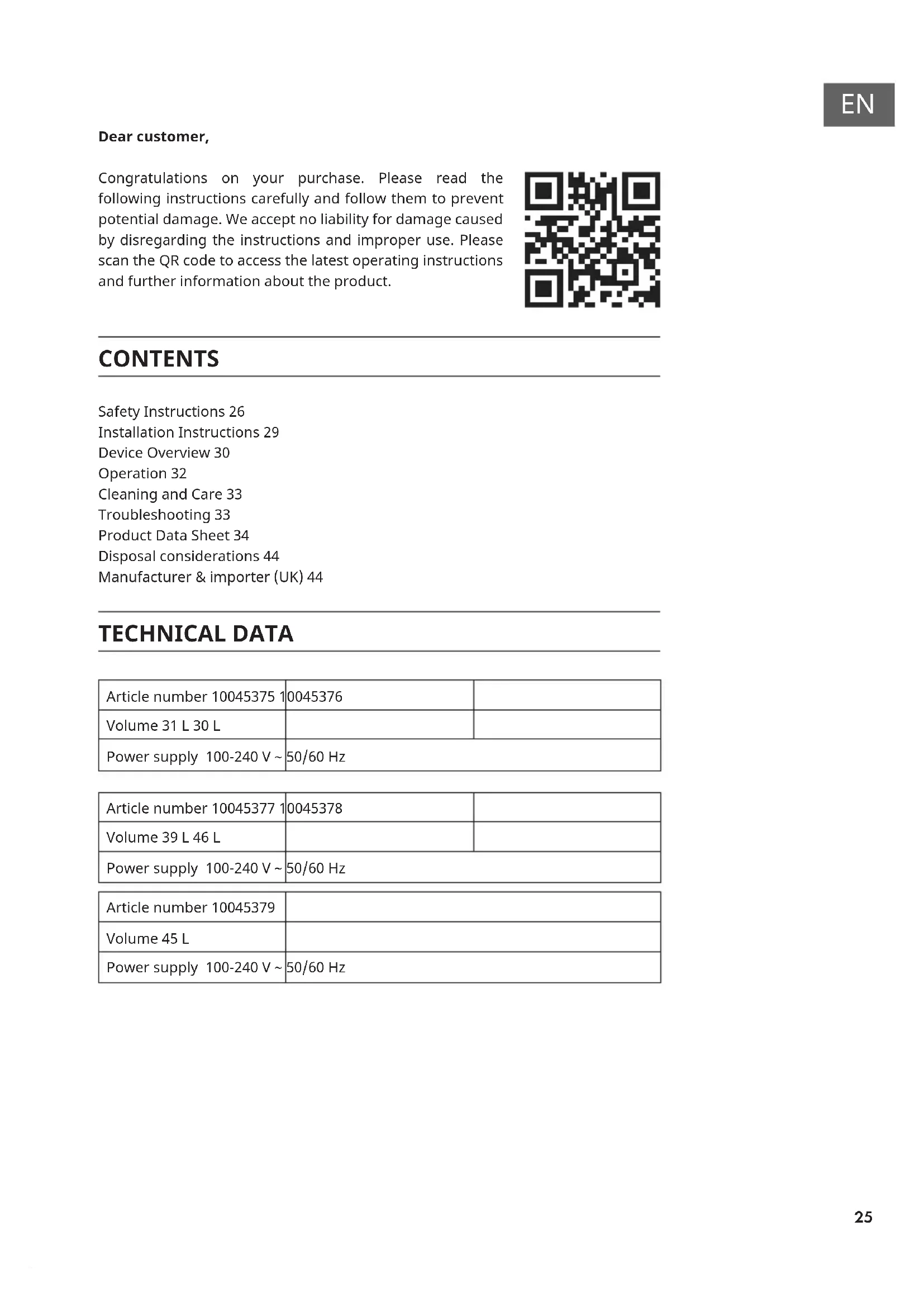

Dear customer, Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product. CONTENTS Safety Instructions 26 Installation Instructions 29 Device Overview 30 Operation 32 Cleaning and Care 33 Troubleshooting 33 Product Data Sheet 34 Disposal considerations 44 Manufacturer & importer (UK) 44 TECHNICAL DATA Article number 10045375 10045376 Volume 31 L 30 L Power supply 100-240 V ~ 50/60 Hz Article number 10045377 10045378 Volume 39 L 46 L Power supply 100-240 V ~ 50/60 Hz Article number 10045379 Volume 45 L Power supply 100-240 V ~ 50/60 Hz26

Before use, check the voltage indicated on the nameplate. Ensure that you only connect the appliance to sockets with the appropriate voltage.

Children over 8 years as well as mentally, sensory and physically impaired persons may only use the appliance if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

Make sure that the ventilation openings are free and clean them regularly.

Do not use mechanical devices to speed up the defrosting process.

Do not place electrical appliances, such as ice machines, in the refrigerator.

Be careful not to damage the coolant circuit.

If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualied person.

Check the power cord regularly for any damage. Do not use the device with a damaged power cord.

Do not handle the appliance, plug or power cord with wet hands.

If possible, do not use an extension cord. If you do use one, make sure that the ampere rating of the connected device does not exceed the maximum ampere rating of the power cord.

Leave at least 5 cm space around the device on the sides and 10 cm space on the back for sucient air circulation.

Do not put hot food in the appliance. Let it cool down to room temperature rst.

Close the door as soon as possible after stowing food to prevent cold from escaping.

Place the device on a rm, level surface. Do not place it on a soft surfaces, such as carpet.

Do not place any objects on the appliance.

Do not store ammable or explosive substances in the unit.

Do not use the device outdoors.

Do not pull the plug out of the socket by the cable; instead, hold it securely with your hand while unplugging it.

Make sure that the power cord does not touch any hot surfaces.

Only connect the unit to earthed sockets.

Do not connect the device to sockets that are already connected to other kitchen appliances.

Defrost the freezer compartment regularly.

If the refrigerator goes out, breaks down or is turned off, wait 5 minutes before turning it back on, otherwise the compressor could be damaged.27

This unit contains the refrigerant Isobutane (R600a), a natural gas with high environmental compatibility, but ammable. Although it is ammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the ow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes. Special Notes

Children aged 3 to 8 may ll refrigerators with food and remove food.

When positioning the unit, take care not to pinch or damage the power cord.

Make sure that there are no power strips or power supply units on the back of the device. WARNING When using, during maintenance and when disposing of the device, pay attention to the left symbol located on the back or on the compressor of the device. This symbol warns you of possible res. There are ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of re during use, maintenance and disposal. Notes on correct use

This device is intended exclusively for the storage of drinks.

This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.

This appliance is not suitable for freezing food.28

The shelves have been pre-set to allow the most ecient use of energy.

Use only the shelves provided by the manufacturer.

Never block the holes in the shelves and do not use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.

We recommend that you use the shelves as shown so that the energy is used as eciently as possible.

When the ambient temperature is 25 °C and the device is not loaded, it takes about 3.5 hours to change the temperature of the device from 25 °C to 17 °C. It is recommended to set the device to 17 °C. When the set temperature is higher than 17 °C, the energy consumption is lower. When the set temperature is lower than 17 °C, the energy consumption is higher. Shelf 1 Shelf 1 Shelf 1 Shelf 1 Shelf 2 Shelf 2 Shelf 2 Shelf 2 Shelf 3 Shelf 3 Shelf 3 Shelf 3 Shelf 4 Shelf 4 Shelf 4 Shelf 5 Shelf 5

Position the device so that the plug is accessible.

Protect the device from direct sunlight.

Do not place the device next to a heat-generating device.

The device performs better at an ambient temperature of 16-32 °C. We recommend turning off the device when the ambient temperature is below 10 °C.

After plugging in the appliance, allow it to cool down for 2-3 hours before placing drinks in the cooling compartment.

Ventilation is very important for this type of thermoelectric cooler. The inner circuit board is easy to break if the ventilation is poor.

These models use a thermoelectric cooling system with automatic defrost system, so manual defrosting is not required. Power supply The refrigerator must be plugged into a properly grounded outlet that conforms to applicable national codes before operation. Check the rating plate (located on the side of the device) to ensure that the voltage and frequency are the same as those in your country. If not, do not insert the plug into the outlet. Ventilation

should be left for ventilation.

The distance between the wall and the cooler side should be at least 20 mm.

At least 50 mm should be left at the rear for air ow.

The air owing through must not be preheated.

The entire cooling system must be considered for ventilation.30

OPERATION The temperature of the device may be set between 8-18 °C (46-64 °F). It is recommended to place the device in a place where the ambient temperature is between 16-32 °C (61-90 °F). If the ambient temperature is above or below the recommended temperatures, the performance of the device may be affected. For example, if you place the unit in an extremely cold or hot place, the internal temperature may uctuate. The range of 8-18 °C (46-64 °F) may then not be reached. You can switch the temperature display from Fahrenheit to Celsius by pressing the button for two seconds. The temperature reading in Fahrenheit or Celsius appears on the display in white with a blue background. Control panel and button functions

You can turn the interior light on or off with a single press of the button. The light will turn off automatically after it has been on for a few minutes. If you press the button again, the light will turn on again.

You can switch the temperature display from Celsius to Fahrenheit by pressing and holding the button for 2 seconds.

The cooling device is equipped with an automatic control panel lock that is activated 20 seconds after the last time a button is touched. Press and hold the button for 2 seconds to unlock the control panel. You will hear a beep indicating that the control panel is now active.

You can set the desired temperature by pressing the or button on the control panel. Pressing the button once increases the desired temperature by 1 C. Pressing the button once decreases the temperature by 1 C. Note: When you use the device for the rst time or turn it on again after a long break, there may be a difference of a few degrees between the temperature you have selected and the temperature shown on the LED display. This is normal and is related to the duration of the on-time. Once the device has been running for a few hours, everything will be back to normal.33

Switch off the appliance rst and disconnect the power cord from the mains socket.

Remove all the contents.

Wipe the inside with a damp cloth dipped in lukewarm water with a little washing-up liquid.

Make sure the rubber seal on the door is clean so that the appliance remains ecient.

The exterior of the wine refrigerator should be cleaned with a mild detergent.

Dry the inside and outside with a soft cloth.

Dust and anything else that clogs the exhaust vents will reduce the cooling capacity of the appliance. If necessary, vacuum the exhaust air opening. TROUBLESHOOTING Problem Possible cause and solution The appliance is not working. It is not plugged in. It is switched off. The fuse is out or blown. The appliance is not cold enough. Check the temperature settings. The environment requires a lower setting. The door was opened too often. The door is not closed properly. The door seal does not seal properly. The light doesn't work. The appliance is not plugged in. The fuse is out or blown. The light bulb is broken. The light switch is set to "off". Vibrations Check if the device is level. The door does not close properly. The device is not level. The door was turned upside down and not tted properly. The seal or the magnet are damaged. The shelves stick out too far.34

Information according to Regulation (EU) No. 2019/2016 Supplier's name or trademark: Klarstein Supplier's address: Wallstraße 16, 10179 Berlin, DE Model identier: 10045375 Type of refrigerating appliance: Low-noise appliance: No Design type: freestanding Wine storage appliance: No Other refrigerating appliance: Yes General product parameters: Parameter Value Parameter Value Overall dimensions (mm) Height 480 Total volume (dm³ or L)

Annual energy consumption (kWh/a) 80 Climate class: temperate Minimum ambient temperature (°C), for which the refrigerating appliance is suitable
