Mojanda - Fire pit Blumfeldt - Free user manual and instructions

Product Type	Garden Fire Pit
Brand	Blumfeldt
Model	Mojanda
Usage	Outdoor only
Material	Steel
Dimensions	Diameter approx. 60 cm, height approx. 30 cm
Weight	Approx. 15 kg
Fuel	Wood, logs
Assembly	Simple, 4 screws, base and ventilation panel
Safety	Do not use indoors, do not use alcohol, keep children at a distance
Maintenance	Clean with damp cloth, avoid abrasives
Included Accessories	Poker, screws
Spare Parts	Base, ventilation panel
Warranty	See manufacturer

Frequently Asked Questions - Mojanda Blumfeldt

How to assemble the Mojanda fire pit?

Attach the two base pieces to the fire pit with the 4 provided screws, then install the ventilation panel inside. Your fire pit is then ready to use.

What fuel to use?

Use dry firewood or logs. Never use liquid fuel such as gasoline or alcohol.

Where to place the fire pit?

Place it on a firm, smooth, level, and heat-resistant surface, away from any flammable objects. Outdoor use only.

How to extinguish the fire?

Let the fire die out naturally or smother it with sand. Never use water as it could damage the device.

How to clean the fire pit?

Let it cool completely, remove ashes, then clean with a damp cloth. For stubborn stains, use a citrus-based cleaner and a brush. Avoid abrasives.

Can the fire pit be used on a wooden deck?

No, because hot embers may fall. Use it on a heat-resistant surface like stone or concrete.

Can I leave the fire pit unattended?

No, never leave the fire pit unattended while in use. Keep children and pets at a distance.

How to maintain the fire pit?

Regularly check that all parts are tight and there is no damage. Clean it regularly to extend its lifespan.

Does the fire pit rust?

Steel may discolor slightly over time. Regular cleaning and storage away from moisture can limit rust.

What are the dimensions of the Mojanda?

The diameter is about 60 cm and the height about 30 cm. This may vary slightly. Refer to the manual for more details.

USER MANUAL Mojanda Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green leaf-like logo with three curved segments (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

WARNUNG

Warning panel with warning symbols and four quadrants showing different workplace or safety scenarios

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

EINZELTEILE

Technical diagram of a hexagonal chamber with labeled components A and C, showing internal structure and circular features.

Technical line drawing of a hexagonal industrial or mechanical device with internal components and mounting base (no text or symbols)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 12

Individual Parts 14

Assembly 15

Operation 17

Cleaning and Care 18

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

WARNING

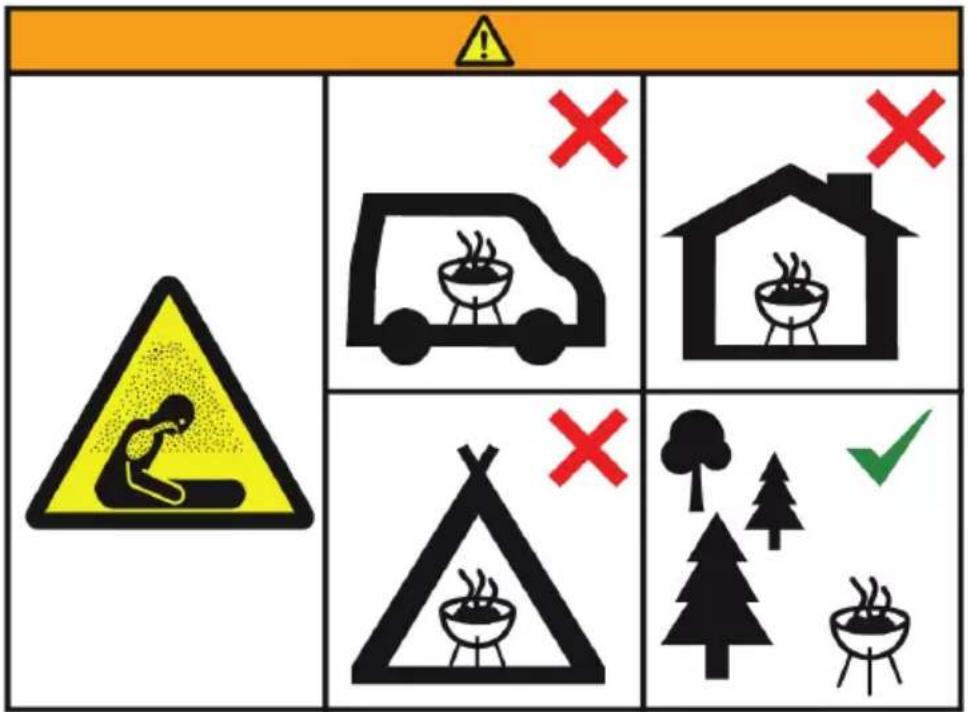

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fi re bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fi re bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire bowl with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

Warning panel with warning symbols and four quadrants showing different workplace or safety scenarios

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

INDIVIDUAL PARTS

No.	Quantity Description Picture
A	1	Fire bowl
B 2	Base
C 1	Ventilation plate
D 4	Screw
	1 Poker

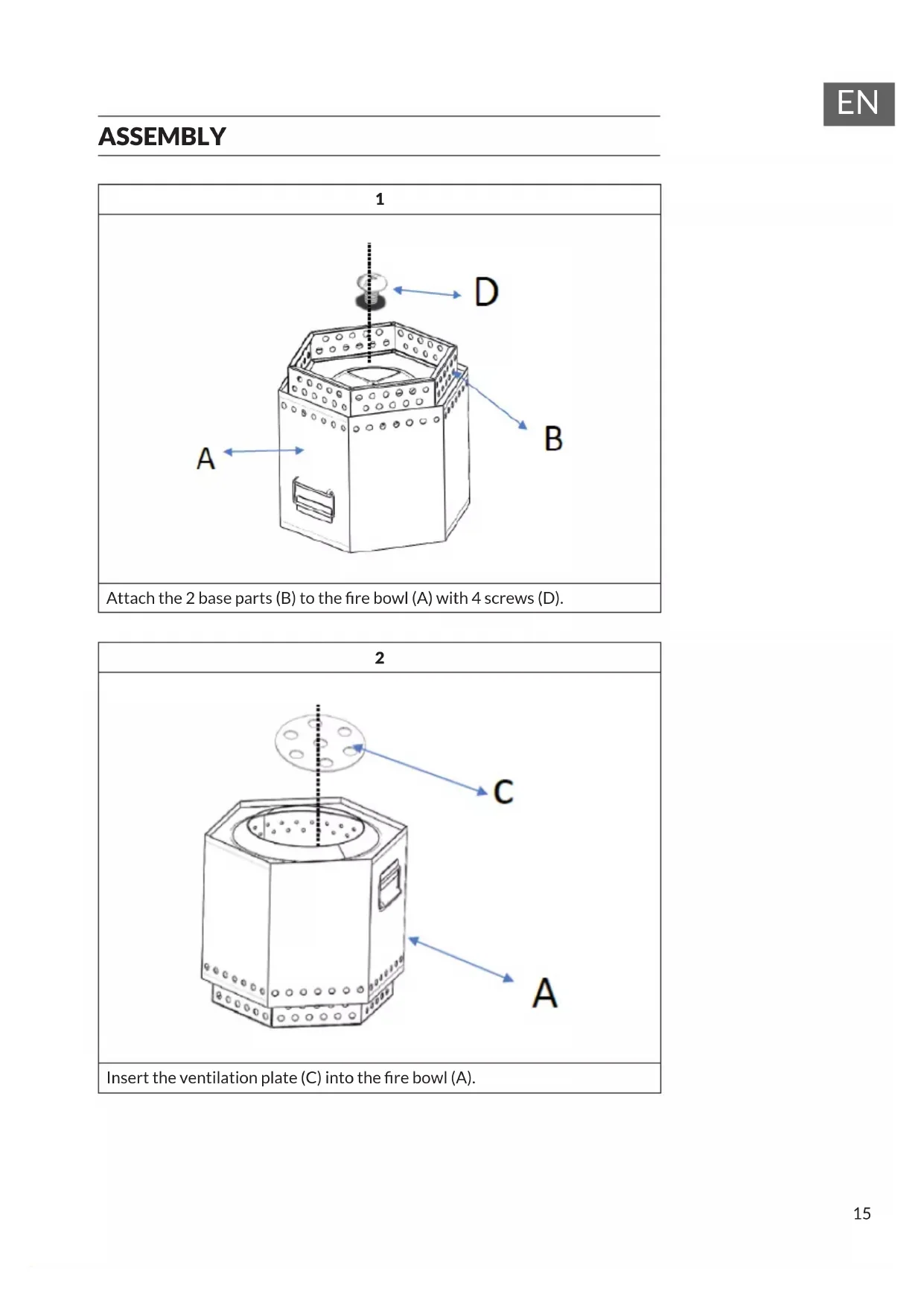

ASSEMBLY

1

A B D

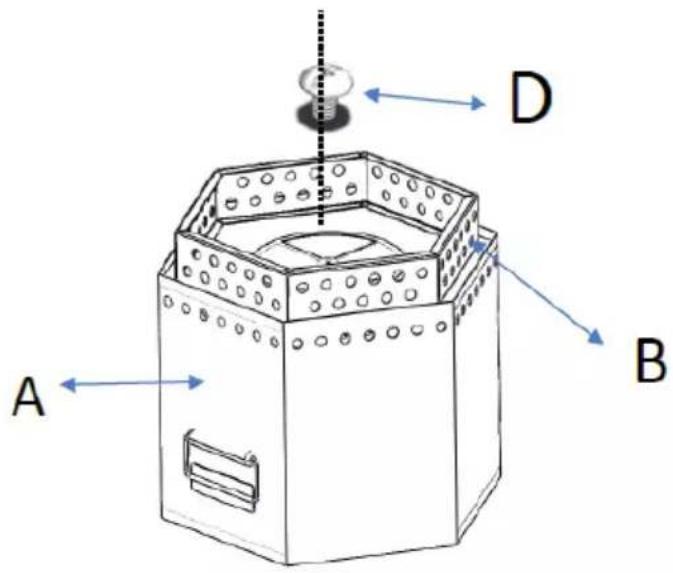

Attach the 2 base parts (B) to the fire bowl (A) with 4 screws (D).

2

A C

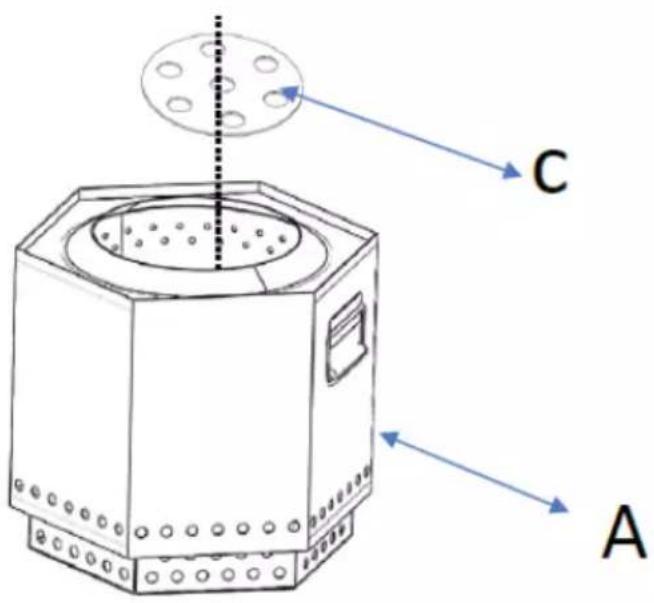

Insert the ventilation plate (C) into the fire bowl (A).

3

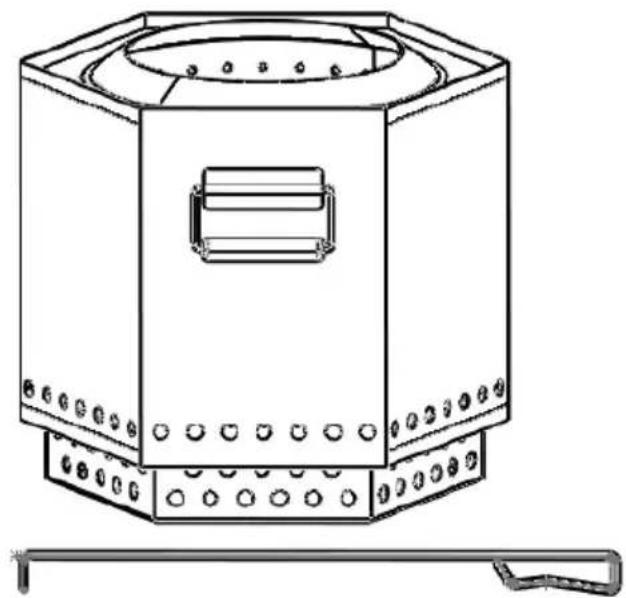

Technical line drawing of a hexagonal industrial or mechanical device with internal components and mounting base (no text or symbols)

Your fire bowl is now ready for use!

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fi re bowl to cool completely before inspecting or cleaning it for damage.

Inspect the Fire Bowl for Damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
