Product type	Microwave oven
Brand	Glem Gas
Model	GMF255IX
Capacity	25 L
External dimensions (W x D x H)	513 x 430 x 307 mm
Net weight	11 kg
Supply voltage	230 V ~ 50 Hz
Microwave power (output)	900 W
Grill power	1000 W
Turntable diameter	315 mm
Microwave power levels	5 (10%, 30%, 50%, 80%, 100%)
Cooking modes	Microwave, Grill, Combi (2 modes), Defrost (weight/time), Auto menu (8 programs), Successive cooking (2 stages)
Special functions	Clock, Timer, Quick start, Child lock
Installation type	Built-in
Compatible materials	Heat-resistant glass, porcelain, microwave-safe plastic, parchment paper, etc.
Cleaning	Damp cloth, lemon and water to remove odors
Safety	Child lock, automatic stop when door opened, overheat protection
Included accessories	Glass turntable, rotating ring, grill rack
Repairability	Repairs by qualified personnel only

Frequently Asked Questions - GMF255IX Glem Gas

How to set the clock on the Glem Gas GMF255IX oven?

Press the (clock) key until the hour digits flash. Turn the knob to set the hour (0-23), press again to go to minutes, then turn the knob to set the minutes (0-59). Press to confirm. The clock operates in 24h mode.

What utensils can be used in this microwave?

Use heat-resistant glass, porcelain, microwave-safe plastic, parchment paper or paper towels. Avoid metal, aluminum, cardboard containers with metal handles, wood, and polystyrene. If in doubt, do a test: place the empty container with 250 ml of water in a suitable dish and heat for 1 minute at maximum power. If the container becomes hot, do not use it.

How to activate child lock?

In standby mode, press and hold the Stop key for 3 seconds. A long beep sounds and the display shows L (if clock is set) or [:]. To deactivate, repeat the same operation.

How to clean the oven interior effectively?

After each use, wipe interior surfaces with a slightly damp cloth. For deep cleaning, place half a lemon in 300 ml of water, heat at maximum power (100%) for 10 minutes, then wipe with a soft dry cloth. Do not use steam cleaner or abrasive sponges.

What to do if the oven does not heat up?

Check that the door is properly closed, as the oven will not operate if it is open. Ensure the power plug is correctly inserted and the fuse has not blown. If the problem persists, contact a qualified technical service.

How to use the defrost function?

For weight defrost, press (defrost) once, display shows dEF1. Turn knob to select weight (100-2000 g), then press Start. For time defrost, press twice for dEF2, set time with knob, then start with Start.

How to cook with the grill or in combi mode?

Press the Grill/Combi key until G for grill only, C-1 (55% microwave + 45% grill) or C-2 (36% microwave + 64% grill) appears. Confirm with Start, set time with knob (max 95 min), then press Start to start. Halfway through, the oven beeps twice: turn the food over if necessary.

What are the available automatic programs?

The oven offers 8 auto menus: A-1 Pizza, A-2 Meat, A-3 Vegetables, A-4 Pasta, A-5 Potato, A-6 Fish, A-7 Drink, A-8 Popcorn. Turn knob to select menu, press Start, then choose weight according to the table in the manual. The oven automatically adjusts cooking time.

Can I use the oven without food inside?

Avoid operating the oven empty, as it may damage it. If it happens accidentally for a short time, it will not damage the appliance, but it is not recommended to repeat.

How to set the electronic timer?

In standby mode, press the Timer key twice. The display shows 00:00 and the clock lights up. Turn the knob to set the duration (max 95 min), then press Start. The timer counts down and beeps 5 times at the end. Note the timer is independent of cooking.

USER MANUAL GMF255IX Glem Gas

MANUEL D'INSTRUCTIONS

FORNI A MICROONDE

MANUAL DE INSTRUÇÕES

GB

FR

IT

PT

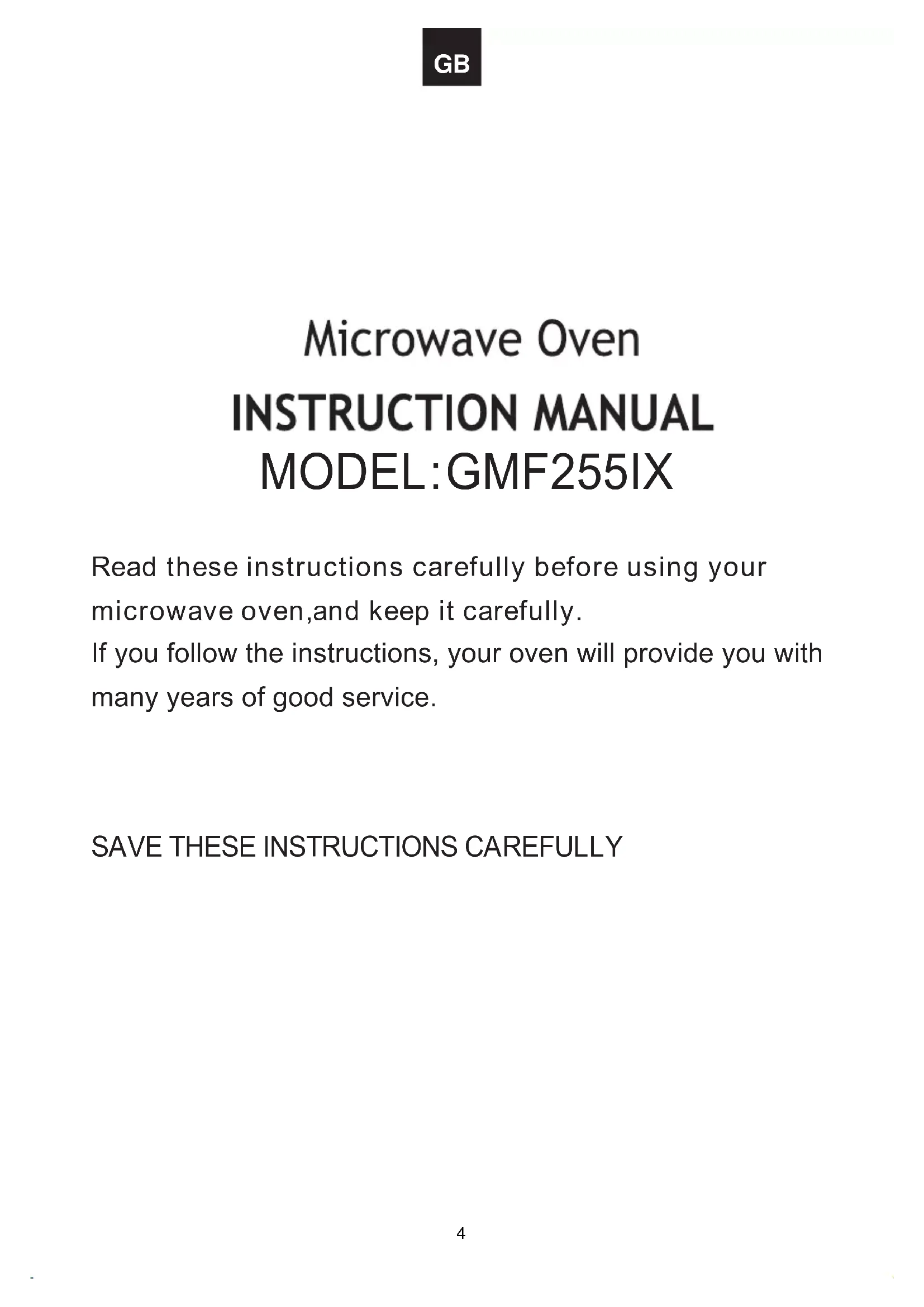

Microwave Oven

INSTRUCTION MANUAL

MODEL:GMF255IX

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	GMF255IX
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1000W
Oven Capacity:	25L
Turntable Diameter:	∅315mm
External Dimensions(LxWxH):	513x430x307mm
Net Weight:	Approx. 15.11 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personor exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

GB

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
2. Do not overcook food.
3. Do not use the oven cavity for storage purposes.

Do not store items, such as bread, cookies, etc. inside the oven.

1. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
2. Install or locate this oven only in accordance with the installation instructions provided.
3. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
4. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. Do not store or use this appliance outdoors.
3. Do not use this oven near water, in a wet basement or near a swimming pool.
4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

GB

1. Do not let cord hang over edge of table or counter.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
4. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
5. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
8. Accessible parts may become hot during use. Young children should be kept away.
9. Steam cleaner is not to be used.
10. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
11. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

GB

31.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
33. Surface of a storage cabinet can get hot.
34. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

GB

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

GB

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

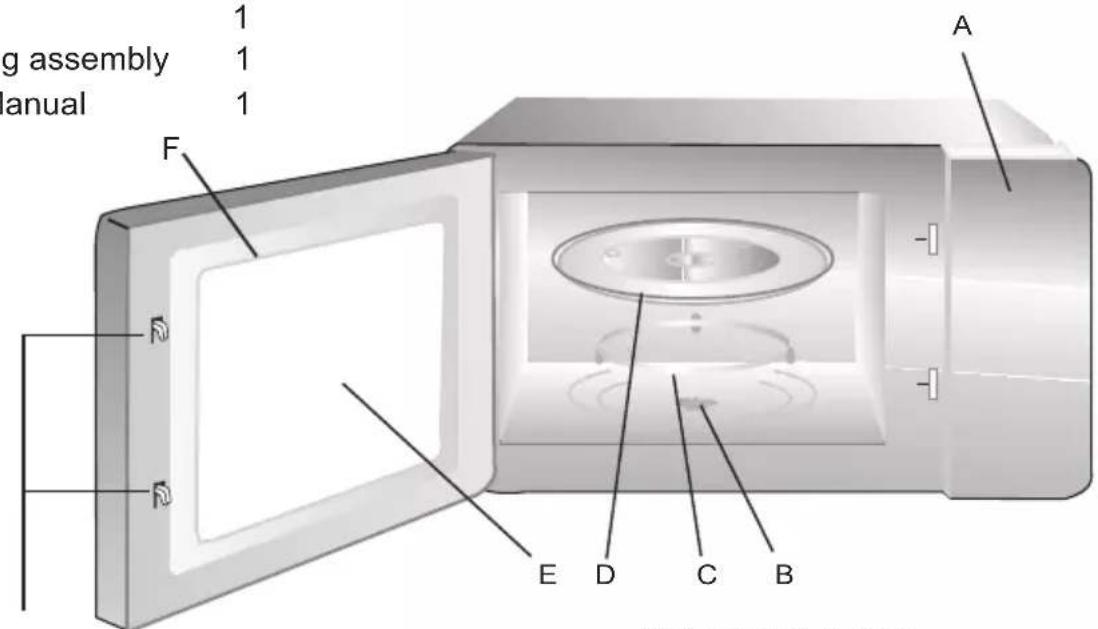

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

G

Simple line drawing of a circular object with diagonal hatching and two protruding legs (no text or symbols)

Grill Rack( Only be used in grill function and be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

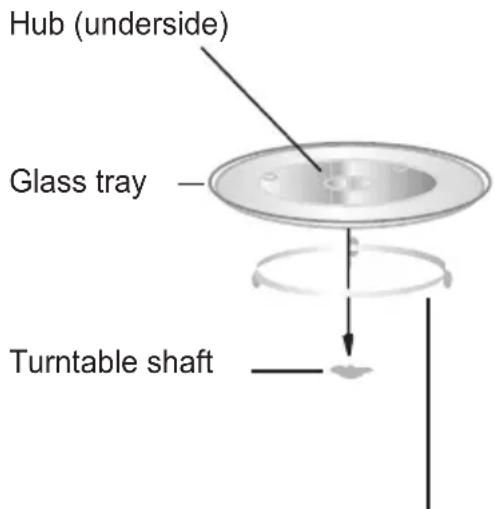

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Important information about installing

• This appliance is NOT intended for use in a commercial environment.
• Please observe the installation instructions provided and note that this appliance should only be installed by a qualified technician.
• The appliance is tted with a plug and must only be connected to a properly installed earthed socket.
• In case a new socket is needed, installation and cable connection must only be done by a qualified electrician. If the plug is no longer accessible following installation, a pole disconnecting device must be present on the installation site with a contact gap of at least 3 mm.
• Adapters, multiway strips and extension cords must not be used. Overloading can result in fire.

The accessible surfacemay be hot during operation.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press " ☐/☐" once to select clock function, the hour figures will flash.

2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.

3) Press " ⏻/☒ ", the minute figures will flash.

4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.

5) Press " ☑/☐" to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " 🔵 " the LED will display "P100".Press " 🔵 " for times or turn " 🔵 " to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press" Start " to confirm, and turn " 🔵 " to set cooking time from 0:05 to 95:00. Press

"Start" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " ☐" once, the screen display "P100".

2) Press " [icon] " once again or turn" " to choose 80% microwave power.

3) Press "Start" to confirm, and the screen displays "P 80".

4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".

5) Press " Start " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

Press " " the LED will display"G", and press " " for times or turn the " " to choose the power you want, and "G", "C-1" or "C-2" will display for each added press. Then press " Start " to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press " Start " again to

start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▲" once, the screen display "G".

2) Press " ▼▼▼ ≈" once again or turn " 🔥" to choose combi. 1 mode.

3) Press " Start " to confirm, and the screen displays "C-1".

4) Turn " 🔍 " to adjust the cooking time until the oven displays "10:00".

5) Press " Start " to start cooking.

" " Pad instructions

Order	Display	Microwave Power	Grill Power
1	G	0%	100%
2	C-1	55%	45%
3	C-2	36%	64%

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and then if no operation the oven will continue cooking.

GB

4. Quick Start

1) In waiting state, Press "Start" to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of "Start" can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100% microwave power, then press " Start " to start cooking.

5. Defrost By Weight

1) Press " ☐ " once, and the oven will display "dEF1".

2) Turn " 🔍 " to select the weight of food from 100 to 2000 g.

3) Press " Start " to start defrosting.

6. Defrost By Time

1) Press " [icon] " once, and the oven will display "dEF2".

2) Turn " 🔍 " to select the defrost time. The MAX time is 95 minutes.

3) Press " Start " to start defrosting. The defrost power is P30, and it will be changed.

7. Kitchen Timer

(1) Press " ☑/☐" twice, LED will display 00:00, clock indicator will light.
(2) Turn " " to enter the correct time.(The maximum cooking time is 95 minutes.)
(3) Press " Start " to confirm setting, clock indicator will be lighted.
(4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock has been set (24-hour system), LED will display the current time.

Note: The kitchen Time is different from 24-hour system Kitchen Timer is a timer.

8. Auto Menu

1) Turn " 🔥 " right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.

2) Press " Start " to confirm.

3) Turn " 🔍 " to choose the default weight as the menu chart.

4) Press " Start " to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn "

"clockwise till "A-6" displays.

2) Press "

Start " to confirm.

3) Turn "

" to select the weight of fish till "350" displays.

4) Press " Start " to start cooking.

The menu chart:

Menu	Weight	Display
A-1	200 g	200
Pizza	400 g	400
A-2	250 g	250
	350 g	350
Meat	450 g	450
A-3	200 g	200
Vegetable	300 g	300
	400 g	400
A-4	50g(with 450 ml cold water)	50
Pasta	100g(with 800 ml cold water)	100
A-5	200 g	200
Potato	400 g	400
	600 g	600
A-6	250 g	250
Fish	350 g	350
	450 g	450
A-7	1 cup(120 ml)	1
Beverage	2 cups(240 ml)	2
	3 cups(360ml)	3
A-8	50 g	50
Popcorn	100 g	100

GB

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press

" once, and the oven will display "dEF2".

2) Turn "

to select the defrost time till "5:00" displays.

3) Press

" once, the screen display "P100".

4) Press

" once again or turn " " to choose 80% microwave power.

5) Press

" to confirm, and the screen displays "P 80".

6) Turn

" to adjust the cooking time till the oven displays "7:00".

7) Press "

" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sounds five times.

10. Inquiring Function

(1) In states of microwave, grill and combination cooking, press "≈", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

(2) In cooking state, press "☐/☒" to inquire the time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press "Stop" for 3 seconds, there will be a long beep denoting entering the children-lock state and current time will display if the time has been set, otherwise, the LED will display "【：】".

Lock quitting: In locked state, press "Stop" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Four à micro-ondes

MODE D'EMPLOI

MODÈLE GMF255IX

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

- Bed and breakfast.

Simple diagram showing a circular object with a diagonal line and a downward arrow, no text or symbols present.

Anel de suporte

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
