Brand	BOSCH
Model	PXX921DX6E
Product type	Induction hob with assisted cooking function
Cooking technology	Induction
Wireless temperature sensor	Yes, removable and replaceable (reference HEZ39050)
Wireless communication	Bluetooth®
Sensor battery	CR2032, user-replaceable
Silicone patch	Supplied, for attaching sensor to pan (reference 00577921)
Use	Household, indoor
Authorized users	Adults and children aged 8 and over under supervision
Cleaning the sensor	Damp cloth only, do not immerse or put in dishwasher
Cleaning the silicone patch	Dishwasher safe
Cleaning the sensor window	Soft cloth or cotton swab with glass cleaner
Safety	Risk of suffocation (packaging), magnetic hazard (implants), risk of burns (hot sensor)
Compliance	European RED Directive 2014/53/EU
Spare parts	Sensor HEZ39050, silicone patch 00577921, battery CR2032
Additional information	www.bosch-home.com

Frequently Asked Questions - PXX921DX6E BOSCH

How to use the wireless temperature sensor?

Attach the silicone patch to a clean, dry pan, then snap the temperature probe onto the patch. Place the pan on the cooking zone and activate the assisted cooking function. The sensor communicates with the hob via Bluetooth to automatically adjust the temperature.

How to replace the temperature sensor battery?

Remove the silicone cover at the base of the sensor, unscrew the two screws with a screwdriver, open the housing, and replace the used battery with a new CR2032 battery, observing polarity. Close and screw back. Use only high-quality batteries.

How to attach the silicone patch to the pan?

Clean the bonding area with alcohol to degrease. Remove the protective film from the patch and stick it to the outside of the pan using the supplied stencil. Press over the entire surface, then let it dry for 1 hour before using the pan.

How to clean the temperature sensor?

Clean the sensor with a damp cloth only. Never immerse it in water or put it in the dishwasher. After cooking, remove it from the pan and store it in a clean, dry place away from heat.

Is the sensor compatible with all types of pans?

The sensor requires a silicone patch stuck to the pan. It is compatible with pans suitable for induction, provided the side surface is clean and smooth for optimal adhesion.

What to do if the temperature sensor does not turn on?

If the sensor does not light up when you press the symbol, the battery is discharged. Replace it with a new CR2032 battery as described in the 'Battery replacement' section.

Can the temperature sensor go in the dishwasher?

No, the sensor itself must never be cleaned in the dishwasher or immersed. However, the silicone patch is dishwasher safe.

How to dispose of the appliance at end of life?

The appliance is marked according to Directive 2012/19/EU (WEEE). Do not dispose of it with household waste. Return it to a collection point for recycling. The sensor battery must be removed and disposed of separately.

Can I use the hob without the temperature sensor?

Yes, the hob works normally without the sensor. The induction cooking zones can be used manually without assistance. The sensor is an accessory for assisted cooking.

Where to find spare parts for the sensor?

Spare parts are available from specialized retailers or from Bosch customer service. References: temperature sensor HEZ39050, set of 5 silicone patches 00577921. For more information, visit www.bosch-home.com.

USER MANUAL PXX921DX6E BOSCH

Wireless Temperature Sensor

HEZ39050

de Gebrauchsanleitung. . . . . . . . 3
en Instruction manual ..... 8
fr Mode d'emploi....13
it Istruzioni per l'uso ..... 19
nl Gebruiksaanwijzing ..... 25
da Brugsanvisning. 30
no Bruksveiledning .... 35
sv Bruksanvisning....40
fi Käyttöohje 45
es Instrucciones de uso ..... 50
pt Instruções de serviço.....56
el Οδηγίες χρήσης ....61
tr Kullanma kılavuzu ..... 67
cs Návod k použití ..... 72
sk Návod na obsluhu....77
hu Használati utasítás ..... 82
pl Instrukcja obsługi....88
ro Instructiuni de utilizare ..... 94
bg Ръководство 99
ru Правила пользования.....104
uk Інструкція з використання. . 109
sr Uputstva za upotrebu.....115
hr Upute za uporabu ..... 120
sl Navodila za uporabo.....125
sq Udhëzim për përdorim ..... 130
mk Упатство за употреба ..... 135
et Kasutusjuhend ..... 140
It Naudojimo instrukcija ..... 145
Iv Lietošanas instrukcija ..... 150
zh 说明手册 155
zh-hk 說明手冊 158

Inhaltsverzeichnis

Diagram showing a cooking pot with a lid and valve, alongside a close-up of the lid's tip.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Hinweise

Illustration of a mechanical component with a blue pulley and a metallic ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular housing (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including symbols for 'i' and '×'.

Achtung!

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing positive and negative charges.

Diagram of a mechanical component with two circular parts and internal features, showing directional arrows (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

Illustration of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Hinweis:

Important safety information. . . .9

Environmental protection .....10

Environmentally-friendly disposal . . . 10

Wireless temperature sensor . .10

Preparing and maintaining the wireless temperature sensor .... 11 Cleaning.... 12 Declaration of Conformity.... 13

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

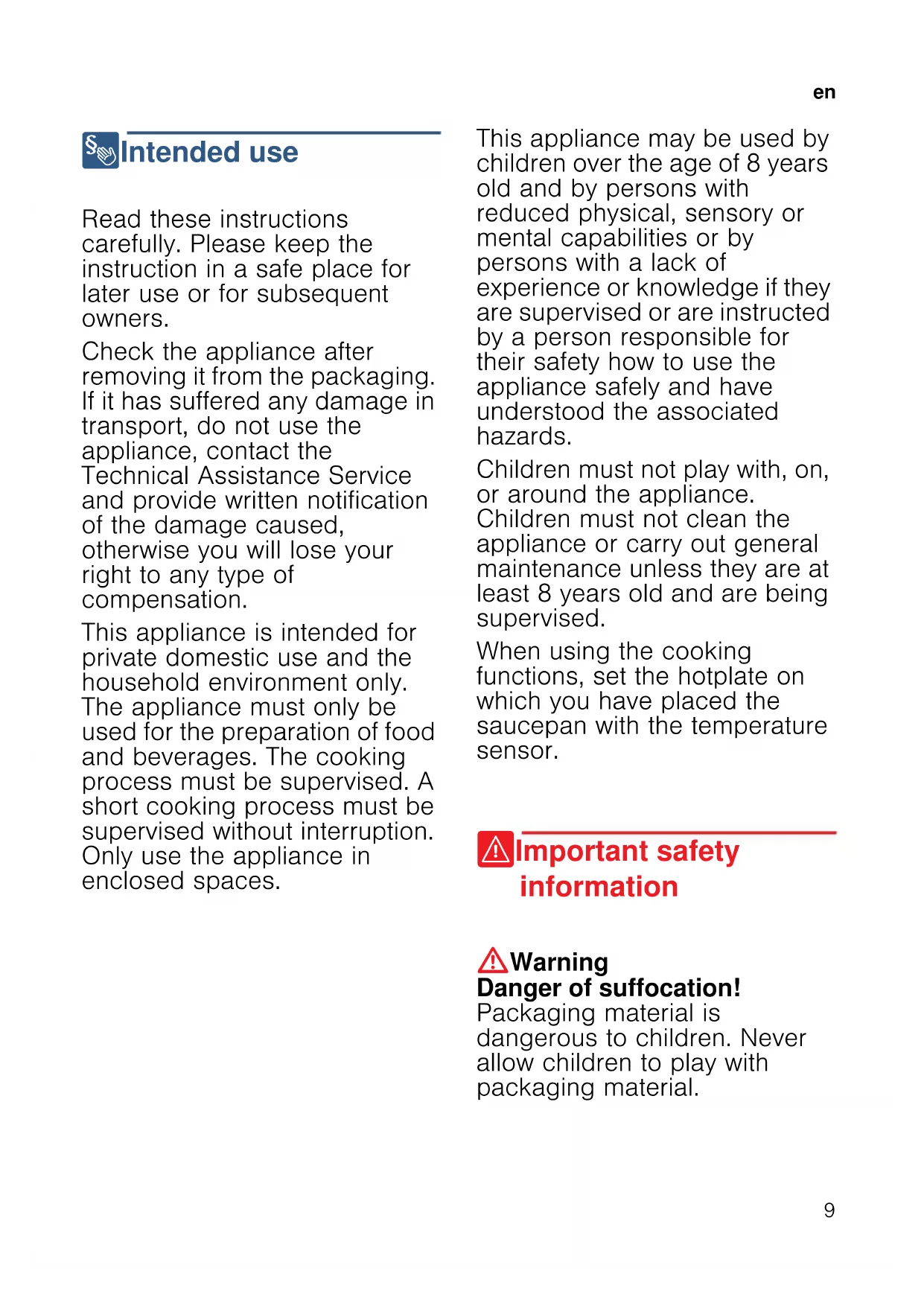

Intended use

Read these instructions carefully. Please keep the instruction in a safe place for later use or for subsequent owners.

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Danger of suffocation!

Packaging material is dangerous to children. Never allow children to play with packaging material.

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

Warning

Risk of injury!

■ The wireless cooking sensor is equipped with a battery, which may become damaged if it is exposed to high temperatures. Remove the sensor from the cookware and store it away from any heat sources.

■ The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

■ Adhering the silicone patch
■ Using the wireless temperature sensor
■ Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

HEZ39050 Temperature sensor and set of 5 silicone patches

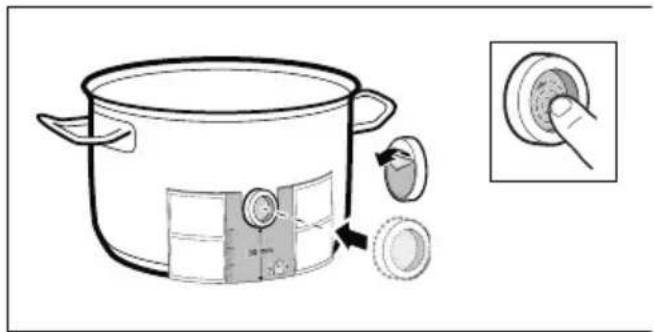

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

When a pan is used for the first time with the cooking functions, the silicone patch must be adhered directly to the pan. It is important

1. that the adhesive area on the pan is free from grease. Clean the pan, dry it thoroughly and wipe the adhesive area with a spirit.
2. Remove the protective film from the silicone patch. Adhere the silicone patch to the outside of the pan in the correct place using the enclosed template as a guide.

Diagram showing a cooking pot with labeled components and a close-up of the lid mechanism.

1. Press down all over the surface of the silicone patch, including in the centre.

The adhesive requires one hour to fully harden. Do not use or clean the pan during this time.

Notes

■ Do not leave the pan with the silicone patch to soak soapy water for long periods of time.
■ If the silicone patch comes off, attach a new one.

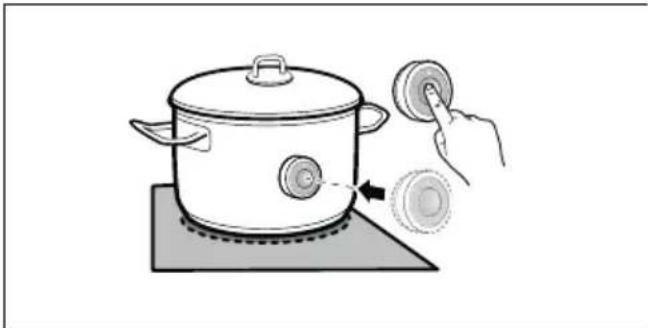

Fitting the wireless temperature sensor

Attach the temperature sensor to the silicone patch and align it correctly.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Notes

■ Make sure that the silicone path is completely dry before attaching the temperature sensor.
■ Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.
■ To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot.
■ Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If the temperature sensor does not light up when the symbol is pressed, the battery is flat.

en

Changing the battery:

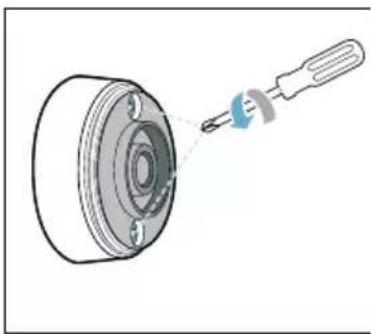

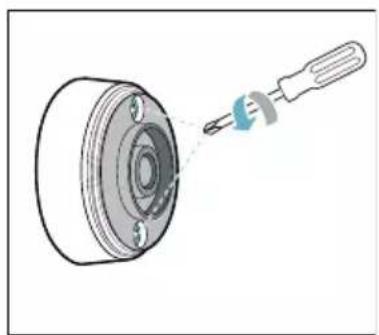

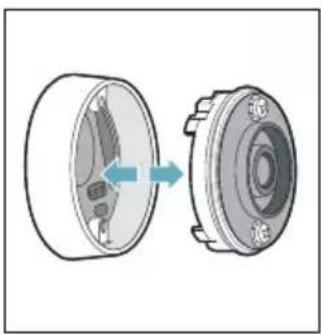

1. Remove the silicone cover from the lower section of the temperature sensor housing and remove both screws using a screwdriver.

Diagram of a mechanical component with a blue pulley and a gray ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

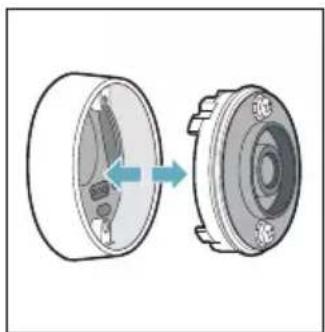

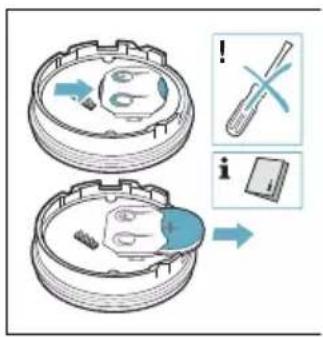

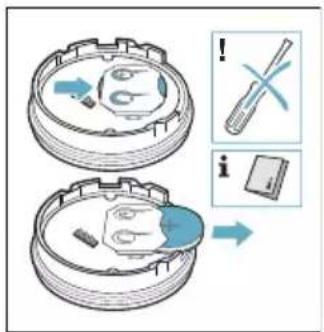

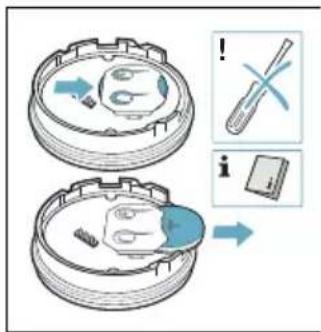

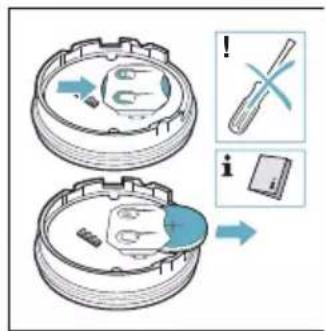

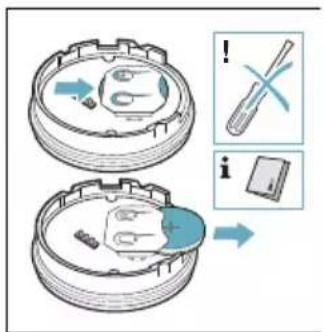

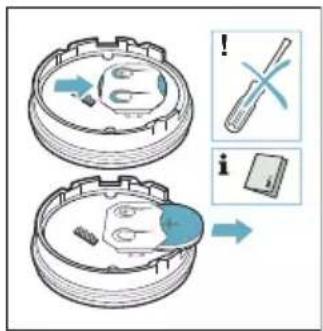

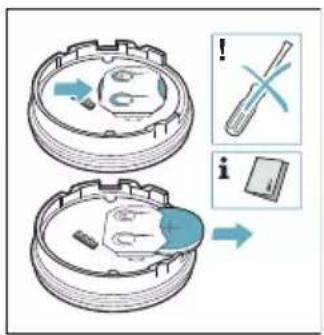

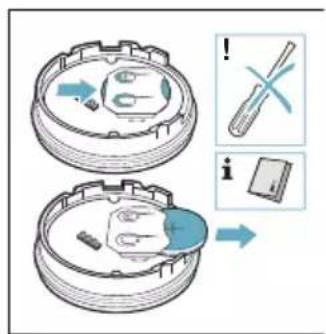

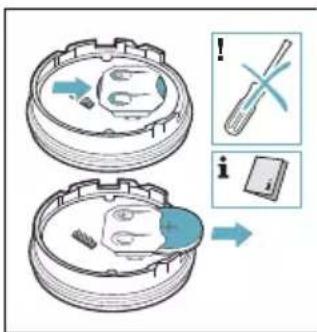

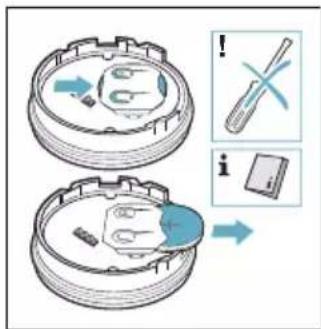

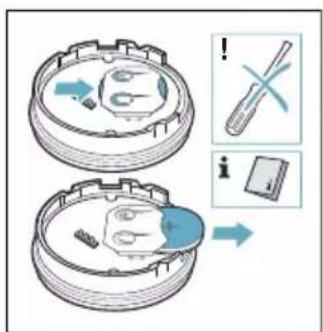

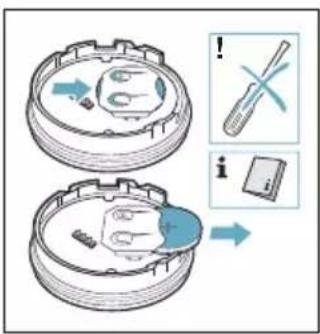

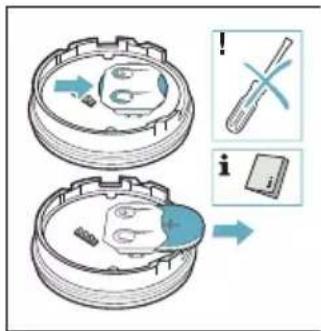

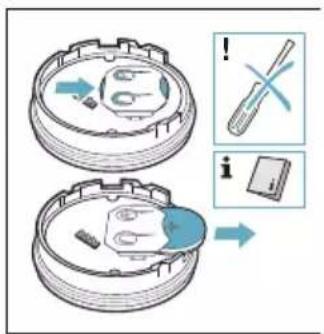

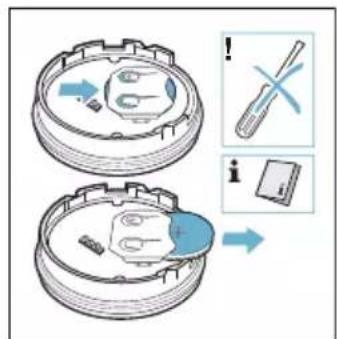

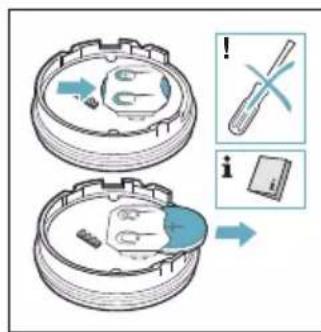

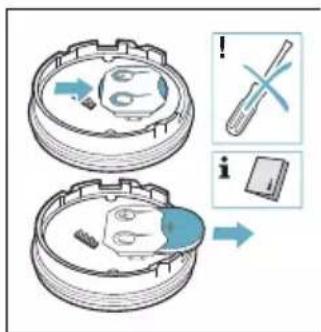

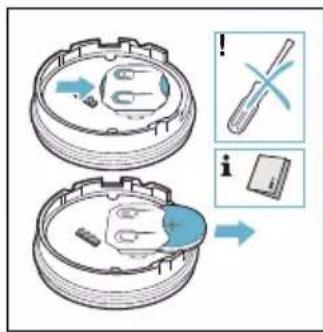

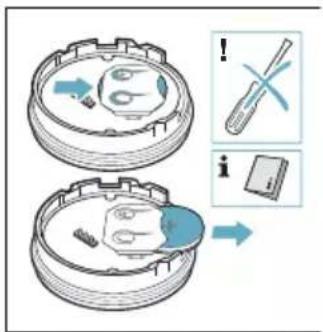

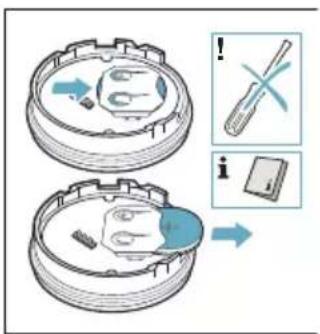

1. Open the closure of the temperature sensor. Remove the battery from the lower section of the housing and insert a new battery (pay attention to the correct orientation of the battery poles).

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and corresponding icons for surgical tools and a device.

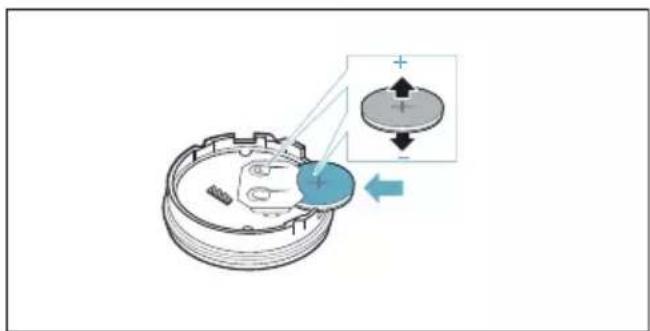

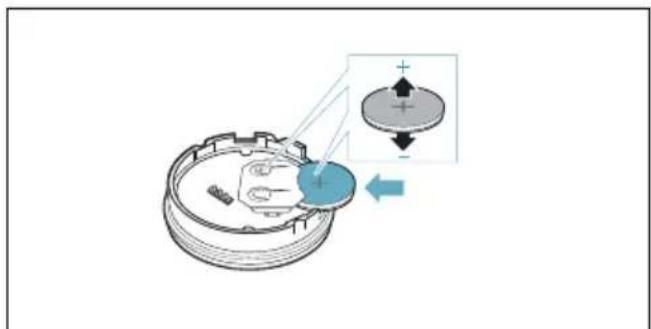

Caution!

Do not use any metal objects to remove the battery. Do not touch the battery connection points.

Mechanical assembly diagram showing gear and housing components with directional arrows (no text or symbols)

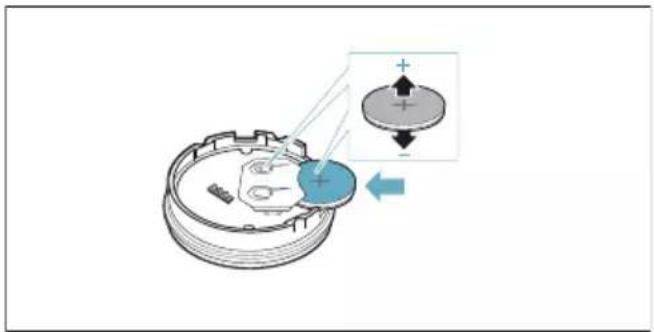

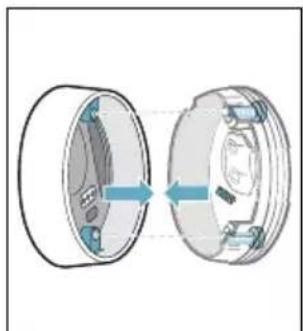

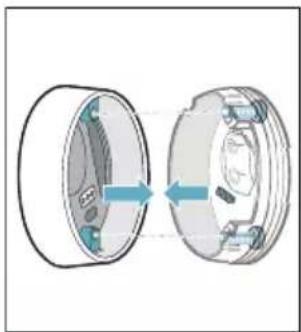

1. Close the closure of the temperature sensor (the notches for the screws on the closure must align with the notches on the lower section of the housing). Tighten the screws with a screwdriver.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, showing no text or symbols.

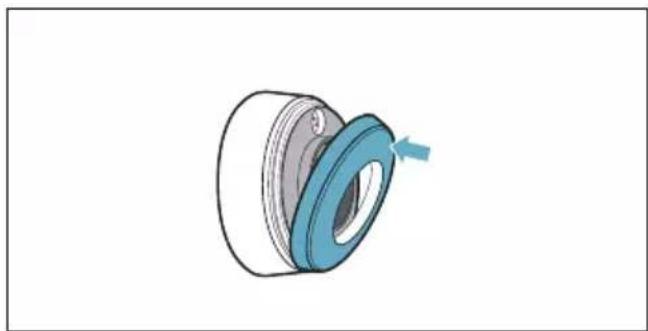

1. Reattach the silicone cover to the lower section of the temperature sensor housing.

Diagram of a mechanical component with a blue circular base and a white cylindrical body, showing a directional arrow (no text or symbols)

Note:

Use only high-quality batteries of the type CR2032 in order to guarantee a long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note:

Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

■ Remove dirt and oil splatters regularly.
■ Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

■ Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
■ Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

Robert Bosch Hausgeräte GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.bosch-home.com/de on the product page for appliance in the additional documents.

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by Robert Bosch Hausgeräte GmbH under licence. All other trademarks and brand names are owned by the respective companies.

Table des matières

Diagram showing cooking process with a pot, lid, and valve, alongside a close-up of the interior ring detail.

Illustration of a cooking pot on a stovetop with a hand pressing the lid (no text or symbols)

Remarques

Illustration of a mechanical component with a blue pulley and a blue arrow indicating rotation (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component (no text or symbols)

Diagram showing a mechanical component with two views: top view and side view, both with blue arrows indicating direction (no text or symbols present)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a tool and switch.

Attention!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows indicating motion (no text or symbols)

fr

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Remarque :

Diagram showing a cooking pot with a lid and lid removed, alongside a close-up of the lid's tip.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Avvertenze

Diagram of a mechanical component with a blue pulley and a white cylindrical body, showing a rotation arrow (no text or symbols)

Technical illustration of a screwdriver inserted into a mechanical component (no text or symbols)

Diagram showing a mechanical component being converted into a circular housing (no text or symbols present)

Diagram illustrating a medical procedure with labeled steps and instructions for surgical tools

Attenzione!

Diagram of a mechanical component with a highlighted section showing positive and negative charges (no text or symbols present)

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a tool interacting with a circular housing (no text or symbols)

it

Diagram of a mechanical component with a blue ring and arrow indicating rotation (no text or symbols)

Avvertenza:

Diagram showing a cooking pot with a lid and a close-up of the lid being inserted into a ring, with a magnified view of the lid's adjustment.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Aanwijzingen

Two technical diagrams showing a mechanical component before and after disassembly, with no visible text or symbols.

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a screwdriver and a switch.

Attentie!

Diagram illustrating a mechanical assembly with labeled components and directional arrows, likely illustrating a motion or force system.

Diagram of a mechanical component with two circular parts and internal features, showing alignment between one and the other (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

Illustration of a mechanical component with a blue ring and arrow indicating rotation (no text or symbols)

Aanwijzing:

Diagram showing a cooking pot with a lid and valve, alongside a close-up of the lid's dial.

Illustration of a cooking pot on a stovetop with a hand pressing the lid (no text or symbols)

Anvisninger

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a screwdriver and switch symbols.

Pas på!

Mechanical assembly diagram showing a gear-like component with a blue circular component and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, showing no text or symbols.

Diagram of a mechanical component with a blue circular base and arrow indicating rotation (no text or symbols)

Bemærk:

Diagram showing a cooking pot with a measuring scale and a close-up of the lid being inserted into a pan.

1. Trykk på hele overflaten av silikonfestet, også det innerste området.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Merknader

Illustration of a blue mechanical component with a rotating arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including warning symbols for disassembly or repair.

Obs!

Ikke bruk gjenstander i metall när du skal ta ut batteriet. Ikke ta på batterikontaktene.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing positive and negative charges.

1. Lukk dekselet til temperatursensoren (utsparingene for skruene i dekselet må stemme overens med fordypningene i underdelen av huset). Skru skruene til med en skrutrekker.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Illustration of a mechanical pulley or wheel assembly with a blue and gray component, no text or symbols present.

Diagram showing a cooking pot with a lid and a close-up of the lid being inserted into a ring, with a 20 mm scale indicator.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Anvisningar

Illustration of a mechanical component with a blue wheel and gray inner ring, showing a rotating arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with two views: top shows internal structure, bottom shows flanged housing (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including tool icons and labels i and !.

SV

Obs!

Diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset of a circular component.

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Technical illustration of a mechanical component with a screwdriver and circular base (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating rotation (no text or symbols)

Diagram showing a cooking pot with a dial and a close-up of the dial being turned into a ring, with a magnified view of the dial.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Huomautuksia

Illustration of a mechanical pulley or wheel assembly with a blue base and gray outer ring, showing a rotating arrow (no text or symbols)

Diagram of a mechanical component with a tool inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being processed into a circular housing, with no visible text or symbols.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating motion or sequence.

Huomio!

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing positive charges.

Diagram of a mechanical assembly showing two circular components with internal components and directional arrows indicating movement (no text or labels)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

Illustration of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with lid and side panel, alongside a close-up of the lid's dial being inserted.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Notas

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Diagram of a screwdriver inserted into a circular mechanical component (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular housing (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, accompanied by explanatory icons.

¡Atención!

Diagram illustrating a mechanical or electrical component with positive and negative charges, including an inset showing a circular component with plus and minus signs.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a tool interacting with a circular base (no text or symbols)

Illustration of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with a lid and a close-up of the lid being inserted into a ring, with a 30 mm mark indicating size.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Conselhos

Diagram of a mechanical pulley or wheel assembly with a blue blade and a gray outer ring, showing no text or symbols.

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

pt

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a device operation with labeled parts and warning symbols

Atenção!

Diagram illustrating a mechanical or electrical component with labeled positive and negative charges, including an inset showing a circular component with upward and downward arrows.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Technical illustration of a mechanical component with a tool and pin, no text or symbols present

Diagram of a mechanical component with a blue circular base and a white cylindrical body, showing a directional arrow (no text or symbols)

Conselho:

Diagram of a cooking pot with labeled parts and a close-up inset showing the interior ring detail.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Υποδείξεις

Diagram of a mechanical pulley or wheel assembly with a blue rim and arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being converted into a circular housing (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and warning symbols

Προσοχή!

Diagram of a mechanical assembly with a blue component and directional arrows, no visible text or symbols

el

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Technical illustration of a mechanical component with a tool and screwdriver (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with labeled parts and a close-up of the lid being inserted into a ring.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Bilgiler

Diagram of a mechanical component with a blue pulley and a white cylindrical shaft, showing a directional arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including symbols for 'i' and crossed-out tools.

Dikkat!

Mechanical assembly diagram showing a gear-like component with a highlighted circular component and directional arrows (no text or symbols)

Diagram of a mechanical component with two views showing internal components (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component (no text or symbols)

Illustration of a mechanical pulley or wheel assembly with a blue arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with labeled components and a close-up of the lid being inserted into a ring.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Upozornění

Diagram of a mechanical component with a blue pulley and a white cylindrical body, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component being converted into a flanged housing (no text or symbols present)

Diagram illustrating a mechanical or electrical component assembly with labeled parts and directional arrows indicating motion.

CS

Pozor!

Diagram illustrating a mechanical or electrical component with labeled positive and negative charges, including an inset showing a circular component with upward and downward arrows.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Upozornění:

Diagram showing a cooking pot with a lid and a close-up of the lid's dial, labeled with 32 mm mark.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Upozornenia

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including tool icons and component illustrations.

Pozor!

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, possibly indicating motion or force vectors.

Diagram of a mechanical component with two views showing internal components and alignment arrows (no text or symbols)

Diagram of a mechanical component with a tool and dropper, no text or symbols present

Illustration of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Upozornenie:

Diagram of a cooking pot with labeled components and a magnified inset showing the interior ring detail.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Utasítások

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Diagram of a screwdriver inserted into a circular mechanical component (no text or symbols)

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including a crossed tool and a switch.

Figyelem!

Mechanical assembly diagram showing a gear-like component with a highlighted circular component and directional arrows (no text or symbols)

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a tool and a circular base, no text or symbols present

Illustration of a mechanical component with a blue circular base and a blue arrow indicating rotation (no text or symbols)

Diagram of a cooking pot with labeled parts and a magnified inset showing the interior pan.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Wskazówki

Diagram of a mechanical pulley or wheel assembly with a blue rim and a white outer ring, showing no text or symbols.

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and explanatory icons

Uwaga!

Diagram illustrating a mechanical or electrical component with labeled positive and negative charges, showing internal structure and directional arrows.

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a tool interacting with a circular housing (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Wskazówka:

Diagram of a cooking pot with labeled parts and a 30 mm mark indicator

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Indicatii

Illustration of a blue pulley and roller component with a directional arrow (no text or symbols)

Technical illustration of a mechanical component with a tool inserted, showing a circular base and threaded end (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including symbols for 'i' and '×'.

Atentie!

Diagram illustrating a mechanical or electrical component with labeled positive and negative charges, including an inset showing a circular component with plus and minus signs.

ro

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating rotation (no text or symbols)

Diagram of a cooking pot with labeled parts and a close-up inset showing the interior ring detail.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Указание

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including a tool and switch icon.

Внимание!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows (no text or symbols)

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with a blue circular base and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with labeled components and a close-up of the lid being inserted into a ring.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Указания

Diagram of a mechanical component with a blue pulley and a rotating shaft (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including warning symbols and explanatory labels.

ru

Внимание!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and an inset view of a circular component (no text or symbols)

Diagram of a mechanical assembly showing two circular components with internal features and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with labeled components and a close-up of the lid mechanism.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Вказівки

Illustration of a mechanical component with a blue pulley and a blue ring, showing a motion arrow (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component (no text or symbols)

Diagram showing a mechanical component being processed into a circular housing (no text or symbols present)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a screwdriver and a switch.

Увага!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a tool and screwdriver, no text or symbols present

uk

Illustration of a mechanical component with a blue circular base and a blue ring, showing no text or symbols.

Diagram showing a cooking pot with lid and lid removed, alongside a close-up of the lid's tip.

Illustration of a cooking pot with a hand pressing a button on its side, placed on a stovetop (no text or symbols)

Uputstva

Diagram of a mechanical component with a blue wheel and gray inner ring, showing a rotating arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

1. Otvorite zatvarač senzora temperature. Izvadite bateriju iz donjeg dela kućišta i postavite novu bateriju (pri tom vodite računa o tome da polovi baterije budu ispravno postavljeni).

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram illustrating a medical procedure for inserting a device into a patient's ear, with instructional icons and labels.

Pažnja!

Za uklanjanje baterije nemojte upotrebljavati predmete od metala. Ne dodirujte tačke priključenja baterije.

Mechanical assembly diagram showing gear and housing components with directional arrows indicating motion (no text or symbols)

1. Zatvorite zatvarač senzora temperature (otvori za zavrtnje na zatvaraču moraju da budu prekriveni udubljenjima na donjem delu kućišta). Zavrtnje pritegnite pomoću odvijača.

Diagram of a mechanical assembly showing two circular components with internal parts and directional arrows indicating movement (no text or labels)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

1. Silikonski prekrivač ponovo postavite na donji deo kućišta senzora temperature.

Diagram of a mechanical component with a blue circular base and a blue ring, showing a directional arrow (no text or symbols)

Uputstvo: Upotrebljavajte isključivo kvalitetne baterije tipa CR2032 da biste obezbedili duži radni vek.

Čišćenje

Senzor temperature

Senzor temperature čistite vlažnom krpom. Nikada ga nemojte čistiti u mašini za pranje posuđa. Nemojte ga potapati u vodu i čistiti pod mlazom vode.

Nakon kuvanja, senzor temperature uklonite sa posude. Čuvajte ga na čistom, bezbednom mestu, npr. u pakovanju, i dalje od izvora toplote.

Silikonski umetak

Operite i osušite pre postavljanja temperaturnog senzora. Može da se pere u mašini za pranje sudova.

Uputstvo: Nemojte dugo držati posuđe sa silikonskim umetkom u vodi sa deterdžentom.

Prozorčić senzora temperature

Diagram showing a cooking pot with labeled parts and a magnified view of the lid being inserted into it.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Napomene

■ Uvjerite se da je silikonska pločica potpuno suha prije stavljanja senzora temperature.

Diagram of a mechanical component with a blue pulley and a blue ring, showing a rotating shaft (no text or symbols)

Technical illustration of a screwdriver inserted into a mechanical component (no text or symbols)

1. Otvorite zatvarač senzora temperature. Izvadite bateriju iz donjeg dijela kućišta i umetnite novu bateriju (pritom pazite na ispravan pol baterije).

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular housing (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a pencil and switch.

Oprez!

Za vađenje baterije ne koristite metalne predmete. Ne dodirujte priključne točke baterije.

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows indicating motion (no text or symbols)

1. Zatvorite zatvarač senzora temperature (otvori za vijke na zatvaraču moraju se podudarati s udubljenjima na donjem dijelu kućišta). Vijke pritegnite odvijačem.

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Diagram of a screwdriver interacting with a mechanical component (no text or symbols)

1. Silikonski poklopac ponovno stavite na donji dio kućišta senzora temperature.

Diagram of a mechanical component with a blue ring and gray outer ring, showing a directional arrow (no text or symbols)

Diagram showing a cooking pot with a lid and a close-up of the lid being inserted, alongside a magnified view of the lid's adjustment.

1. Pritisnite na celo površino silikonske nalepke, tudi na sredino.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Opombe

Diagram of a mechanical component with a blue pulley and a white cylindrical body, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including warning symbols and icons.

Pozor!

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Technical illustration of a mechanical component with a tool and circular base (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with a lid and a close-up of the lid being inserted into a ring, with an arrow indicating rotation.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Udhëzime

Diagram of a mechanical component with a blue pulley and a blue arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including warning symbols and explanatory icons.

Kujdes!

Mechanical assembly diagram showing a gear-like component with a highlighted section and directional arrows (no text or symbols)

sq

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a screwdriver and a circular base, no text or symbols present

Diagram of a mechanical component with a blue ring and gray outer ring, showing a directional arrow (no text or symbols)

Diagram showing a cooking pot with a lid and a close-up of the lid being inserted into a ring, with a 32 mm mark indicating thickness.

Illustration of a cooking pot with a hand pressing a button on its side, showing the lid and base (no text or symbols)

Напомени

Illustration of a blue pulley or wheel component with a blue arrow indicating rotation (no text or symbols)

Diagram of a screwdriver inserted into a circular mechanical component (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and explanatory icons

Внимание!

Diagram illustrating a mechanical assembly with labeled components and directional arrows, including a magnified inset showing positive charges.

Diagram of a mechanical assembly showing two circular components with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with a tool and pin, showing a circular base and shaft (no text or symbols)

Illustration of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with a lid and a close-up of the lid's ring, alongside a magnified view of the lid's interior.

1. Suruge silikoonpadi kogu pinna ulatuses vastu potti, avaldage survet ka siseosale.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Märkused

Diagram of a mechanical component with a blue pulley and arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including tool icons and explanatory labels.

Tähelepanu!

Diagram showing mechanical assembly with labeled components and directional arrows, including a magnified inset of a circular component.

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical component with a tool and pulley, no text or symbols present

et

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with labeled components and a magnified view of the lid being inserted into it.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Pastabos

Diagram of a mechanical component with a blue pulley and a white cylindrical body, showing a rotation arrow (no text or symbols)

Diagram of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with two views showing internal structure (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and corresponding icons for tool use and procedure.

Dèmesio!

Diagram of a mechanical assembly with a gear-like component and a circular component, showing directional arrows (no text or symbols)

Diagram of a mechanical component with two circular parts and directional arrows indicating rotation or movement (no text or symbols)

Technical illustration of a mechanical component with a tool and screwdriver (no text or symbols)

Diagram of a mechanical component with a blue ring and arrow indicating direction (no text or symbols)

Diagram showing a cooking pot with a lid and valve, alongside a close-up of the lid's dial.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

Norādījumi

Diagram of a mechanical component with a blue pulley and a gray ring, showing a rotation arrow (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing a mechanical component with two views: top view of a cylindrical housing and side view of a flanged circular component (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, accompanied by explanatory symbols.

Uzmanību!

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing positive and negative charges.

Diagram of a mechanical component with two circular parts and directional arrows indicating rotation or assembly (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram of a mechanical component with a blue circular base and a blue ring, showing a directional arrow (no text or symbols)

Diagram of a cooking pot with labeled parts and a close-up inset showing the dial switch mechanism.

1. 按压硅胶贴片，包括其内表面。

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

提示

Illustration of a blue pulley or wheel assembly with a rotating arrow indicating motion (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including a crossed tool and a switch symbol.

注意！

Diagram of a mechanical assembly with a blue component and a magnified inset showing force vectors (no text or symbols)

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component (no text or symbols)

1. 将硅胶贴放回烹饪传感器外壳的下部区域。

Diagram of a mechanical component with a blue circular base and arrow indicating direction (no text or symbols)

Diagram showing cooking process with a pot and valve, alongside a close-up of the button being inserted.

Illustration of a cooking pot on a stovetop with a hand adjusting its lid (no text or symbols)

備註

Diagram of a mechanical component with a blue pulley and arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a screwdriver inserted into a circular housing (no text or symbols)

Diagram showing two mechanical components with arrows indicating transformation or assembly (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows, including warning symbols for disassembly or repair.

zh-tw

小心！

Mechanical assembly diagram showing a gear-like component with a blue highlighted section and directional arrows (no text or symbols)

Diagram of a mechanical component with two circular parts and directional arrows indicating rotation or assembly (no text or symbols)

Diagram of a mechanical component with a tool and screwdriver, no text or symbols present

1. 將矽膠圈裝回無線溫度感測器背面。

Diagram of a mechanical component with a blue circular base and a blue ring, showing a directional arrow (no text or symbols)

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
  • Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH

HOME APPLIANCES

SERVICE

Looking for help?

You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Barcode image with black and white vertical bars, no visible text or symbols beyond the pattern

9001147550 991202
