PR149DV - Freezer PRIMO - Free user manual and instructions

Product Type	Freezer
Brand	Primo
Model	PR149DV
Dimensions (approx.)	85 x 55 x 55 cm (H x W x D)
Weight (approx.)	35 kg
Power Supply	220-240 V, 50 Hz
Climate Class	SN, N, ST, T (10 °C to 43 °C)
Thermostat Setting	MIN (-16 °C), NORMAL (-20 °C), MAX (-25 °C)
Net Capacity (approx.)	100 L
Energy Consumption (approx.)	0.8 kWh/24h
Refrigerant	Isobutane (R600a), flammable
Parts	Thermostat, freezer drawers, adjustable feet
Door Reversibility	Yes, interchangeable
Defrosting	Manual, when ice reaches 5 mm
Cleaning	Mild detergent, damp cloth
Warranty	2 years, accessories 6 months
Safety Instructions	Do not use a multi-socket, avoid heat sources, do not freeze carbonated drinks
Installation	Wall clearance ≥ 5 cm, level surface, rest 24 hours before powering on
Recommended Ambient Temperature	+16 °C to +38 °C

Frequently Asked Questions - PR149DV PRIMO

Why is my freezer not working?

Check that the appliance is plugged in and the voltage matches 220-240 V. Ensure the socket is powered. If the issue persists, contact customer service.

The internal temperature is too high, what to do?

Check that the door is properly closed and the thermostat is set correctly (MIN -16 °C, NORMAL -20 °C, MAX -25 °C). Avoid opening the door too often or for too long, and do not place hot food inside.

Why is my freezer making a strange noise?

Ensure the appliance is level and not in direct contact with a wall or object. A slight humming sound is normal due to the compressor.

How to reverse the door opening direction?

Unplug the appliance. Remove the caps, screws, and hinges. Place the door on the other side, then reassemble the hinges and adjustable feet following the manual instructions.

How often should I defrost my freezer?

Defrost as soon as the ice layer reaches about 5 mm in thickness. Turn off the appliance, unplug it, open the door, and place a cloth. Never use sharp objects.

What to do in case of a power cut?

Do not open the door. Frozen food will remain frozen for a few hours. If the outage lasts, consume thawed food quickly.

How to clean my freezer?

Unplug the appliance. Use a damp cloth with a mild detergent for the interior and drawers. Dry all surfaces. Vacuum dust from the back once a year.

What is the storage time for frozen foods?

It varies from 1 month (bacon, milk) to 12 months (dried fruits, raw beef). Refer to the chart in the manual for precise times.

Is the R600a refrigerant dangerous?

R600a is flammable but environmentally friendly. If a leak occurs, move the appliance away from flames and ventilate the room. Do not puncture the cooling circuits.

What is the warranty period of the appliance?

The appliance is guaranteed for 2 years from the date of purchase. Accessories have a 6-month warranty. Keep the receipt.

USER MANUAL PR149DV PRIMO

Front view of a white stainless steel refrigerator with three empty compartments (no visible text or labels)

INSTALLATIE

DIEPVRIESPRODUCTEN BEWAREN

Line drawing of a sewing machine needle stitching a small object, labeled with number 2 (no text or symbols on the diagram itself)

Simple line drawing of a folded garment or fabric piece with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with pulleys and a circular inset detail (no text or symbols)

Line drawing of a vehicle's front view showing suspension components and a circular inset detail (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a circular component detail (no text or symbols)

ONDERHOUD EN REINIGING

INSTALLATION

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Simple line drawing of a folded garment or fabric piece with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with pulleys and a numbered section (no text or symbols)

Line drawing of a vehicle door with a circular inset showing mechanical components (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing a rotating component (no text or symbols)

ENTRETIEN ET NETTOYAGE

Front view of a white refrigerator with three internal compartments, showing open door and numbered compartments (no text or symbols on the cabinet itself)

ANSCHLUSS

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Diagram of a folded corner or sheet with dashed lines and numbered marker (4), no readable text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vehicle door with a circular inset showing a close-up of the door (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a circular component detail (no text or symbols)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g., electrical voltage that is too high.
  • In case of incorrect, rough or abnormal use.
  • In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  ·This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

-farm houses;

·by clients in hotels, motels and other residential type environments;

·bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

·Cleaning and user maintenance shall not be made by children unless they are older than 8 or supervised.

• Keep the appliance and its cord out of reach of children younger than 8 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Make sure that children do not touch the cord or appliance.
• Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your freezer from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

⚠ELECTRICAL WARNINGS

- Attention: This appliance cannot be used with an external timer or a separate remote control.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the cord hang on a hot surface or on the edge of a table or counter top.

- Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

- It is prohibited to alter or modify the device and its specifications.

- When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

·Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

·Always use the appliance on a steady, dry and level surface.

- Keep the cord away from sharp edges and hot parts or other heat sources.

- Keep the ventilation openings free of obstructions.

- Avoid long exposure to direct sunlight.

• Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
  ·This is a heavy appliance. Be careful when moving it.
• This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
  ·After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

- Do not use any other electrical appliance inside the freezer, unless they are approved for this purpose by the manufacturer. Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.

- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in injury or damage to the appliance.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Ensure the food in the appliance does not touch the back wall.

·Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

- Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.

·Follow the instructions below to prevent contamination of food:

- Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

- Clean the surfaces that could come into contact with food regularly.

- If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠️CLEANING AND MAINTENANCE

·Never immerse the appliance, the cord or the plug in water or any other liquid.

- Do not place warm or hot objects on top of the appliance.

- Do not clean the appliance with anything made of metal.

- Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

- Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

·Pay attention to the symbol ‘Fire risk – flammable materials’ located on the back of the appliance.

Climate class Ambient temperature
SN Between 10°C and 32°C
N Between 16°C and 32°C
ST Between 18°C and 38°C
T Between 18°C and 43°C

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

PARTS

1. Thermostat
2. Freezer drawers
3. Adjustable feet

①

Transparent plastic container with a curved top and circled number 2 on the side (no text or symbols)

Transparent plastic container with a curved indentation and a circled number 2 on the side (no text or symbols)

Transparent plastic container with a numbered label (2) on the side, no readable text or symbols present.

③

White refrigerator with slatted door and ventilation slots (no text or symbols visible)

INSTALLATION

• Remove all packing material, both inside and outside.
• Clean the outside of the unit with a dry cloth. You can clean the inside with a soft damp cloth.
• Do not place the appliance in a narrow passage, in direct sunlight or moisture.
  • Make sure that air can circulate freely around the refrigerator. The back of the refrigerator should be at least 5 cm away from the wall.
• Place the refrigerator on a solid, level surface. If your surface is not flat, you can straighten the appliance using the feet. You can raise or lower these by turning them.
• Avoid direct sunlight and heat. Sunlight can damage the outside of the refrigerator. Heat will cause higher consumption.
• Avoid excessive humidity. Too much moisture in the air will cause frost to form too quickly in your refrigerator.
• The thermostat is located on the inside of the appliance. When you open the door, you can set the thermostat at the top. Set the thermostat to "MAX" for

maximum cooling. The higher the setting, the harder the appliance will cool.

Thermostat Temperature (ambient temperature between +16°C and +38°C)
MIN -16 °C
NORMAL -20 °C
MAX -25 °C

PACKING FROZEN FOOD

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods whit a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Freezer compartment Type of food

Top drawer Ice cream, frozen fruit, frozen baked goods

Middle drawer Frozen vegetables and fries

Bottom drawer Raw meat, poultry, fish

DOOR CONVERSION

You can change the direction of rotation of the door. If you wish to do so, proceed as follows:

Attention : Make sure that the appliance is not live!

1. Remove the protective cap from the hinge.

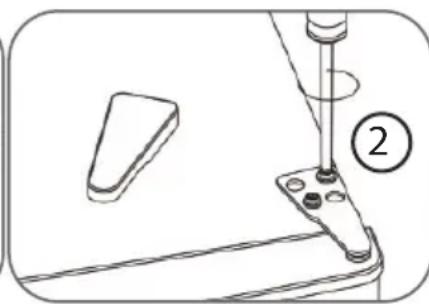

2. Remove the screws located in the upper hinge. Remove the hinge.
3. Remove the protective cap on the left side.

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

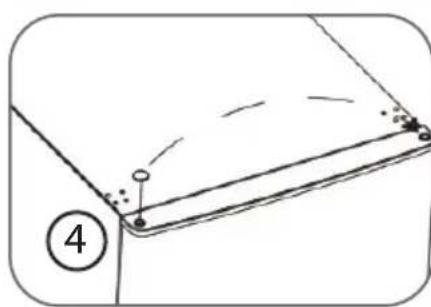

1. Remove the sealing cap on the upper left, and place it in the opening on the upper right. Remove the door and put it in a place where you can keep it scratch-free.

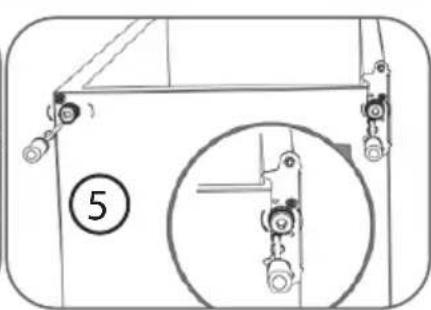

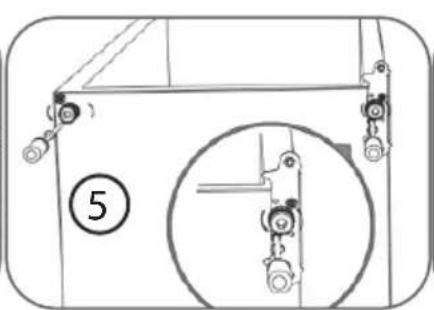

2. At the bottom of the appliance, remove the 2 adjustable feet. The foot with the short shaft, should always be on the side with the hinge. Unscrew the bottom hinge.

3. Unscrew the pin and remove the pin from the hinge.

Simple line drawing of a folded panel or sheet with a numbered marker (4) and no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

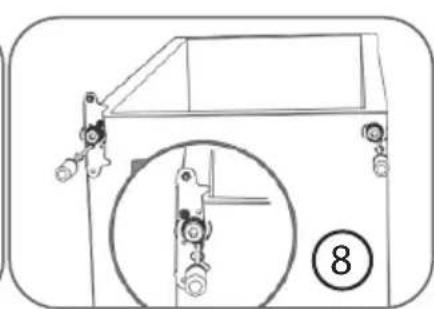

1. Turn the hinge 180^ and reattach the pin as shown below.
2. Screw the hinge in place at the bottom of the unit. Place the adjustable foot on the other side. You can now hang the door back on the appliance.

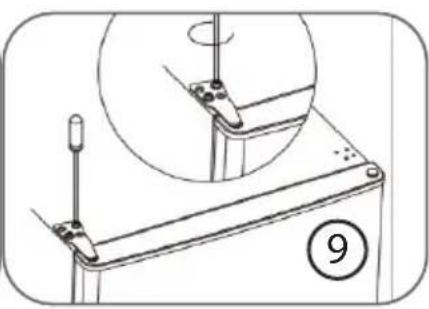

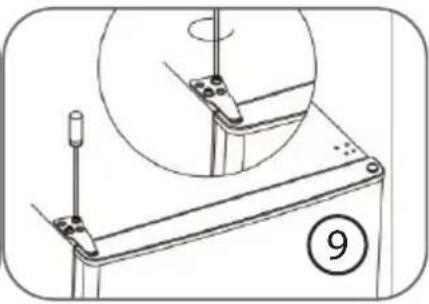

3. Finally, screw the top hinge back into place. Make sure the rubber seal seals tightly. Position the door so that it is flush with the top of your appliance. Tighten all the screws and put the protective caps in place.

Line drawing of a vehicle door with a circular inset showing a valve mechanism (no text or symbols)

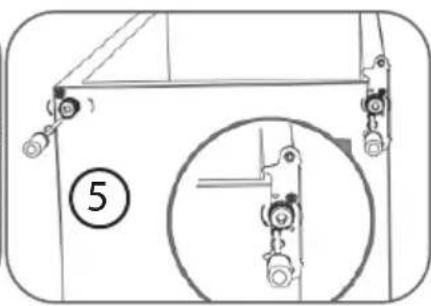

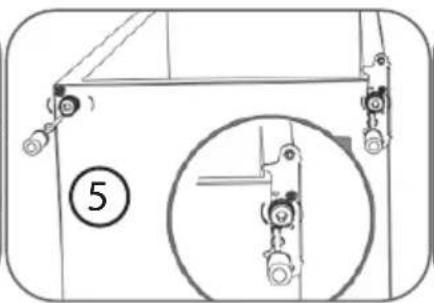

Technical line drawing of a mechanical device with a circular inset showing a rotating component (no text or symbols)

MAINTENANCE AND CLEANING

Clean the device on a regular basis. When doing so, keep the following guidelines in mind. Do not clean the appliance while it is still plugged in.

• Do not use abrasives to clean the appliance, as this will damage it.
• Use a mild detergent to clean the freezer drawers. Afterwards, dry everything carefully.
  • Empty the appliance and clean the inside with a damp cloth.
• The accumulation of dust at the back of the appliance can cause the appliance to stop working optimally and consume more power. Carefully remove the dust with a soft brush at the back of the unit once a year.

DEFROST

You should defrost your appliance when an ice layer of about 5mm begins to form. Defrosting will take several hours. Turn off the appliance, unplug the power cord and open the door. The appliance will begin to defrost. We recommend placing a mop under the appliance. When the appliance is completely defrosted, dry everything again.

Note: Never use sharp or pointed objects to remove ice. The appliance contains refrigerant gas. If the pipes are accidentally perforated, the appliance will stop working and the warranty will also be void.

When the appliance will not be used for an extended period of time, unplug the appliance. Leave the door partially open, this will prevent the formation of mold and foul odors.

MOVE THE DEVICE

• If the unit is turned off for any reason, wait 10 minutes before turning it on again. The pressure in the cooling system should be stabilized before turning the unit on again.
• Turn off the appliance and unplug it. Remove all food products. Also remove or secure all mobile parts (drawers, etc.) in the freezer to prevent shock.
• Move the appliance and install. If the appliance was held on its side while being moved, even if very briefly, leave the appliance in the upright position for at least 10 minutes before turning it on.
• Your appliance uses isobutane (R600a) as a refrigerant. Notwithstanding that R600a is an environmentally friendly and natural gas, it is flammable. Therefore, be very careful while moving or installing your device to avoid damage to the cooling elements. In case of a leak caused by damage to the cooling elements, move your freezer away from open flames or heat sources and air the room the appliance is in for a few minutes.

TIPS

• Do not freeze food back when it has already been defrosted.
• Do not put beverages with bubbles in the freezer.
• Be careful when consuming popsicles just out of the freezer to avoid freezer burns.
• Do not take anything out of the freezer with wet hands.
• The freezer makes noise when the compressor pumps the refrigerant around. This is normal.
• Do not put hot foods in the freezer.
  • Make sure the food is covered.
• Do not compress the food too much; air should still be able to circulate around it.
• Do not leave the door open too long. Also make sure that the door is always closed properly again.
• Label the food with the date to check the shelf life in the freezer.

FREQUENTLY ASKED QUESTIONS

Problem Solution
The device is not working.	· The unit is not receiving power, check that the power supply is OK.· Check that the plug is plugged in.· Check that the correct voltage is used.
The device jumps up too often.	· Is the door closed properly?· Have you put hot food in the appliance, causing the appliance to work harder to cool?· The door has been open too often or too long.· The appliance is getting the wrong voltage.· The appliance is too close to a heat source or direct sunlight.
The inside temperature of the appliance is too hot.	· Check that the unit has power.· Check that the plug is plugged in.· The door has been left open too long or too often.· The air supply is blocked.· Check that the appliance is getting the correct voltage.· The appliance is too close to a heat source or the sun.
The device is making a strange noise.	· The device is not standing straight.· The device is placed against another object or against the wall. Move the device.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

WEBSHOP

Following accessories have 6 months warranty,

n be easily ordered using the link below.

WWW.PRIMO-ELEKTRO.BE

OMSCHRIJVING / DESCRIPTION / BESCHREIBUNG REF
Voetje (lang)PiedFussFoot	DV1-foot
Voetje (kort)PiedFussFoot	DV1-SF
Diepvrieslade (groot)Tiroir de congélation (grand)Gefrierschublade (Gross)Basket (large)	DV1-BB
Diepvrieslade (klein)Tiroir de congélation (petit)Gefrierschublade (Klein)Basket (small)	DV1-SB
Afdekplaatje scharnierPlaque pour couvrir la charnièreAbdeckschild ScharnierHinge cover	DV1-plaatje

WWW.PRIMO-ELEKTRO.BE
