A110+ - Music receiver Noxon - Free user manual and instructions

Product type	Music receiver / Internet radio
Brand	Noxon
Model	A110+
Dimensions (approx.)	200 x 120 x 80 mm
Weight (approx.)	0.8 kg
Power supply	AC adapter (cable included)
Main functions	Internet radio, DAB, DAB+, FM, UPnP, alarms, sleep mode, remote control
Network connectivity	Wi-Fi (WLAN) and wired Ethernet
WLAN security	WEP, WPA, WPA2
Display	LCD screen with backlight
Remote control	Yes, with battery included
Maintenance and cleaning	Dry, lint-free cloth only
Safety	Do not use near water, avoid heat sources, unplug if unused for a long time
Spare parts and repairability	AC adapter, remote control, network cables; repair by a professional
Box contents	Unit, power cable, remote control with battery, quick start guide
General information	Indoor use only; firmware update recommended

Frequently Asked Questions - A110+ Noxon

How to set up the Noxon A110+ for the first time?

After powering on, the setup wizard appears. Select your language, time format, then set date, time and WLAN region. Then, choose a wired or wireless connection. For Wi-Fi, select your network and enter the security key (WEP/WPA/WPA2). Confirm with OK.

How to listen to Internet radio?

In the main menu, select Internet Radio. Browse by country, genre or style. Select a station and playback starts automatically. Use the +/- keys on the remote to adjust the volume.

Can I receive DAB and FM radio?

Yes, the Noxon A110+ supports DAB, DAB+ and FM. Connect a suitable antenna (telescopic or cable) to the tuner socket. In the menu, choose DAB or FM, then start a full scan to find available stations.

How to clean the device?

Use a dry, lint-free cloth. Never use cleaning products or water, as they may damage the surface.

What to do if the device does not connect to the Wi-Fi network?

Check that your router is on and that you enter the correct security key. If your network is not secured, try without a key. Otherwise, repeat the setup making sure you know the key. You can also use a wired connection via the Ethernet cable.

How to save a station as a favorite?

While a station is playing, long press a favorite key (1-6) on the device or remote. To access it, briefly press that same key.

Why do some DAB stations appear with a question mark?

That means the station is no longer received. To clean the list, go to the DAB menu and select invalid pruning (Clean station list). Confirm with Yes.

How to set the alarm or sleep mode?

In the main menu, select Alarms or Sleep mode. Follow the on-screen instructions to set the time and audio source.

Can I use the device without Internet?

Yes, you can listen to DAB, DAB+ and FM radio without an Internet connection. However, Internet radio and UPnP functions require a network connection.

How to update the firmware?

Go to the Settings menu, then Firmware update. The device will automatically check for updates. Do not disconnect the power during the process.

USER MANUAL A110+ Noxon

Two NOXON devices with labeled ports and digital screens (no readable text beyond branding)

Wichtige Hinweise!

Sicherheit

Senderliste

• Read through the operating manual carefully and keep it in a safe place.
• Observe all warnings and follow the instructions to avoid damage.
  • Use this device indoors only.
• Place the device on a level, dry surface to prevent fire and electrical shock hazards as well as possible damage to the player itself.
• Do not use the device close to water or other liquids.
• Keep the device away from direct sunlight, radiators, open flames and other sources of heat.
• Only use the accompanying power supply cable. If you are not going to use the device for an extended period, disconnect it from the power supply. To avoid short-circuits, never pull on the cable itself. In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.
• If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality.
• Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaning products as they may damage the finish of the unit.
• To put it simply, just use the device sensibly. The warranty does not cover deliberate damage to the device, of course. Thank you.

Environment

• The product contains batteries that are subject to European Directive EC and must not be disposed of in the normal household waste.
• This product fulfils EC Directive EC and must not be disposed of in th normal household waste.
• Please obtain information on correct disposal from your local authorities – this will help protect the environment!

Scope of delivery

Start by making sure that the contents of the package are complete. The NOXON package should contain at least the following items:

• NOXON A110+
• Power supply
  • Remote control with battery
  • Quick Start Guide (DE, EN, FR, IT, ES, NL)

Quick Start Guide for pros

This Quick Start Guide shows you how to get started using your NOXON device. You will find detailed descriptions and special configurations in the advanced manual, which you can download from our website (www.noxonradio.com).

Pretest

Like any network device, your NOXON needs to be connected to your network before you can get started.

What do you need?

• A fast Internet connection (for example, DSL, ideally with a flat rate).
- A router for Internet access; for wireless operation, what is called a WLAN (Wireless LAN) router
• A network cable, if you do not want a wireless Internet connection for your device
• For WLAN integration: your network key (WEP, WPA or WPA2)

This key, just like any key, protects your network from unauthorised access and was generated when your network was set up. To allow NOXON access to a key-protected network, you will need to enter the network key into NOXON in a later step. If your network does not have a key, the NOXON can connect to the Internet without a network key.

Note: If you are not sure whether you are using a key of this type in your network, just give it a try without entering anything! If this does not work, repeat the setup process from the beginning. However, you will need to know your network key at this point. Please ask the person who set up your network for assistance.

Setup

Once your A110+ has been activated initially, follow these steps to link it to your network for the first time:

You are greeted by the setup wizard, which asks politely if you want to start it up. Use the navigation buttons to select a language for the menu and confirm – as in all other menus – the selection by pressing the navigation buttons on the remote. Then, enter the time format (12/24-hour).

However, we recommend that you set the date and time immediately (Day, Month, Year, Time), as well as the WLAN region you are located in.

Once you have done so, all that remains to be done is to connect to the network. Don't worry, even this should not be complicated – the network wizard will give you all the help you need.

We'll explain the ins and outs of this in the detailed manual later on. For now, we offer just a brief overview (after all, you are still in the „Overview“ chapter), as we do not want to bore anybody.

The setup wizard gives you the ability to choose between the cable connection and the wireless WLAN port. If you prefer the cable version, select [Wired].

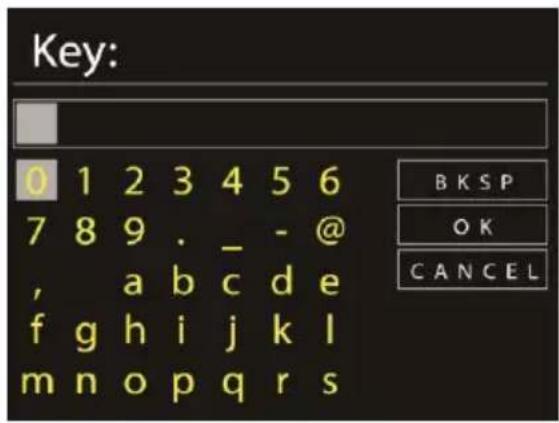

The setup wizard connects to your router automatically and that's it – you're in! However, if the A110+ is integrated via WLAN, please select your WLAN network on the display. After selecting the desired network, you then have to enter the password to connect to the WLAN.

Navigate through the selection in the usual way using the navigation buttons, OK and Back button.

When you have finished entering the key, confirm with OK. You likewise reach this field via the navigation dial.

There, you're finished already! Just press the OK button again to go to the main menu – and use your NOXON A110+ to plunge into the wonderful world of Internet radio.

Note: We recommend checking the device's firmware from time to time to ensure that you have the latest version and to update it if necessary – only in this way can you access the latest functions of your device. We'll explain how to do so later on in this manual. Listen and enjoy

After you have set the device up successfully, the (almost) infinite variety of Internet radio is at your fingertips.

Listen and enjoy

After you have set the device up successfully, the (almost) infinite variety of Internet radio is at your fingertips.

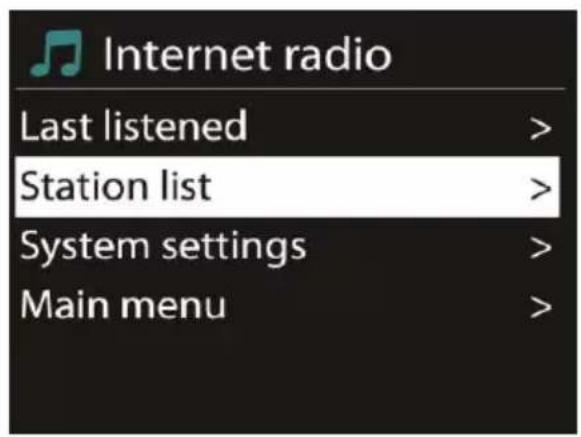

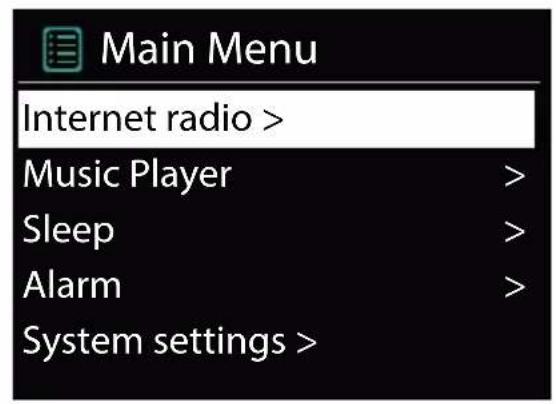

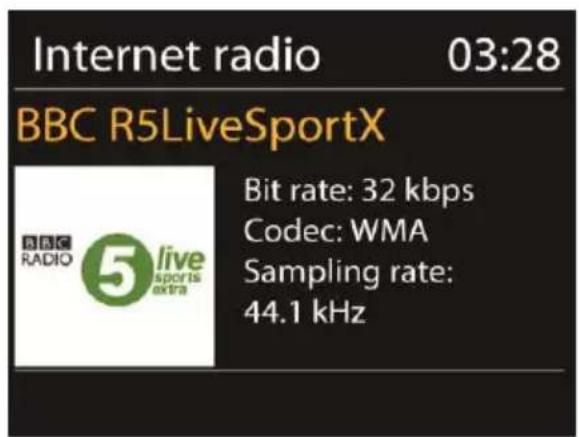

From the main menu, select „Internet Radio“ and confirm the selection.

In the submenu that follows, navigate to the station of your choice according to your personal taste.

To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.

To adjust the volume during playback, use the button on +/- - on the remote control of A110+ or on your amplifier.

Volume

15

DAB

Stations: 15

Scanning

DAB, DAB+ and FM

In addition to numerous Internet radio stations your A110+ can receive all stations broadcasted on DAB, DAB+ and FM! Please note that you need an adequate reception facility (antenna or cable) for this. DAB and DAB+ might not be broadcasted area-wide or evennot at all in your country.

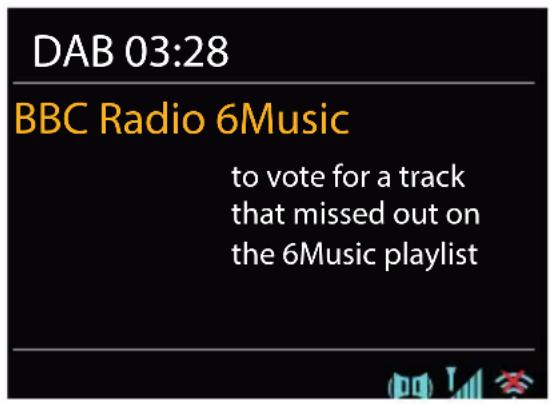

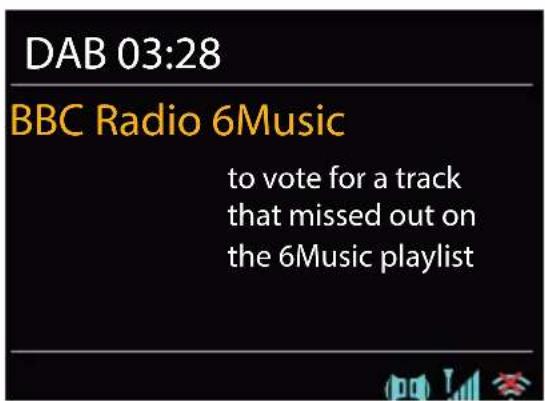

DAB 03:28

BBC Radio 6Music

to vote for a track that missed out on the 6Music playlist

Connection

Establishing the connection is really easy: Just use a standard antenna cable with coax plugs (not included) to connect the tuner jack of your Radio and your antenna or cable socket.

Scan stations

Starting from the main menu, use the navigation wheel to locate the submenu “DAB” and confirm your choice by pressing the navigation wheel once. Choose “Full Scan” as the next step, which will make the Radio find all DAB and DAB+ stations available in your area for you.

Station list

In the “DAB” menu you will also find the submenu “Station list”. This list shows all the stations that have been found by the scan performed earlier. Just press the navigation wheel to start listening to a selected station. Pressing the wheel further times will show diverse information about the active station. You can navigate to the next or previous station with the Skip Back/Skip Forward buttons located on the Radio or the remote control without the need to return to the station list first.

If you come across a station you especially like, you can save it by pressing one of the favourites buttons on the Radio or the remote control for a longer period. You can recall saved stations at any time by pressing the corresponding favourites button shortly without taking the detour via the menus.

Prune invalid

If a station name shows a questions mark in front of it, the Radio cannot receive this station anymore. This can be caused by a loss in reception quality or by a restructuring on the part of the broadcasting companies.

In order to clear the station list of such entries which just make it less well-arranged, choose the submenu "Prune invalid" in the "DAB" menu and confirm the security query with "Yes".

Station order

The submenu "Station order" in the "DAB" menu lets you decide whether you would like to have your stations sorted alphanumerically or by ensembles (these are groups of several stations broadcasted together in one, package').

Have fun with your new NOXON A110+!

Here's how to reach NOXON:

http://www.noxonradio.de/en/support

Support-Hotline: +49 2157 - 3027155

NOTE: The structure and function of the software can be changed with a firmware update! Please do not remove the power cable during the firmware update process!
