Product type	Fan coil unit (heat pump)
Brand	Daikin
Model	FWXV10AATV3R
Power supply	230 V ~ 50 Hz
Max absorbed electrical power	19 W
Max absorbed current	0.16 A
Total cooling capacity	1.62 kW (water 7/12°C, air 27°C)
Heating capacity	1.96 kW (water 45/40°C, air 20°C)
Maximum air flow	294 m³/h
Max sound pressure level	47 dB(A) at 1 m
Weight	20 kg
Hydraulic connections	3/4"
Max operating pressure	10 bar
Max water temperature	80 °C
Min water temperature	4 °C
Water content of the coil	0.80 L
Available static pressure	10 Pa
Air filter	Yes, washable
Maintenance	Regular cleaning of the filter (every month if heavy use)
Safety	Safety switch on the grille, overheat protection
Use	Heating and air conditioning
Installation	Vertical wall or horizontal ceiling
Repairability	Spare parts available through Daikin approved service

Frequently Asked Questions - FWXV10AATV3R DAIKIN

How to clean the filter of my Daikin FWXV10AATV3R?

To clean the filter, first remove the front grille by lifting it and sliding it off. Remove the filter and vacuum the dust or wash it under running water without detergent. Let it dry completely before putting it back. Never use the appliance without a filter.

What to do if the appliance does not start ventilation while water is circulating?

Check that the hydraulic valve is open (it may take 2-3 minutes). If the valve is closed, open it manually. Also check that the microswitch on the front grille is engaged. If the problem persists, contact a qualified installer.

What is the power consumption of this fan coil unit?

The maximum power consumption is 19 W at full speed. At minimum speed, it drops to approximately 4 W. This corresponds to a current of 0.16 A max under 230 V.

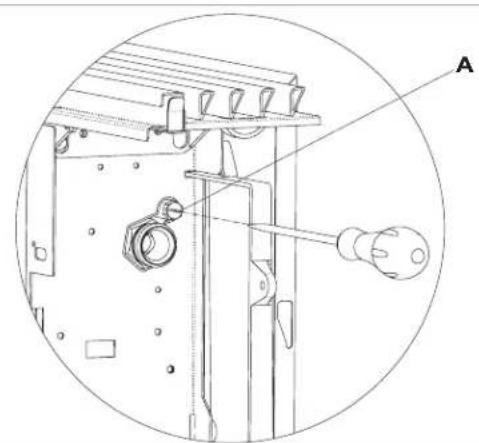

How to bleed air from the hydraulic circuit after filling?

Open the shut-off valves, then slowly open the filling valve. Use a screwdriver to operate the bleed valve (purger) located at the top of the heat exchanger. When water comes out, close the bleed valve. Repeat the operation after a few hours of operation.

The appliance is losing water in heating mode, what should I check?

Check the hydraulic connections (tighten them if necessary). Inspect the valve unit and the condition of the seals. If the leak persists, call a professional. In heating mode, the water is hot, it can also be condensation due to faulty insulation.

Can I install the appliance on the ceiling?

Yes, horizontal installation (on the ceiling) is possible. Use the template provided to fix the brackets. Respect a slope of 1 to 2% towards the condensation drain. For the FWXV series, horizontal condensation tray kits (EKM) are available.

What periodic maintenance is recommended?

A semi-annual maintenance by a professional is recommended to check the general condition. The user must clean the filter every month in continuous operation. Before any intervention, cut off the power supply.

How to save energy with this appliance?

Keep the filters clean to optimize air flow. Close doors and windows of air-conditioned rooms. Use curtains or blinds to limit direct solar gain. Avoid setting a temperature too low in summer or too high in winter.

The appliance emits excessive noise, what to check?

First check the cleanliness of the filters (a clogged filter can strain the fan). If the noise persists, the fan may be unbalanced or touching the structure. In that case, have the fan replaced by a professional.

Is there a risk of freezing if the appliance is not used in winter?

Yes, if the appliance is not used in an unheated room and the circuit contains water, there is a risk of freezing. To avoid it, drain the system or add antifreeze liquid. Cut off the power and close the water valves in case of prolonged non-use.

USER MANUAL FWXV10AATV3R DAIKIN

Installation manual Heat pump convector

EN

We want to thank you for choosing one of our products.

We are confident that you will be happy with your selection because it represents the state of the art in the technology of home climate control.

By following the suggestions contained in this manual, the product you have purchased will operate without problems giving you optimum room temperatures with minimum energy costs.

DAIKIN EUROPE N.V.

Conformity

This unit complies with European directives:

- Low voltage directive 2014/35/UE • Electro-magnetic compatibility 2014/30/UE;

Symbols

The following symbols provide the necessary information for correct, safe use of the machine in a rapid, unmistakable

way

Editorial pictograms

U User

- Refers to pages containing instructions or information for the user.

Service

- Refers to pages containing instructions or information for the installer TECHNICAL CUSTOMER SERVICE.

1 Installer

- Refers to pages containing instructions or information for the installer

Safety pictograms

⚠️ Generic danger

Signals that the operation described could cause physical injury if not performed according to the safety rules.

Danger due to heat

- Signals that the operation described could cause burns if not performed according to the safety rules.

Danger of high voltage

- Signals that the operation described could cause electrocution if not performed according to the safety rules.

Do Not

- Refers to actions that absolutely must not be performed.

General

1.1 General warnings 4
1.2 Fundamental safety rules 4
1.3 Product range 5
1.4 Overall dimensions....6

Installation

2.1 Positioning the unit ..... 7
2.2 Installation modes....7
2.3 Minimum installation space 7
2.4 Access to the internal components 8
2.5 Removing the side panels....9
2.6 Vertical installation 9
2.7 Horizontal or ceiling installation 10
2.8 Hydraulic connections 10
2.9 Condensation discharge....11
2.10 Filling the system 12
2.11 Evacuating air while filling the system.... 12
2.12 Electrical connections.... 13
2.13 Maintenance 13
2.14 Cleaning the outside.... 13
2.15 Cleaning air suction filter 14
2.16 Energy saving tips 15

Troubleshooting

3.1 Troubleshooting 16
3.2 Table of anomalies and remedies 16
3.3 Technical Data 18

GENERAL

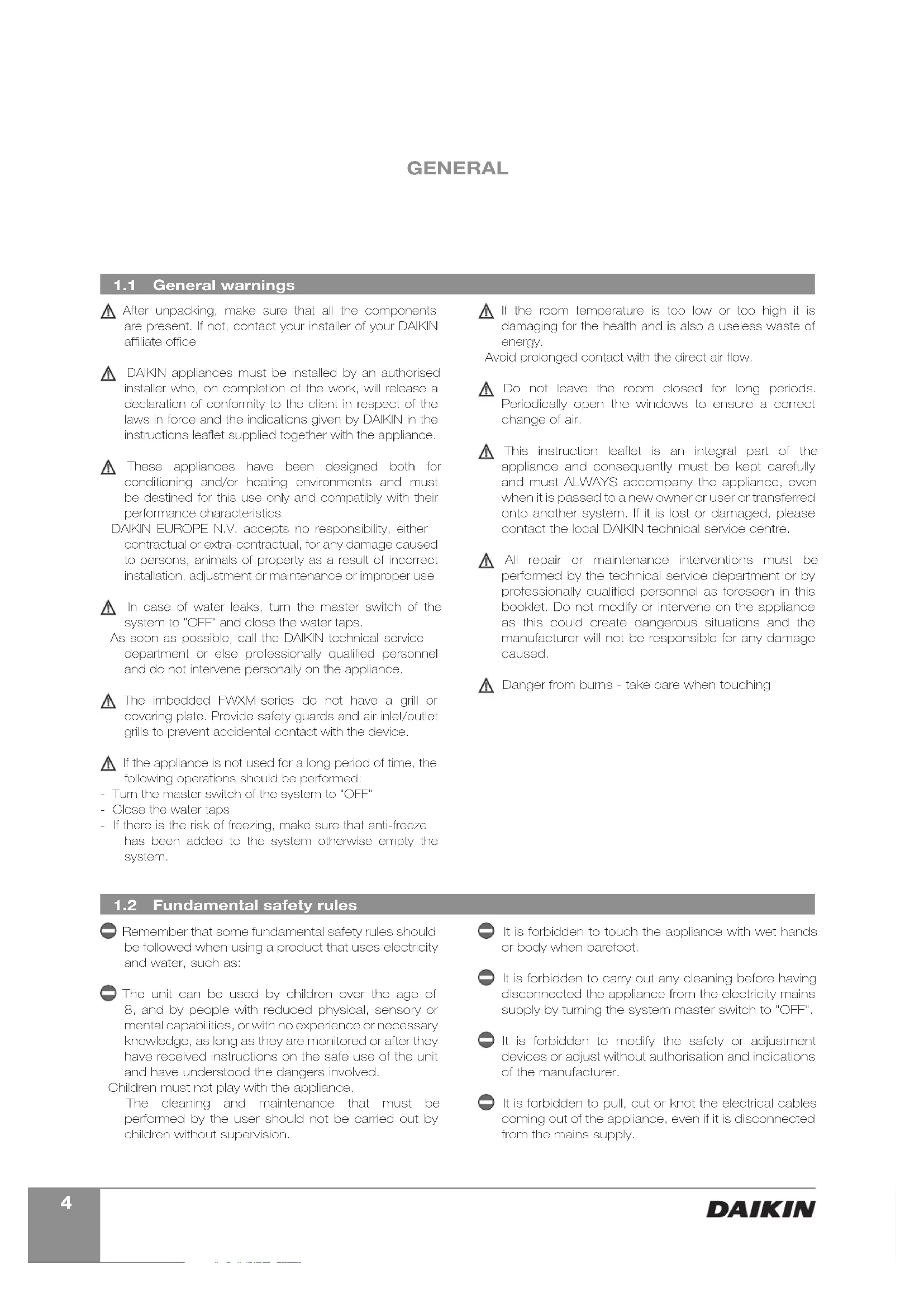

1.1 General warnings

After unpacking, make sure that all the components are present. If not, contact your installer of your DAIKIN affiliate office.
⚠ DAIKIN appliances must be installed by an authorised installer who, on completion of the work, will release a declaration of conformity to the client in respect of the laws in force and the indications given by DAIKIN in the instructions leaflet supplied together with the appliance.
Those appliances have been designed both for conditioning and/or heating environments and must be declined for this use only and compatibly with their performance characteristics.

DAIKIN EUROPE N.V. accepts no responsibility, either contractual or extra-contractual, for any damage caused to persons, animals of property as a result of incorrect installation, adjustment or maintenance or improper use.

In case of water leaks, turn the master switch of the system to "OFF" and close the water taps.

As soon as possible, call the DAIKIN technical service department or else professionally qualified personnel and do not intervene personally on the appliance.

The imbedded FWXM-series do not have a grill or covering plate. Provide safety guards and air inlet/outlet grills to prevent accidental contact with the device.
⚠️ If the appliance is not used for a long period of time, the following operations should be performed:

• Turn the master switch of the system to "OFF"
• Close the water taps
• If there is the risk of freezing, make sure that anti-freeze has been added to the system otherwise empty the system.

1.2 Fundamental safety rules

Remember that some fundamental safety rules should be followed when using a product that uses electricity and water, such as:
The unit can be used by children over the age of 8, and by people with reduced physical, sensory or mental capabilities, or with no experience or necessary knowledge, as long as they are monitored or after they have received instructions on the safe use of the unit and have understood the dangers involved.

Children must not play with the appliance.

The cleaning and maintenance that must be performed by the user should not be carried out by children without supervision.

If the room temperature is too low or too high it is damaging for the health and is also a useless waste of energy.
Avoid prolonged contact with the direct air flow.
Do not leave the room closed for long periods. Periodically open the windows to ensure a correct change of air.
This instruction leaflet is an integral part of the appliance and consequently must be kept carefully and must ALWAYS accompany the appliance, even when it is passed to a new owner or user or transferred onto another system. If it is lost or damaged, please contact the local DAIKIN technical service centre.
All repair or maintenance interventions must be performed by the technical service department or by professionally qualified personnel as foreseen in this booklet. Do not modify or intervene on the appliance as this could create dangerous situations and the manufacturer will not be responsible for any damage caused.
Danger from burns - take care when touching

It is forbidden to touch the appliance with wet hands or body when barefoot.
It is forbidden to carry out any cleaning before having disconnected the appliance from the electricity mains supply by turning the system master switch to "OFF".
It is forbidden to modify the safety or adjustment devices or adjust without authorisation and indications of the manufacturer.
It is forbidden to pull, cut or knot the electrical cables coming out of the appliance, even if it is disconnected from the mains supply.

It is forbidden to poke objects or anything else through the inlet or outlet grills.
It is forbidden to open the doors which access the internal parts of the appliance without first turning the system master switch to "OFF".
It is forbidden to dispose of or leave in the reach of children the packaging materials which could become a source of danger.

It is forbidden to climb onto the appliance or rest any object on it.
The external parts of the appliance can reach temperatures of more than 70°C.

1.3 Product range

There are 2 types of DAIKIN heat pump convectors, FWXV and FWXM, each of which is offered in 3 sizes with different performances and dimensions.

FWXV-series

heat pump convector with metal cabinet.

FWXM-series

Embedded heat pump convector without panels.

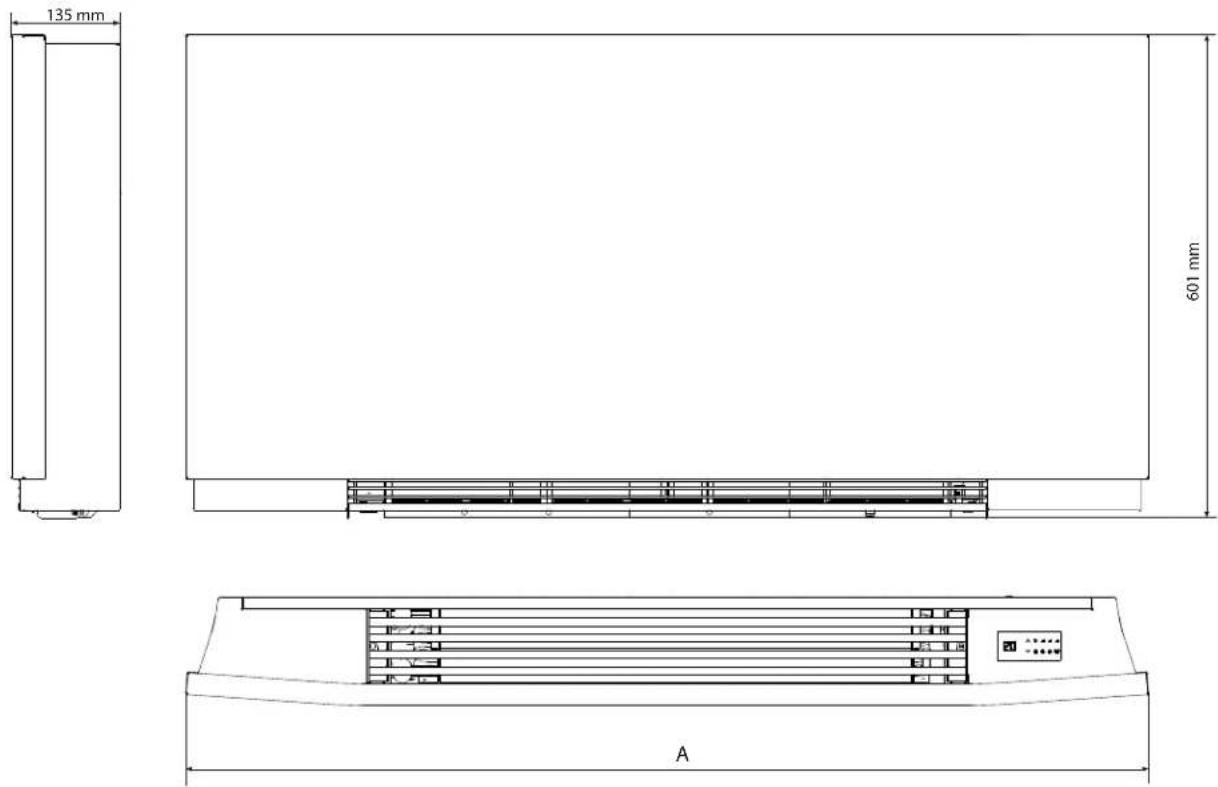

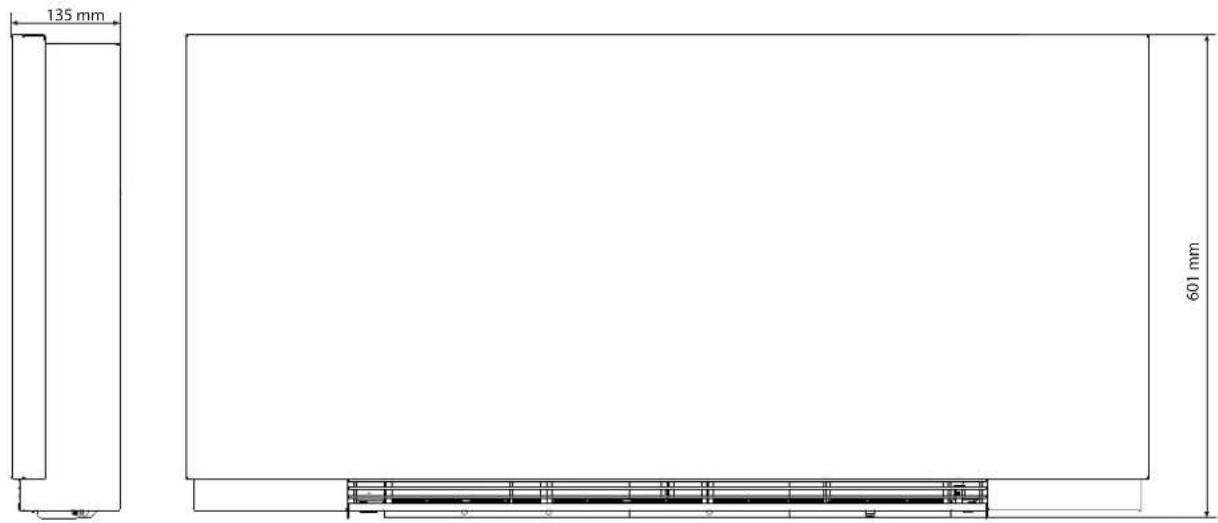

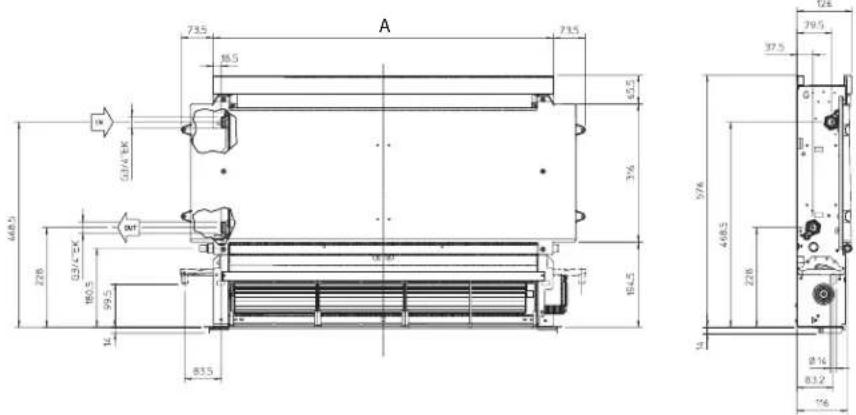

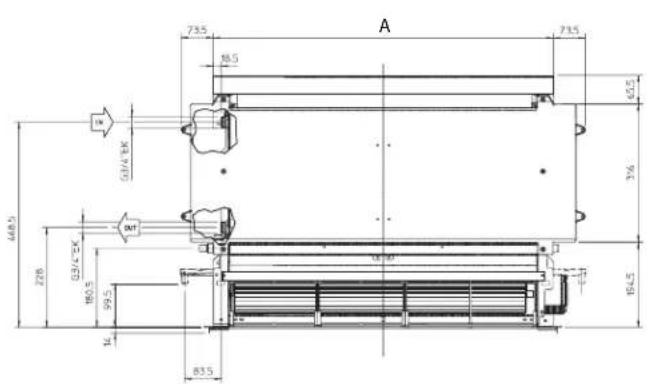

1.4 Overall dimensions

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Dimensions

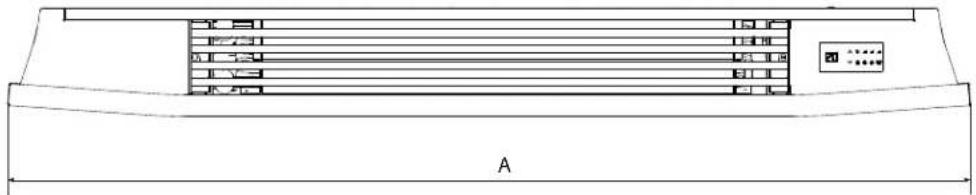

A mm 999 1199 1399

FWXV

	U.M.	FWXM10AATV3(R) FWXM	M15AATV3(R) FWXM20AAT	TV3(R)
Dimensions
A mm 578 778 978

FWXM

INSTALLATION

2.1 Positioning the unit

Avoid installing the unit:

• in positions subject to exposure to direct sunlight;
• In proximity to sources of heat;
• in damp areas or places with probable contact with water;
• in places with oil fumes
• in places subject to high frequency radio waves.

Make sure that:

the wall on which the unit is to be installed is strong enough to support the weight;

• the part of the wall interested does not have pipes or electric wires passing through;
• the interested wall is perfectly flat;
• there is an area free of obstacles which could interfere with the inlet and outlet air flow;
• the installation wall is preferably an outside perimeter wall to allow the discharge of the condensation outside;
• in case of ceiling installation (FWXM-series) the airflow is not directed towards persons.

2.2 Installation modes

The following descriptions of the various mounting phases and the relative designs refer to a version of the machine with fixtures on the left.

The operations for the mounting of machines with fixtures on the right (R) are exactly the same.

Only the images are to be considered as a mirror image.

To ensure that the installation is performed correctly and

that the appliance will perform perfectly carefully follow the instructions indicated in this manual. Failure to respect the rules indicated not only can cause malfunctions of the appliance but will also invalidate the warranty and hence DAIKIN EUROPE N.V. shall not respond for any damage to persons, animals or property.

2.3 Minimum installation space

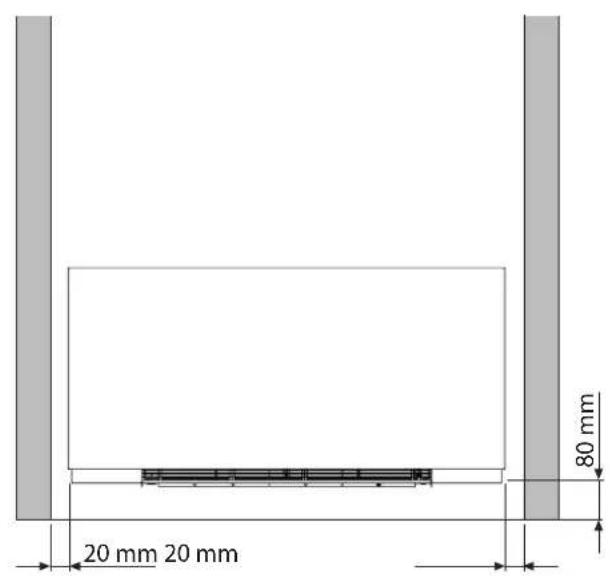

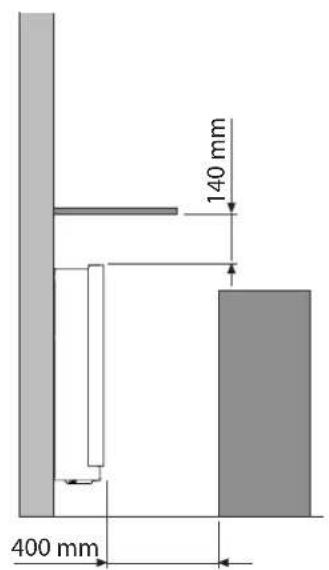

Figure indicates the minimum mounting distances between the wall-mounted cooler-convector and furniture present in the room.

2.4 Access to the internal components

To access the inside of the machine, follow the procedures below.

Remove the upper grill:

• loosen the fixing screws of the upper grill
• remove the grill

A	Fixing screws
B	Upper grill

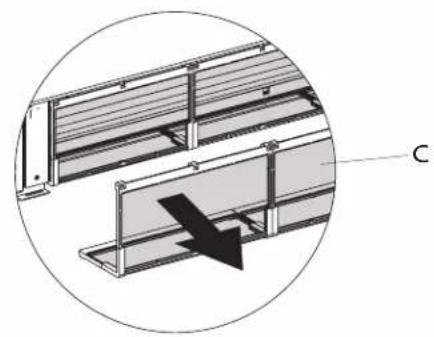

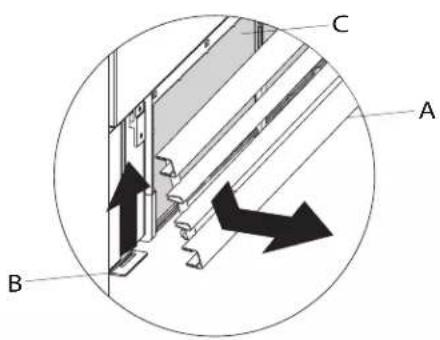

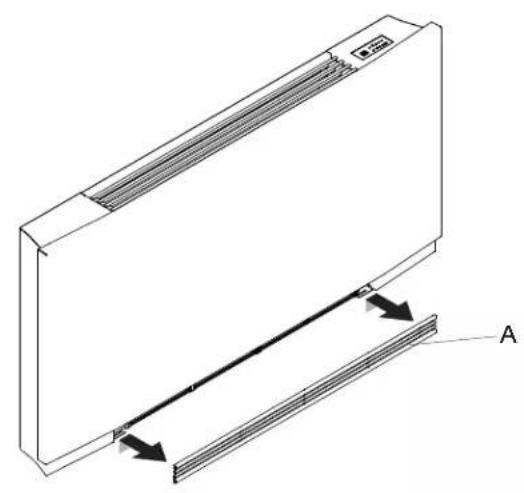

Remove the front grill:

• extract the grill until it is completely out of the seat
• tilt the grill
• slide outwards

C	Front panel
D	Front grill

Technical line drawing of a rectangular device with internal components and directional arrows indicating movement (no text or symbols)

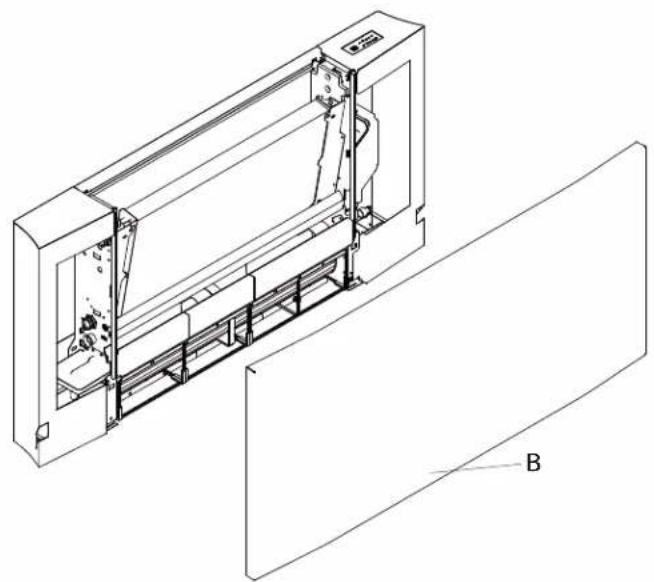

Remove the frontal panel:

• loosen the fixing screws
• remove the panel

A Fixing screws Front panel

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

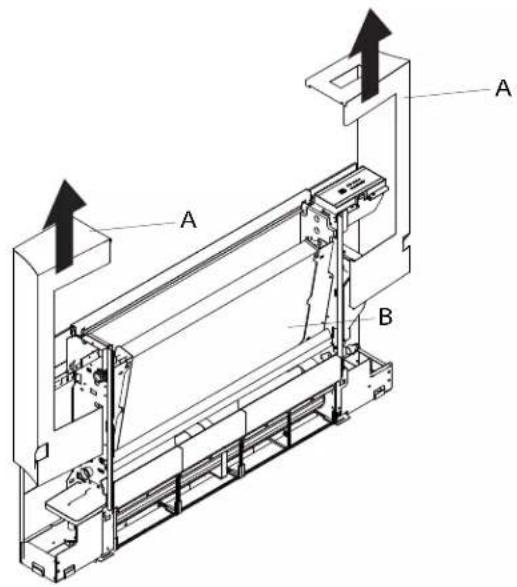

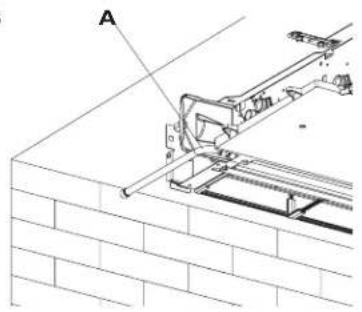

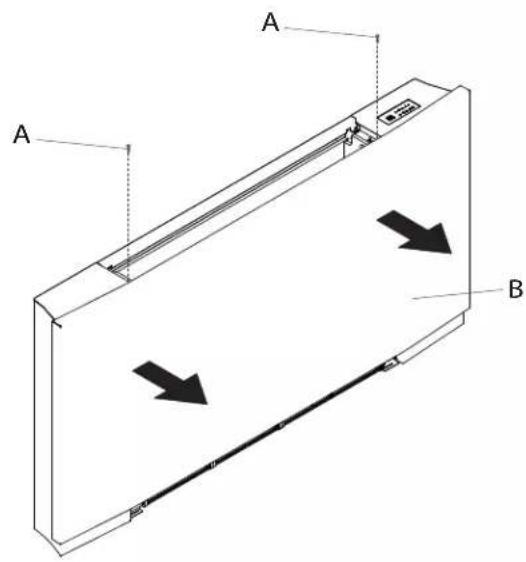

2.5 Removing the side panels

To remove the side:

- remove the sides upwards

A Side

B Machine body

2.6 Vertical installation

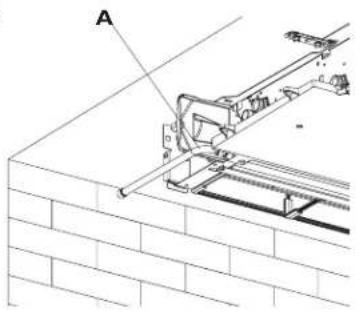

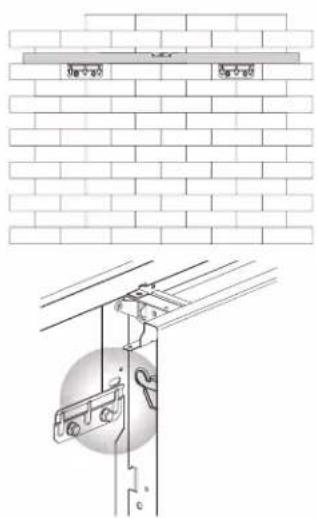

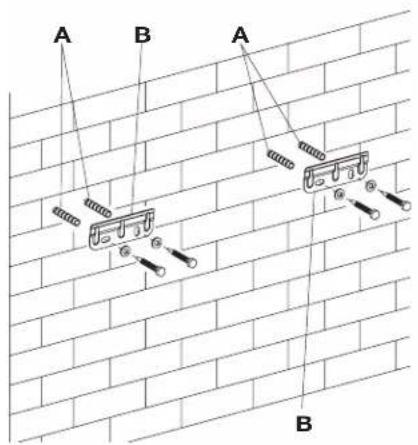

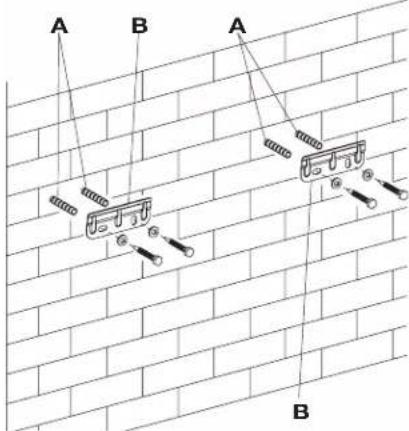

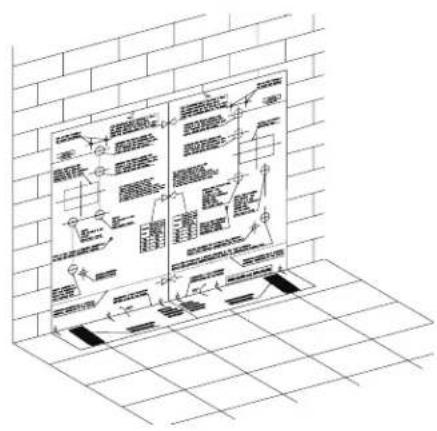

Using the paper template, trace the position of the two fixing brackets on the wall. Use a suitable drill to make the holes with and insert the wall plugs (2 for each bracket); fix the two brackets. Do not over-tighten the screws so that the brackets can be adjusted with a spirit level. Install the unit at level (with a possible 1 to 2% inclination towards the drainage pipe to facilitate the flow of water).

Fully tighten the four screws to block the two brackets. Check the stability by manually moving the brackets to the right and to the left, up and down.

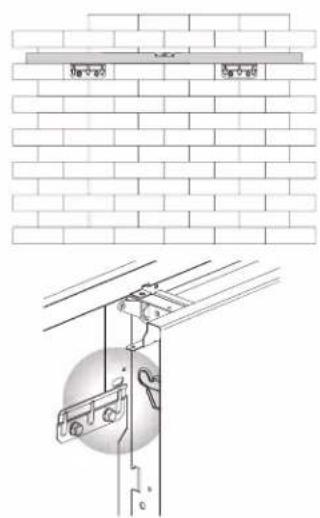

Mount the unit, checking that it fits correctly onto the brackets and checking that it is stable.

Note: to facilitate the connection of the pipes to the fancoil connections, install a built-in box at the cullet of the pipes themselves.

The correct position of the box is indicated on the installation template.

A Wall plugs Brackets

B

2.7 Horizontal or ceiling installation

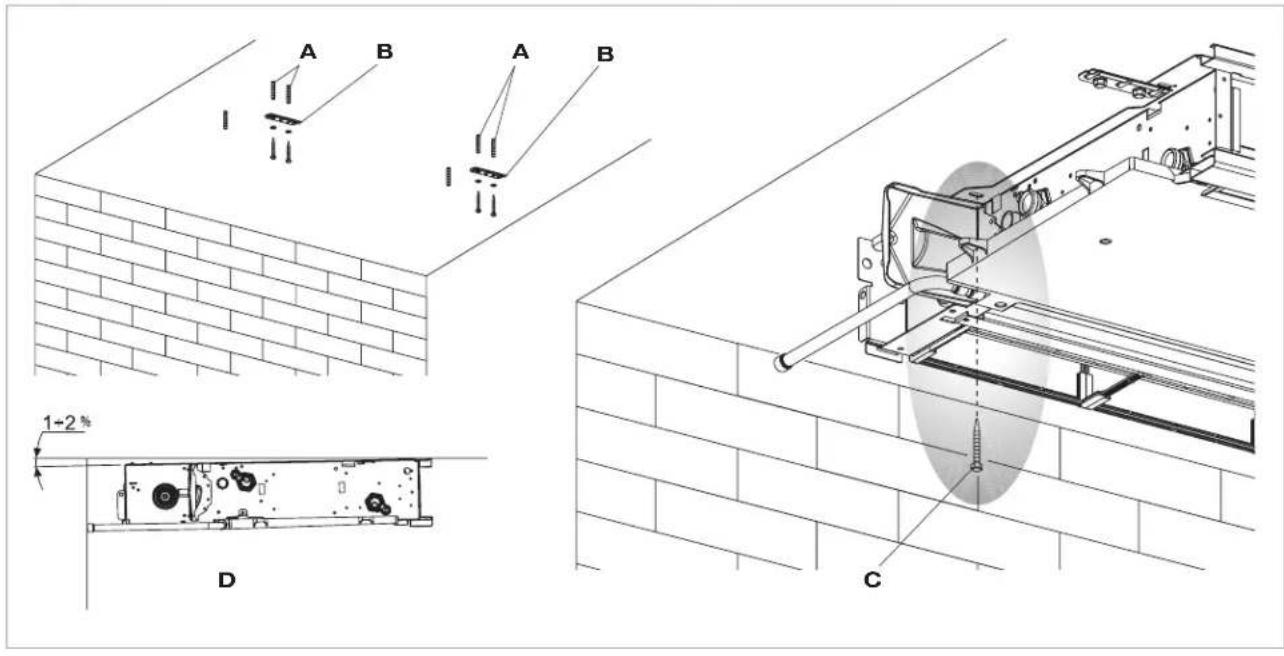

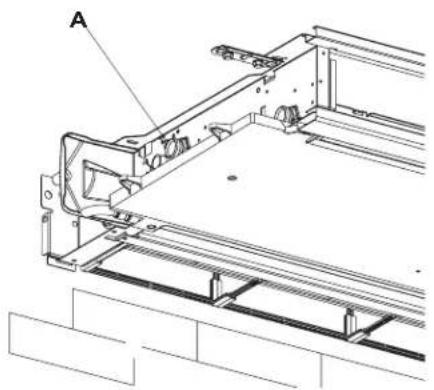

Using the paper template, trace on the ceiling the position of the two fixing brackets and the two rear screws. Using a suitable drill, make the holes and insert the wall plugs (2 for each bracket); fix the two brackets. Do not over-tighten the screws. Position the machine on the two brackets, keeping it in position and then fix the two screws into the rear toggle bolts, one on each side.

Install the unit at level (with a possible 1 to 2% inclination towards the drainage pipe to facilitate the flow of water).

For installation of the FWXV-sones, horizontal condensation collection basin accessory kits are available EKM(10/15/20)COH.

⚠️ Carefully check the inclination of the exhaust pipe. Any counter slope of the discharge line can cause water leakage

A	Wall plugs
B	Brackets

C	Scrows
D	Drainage pipe

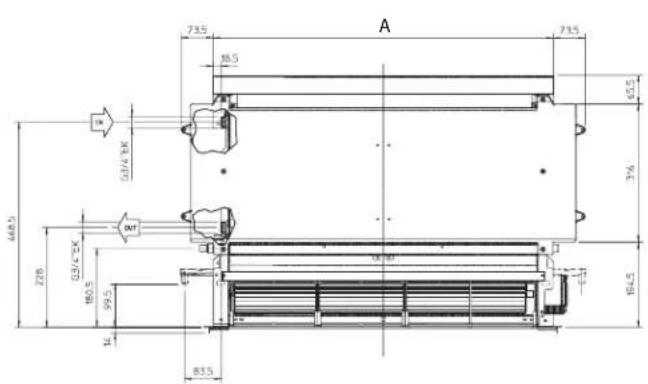

2.8 Hydraulic connections

FWXV/FWXM U.M. 10AATV3(R) 15AATV3(R) 20AATV3(R)
FWXV U.M. 10ABTV3(R) 15ABTV3(R) 20ABTV3(R)
Pipeline diameter	mm 14	16 18

NB: the nominal diameter, unless otherwise indicated, always refers to the internal diameter.

To avoid the formation of surface condensation, it is always recommended to install electric valve kits, except in the case where an electrical control (eg electrothermal head) is provided upstream of the appliance. The choice and sizing of the hydraulic lines must be made by an expert who must operate according to the rules of good technique and the laws in force, taking into account that undersized pipes cause a malfunction.

⚠ The hydraulic lines and joints must be thermally insulated.
⚠ Avoid partially insulating the pipes.
⚠ Do not over-tighten to avoid damaging the insulation.
⚠ Use hemp and green paste to seal the threaded connections; the use of Teflon is advised when there is anti-freeze in the hydraulic circuit.

To make the connections:

• position the hydraulic lines
• tighten the connections using the "spanner and counter spanner" method
• check for any leaks of liquid
• coat the connections with insulating material.

2.9 Condensation discharge

The condensation discharge network must be suitably sized and the pipeline positioned so that it keeps a constant inclination, never less than 1%. In the vertical installation, the discharge pipe is connected directly to the discharge tray, positioned at the bottom of the side shoulder underneath the hydraulic fixtures. In a horizontal installation the discharge tube is connected to the one already present on the machine.

• If possible, make the condensation liquid flow directly in a gutter or a "rainwater" discharge.
• When discharging directly into the main drains, it is advisable to make a siphon to prevent bad smells returning up the pipe towards the room. The curve of the siphon must be lower than the condensation collection bowl.

• If the condensation needs to be discharged into a container, it must be open to the atmosphere and the tube must not be immersed in water to avoid problems of adhesiveness and counter-pressure that would interfere with the normal outflow.

• If there is a height difference that could interfere with the outflow of the condensation, a pump must be mounted:

• in a vertical installation mount the pump under the lateral drainage tray;
• in a horizontal installation the pump position must be decided according to the specific requirements.
  Such pumps are commonly found in commerce.

However, on completion of the installation it is advisable to check the correct outflow of the condensation liquid by slowly pouring about 12 l of water into the collection tray in about 5-10 minutes.

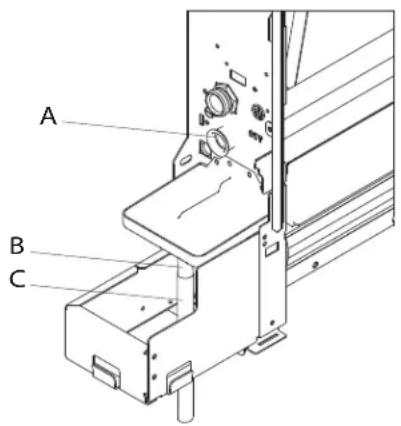

Mounting the condensation discharge pipe in the vertical version

Connect a drainage pipe to the drainage connection of the condensate tray and block it properly. Check that the

drip-collector extension is present and correctly installed.

A	Discharge fitting
B	Tube for the outflow of the liquid - ∅14 mm

C Extension drip

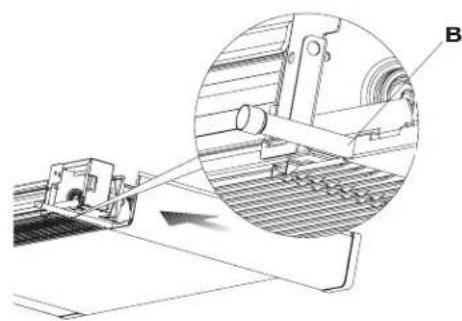

Mounting the condensation discharge pipe in the horizontal version

To mount the horizontal bowl on the FWXM-series refer to the instructions in kits EKM(10/15/20)COH.

• check that the "L" pipe and the flexible rubber hose are correctly connected to the bowl.
• slide in the side of the machine keeping the pipe in position up against the front grill.
• fully close the side checking that the pipe remains blocked in the special grove on the side.

N.B. for the horizontal installation carefully note the following precautions:

• make sure that the machine is installed perfectly level or with a slight inclination towards the condensation discharge;
• insulate carefully the inflow and outflow pipes up to the machine union to prevent any drops of condensation outside the same collection bowl;
• insulate the bowl condensation discharge pipe along all of its length.

A Connection pipes - ∅14 mm Discharge

B

Technical diagram of a mechanical device with a magnified inset showing a component labeled B (no text or symbols present)

-

2.10 Filling the system

When starting up the system, make sure that the hydraulic unit lockshield is open. If there is no electric power and the

thermo-valve has already been powered use the special cap to press the valve stopper to open it.

2.11 Evacuating air while filling the system

• Open all the shut off valves (manual or automatic);
• Start the filling by slowly opening the system water filling tap;
• For the unit installed in a vertical position, take a screwdriver and open the highest breather of the heat exchanger; for appliances installed in a horizontal position, open the highest positioned breather.

- When water starts coming out of the breather valves of the appliance, close them and continue filling until reaching the nominal value for the system.

Check the hydraulic seal of the gaskets.

It is advisable to repeat these operations after the appliance has been running for a few hours and periodically check the pressure of the system.

A Breather

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

2.12 Electrical connections

Make electrical connections according to the requirements set out in sections General Warnings and Fundamental Safety Rules by reference to the patterns present in the installation and accessories manuals.

Before doing any work, make sure the power is switched off.

The unit must be connected to the mains through a multipolar switch with minimum contact opening of at least 3mm or with a device that allows the complete disconnection from the device under the overvoltage conditions category III.

2.13 Maintenance

Routine maintenance is indispensable to keep the heat pump convector in perfect working condition, safe and reliable over the years. This can be done every six months

for some interventions and annually for others, by the Technical Service Assistance, technically authorised and prepared, using always original spare parts.

2.14 Cleaning the outside

Before every cleaning and maintenance intervention, disconnect the appliance from the mains by switching off the master switch.

Do not use abrasive sponges or abrasive or corrosive detergents to avoid damaging the painted surfaces.

⚠️ Wait until the parts have cooled down to avoid the risk of burns.

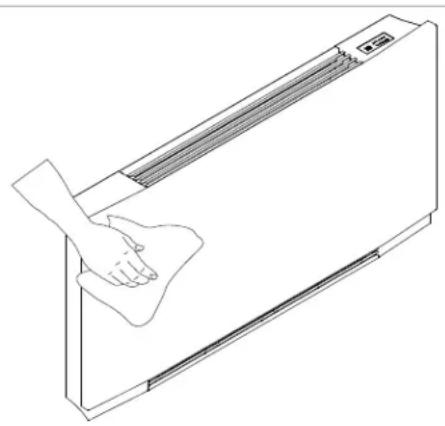

When necessary, clean the outer surfaces of the heat pump convector with a soft damp cloth.

Line drawing of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols)

2.15 Cleaning air suction filter

After a period of continuous operation and in consideration of the concentration of impurities in the air, or when

he intends to restart the unit after a period of inactivity, proceed as described.

Extraction of filter cells

To remove the grill:

• lift the grill until it is completely released from the seat
• tilt the grill and slide it outwards

A	Front grill
B	Grill hook

- then remove the filter by pulling it outwards

C Filter

Technical line drawing of a rectangular air conditioner unit with internal cooling fins and directional arrows indicating airflow or movement (no text or symbols)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Cleaning filtering seats

• suck up the dust with a vacuum cleaner
• wash the filter with running water without using detergents or solvents, and leave to dry.

It is forbidden to use the unit without the net filters.

The appliance is fitted with a safety switch that prevents the operation of the fan with the mobile panel missing or out of position.

⚠️ After finishing the cleaning of the filter, check that the panel is mounted correctly.

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a flanged duct (no text or symbols)

Ending Cleaning Operations

- For the versions with a grill with llaps, insert the two lugs into the special slots, turn it and hook it up with a slight lap on the upper part.

A	Filter
B	Grill hook

C	Front grill
D	The filter housing

2.16 Energy saving tips

• Always keep the filters clean;
• when far possible, keep the doors and windows closed in the room being conditioned;

- limit where possible the effect of direct sun rays in the rooms being conditioned (use curtains, shutters etc.)

TROUBLESHOOTING

3.1 Troubleshooting

In caso of water leaks or anomalous functioning immediately cut off the power supply and close the water taps.
Should one of the following anomalies occur, contact an authorised service centre or an authorised qualified person, but do not intervene personally.

• The ventilation does not activate even if there is hot or cold water in the hydraulic circuit.
• The appliance leaks water during the heating function.
• The appliance leaks water only during the cooling function.
• The appliance makes an excessive noise.
• There are formations of dew on the front panel.

3.2 Table of anomalies and remedies

The interventions must be carried out by a qualified installer or by a specialised service centre.

Effect Cause Remedy
A delayed activation of the ventilation respect to the new temperature or function settings.	The circuit valve needs some time to open and as a result the hot or cold water takes time to circulate in the appliance.	Wait for 2 or 3 minutes to open the circuit valve.
The appliance does not activate the ventilation.	No hot or cold water in the system.	Check that the water boiler or cooler are functioning correctly.
The ventilation does not activate even if there is hot or cold water in the hydraulic circuit.	The hydraulic valve remains closed.	Dismount the valve body and check if the water circulation is restored.
		Check the working efficiency of the valve by powering it separately with 230V. If it activates the problem could be the electronic control.
	The fan motor is blocked or burnt out.	Check the windings of the motor and the free rotation of the fan.
	The micro-switch that stops the ventilation when the filter grill is opened does not close correctly.	Check that by closing the grill the micro-switch contact is activated.
	The electrical connections are not correct.	Check the electrical connections.
The appliance leaks water during the heating function.	Leaks in the hydraulic connections of the system.	Check the leak and fully tighten the connections.
	Leaks in the valve unit. Check the state of the gaskets.
There are formations of dew on the front panel.	Thermal insulation detached.	Check the correct positioning of the thermo-acoustic insulation paying attention to that in the front above the finned heal exchanger.
There are drops of water on the air outlet grill.	In situations of high humidity (>60%) condensation could form, especially at the minimum ventilation speeds.	As soon as the humidity starts falling the phenomenon disappears. In any case the presence of a few drops of water in the appliance does not indicate a malfunction.
The appliance leaks water only during the cooling function.	The condensation bowl is blocked.	Slowly pour a bottle of water in the low part of the battery to check the drainage; if necessary, clean the bowl and/or increase the inclination of the drainage pipe.
	The condensation discharge does not need an inclination for correct drainage.
	The connection pipes and the valve unit are not insulated well.	Check the insulation of the pipes.
The appliance makes a strange noise.	The fan touches the structure.	Check the clogging of filters and clean them if necessary
	The fan is unbalanced.	The unbalancing causes excessive vibrations of the machine; replace the fan.
	Check the clogging of filters and clean them if necessary	Clean the filters

EN

3.3 Technical Data

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

COOLING PERFORMANCES (W 7/12 °C; A 27 °C)

Total cooling capacity	(1)	kW 1,62	2,64 2,99
Sensible cooling capacity	(1)	kW 1,25	1,91 2,33
Latent cooling capacity	(1)	kW	0,37 0,73 0,66
Water flow	(1)	J/h 365	483 568
Pressure drop	(1)	kPa 11,0	23,0 22,0

HEATING PERFORMANCES (W 45/40 °C; A 20 °C)

Hoating capacity	(2) kW	1,96 2,86 350
Water flow	(2) L/h	380	519	655
Pressure drop	(2)kPa	11,0 23,0 22,0

HYDRAULIC DATA

Coil water content		L	0,80 1,13 1,46
Maximum operating pressure		bar	10	10	10
Hydraulic connections		"FK	3/4
Max. inlet water temperature		°C	80	80	80
Min. inlet water temperature		°C	4	4	4

AERAULIC DATA

Air flow at the maximum fan speed	(3)	m3/h	294	438	567
Air flow at medium fan speed		m3/h	210	318	410
Air flow at the minimum fan speed		m3/h	118	180	247
Static pressure available		Pa	10	13	13

ELECTRICAL DATA

Power supply		V/ph/Hz	230-1-50
Electrical power absorption at maximum fan speed		W	19,0 25,0 31,0
Maximum absorbed current		A	0,16 0,18 0,26
Electrical power absorption at minimum fan speed		W	4,0	6,0	5,0

SOUND DATA

Maximum sound power level		dB(A)	56	57	58
Sound pressure level at maximum air flow	(4)	dB(A)	47	48	49
Sound pressure level at medium air flow	(1)	dB(A)	38	39	40
Sound pressure level at minimum air flow	(4)	dB(A)	31	33	34

Weight

kg

20

23

26

(1) Water temperature 7/12°C, Air temperature 27°C BS and 19°C BU, EN 1397

(2) Water temperature 45/40°C, Air temperature 20°C BS and 15°C BU, EN 1397

(3) Air flow measured with clean filters

(4) Sound pressure measured at a distance of 1 meter according to ISO7779

FWXM u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
COOLING PERFORMANCES (W 7/12 °C; A 27 °C)
Total cooling capacity	(1) kW 2,12	2,81 3,30
Sensible cooling capacity	(1) kW 1,72	2,11 2,71
Latent cooling capacity	(1) kW 0,40	0,70 0,59
Water flow	(1) L/h 365	183 568
Pressure drop	(1) kPa 8,2	17,1 18,0
HEATING PERFORMANCES (W 45/40 °C; A 20 °C)
Heating capacity	(2) kW	2,21 3,02 3,81
Water flow	(2) L/h	380 519	655
Pressure drop	(2)kPa	9,2 19,1 21,2
HYDRAULIC DATA
Coil water content		L	0,80 1,13 1,46
Maximum operating pressure		bar	10	10
Hydraulic connections		* EK	3/4
Max. inlet water temperature		°C	80	80
Min. inlet water temperature		°C	4	4
AERAULIC DATA
Air flow at the maximum fan speed	(3)	m3/h	294 438	567
Air flow at medium fan speed		m3/h	210 318	410
Air flow at the minimum fan speed		m3/h	118 180	247
Static pressure available		Pa	10	13
ELECTRICAL DATA
Power supply		V/ph/Hz	230-1-50
Electrical power absorption at maximum fan speed		W	19,0 20,0 29,0
Maximum absorbed current		A	0,16 0,18 0,26
Electrical power absorption at minimum fan speed		W	4,0	6,0
SOUND DATA
Maximum sound power level		dB(A)	53	54
Sound pressure level at maximum air flow	(4)	dB(A)	42	44
Sound pressure level at medium air flow	(4)	dB(A)	34	34
Sound pressure level at minimum air flow	(4)	dB(A)	25	26
Weight		kg	12	15

(1) Water temperature 7/12°C, Air temperature 27°C BS and 19°C BU, EN 1397

(2) Water temperature 45/40°C, Air temperature 20°C BS and 15°C BU, EN 1397

(3) Air flow measured with clean filters

(4) Sound pressure measured at a distance of 1 meter according to ISO7779

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Dimensioni
A mm 999 1199 1399

FWXV

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
Dimensioni
A mm 578 778 978

FWXM

INSTALLAZIONE

Technical line drawing of a rectangular device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

Technical diagram showing a brick wall and a mechanical assembly with a pulley mechanism (no text or symbols)

FWXV/FWXM U.M. 10AATV3(R) 15AATV3(R) 20AATV3(R)
FWXV U.M. 10ABTV3(R) 15ABTV3(R) 20ABTV3(R)
Diametro min. nominale tubazioni mm 14 16 18

Technical diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols)

Technical line drawing of a rectangular air conditioner unit with internal cooling fins and directional arrows indicating airflow or movement (no text or symbols)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a conical duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Dimenisones
A mm 999 1199 1399

FWXV

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
Dimensiones
A mm 578 778 978

FWXM

INSTALACIÓN

Retire la rejilla frontal:

Technical line drawing of a rectangular device with internal components and directional arrows indicating movement (no text or symbols)

Retire el panel frontal:

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

2.6 Instalación vertical

Technical diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

-

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing a foot on an air conditioner unit (no text or symbols)

Technical diagram of a wall-mounted air conditioner unit with labeled component A, showing internal structure and airflow direction (no text or symbols beyond label)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a conical duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Abmessungen
A mm 999 1199 1399

FWXV

Größe

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
Abmessungen
A mm 578 778 978

FWXM

INSTALLATION

Technical line drawing of a rectangular electronic device with a diagonal line and labeled component D, showing internal structure and arrows indicating direction (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

2.6 Vertikale Installation

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on an air conditioner unit (no text or symbols)

Technical line drawing of a wall-mounted air conditioner unit with labeled component A (no text or symbols beyond label)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a conical duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

KÜHLLEISTUNGEN (W 7/12 °C; A 27 °C)

MANUEL D'INSTALLATION

Daikin Altherma

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Dimensions
A mm 999 1199 1399

FWXV

Dimensions

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
Dimensions
A mm 578 778 978

FWXM

INSTALLATION

Technical line drawing of a rectangular electronic device with a diagonal line and labeled component D, showing internal structure and arrows indicating direction (no text or symbols beyond labels)

Retirez le panneau avant:

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

2.6 Installation verticale

Technical diagram of a mechanical assembly with a magnified inset showing component B (no text or symbols present)

。

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on an air conditioner unit (no text or symbols)

Technical line drawing of a rectangular air conditioner unit with internal cooling fins and directional arrows indicating airflow or movement (no text or symbols)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems, one with a curved pipe and the other with a flanged duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

PERFORMANCES DE REFROIDISSEMENT (W 7/12 °C ; A 27 °C)

DONNÉES HYDRAULIQUES

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Afmetingen
A mm 999 1199 1399

FWXV

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
Afmetingen
A mm 578 778 978

FWXM

INSTALLATIE

Technical line drawing of a rectangular device with internal components and directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

2.5 Zij-opening

2.6 Verticale vloer- of wandinstallatie

Technical diagram showing a brick wall and a mechanical device with a circular component (no text or symbols)

2.7 Horizontale of plafondinstallatie

FWXV/FWXM U.M. 10AATV3(R) 15AATV3(R) 20AATV3(R)
FWXV U.M. 10ABTV3(R) 15ABTV3(R) 20ABTV3(R)
Leidingdiameter	mm 14 16 18

Technical diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

。

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on an air conditioner unit (no text or symbols)

NL

2.15 Luchtfilter reinigen

Technical diagram of a rectangular air conditioner unit with internal cooling fins and labeled component A (no text or symbols beyond label)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Filterzittingen reinigen

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a conical duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

KOELPRESTATIES (W 7/12 °C; A 27 °C)

Totaal koelvermogen	(1)	kW 1,62	2,64 2,99
Zintulgijk koelvermogen	(1)	kW 1,25	1,91 2,33
Latent koelvermogen	(1)	kW	0,37 0,73 0,66
Waterstroming	(1)	J/h 365	483 568
Drukverlies	(1)	kPa 11,0	23,0 22,0

VERWARMINGSPRESTATIES (W 45/40 °C; A 20 °C)

Vorwarmingscapaciloit	(2) kW	1,96 2,86 3,50
Waterstroming	(2) L/h	380	519	655
Drukverlies	(2)kPa	11,0 23,0 22,0

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
Boyutlar
A mm 999 1199 1399

FWXV

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
Boyutlar
A mm 578 778 978

FWXM

MONTAJ

Technical line drawing of a rectangular panel with a diagonal line and labeled component D, showing directional arrows (no text or symbols beyond label)

Ön paneli çıkarın:

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

2.5 Tarafi kaldır

2.6 Zemine ya da duvara dikey montaj

FWXV/FWXM U.M. 10AATV3(R) 15AATV3(R) 20AATV3(R)
FWXV U.M. 10ABTV3(R) 15ABTV3(R) 20ABTV3(R)
Boru çapı	mm 14	16 18

Technical diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

B

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on an air conditioner unit (no text or symbols)

TR

Technical diagram of a rectangular air conditioner unit with internal cooling fins and labeled component A (no text or symbols beyond label)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a conical duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

	U.M.	FWXV10AATV3(R) FWXV15AATV3(R) FWXV20AATV3(R)
		FWXV10ABTV3(R) FWXV15ABTV3(R) FWXV20ABTV3(R)
A mm 999 1199 1399

FWXV

Technical line drawing of a cabinet or rack unit with labeled dimensions and internal compartments (no text or symbols beyond basic labels)

	U.M.	FWXM10AATV3(R) FWXM15AATV3(R) FWXM20AATV3(R)
A mm 578 778 978

FWXM

INSTALAÇÃO

Technical line drawing of a rectangular electronic device with a diagonal line and labeled component D, showing internal structure and arrows indicating direction (no text or symbols beyond labels)

69/5000

Remova o painel frontal:

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

2.5 Remova o lado

Para remover o lado:

FWXV/FWXM U.M. 10AATV3(R) 15AATV3(R) 20AATV3(R)
U.M. 10ABTV3(R) 15ABTV3(R) 20ABTV3(R)
Diâmetro do gasoduto	mm 14 16 18

Technical diagram of a mechanical device with a magnified inset showing a component labeled B (no text or symbols present)

-

2.10 Enchimento do sistema

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols)

Technical diagram of a rectangular air conditioner unit with internal cooling fins and directional arrows indicating airflow or movement (no text or symbols)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems, one with a curved pipe and the other with a flanged duct (no text or symbols)

FWXV u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)
		10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

FWXM u.m. 10AATV3(R) 15AATV3(R) 20AATV3(R)

	U.M.	FWXV10AATV3(R)	FWXV15AATV3(R)	FWXV20AATV3(R)
		FWXV10ABTV3(R)	FWXV15ABTV3(R)	FWXV20ABTV3(R)
Διαστάσεις
A mm 999 1199 1399

FWXV

	U.M.	FWXM10AATV3(R)	FWXM15AATV3(R)	FWXM20AATV3(R)
Διαστάσεις
A mm 578 778 978

FWXM

ΕΓΚΑΤΑΣΤΑΣΗ

Technical line drawing of a rectangular device with internal components and directional arrows indicating movement or assembly (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a labeled section B (no text or symbols beyond label)

FWXV/FWXM U.M. 10AATV3(R) 15AATV3(R) 20AATV3(R)

U.M. 10ABTV3(R) 15ABTV3(R) 20ABTV3(R)

Technical diagram of a mechanical assembly with a magnified inset showing a component labeled B (no text or symbols present)

B

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a hand pressing down on an air conditioner unit (no text or symbols)

EL

Technical diagram of a rectangular air conditioner unit with internal cooling fins and directional arrows indicating airflow or movement (no text or symbols)

Technical diagram of a structural panel assembly with a labeled component 'C' (no text or symbols beyond label)

Two technical illustrations of industrial piping systems: one with a curved pipe and the other with a conical duct (no text or symbols)

FWXVu.m.10AATV3(R)15AATV3(R)20AATV3(R)
		10ABTV3(R)15ABTV3(R)20ABTV3(R)
