KNP7TE75S - Freezer ELECTROLUX - Free user manual and instructions

Product type	Built-in combined freezer (refrigerator + freezer)
Brand	Electrolux
Model	KNP7TE75S
Height (overall)	1884 mm
Width (overall)	696 mm
Depth (overall)	549 mm
Freezer temperature range	-15 °C to -24 °C
Refrigerator temperature range	2 °C to 8 °C
Special functions	ECO, Extra Cool, Extra Freeze, Fan, Wi-Fi, ECOMETER
Lighting type	Long-life LED (efficiency class F)
Refrigerant	Isobutane (R600a), flammable gas
Noise level	Not specified (refer to manual)
Freezer defrost	Automatic (frost-free)

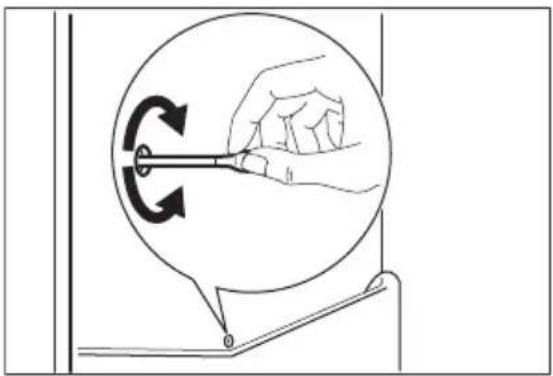

Refrigerator defrost	Automatic (drain to evaporator tray)

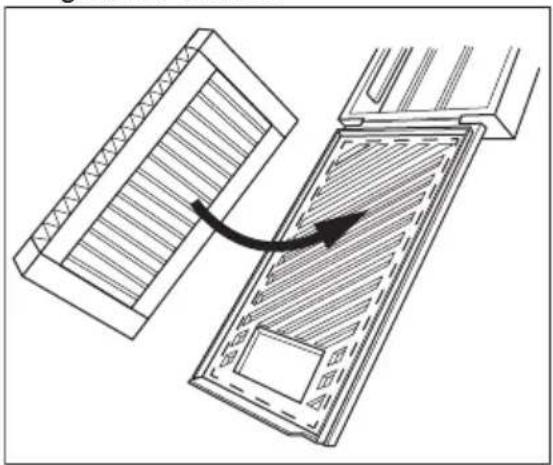

Air filter	CleanAir+ charcoal filter, replace every 6 months
Child safety	Key lock in Configuration mode
Connectivity	Wi-Fi 2.4 GHz (802.11 bgn), WPA-PSK / WPA2-PSK / WPA3-Personal
Power supply	See rating plate (standard voltage/frequency)
Available spare parts	Thermostats, sensors, boards, lighting, handles, hinges (7 years after model discontinuation); door gaskets (10 years)
Net weight	Not specified (refer to manual)

Frequently Asked Questions - KNP7TE75S ELECTROLUX

How to set the freezer temperature?

Use the temperature buttons on the control panel. The range is from -15 °C to -24 °C. The recommended temperature is -18 °C.

What to do in case of open door alarm?

If the refrigerator door remains open for more than 5 minutes (or 80 seconds for the freezer), an audible alarm sounds. Close the door to stop it. You can also press any button to temporarily deactivate it.

How to activate the Extra Freeze function?

Press the Extra Freeze button at least 24 hours before freezing fresh food. It automatically stops after a maximum of 52 hours.

Does the freezer defrost automatically?

Yes, the freezer compartment is frost-free (No Frost). The refrigerator defrosts automatically via an evaporator; the water evaporates in a tray at the back.

How to clean the CleanAir+ filter?

The charcoal filter is located in a plastic housing under the top shelf. Replace it every 6 months. After replacement, press the Filter Reset button to turn off the alarm.

Can I connect the appliance to my phone?

Yes, thanks to the built-in Wi-Fi. Download the Electrolux app, follow the instructions to pair the appliance. You can receive notifications and control the temperature remotely.

What are the exact dimensions for built-in installation?

Overall height: 1884 mm, width: 696 mm, depth: 549 mm. For installation, allow additional space: height 1923 mm (with handle), depth 1229 mm (door open at 90°).

What to do if the displayed temperature flashes?

This indicates a high temperature alarm (for example after a power outage). Press any button to deactivate it. The alarm will reactivate after one hour if the temperature has not returned to normal.

How to childproof the appliance?

Configuration mode allows disabling button sounds or locking settings. No dedicated lock is provided, but supervise children and keep the manual.

Where to find the rating plate?

The rating plate is located inside the appliance. It indicates voltage, frequency, refrigerant type, freezing capacity and weight. Consult it for any technical information.

USER MANUAL KNP7TE75S ELECTROLUX

Simple line drawing of a refrigerator with wireless signal waves (no text or symbols)

KNP7TE75S

Technical line drawing of a mechanical assembly with no visible text or symbols

i

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

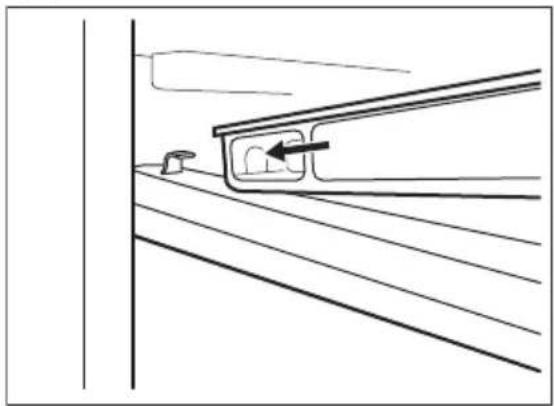

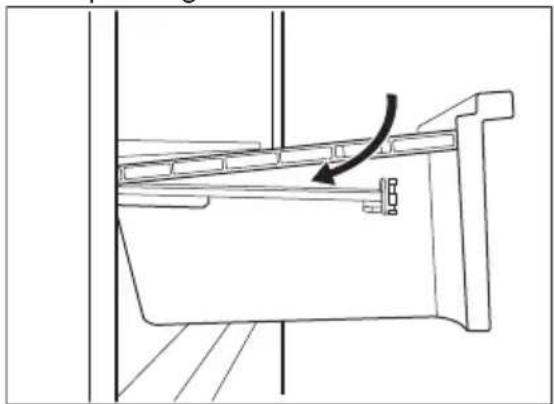

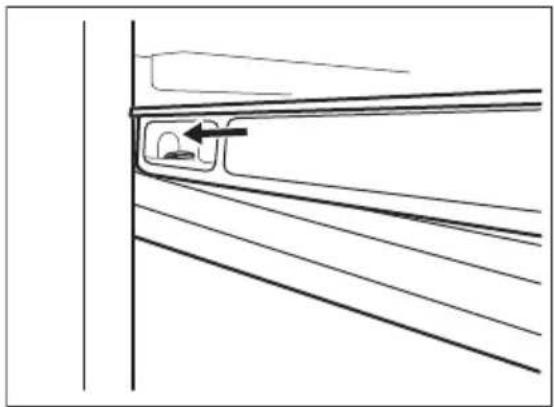

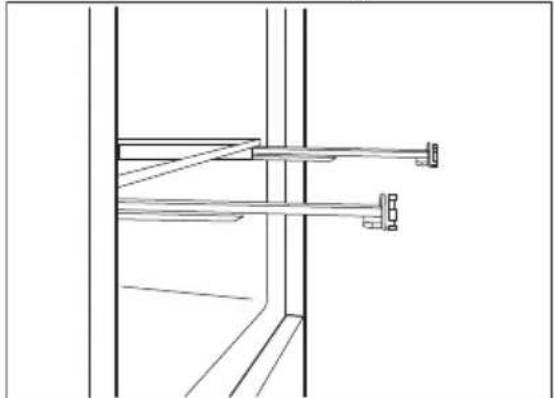

Për ta rimontuar:

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Line drawing of a door handle with an arrow pointing to the lock (no text or symbols)

Line drawing of a door handle with an arrow pointing to the lock (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand opening a drawer with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand inserting a drawer into a cabinet, with an arrow indicating the direction (no text or symbols)

Line drawing of a hand opening a door with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a metal shelf with two triangular objects hanging from the side (no text or symbols)

Diagram of hands operating a ventilation duct with arrows indicating airflow direction (no text or symbols)

Diagram of a hand holding a rectangular object with a grid pattern, showing rotational motion arrows (no text or symbols)

Line drawing of a hand holding a tray with a handle, showing a curved arrow indicating direction (no text or symbols)

Line drawing of hands holding a tray with a mesh panel and arrows indicating movement or force (no text or symbols)

i

Simple line drawing of a rectangular object with a textured base and corner detail (no text or symbols)

Mund ta ndizni gjithashtu pajisjen manualisht kur nevojitet (shikoni "funksionin Ventilator").

i

Technical line drawing of a mechanical assembly with rollers and triangular components (no text or symbols)

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Diagram showing a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Illustration of hands installing or adjusting a layered electronic component, showing a downward arrow and magnified detail (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a cutting tool interacting with a base (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction, no text or symbols present

Hand holding a layered electronic component with an arrow indicating upward motion (no text or symbols)

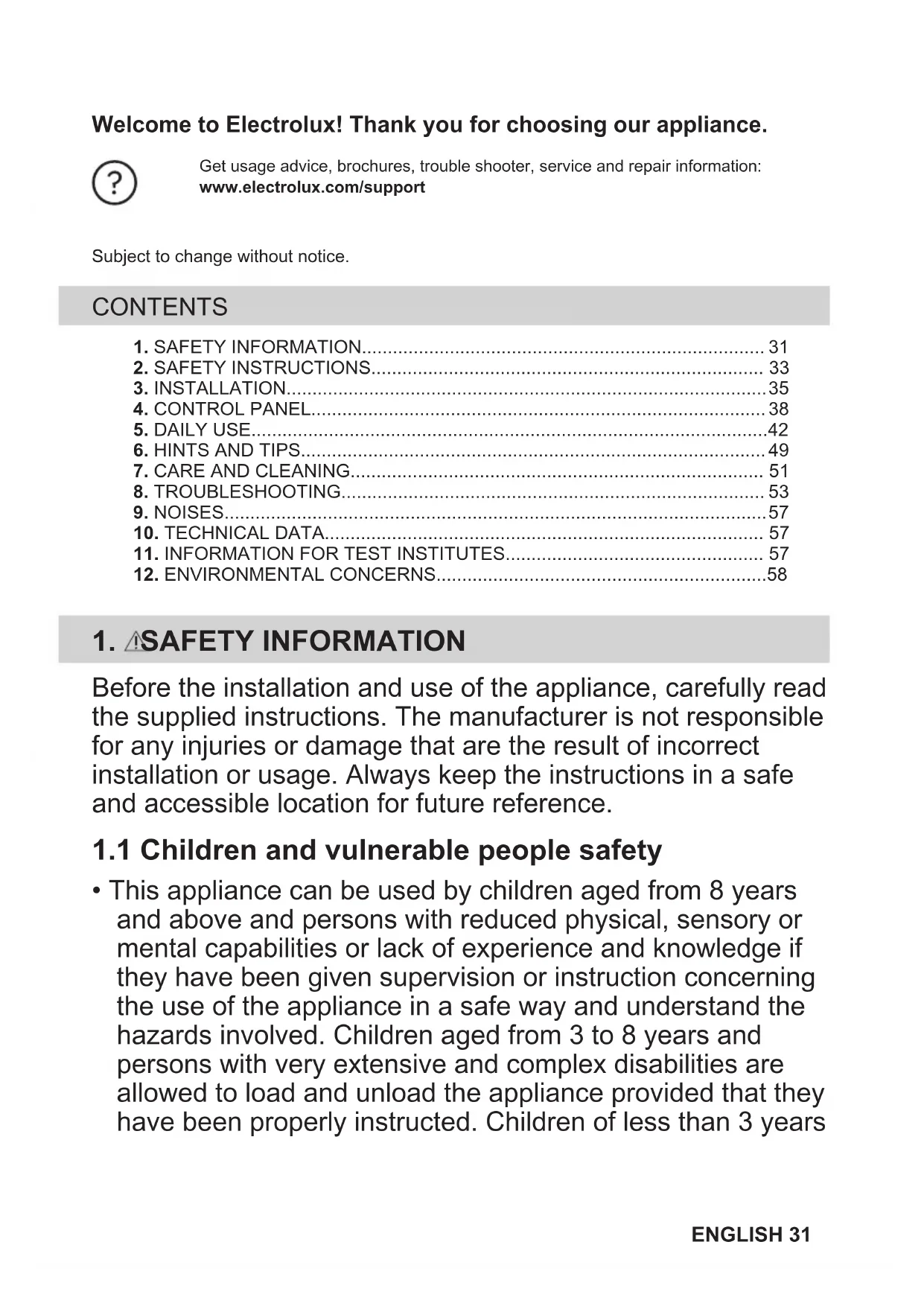

Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......31
2. SAFETY INSTRUCTIONS.... 33
3. INSTALLATION....35
4. CONTROL PANEL 38
5. DAILY USE....42
6. HINTS AND TIPS......49
7. CARE AND CLEANING.... 51
8. TROUBLESHOOTING....53

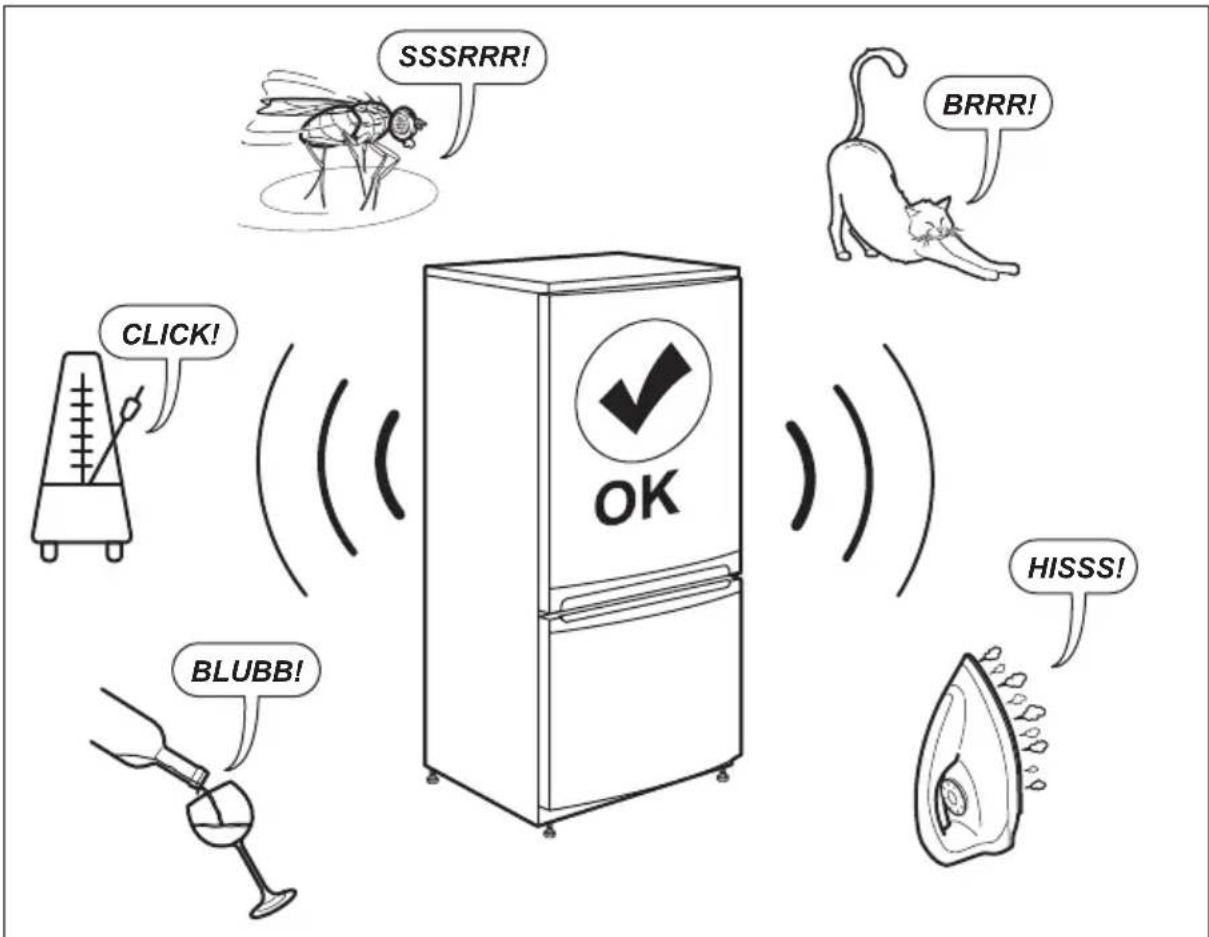

9. NOISES....57
10. TECHNICAL DATA....57
11. INFORMATION FOR TEST INSTITUTES.... 57
12. ENVIRONMENTAL CONCERNS....58

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years and persons with very extensive and complex disabilities are allowed to load and unload the appliance provided that they have been properly instructed. Children of less than 3 years

of age should be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance and mobile devices with the dedicated app.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

1.2 General Safety

• This appliance is for storing food and baverages only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• To avoid contamination of food respect the following instructions:

• do not open the door for long periods;
  – clean regularly surfaces that can come in contact with food and accessible drainage systems;

• store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• When the appliance is empty for long period, switch it off, defrost, clean, dry and leave the door open to prevent mould from developing within the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not use the appliance before installing it in the built-in structure due to safety manner.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Make sure the air can circulate around the appliance.
• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
• Do not install the appliance close to radiators or cookers, ovens, or hobs, unless otherwise specified in the installation instructions.

• Do not expose the appliance to the rain.

• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too cold.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.
• The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not use multi-plug adapters and extension cables.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.

• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electric shock or fire.

The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.
• Any use of the built-in product as freestanding is strictly prohibited.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

• Do not share your Wi-Fi password.

• Do not remove or touch items from the freezer compartment if your hands are wet or damp.

• Do not freeze again food that has been thawed.
• Follow the storage instructions on the packaging of frozen food.
• Wrap the food in any food contact material before putting it in the freezer compartment.
• Do not allow food to come in contact with the inner walls of the appliance compartments.

2.4 Internal lighting

WARNING!

Risk of electric shock.

• This product contains one or more light sources of energy efficiency class F.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

2.6 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts will be available for 7 years after the model has been discontinued: thermostats, temperature sensors, printed circuit boards, light sources, door handles, door hinges, trays and baskets. Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
- Door gaskets will be available for 10 years after the model has been discontinued.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

WARNING!

Refer to installation instruction document to install your appliance.

WARNING!

Fix the appliance in accordance with installation instruction document to avoid a risk of instability of the appliance.

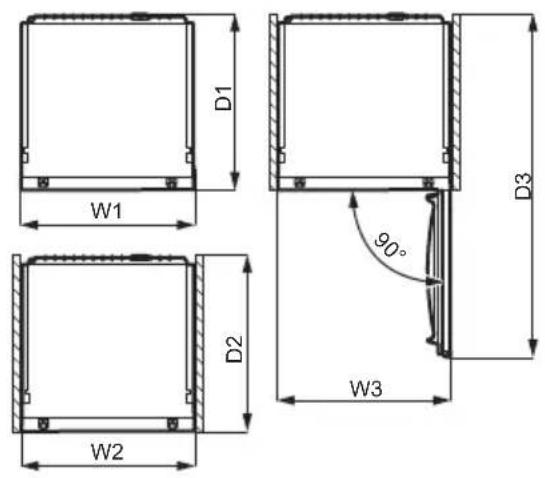

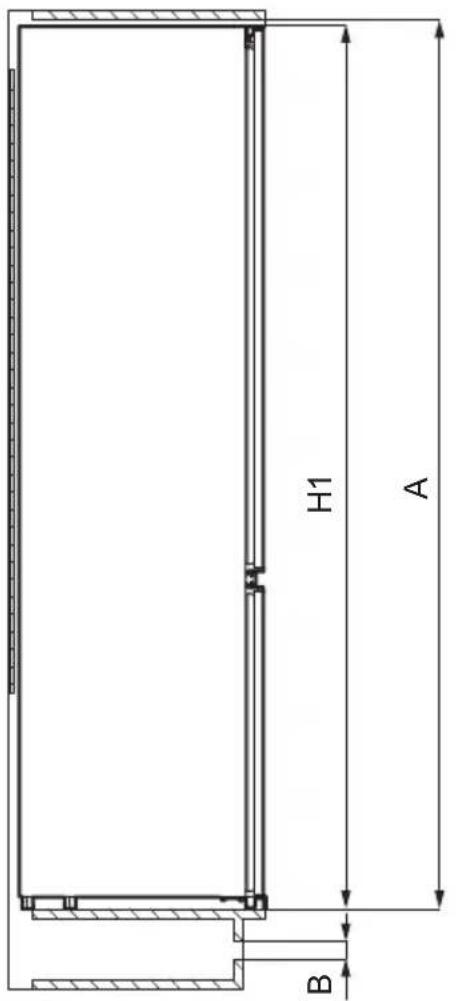

3.1 Dimensions

Overall dimensions ^1

H1 mm 1884

W1 mm 696

D1 mm 549

^1 the height, width and depth of the appliance without the handle

Space required in use ^2

H2 (A+B) mm 1923

W2 mm 696

D2 mm 561

A mm 1894

Space required in use ^2

B mm 29

^2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air

Overall space required in use ^3

H3 (A+B) mm 1923

W3 mm 696

D3 mm 1229

^3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling

air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment

3.2 Location

To ensure appliance's best functionality, you should not install the appliance in a place with direct sunlight. Do not install the appliance close to radiators or cookers, ovens, or hobs, unless otherwise specified in the installation instructions.

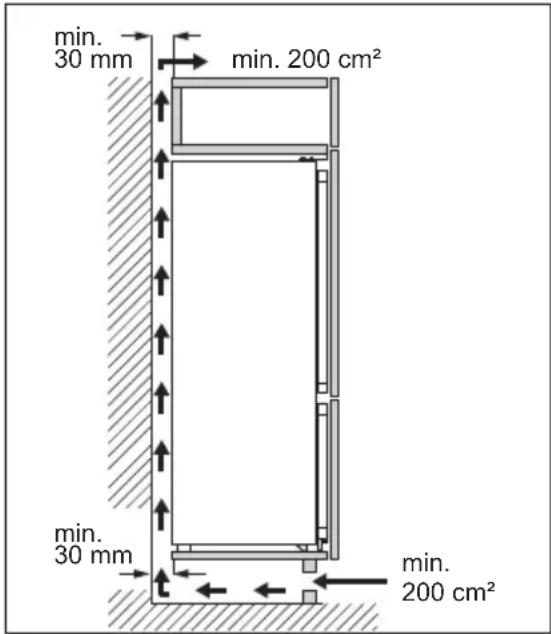

Make sure that air can circulate freely around the back of the cabinet.

This appliance should be installed in a dry, well ventilated indoor position.

This appliance is intended to be used at ambient temperature ranging from 10^ C to 43^ C.

The correct operation of the appliance can only be guaranteed within the specified temperature range.

If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

3.3 Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a

contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

• The manufacturer declines all responsibility if the above safety precautions are not observed.

3.4 Ventilation requirements

The airflow behind the appliance must be sufficient.

Refer to the installation instructions for the installation.

3.5 Door reversibility

Please refer to the separate document with instructions on installation and door reversal.

CAUTION!

At every stage of reversing the door protect the floor from scratching with a durable material.

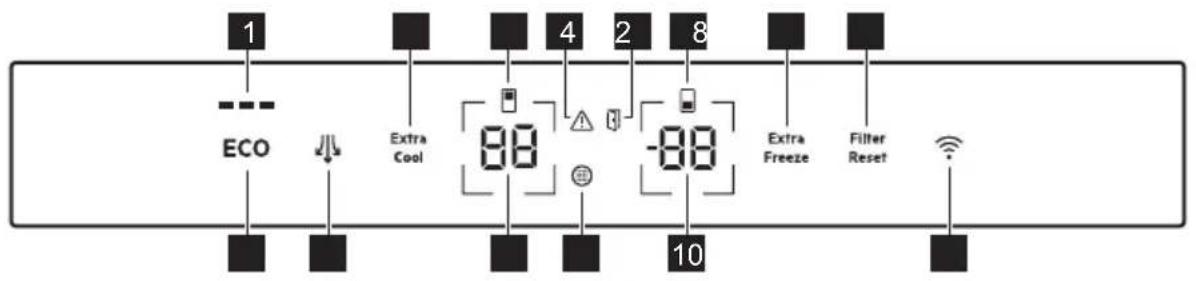

4. CONTROL PANEL

1 ECOMETER indicator
2 Extra Cool button / indicator
3 Fridge compartment indicator
4 Alarm indicator
5 Door open alarm indicator
6 Freezer compartment indicator
7 Extra Freeze button / indicator
8 Filter Reset alarm button / indicator
9 Connectivity button / indicator
10 Freezer temperature button / indicator
11 Air filter change indicator
12 Fridge temperature button / indicator
13 Fan button / indicator
14 ECO button

4.1 Switching on

Connect the mains plug to the power socket.

To select a different set temperature, refer to "Temperature regulation".

If dE on appears on the display, refer to "Troubleshooting".

4.2 Switching off

1. Press and hold the fridge temperature button and freezer temperature button simultaneously for 5 seconds The display shows blinking OF

2. Once the appliance is switched off, the display reads OF

3. Disconnect the mains plug from the power socket.

4.3 Temperature regulation

The temperature range may vary between -15°C and -24°C for freezer and between 2°C and 8°C for fridge.

Press the temperature buttons to set the temperature of the appliance.

The recommended set temperature is:

- +4^ C for the fridge

- -18°C for the freezer

You may set the recommended temperature manually with temperature buttons or by switching on the ECO function. Refer to "ECO function" for more information

The temperature indicators show the set temperature.

i

The set temperature will be reached within 24 hours.

After a power failure, the appliance goes back to the set temperature.

4.4 Switching off the fridge

It is possible to switch off only the fridge compartment leaving the freezer compartment on.

1. Press and hold the fridge temperature button for 5 seconds.

The display shows blinking OF

1. Once the fridge compartment is switched off, the display reads QF

4.5 Switching on the fridge

To switch on the fridge:

1. Press and hold the fridge temperature button for 5 seconds.

The display shows blinking On

1. The fridge compartment is switched on and the previous set temperature is restored.

To adjust the temperature, refer to "Temperature regulation".

4.6 ECO function

The ECO function sets the optimal temperature to ensure food preservation while minimizing energy consumption.

1. To activate the function press the ECO button.

The fridge temperature is set to +4°C and the freezer temperature to -18°C.

1. To deactivate the function, press the ECO button again or select a different set temperature (refer to "Temperature regulation").

After deactivating the ECO function, the fridge temperature is set to +2°C and the freezer temperature to -20°C.

Activation of the ECO deactivates Extra Cool and Extra Freeze functions.

The ECOMETER indicator shows the appliance's current energy consumption. Three fully lit bars indicate the most energy-efficient setup.

4.7 Extra Cool function

With the Extra Cool function, you may rapidly cool large amounts of warm food, for example after doing grocery shopping, without warming food already stored in the fridge compartment.

To activate the function, press the Extra Cool button.

The Extra Cool indicator lights up. When the Extra Cool function is on, the fan may work automatically.

This function stops automatically after approximately 6 hours. Once the function is off, the Extra Cool indicator goes out.

Press the Extra Cool button to deactivate the Extra Cool function before it automatically ends.

To set a different fridge temperature, switch off the Extra Cool function and refer to "Temperature regulation".

4.8 Extra Freeze function

Extra Freeze function is used to pre-freeze and fast freeze in sequence in the freezer compartment. This function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

To freeze fresh food, activate the Extra Freeze function at least 24 hours before placing the food to complete pre-freezing.

To activate this function, press the Extra Freeze button.

The Extra Freeze indicator lights up. The Extra Freeze function stops automatically after a maximum of 52 hours.

Press the Extra Freeze button to deactivate the Extra Freeze function before it automatically ends.

4.9 Fan function

The fridge compartment is equipped with a device that allows rapid cooling of food and ensures high uniformity of temperature in the compartment.

This device activates automatically when needed or manually.

To switch on the function, press the Fan button. The Fan indicator lights up.

To switch off the function, press again the Fan button. The Fan indicator goes out.

If the function is activated automatically, the Fan indicator will not light up. The activation of the Fan function may increase the noise and energy consumption.

The fan operates only when the door is closed.

4.10 High temperature alarm

When the temperature in the freezer compartment increases (for example due to an earlier power failure), the alarm indicator flashes, the freezer temperature indicator shows H^ and blinks and the sound is on. To deactivate the alarm, press any button.

The alarm indicator and sound go off. The freezer temperature indicator shows H^ for 5 seconds before indicating the freezer temperature again.

The alarm restarts one hour after deactivation until the normal conditions are restored.

If you do not press any button, the sound switches off automatically after around one hour to avoid disturbing.

4.11 Door open alarm

If the fridge door is left open for approximately 5 minutes or if the freezer door is left open for approximately 80 seconds, the sound is on and the door open alarm indicator turns on. The internal fridge light may also start flashing.

The alarm stops after closing the door. Press any button to switch off the sound.

If you do not press any button, the sound switches off automatically after around one hour to avoid disturbing.

4.12 Air filter change indicator

When the air filter has expired and requires replacement, the Air filter change indicator and the Filter Reset alarm indicator turn on.

Refer to "Installing and replacing the CleanAir + filter" section in "Care and cleaning" chapter for the replacement instructions.

After the filter replacement, press the Filter Reset alarm button to turn off the alarm.

4.13 Wi-Fi connectivity setup

This functionality allows you to connect your appliance to Wi-Fi network and to link it to your mobile device. With this functionality you can receive notifications, control and monitor your appliance from your mobile device.

To connect the appliance you need:

• Wireless network with the Internet connection,
• Mobile device connected to your wireless network.

Frequency/Protocol Wi-Fi: 2.4 GHz / 802.11 bgn

Power Wi-Fi 2.4 GHz: <20 dBm

Encryption WPA-PSK, WPA2-PSK, WPA3-Personal

Installing the mobile application

Take the following steps to connect the appliance to Wi-Fi:

1. Make sure that the appliance is plugged into a power socket and turned on.
2. Make sure that your mobile device is connected to the same wireless network you want to add your appliance to.
3. Download the dedicated application on your mobile device from Google Play (Android) or App Store (iOS) and install the application on your mobile device.
4. Open the app and register to create an account.

Configuring the appliance wireless connection

Follow the instructions in the app to complete the onboarding process:

1. Press and hold the Connectivity button on your appliance for 3 seconds until you hear a beep. This will start the Wi-Fi system.

2. After few seconds appears on the display and the Connectivity indicator starts blinking slowly.

3. Continue to follow the instructions in the app to complete the onboarding process.
4. While the process is ongoing, the display may temporarily show
   After the successful onboarding, the Connectivity indicator stops flashing and becomes solid. Display shows the set temperatures.

Disabling the appliance wireless connection

You can temporarily disable the Wi-Fi connection by pressing and holding the Connectivity button for 3 seconds. The Connectivity indicator switches off and the appliance beeps once.

Once the Wi-Fi connection is disabled, to automatically re-establish the connection press and hold the Connectivity button for 3 seconds.

After reset, the Connectivity indicator may be off. Wait a few seconds until it turns on.

Resetting the appliance wireless connection

Before you reset the Wi-Fi configuration, make sure that the Connectivity indicator is visible on the display. It means that the function is switched on. If the function is switched off, the attempt to reset the connection will turn the function on.

You can reset the Wi-Fi configuration by pressing and holding the Connectivity button for 10 seconds. The appliance will beep to confirm the successful reset.

To re-establish the connection, repeat all the steps described in section "Disabling the appliance wireless connection" section.

4.14 Setting mode

The Setting mode allows you to:

• Enable or disable the ECOMETER indicator

• Enable or disable the button sounds

• Change the temperature units from ^ to ^

• Reset the appliance to factory settings

Activating the Setting mode

To activate the Setting mode:

1. Press and hold the ECO button for approximately 3 seconds. When the Setting mode is being activated, the display shows a blinking SE EE

2. Once the Setting mode is switched on, the display shows PE On.

To deactivate the Setting mode, press and hold the ECO button for approximately 3 seconds.

The Setting mode deactivates automatically if you do not interact with the control panel for 60 seconds.

Navigating the Setting mode

1. Activate the Setting mode (refer to "Activating the Setting mode").
   The display shows PE On

2. Tap the fridge temperature button (on the left) to change the parameter. Tap the freezer temperature button (on the right) to change the parameter value.

Display Default parameters

PE On	ECOMETER indicator
tS On	Button sounds
CF 0C	Temperature units
FS 03	Factory settings

ECOMETER indicator

In order to switch the ECOMETER on or off:

1. Activate the Setting mode (refer to "Activating the Setting mode").
   The display shows PE On

2. Tap repeatedly. The indicator will show respectively for the enabled or of for the disabled ECOMETER indicator.

3. Press and hold the ECO button for approximately 3 seconds to exit the Setting mode.

Button sounds

You can enable or disable the button sounds in the Setting mode. To enable or disable the sounds:

1. Activate the Setting mode (refer to "Activating the Setting mode"). The display shows PE On
2. Tap PE repeatedly until you see tS tap On to switch the sounds either on or off. The indicator will change to for the enabled or for the disabled sounds.
3. Press and hold the ECO button for approximately 3 seconds to exit the Setting mode.

Temperature units

Using the Setting mode, you can change the temperature unit displayed on the control panel from Celsius to Fahrenheit. To change the temperature unit:

1. Activate the Setting mode (refer to "Activating the Setting mode").

The display shows PE On

1. Tap repeatedly until you see and . Tap the indicator showing the unit to select between for Celsius and for Fahrenheit.
2. Press and hold the ECO button for approximately 3 seconds to exit the Setting mode.

Factory settings

This function restores each setting to the factory default settings. To restore the factory default settings:

1. Activate the Setting mode (refer to "Activating the Setting mode"). The display shows PE On
2. Tap PE repeatedly until you see and 03. Tap 03 repeatedly until you see . on turns into blinking FS and then into solid , which indicates that factory settings are restored.
3. Press and hold the ECO button for approximately 3 seconds to exit the Setting mode.

5. DAILY USE

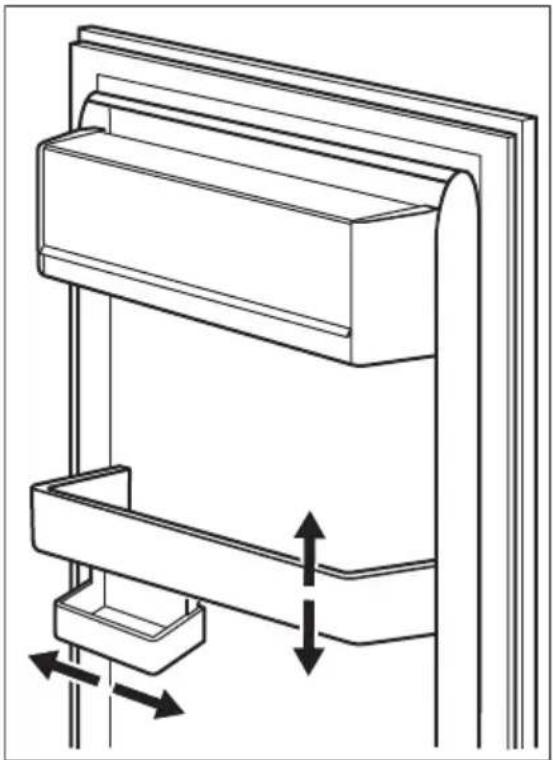

5.1 Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf up until it comes free.
2. Reposition as required.

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating movement (no text or symbols)

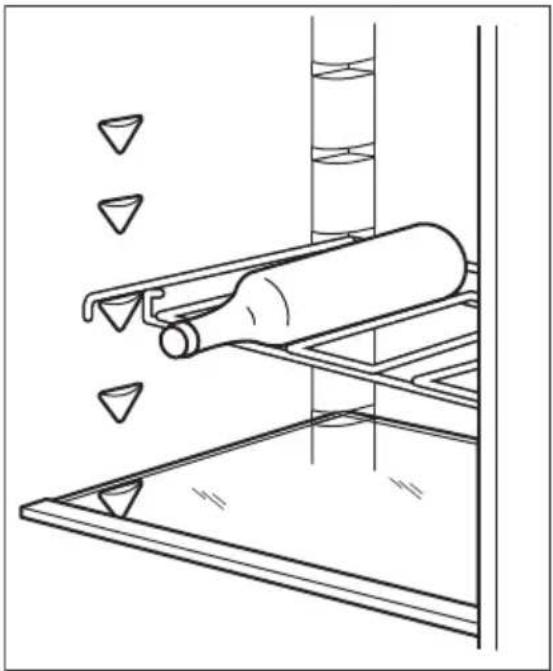

This model is equipped with a variable storage box which can be moved sideways.

5.2 Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

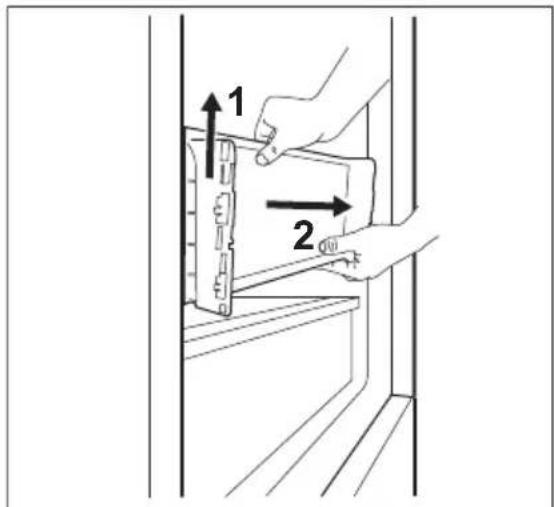

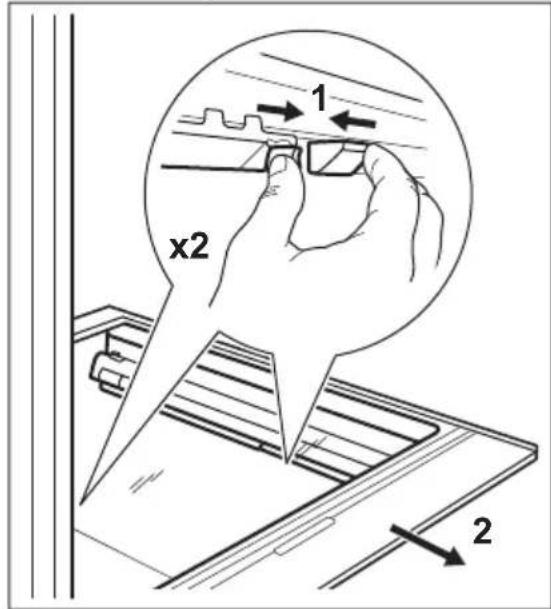

This appliance is also equipped with a shelf consisting of two parts. The front half of the shelf can be placed under the second half to make better use of space.

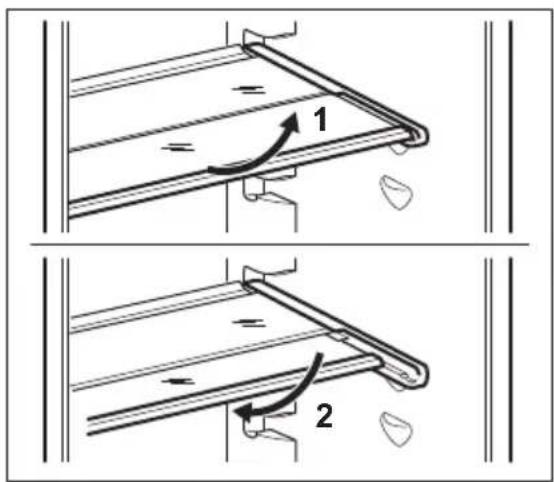

To fold the shelf:

1. Take out the front half gently.
2. Slide it into the lower rail and under the second half.

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

5.3 GreenZone drawer

There is a pull-out drawer in the bottom part of the refrigerator compartment.

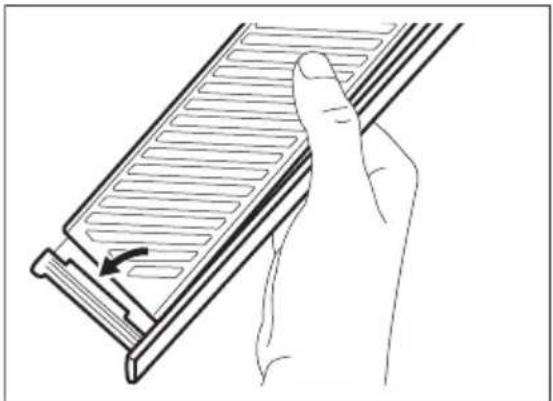

The glass shelf of the GreenZone is fitted with a device that regulates its sealing and provides for optimal humidity inside the drawer.

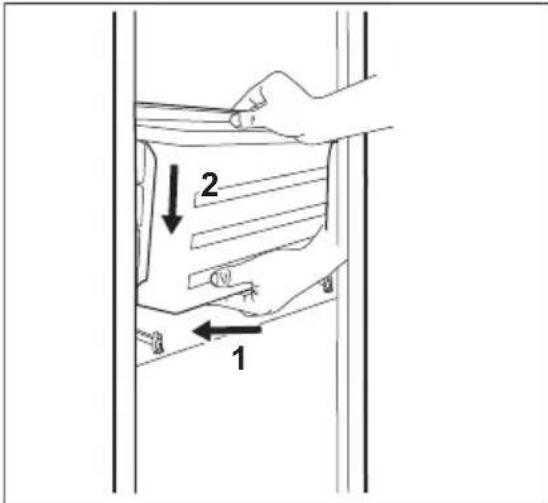

5.4 Removing GreenZone

It is recommended to empty the drawer before removing it from the refrigerator.

To remove the drawer:

1. Pull out the drawer from the refrigerator extending the rails fully.
2. Push the rails cap and lift up the front of the drawer.

Pure technical line drawing of a mechanical assembly with no text or symbols

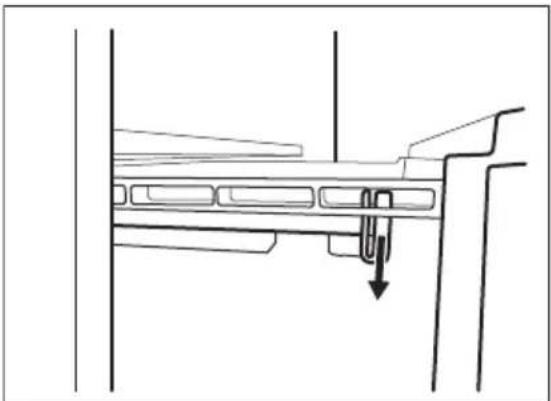

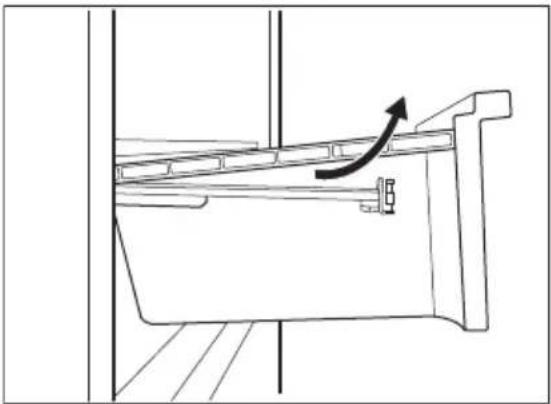

1. Pull the drawer out while lifting it up and detach it from the rails.

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

To reassemble:

1. Pull out the rails completely.

Technical line drawing of a structural joint or bracket assembly (no text or symbols)

1. Place the rear part of the drawer on the rails.

Line drawing of a door handle with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a door handle with an arrow indicating a component (no text or symbols)

1. Keep the front of the drawer lifted up while pushing the drawer in.

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

1. Press the front part of the drawer downwards.

i

Pull out the drawer again and check if it is placed correctly on both rear and front hooks.

To remove the glass cover of the GreenZone drawer:

1. Unlock lateral gripping from both sides simultaneously.

1. Pull the glass shelf support towards yourself.

5.5 Removing ExtraZone

There is a pull-out drawer above the GreenZone drawer.

i

It is recommended to empty the drawer before removing it from the fridge.

To remove the drawer:

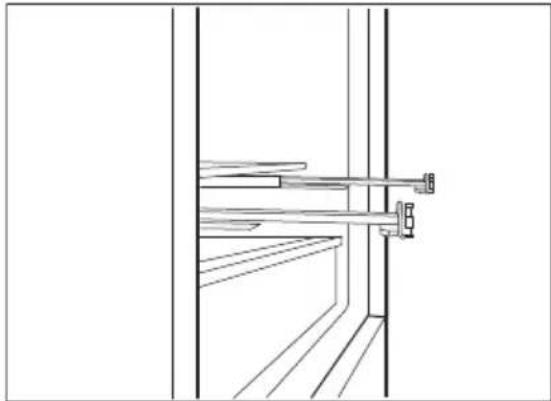

1. Pull out the drawer from the fridge extending the rails fully.

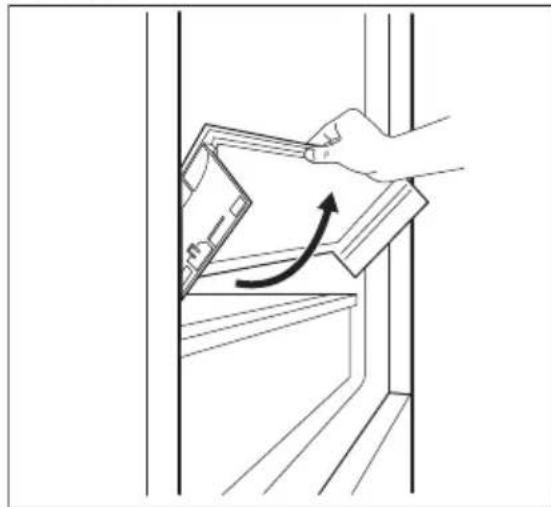

2. Push the rails cap and lift up the front of the drawer.

Line drawing of a hand opening a drawer with an arrow indicating direction (no text or symbols)

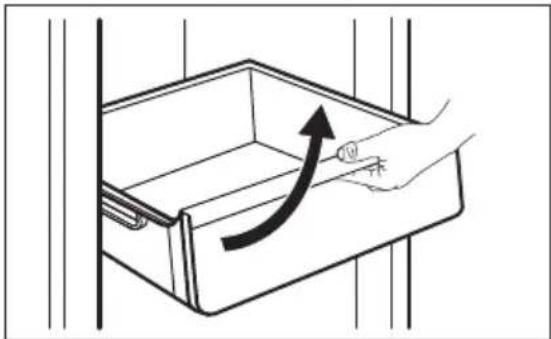

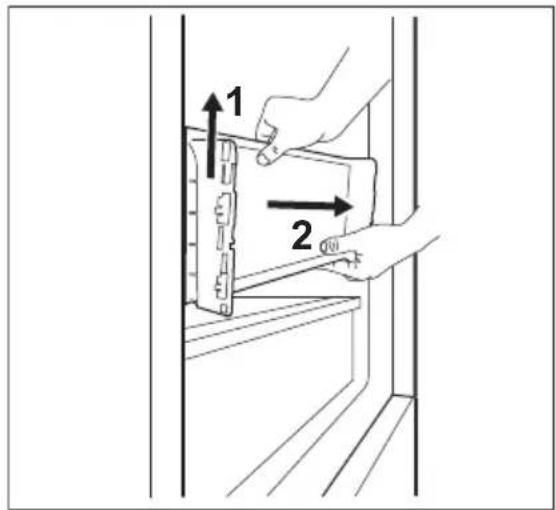

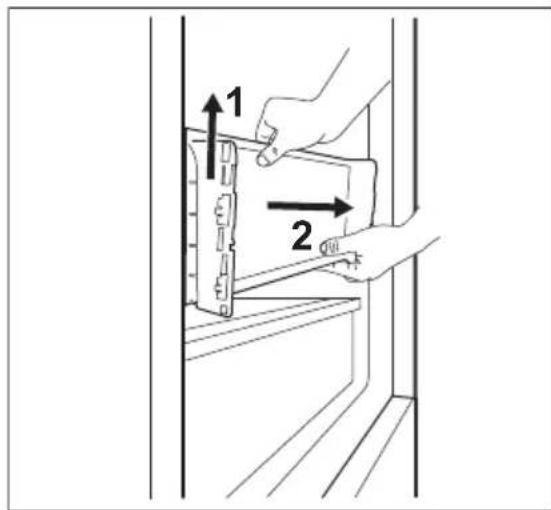

1. Pull the drawer out while lifting it up and detach it from the rails.

1. Push the rails inside the cabinet to avoid damage to the appliance when closing the door.

To reassemble:

1. Pull out the rails completely.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Place the rear part of the drawer on the rails.

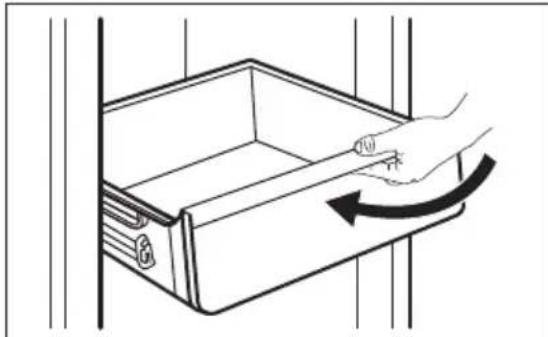

1. Keep the front of the drawer lifted up while pushing the drawer in.

Line drawing of a hand opening a drawer with an arrow indicating clockwise motion (no text or symbols)

1. Press the front part of the drawer downwards.

i

Pull out the drawer again and check if it is placed correctly on both rear and front hooks.

To remove the glass shelf:

1. Unlock lateral gripping from both sides simultaneously.

1. Pull the glass shelf support towards yourself.

Line drawing of a hand opening a door with an arrow indicating clockwise motion (no text or symbols)

5.6 Humidity control

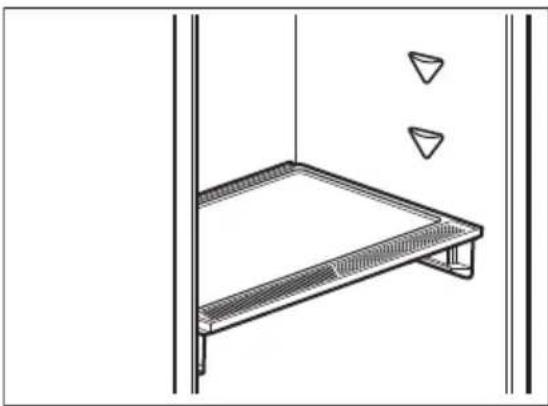

The glass shelf of the GreenZone drawer features a device that regulates its sealing and provides for optimal humidity inside the drawer.

Do not place any food products on the humidity control device.

Line drawing of a metal shelf with two triangular objects hanging from the side (no text or symbols)

To remove the humidity control device:

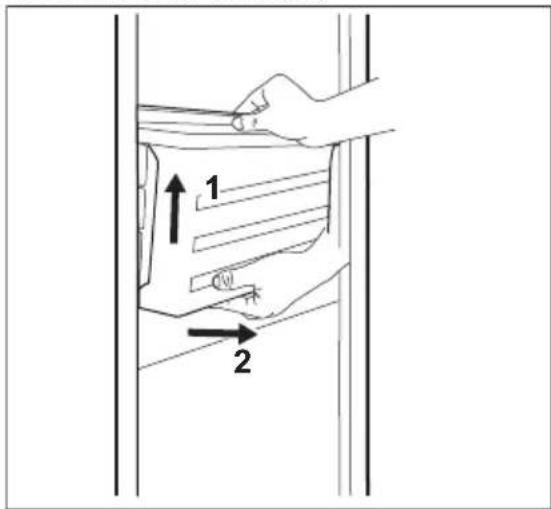

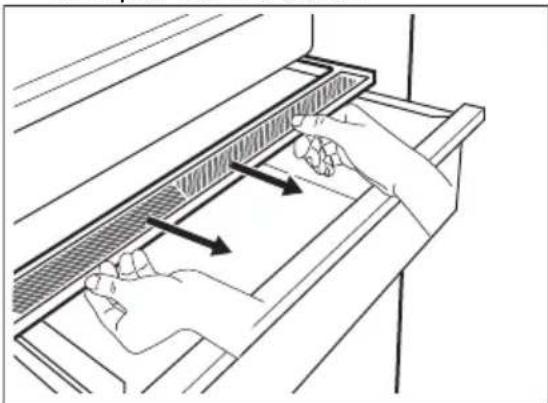

1. Open the drawer below the glass shelf and pull out the cover.

Line drawing of hands operating a window with arrows indicating direction (no text or symbols)

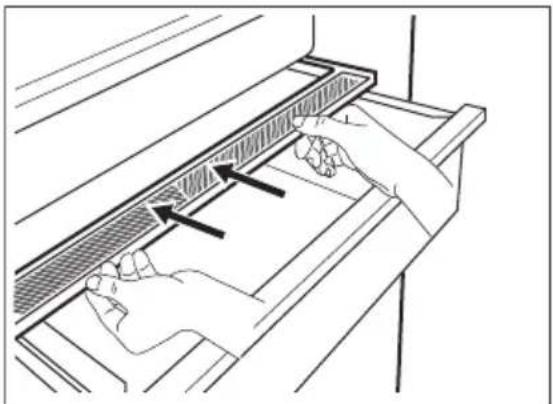

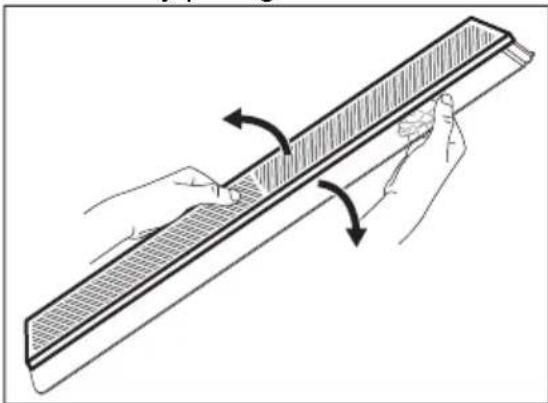

1. If you need to replace the device's white membrane, grab the device in the middle and separate the membrane from the cover by pulling the cover.

Diagram of a hand holding a rectangular object with a grid pattern, showing rotational arrows indicating movement (no text or symbols)

1. Assemble a new membrane into the cover by pressing the edge of the membrane into the cover.

Line drawing of a hand holding a tray with a scroll, showing a curved arrow indicating rotation (no text or symbols)

1. Reassemble the humidity control back on the drawer.

Line drawing of hands installing or adjusting a window frame on a tray (no text or symbols)

i

Depending on the quantity and condition of fruit and vegetables stored in the GreenZone drawer, condensation may occur.

In such a case, remove the condensation using a soft cloth.

5.7 Fan

The refrigerator compartment is equipped with a device that allows rapid cooling of foods and keeps a more uniform temperature in the compartment.

This device activates automatically when needed.

Simple line drawing of a rectangular object with a base and textured surface (no text or symbols)

It is also possible to switch on the device manually when needed (refer to "Fan function").

i

The fan operates only when the door is closed.

i

Do not remove the cover of the fan.

5.8 CleanAir+ filter

In the appliance, there is a CleanAir+ carbon filter.

The filter purifies the air from unwanted odours in the fridge compartment, improving the storage quality.

On delivery, the filter and its plastic housing are in a plastic bag with the other accessories (refer to "Installing and replacing the CleanAir + filter" section in "Care and cleaning" chapter for the installation).

5.9 Bottle rack

Place the bottles (with the opening facing front) in the pre-positioned shelf.

i

Place only closed bottles on the shelf.

Technical line drawing of a mechanical assembly with rollers and triangular components (no text or symbols)

5.10 Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Extra Freeze function at least 24 hours before placing the food to be frozen in the freezer compartment.

Store the fresh food evenly distributed in the first compartment or drawer from the top.

The maximum amount of food that can be frozen without adding other fresh food during 24 hours is specified on the rating plate (a label located inside the appliance).

When the freezing process is complete, the appliance automatically returns to the previous temperature setting (see "Extra Freeze function").

For more information refer to "Hints for freezing".

5.11 Storage of frozen food

When activating an appliance for the first time or after a period out of use, before putting the products in the compartment let the appliance run at least 3 hours with the Extra Freeze function switched on.

The freezer drawers ensure that it is quick and easy to find the food package you want.

Keep the food no closer than 15 mm from the door.

CAUTION!

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown on rating plate under "rising time", the defrosted food must be consumed quickly or cooked immediately then cooled and then re-frozen. Refer to "High temperature alarm".

5.12 Thawing

Deep-frozen or frozen food, prior to being consumed, can be thawed in the refrigerator or inside a plastic bag under cold water.

This operation depends on the time available and on the type of food. Small pieces may even be cooked still frozen.

5.13 Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Do not use metallic instruments to remove the trays from the freezer.

1. Fill these trays with water.

2. Put the ice trays in the freezer compartment.

6. HINTS AND TIPS

6.1 Hints for energy saving

• Freezer: The internal configuration of the appliance is the one that ensures the most efficient use of energy.
• Fridge: Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance and shelves evenly distributed. Position of the door bins does not affect energy consumption.
• Do not open the door frequently or leave it open longer than necessary.
• Freezer: The colder the temperature setting, the higher the energy consumption.
• Fridge: Do not set too high temperature to save energy unless it is required by the characteristics of the food.
• If the ambient temperature is high and the temperature control is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice formation on the evaporator. In this case, set the temperature control toward higher temperature to allow automatic defrosting and to save energy this way.
• Ensure a good ventilation. Do not cover the ventilation grilles or holes.
• Make sure that food products inside the appliance allow air circulation through dedicated holes in the rear interior of the appliance.

6.2 Hints for freezing

• Activate Extra Freeze function at least 24 hours before placing the food inside the freezer compartment.
• Before freezing wrap and seal fresh food in: aluminium foil, plastic film or bags, airtight containers with lid.
• For more efficient freezing and thawing divide food into small portions.
• It is recommended to put labels and dates on all your frozen food. This will help to identify foods and to know when they should be used before their deterioration.
  • The food should be fresh when being frozen to preserve good quality. Especially

fruits and vegetables should be frozen after the harvest to preserve all of their nutrients.

• Do not freeze bottles or cans with liquids, in particular drinks containing carbon dioxide - they may explode during freezing.
• Do not put hot food in the freezer compartment. Cool it down at room temperature before placing it inside the compartment.
• To avoid increase in temperature of already frozen food, do not place fresh unfrozen food directly next to it. Place food at room temperature in the part of the freezer compartment where there is no frozen food.
• Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer. Risk of frostbites.
• Do not re-freeze defrosted food. If the food has defrosted, cook it, cool it down and then freeze it.

6.3 Hints for storage of frozen food

• Freezer compartment is the one marked with ✱***
• Good temperature setting that ensures preservation of frozen food products is a temperature less than or equal to -18^ . Higher temperature setting inside the appliance may lead to shorter shelf life.
• The whole freezer compartment is suitable for storage of frozen food products.
• Leave enough space around the food to allow air to circulate freely.
• For adequate storage refer to food packaging label to see the shelf life of food.
• It is important to wrap the food in such a way that prevents water, humidity or condensation from getting inside.

6.4 Shopping tips

After grocery shopping:

- Ensure that the packaging is not damaged - the food could be deteriorated. If the package is swollen or wet, it might have

not been stored in the optimal conditions and defrosting may have already started.

• To limit the defrosting process buy frozen goods at the end of your grocery shopping and transport them in a thermal and insulated cool bag.
• Place the frozen foods immediately in the freezer after coming back from the shop.

6.5 Shelf life for freezer compartment

• If food has defrosted even partially, do not re-freeze it. Consume it as soon as possible.
• Respect the expiry date and the storage information on the package.

Type of food Shelf life (months)
Bread 3
Fruits (except citrus) 6 - 12
Vegetables 8 - 10
Leftovers without meat 1 - 2
Dairy food:
Butter	6 - 9
Soft cheese (e.g. mozzarella)	3 - 4
Hard cheese (e.g. parmesan, cheddar)	6
Seafood:
Fatty fish (e.g. salmon, mackerel)	2 - 3
Lean fish (e.g. cod, flounder)	4 - 6
Shrimps	12
Shucked clams and mussels	3 - 4
Cooked fish	1 - 2
Meat:
Poultry	9 - 12
Beef	6 - 12
Pork	4 - 6
Lamb	6 - 9
Sausage	1 - 2
Ham	1 - 2
Leftovers with meat	2 - 3

6.6 Hints for fresh food refrigeration

• Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4^ .
  Higher temperature setting inside the appliance may lead to shorter shelf life of food.

• Cover the food with packaging to preserve its freshness and aroma.
  • Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment.

• To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one.

• It is recommended to defrost the food inside the fridge.
• Do not insert hot food inside the appliance. Make sure it has cooled down at room temperature before inserting it.
  • To prevent food waste the new stock of food should always be placed behind the old one.

6.7 Hints for food refrigeration

- Fresh food compartment is the one marked (on the rating plate) with

• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
• Fruit and vegetables: clean thoroughly (eliminate the soil) and place in a special drawer (vegetable drawer).

• It is advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator.
  • Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator.

• Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.

• Bottles: close them with a cap and place them on the door bottle shelf, or (if available) on the bottle rack.
• In order to accelerate cooling down of the goods, it is advisable to turn on the fan. The activation of Fan allows greater homogenization of internal temperatures.
  • Always refer to the expiry date of the products to know how long to keep them.

7. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

7.1 Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION!

Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

CAUTION!

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

CAUTION!

Clean the control panel with a moist cloth. Do not use any detergents. After cleaning, wipe the control panel dry with a soft cloth.

7.2 Periodic cleaning

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.

7.3 Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

For this purpose use the tube cleaner provided with the appliance.

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

7.4 Defrosting of the freezer

The freezer compartment is frost free. This means that there is no build up of frost when it is in operation, neither on the internal walls, nor on the foods.

7.5 Installing and replacing the CleanAir+ filter

The CleanAir+ filter is an activated carbon filter that absorbs bad odours and allows you to preserve the best flavour and aroma for all foodstuffs without risk of odour cross-contamination.

Handle the air filter carefully to avoid scratching its surface.

On delivery, the air filter is in a plastic bag to preserve performance.

Install the air filter before activating the appliance.

1. Unpack the air filter from the plastic bag.
2. Open the plastic housing and put the pleated surface on the grid, fitting the filter inside the marked area on the gridded surface.

Diagram showing a structural component being lifted by an arrow, with no visible text or symbols.

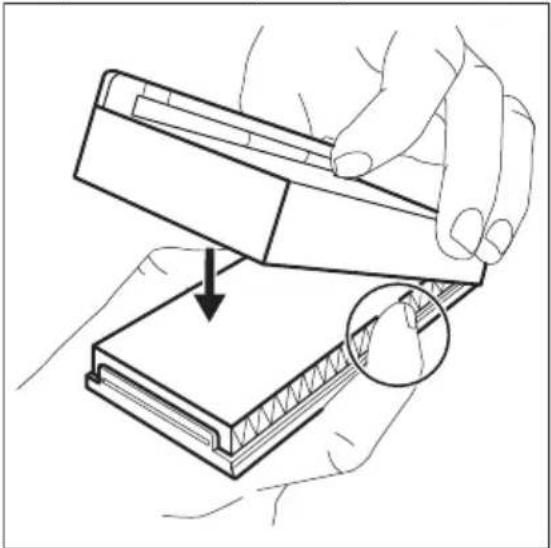

1. Hold the filter down while closing the plastic housing until you hear a click.

Illustration of hands assembling a layered electronic device with a magnified inset showing the internal structure (no text or symbols)

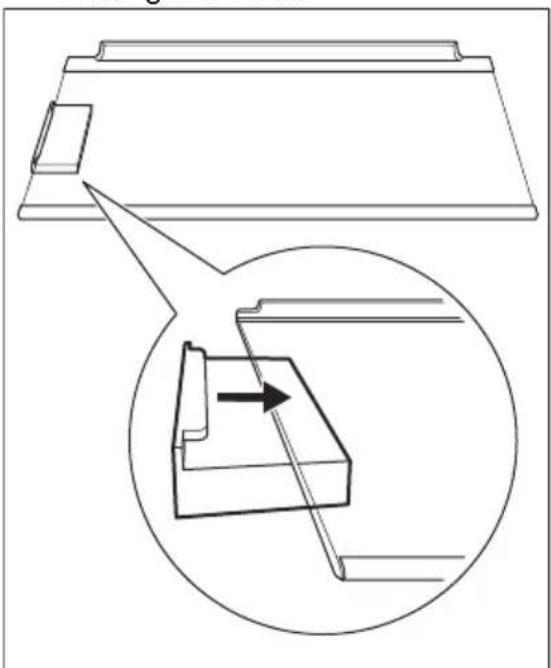

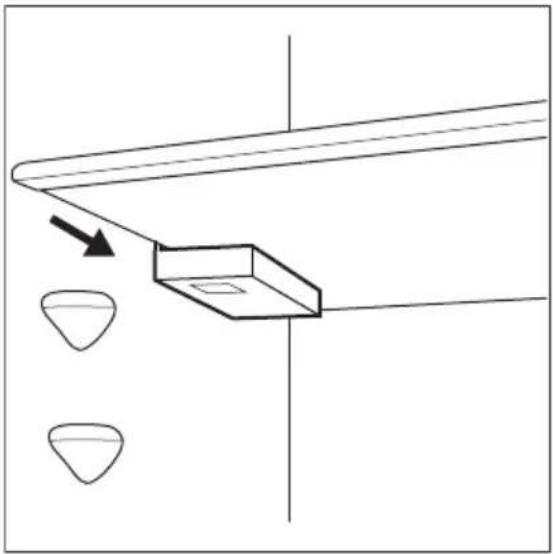

1. Remove the top glass shelf from the fridge compartment. Slip the plastic housing with the air filter on the left side of the glass shelf.

Technical line drawing of a mechanical component with an inset showing a pin inserted into a housing (no text or symbols)

1. Insert the glass shelf back in the fridge compartment. Be careful not to hit the filter when inserting the glass shelf.

Simple line drawing of a mechanical component with an arrow indicating direction, and two separate geometric shapes below (no text or symbols)

Replacing the air filter

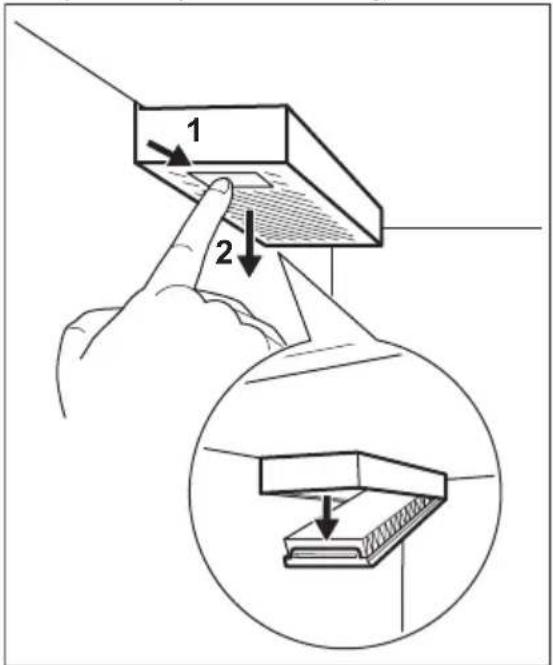

1. Open the plastic housing.

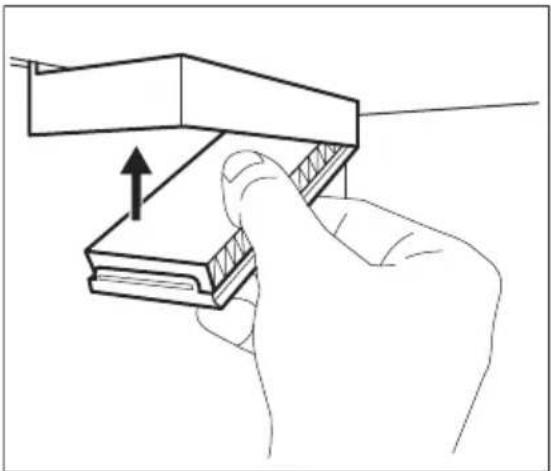

1. Pull out the used air filter.
2. Unpack the new air filter from the plastic bag and insert it in the drawer.
3. Close the plastic housing.

8. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

Hand holding a layered electronic component with an upward arrow indicating force or movement (no text or symbols present)

1. After the filter replacement, press the Filter Reset alarm button on the control panel to turn off the alert.

For best performance, place the plastic housing in the proper location (to the left of the glass shelf) and replace the air filter every 6 months. For more information refer to "Air filter change indicator".

The air filter is a consumable accessory and as such is not covered by the guarantee.

You can purchase new air filters from your local dealer.

7.6 Period of non-operation

When the appliance is not in use for long period, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the doors open to prevent unpleasant smells.

8.1 What to do if...

Problem Possible cause Solution
The appliance does not operate. The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.		Connect a different electrical appli-ance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.		Check if the appliance stands sta-ble.
Acoustic or visual alarm is on. The cabinet has been recently switched on.		Refer to "High temperature alarm" or "Door open alarm".
	The temperature in the appliance is too high.	Refer to "High temperature alarm" or "Door open alarm".
	The door is left open. Close the door.
The compressor operates continual-ly.	Temperature is set incorrectly. Refer to "Control panel" chapter.
Many food products were put in at the same time.		Wait a few hours and then check the temperature again.
The room temperature is too high. Refer to "Installation" chapter.
Food products placed in the appli-ance were too warm.		Allow food products to cool to room temperature before storing.
The door is not closed correctly. Refer to "Closing the door" section.
	The Extra Freeze function is switch-ed on.	Refer to "Extra Freeze function" section.
	The Extra Cool function is switched on.	Refer to "Extra Cool function" sec-tion.
The compressor does not start im-mediately after pressing the "Extra Freeze" or "Extra Cool", or after changing the temperature.	The compressor starts after a period of time.	This is normal, no error has occurred.
Door is misaligned or interferes with ventilation grill.	The appliance is not levelled. Refer to installation instructions.
Door does not open easily. You attempted to re-open the door immediately after closing.		Wait a few seconds between closing and re-opening of the door.
The lamp does not work. The lamp is in stand-by mode. Close and open the door.
	The lamp is defective. Contact the nearest Authorized Service Centre.
There is too much frost and ice.	The door is not closed correctly.	Refer to "Closing the door" section.
The gasket is deformed or dirty.	Refer to "Closing the door" section.
Food products are not wrapped properly.		Wrap the food products better.

Problem Possible cause Solution

Temperature is set incorrectly. Refer to "Control panel" chapter.
Appliance is fully loaded and is set to the lowest temperature.		Set a higher temperature. Refer to "Control panel" chapter.
Temperature set in the appliance is too low and the ambient temperature is too high.		Set a higher temperature. Refer to "Control panel" chapter.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost melts on the rear plate.	This is correct.
There is too much condensed water on the rear wall of the refrigerator.	Door was opened too frequently. Open the door only when necessary.
Door was not closed completely. Make sure the door is closed completely.
Stored food was not wrapped. Wrap food in suitable packaging before storing it in the appliance.
Water flows inside the refrigerator. Food products prevent the water from flowing into the water collector.		Make sure that food products do not touch the rear plate.
The water outlet is clogged. Clean the water outlet.
Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
Temperature cannot be set. The Extra Freeze function or Extra Cool function is switched on.		Switch off Extra Freeze function or Extra Cool function manually, or wait until the function deactivates automatically to set the temperature. Refer to "Extra Freeze function" or "Extra Cool function" section.
The temperature in the appliance is too low/too high.	The temperature is not set correctly. Set a higher/lower temperature.
The door is not closed correctly. Refer to "Closing the door" section.
The food products' temperature is too high.		Let the food products temperature decrease to room temperature before storage.
Many food products are stored at the same time.		Store less food products at the same time.
The door has been opened often. Open the door only if necessary.
	The Extra Freeze function is switched on.	Refer to "Extra Freeze function" section.
	The Extra Cool function is switched on.	Refer to "Extra Cool function" section.
There is no cold air circulation in the appliance.		Make sure that there is cold air circulation in the appliance. Refer to "Hints and tips" chapter.
Problem Possible cause Solution
dE on appears on the display.	The appliance is in the demonstration mode.	To exit the demonstration mode, press and hold the Extra Cool and ECO buttons for approximately 10 seconds until you hear 3 short beeps.
The symbol appears and the alarm indicator is on.	Communication problem. Contact the nearest Authorised Service Centre. The cooling system will continue to keep food products cold, but temperature adjustment will not be possible.
The or of Er t3Er t5symbol and the current setting appear alternately every 5 seconds and the alarm indicator is on.	Temperature sensor problem. Contact the nearest Authorised Service Centre. The cooling system will continue to keep food products cold, but temperature adjustment will not be possible.
Connectivity indicator is blinking red or white for a long time.	Connectivity issues. Make sure your internet connection is working properly. If the connection is not restored, try to switch off and on the wireless connection both on the appliance and the Wi-Fi access point. If the problem persists, perform a full reset of the appliance Wi-Fi connection and the reinstallation procedure for the product. If the problem persists, contact the nearest Authorised Service Centre.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

8.2 Replacing the lamp

The appliance is equipped with a longlife LED interior light.

Only service is allowed to replace the lighting device. Contact your Authorised Service Centre.

8.3 Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to installation instructions.
3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

9. NOISES

10. TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link

https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

11. INFORMATION FOR TEST INSTITUTES

Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552 (EU). Ventilation requirements, recess dimensions and

minimum rear clearances shall be as stated in this User Manual in "Installation". Please contact the manufacturer for any other further information, including loading plans.

12. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Technical line drawing of a mechanical assembly with no visible text or symbols

i

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols)

Pour remonter :

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Line drawing of a door handle mechanism with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a door handle and seat assembly without any text or symbols

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a pencil into a drawer with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand opening a drawer with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a hand placing a clipboard into a door, with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a metal shelf with two triangular objects hanging from the side (no text or symbols)

Line drawing of hands operating a window with arrows indicating direction (no text or symbols)

Diagram of hands holding a rectangular object with a grid pattern, showing rotational motion arrows (no text or symbols)

Line drawing of a hand holding a tray with a scroll, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of hands installing or adjusting a window frame with arrows indicating movement (no text or symbols)

i

Simple line drawing of a closed book with decorative base (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and triangular components (no text or symbols)

5.10 Congeler des aliments frais

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Diagram showing a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Illustration of hands using a tool to cut a rectangular object with a magnified inset showing the detail (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with an inset view of a stepped component (no text or symbols)

Hand holding a layered electronic component with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

i

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Line drawing of a door handle with an arrow pointing to the lock (no text or symbols)

Line drawing of a door handle with an arrow pointing to the lock (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a pencil into a drawer with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand opening a drawer with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a hand opening a door with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a metal shelf with two triangular objects hanging from the side (no text or symbols)

Line drawing of hands installing or adjusting a window frame on a tray (no text or symbols)

Diagram of hands holding a rectangular object with internal grid pattern, showing rotational arrows indicating movement (no text or symbols)

Line drawing of a hand holding a tray with a handle, showing a curved arrow indicating direction (no text or symbols)

Line drawing of hands installing or adjusting a window frame on a cabinet (no text or symbols)

Simple line drawing of a rectangular object with a base and textured surface (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and triangular components (no text or symbols)

Diagram showing a hand holding a tool inside a circular device with rotational arrows, no text or symbols present.

Diagram showing a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Illustration of hands installing or adjusting a layered electronic component, showing a mechanical assembly with a magnified inset (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a pin inserted into a housing (no text or symbols)

Simple line drawing of a ceiling-mounted cabinet with two triangular plates below, no text or symbols present

Hand holding a mechanical component with an upward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

i

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Line drawing of a door handle with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a door handle and seat assembly without any text or symbols

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand opening a drawer with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a hand opening a drawer with an arrow indicating rotation (no text or symbols)

Line drawing of a hand placing a clipboard into a door frame with an arrow indicating rotation (no text or symbols)

5.6 Контрола на влажност

Line drawing of a metal shelf with two triangular objects hanging from the side (no text or symbols)

Line drawing of hands operating a window with arrows indicating direction (no text or symbols)

Diagram of hands holding a rectangular object with a grid pattern, showing rotational motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and triangular components (no text or symbols)

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Diagram showing a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Illustration of hands installing or adjusting a layered electronic device with a magnified inset showing the component detail (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of a stepped component (no text or symbols)

Pure technical diagram showing a mechanical component with two triangular shapes below and an arrow indicating direction (no text or symbols)

Hand holding a layered electronic component with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols)

Para volver a montar:

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Line drawing of a door handle with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a door handle with an arrow indicating a component (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a curved arrow into a drawer (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand opening a drawer with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a hand opening a door with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a metal shelf with two triangular objects hanging from the side (no text or symbols)

Line drawing of hands holding a tray with arrows indicating movement or force (no text or symbols)

Diagram of hands holding a rectangular object with a grid pattern, showing rotational arrows indicating movement (no text or symbols)

Line drawing of a hand holding a tray with a scroll, showing a curved arrow indicating direction (no text or symbols)

Line drawing of hands installing or adjusting a window frame on a tray (no text or symbols)

i

Simple line drawing of a closed book with decorative border (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and triangular components (no text or symbols)

Illustration of a hand holding a tool inside a circular frame with rotational arrows (no text or symbols)

Diagram showing a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Illustration of hands installing or adjusting a layered electronic component, showing a mechanical assembly with a magnified inset (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a pin inserted into a housing (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction, and two separate geometric shapes below (no text or symbols)

Hand holding a mechanical component with an upward arrow indicating force or movement (no text or symbols present)

The software in this product contains components that are based on free and open source software. Electrolux gratefully acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://electrolux.opensoftwarerepository.com (folder NIUS)
