Car Vacuum Cleaner 12 V / 60 W

Article No. 93 15 12

CE

Illustration of a person in a suit standing on water with a device, surrounded by greenery and a hat (no text or symbols)

Ladies and Gentlemen

Please acquaint yourself with the appliance by reading the chapters of this manual in the given order and store the manual in a safe place for later reference. Please observe these safety instructions at all times!

This is intended to make correct use easier for you and help prevent misunderstandings and damage.

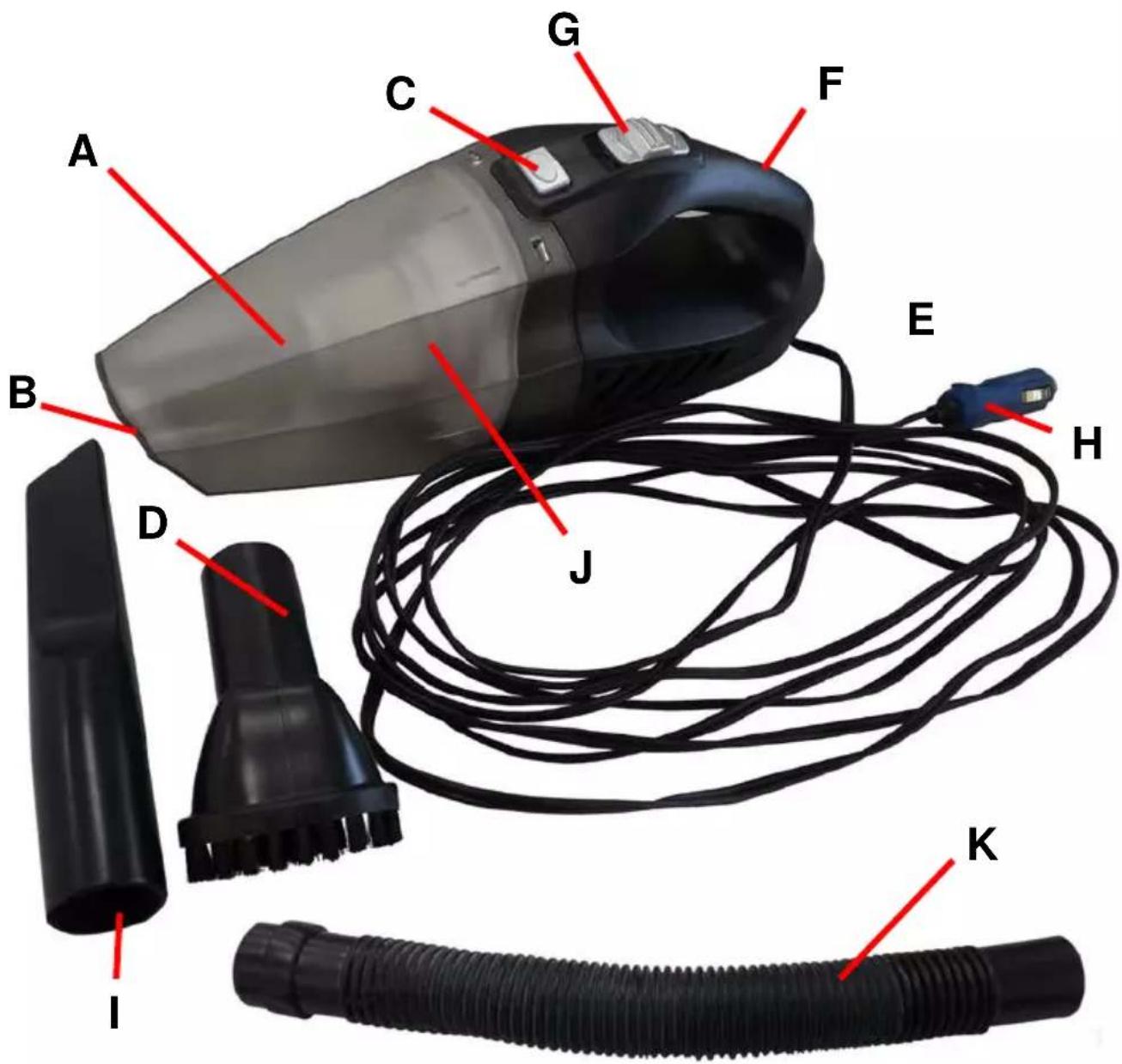

A B C G F E H J D I K

Assembly and Operation......Page 14

Emptying the Dust Collector ....Page 15

Fuse......Page 15

Cleaning the Car Vacuum Cleaner......Page 15

Troubleshooting ......Page 16

Technical Data......Page 16

Please note the following safety notes to avoid malfunctions, damage or physical injury:

• Please read this manual carefully and use the unit only according to this manual.
  Before using the vacuum cleaner, please check the operating manual of your vehicle and inform yourself about the maximum permitted connected load of your cigarette lighter socket or your boat's supply system socket!
• Only use the provided accessories. Non-original accessories can cause irreparable damage to the appliance.
• Do not use to suck up liquids or burning or glowing substances.
• Do not block the suction tube. Keep it free from dust, lint, hair, and anything else that might block the airflow. Keep hair, loose clothing, fingers and other body parts out of openings and away from moving parts.
  ■ Never operate the vacuum cleaner without a filter.
• Never use the unit in moist environments and store it in a dry place.
  ■ Make sure that you never direct the suction opening at people or animals. Keep the appliance away from small children.
• Please note that if you use the appliance for a long period of time (current consumption 5 A), your car battery could run down which will result in starting problems.
• Please note that on most vehicles the cigarette lighter socket or boat's supply system socket is only switched on when the ignition is turned on. If not using the appliance, please remove the plug from the socket in order to avoid the battery running down as a result of the appliance being switched on inadvertently.
• In the event of any damage to the appliance or the connecting lead, do not continue using the appliance and have it repaired by a qualified technician.
• The unit does not contain any parts serviceable by you. Do not disassemble it and do not try to repair it yourself. Contact our customer support service.

The vacuum cleaner is the perfect appliance for all those small cleaning jobs. Cars, boats, inaccessible and hidden corners and small areas can be cleaned quickly and easily with this appliance. And the permanent filter system means you do not have to change any filter bags any more. Just empty the container and clean the filter from time to time.

Before first Use

Take the appliance and all parts out of the packing. Keep packing away from small children. There is danger of suffocation!

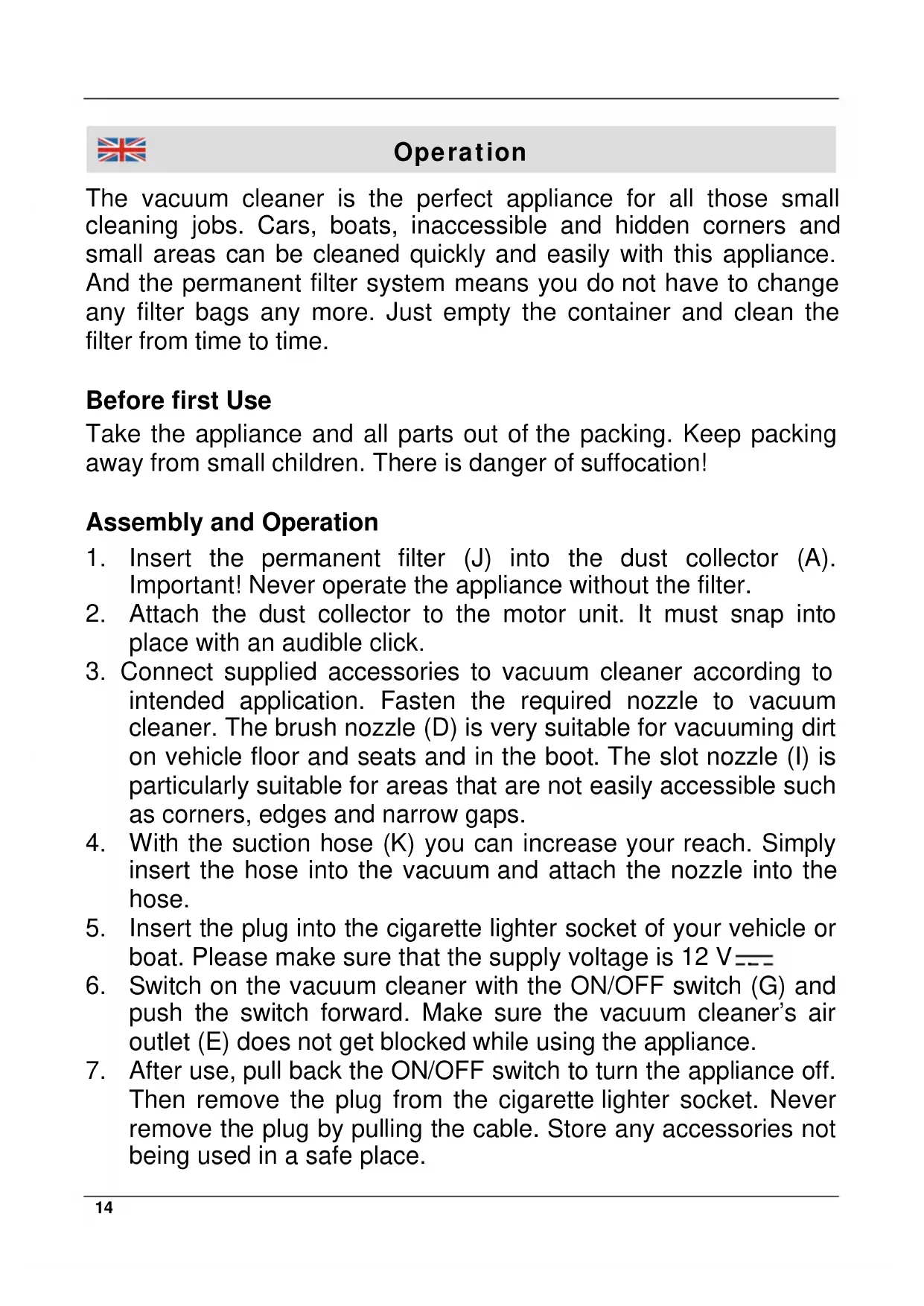

Assembly and Operation

1. Insert the permanent filter (J) into the dust collector (A). Important! Never operate the appliance without the filter.

2. Attach the dust collector to the motor unit. It must snap into place with an audible click.

3. Connect supplied accessories to vacuum cleaner according to intended application. Fasten the required nozzle to vacuum cleaner. The brush nozzle (D) is very suitable for vacuuming dirt on vehicle floor and seats and in the boot. The slot nozzle (I) is particularly suitable for areas that are not easily accessible such as corners, edges and narrow gaps.

4. With the suction hose (K) you can increase your reach. Simply insert the hose into the vacuum and attach the nozzle into the hose.

5. Insert the plug into the cigarette lighter socket of your vehicle or boat. Please make sure that the supply voltage is 12 V____

6. Switch on the vacuum cleaner with the ON/OFF switch (G) and push the switch forward. Make sure the vacuum cleaner's air outlet (E) does not get blocked while using the appliance.

7. After use, pull back the ON/OFF switch to turn the appliance off. Then remove the plug from the cigarette lighter socket. Never remove the plug by pulling the cable. Store any accessories not being used in a safe place.

Emptying the Dust Collector

1. Switch the vacuum cleaner off and remove the plug from the cigarette lighter socket.
2. Press the button (C) to detach the dust collector (A) from the motor unit. Pull the permanent filter (J) out of the motor unit and empty the dust collector (A).
3. Clean the permanent filter (J) by brushing and knocking. If the filter is very dirty, it can be washed clean in tepid soap suds. Make sure that it has dried completely before putting back.

Hint

■ We recommend cleaning the filter over a dustbin.
- Check the filter for damage before fitting back into appliance. A damaged filter could cause lasting damage to the appliance.

Fuse

- The vacuum cleaner is protected with a 10 A fuse that is situated inside the plug. If the fuse is activated, change the fuse as described.

Cleaning the Car Vacuum Cleaner

■ Use a dry or slightly moist cloth to clean the appliance. The ventilation slots can easily be cleaned with a brush.
- Do not use chemicals or solvents such as petrol to clean the machine.
■ Never immerse the motor unit in liquids of any kind.

Operation

Troubleshooting

Problem	Cause	Solution
Suction power is weak	Dust filter dirty	Clean dust filter
	Dust container full Empty dust container
Motor does not operate	ON/OFF switch not switched on	Switch to “ON” position
	Machine not plugged in	Plug in power cord
	Fuse in the plug triggered	Replace Fuse
	Fuse in the vehicle triggered	Replace fuse
Motor overheating	A hot motor is normal if the machine is running for an extended period of time. If the machine gets too hot you should switch it off for 15 minutes and allow it to cool down. Note: Make sure that the ventilation slots in the motor casing are not covered while using the machine.

Technical Data

Rated Voltage	12 V---
Max. Consumption 5 A
Rated Output 60 W
Fuse	F 10 A 6 x 30 mm
Cable Length 4.7 m
Weight 500 g

declare by our own responsibility that the product

Car Vacuum Cleaner 12 V / 60 W

Article No. 93 15 12

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

Hagen, den 2. September 2019

Hagen, 2 ^nd of September, 2019

Jhomo Klingbeil

Thomas Klingbeil,
