942437 - Hand truck Westfalia - Free user manual and instructions

Brand	Westfalia
Model	942437
Product type	Hand truck (transport cart)
Load capacity on floor	68 kg
Load capacity on stairs	30 kg
Dimensions (H x W x D approx.)	110 x 40 x 40 cm
Net weight approx.	10 kg
Main material	Steel
Wheel type	Pneumatic or polyurethane
Main functions	Transport of goods, stair climbing
Surface of use	Flat floor and stairs
Maintenance and cleaning	Clean with a damp cloth, store in dry place
Safety	Do not overload, use on flat surfaces, chock wheels, do not transport people
Spare parts and repairability	Replaceable wheels and handle
General information	Not structurally modifiable, check before use
Warranty	2 years

Frequently Asked Questions - 942437 Westfalia

What is the maximum load capacity of this hand truck?

The maximum capacity is 68 kg on the floor and 30 kg on stairs. Do not exceed these limits.

Can I transport people with this hand truck?

No, this hand truck is not suitable for transporting people or animals. It is designed only for goods.

How to maintain my Westfalia 942437 hand truck?

Clean it with a damp cloth and store it in a dry, ventilated place, protected from dust and extreme temperatures.

Can I use this hand truck on all types of floors?

Yes, but be careful: on wood, laminate, linoleum or carpet, the tires may leave difficult-to-remove marks.

Is this hand truck suitable for stairs?

Yes, it allows climbing stairs with a maximum load of 30 kg. Be especially careful near stairs and slopes.

What to do if a part is damaged?

Regularly check the condition of the wheels, handle, and fasteners. Spare parts (wheels, handle) are replaceable. Do not make any structural modifications.

Can this hand truck be used by children?

No, never let children use this hand truck without supervision. It is not a toy.

How to store the hand truck after use?

Store it in a clean, dry place, protected from dust and humidity. Use chocks to prevent it from rolling.

Can I modify or weld parts on this hand truck?

No, the hand truck must not undergo any structural modification. This would compromise its safety and warranty.

How to avoid accidents during use?

Before each use, check the strength of all parts. Place the hand truck on a flat surface and use chocks if necessary. Do not overload and be vigilant near obstacles.

USER MANUAL 942437 Westfalia

Mechanical lifting device with black and silver frame, blue handle, and white frame base (no text or symbols visible)

Original Instructions

Collapsible Stair Trolley

Article No. 94 24 37

Illustration of a person in camouflage gear using a tool to dig or watch through water, with no visible text or symbols.

Dear Customers

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage.

Please take the time to read this manual carefully and keep it for future reference.

Cross-sectional diagram of a mechanical assembly with blue and black components, showing internal layered structure (no text or symbols)

Abmessungen

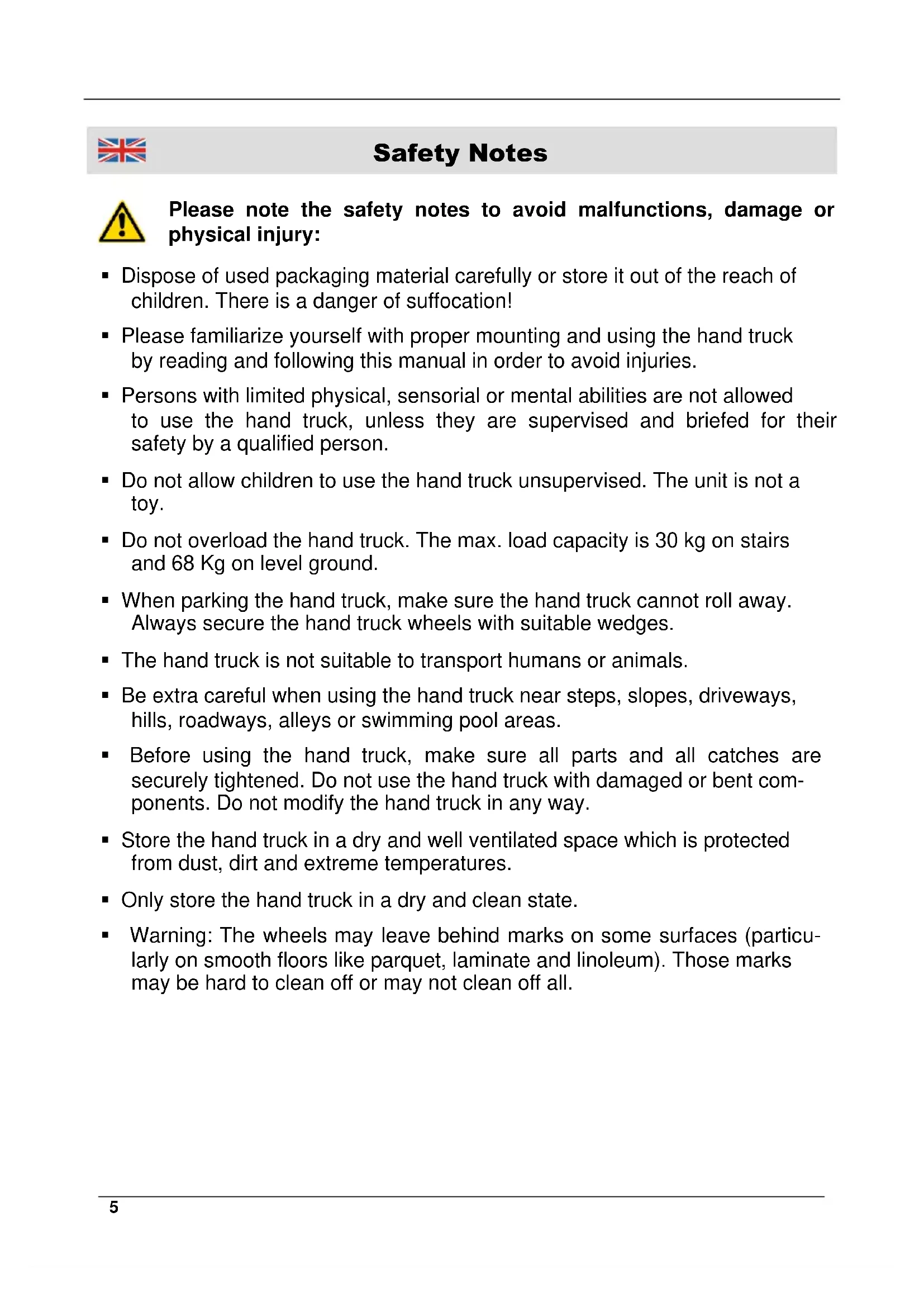

Please note the safety notes to avoid malfunctions, damage or physical injury:

• Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
• Please familiarize yourself with proper mounting and using the hand truck by reading and following this manual in order to avoid injuries.
• Persons with limited physical, sensorial or mental abilities are not allowed to use the hand truck, unless they are supervised and briefed for their safety by a qualified person.
• Do not allow children to use the hand truck unsupervised. The unit is not a toy.
• Do not overload the hand truck. The max. load capacity is 30 kg on stairs and 68 Kg on level ground.
• When parking the hand truck, make sure the hand truck cannot roll away. Always secure the hand truck wheels with suitable wedges.
• The hand truck is not suitable to transport humans or animals.
• Be extra careful when using the hand truck near steps, slopes, driveways, hills, roadways, alleys or swimming pool areas.
  ■ Before using the hand truck, make sure all parts and all catches are securely tightened. Do not use the hand truck with damaged or bent components. Do not modify the hand truck in any way.
• Store the hand truck in a dry and well ventilated space which is protected from dust, dirt and extreme temperatures.
• Only store the hand truck in a dry and clean state.
• Warning: The wheels may leave behind marks on some surfaces (particularly on smooth floors like parquet, laminate and linoleum). Those marks may be hard to clean off or may not clean off all.

Operation

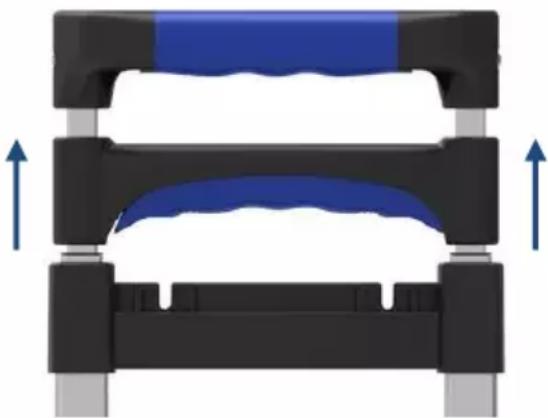

The hand truck can be collapsed. To collapse the hand truck fold up the toe plate and pull together the two cross braces of the handle to be able to push down the handle. The wheel assemblies should lock in place in such a way that one wheel points out on each side. If necessary turn the assemblies until they fold flat.

To unfold the hand truck, fold the toe plate out. Unlock the handle by pulling up the lower cross brace and pull out the handle. Before use make sure handle and toe plate have locked in place securely.

Cross-sectional diagram of a mechanical assembly with blue and black components, showing internal layers and directional arrows (no text or symbols)

Dimensions

Operational: 995 x 410 x 414 mm (H x W x D)

Collapsed: 635 x 390 x 67 mm (H x W x D)

Dimensions of the Toe Plate: 235 x 390 mm

Wheel Diameter and Width: 55 x 25 mm

Weight: 3.16 kg

Load Capacity: 30 kg on Stairs, 68 Kg on Level Ground

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
