Product type	Electric convector heater
Brand	Emerio
Model	MH-111130.1
Heating power	2200-2400 W (adjustable: 1000 W / 1400 W / 2400 W)
Supply voltage	220-240 V ~ 50/60 Hz
Heating type	Electric heater with mechanical thermostat
Settings	3 power levels + rotary thermostat
Recommended heating area	Up to 25 m² (estimate)
Safety	Overheat protection, tilt switch
Castors	Yes, 4 castors included
Installation	On legs with castors, floor-standing
Cleaning	Damp cloth, do not immerse, do not use abrasive cleaners
Material	Metal body, plastic parts
Approximate dimensions	60 x 20 x 50 cm
Approximate weight	5.5 kg
Usage	Indoor use only, do not cover
Warranty	2 years
Included accessories	Legs, castors, screws, user manual
Recycling	Compliant with WEEE, do not dispose of with household waste

Frequently Asked Questions - MH-111130.1 Emerio

How to adjust the temperature?

Turn the thermostat clockwise to increase the temperature, and counterclockwise to decrease it. The thermostat automatically maintains the chosen temperature.

How to clean the heater?

Unplug the appliance and let it cool down. Clean the exterior with a clean damp cloth, then dry. Do not use harsh chemicals and do not immerse the appliance.

What to do if the heater does not heat?

Check that the appliance is plugged in and the thermostat is set above room temperature. Make sure the power button is in a position other than 0. If the problem persists, contact a professional.

Is it safe to leave the heater on overnight?

The heater is equipped with safety devices (overheat protection and tilt switch). However, it is not recommended to leave it unattended, especially in a room where vulnerable people or children are present.

Can I use an extension cord?

It is not recommended to use an extension cord as it may cause overheating. If necessary, use an extension cord with sufficient cross-section (at least 1.5 mm²) and fully unwound.

The heater makes noise, is it normal?

A slight metallic expansion noise may occur during heating and cooling. If the noise is loud or unusual, check that the heater is level and the castors are properly attached.

How to assemble the legs and castors?

Turn the heater upright. Attach the two legs under the appliance using the provided screws, then insert the four castors into the legs. Place the heater on a flat surface.

What is the power consumption?

The maximum power is 2400 W. In use, it varies depending on the selected level: 1000 W, 1400 W or 2400 W. Actual consumption depends on the thermostat.

The heater turns off by itself, why?

This may be due to the overheat protection if the appliance is covered or obstructed, or the tilt switch if it is tilted. Let it cool down, remove any objects, and place it on a stable surface.

Can I mount the heater on the wall?

No, this heater is designed for floor use only, with the provided legs and castors. Do not mount it on the wall.

USER MANUAL MH-111130.1 Emerio

Exterior view of a black electric heater with grid pattern and control legs (no text or symbols visible)

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m >0.25m

Technical diagram showing a mechanical device and a safety enclosure with distance annotations in meters.

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m

Uređaj uvijek postavite na sigurnoj udaljenosti od zapaljivih materijala i gasova.

Technical line drawing of a mechanical component with no visible text or symbols

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with no visible text or symbols

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m

Technical line drawing of a mechanical bracket assembly (no text or symbols)

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with mounting holes and a curved handle (no text or symbols)

>0.25m >0.25m >0.25m >0.25m

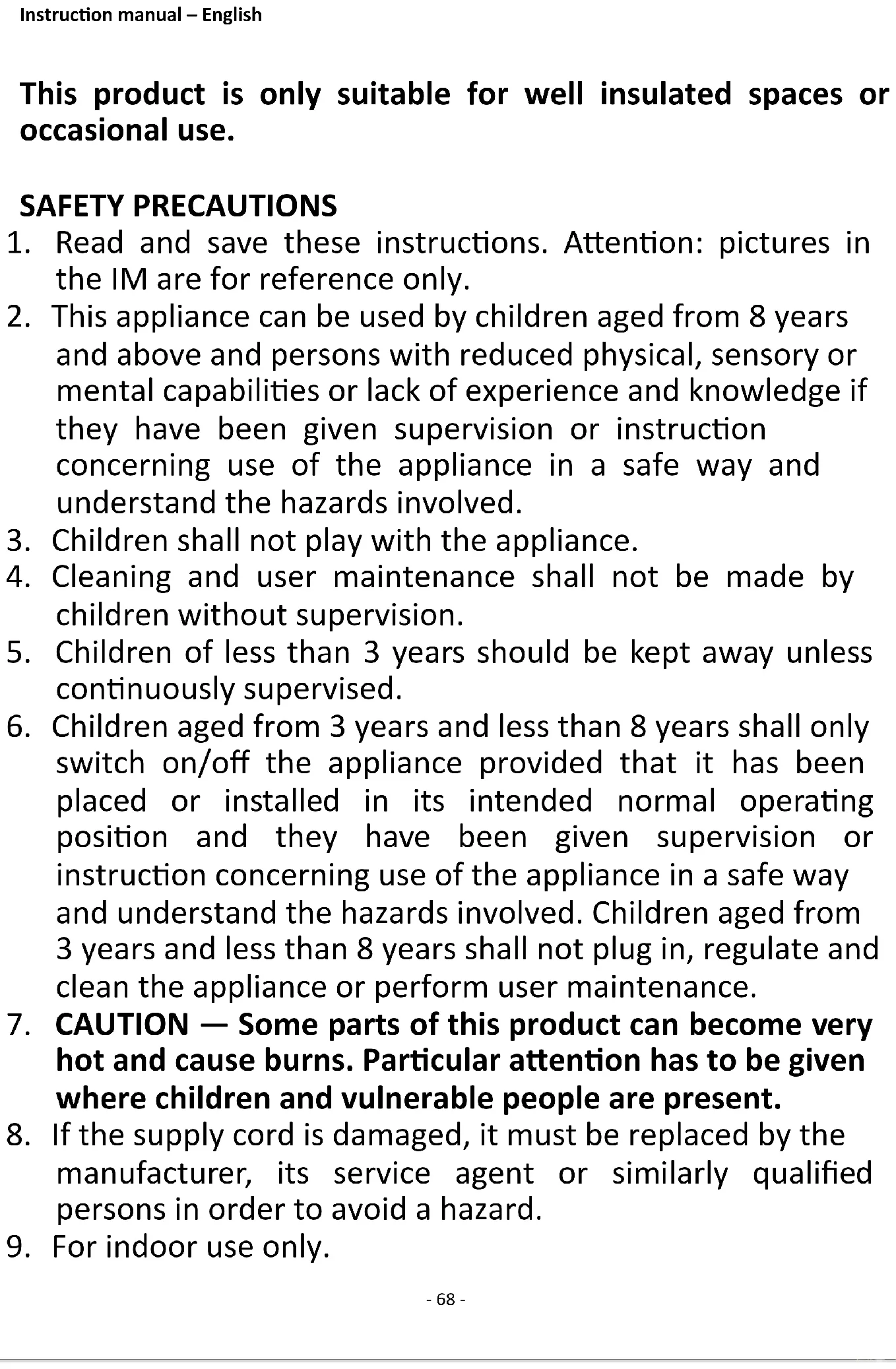

This product is only suitable for well insulated spaces or occasional use.

SAFETY PRECAUTIONS

1. Read and save these instructions. Attention: pictures in the IM are for reference only.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. Children of less than 3 years should be kept away unless continuously supervised.
6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
7. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. For indoor use only.

10. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

11. This appliance is intended to be used in household and similar applications.

12. Before the first use, please read the manual carefully. Keep it for later reference, and hand it over to its new owner, if you give the appliance to another person.

13. WARNING: In order to avoid overheating, do not cover the heater.

14. The heater must not be located immediately below a socket outlet.

15. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

16. Do not use the appliance with damp hands or on wet ground.

17. Do not hold the appliance under running water or other liquids.

18. Do not move the appliance while in use.

19. Do not hang any clothing on the heater to dry.

20. Do not lay the power cable under a carpet.

21. The heater must always be operated in an upright position.

22. Under no circumstances open the housing yourself.

23. Never leave the appliance unattended and keep children away from it! For the same reason the appliance should not be operated with automatic timer switches!

24. Never cover the appliance and ensure sufficient distance to flammable material! Otherwise there is a risk of fire and explosion.

25. To avoid the risk of electric shock, never insert any objects into the casing or through the guard of the appliance.

26. The metal housing of the appliance can become very hot during operation. To avoid burns, never touch it during operation and keep children away from it. When you stop using the appliance, let it cool down for an adequate amount of time before you touch or store it. If you do not use the appliance for long time, always disconnect it from the mains.

27. Prior to every use, ensure that the appliance is undamaged and in perfect condition. If the appliance is damaged, in particular housing, cord, or power plug, do not connect it to the mains.
28. If the appliance falls, the heating element (the plate behind the guard inside the appliance) can break. Examine the heating element before every use. Do not continue to use the appliance if the heating element is broken.
29. Never open the appliance yourself. If repairs are necessary, have it repaired by a qualified expert.

1. means "DO NOT COVER".

2. Do not use this heater if it has been dropped.

3. Do not use if there are visible signs of damage to the heater.
4. Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.
5. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
6. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable materials a minimum distance of 1 m from the air outlet.
7. Regarding the information pertaining to the installation, please refer to the below paragraph of the manual.

INSTALLATION AND FIRST USE

• Take the appliance out of the packaging and remove the protective bag.
- Take the appliance upside down. Attach the two feet onto the bottom of the appliance and fix with the provided screws. Insert the four small wheels into the two feet. Then place the appliance on an even, firm and clean surface, and observe the safety distance between the appliance and other objects.

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m >0.25m

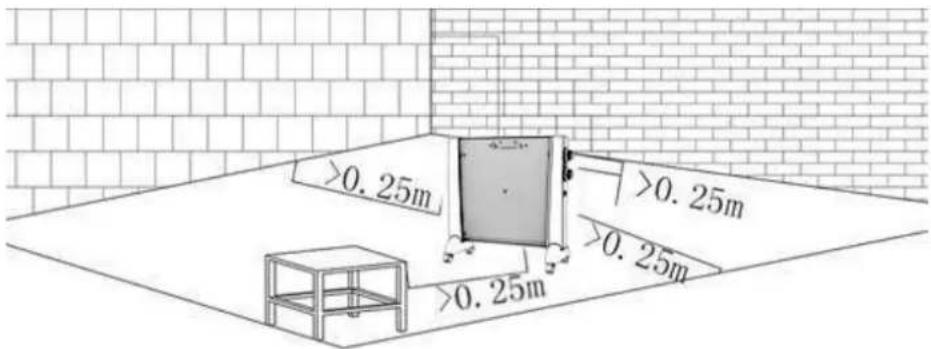

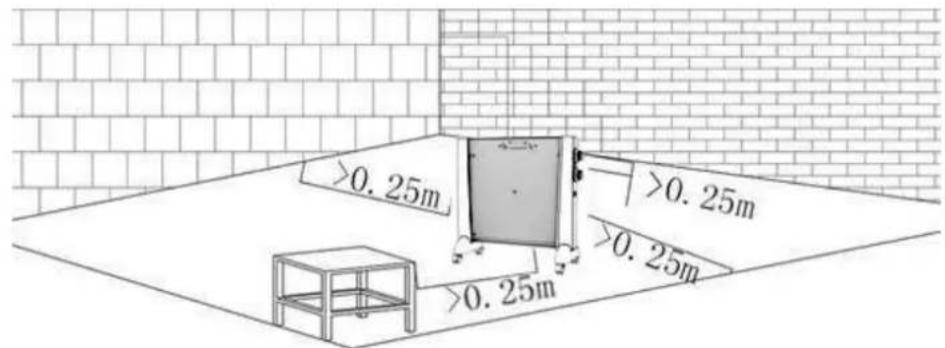

Always place the appliance with a sufficient safety distance to inflammable materials or gases.

Ensure that housing, heating element, power cord and plug are not damaged.

PARTS DESCRIPTION

1. Power setting switch
2. Indicator light
3. Thermostat control
4. Guard, interior heating element
5. Castors

1 2 3 4 5

USING THE APPLIANCE

• Set the thermostat to the minimal position and insert the plug to the power supply.
• Turn the thermostat control clockwise all the way round until you hear a "click" sound, this sound indicates that the appliance is activated.
  • Turn on the power setting switch to choose the setting 1000W / 1400W / 2400W.
• Turning the thermostat clockwise will always increase the set temperature; turning it anticlockwise will decrease the set temperature.
  • The thermostat will automatically turn the heater on and off to keep the setting temperature.

SAFETY SYSTEM

• The appliance has a safety system which automatically switches the unit off when overheated.
- If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 30 minutes. Put the plug in the socket and switch on the heater.
- This heater is equipped with a tilt protection safety device. It has tilt protection safety functions and automatically switches off the power. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally.

CLEANING

- Always disconnect the appliance from the mains before cleaning it! Ensure that it has cooled down completely.

• Clean the outside of the appliance with a damp and clean cloth and dry it with a dry cloth afterwards.
• Never use aggressive cleaning agents or chemicals, only use mild detergents.
• Never disassemble the appliance for cleaning.
• Never rinse or spray the appliance with water.
• Do not immerse the appliance in water or other liquids.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 2200-2400W

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

ERP information (GB)

Supplier: BAHAG AG

Gutenbergstr. 21

68167 Mannheim

GERMANY

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s): 21768363, 21768451
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,42	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	0	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	P_max,c	1,42	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	el_max	NA	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	NA	kW	single stage heat output and no room temperature control	[no]
In standby mode	el_SB	NA	kW	Two or more manual stages, no room temperature control	[no]
				with mechanic thermostat room temperature control	[yes]
				with electronic room temperature control	[no]
				electronic room temperature control plus day timer	[no]
				electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				room temperature control, with presence detection	[no]
				room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[no]
				with black bulb sensor	[no]
Contact details	BAHAG AGGutenbergstr. 2168167 MannheimGERMANY

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

Ovaj proizvod prikladan je samo za dobro izolirane prostore i povremenu upotrebu.

SIGURNOSNE MJERE PREDOSTROŽNOSTI

MONTAŽA I PRVA UPORABA

• Izvadite uređaj iz ambalaže i uklonite zaštitnu vreæicu.
• Okrenite aparat naopako. Pričvrstite dvije stopice na donji dio aparata i fiksirajte ih priloženim vijcima. U dvije stopice umetnite četiri mala kotačića. Zatim postavite uređaj na ravnu, èvrstu i èistu površinu i pridržavajte se sigurnosnih udaljenosti između uređaja i drugih predmeta.

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

>0.25m >0.25m >0.25m

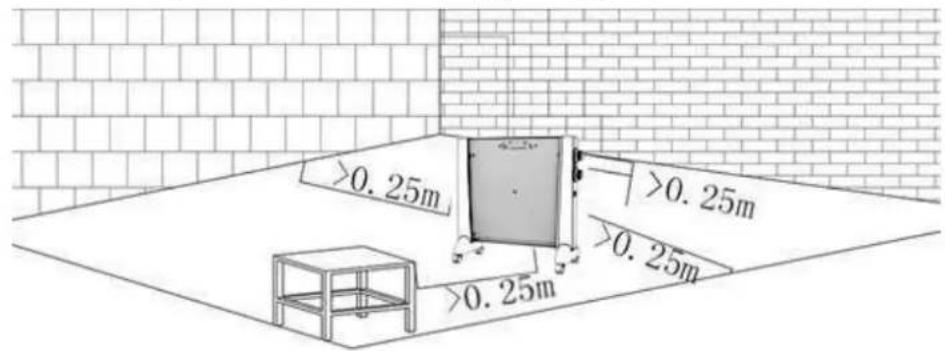

Uvijek postavite uređaj na dostatnoj sigurnosnoj udaljenosti od zapaljivih materijala ili plinova.

Technical line drawing of a mechanical component with no visible text or symbols

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical bracket assembly (no text or symbols)

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical bracket assembly (no text or symbols)

>0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with no visible text or symbols

>0.25m >0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

>0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

>0.25m >0.25m >0.25m

Uvek stavite aparat aa dovoljno sigurnosnu udaljenost od zapaljivih materijala ili gasova.

Osigurajte da su kućište, elemenat grejanja, utikač i utičnica neoštećeni.

OPIS DELOVA

1. Regulator snage
2. Lampica indikatora
3. Termostatna kontrola
4. Zaštita, unutrašnji grejni elemenat
5. Točkovi

1 2 3 4 5

KORIŠĆENJE UREĐAJA

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m

Technical line drawing of a mechanical lever assembly (no text or symbols)

>0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with no visible text or symbols

>0.25m >0.25m >0.25m

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

>0.25m >0.25m >0.25m >0.25m
