USER MANUAL EHM450 ELECTROLUX

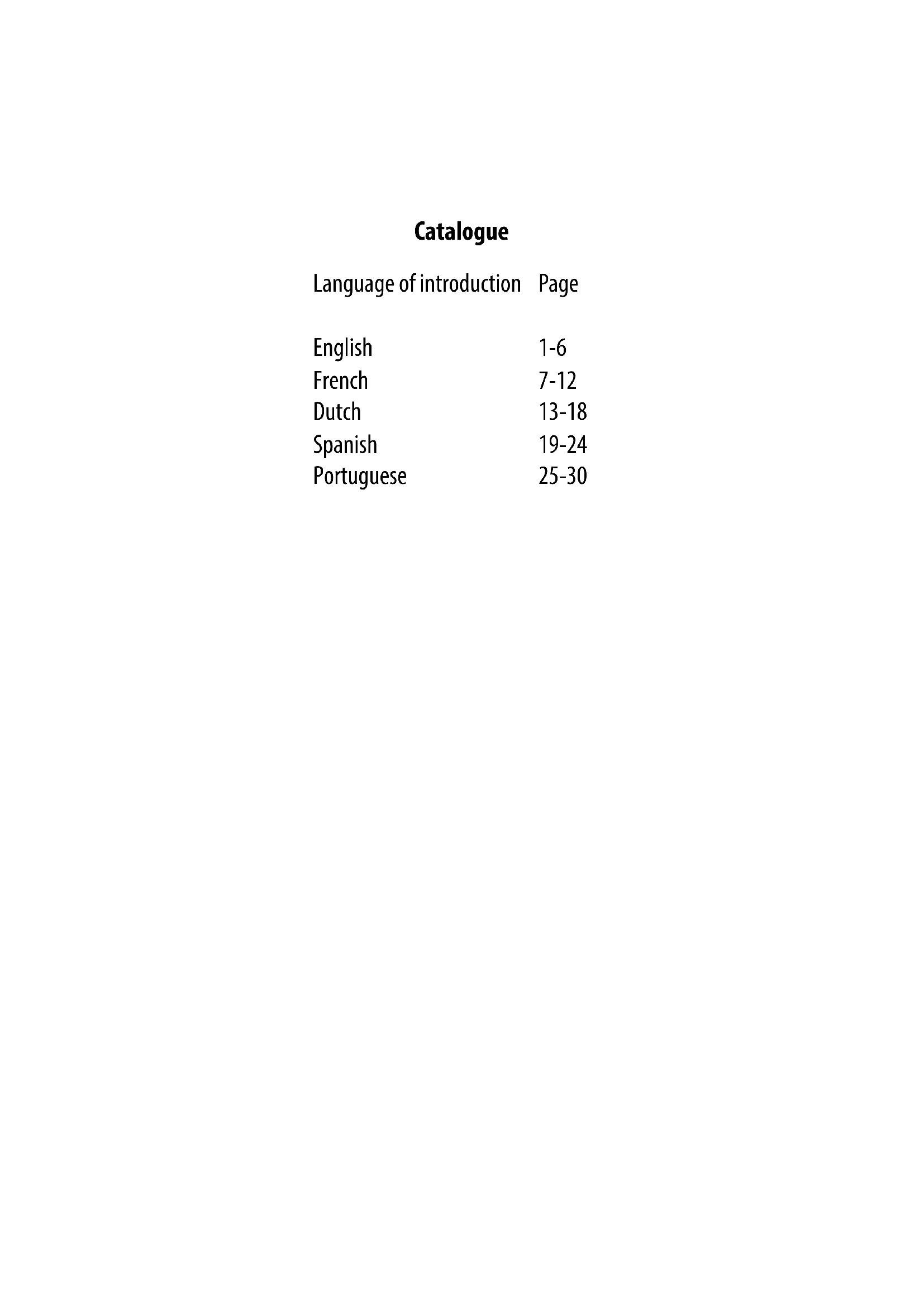

PTCatalogue Language of introduction English French Dutch Spanish Portuguese Page 1-6 7-12 13-18 19-24 25-30EN

• This appliance is intended to be used in household and similar applications such as:

sta kitchen areas in shops, oces and other working environments;

by clients in hotels, motels and other residential type environments;

bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• Regarding the operating times and speed setting, refer to the section “Operation”.

• WARNING: Risks of injuries if you don't use this appliance correctly.

• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

• Regarding the instructions for cleaning surfaces in contact with food, refer to the section “Cleaning and Maintenance” on page 5 of the manual.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. Safety Information

• To protect against risk of electrical shock, do not immerse the appliance or its cord in water or any other liquid.

• Turn off and unplug the appliance from the mains socket when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp plug and pull from the mains socket. Never pull cord.EN

• The use of attachments or accessories not recommended by the manufacturer may result in re, electric shock or injury to persons.

• Do not leave the appliance unattended when in use.

• Do not use outdoors.

• Do not let power cord touch hot surfaces or hang over edge of table or counter where it can be pulled on by children or tripped over unintentionally.

• Do not use the appliance for anything other than its intended use.

• Avoid contact with moving parts.

• Do not operate the hand mixer with wet hands.

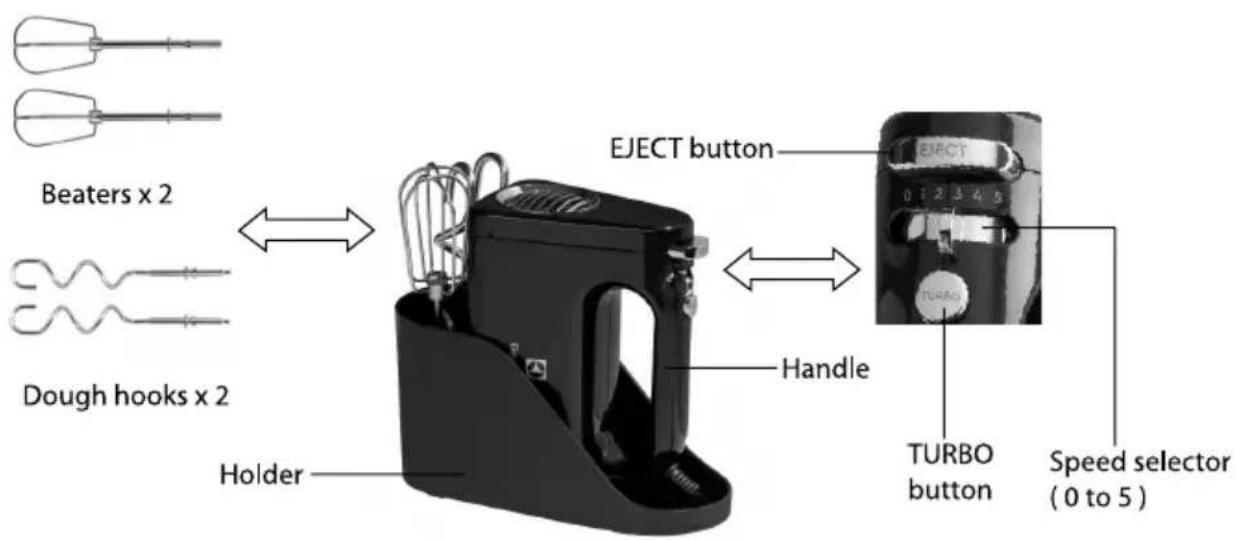

• Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer. PRODUCT OVERVIEW

Before using your hand mixer for the rst time, wash the dough hooks and beaters in warm soapy water. Rinse and dry thoroughly.Wipe the outer surface of the mixer body with a damp cloth. OPERATION Fitting the beaters You can use the beaters for whipping egg white and cream, making cakes and mixing batters. Insert the beaters into the attachment holes on the mixer until they click into place.EN

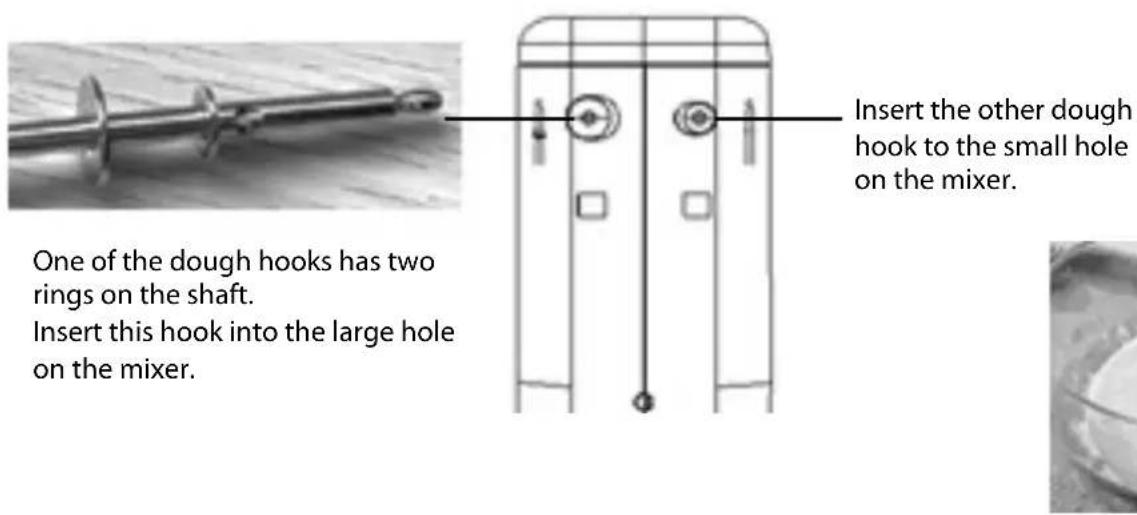

Fitting the dough hooks You can use the dough hooks for heavier mixes such as pastry and kneading dough, also mashed potato. One of the dough hooks has two rings on the shaft. Insert this hook into the large hole on the mixer. Insert the other dough hook to the small hole on the mixer. Using your hand mixer

1. Ensure that the speed selector is set to the “0” position.

2. Plug in the appliance.

3. Place the ingredients in a bowl.

4. Lower the beaters or dough hooks into the ingredients.

5. Switch the mixer on by turning the speed selector to the “1” position.

• Your appliance has 5 speeds ( 1 : lowest speed, 5 : Highest speed).

• Start slowly to prevent splashing and smoothly speed up till you reach your required speed.

• Turbo function: Press and hold the TURBO button to obtain maximum speed. Release the button and the appliance will return to the previously selected speed. DO NOT operate more than 5 minutes at one time. After 5 minutes continuous use, allow a few minutes rest before next use. The Turbo button should only be pressed for a few seconds at a time. You can use the following guide for attachment and speed selections. NOTE : Start mixing at the lowest speed and gradually increase as needed.EN

Speed Attachment T ask 1 Dough hooks liquids for cookie doughs or batters 2 Beaters To mix liquid ingredients, salad dressings 3 Beaters To mix cake batters, eggs into batter, cream butter 4 Beaters To mix light batters, thin sauce 5 Beaters To beat egg whites, whip cooked potatoes and cream 5 Dough hooks To mix or blend heavy dough TURBO Beaters / Dough hooks Press this button for maximum power for heavy mixing jobs Max Quantities: To prolong the life of your hand mixer, it is recommended that the max quantities in the table listed are not exceeded. Quantities are a guide based on mixing in a large bowl. Attachment Maximum Quantities Maximum time Speed Beaters 4 Egg whites 5 min 5 Dough hooks

water 5 min 30 seconds at speed 1 and then 4 min at speed 5

6. When you have nished using the mixer, set the speed selector to the “0” position.

7. Unplug the appliance from the mains socket.

8. To remove the beaters of dough hooks, press the EJECT button and lift the attachments o the mixer

CLEANING AND MAINTENANCE

Warning: Always turn o and unplug the appliance before cleaning.

• Clean the outside of the appliance with a slightly damp cloth. Dry thoroughly.

• Never immerse the appliance in water.

• Clean the removable parts in warm soapy water with a soft brush or cloth then rinse them thoroughly.

• Do not use abrasive or chemical cleaning agents. Surfaces in contact with food should be cleaned regularly to avoid cross contamination from dierent types of food, the use of warm clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food. Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning /cross contamination. Dry the entire appliance with a dry cloth before replacing. Do not use chemical cleaners or abrasives product for cleaning. Store the beaters and dough hooks in the storage holder. SPECIFICATIONS Ratings: 220-240V~ 50-60Hz 450WEN

DISPOSAL As a responsible company we care about the environment.As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. ELECTROLUX 08/02/20217
