USER MANUAL ExpertCenter PN42 ASUS

Mini PC PN42 Series User ManualCOPYRIGHT INFORMATION No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2023 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Visit our multi-language website at https://www.asus.com/support/. First Edition July 2023 CA21455PN Series

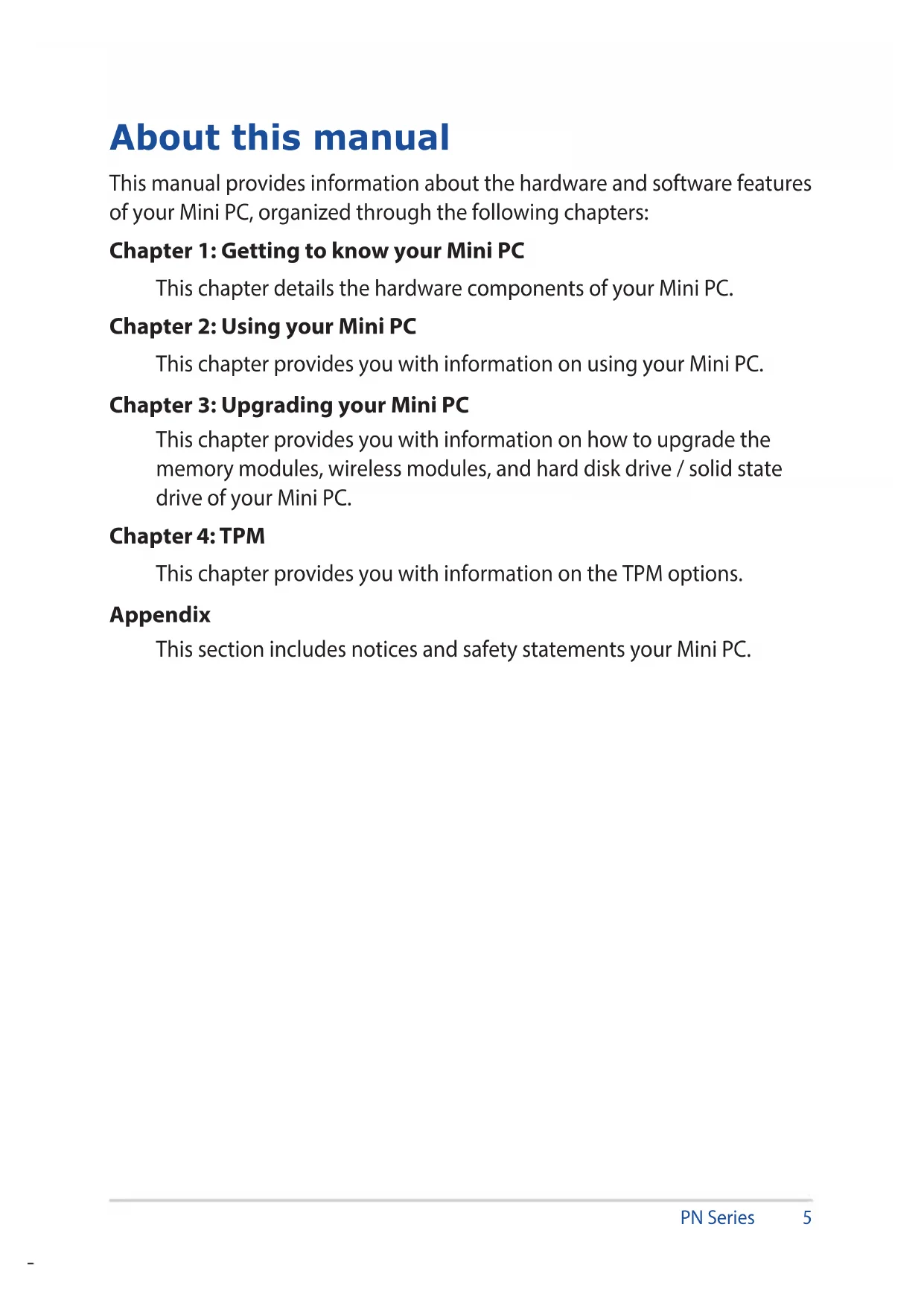

About this manual This manual provides information about the hardware and software features of your Mini PC, organized through the following chapters:

Chapter 1: Getting to know your Mini PC

This chapter details the hardware components of your Mini PC.

Chapter 2: Using your Mini PC

This chapter provides you with information on using your Mini PC.

Chapter 3: Upgrading your Mini PC

This chapter provides you with information on how to upgrade the memory modules, wireless modules, and hard disk drive / solid state drive of your Mini PC.

This chapter provides you with information on the TPM options. Appendix This section includes notices and safety statements your Mini PC.6 PN Series Conventions used in this manual To highlight key information in this manual, some text are presented as follows: IMPORTANT! This message contains vital information that must be followed to complete a task. NOTE: This message contains additional information and tips that can help complete tasks. WARNING! This message contains important information that must be followed to keep you safe while performing certain tasks and prevent damage to your Mini PC's data and components. Typography Bold text Indicates a menu or an item to select. Italic Indicates sections that you can refer to in this manual.PN Series

Package contents Your Mini PC package contains the following items: ASUS Mini PC PN Series AC power adapter* Power cord* Technical documentation8 PN Series NOTE:

• The most up-to-date and accurate product specications are available on www.asus.com for download.

• Product and accessory images are for illustrative purposes only. The actual appearance and specications may vary depending on the model.

• *The bundled power adapter may vary depending on the model and the country (or region) of sale.

• Some bundled accessories may vary depending on the model. For details on these accessories, refer to their respective user manuals.

• If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.1 Getting to know your Mini PC10 PN Series Features Front view Drive activity indicator This indicator lights up when your Mini PC is accessing the internal storage drive. Microphone jack This port allows you to connect an external microphone. Headphone/Headset jack This port allows you to connect amplied speakers or headphones. You can also use this port to connect your headset. USB 3.2 Gen 2 port The USB 3.2 Gen 2 (Universal Serial Bus) port provides a transfer rate up to 10 Gbit/s. Infrared (IR) sensor The IR sensor detects signals from a remote control, allowing you to access CEC compatible devices that are connected to your MiniPC.PN Series

Power button The power button allows you to turn the Mini PC on or off. You can use the power button to put your Mini PC to sleep mode or press it for four (4) seconds to force shutdown your Mini PC.12 PN Series Left view Air vents The air vents allow air to circulate in your Mini PC chassis to prevent overheating. IMPORTANT! For optimal heat dissipation and air ventilation, ensure that the air vents are free from obstructions.PN Series

Right view Air vents The air vents allow air to circulate in your Mini PC chassis to prevent overheating. IMPORTANT! For optimal heat dissipation and air ventilation, ensure that the air vents are free from obstructions. Kensington security slot The Kensington security slot allows you to secure your Mini PC using Kensington® security products.14 PN Series Rear view USB 2.0 port The USB (Universal Serial Bus) port is compatible with USB

2.0 devices, such as keyboards, pointing devices, flash disk

drives, external HDDs, speakers, cameras and printers. USB 3.2 Gen 1 port The USB 3.2 Gen 1 (Universal Serial Bus) port provides a transfer rate up to 5 Gbit/s. The USB Type-C® port is only available as a congurable option with PN42.PN Series

HDMI port The HDMI (High Definition Multimedia Interface) port supports a 4K device, such as an LCD TV or monitor, to allow viewing on a larger external display. NOTE:

• This HDMI port supports CEC (Consumer Electronics Control). Connect any CEC compatible device that you want to control with a remote control to this port, and make sure that the device’s HDMI-CEC is enabled.

• When using only this port as a display output source, this port will support a resolution of up to 4096 x 2160 @60Hz. The resolution may also be affected by the cabling and output device. DisplayPort This port allows you to connect your Mini PC to an external display. NOTE: When using only this port as a display output source, this port will support a resolution of up to 3840 x 2160 @60Hz. The resolution may also be affected by the cabling and output device. LAN port The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000/2500 Mbps connection to a local network.16 PN Series Power input The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Mini PC. To prevent damage to the Mini PC, always use the supplied power adapter. WARNING! The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body. NOTE: Please refer to the following information on the power adapter: 65 W Power adapter: +19.0 Vdc 3.42 A, +19.5 Vdc 3.33 A Kensington security slot The Kensington security slot allows you to secure your Mini PC using Kensington® security products. LAN port (on selected models only) The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000/2500 Mbps connection to a local network.Configurable port This port varies between models and consists of the following port options: USB 3.2 Gen 2 Type-C® / DisplayPort combo port (available as an option only with PN42) This USB Type-C® (Universal Serial Bus) port provides the following:

• Transfer rate of up to 10 Gbit/s.

• Support for DisplayPort 1.4. Use a USB Type-C® adapter to connect your Mini PC to an external display.

• USB power delivery with a maximum of 5V / 3A output. NOTE: When using only this port as a display output source, this port will support a resolution of up to 3840 x 2160 @60Hz. The resolution may also be aected by the cabling and output device. DisplayPort This port allows you to connect your Mini PC to an external display. NOTE: When using only this port as a display output source, this port will support a resolution of up to 3840 x 2160 @60Hz. The resolution may also be aected by the cabling and output device.HDMI port The HDMI (High Definition Multimedia Interface) port supports an 4K device, such as an LCD TV or monitor, to allow viewing on a larger external display. NOTE: When using only this port as a display output source, this port will support a resolution of up to 4096 x 2160 @60Hz. The resolution may also be aected by the cabling and output device. Serial (COM) connector The 9-pin serial (COM) connector allows you to connect devices that have serial ports such as mouse, modem, or printers. VGA port This port allows you to connect your Mini PC to an external display. NOTE: When using only this port as a display output source, this port will support a resolution of up to 1920 x 1200 @60Hz. The resolution may also be aected by the cabling and output device.2 Using your Mini PC20 PN Series Getting started Connect the AC power adapter to your Mini PC To connect the AC power adapter to your Mini PC: A. Connect the power cord to the AC power adapter. B. Connect the DC power connector into your Mini PC’s power (DC) input. C. Plug the AC power adapter into a 100V~240V power source. NOTE: The power adapter may vary in appearance, depending on the model and the country (or region) of sale.PN Series

NOTE: Please refer to the following information on the power adapter: 65W Power adapter

• Rating output current: 3.42A / 3.33A (65.0W)

• Rating output voltage: 19.0V / 19.5V IMPORTANT!

• We strongly recommend that you use only the AC power adapter and cable that came with your Mini PC.

• We strongly recommend that you use a grounded wall socket while using your Mini PC.

• The socket outlet must be easily accessible and near your Mini PC.

• To disconnect your Mini PC from its main power supply, unplug your Mini PC from the power socket.22 PN Series Connect a display panel to your device You can connect a display panel or projector to your device that has the following connectors:

• Up to three display panels may be connected and displayed simultaneously, depending on model and selected options*.

• Using one of the ports listed below as the only display output source will provide the following maximum resolution**: - HDMI port Supports a resolution of up to 4096 x 2160 @60Hz. - DisplayPort Supports a resolution of up to 3840 x 2160 @60Hz. - Congurable USB Type-C® port Supports a resolution of up to 3840 x 2160 @60Hz. - Congurable VGA port Supports a resolution of up to 1920 x 1200 @60Hz. - Congurable HDMI™ port Supports a resolution of up to 4096 x 2160 @60Hz. - Congurable DisplayPort Supports a resolution of up to 3840 x 2160 @60Hz.

• The ports may vary depending on the model. Refer to the Features section for the location of the ports. ** The maximum resolution may be aected by the cabling and output device.24 PN Series Connect display via VGA port Connect display via HDMI portPN Series

Connect display via DisplayPort Connect display via USB Type-C® port26 PN Series Connect the USB cable from keyboard or mouse You can connect generally any USB keyboard and mouse to your Mini PC. You can also connect a USB dongle for a wireless keyboard and mouse set. To connect a keyboard and mouse to your Mini PC: Connect the USB cable from your keyboard and mouse to any of the USB ports of your Mini PC. NOTE: The keyboard varies depending on the country (or region) of sale.PN Series

Turn on your Mini PC Press the power button to turn on your Mini PC.28 PN Series Turning o your Mini PC If your Mini PC is unresponsive, press and hold the power button for at least four (4) seconds until your Mini PC turns o. Putting your Mini PC to sleep To set your Mini PC to enter Sleep mode by pressing the Power button once, search for Control Panel in the Windows Search Box, then navigate to Hardware and Sound > Power Options > Choose what the power button does, and set When I press the power button to Sleep. Entering BIOS Setup BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup on the Mini PC. Under normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. Do not change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run BIOS Setup.

• You have installed a new system component that requires further BIOS settings or update. WARNING! Inappropriate BIOS settings may result in instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.PN Series

1. Enter the BIOS by pressing <F2> or <DEL> from the POST screen.

NOTE: POST (Power-On Self Test) is a series of software controlled diagnostic tests that run when you turn on your Mini PC.

PN Series3 Upgrading your Mini PC32 PN Series IMPORTANT!

• It is recommended that you install or upgrade the memory modules, wireless card, aluminum plate, and solid state drive (SSD), under professional supervision. Visit an ASUS service center for further assistance.

• Ensure that your hands are dry before proceeding with the rest of the installation process. Before installing any of the features in this guide, use a grounded wrist strap or touch a safely grounded object or metal object to avoid damaging them due to static electricity. NOTE: The illustrations in this section are for reference only. The slots may vary depending on the model. Removing the bottom cover

1. Turn o your Mini PC then

disconnect all cables and peripherals.

2. Place the Mini PC on a at

stable surface, with its top side facing down.

3. Loosen the four (4) screws

from the bottom (A), and then lift the bottom cover in the direction shown in the illustration.PN Series

1. Place the bottom cover into

using the four (4) screws.34 PN Series Installing memory modules Your Mini PC comes with an SO-DIMM memory slot that allows you to install a DDR4 SO-DIMM. IMPORTANT! Refer to https://www.asus.com for the list of compatible DIMMs. You can only install DDR4 SO-DIMMs to the Mini PC’s DIMM slot.

1. Carefully lift the EMI lm so you have a clear view of the memory slot.

2. Align and insert the memory module into the slot.

3. Press down until it is securely seated in place.

4. Flip the EMI film back to its original position so that it is shielding the

1. Align and insert the 2280 M.2 SSD into its slot inside the Mini PC.

2. Gently push down the 2280 M.2 SSD on top of the stando and fasten

it using one of the bundled 3mm round screws.PN Series

3. Before replacing the bottom cover, ensure to remove the plastic lm

on the thermal pad, if there is one. Thermal pad Plastic lm NOTE: The specications for the thermal pad used in this Mini PC are as follows: Thickness: 2.5 mm Size: 65 mm x 20 mm Thermal conductivity: 3 W/mK Hardness: < 40 Sc CAUTION! Heat dissipation performance may still vary even when you have replaced the thermal pad with one that meets the above specifications. To prevent possible damage to the M.2 SSD, you should have the thermal pad replaced by a service center near you.38 PN Series

2. (optional) Remove the aluminum plate, if one is installed. To remove

the aluminum plate, rst remove the three screws holding it in place, and then lift the plate and set it aside. Installing a wireless card NOTE: Your Mini PC includes an M.2 slot for 2230 wireless and Bluetooth modules. Refer to https://www.asus.com for the list of compatible wireless and Bluetooth modules.PN Series

• Connecting antennas to your wireless card may strengthen the wireless signal.

• A soft clicking sound indicates that the antenna has been securely attached on the wireless card.

3. Align and insert the wireless card into its slot inside the Mini PC, then

gently push down the wireless card on top of the stando.

4. Fasten the wireless card using a stando.

5. (optional) Connect the antennas to your wireless card.

6. (optional) Organize your antenna cables with the cable holder clips.40

7. Reinstall the aluminum plate that was removed previously, and secure

it with three screws. NOTE: If an aluminum plate was not factory pre-installed, you should be able to find one bundled with your Mini PC. Before installing the aluminum plate, check that the thermal pads on both sides of the aluminum plate have the plastic films removed.8. (optional) Reinstall the M.2 SSD if one was removed previously.4 TPMAbout the TPM The system comes with two (2) TPM options: rmware TPM (fTPM) or the discrete TPM (dTPM). The dTPM is an onboard chip and the availability of the onboard dTPM chip may vary between models. NOTE:

• The fTPM is supported by default, but may not be enabled, for more information on enabling the TPM, please refer to www.asus.com/support.

• The dTPM is optional and is available on selected models You may use the following methods to check whether your system comes with dTPM:

• Using the Windows Security App a. Navigate to Start > Settings > Update & Security > Windows Security > Device Security. b. Check if there is a Security Processor section on this screen, if there is no Security Processor section on this screen, there may not be a dTPM on this model, or the dTPM may be disabled.

• Using the Microsoft Management Console a. Navigate to Start > Run or press [Windows Key] + R. b. Type tpm.msc, then choose OK. c. If you see a message conrming TPM is ready to use, then there is a dTPM available and enabled. If you see a message saying “Compatible TPM cannot be found”, there may not be a dTPM on this model, or the dTPM may be disabled. For more information on TPM, please refer to FAQ at www.asus.com/support/.Appendix46 PN Series Safety information Your Mini PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

• Do not ingest battery, Chemical Burn Hazard.

• This product contains a coin / button cell battery. If the coin /button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users Lithium-Ion Battery Warning CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.PN Series

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.

• Do not use this product near water or a heated source.

• Set up the system on a stable surface.

• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

• Use this product in environments with ambient temperatures between 0˚C and 35˚C.

• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

• This product should be connected by means of a power cord to a socket-outlet with earthing connection.

• This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Care during use

• Do not walk on the power cord or allow anything to rest on it.

• Do not spill water or any other liquids on your system.

• When the system is turned o, a small amount of electrical current still ows. Always unplug the power cord from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualied service technician or your retailer. – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not function properly even if you follow the operating instructions. – The system was dropped or the cabinet is damaged. – The system performance changes.48 PN Series

Avoid contact with hot components inside the Mini PC. During operation, some components become hot enough to burn the skin. Before you open the computer cover, turn o the computer, disconnect the power, and wait approximately 30 minutes for the components to cool.

• Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of ammable liquid or gas;

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas.PN Series

Regulatory notices COATING NOTICE IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located. Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.50 PN Series IMPORTANT! Outdoor operations in the 5.15~5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250~5350 and 5470~5725 MHz. FCC RF Caution Statement WARNING! Any changes or modications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. FCC Wi-Fi 6E Caution Statement FCC regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while ying above 10,000 feet.PN Series

ISED Radiation Exposure Statement for Canada This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with ISED RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specic operating instructions for satisfying RF exposure compliance. Operation is subject to the following two conditions:

• This device may not cause interference and

• This device must accept any interference, including interference that may cause undesired operation of the device. HDMI Trademark Notice The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. ISED Wi-Fi 6E Caution Statement (RLAN devices) Devices shall not be used for control of or communications with unmanned aircraft systems. Les dispositifs ne doivent pas être utilisés pour commander des systèmes d’aéronef sans pilote ni pour communiquer avec de tels systèmes.52 PN Series Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-003(B)/NMB-003(B) Wireless Operation Channel for Dierent Domains N. America 2.412-2.462 GHz Ch01 through CH11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13PN Series

Declaration of compliance for product environmental regulation ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements. Please refer to https://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with: EU REACH and Article 33 Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at https://csr.asus.com/english/REACH.htm EU RoHS This product complies with the EU RoHS Directive. For more details, see https://csr.asus.com/english/article.aspx?id=3554 PN Series DO NOT throw the device in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local technical support services for product recycling. ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to https:// csr.asus.com/english/Takeback.htm for detailed recycling information in dierent regions. Ecodesign Directive European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specic Implementing Measures are aimed at improving environmental performance of specic products or across multiple product types. ASUS provides product information on the CSR website. The further information could be found at https://csr.asus.com/english/article.aspx?id=1555. EPEAT (Electronic Product Environmental Assessment Tool) registered products The public disclosure of key environmental information for ASUS EPEAT registered products is available on CSR website https://csr.asus.com/english/ article.aspx?id=41. More information about EPEAT program and purchaser guidance can be found on the EPEAT website www.epeat.net.PN Series

ENERGY STAR® Qualied Product ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy ecient products and practices. All ASUS products with the ENERGY STAR® logo comply with the ENERGY STAR® standard, and the power management feature is enabled by default. The monitor is automatically set to sleep after 10 minutes of user inactivity; the computer is automatically set to sleep after 30 minutes of user inactivity. To wake your computer, click the mouse, press any key on the keyboard, or press the power button. Please visit http://www.energystar.gov/powermanagement for detail information on power management and its benets to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR® joint program. NOTE: ENERGY STAR® is NOT supported on FreeDOS and Linux-based operating systems.56 PN Series Simplied EU Declaration of Conformity ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/. The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for countries listed in the table below: a. Low Power Indoor (LPI) Wi-Fi 6E devices: The device is restricted to indoor use only when operating in the 5945 to 6425 MHz frequency range in Belgium (BE), Bulgaria (BG), Cyprus (CY), Czech Republic (CZ), Estonia (EE), France (FR), Iceland (IS), Ireland (IE), Lithuania (LT), Germany (DE), Netherlands (NL), Spain (ES), Denmark (DK), Italy (IT), Sweden (SE), Switzerland (CH), and Slovenia (SI). b. Very Low Power (VLP) Wi-Fi 6E devices (portable devices): The device is not permitted to be used on Unmanned Aircraft Systems (UAS) when operating in the 5945 to 6425 MHz frequency range in Belgium (BE), Bulgaria (BG), Cyprus (CY), Czech Republic (CZ), Estonia (EE), France (FR), Iceland (IS), Ireland (IE), Lithuania (LT), Germany (DE), Netherlands (NL), Spain (ES), Denmark (DK), Italy (IT), Sweden (SE), Switzerland (CH), and Slovenia (SI). AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH HR UK (NI)PN Series
