USER MANUAL CF7F0W Avanti

Register this and other Avanti® products through our website: https://www.avantiproducts.com/pages/product-registration Product registration is not required to activate warranty. SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE © 2025 Avanti Products, LLC. www.avantiproducts.com Chest Freezer Instruction Manual Models : CF35F2G CF35F0W CF10F0W CF7F0W CF5F0W POWER MIN MAX

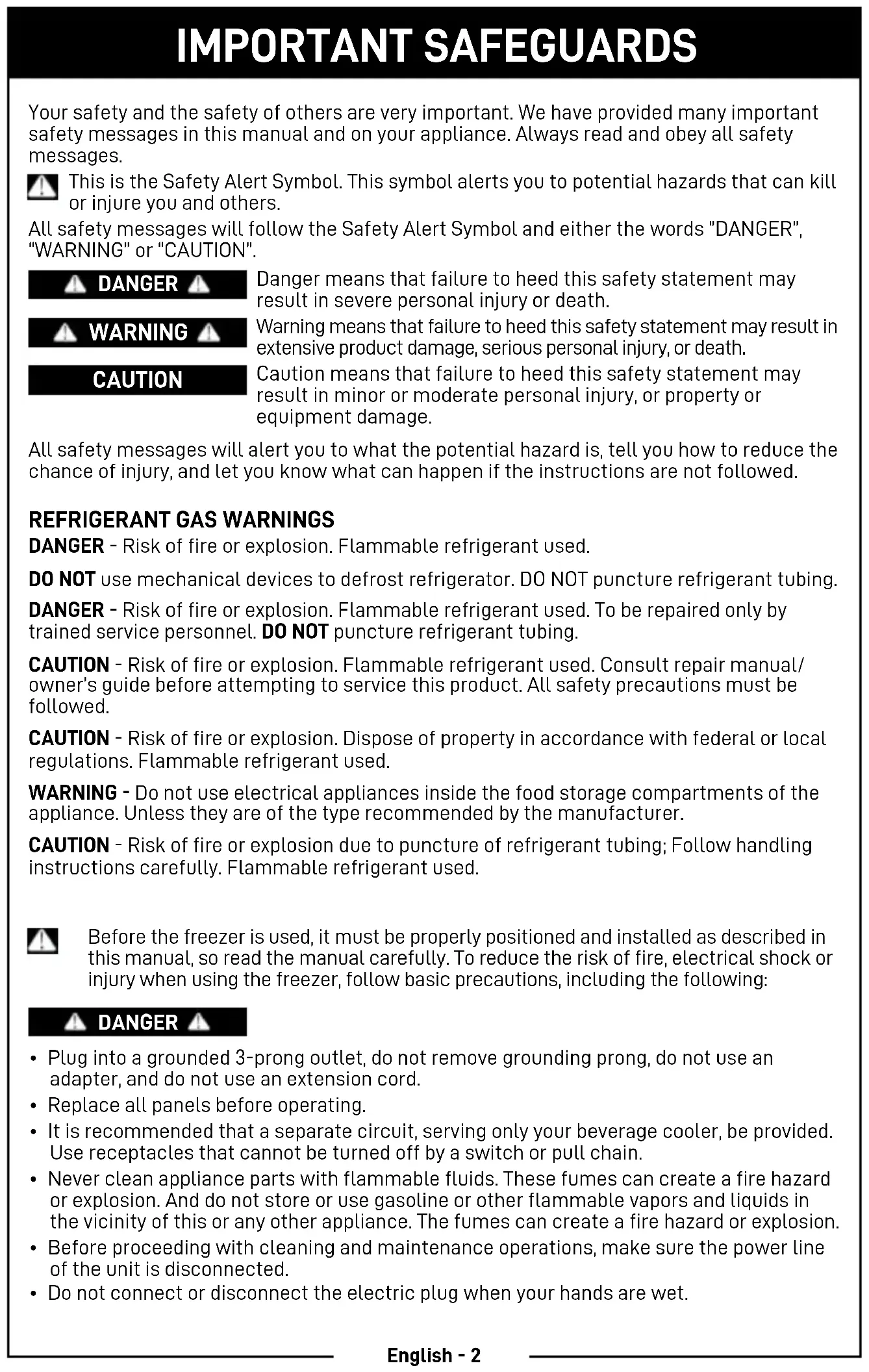

DANGER - Risk of fire or explosion. Flammable refrigerant used. DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing. DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing. CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/ owner’s guide before attempting to service this product. All safety precautions must be followed. CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used. WARNING - Do not use electrical appliances inside the food storage compartments of the appliance. Unless they are of the type recommended by the manufacturer. CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. Flammable refrigerant used. Before the freezer is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the freezer, follow basic precautions, including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit, serving only your beverage cooler, be provided. Use receptacles that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet. English - 2WARNING WARNING

• Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can result in electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

• Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 55°F (13°C) and below 90°F (32 °C). This unit must be installed in an area protected from the elements, such as wind, rain, water spray or sunlight.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.

• Do not kink or pinch the power supply cord of the appliance.

• The fuse (or circuit breaker) size should be 15 amperes.

• It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.

• All installation must be in accordance with local plumbing code requirements.

• Make certain that the pipes are not pinched or kinked or damaged during installation.

• Check for leaks after connection.

• Never allow children to operate, play with or crawl inside the appliance.

• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.

• Do not use this apparatus for other than its intended purpose. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.

• DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous ... even if they will “just sit in the garage a few days.”

• Before you throw away your old appliance: Take off the doors. Leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the appliance.

• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

Congratulations on your purchase of an Avanti® Chest Freezer!

• Remove the exterior and interior packing.

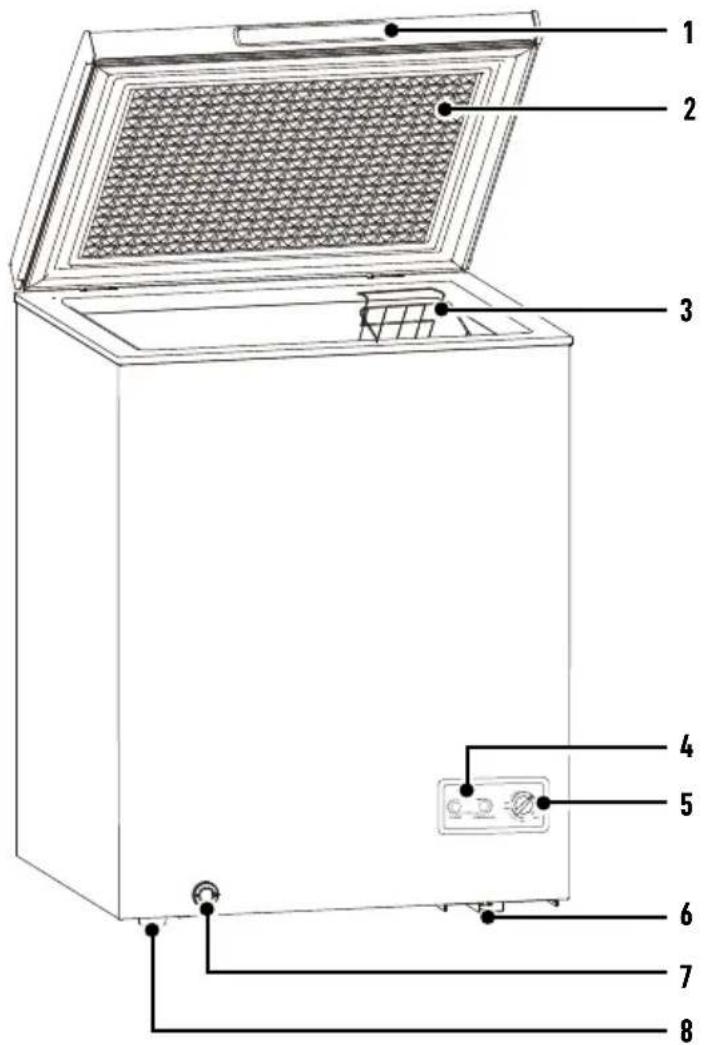

• Check to be sure you have all of the following parts:

• 1 Storage Basket (2 for CF10F0W only)

• Before connecting the unit to the power source, let it stand upright for approximately 2 hours.

• This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

SAVE THESE INSTRUCTIONS

(Product may be subject to change without prior notice)

Storage Basket (2 for CF10F0W only)

1. Place your refrigerator-freezer on a floor that is strong enough to support the

refrigerator-freezer when it is fully loaded. To level your refrigerator-freezer, adjust the leveling legs at the bottom of unit.

2. Allow 5 inches of space between the back and sides of the unit, which allows the proper

air circulation to cool the compressor and condenser.

3. Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator,

etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the refrigerator-freezer not to perform properly.

4. Avoid locating the unit in moist areas.

5. Plug the unit into an exclusive properly installed-grounded wall outlet. Do not under

any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center. This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded. This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury. The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord. WARNING English - 5ELECTRICAL CONNECTION

OPERATING YOUR APPLIANCE

EXTENSION CORD Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes. SURGE PROTECTOR Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed. If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area. Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty. Your unit is equipped with two indicator lights on the control panel. The power on light (green) will turn on when the unit is plugged in. The compressor running light (blue) will turn on when the compressor turns on to begin the cooling cycle and turn off when the compressor shuts off.

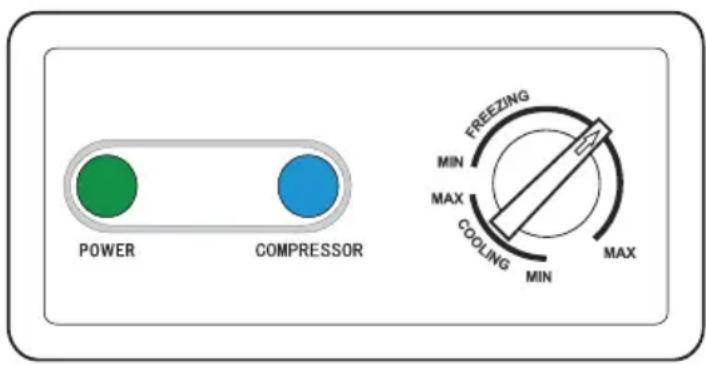

SETTING THE TEMPERATURE CONTROL

Freezer mode: To use the appliance as a freezer, set the thermostat dial in the “FREEZING” range. Using this setting allows the appliance to store frozen foods and ice. The internal temperature will be between -14 --24°C (6.8 - -11.2°F). Do not place liquid items in sealed bottles or containers into the appliance when it is being used as a freezer to avoid damage cause by expansion and cracking of the container. While set as a Freezer this model will perform in ambient temperatures between 0F – 110F (-17C – 43C). English - 6Refrigerator mode: To use the appliance as a refrigerator, set the thermostat dial in the “COOLING” range. Using this setting allows the appliance to store fresh food and beverages. The internal temperature will be between 0 - 8°C (32 - 46.4°F). There are refrigerant lines in the cabinet walls that will get very cold. When using the appliance as a refrigerator, keep food items away from the cabinet walls to avoid freezing food. While set as a Refrigerator the ambient temperature must fall within 50F – 109F (10C – 43C). IMPORTANT This appliance is considered “Garage Ready” if it is being used as a freezer. If the thermostat dial is set in the “COOLING” range, the appliance should only be used in climate-controlled spaces with an ambient temperature range of 50F – 109F (10C – 43C).

CONDENSATION AND DEFROSTING

When using the appliance as a refrigerator, condensation may form on the walls and bottom of the cabinet. This is normal and does not impact the operation of the appliance. This condensed water can be removed from the cabinet using the defrosting instructions. If the appliance has been used as a freezer and will be converted to use as a refrigerator, a large amount of condensation may form on the cabinet walls. Please check that all food items have been removed to avoid unwanted food defrosting. Defrost and clean the appliance before resuming use to avoid water accumulation inside the cabinet. NOTE: IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IS TURNED OFF, YOU MUST WAIT 3 TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE THIS TIME DELAY, THE REFRIGERATOR-FREEZER WILL NOT START. Other Important Notes

• MIN indicates the warmest setting.

• MAX indicates the coldest setting.

• Setting the thermostat dial in the middle of the MIN-MAX range should be sufficient for regular home use.

• Setting the thermostat to MAX in the “FREEZING” range will cause the compressor to run continuously and will make the interior very cold. It is not recommended to run the appliance at this setting for long periods of time.

• The temperature inside the appliance can vary based on ambient room temperature, the frequency that the lid is opened and the amount of fresh food that has recently been added.

• Do not overload the appliance as this can affect performance. Do not freeze large quantities of fresh food at the same time.

• The lid may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the appliance and the warm air that has just entered the appliance when the lid was opened. The pressure will equalize within a few minutes.

• If the lid is especially difficult to open, wait 5 minutes to allow the pressure to equalize and then try again. English - 7THE FREEZER COMPARTMENT

• This compartment is designed for the long-term storage of frozen food. Storage time is up to three months.

• The storage life of frozen foods varies and the recommended storage time should not be exceeded. The instructions regarding the care of frozen foods should be followed when defrosting the freezer.

• Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer’s instructions for a three-star frozen food storage compartment or home freezer.

• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

• The freezer door is susceptible to breaking due to excessive ice build up. Be sure to defrost when the ice reaches ¼ to ½ inch thick. A storage basket is provided for the organization of odd-shaped items. To reach other packages in the freezer, just slide the basket to one side, or lift it out.

• When? For the most efficient operation and minimum energy consumption, defrost the freezer when the frost on the freezer walls is excessive or ¼ to ½ inch thick.

• Choose a time when the stock of frozen food is low. CAUTION: Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp or metallic instrument to remove frost as it may damage the cooling coils and will void the warranty. We recommend using the plastic scraper provided with your unit.

• Remove the frozen food from the freezer and place it in a cooler to protect the food.

• Turn the thermostat knob to “0”.

• During defrosting, the ice melts into the cabinet.

• Remove the drain plug on the inside floor of the freezer by pulling straight out.

• Place a shallow pan outside drain outlet. Rotate the drain dial 180 degrees and pull outward. This will allow the water to flow freely to the pan.

• Check the pan occasionally so the water does not overflow.

• Clean the interior of the freezer.

• Replace the plug on the inside floor.

• Replace the outside drain dial.

• Reset the thermostat to desired setting.

• Allow the cabinet to cool for one hour.

• Return food to the freezer. HELPFUL HINT: Defrosting usually takes a few hours. Leaving the door open will help speed the process. Also, pouring warm water (not boiling) on the ice/frost will help speed melting. If you must use a scraper- please use caution - it is very easy to damage the freezer compartment and void your warranty. English - 8FREEZING FRESH FOODS

• Proper use of the appliance, adequately packed food, correct temperature and taking into account hygienic precautions will substantially influence the quality of freezing the food or storing of the frozen foods.

• This compartment is designed for the long-term storage of frozen food.

• The storage life of frozen foods varies and the recommended storage time should not be exceeded.

• Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer’s instructions for a three-star frozen food storage compartment or home freezer.

• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

• Carefully select food you intend to freeze, it should be of adequate quality and suitable for freezing.

• Use correct packaging and wrap it tight.

• The packaging should be airtight and shouldn’t leak since this could cause substantial vitamin loss and dehydration of foods.

• Foils and bags should be soft enough to tightly wrap around the foods.

• When preparing foods to be frozen, consider sanitary precautions.

• Mark packages with following data: kind and amount of foods and the date of loading.

• It is most Important that the food is frozen as quickly as possible.

• If the loading amount is too large, the quality of freezing is reduced which affects the quality of frozen foods.

CLEANING AND MAINTENANCE

CLEANING YOUR FREEZER

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.

• Turn the temperature control to “0”, unplug the freezer, remove the food and storage basket.

• Wash the inside with a damp warm cloth containing a water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

• Wash the storage basket with a mild detergent solution.

• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.

• The outside of the freezer should be cleaned with mild detergent and warm water.

• Dry the interior and exterior with a soft cloth.

• It is recommended that the unit be cleaned each time it is defrosted to help keep the unit odor free and running efficiently. English - 9CLEANING AND MAINTENANCE VACATION TIME

• Remove all the food.

• Leave the door open slightly to avoid possible formation of condensation, mold, or odors.

• Use extreme caution in the case of children. The unit should not be accessible to child’s’ play.

• Short vacations: Leave the freezer operating during vacations of less than three weeks.

• Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

• Remove all the food.

• Securely tape down all loose items inside your freezer.

• Remove the rollers to prevent damage.

• Tape the doors shut.

• Be sure the freezer stays in the upright position during transportation.

• The freezer should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

• Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

• Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer.

• Freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient. Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible. English - 10TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE

Freezer does not operate. Not plugged in. The circuit breaker tripped or a blown fuse. The unit temperature control is set at “O” position. Compressor turns on and off frequently. The room temperature is hotter than normal. A large amount of food has been added to the freezer. The door is open too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The freezer does not have the correct clearances. The freezer has recently been disconnected for a period of time. Four hours are required for the freezer to cool down completely. Temperature inside the freezer is too warm. Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize. Door is kept open too long or is opened too frequently. Warm air enters the freezer every time the door is opened. Open the door less often. The door is not closed completely. The door gasket does not seal properly. A large amount of warm or hot food might have been stored recently. Wait until the freezer has had a chance to reach its selected temperature. The freezer has recently been disconnected for a period of time. Four hours are required for the freezer to cool down completely. Temperature inside the freezer is too cold. Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize. Fast Freeze switch is turned on. This causes continuous running of the compressor and bypasses the temperature control. Temperature of external freezer surface is warm. The exterior freezer walls can be as much as 30˚F warmer than room temperature. This is normal while the compressor works to transfer heat from inside the freezer cabinet. Popping or cracking sound when compressor comes on. Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will level off or disappear as freezer continues to run. Bubbling or gurgling sound, like water boiling. Refrigerant (used to cool freezer) is circulating throughout the system. This is normal. Vibrations. Check to assure that the freezer is on a level surface. Floor is uneven or weak. Freezer rocks on the floor when it is moved slightly. Be sure floor can adequately support freezer. Level the freezer by putting wood or metal shims under part of the freezer. English - 11YOUR AVANTI PRODUCTS WARRANTY Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED – LIMITED ONE-YEAR WARRANTY

Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the later of the date of purchase by or delivery to the original owner, under normal use. This warranty shall not be stalled, tolled, extended, or suspended for any reason unless specifically described in this document. During this period, Avanti Products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service center for repair. For rental or commercial use, the warranty period is 90 days. FULL 30-DAY WARRANTY (COOKTOPS ONLY) From the date of purchase or delivery on glass parts and finishes of porcelain enamel, painted, or bright metal finished parts.

EXTENDED WARRANTY COVERAGE

• Refrigeration Products: For the second through the fifth year from the later of the date of purchase or delivery, the sealed system, including the compressor, evaporator, condenser, and tubing, is covered for replacement parts only under normal use. Avanti Products will provide a replacement compressor free of charge if a failure occurs within this period; however, the customer is responsible for all service labor, transportation, and freight charges. For rental or commercial use, the limited compressor warranty is one year and nine months. If the product requires transport to a service center for repairs, all associated costs are the customer’s responsibility.

• Laundry Products: The plastic tub is covered for 5 years, and the stainless-steel tub is covered for 7 years from the later of the date of purchase or delivery, under normal use. Coverage applies to replacement parts only; the customer is responsible for labor and transportation costs.

• Microwave Ovens: The magnetron tube is covered for years 2 through 7 from the later of the date of purchase or delivery, under normal use. The second year includes replacement parts only, with the customer responsible for labor and transportation costs. Years 3 through 7 provide magnetron tube replacement only, excluding labor and transportation costs.

• Ranges, Cooktops, Dishwashers, and Other Products: No extended warranty beyond the one-year standard coverage. WARRANTY EXCLUSIONS / WHAT IS NOT COVERED: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:

• Failure to comply with any applicable state, local, city, or county electrical, plumbing, or building codes.

• This warranty does not cover the cost of disposal, removal, or uninstallation of the appliance, including any associated labor or transportation fees. The customer is responsible for properly discarding or recycling the unit in accordance with local regulations.

• This warranty does not cover white glove delivery, installation, or setup of warranty replacement products. The customer is responsible for any associated costs, including transportation, unpacking, and installation services.

• External, elemental, and environmental forces, including rain, wind, sand, floods, fires, mudslides, freezing temperatures, excessive moisture, extended exposure to humidity, lightning, power surges, structural failures, and acts of God.

• Content losses of food or other stored materials due to spoilage.

• Incidental or consequential damages.

AVANTI PRODUCT WARRANTY WWW.AVANTIPRODUCTS.COM

CONTINUED English - 12• Failure of the product if used for other than its intended purpose or not under normal use.

• Cosmetic damage, including scratches, nicks, minor dents, or other external surface issues, must be reported within 30 days of delivery to be covered.

• Shipping and handling costs associated with product replacement.

• Repairs performed by unauthorized service providers.

• Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.)

• Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

• Parts and labor costs for the following will not be considered as warranty:

• Plastic cabinet liners.

• Light bulbs and/or plastic housing

• Microwave inner door panels, door shelves, door rails, and/or door supports.

• Punctured evaporator that voids the warranty on the complete sealed system.

• Service calls related to abuse, misuse, inadequate electrical power, accidents, fire, floods, or other acts of God.

• Surcharges, including after-hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expenses for service calls to remote areas.

• Damage resulting from improper voltage, electrical surges, or circuit breaker failures is not covered.

• Extended warranty coverage does not apply to commercial, rental, or business use.

• Water damage resulting from improper installation, clogged drains, leaking supply hoses, or external flooding is not covered.

• This warranty does not apply outside the continental USA. In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/ or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.

OUT OF WARRANTY PRODUCT

Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.

WWW.AVANTIPRODUCTS.COM AVANTI PRODUCT WARRANTY
