KCM5912 - Coffee machine KITCHENAID - Free user manual and instructions

Product type	Cold brew coffee maker
Brand	KitchenAid
Model	KCM5912
Coffee concentrate capacity	Up to 38 oz (1023 mL)
Tea concentrate capacity	Approximately 40 to 43 oz (1182 to 1271 mL)
Usage	Domestic
Carafe material	Glass
Infuser material	Stainless steel
Spigot	Easy-pour stainless steel
Power source	None (manual)
Dimensions (L x W x H)	Approximately 20 x 15 x 25 cm (estimated)
Weight	Approximately 1.5 kg (estimated)
Color	Not specified (usually black or stainless)
Recommended coffee grind	Coarse (settings 1 to 3 on KitchenAid grinder)
Brew time for coffee	12 to 24 hours
Brew time for tea	4 to 12 hours depending on type
Cleaning	Hand wash only
Safety	Secure lid, do not operate without
Box contents	Brew carafe, infuser, lids, tube
Warranty	1 year (hassle-free replacement)
Origin	American brand

Frequently Asked Questions - KCM5912 KITCHENAID

How to use the KitchenAid KCM5912 cold brew coffee maker?

Assemble the infuser by placing the outer lid on the carafe, insert the infuser. Add coarsely ground coffee or tea, then pour 42 oz of cold water in a circle, wait, then add 17 oz of water. Brew in the refrigerator or at room temperature for 12-24 hours for coffee, 4-12 hours for tea. Drain for 5 minutes, serve by turning the spigot.

How much coffee to use for cold brew?

Use the guide line on the infuser or a scale. For 8 cups, about 1 cup of coarsely ground coffee. Recommended serving ratio is 3 parts water or milk to 1 part coffee concentrate.

Can the parts be washed in the dishwasher?

No, all parts must be hand washed with warm soapy water to avoid damage. Do not use abrasive cleaners.

How many cups of coffee can I make with one full brew?

The infuser produces up to 38 oz of concentrate, enough for 19 8-oz cups (1:3 concentrate/water ratio).

How to clean the spigot and tube?

Wash by hand, then open the spigot and run hot water through the tube until empty. Dry with a soft cloth.

Can I use finely ground coffee?

No, only use coarsely ground coffee to avoid clogging and overly bitter extraction.

How long is the warranty?

Full one-year warranty from the date of purchase, with hassle-free replacement in the US and Canada.

Can I make hot tea with this infuser?

Yes, add tea concentrate to hot water at a 1:7 ratio for hot tea.

How to know if the brew is done?

Recommended time is 12-24 hours for coffee and 4-12 hours for tea. Taste to check desired strength.

Where to find additional instructions?

Visit kitchenaid.com/quickstart for videos and tips on use and deep cleaning.

USER MANUAL KCM5912 KITCHENAID

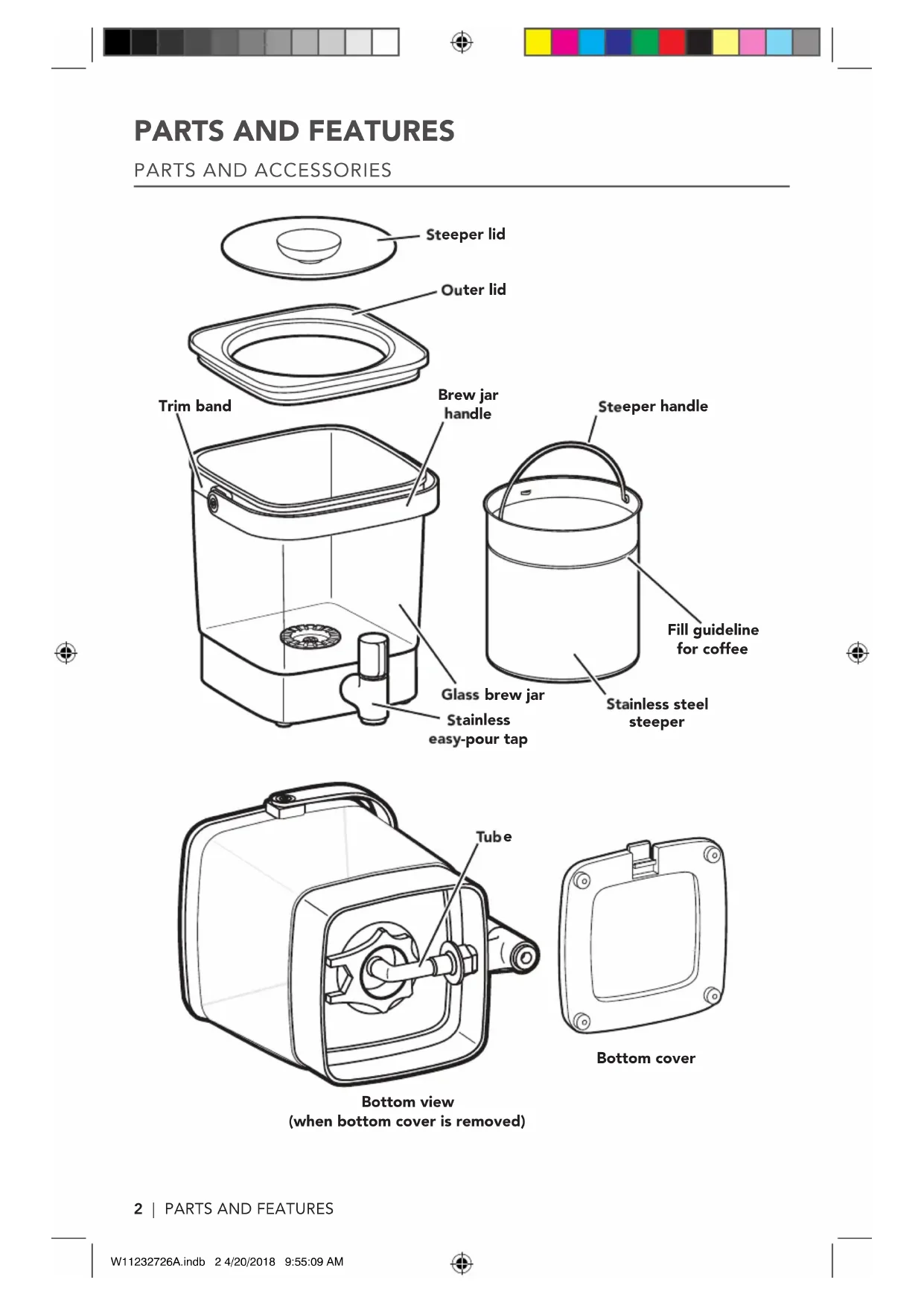

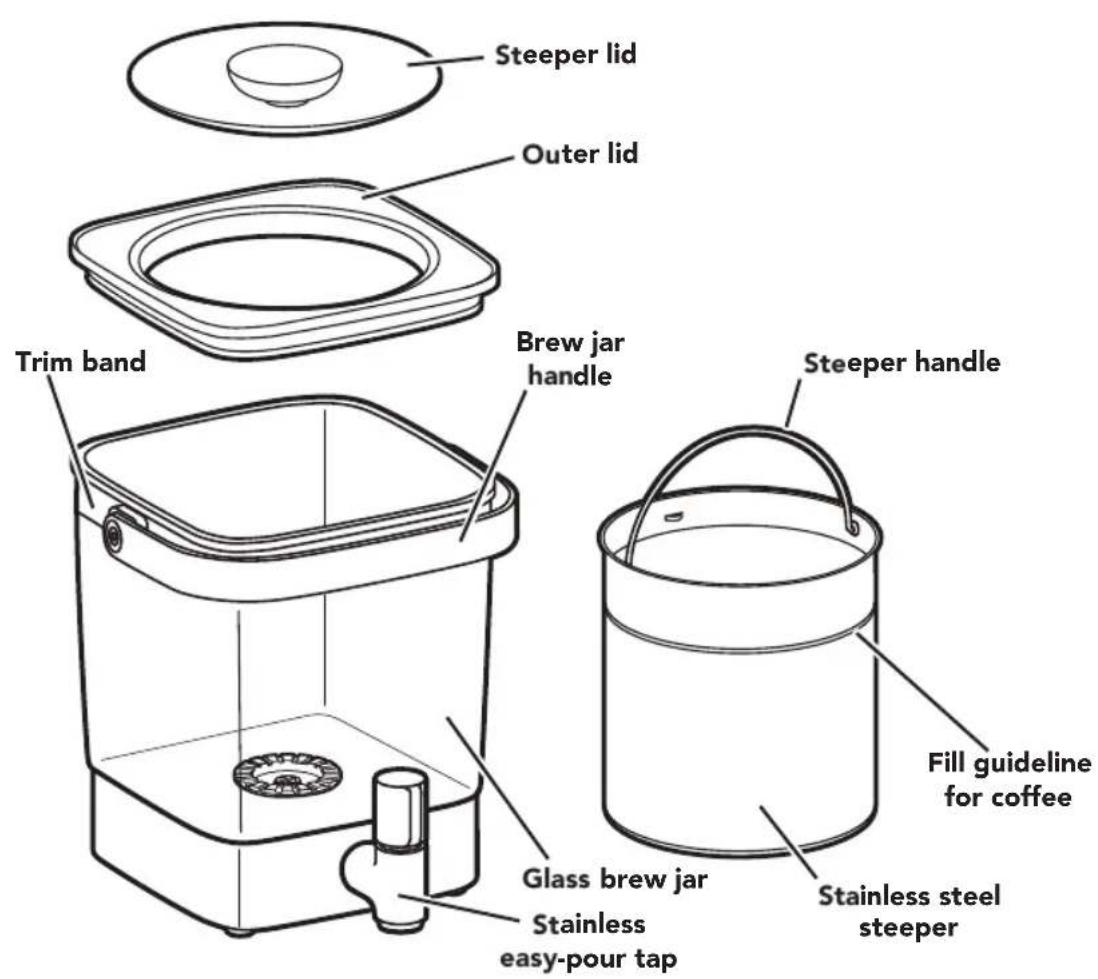

PARTS AND FEATURES

PARTS AND ACCESSORIES

Line drawing of a rectangular mechanical component with mounting holes and a central slot (no text or symbols)

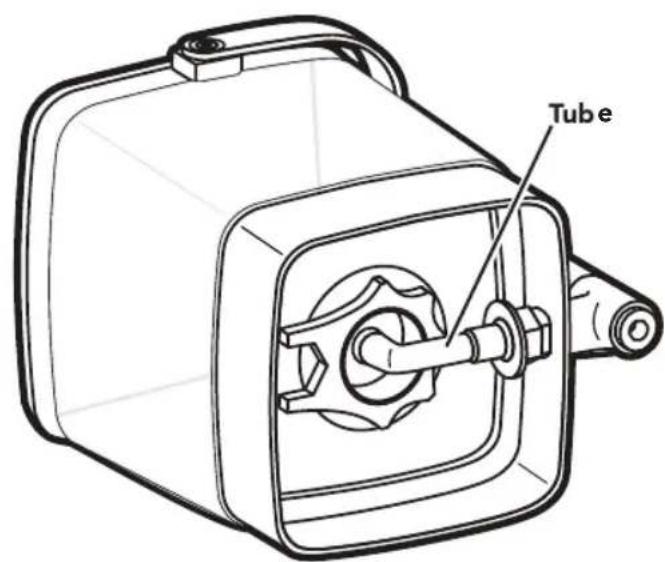

Bottom view (when bottom cover is removed)

COFFEE MAKER SAFETY

IMPORTANT SAFEGUARDS

When using appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Close supervision is necessary when any appliance is used by or near children.
3. Do not operate any appliance after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service center for examination, repair, or adjustment.
4. Do not use near or on a hot gas or electric burner stove, or in a heated oven.
5. Do not use the appliance for other than intended use.
6. Do not use the Coffee Maker without lid properly closed.
7. Do not use the Coffee Maker with loose or weakened handle.
8. Do not clean the Coffee Maker with abrasive cleaners, steel wool, or other abrasive materials.
9. This product is designed for household use only.
10. Do not overfill the Coffee Maker.
11. Use only coarsely ground coffee.
12. Place the Coffee Maker on a nonslip surface.

SAVE THESE INSTRUCTIONS

INTRODUCTION TO COLD BREWING

COLD BREWED COFFEE AND TEA

Simple line drawing of a bucket with a handle (no text or symbols)

The classic cold brew coffee brewing method uses coarsely ground coffee steeped in cold water over a period of 12-24 hours. This no-heat brew method produces a smooth, balanced flavor that's less bitter.

Cold brewed tea is steeped in cold water over a period of 4-12 hours. For tea, your package may have recommended brew times, but a general guideline is 4-6 hours for green and white teas, and 8-12 hours for black and oolong teas.

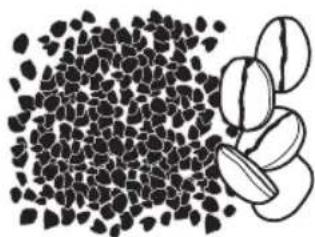

For best results, use coarsely ground coffee or loose-leaf tea leaves. If you have a kitchen scale, you can use the chart below to determine how much coffee or tea to use. Or, use the coffee fill guideline on the steeper (see at left) as a rough guide when making coffee.

Black-and-white illustration of a pile of pebbles next to three stylized coffee beans (no text or symbols)

COFFEE AND TEA CONCENTRATE DOSAGE GUIDE
Coffee	11.6 oz (330 g) Coarsely ground coffee	+	WATER	59 oz (1.75 L)
Tea	6 oz (175 g) Loose-leaf tea

* Example of recommended coarsely ground coffee. If using the KitchenAid Burr Grinder, use settings 1-3.

USING THE COLD BREW MAKER

BREWING

IMPORTANT: Before using the Cold Brew Maker, wash all parts by hand in warm, soapy water, making sure to rinse and drain the coffee tube before use. Dry thoroughly. To avoid damage, do not wash in the dishwasher.

Line drawing of a kitchen appliance with a valve and handle, no text or symbols present

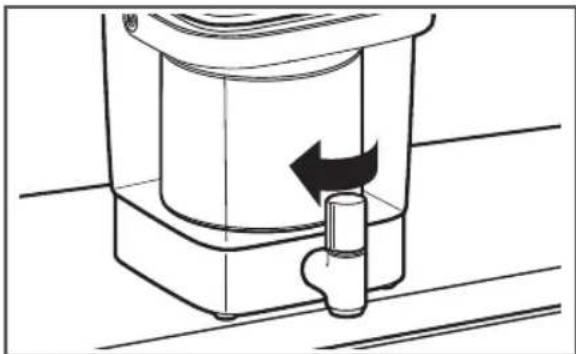

1 Turn the tap to the LEFT to make sure that the tap is CLOSED.

Diagram showing two containers with different shapes, one with a lid and arrow indicating downward motion (no text or symbols)

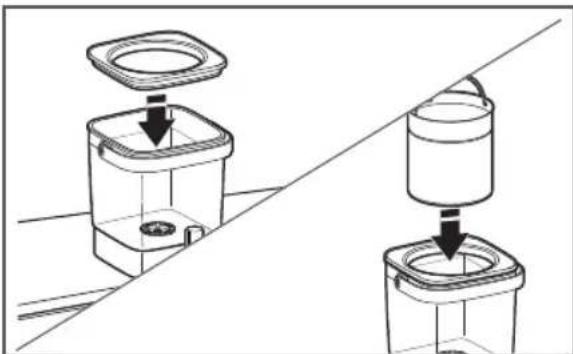

2 To assemble: Place the outer lid on the brew jar; insert the steeper. Make sure steeper handle is lying flat.

Line drawing of a hand pouring liquid into a container with a handle (no text or symbols)

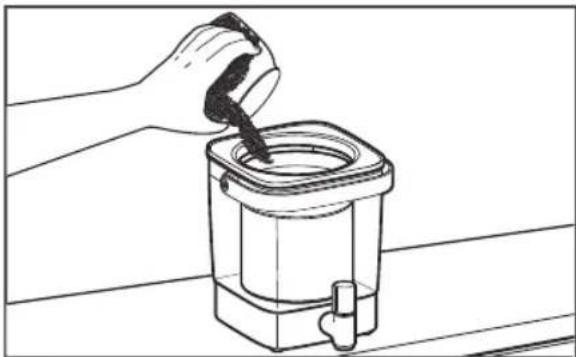

3 Scoop coffee or tea into the steeper. See the "Coffee and Tea Concentrate Dosage Guide" for the right amount of coffee or tea to add.

Illustration of a hand pouring liquid into a square tank with a curved arrow indicating flow (no text or symbols)

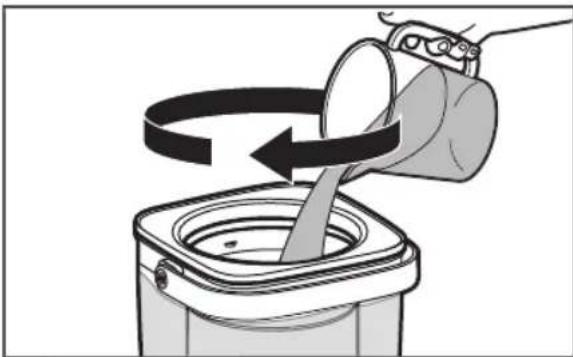

Pour 42 oz (1.25 L) of cold water over the grounds, using a circular motion. 4 Pause to allow grounds to absorb water, then pour in an additional 17 oz (0.5 L) water.

Illustration of a hand pouring liquid from a spoon into a square container (no text or symbols)

Press down the grounds or tea leaves, making sure they are covered by the water. Put on the lid. Brew in the refrigerator or at room temperature. See "Introduction to Cold Brewing" for the recommended brew times.

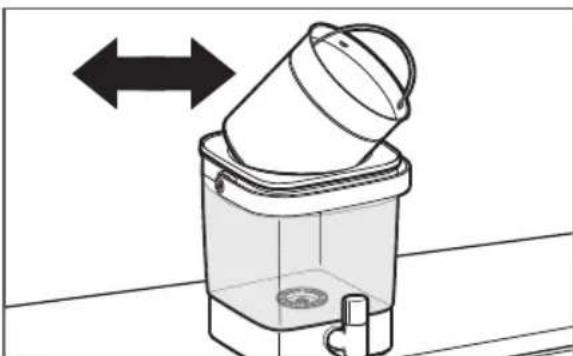

Diagram of a mechanical device with a bucket and handle, showing directional arrow (no text or symbols)

After brewing, remove lid; use the handle to lift the steeper and rest it at an angle on the brew jar. Allow to drain for 3 minutes, then change the angle and drain for another 2 minutes.

USING THE COLD BREW MAKER

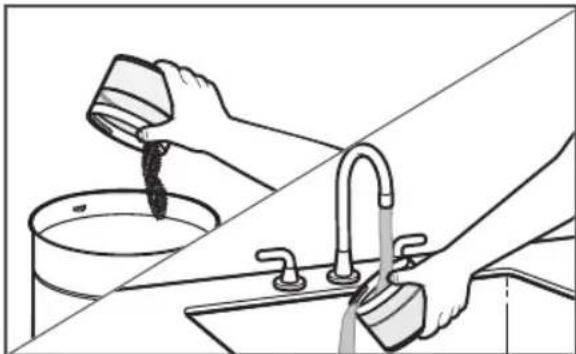

Illustration of hands washing a sink with a water bottle, showing the process (no text or symbols)

7 Remove the steeper. Compost or discard the used grounds. Wash the steeper according to the "Care and cleaning" directions.

Line drawing of a kitchen sink with a milk carton, apple, and a bottle (no text or symbols)

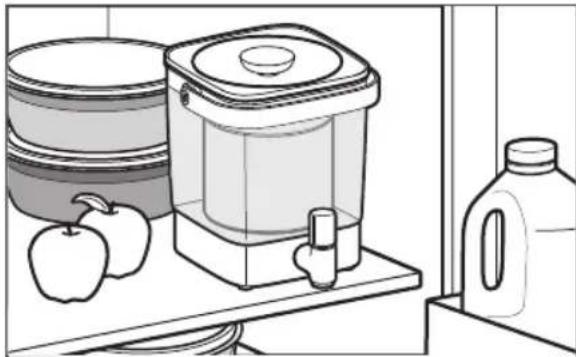

8 Replace the steeper lid on the brew jar and store the concentrate in the refrigerator.

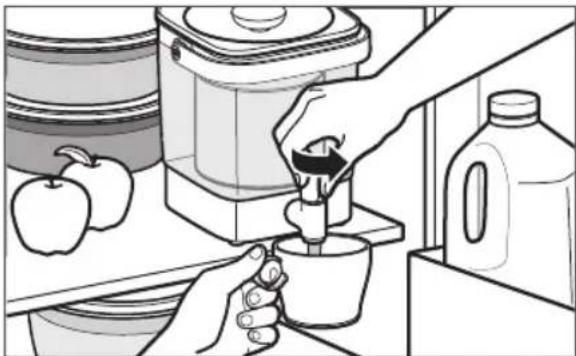

Illustration of a hand pouring liquid into a cup on a kitchen counter with apple and milk in the background (no text or symbols)

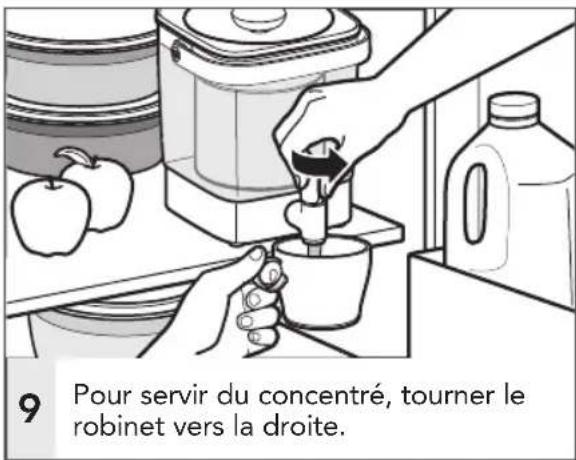

9 To dispense concentrate, turn the tap to the right.

FOR DETAILED INFORMATION ON THE COLD BREW MAKER

Visit kitchenaid.com/quickstart for additional Instructions with videos and tips on how to use your Cold Brew Coffee Maker.

MAKING COLD BREW DRINKS

COLD BREWED COFFEE

The KitchenAid® Cold Brew Coffee Maker makes up to 38 oz (1023 mL)* of coffee concentrate for 19 8-oz servings. To serve your cold brew beverage, we recommend using a 1:3 coffee to water/milk ratio. This means you add 1 part coffee concentrate to 3 parts water or milk.

*Servings may vary based on coffee type.

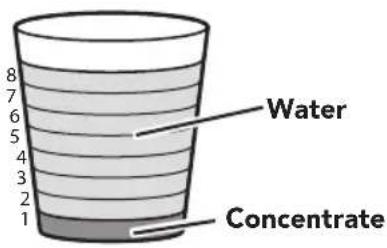

DRINK RECIPES FOR MAKING 8 OZ BEVERAGE
COFFEE CONCENTRATE	+	FOR HOT COFFEE: HOT WATER	FOR COLD COFFEE: COLD WATER OR MILK
2 oz or 1/4 cup (60 mL) 6 oz. or 3/4 cup (180 mL)		6 oz. or 3/4 cup (180 mL)

Adjust amount of coffee concentrate to achieve desired taste.

MAKING COLD BREW DRINKS

COLD BREWED TEA

The Cold Brew Coffee Maker makes approximately 40-43 oz [1182-1271 mL]* of tea concentrate. To serve your tea beverage, we recommend using a 1:7 tea to water ratio. This means you add 1 part tea concentrate to 7 parts water.

*Servings may vary based on tea type.

DRINK RECIPE FOR MAKING 8 OZ BEVERAGE
TEA CONCENTRATE	+	FOR HOT TEA: HOT WATER	FOR COLD TEA: COLD WATER
1 oz or 1/8 cup (30 mL) 7 oz. or 7/8 cup (210 mL)		7 oz. or 7/8 cup (210 mL)

Adjust amount of tea concentrate to achieve desired taste.

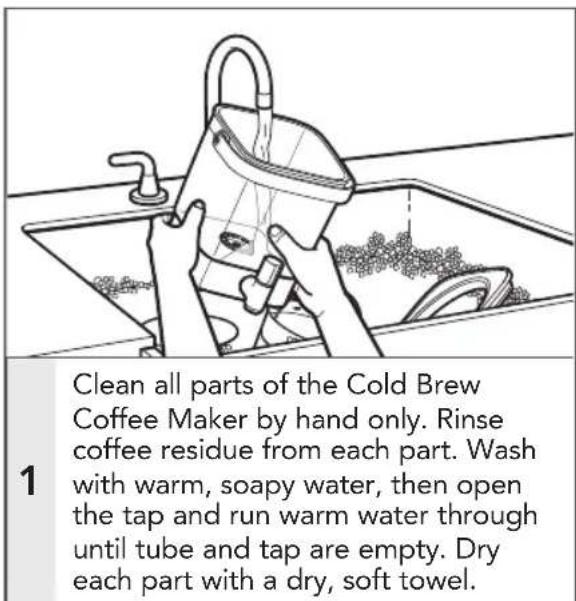

CARE AND CLEANING

CLEANING THE COLD BREW COFFEE MAKER

IMPORTANT: It is critical to thoroughly clean the Cold Brew Coffee Maker after each use. To avoid damage, do not wash in the dishwasher. The taste of your coffee can be impacted if the brew jar and steeper assembly is not thoroughly cleaned of all grounds, coffee oil residue, or soap after each use.

FOR DETAILS ON DEEP CLEANING THE COLD BREW COFFEE MAKER

Visit kitchenaid.com/quickstart for additional instructions with videos and tips on how to clean your Cold Brew Coffee Maker.

WARRANTY AND SERVICE

KITCHENAID® COLD BREW COFFEE MAKER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Cold Brew Coffee Makers operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Cold Brew Coffee Maker. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Cold Brew Coffee Maker is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Cold Brew Coffee Maker to an Authorized Service Center.D. Replacement parts or repair labor costs for Cold Brew Coffee Makers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Cold Brew Coffee Maker should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cold Brew Coffee Maker returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Cold Brew Coffee Maker should fail within the first year of ownership, simply call our toll-free Customer eXperience

Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Cold Brew Coffee Maker, use the carton, packing materials, and prepaid shipping label to pack up your original Cold Brew Coffee Maker and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cold Brew Coffee Maker should fail within the first year of ownership, we will replace your Cold Brew Coffee Maker with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Cold Brew Coffee Maker should fail within the first year of ownership, simply call our toll-free Customer eXperience

Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Cold Brew Coffee Maker, use the carton, packing materials, and prepaid shipping label to pack up your original Cold Brew Coffee Maker and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Cold Brew Coffee Maker for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

®/TM ©2018 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.

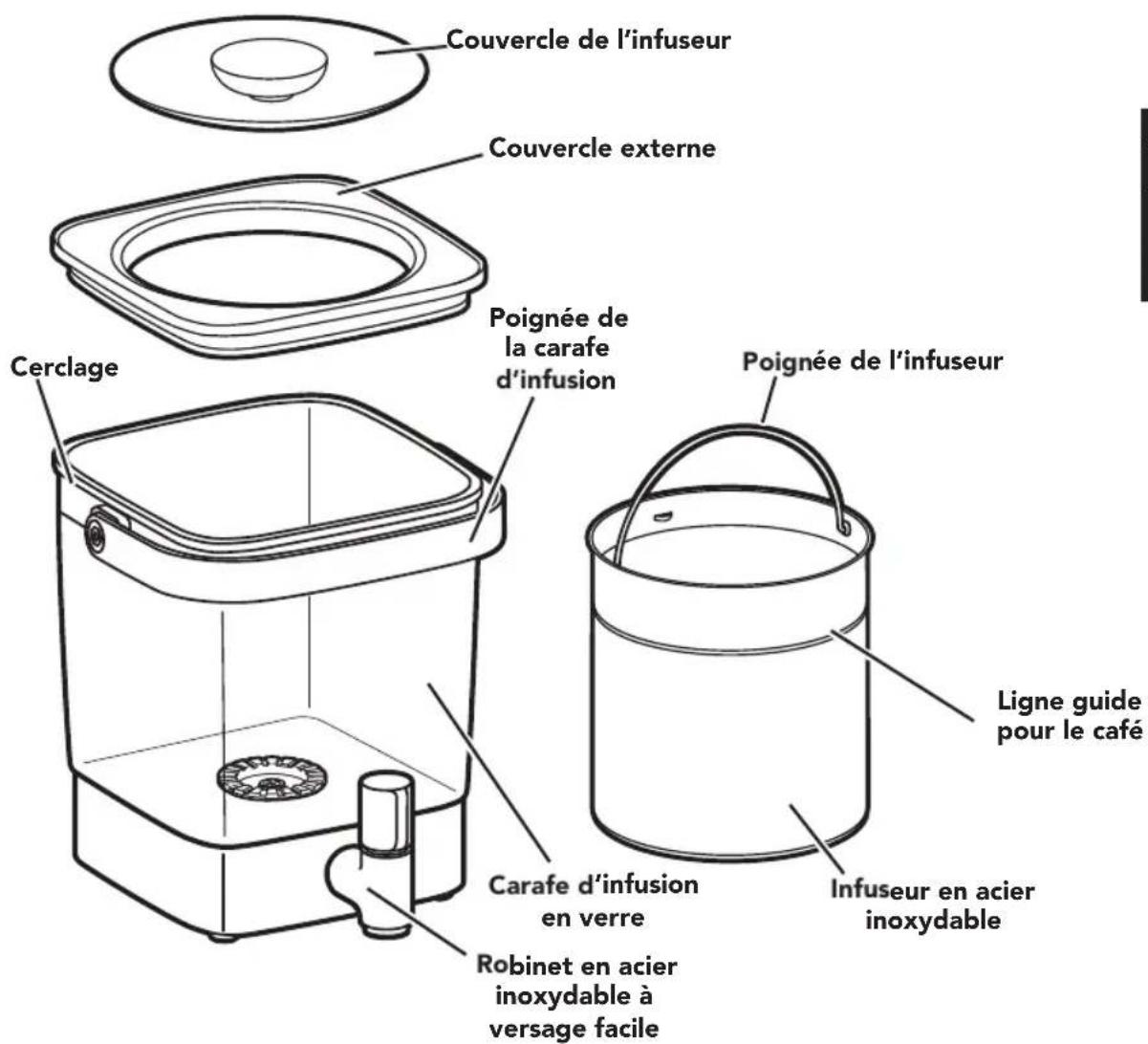

PIÈCES ET CARACTÉRISTIQUES

PIÈCES ET ACCESSOIRES

Line drawing of a mechanical component with mounting holes and a central square frame (no text or symbols)

Simple line drawing of a cylindrical container with a handle (no text or symbols)

Black-and-white illustration of a pile of small granular material next to a cluster of circular objects (no text or symbols)

GUIDE DE DOSAGE DU CAFÉ ET DU THÉ
Café	330 g (11,6 oz) Café grossièrement moulu	+	EAU	1,75 L (59 oz)
Thé	175 g (6 oz) Feuilles de thé en vrac

Diagram of a mechanical device with a rotating arrow and base component (no text or symbols)

1

Diagram showing two containers with downward arrows indicating a process or transformation (no text or symbols present)

2

Line drawing of a hand pouring liquid into a square container with a handle (no text or symbols)

Illustration of a hand pouring liquid into a container with a belt, showing a circular motion around the lid (no text or symbols)

Illustration of a hand pouring liquid from a small container into a square basin (no text or symbols)

Diagram of a mechanical device with a bucket and pipe, showing directional arrows (no text or symbols)

Illustration of hands washing a sink with a hand pouring liquid from a container into a basin (no text or symbols)

Illustration of kitchen utensils including a milk carton, apple, and a bottle (no text or symbols)

8 Replace the steeper lid on the brew jar and store the concentrate in the refrigerator.

UTILISATION DE L'INFUSEUR À CAFÉ FROID

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Line drawing of a rectangular mechanical component with mounting holes and a central slot (no text or symbols)

Simple line drawing of a cylindrical container with a handle (no text or symbols)

Black-and-white illustration of a pile of pebbles and scattered beans (no text or symbols)

Diagram of a mechanical device with a valve and directional arrow indicating motion (no text or symbols)

Diagram showing two mechanical components with downward arrows indicating assembly or alignment (no text or symbols)

Line drawing of a hand pouring liquid into a square container with a handle (no text or symbols)

Illustration of a hand pouring liquid into a container with a belt, showing a circular motion around the lid (no text or symbols)

Illustration of a hand pouring liquid from a container into a square tank (no text or symbols)

Diagram of a water dispenser with directional arrow indicating left and right movement (no text or symbols)

Illustration of hands pouring liquid into a tank and using a water dispenser to clean the sink (no text or symbols)

Illustration of a kitchen scene with a microwave oven, apple, and milk bottle (no text or symbols)

Red background with a white telephone handset icon (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

Silhouette of a kitchen mixer on a bowl (no text or symbols)

KitchenAid®

®/™ ©2018 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.
