Product type	Wine cellar
Brand	Amica
Model	WKR 341 920 R
Temperature range	5°C to 20°C
Power supply	220-240 V ~ 50 Hz, 10 A
Climate class	SN, N, ST, T (10°C to 43°C)
Interior lighting	LED
Control panel	Touch with digital display
Special functions	Child lock, °C/°F switch, temperature setting
Shelves	Removable, variable number
Door	Glass, with handle (fixing possible)
Safety	Child lock, automatic stop?
Maintenance	Cleaning with warm water and baking soda, do not use steam
Spare parts	Available for 7 to 10 years
Warranty	According to warranty card
Compliance	EU Directives (Low Voltage, EMC, ErP, RoHS)
Intended use	Storage of wine bottles, domestic use

Frequently Asked Questions - WKR 341 920 R AMICA

What to do if the appliance does not turn on?

Check that the plug is plugged in and that the fuses or circuit breakers are not tripped. Test the socket with another appliance. Make sure the ambient temperature is between 16°C and 32°C.

The temperature inside is not correct, what to do?

Check that the appliance is not overloaded, that the thermostat is set to the correct temperature, that the door closes properly and that the seals are in good condition. Make sure there is sufficient ventilation on the sides and back.

The appliance is making noise, is it normal?

Yes, some noises are normal: cracking due to temperature variations, noise of the refrigerant gas even when the compressor is off, and possible operation of the fan. Check that the appliance is level and stable.

The lighting does not work, what to do?

First check that the appliance is plugged in and that the fuses are intact. Make sure the lighting key is not turned off. If the problem persists, contact technical service because the LED lighting cannot be replaced by the user.

The door does not close properly, how to fix?

Check that the appliance is level and stable. If the door has been dismantled, reassemble it correctly. Clean the door seal and make sure the shelves are properly inserted.

The display shows "E1" or "E2", what does it mean?

These codes indicate damage to the temperature sensor. Contact technical service for replacement.

How to clean the inside of the wine cellar?

Unplug the appliance. Use a solution of baking soda with warm water to clean the interior surfaces. Do not use abrasive products or steam. Dry thoroughly before restarting.

Can I use abrasive products for cleaning?

No, never use abrasive cleaning products or harsh detergents. Use a mild cleaner and warm water.

How to lock/unlock the control panel?

Press and hold the two temperature adjustment keys simultaneously for 5 seconds. The lock also activates automatically after a certain period of inactivity.

What is the ideal temperature for storing wine?

The recommended temperature range is 5°C to 20°C. Temperature stability is crucial for wine quality. Avoid sudden variations.

USER MANUAL WKR 341 920 R AMICA

EN- Table of contents

GUIDELINES CONCERNING THE SAFETY OF USE 6

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 8

CLIMATE RANGE 9

PRACTICAL EVERYDAY TIPS 10

UNPACKING 11

DISPOSAL OF OLD APPLIANCE 12

CONTROLS 13

APPLIANCE CONTROLS- SINGLE AND DUAL ZONE 13

CARE AND CLEANING 14

REMOVING THE SHELVES 14

CLEANING 14

TROUBLESHOOTING 14

IF THE APPLIANCE IS NOT WORKING, CHECK 14

THE APPLIANCE IS WORKING, BUT NOT VERY WELL, CHECK 15

THE APPLIANCE IS NOISY, CHECK 15

THE LIGHT DOES NOT WORK, CHECK 15

THE DOOR WILL NOT CLOSE PROPERLY, CHECK 15

THE DISPLAY SHOWS "E1" OR "E2" 15

EPREL 15

WARRANTY AND AFTER SALES SERVICE 16

WARRANTY 16

GARANTIE, NACHVERKAUF-SERVICE 29

GARANTIE 29

ALS OP DE DISPLAY "E1" OF "E2" BRANDT 53

EPREL 53

GARANTIE, SERVICE 54

GARANTIE 54

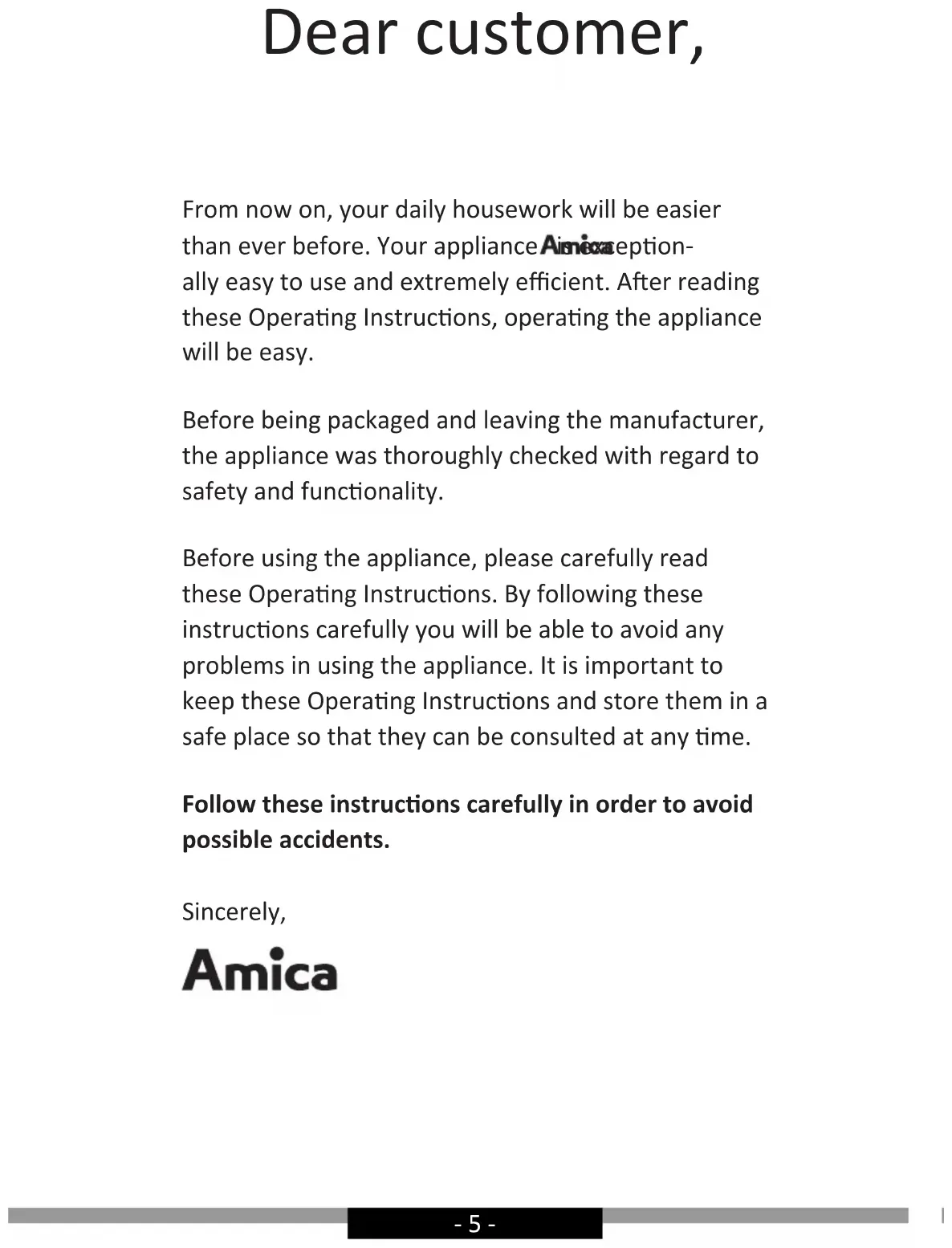

Dear customer,

From now on, your daily housework will be easier than ever before. Your appliance Air exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

GUIDELINES CONCERNING THE SAFETY OF USE

• The appliance is intended for household use only.
• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.
• When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.
• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.
• The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.
• For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.

- Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

- Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.

- When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

- Do not clean the appliance with steam

- Keep the appliance and its power cord away from children under 8 years old.

- Do not immerse the power cord or plug in water.

- Keep cord away from heated surfaces.

- Do not allow the connection cord hanging over the edge of a table or counter.

- Do not use any electrical appliances inside the chamber

- Do not use any tools to speed up the defrosting process

- Regularly clean the ventilation openings (in case of built-in appliances or those installed under the worktop)

• This appliance is not designed to be controlled by electronic timers or other devices that cut off power directly or remotely.
• In case of accidental spillage of liquids on electrical components, immediately unplug your appliance from the power supply.
• Make sure that the power cord is not crushed or damaged during installation.
• Disable the appliance before disposing of it. Unplug the appliance from the power supply and cut off the power cord. To prevent children or animals from being trapped in the appliance, remove the doors, hinges and locks.
• Note: If the appliance does not have a freezer compartment ( ** ), it is not suitable for freezing foodstuffs.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.

INSTALLATION AND OPER- ATING CONDITIONS OF THE APPLIANCE

• Connect the appliance to the power supply 24 hours after unpacking and setting in the final location.
  • Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Clean the interior surface of the cooler and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the cooler on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.

• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 1)

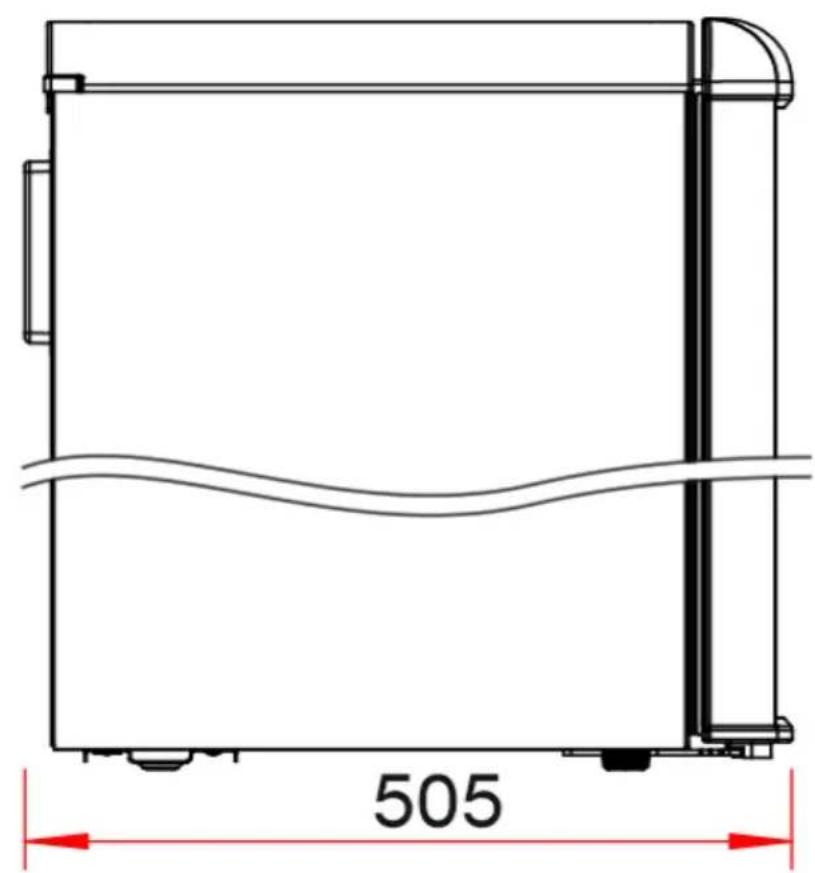

• Keep free space on the sides and rear of the appliance (see installation drawing)

• When you install your wine cooler inside a furniture cabinet, make sure that the ventilation grille located in the bottom of the appliance is not blocked.
• Odours may be released when you first start your appliance. It will dissipate when the interior of the appliance cools down
• When you first start your wine cooler, the compressor will run continuously until the desired temperature is reached inside the chamber
• When you unplug your appliance from the power supply, it is recommended to wait 5 minutes before you plug it back in. This will reduce the risk of damage to the compressor.
• On selected models, the correct temperature will be shown on the display only a few hours after the wine cooler has been put into operation
• This appliance should be connected to AC 220-240V 50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN	Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical		This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

PRACTICAL EVERYDAY TIPS

- If the light inside the appliance remains turned on, keep in mind that the temperature inside the appliance will be higher

- Temperature inside the appliance depends on the amount and type of stored wine bottles

- To ensure user safety and high quality of stored wine, do not install the appliance in damp rooms

- Store wine bottles in designated spaces

- Your wine cooler has a limited capacity. Do not place more bottles in your wine cooler than recommended in specification

- Do not open the wine cooler door if it is not necessary

- Do not cover the shelves with aluminium foil or other material. This blocks the air circulation inside the appliance

- To avoid damage to the door seal, make sure that the door is completely open before pulling out the shelf. The shelves should be inserted as far as possible, otherwise the shelf may deform and damage the door seal.

- Do not extend the loaded shelves beyond the extension limit (about 1/3 of the shelf length)

- This appliance is designed for storing bottles of wine. Do not use it for any other purpose.

• Temperature stability is very important when storing wine.

- Exposing your wine cooler to sunlight, significant temperature fluctuations, high humidity and vibrations may cause the wine to go bad.

- In periods of high humidity, condensed water vapour may appear on the outer surfaces of the glass door. To prevent this, install the appliance in a dry, adequately ventilated room.

- Selected models have an external handle. You need to install it on your own. Do not use electric tools for this purpose (fig. 3*). To do this, pull the door seal slightly to the side and place the screws on the inside of the door. Align the handle with the holes on the outside of the door and tighten the screws with a screwdriver. Reinstall the door seal.

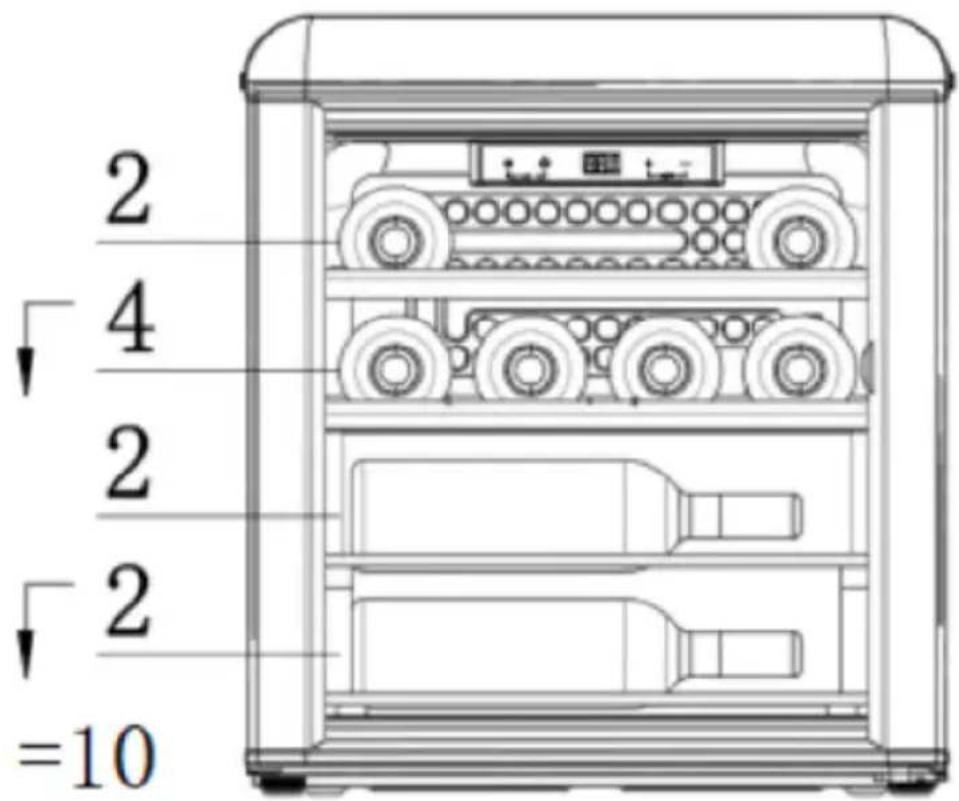

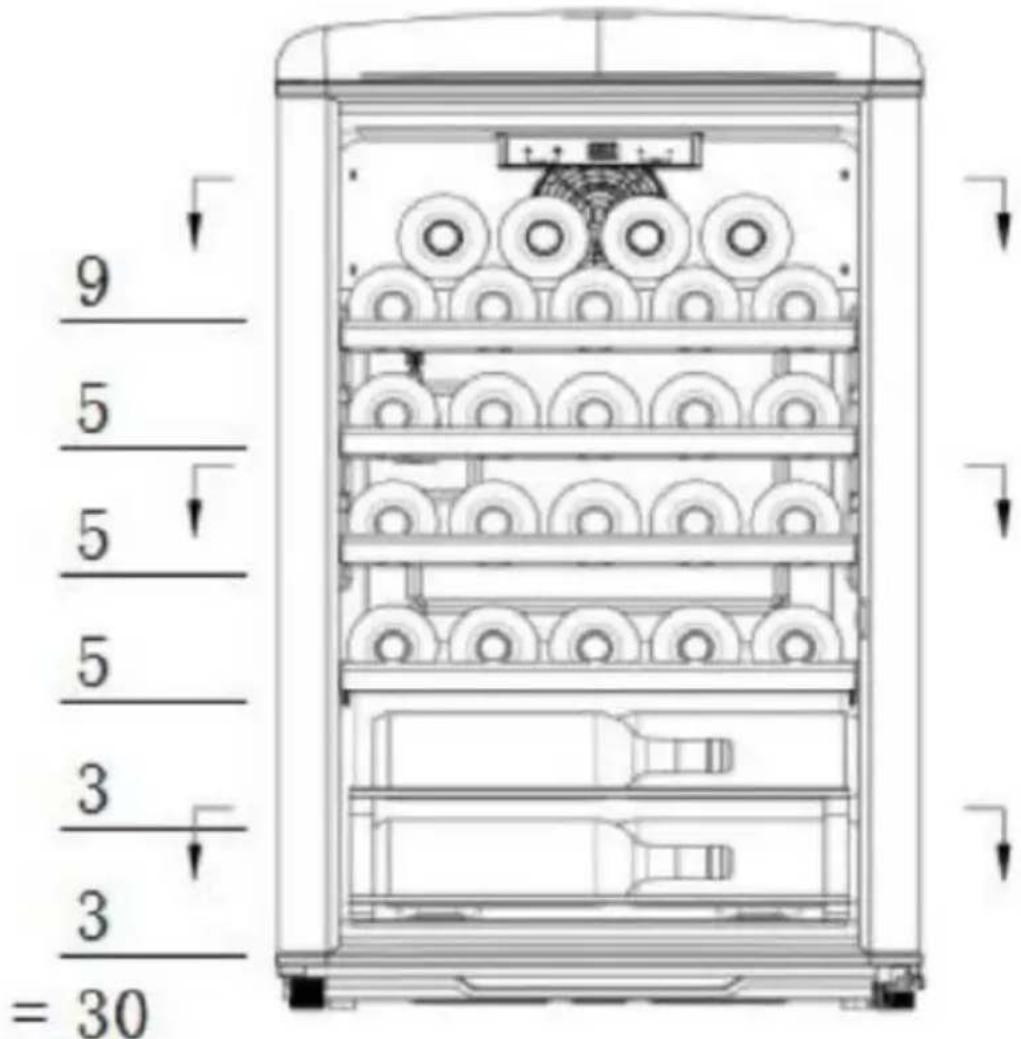

- The maximum capacity of the appliance is given in the product sheet enclosed with the wine cooler. This capacity applies to standard 0.75 litre bottles of Bordeaux.

- Selected models have an Anti-tip kit. Install it according to the enclosed diagram (fig. 6*).

- This refrigeration appliance is intended for use as a built-in appliance.

- To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.

- Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

UNPACKING

Simple line drawing of a three chasing recycling symbol (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

Appliance controls- single and dual zone

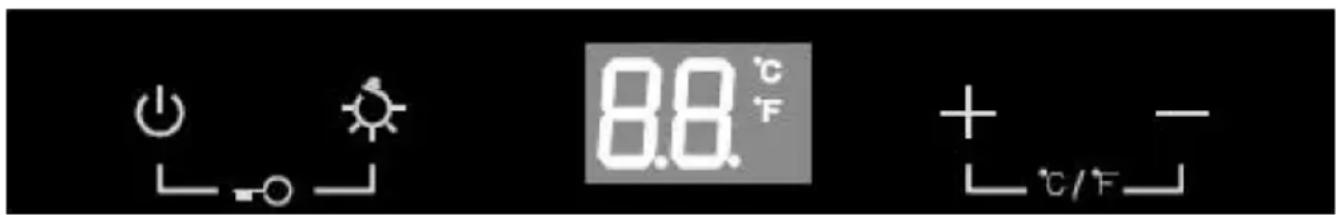

The control panel is shown in figure 4. For reference it is also shown below:

8.8 °C + - °C/F-

① - Power button
- Light button
+ - "+" button
- “-” button

Child lock button (combined button)

Lock: The button will be locked automatically after power-on or several seconds if no button is operated, or the button will be locked when the button is pressed for long.

To lock / 'unlock press both buttons at the same time for 5s.

Set the temperature unit °F or °C. (Combined button)

First unlock the control panel. Press both buttons at the same time, and then you can switch over between the Celsius degree and Fahrenheit degree for display. Each time the button is pressed, a switch over will be made.

Power on/off button:

To turn off the appliance press this button for 5s, the display screen will indicate "oF" for 60s.

When the cooler is in the ready mode, touch any button to light the display screen and then press this power button for 5s, the cooler will back to normal work.

Lamp on/off button

Press the light button to switch the light on or off.

The buttons are used to change the temperature inside the chamber. Before starting, unlock the panel. The temperature range is 5-20°C

CARE AND CLEANING

Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.

Removing the shelves

• To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 5). Then lift the shelf up and pull forwards.
• To replace the shelves, follow the steps above in reverse order.

Cleaning

• Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.
• The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.
• The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.
• Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.
• Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried off before reconnecting the power.
• Once cleaning is complete, reconnect the mains electrical supply.
• If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation

TROUBLESHOOTING

If you have any problems with your appliance, you should check the troubleshooting guide prior to calling Call Center to prevent unnecessary service calls and potential cost.

If the appliance is not working, check

• There is power to the appliance
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
- The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.
- The ambient temperature is between 16^ to 32^ .

The appliance is working, but not very well, check

• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The door is closing properly.
  • The door gasket is sealing properly
• There is enough ventilation at the side and rear walls.
• The ambient temperature is between 16^ to 32^ .

The appliance is noisy, check

• The appliance is level and stable.
• The cooling gas will make some noise, even when the compressor is not running.
• During operation, it is normal for the fan to run, even when the compressor is not running.

The light does not work, check

• There is power to the appliance.
• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
• The light button is not set to off.

Please note:

The LED lighting cannot be replaced without a service call

The door will not close properly, check

• The appliance is level and stable.
• If the door has been removed, it may not have been correctly refitted.
  • The door seal is dirty.
• The shelves are not positioned correctly.

The display shows "E1" or "E2"

- The temperature sensor has failed. Please contact Call Center

EPREL

For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the and symbol and been issued with a declaration of compliance made available to market regulators.

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Diagram showing a mechanical or electrical component with a magnified view of its upward and downward force, including a 3D block structure.

1

8.8 °C + - °C/F-

4

Technical line drawing of a mechanical component with flanged ends and two small protrusions (no text or symbols)

5

2 4 2 2 =10

9 5 5 5 3 3 = 30

A 480

505

WKR 341 910 R
A=535mm
WKR 341 920 R
A=875mm

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki

tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
