USER MANUAL H60MEY HITACHI

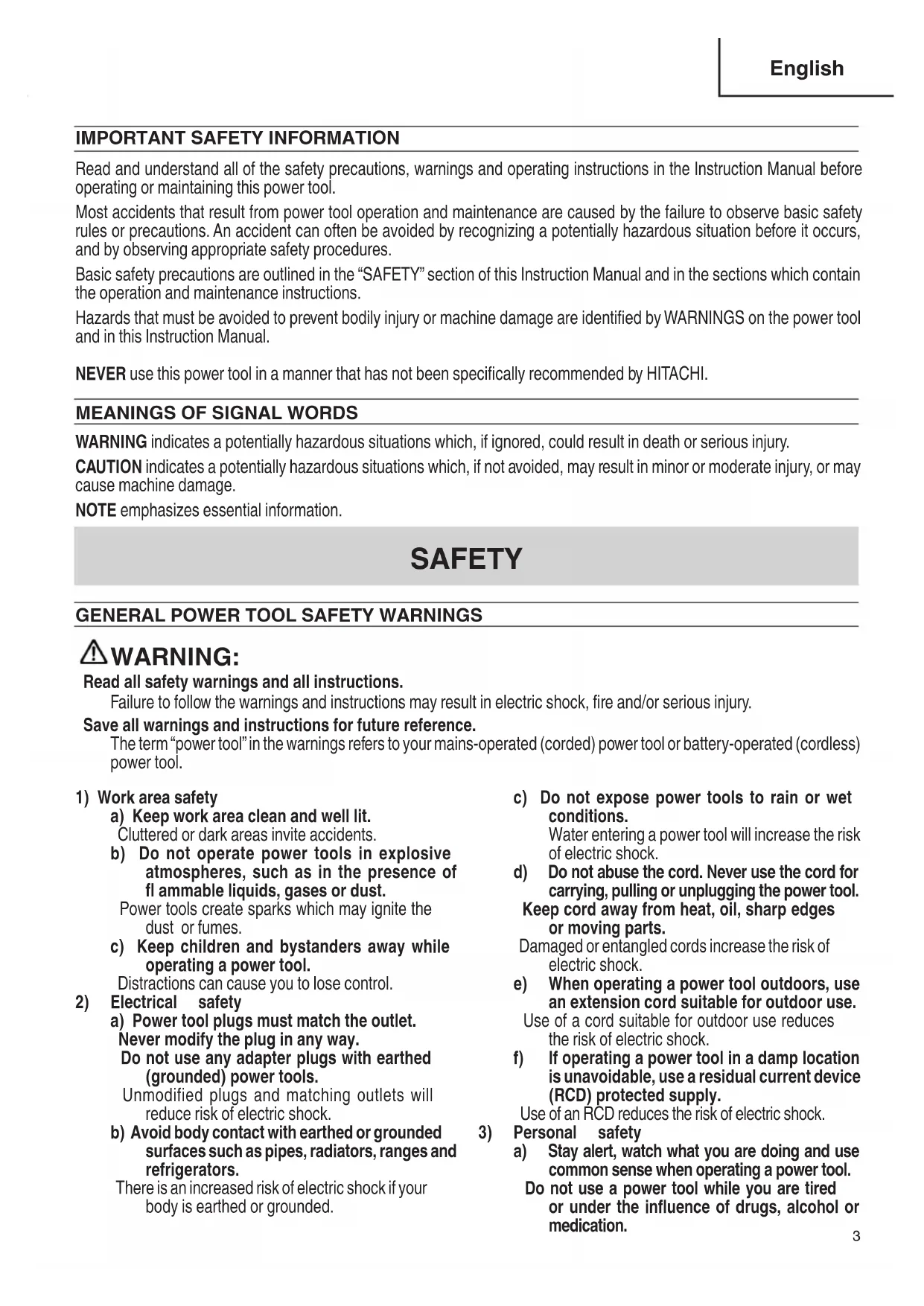

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 00BookH60MEYNA.indb300BookH60MEYNA.indb3 2016/06/0716:29:592016/06/0716:29:594 English A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Exposure to noise can cause hearing loss.

2. Use auxiliary handles, if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tools by insulated gripping surfaces

when performing an operation where the cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

4. NEVER touch the tool bit with bare hands after

5. NEVER wear gloves made from materials likely to roll

up such as cotton, wool, cloth or string, etc.

6. ALWAYS attach the side handle and securely grip the

NEVER place your hands, fi ngers or other body parts near the tool’s moving parts.

8. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs. 00BookH60MEYNA.indb400BookH60MEYNA.indb4 2016/06/0716:29:592016/06/0716:29:595 English

10. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

11. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

12. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

13. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

14. Blades and accessories must be securely

mounted to the tool. Prevent potential injuries to youself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

15. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

16. Operate power tools at the rated voltage.

Operate the power tool at voltages specifi ed on its nameplate. If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

17. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

18. NEVER leave tool running unattended. Turn power

off . Don’t leave tool until it comes to a complete stop.

19. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

20. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

21. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

22. ALWAYS be careful with buried object such as an

underground wiring. Touching live wiring or electric cable with this tool may result in electric shock. Confi rm before use whether hidden objects are present, such as electric cables within the wall, fl oor or ceiling.

23. Defi nitions for symbols used on this tool

OPERATION To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system eff ective, follow these precautions:

Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed.

Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve. 00BookH60MEYNA.indb500BookH60MEYNA.indb5 2016/06/0716:30:002016/06/0716:30:006 English

SAVE THESE INSTRUCTIONS

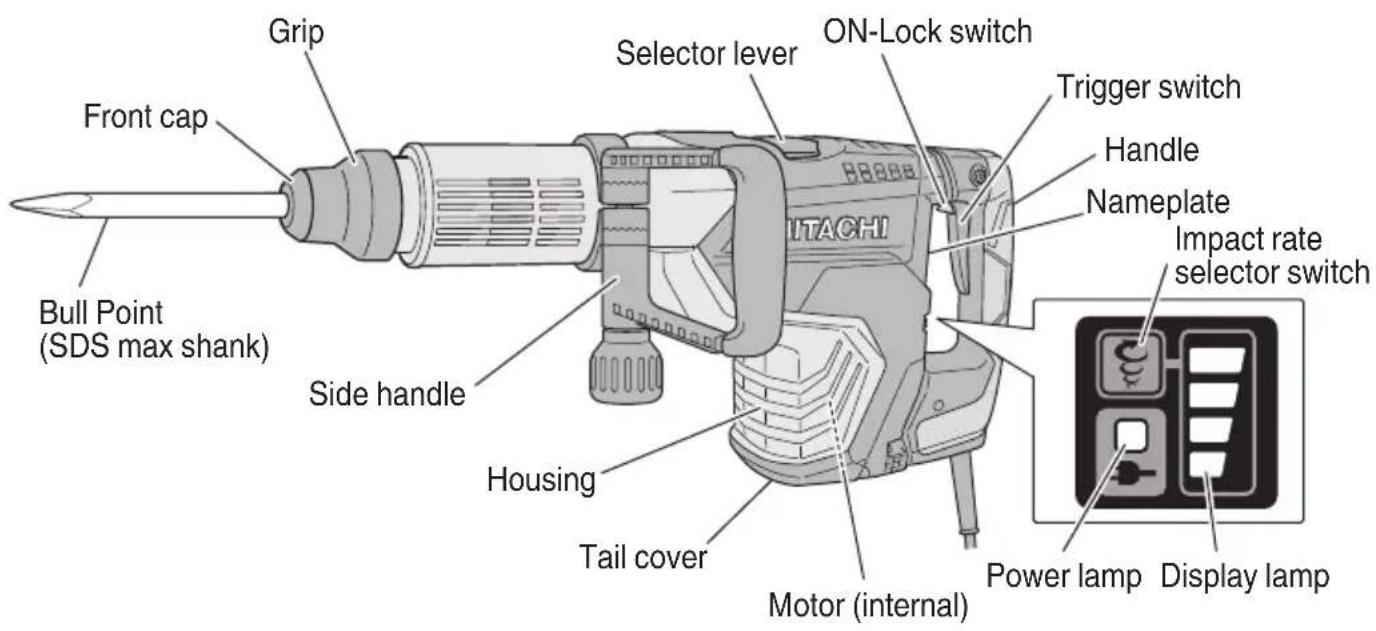

AND OWNERS OF THIS TOOL! FUNCTIONAL DESCRIPTION NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safey instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

Demolishing concrete, chiseling concrete, grooving, bar cutting, and driving piles. Application examples: Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering work.

Ensure that the power source to be utilized conforms to the power source requirements specifi ed on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable.

Damaged cord must be replaced or repaired.

4. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Confi rming condition of the environment:

Confi rm that the work site is placed under appropriate conditions conforming to prescribed precautions.

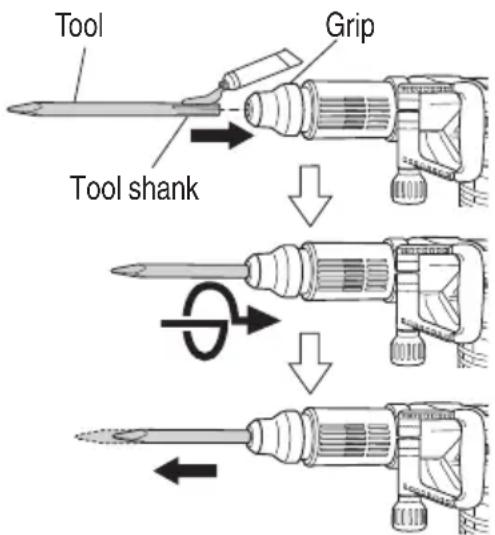

6. How to install tool

CAUTION: For tools such as a bull point, use only Hitachi genuine parts. (1) Clean, then smear the tool shank with the grease provided in the green tube. (2) To attach the tool (SDS max shank), insert it into the hole until it contacts the innermost end of the hole as illustrated in Fig. 2. If you continue to turn the tool with slight pressure, you can feel a spot where there is a hitch. At that spot, pull the grip to the direction of an arrow mark and insert the tool all the way until it hits the innermost end. Releasing the grip reverts the grip and secures the tool in place. Grip Tool Fig. 2 Tool shank (3) Pull the tool to make sure it is locked completely. (4) To remove the tool, fully pull the grip in the direction of the arrow and pull out the tool.

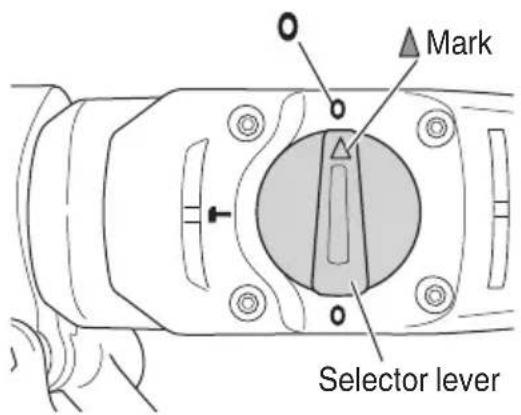

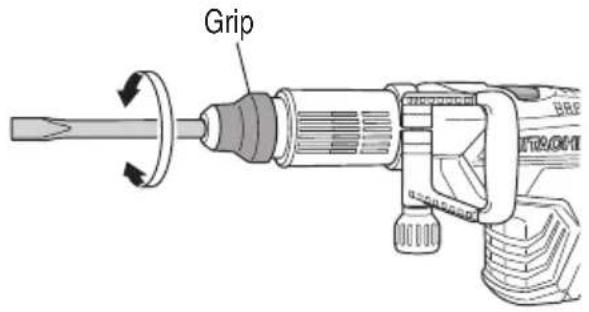

7. Deciding Working Position of Tool

The tool can be turned every 30 degrees and can be fi xed at the position of 12 steps. (1) The blade angle can be freely changed if the of the selector lever is aligned with the of the crank cover, as illustrated in Fig. 3. SPECIFICATIONS Model H60MEY Motor Brushless motor Power Source Single-Phase, 120 V 60 Hz Full-load Impact Rate 1,500 – 2,100/min Weight 26.9 lbs (12.2 kg) 00BookH60MEYNA.indb700BookH60MEYNA.indb7 2016/06/0716:30:002016/06/0716:30:008 English Selector lever Mark Fig. 3 (2) Turn the grip or the tool as illustrated in Fig. 4 and fi x the tool to the desired working direction. Grip Fig. 4 (3) Switch the selector lever to “hammering ” and turn the tool, and make sure that it is locked completely.

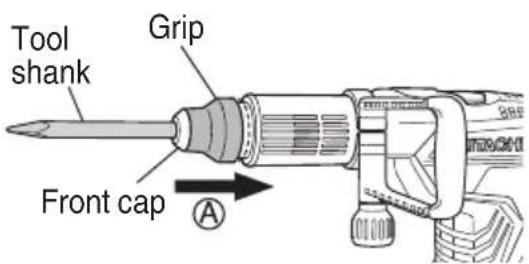

As shown in Fig. 5, slide the grip in the direction of

and pull out the tool. Grip Tool shank Front cap Fig. 5 CAUTION: Be sure to grip the handle and side handle during work. Do not hold by the grip during work. If you pull it by mistake, the bull point could jump out.

9. Move the side handle

The side handle can be fi xed at any desired position; 360 degrees, and can also be fi xed at any position in the back-and-forth direction. (1) Loosen the handle by turning the grip in the direction

as shown in Fig. 6. (2) Adjust it to a position where vertical (up-and-down) operation can be facilitated as illustrated in Fig. 7, Fig. 8, and Fig. 9. (3) Turn the grip in the direction of

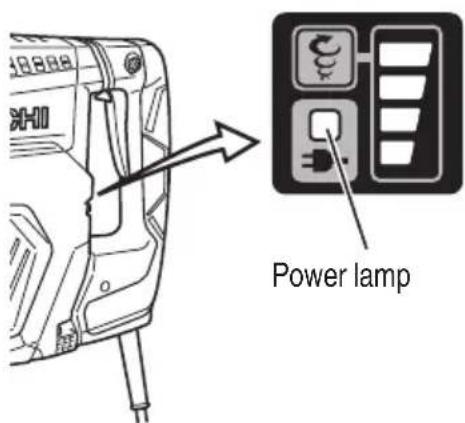

The power lamp lights up when the power cord is plugged into an electrical outlet. (Fig. 10) Power lamp Fig. 10

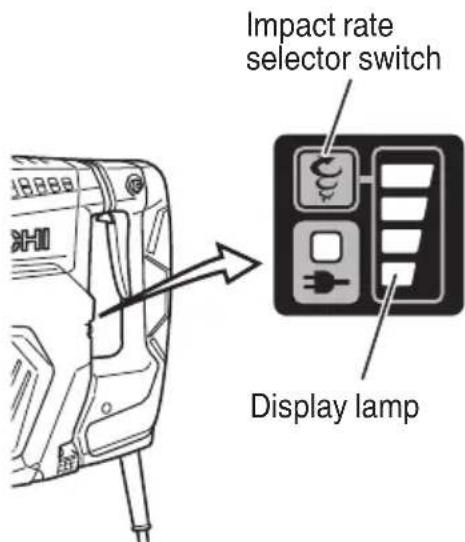

11. Regulating the number of impact rate hammering

(Fig. 11) This Demolition Hammer is equipped with a built-in electronic control circuit that can adjust and regulate the number of times of hammering. This Demolition Hammer can be used by adjusting the impact rate selector switch, depending upon the contents of operation, such as chiseling fragile materials, chipping, centering, etc. 00BookH60MEYNA.indb800BookH60MEYNA.indb8 2016/06/0716:30:002016/06/0716:30:009 English Fig. 11 Impact rate selector switch Display lamp Pressing the impact rate selector switch switches impact rates as shown in Table 1. Table 1 Display lamp sequence Impacts per Minute 1,500 1,700 1,900 2,100 NOTE: The impact rate cannot be changed by pressing the impact rate selector switch while the motor is rotating. To change impact rate, switch off the tool fi rst. 12 About the protection function This tool has a built-in protection circuit for preventing damage to the unit in the event of an abnormality. Depending on the nature of the abnormality, the display lamp will fl ash as shown in Table 2 and the unit will cease to operate. In such cases, verify the problem indicated by the fl ashing and take whatever steps are necessary to correct the problem. Table 2 Display lamp fl ashing Cause Solution Flash The tool has shut down due to internal temperatures which exceed the unit’s specifi ed temperature. (Temperature increase protection function) Turn off the tool and allow it to cool down for about 15 to 30 minutes. Once the temperature is down, the unit will recover when the impact rate selector switch is pressed. Flash The tool has shut down due to an overload resulting from the application of excessive pressure to the unit. (Overload protection function) Press the impact rate selector switch to recover. Try to avoid tasks that will apply excess pressure to the unit. Flash

Tool fails to startup or has shut down due to the unit being connected to a power source whose voltage is either too high or too low.

Tool has shut down due to a voltage signal read error that occurred from the unit’s power cord being plugged in and out at short intervals. (Circuit protection function)

Connect the unit to a power supply matching the input voltage specifi ed on the nameplate. Press the impact rate selector switch to recover.

Allow for an interval of 3 seconds or more when plugging the power cord in and out. Press the impact rate selector switch to recover. Flash Tool fails to startup or has shut down due to a sensor signal read error. (Control monitoring function) Press the impact rate selector switch to recover. Repair may be required if this error continuously occurs. NOTE: Repair may be required if the display lamp continues to fl ash after taking all necessary steps to correct the problem. If the problem persists, please arrange for repairs. 00BookH60MEYNA.indb900BookH60MEYNA.indb9 2016/06/0716:30:012016/06/0716:30:0110 English

4. Warming up (Fig. 13)

The grease lubrication system in this unit may require warming up in cold regions. Position the end of the bit so makes contact with the concrete, turn on the switch and perform the warming up operation. Make sure that a hitting sound is produced and then use the unit. Fig. 13

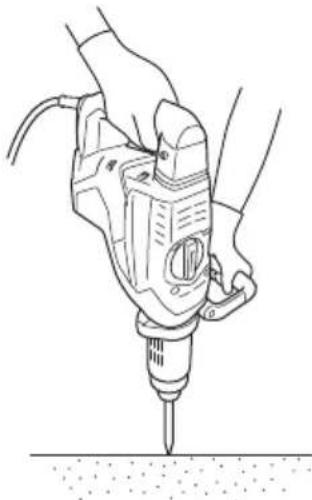

HOW TO USE THE DEMOLITION HAMMER

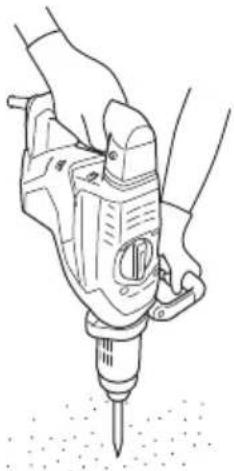

1. After placing the tip of the tool on concrete surface,

switch ON. The switch can be turned ON if the trigger is pulled and OFF when it is released. If the ON-Lock switch is pressed while the trigger for the switch is pulled, even if your fi nger is released from the trigger, the switch remains ON - convenient for continuous operation. To turn the switch OFF, pull the trigger again, and then the ON-Lock switch comes off .

2. By utilizing the empty weight of the machine and by

fi rmly holding the hammer by both hands, you can eff ectively control the subsequent recoil motion. Proceed at a moderate work-rate, the use of too much pushing force will impair effi ciency.

3. Even when the switch is on, the motor is running and

the tool head is pressed to the demolition surface, the hammer sometimes does not start operating. In these instances, turn the switch off , press the tool head against the demolition surface again, and turn the switch on and off . This should start the hammer operating. Repeat this procedure for several minutes, and the hammer will heat, after which it will operate when switched to ON-LOCK. Fig. 12 CAUTION: After long time of use, the housing becomes hot. Therefore, be careful not to burn your hands. 00BookH60MEYNA.indb1000BookH60MEYNA.indb10 2016/06/0716:30:012016/06/0716:30:0111 English

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will cause motor malfunctioning and degraded effi ciency, replace the tool with a new one or resharpening without delay when abrasion is noted.

2. Inspecting the screws

Regularly inspect all screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately.

Using this Demolition Hammer with loosen screws is extremely dangerous.

3. Maintenance of the motor

The motor unit is the very “heart” of the power tool. Exercise due care to ensure the motor does not become damaged and/or wet with oil or water.

4. Grease replacement

This Demolition Hammer is of full air-tight construction to protect against dust and to prevent lubricant leakage. Therefore, this Demolition Hammer can be used without lubrication for long periods. Replace the grease as described below.

Grease Replacement Period After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest authorized Service Center.

5. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

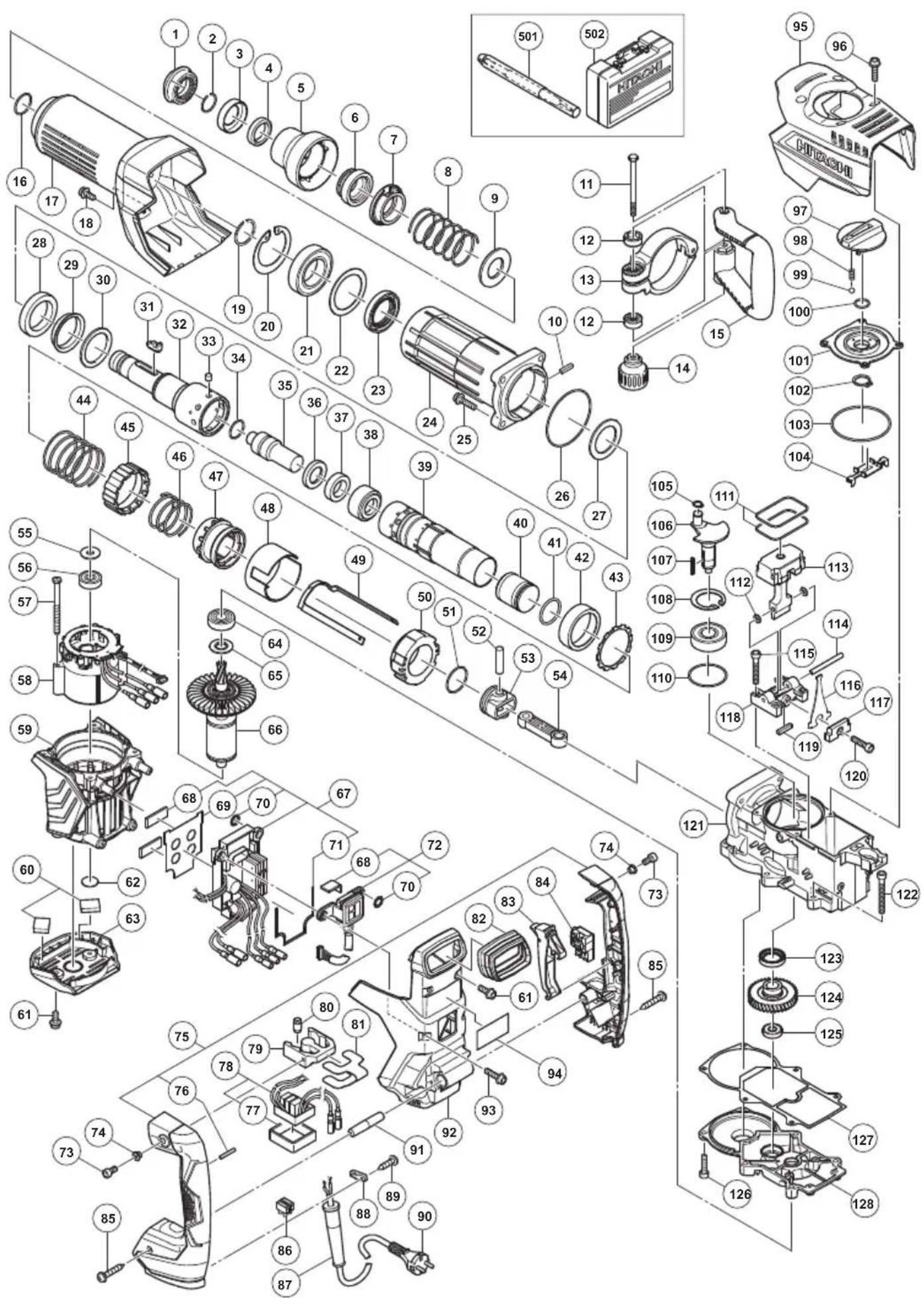

6. Service parts list

CAUTION: Repair, modifi cation and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS: Hitachi Power Tools are constantly being improved and modifi ed to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice.

Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection. 00BookH60MEYNA.indb1100BookH60MEYNA.indb11 2016/06/0716:30:012016/06/0716:30:0112 English STANDARD ACCESSORIES (1) Bull Point (SDS max shank) (Code No. 313471) .....1 (2) Case (Code No. 326511) ........................................1 (3) Side Handle (Code No. 317103) .............................1 OPTIONAL ACCESSORIES .......... sold separately

Asphalt Cutting (1) Cutter (SDS max shank type) Overall Length 15-3/4” (400 mm) Code No. 313475

Scooping Work (1) Scoop (SDS max shank type) Overall Length 15-3/4” (400 mm) Code No. 313476

Surface Roughing (1) Bushing Tool (Code No. 313477) (2) Shank (Code No. 313479)

Hammer Grease A 30 g (in a tube) (Code No. 981840) 70 g (in a tube) (Code No. 308471) NOTE: Specifi cations are subject to change without any obligation on the part of the HITACHI. ACCESSORIES

ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the HITACHI. 00BookH60MEYNA.indb1200BookH60MEYNA.indb12 2016/06/0716:30:012016/06/0716:30:0113 Français

STATOR SENSOR PCB SET

75 HANDLE (A).(B) SET 1

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
