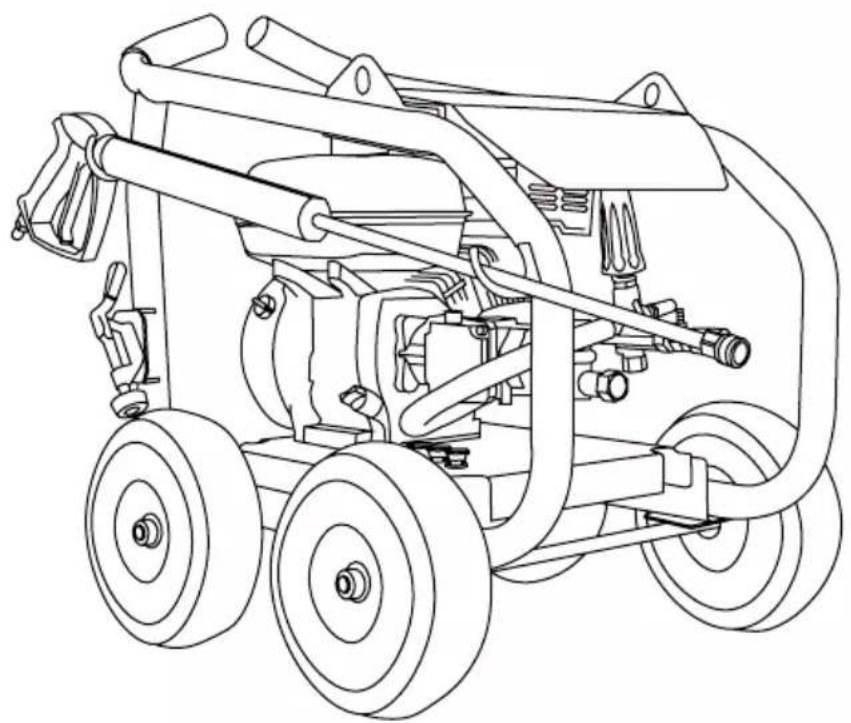

USER MANUAL SuperPro SW7040KUGL-S Simpson

SAVE THIS MANUAL FOR FUTURE REFERENCE

Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death. NOTE: Photographs and line drawings used in this manual are for reference only and may not represent your specic model.If your pressure washer is not working or if there are parts missing or broken, please DO NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our Customer Service Department by calling 1-877-362-4271 or emailing [e-mail] BEFORE YOU PUMP!Page II NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANKPage 1

SAVE THIS MANUAL FOR FUTURE USE

Write down the model number, serial number, and purchase date of this product in the spaces provided below then keep this manual with the purchase receipt(s) for future reference. Keep this manual for future reference. This manual should be considered a permanent part of the product and stay with it. This manual should be available to anyone operating the product(s) it covers. This manual should remain with the product(s) it covers if sold to a new owner. If the manual becomes damaged, lost, or otherwise unusable, you may download a new copy from the product pages at www.simpsoncleaning.com or contact customer support by calling 1-877-362-4271. Model Number: Serial Number: Purchase Date:Page 2

Assemble the Spray Gun

Additional Instructions

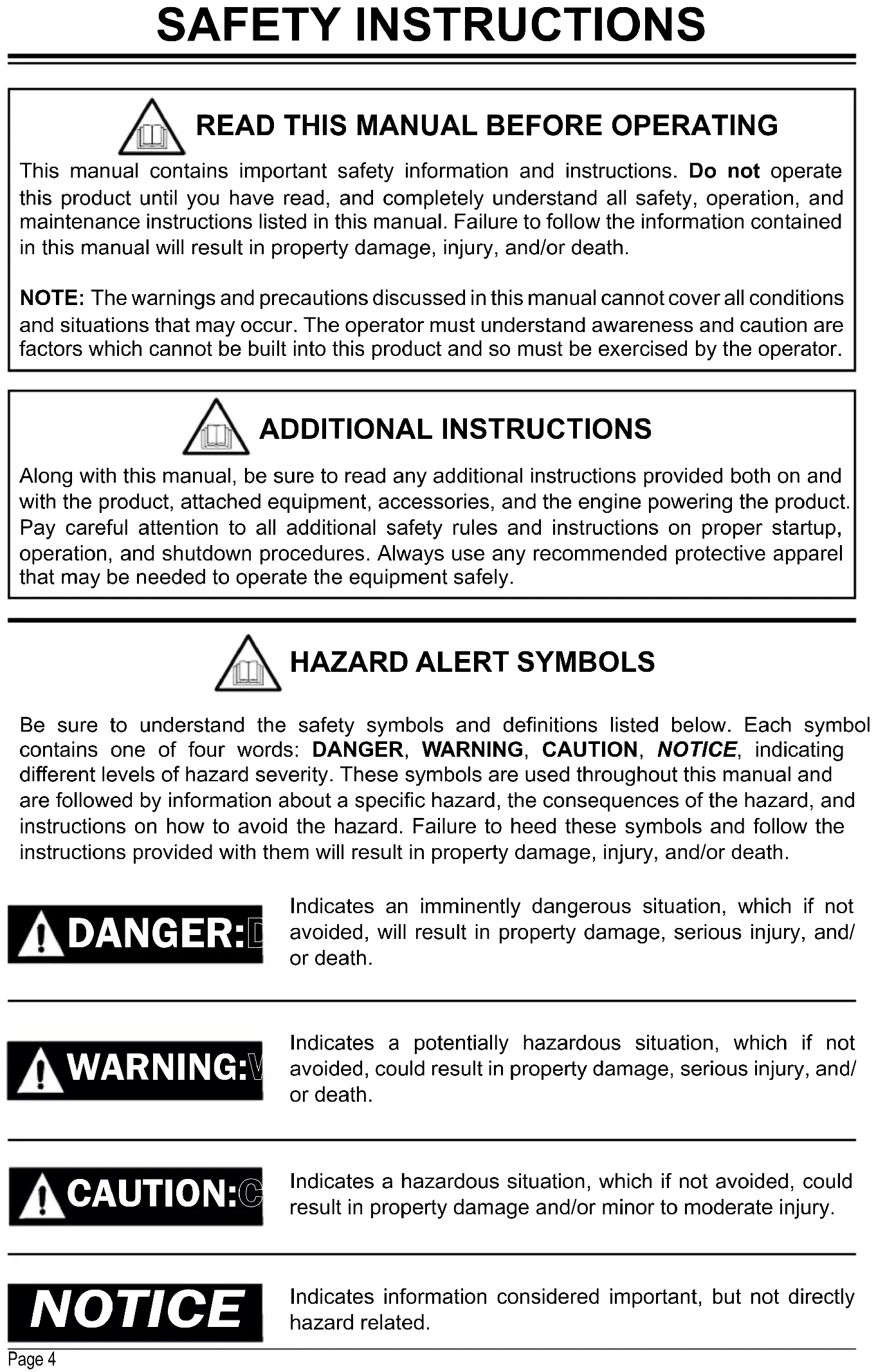

Read this Manual Before Operating

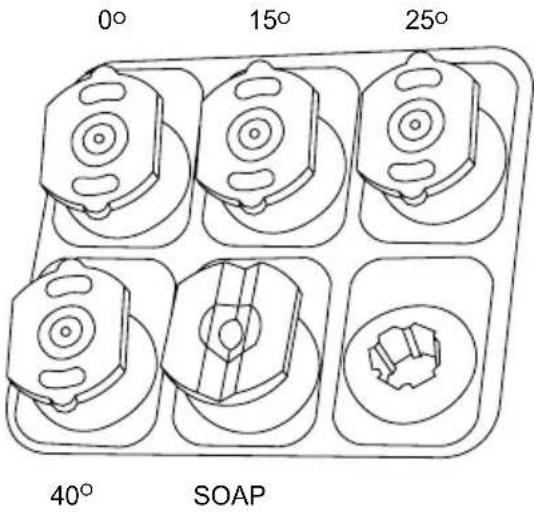

4SAFETY INSTRUCTIONS Battery Connections Place Nozzles in Holders

High Altitude Operation Location

Checking the Engine Oil Operating Conditions Checking Fuel

UNPACKING 7 Two-cylinder Engine with Direct-drive Pump

Single-cylinder Engine with Direct-drive Pump

Single-cylinder Engine with Belt-driven Pump

Connections Nozzle Cleaning

Storing for Two Months or Less Storing for More Than Two Months

CAUTION:CAUTION: Page 4 This manual contains important safety information and instructions. Do not operate this product until you have read, and completely understand all safety, operation, and maintenance instructions listed in this manual. Failure to follow the information contained in this manual will result in property damage, injury, and/or death.NOTE: The warnings and precautions discussed in this manual cannot cover all conditions and situations that may occur. The operator must understand awareness and caution are factors which cannot be built into this product and so must be exercised by the operator.READ THIS MANUAL BEFORE OPERATINGADDITIONAL INSTRUCTIONSBe sure to understand the safety symbols and denitions listed below. Each symbol contains one of four words: DANGER, WARNING, CAUTION, NOTICE, indicating di󰀨erent levels of hazard severity. These symbols are used throughout this manual and are followed by information about a specic hazard, the consequences of the hazard, and instructions on how to avoid the hazard. Failure to heed these symbols and follow the instructions provided with them will result in property damage, injury, and/or death.HAZARD ALERT SYMBOLSIndicates an imminently dangerous situation, which if not avoided, will result in property damage, serious injury, and/or death.Indicates a potentially hazardous situation, which if not avoided, could result in property damage, serious injury, and/ or death.Indicates a hazardous situation, which if not avoided, could result in property damage and/or minor to moderate injury.Indicates information considered important, but not directly hazard related. SAFETY INSTRUCTIONS Along with this manual, be sure to read any additional instructions provided both on and with the product, attached equipment, accessories, and the engine powering the product. Pay careful attention to all additional safety rules and instructions on proper startup, operation, and shutdown procedures. Always use any recommended protective apparel that may be needed to operate the equipment safely. NOTICEPage 5 Special consideration needs to be made to the safety of not just the operator of the pressure washer, but also people who may be adjacent to the area being cleaned. The best way to warn unsuspecting individuals is with signage and barriers. Barriers can be as simple as plastic tra󰀩c cones or barricades to using barrier belts around the area being cleaned. Remember, pressure washing can dislodge weak or broken pavement turning it into projectiles that may injure others. Keeping people clear of the area is the best way to avoid injury. Wet pavement can be slippery to unsuspecting individuals causing injury from slips and falls. High-pressure and low-pressure hoses can be trip hazards. Segregating the area and placing appropriate signage can reduce injury. Barrier examples KEEP OUT HIGH PRESSURE WASHING

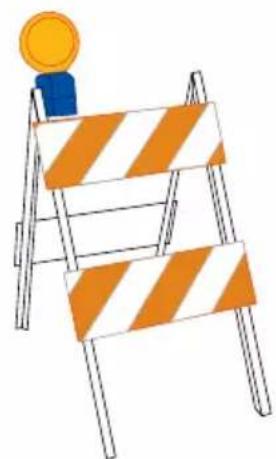

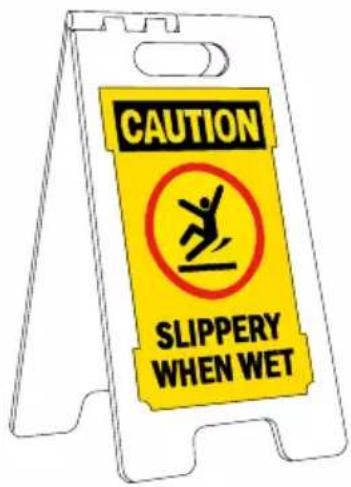

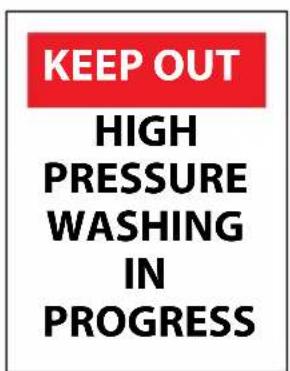

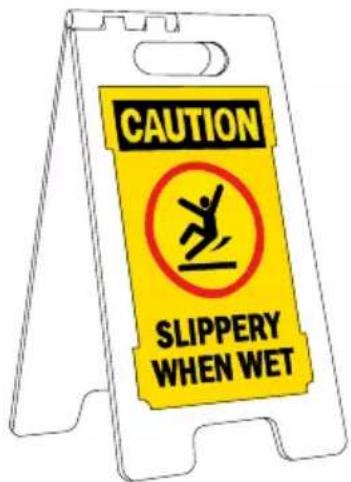

PROGRESS Sign examples When pressure washing in public areas, signs should be posted that indicate to stay clear of the area as high-pressure washing is being performed. Also, signs should be posted that the surface may be slippery and trip hazards may be present.

CAUTION:CAUTION: Hoses may pose a tripping hazard that can cause injuriesresulting from a fall. CAUTION TRIPPING HAZARDPage 6 This product and the engine exhaust can expose you to chemicals which are known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information on California Proposition 65, go to www.P65Warnings.ca.gov.

The air lter element and air box assembly may contain polycyclic aromatic hydrocarbons (PAHs). Some PAHs may cause cancer. To avoid exposure to PAHs, wear gloves when performing air lter maintenance. ● All information in this publication was based on the latest product information available at the time of printing. The FNA Group reserves the right to update, change, and/or improve the product and this document at any time, without notice, and without incurring any obligation. ● This manual may cover more than one machine. The pictures and gures in the manual should be used for reference only. There may be di󰀨erences between your product and the pictures, drawings, and diagrams in this manual. DISCLAIMERS PERSONAL PROTECTIVE EQUIPMENT (PPE) It is important to understand what personal protective equipment (PPE) should be utilized when using your pressure washer. Below is a list of PPE items that should be utilized at all times when using the pressure washer. Hearing - Ear plugs or mu󰀨s to protect your hearing. Vision - Safety glasses or goggles to protect your eyes. Clothing - Long pants to protected your legs from ying debris. Shoes - Shoes that fully cover your feet to protect against debris and over spray. NOTICE This appliance is not intended to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.Hand thread the lance clockwise into the gun. Be careful not to cross- thread the spray gun and lance. Using an adjustable wrench, tighten the lance by placing the wrench on the ats of the nozzle quick-connector. WARNING! The threads on the lance and spray gun coupler can be easily cross threaded resulting in an improper assembly. An improper assembly of the spray gun and lance can result in personal injury. Do not use if the threads on the gun coupler and or lance are cross threaded. Page 7 UNPACKING ASSEMBLY Follow the steps outlined in this section to unpack and assemble your pressure washer. If you have any questions regarding the unpacking or assembly of your pressure washer, please have your model number and serial number ready, then contact customer support at 1-877-362-4271 or email [e-mail].

1. Place the shipping carton on a solid, at surface.

2. Carefully cut the top of the carton open.

3. Carefully cut each corner of the carton from top to bottom.

4. Lay each side of the carton at on the ground.

5. Remove everything from the carton.

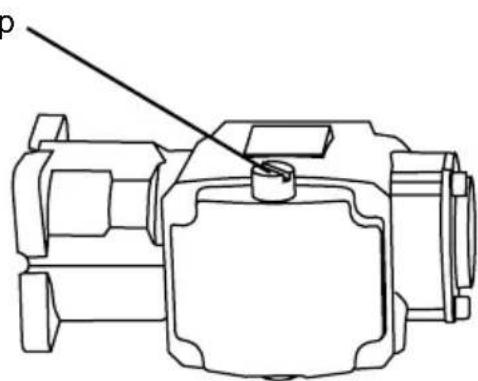

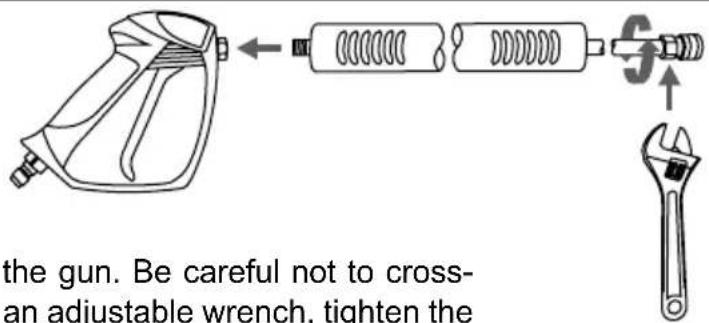

Assemble the spray gun Adding the pump breather cap (if applicable) A shipping cap is in the pump that must be replaced with a breather cap. The cap is easy to replace with the following steps: Shipping cap Breather cap

1. Using a bladed screwdriver, remove the shipping cap.

2. Hand thread the breather cap into the pump.

3. Snug the cap with your ngers.WARNING:WARNING:

Page 8 Attempting to start the engine incorrectly or using the pressure washer incorrectly can result in engine and/or pressure washer damage, and may cause serious injury or death. To avoid these hazards, be sure to read, understand, and follow the steps outlined in the OPERATING CHECKLIST section of the owner’s manual before starting the engine, and follow all the guidelines for proper use of the pressure washer. OPERATING CHECKLIST Place nozzles in holders (if equipped) Place the nozzles into the nozzle holder located on the baseplate of the pressure washer. The label is color-coded for easy placement. There is also a position (if equipped) for an accessory such as a SIMPSON

SOAP The pressure washer does not come with a battery. You must install a U1 sized battery before using the pressure washer.

1. Remove the cover from the battery box.

2. Carefully place the battery into the battery box.

3. Place the red, positive (+) battery cable onto the positive (+) battery post. Tighten.

4. Place the black, negative (-) battery cable onto the negative (-) battery post. Tighten.

5. Place the cover back onto the battery box.

WARNING! Always remove the black, negative (-) battery cable rst and always connect the black, negative (-) battery cable last. Battery connections (if equipped)Single-cylinder engine with direct-drive pump Page 9 COMPONENT LOCATION

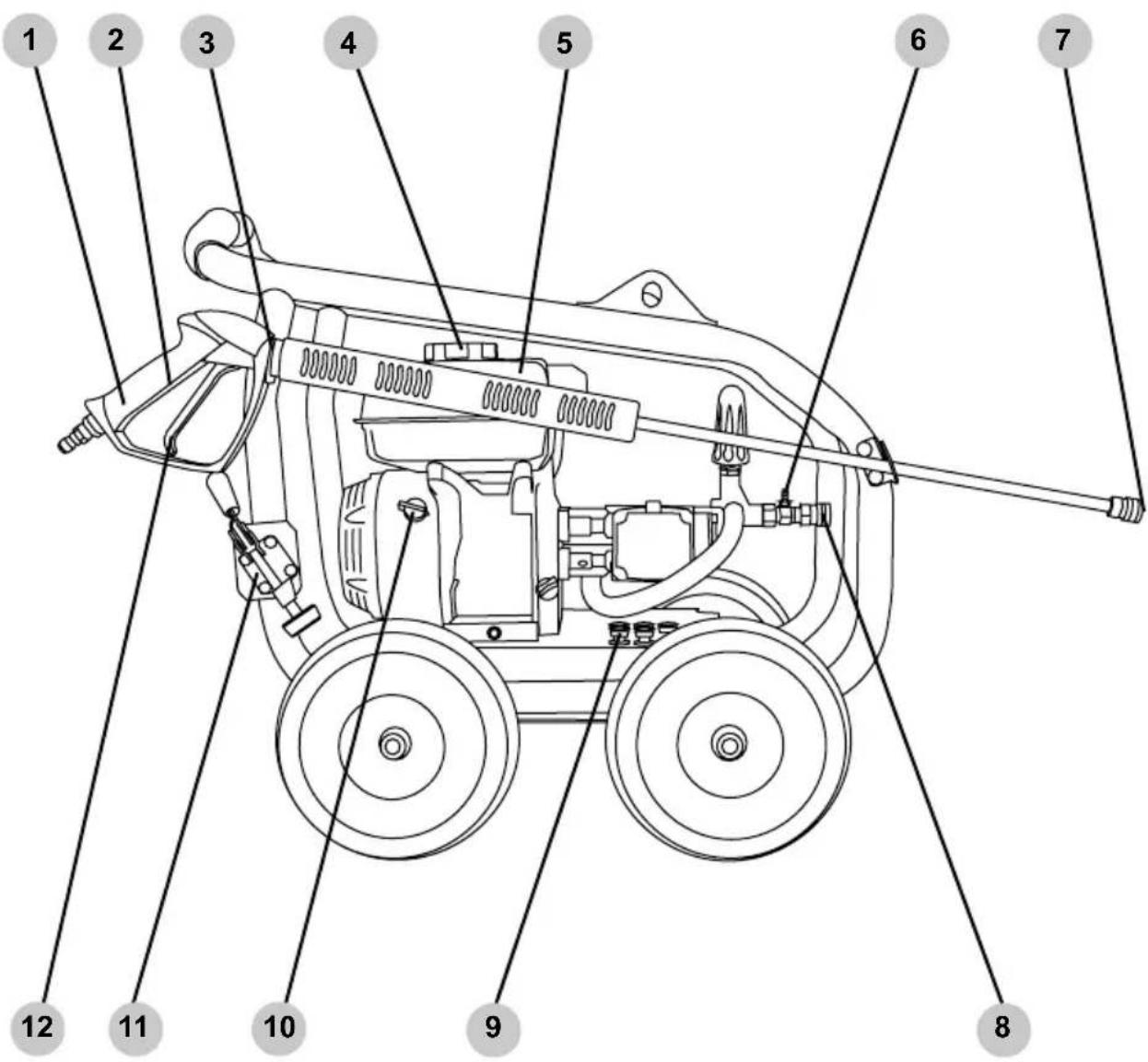

8. High-pressure pump outlet

2. Spray gun trigger lock

19. Engine starting recoil

21. Engine oil drain plug

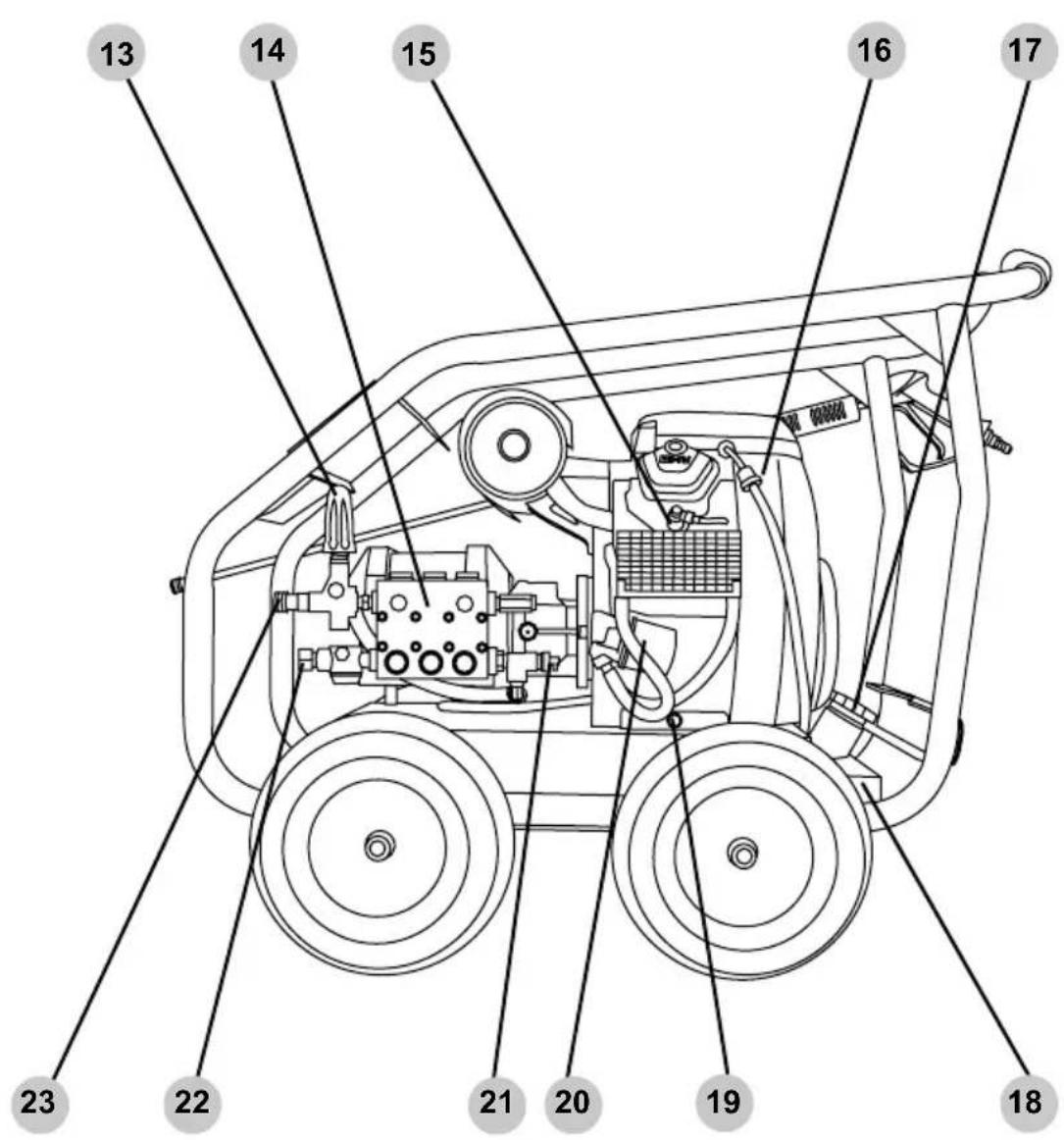

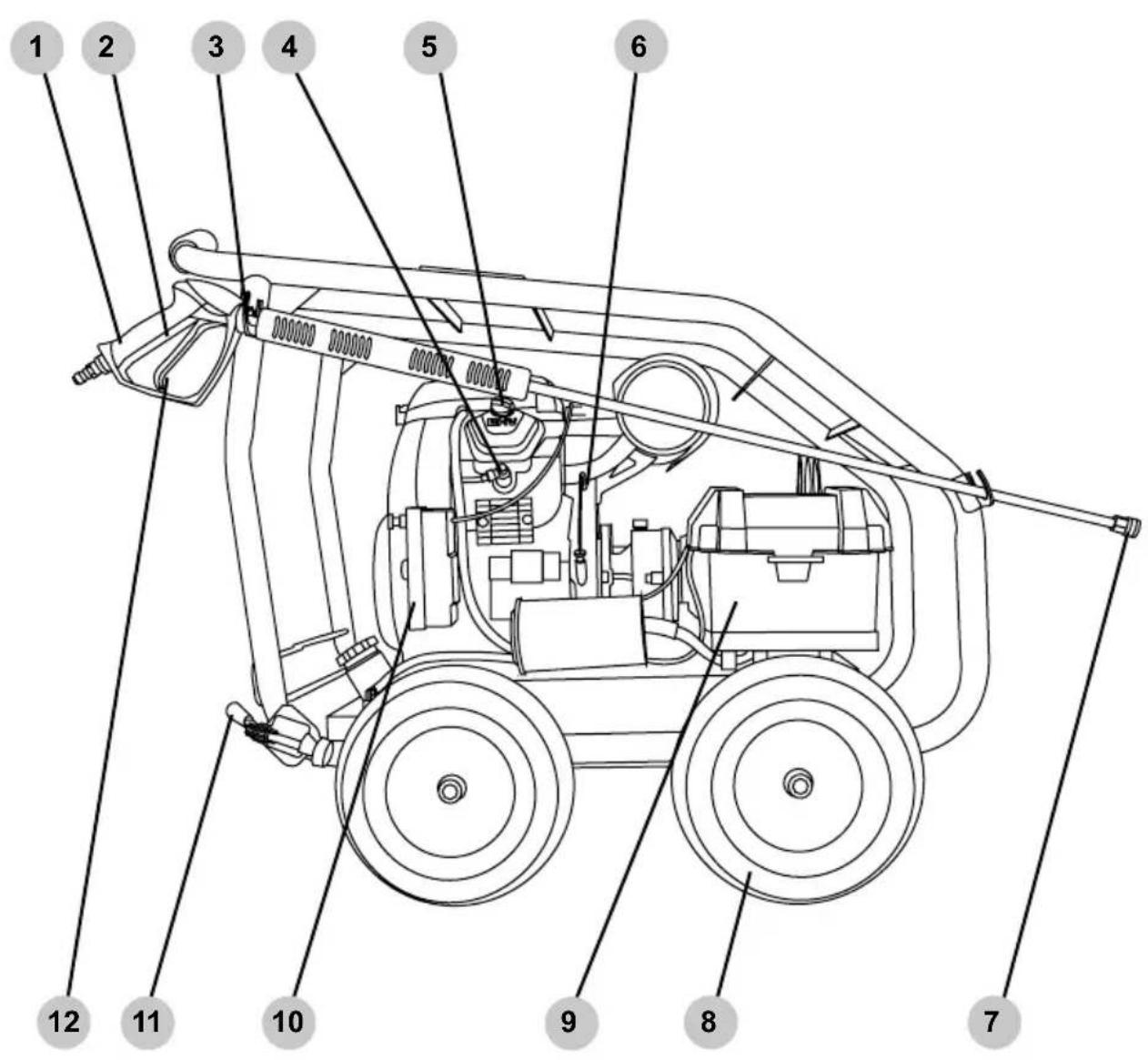

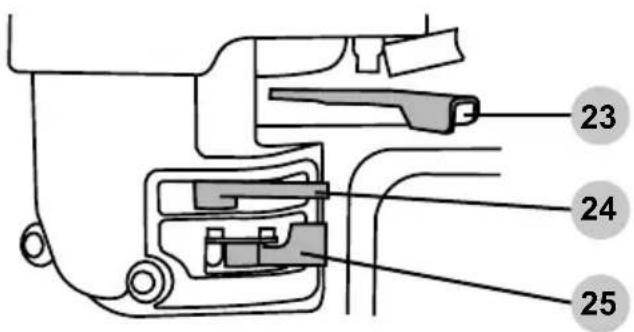

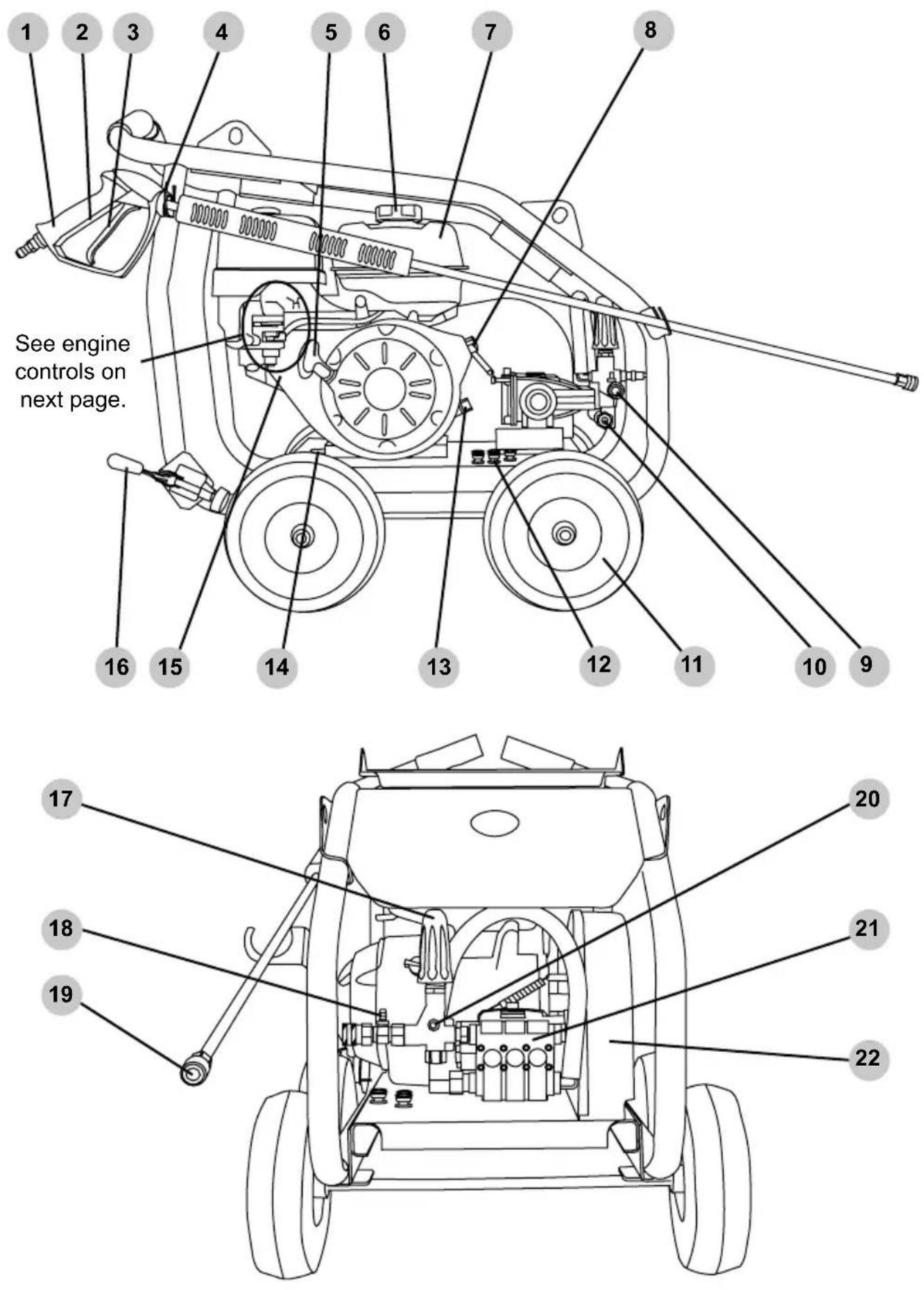

20Page 11 Two-cylinder engine with direct-drive pump

2. Spray gun trigger lock

19. Engine oil drain plug

22. Garden hose coupler & water inlet lter

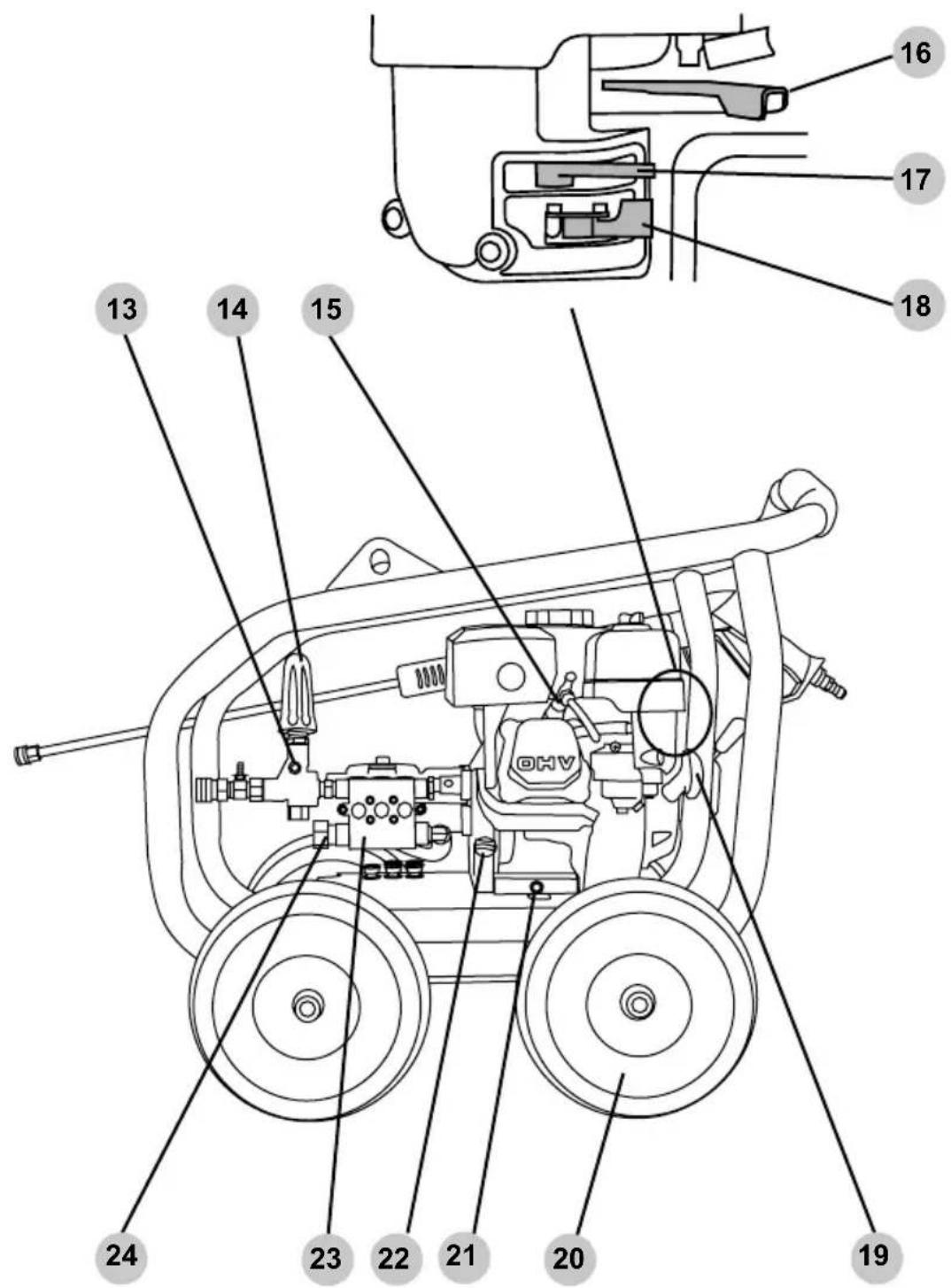

Single-cylinder engine with belt-driven pump See engine controls on next page.

9. High-pressure pump outlet

5. Engine starting recoil

3. Spray gun trigger

2. Spray gun trigger lock

14. Engine oil drain plug

10. Garden hose coupler & water inlet lter

24. Engine chokeBefore connecting a water supply hose, be sure the water supply is capable of providing an

uninterrupted source of clean, cold water at a minimum rate of 5 gallons per minute (GPM) and 20 pounds per square inch (PSI) of pressure. Once a proper water supply is secured, follow the instructions below to connect both the water supply and high-pressure hoses to the pressure washer. CONNECTING HOSES Verify the inlet screen is free of any dirt or debris and is in place with the convex side facing out.

Turn on the water supply and run for 30 seconds to purge any debris from the supply hose. Then, turn o󰀨 the water supply and thread the water supply hose into the pump inlet.

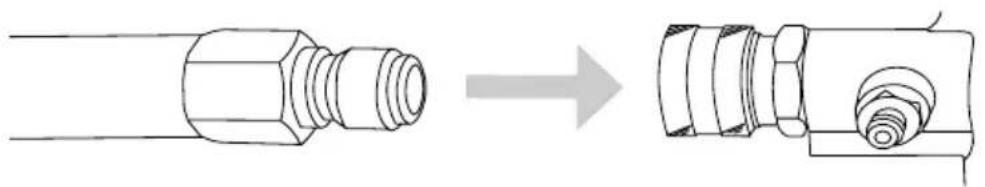

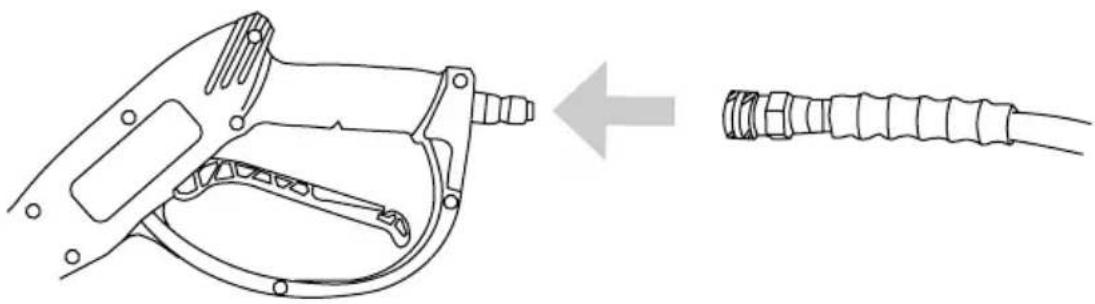

While pulling back on the pump outlet collar, insert the high-pressure hose connector then release the collar. Gently tug on the high-pressure hose to make sure it is locked.

While pulling back on the high-pressure hose outlet collar, insert the spray gun connector then release the collar. Gently tug on the hose to make sure it is locked.

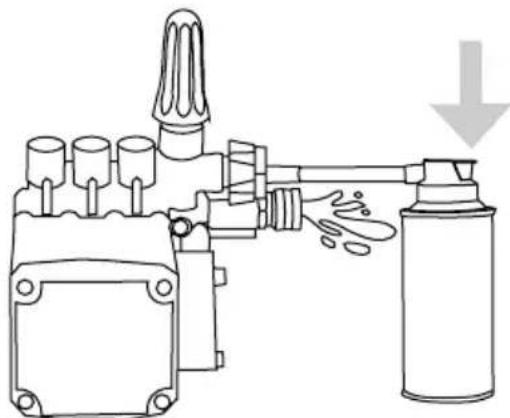

NOTICE A pressure washer pump is designed to operate with water owing through it. Water lubricates and cools the internal components of the pump. Running a pressure washer pump without water will severely damage the pump seals and other internal components. Damage caused by running a pressure washer pump without water is not covered under warranty. Be sure to follow the instructions below to correctly purge the air from your pressure washer pump before starting the engine.

PURGING AIR FROM THE PUMP

Running a pressure washer pump without water will severely damage the pump seals and other internal components. To avoid this hazard, make sure your water supply is uninterrupted and at least 5 GPM at 20 PSI, and always purge the air your pressure washer pump before starting the engine. PUMP PURGING The high pressures created by a pressure washer can cause uid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or tting. INJECTION INJURY

1. Connect all the hoses by following the steps outlined in the CONNECTING HOSES

section of this manual then turn on the cold water source.

2. Aim the spray gun in a safe direction then squeeze and hold the trigger for at least 30

seconds or until the water runs steady and all the air is purged from the pump and hoses.

3. Check hoses and connections for leaks. If leaks are found, turn o󰀨 the machine, aim

the spray gun in a safe direction and squeeze the trigger to relieve any built up pressure in the system. Never attempt to touch a leak in a high-pressure hose or tting. Never attempt to repair a high-pressure hose. Engage the trigger lock.4.Page 17 NOZZLES Nozzle Selection Nozzle Installation To place a nozzle into the spray wand, pull the quick-connect coupler back, insert the nozzle, then release the coupler allowing it to snap back in place. Once installed, pull on the nozzle to make sure it secure.The nozzles supplied with the pressure washer have specic spray patterns designed to clean di󰀨erent surfaces. Using the incorrect nozzle can damage surfaces. Refer to the table below to select the correct nozzle before using the pressure washer. NOTE: The selection of nozzles included may vary with pressure washer models.High-pressure spray can damage plants and other surfaces. To avoid causing damage, cover plants before spraying near them, refer to the Nozzle Selection table in this manual for correct nozzle selection, and test surfaces before spraying to make sure they are strong enough to withstand high-pressure spray. SPRAY DAMAGE NOTICE If the engine is running, make sure the trigger lock is in the locked position before removing and installing nozzles.

PRESSURE LOW SOAP Yard tools, sidewalks, lawn furniture, unpainted siding, stucco, gutters, eaves, concrete, and brick surfacesGrills, driveways, concrete and brick walkways, unpainted brick and stuccoUnpainted metal and concrete DO NOT use on wood.Auto, truck, RV, marine, wood, painted brick, painted stucco, vinyl, and painted sidingSafe on all surfaces. Always verify compatibility of cleaning solution(s) prior to use. SurfacesUses Spray PatternSpot cleaning hard, unpainted surfaces and high-reach areasIntense cleaning of unpainted surfacesStandard cleaning nozzle for most applicationsCleaning painted or delicate surfacesApplies cleaning solutions5-N-1 (if equipped) Color Red YellowGreenWhiteBlack Soap

oPage 18 SOAP NOTICE USING CHEMICALS Pressure washing with volatile, ammable, or corrosive liquids could cause pressure washer damage, re, or explosion resulting in severe injury and/or death. To avoid these hazards, use only approved soaps and chemicals, do not attempt to pressure wash with volatile, ammable, or corrosive liquids, and NEVER use bleach. VOLATILE LIQUIDS Attach the open end of the soap hose to the barbed tting (A) on the pump - OR - connect the soap injector (B) to the high-pressure outlet of the washer.

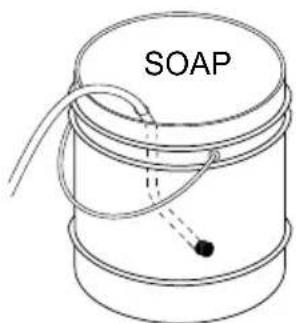

Place the ltered end of the soap hose into a container of soap.

Insert the black nozzle into the spray wand per the Nozzle Installation section of this manual. NOTE: Soaps will not siphon if the black soap nozzle is not installed on the spray wand.

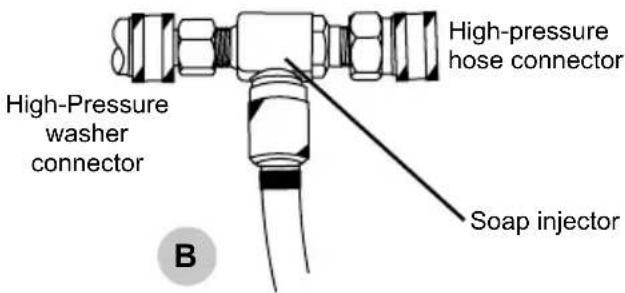

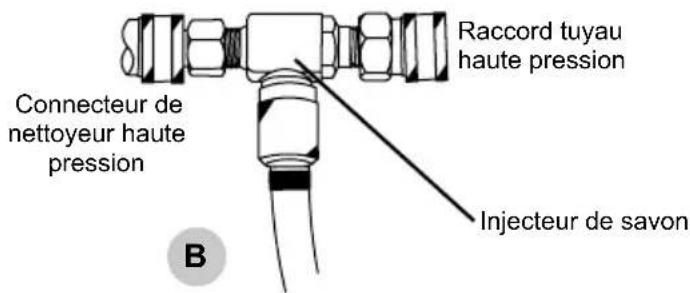

High-pressure hose connectorHigh-Pressure washer connectorSoap injector If the engine is running, make sure the trigger lock is in the locked position before removing and installing nozzles.

After using soap, place the ltered end of the soap hose into a container of clean water and run pressure washer drawing clean water through the hose and pump until the system is thoroughly rinsed. If soap or other chemicals remain in the pump, the pump could be damaged. Pump damage from soap or chemical residue is not covered under warranty.

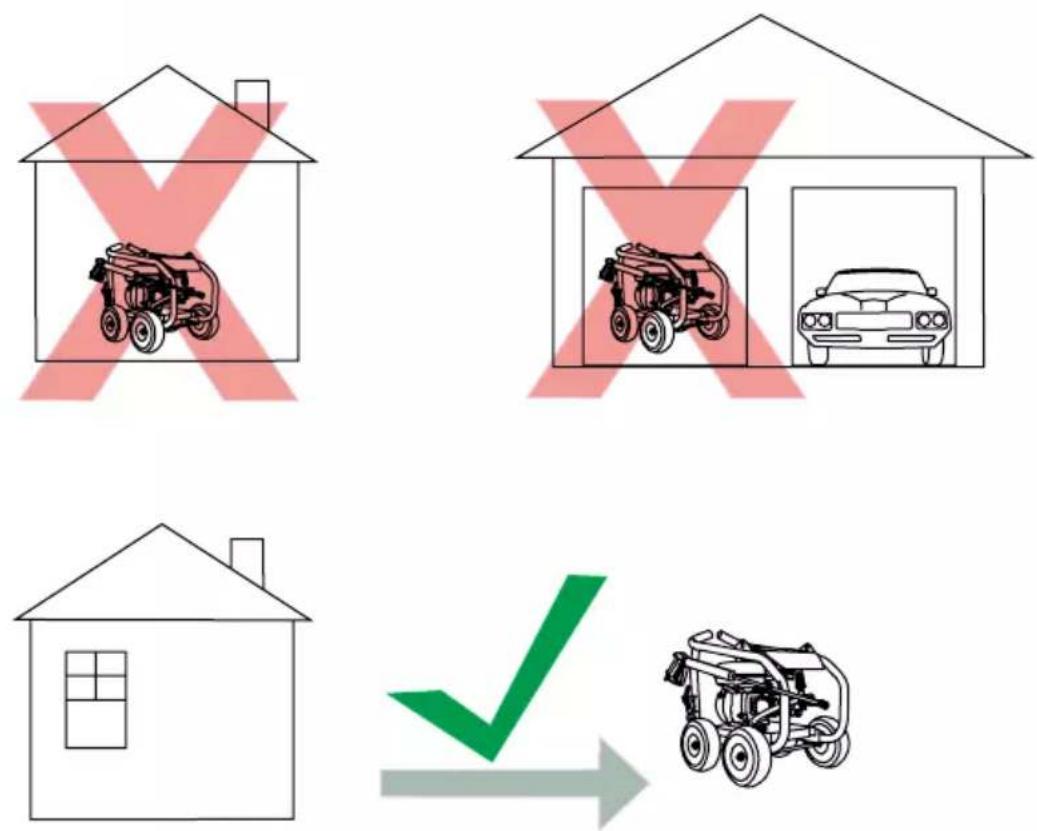

BWARNING:WARNING: Page 19 OPERATING CHECKLIST Location Place the pressure washer on a level surface outside in a well-ventilated area before operating. Keep all ammable materials at least ve feet away from all sides of the product. ● Never use pressure washer inside a house, garage, or any other kind of enclosure even if doors and windows are open. Run engine outside at least 20 feet (6 meters) away from windows, doors, and vents. Carefully consider wind direction and air currents when using pressure washer outside to avoid breathing in engine exhaust. ● Following the manufacturer’s instructions and recommendations, install battery operated carbon monoxide alarms in any occupied buildings near the running engine. ● If you experience headache, nausea, dizziness, sleepiness, or weakness while pressure washer is running, move to fresh air and seek medical attention immediately. Engine exhaust contains carbon monoxide, an odorless, colorless, poisonous gas. Running an engine indoors will kill you in minutes. Never use this product inside a house, garage, or any other kind of enclosure even if doors and windows are open. Run engine outside at least 20 feet (6 meters) away from windows, doors, and vents. Carefully consider wind direction and air currents when using this product outside to avoid breathing in engine exhaust. Always use a carbon monoxide detector in any occupied buildings near the running engine. TOXIC FUMESPage 20

NOTICE High Altitude Operation Operating Conditions This engine will have proper engine performance and emission control when it is operated at or below an altitude of 5000 feet (1524 meters). This engine requires a high-altitude carburetor kit to ensure proper engine performance and emission control when operated at altitudes above 5000 feet (1524 meters). Operating the machine with the wrong engine conguration above 5000 feet (1524 meters) may increase its emissions, decrease fuel e󰀩ciency, and hurt performance. To obtain a high altitude carburetor kit, contact your nearest authorized service center. Before each use, check for loose or damaged parts, leaks, and/or any other condition that may a󰀨ect proper operation. Repair or replace all damaged and/or defective parts immediately. Always keep all safety guards in place and in proper working order. For safety reasons, the manufacturer recommends all maintenance and repairs be performed by an authorized service center. Before starting engine, remove any excessive dirt and debris from cooling vents, exhaust, and starter recoil areas. Always operate the pressure washer on a level surface and never move or tip the pressure washer while operating. Use pressure washer only for its intended purpose. If you have questions about the proper use of your pressure washer, please contact customer support at 1-877-362-4271 or [e-mail]. Operating the engine with a high-altitude carburetor jet kit at an altitude below 5000 feet (1524 meters) will cause the engine to run too hot. Overheating the engine could result in serious engine damage. To avoid this hazard, make sure the correct carburetor kit is installed and the air/fuel mixture is set correctly for your altitude. ALTITUDE Failure to inspect this product before use could create a hazardous situation resulting in product damage, serious injury, and/or death. To avoid these hazards, inspect the pressure washer before each use. Check for loose or damaged parts, signs of oil or fuel leaks, missing guards, plugged cooling vents, or any other condition that may a󰀨ect proper operation. Repair or replace all damaged or defective parts and keep all safety guards in place and in proper working order before using the pressure washer.

Untrained adults and children can be seriously injured or killed if allowed to incorrectly operate or play with running pressure washer. To avoid these hazards, be sure anyone operating the pressure washer receives proper instructions, understands safe operation, and has read the owner’s manual before operating this product. Do not let children operate the pressure washer without parental supervision. Keep children and pets away from the pressure washer while it is running. Always turn o󰀨 the pressure washer before leaving the area. UNTRAINED OPERATION INSPECT BEFORE OPERATINGPage 21The engine is shipped from the factory without oil. Running the engine without oil will result in severe engine damage and void the warranty. To avoid causing engine damage and voiding the warranty, ll the engine with the recommended oil type before starting.

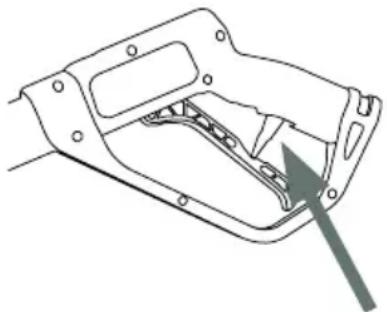

The high pressures created by a pressure washer can cause uid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or tting. INJECTION INJURY CAUTION:CAUTION: A running engine produces heat. The surfaces of the engine, other related components, and engine exhaust gas get hot enough to cause mild moderate burns or ignite materials on contact. To avoid burns, do not touch engine surfaces or exhaust gases while operating and allow engine to cool completely before moving, touching, or performing any maintenance. To avoid a re, keep all ammable materials at least ve feet away from all sides of the product. HOT SURFACES CAUTION:CAUTION: Hot oil can cause serious burns. To prevent getting burned when changing or checking the engine oil, wear appropriate gloves and change the oil when the engine is warm but not hot. HOT OIL NOTICE The low oil sensor (if equipped) will automatically stop the engine when the oil level falls below the safe limit. To avoid an unexpected shutdown, check the oil level before each use, ll to the upper limit, and always operate engine on a level surface.

This product has many parts that move at high speeds. Moving parts can cause crushing injuries, broken bones, severe lacerations, and/or traumatic amputations. To prevent injury, never place ngers, hands, feet, or other body parts near running engine. Never operate product with covers, shrouds, or other guards removed. Do not wear loose-tting clothing, dangling drawstrings, or any other hanging items that could become entangled in moving parts while operating. Tie up long hair and remove jewelry before operating. MOVING PARTS Checking the Engine OilPage 22 NOTICE Oil is a major factor in the performance and service life of any engine. Using the incorrect oil may damage the engine and void the warranty. To avoid causing engine damage and voiding the warranty, check and change oil as required using the correct engine oil.

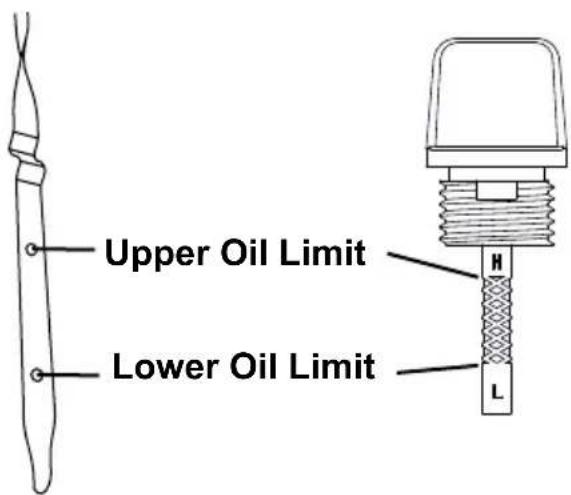

USE CORRECT ENGINE OIL

Oil drain plug location.

1. Check oil with the pressure washer on a level surface and the engine o󰀨.

2. Unscrew the engine oil dipstick, remove, then wipe clean with paper towel.

3. Place the dipstick back into the neck then remove it to read the oil level. The oil level

should be at or just below the upper level mark.

4. If the level is low, add the recommended oil to the crankcase until the level reaches the

upper limit on the dipstick. DO NOT OVERFILL. See the Engine Owner’s Manual for the recommended oil type and any further precautions.

5. For a threaded dipstick, thread the dipstick back into the engine; hand tighten. For a

dual cylinder engine, push the dipstick fully into the dipstick spout. Upper Oil Limit Lower Oil Limit Dual-cylinder engine oil dipstick Single-cylinder engine oil dipstick Dual-cylinder engine Single-cylinder engineNOTICE NOTICE NOTICE

Page 23 Old gasoline can create deposits that clog fuel systems causing hard starting and poor performance. Damage caused by old fuel is not covered by warranty. To minimize deposits, avoid old fuel related performance issues, and prevent costly repair work, do not use gasoline that is older than 30 days. Using gasoline with an alcohol blend greater than 10% (E10) will damage the engine. Damage caused by using an alcohol blend of 15% (E15), 85% (E85), or any other alcohol blend higher than 10% (E10) is not covered under warranty. To avoid engine damage caused by an alcohol blend that is too high, use gasoline with 10% (E10) alcohol or lower. The use of fuel system cleaning additives can damage the engine and fuel systems. Damage caused by the use of fuel system cleaning additives is not covered by warranty. To avoid engine and fuel system damage, do not use any fuel system cleaning additives. Gasoline is highly ammable and gasoline vapors are extremely explosive. Fire and explosions can cause severe burns and/or death. Keep gasoline away from ames, sparks, and other ignition sources. Refuel outdoors in a well-ventilated area with the engine stopped and cool. Wipe up any spilled gasoline and allow engine to dry before starting. Keep a re extinguisher handy while refueling. Do not operate engine with leaks in the fuel system. Do not store gasoline near other ammable materials. OLD GASOLINE ALCOHOL BLENDS GASOLINE ADDITIVES REFUELING Checking FuelMaximum Fuel Level NOTICE NOTICE Page 24 NOTE: Using a fuel stabilizer (sold separately) when storing gasoline can help prevent problems related to storing ethanol alcohol blended gasoline. Always follow the instructions provided by the fuel stabilizer manufacturer to mix and use correctly. It is important to prevent gum deposits from forming in essential fuel system parts, such as the carburetor, fuel lter, fuel hose or tank during storage. Alcohol-blended fuels (also called gasohol, ethanol, or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic fuel and gum deposits can damage the engine’s fuel system while in storage. Damage caused by the use of old, stale, or contaminated fuel are not covered under warranty. Overlling the fuel tank can result in carbon canister damage (if equipped), poor engine performance, and void the warranty. To avoid these hazards, do not ll the fuel tank above the maximum level. GASOLINE STORAGE

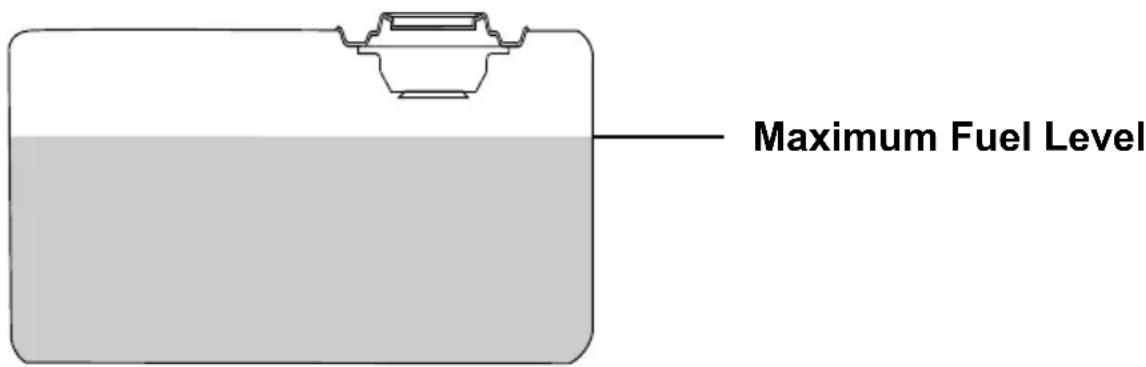

DO NOT OVERFILL FUEL TANK

1. Check fuel with the engine o󰀨 and pressure washer on a level surface.

2. Remove fuel tank cap, check fuel level, then ll fuel tank if needed. For fuel cap location

see the COMPONENT LOCATIONS section of this manual.

3. Do not use gasoline that is older than 30 days. Use only clean and fresh regular unleaded

gasoline with a minimum octane rating of 87. Do not mix oil with gasoline. Do not use gasoline that contains more than 10% ethyl alcohol. E15, E20, and E85 are not approved fuels and should not be used.

4. Do not ll the fuel tank above the maximum fuel level to allow room for fuel expansion.

For fuel capacity see the SPECIFICATIONS section of this manual.

5. Replace fuel tank cap. Never run engine without fuel cap installed.WARNING:WARNING:

5. Slide the choke to CHOKE for starting a COLD engine. Slide to RUN for a warm engineCHOKE

Attempting to start the engine incorrectly or using the pressure washer incorrectly can result in engine and/or pressure washer damage, and may cause serious injury or death. To avoid these hazards, be sure to read, understand, and follow the steps outlined in the OPERATING CHECKLIST section of the owner’s manual before starting the engine, and follow all the guidelines for proper use of the pressure washer. OPERATING CHECKLIST Running the pressure washer for more than two minutes without the spray gun trigger pulled will overheat the pump and possibly cause damage. The thermal relief valve will open and spray water to help cool the pump as it overheats. To avoid overheating the pump, shut o󰀨 the engine if not being used for longer than two minutes. PUMP DAMAGE Starting the Engine (manual start) 1. Complete the steps in the OPERATING CHECKLIST section of this manual before starting the engine. Failure to do so could cause damage to the pump or engine. If needed, refer to your Engine Owner’s Manual for specic starting instructions. 2. Turn the engine switch to the ON position. 3. Slide the fuel valve to the ON position.4. Slide the throttle to the RUN position (if equipped). OFF

The water source should be connected, turned on, any air purged from the system, and the trigger lock placed in the locked position. Page 25NOTE: The starting position of the choke will vary depending on the engine temperature. If starting a cold engine, move the choke lever towards the CHOKE position. If starting a warm engine, move the choke lever towards the RUN position.

Rapid retraction (also known as kickback) of the engine recoil starter cord will pull your hand and arm towards the engine faster than you can let go of the handle resulting in sprains, broken bones, lacerations, and/or traumatic amputations. Kickback is often caused by internal engine failure, and/or improper starting techniques. To avoid kickback follow the appropriate maintenance schedule, starting instructions and have repair work done by an authorized service center. RAPID RETRACTION

6. Pull the recoil slowly until resistance is felt, then pull rapidly to start the engine.

7. Once the engine starts, slowly move the choke lever to RUN as the engine runs. If

the engine falters, move the choke toward CHOKE until the engine has warmed up.

8. Allow engine to warm for 1-2 minutes before using the product.

Do not try to continuously crank the engine for more than ve seconds at one time. If the engine fails to start, allow the starter to cool for one minute before trying to restart the engine. Continuously trying to start the engine will damage the starter. STARTER DAMAGE Starting the Engine (electric start - if equipped)

1. Complete the steps in the OPERATING CHECKLIST section of this manual before

starting the engine. Failure to do so could cause damage to the pump or engine. If needed, refer to your Engine Owner’s Manual for specic starting instructions.

2. Slide the fuel valve to the ON position (if equipped).

OFF ONPage 27 NOTICE Turning o󰀨 the water supply to your pump with the engine running will damage the pump. Damage caused by running the pump without water is not covered under warranty. To avoid this hazard always turn o󰀨 the engine before shutting o󰀨 the water supply. PUMP DAMAGE

3. Turn the engine switch or key to the OFF position.

4. Slide the fuel valve to the OFF position.

5. Turn o󰀨 the water supply.

7. Allow the engine to cool completely before handling and storage.

1. Set the trigger lock on the spray gun.

6. Release the trigger lock then squeeze the spray gun trigger to relieve the pressure

in the hose and pump.

4. Pull the choke out for starting a COLD engine.

Push in for a warm engine.

5. Turn the key past the ON position to the START

position. Allow the engine to start. If the engine does not start after 5 seconds. Release the key and allow the starter to cool for one minute.

6. Once the engine has started, allow the key to

return to the ON position.

7. Slowly push the choke lever in as the engine

warms. If the engine falters, pull the choke out until the engine has warmed up.

Terms Preparation Pressure Washing

• PSI - Pounds per square inch (PSI) is the unit to measure the pressure of water. In relation to a pressure washer, the higher the PSI number, the greater the pressure and stripping power produced.

• GPM - Gallons per minute (GPM) is the ow rate of water. In relation to a pressure washer, the greater the GPM, the greater the ow or rinsing power produced.

• CU - Cleaning units express the e󰀩ciency of the pressure washer. Cleaning units are calculated by multiply the PSI by the GPM. The higher the CU, the more e󰀩cient the pressure washer.

• Read all warning and instructions in this and all manuals that came with the pressure washer.

• Remove all toys, bikes, lawn furniture, etc. from the work area if they are not to be cleaned.

• Sweep any loose dirt and debris from the surface you will be pressure washing.

• Cover nearby plants to avoid damaging them with the pressure washer spray.

• Use caution when spraying windows. Always use the white, 40

nozzle and stay at least 4 feet away.

• Lay tarps down to collect paint chips and other debris blown o󰀨 by the spray. Exterior paints used before 1977 may contain lead and will produce chips that will need to be collected and disposed of at a hazardous waste facility.

• A wider spray equals faster cleaning, while a tighter spray equals deeper cleaning.

• Keep the nozzle about 4 feet away from siding to avoid damage.

• Start washing siding at the bottom and work your way up, then rinse from the top down.

• Avoid driving water up behind siding.

• Use overlapping strokes for even cleaning.

• Work in small areas to keep the soap from drying.

• Do not aim the nozzle straight at the surface. Hold the wand at a 45

angle to the surface at a distance that cleans well without causing damage. Adjusting Pressure The pressure setting is preset at the factory to achieve optimum pressure and cleaning. If you should need to lower the pressure, it can be accomplished by the following methods.

• Back away from the surface to be cleaned. The further you position the nozzle from the surface to be cleaned, the lower the pressure to reach the surface.

• Change to the white, 40

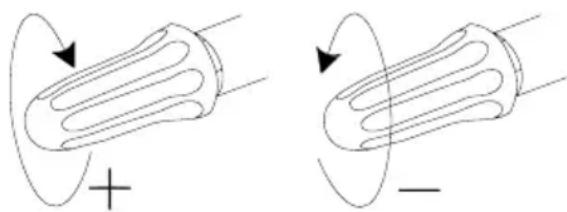

nozzle. This nozzle produces a lower pressure, wider width spray. NOTE: Do not overtighten the pressure control knob. If overtightened, the knob COULD break causing immediate loss of pressure and costly repairs not covered by the warranty. Your unit may be equipped with an additional feature that allows you to adjust the pressure. To lower the pressure, turn the knob counter- clockwise to the desired pressure. To return the pressure to the factory setting, turn the knob clockwise until it stops. Page 28TROUBLE SHOOTING

ISSUE POSSIBLE CAUSE SOLUTION

The fuel tank is empty. Add fresh fuel. Water pressure in the pump is preventing the engine from rotating. Aim the spray gun in a safe direction then pull the trigger to release water pressure in the pump. Refer to the STARTING ENGINE section of this manual for the correct choke position. Engine choke is in the wrong position. The spark plug lead is not attached to the plug. Connect spark plug lead. Engine switch is in the OFF position. Turn the engine switch to the ON position. Engine fuel valve is turned OFF. Turn fuel valve ON. Engine oil is low. If the engine is equipped with a Low Oil Sensor, the engine will not start. Check engine oil level. Fill per engine manual. Engine will not start. Refer to the Engine Owner’s Manual for more engine troubleshooting information. Refer to the PURGING THE PUMP section of this manual to remove air from the pump and hoses. There is air trapped in the pump and/or hoses. Make sure the water source can supply at least 5 GPM at 20 PSI. Water source is insu󰀩cient. Clean nozzle per the MAINTENANCE section of this manual. The nozzle is clogged. Clean the water inlet screen per the MAINTENANCE section of this manual. The water inlet screen is clogged. The high-pressure hose should be less than 100 feet in length. The high-pressure hose is too long. Move engine choke to the NO CHOKE position. Engine choke is in the CHOKE position. The pressure washer creates low or no water pressure. Page 29Page 30

ISSUE POSSIBLE CAUSE SOLUTION

Spray wand not in low pressure. Insert black “soap” nozzle. Detergent lter clogged. Clean the lter. Detergent lter is not submerged in the detergent. Make sure the lter end of the detergent siphon hose is fully submerged in the detergent. Dilute detergent. The de- tergent should be the same consistency as water. Detergent is too thick. Lengthen the water supply hose and shorten the high-pressure hose. High-pressure hose is too long. Contact customer service at 1-877-362-4271 or at [e-mail] Detergent is dried inside of the detergent injector. Will not draw in detergent. Loose connections. Tighten the connections. Worn or torn O-ring. Check and replace. Contact customer service at 1-877-362-4271 or at [e-mail] Piston packing worn. Contact customer service at 1-877-362-4271 or at [e-mail] Pump head or tubes damaged from freezing. Water leaking at pump. Clean nozzle per the MAINTENANCE section of this manual. Nozzle obstructed. Pump or nozzle pulsates. Loose drain plug. Tighten. Worn drain plug O-ring. Check and replace. Worn ll plug O-ring. Check and replace. Pump oil overlled. Check for correct amount. Drain and ll with correct type and amount of oil. Incorrect oil used. Clean vent plug; blow air through vent to remove blockage. If problem persists, replace the plug. Vent plug is clogged. Contact customer service at 1-877-362-4271 or at [e-mail] Oil seals worn. Oil leaking from pump.Page 31 NOTICE NOTICE For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To nd an authorized service center near you, make a warranty claim, or get authorized warranty repair, call 1-877-362- 4271 or email [e-mail]. It is the responsibility of the owner and/or operator to have all scheduled maintenance completed before operating the pressure washer. Be sure to follow the inspection and maintenance recommendations as listed in all the manuals that came with this unit. Before each use, check pressure washer for leaks, loose or damaged parts, and any other condition that may a󰀨ect proper operation. Be sure all safety guards are in place and in proper working order. Inspect all air vents and cooling slots to ensure they are clean and unobstructed. Repair or replace all damaged or defective parts immediately. For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. Never attempt to repair a high-pressure hose. Always clean the pressure washer with the engine o󰀨 and cool. To clean the pressure washer, rst use an air compressor set at no more than 25 PSI to clear dirt and debris from the pressure washer surfaces, vents, and cooling slots. Then, wipe the exterior clean with a damp cloth. MAINTENANCE Maintenance Connections Cleaning the Pressure Washer Water can damage the pressure washer engine components if allowed to enter through cooling slots or other holes. Damage caused by water intrusion is not covered under warranty. To avoid engine water damage, do not use a pressure washer, garden hose, or any other sources of running water to clean the pressure washer engine, and never submerge the pressure washer engine in any liquids. Using chemical cleaners and/or corrosive liquids can damage the pressure washer seals and internal components. Damage caused by chemical cleaners and corrosive liquids is not covered under warranty. To avoid these hazard, only used approved cleaning chemicals, never use bleach, and always run clean water through the pressure washer after using cleaning chemicals. CLEANING CHEMICAL CLEANERS Hose, spray gun, and pump connections should be cleaned and lubricated with a thin lm of lithium grease regularly to prevent o-ring damage and leaks.If a nozzle becomes clogged, the pump may pulsate and spray patterns could change. If the nozzle is not cleaned, excessive pressure may develop possibly damaging the pump, or other accessories. Inspect nozzles before using them and follow the instructions in this section for the proper nozzle cleaning procedure. Before each use, check the inlet lter and clean by following the steps below. Never operate the pressure washer without the inlet lter properly installed. Nozzle Cleaning Water Inlet Filter

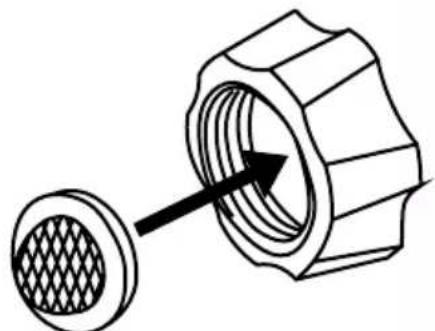

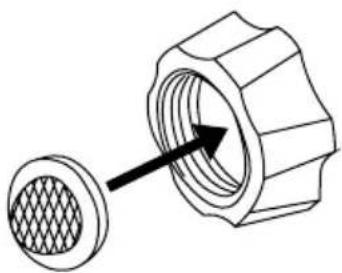

1. Remove the lter from the garden hose coupler.

2. Use a water from a running garden hose to clean both sides of the lter.

3. Insert the cleaned lter into the pump inlet with the convex side facing out.

1. Shut o󰀨 the pressure washer.

2. Turn o󰀨 the water supply.

Point the spray gun in a safe direction and squeeze the trigger to relieve water pressure.

4. Set the trigger lock.

5. Remove the nozzle from the lance quick connector.

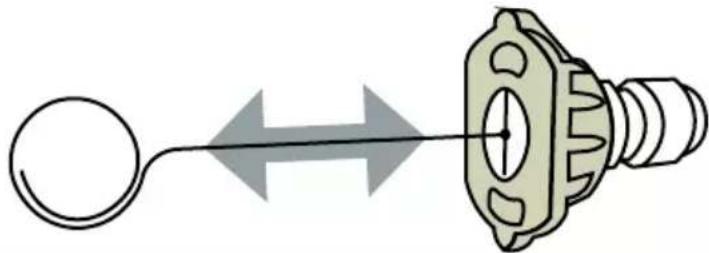

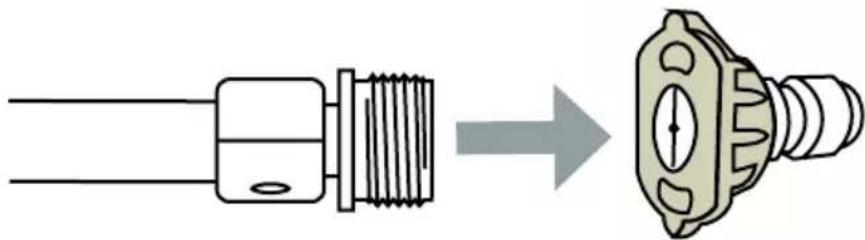

Clear any obstructions from the nozzle by inserting the nozzle cleaning tool provided.

7. Rinse any loose debris from the nozzle by directing a running garden hose into the output

of the nozzle for at least 30 seconds. Page 32Page 33 Note: The pump was lled with oil at the factory. The preferred oil is SIMPSON

Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. Change the oil after the rst 50 hours of operation and every 100 hours thereafter or every 3 months. Pump Maintenance

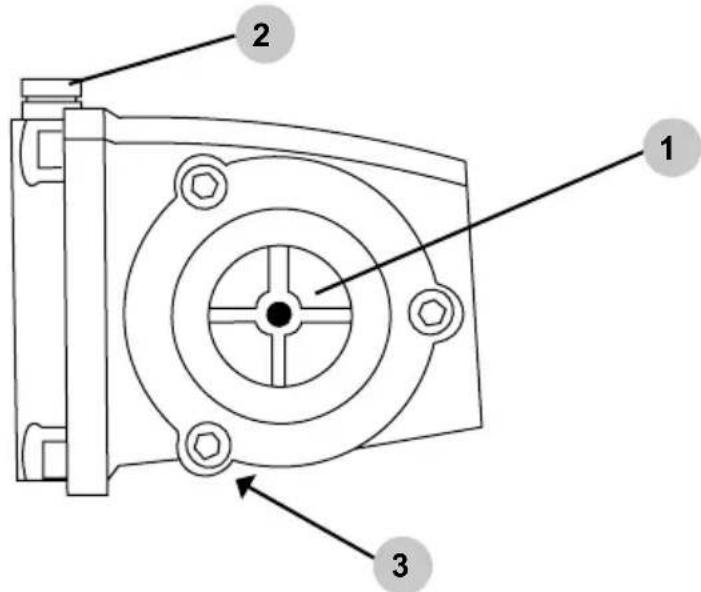

3. Oil drain plug (not shown)

1. Loosen the pump oil ll plug / vent cap.

2. Place a container under the oil drain plug.

3. Remove the oil drain plug.

4. After the oil has drained, insert the oil drain plug; tighten securely.

pumps, rell with SIMPSON

Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. For CAT Pumps

6. Make sure the oil level meets but does not exceed the dot in the center of the sightglass.

7. Insert the oil ll plug; tighten securely.

How to change the pump oil *** CAT Pumps

is a registered trademark of Diversied Dynamics Corporation.Page 34 Before each use, check engine for loose or damaged parts, signs of oil or fuel leaks, and/or any other condition that may a󰀨ect proper operation. Always keep all safety guards in place and in proper working order. Repair or replace all damaged or defective parts immediately. For safety reasons, the manufacturer recommends all engine service and repairs (including emission control devices and systems) be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To nd an authorized service center near you, obtain information about how to make a warranty claim, or to make arrangements for authorized warranty repairs, please call 1-877-362-4271 or email [e-mail]. For all other information on engine maintenance, refer to the engine manual. Engine Maintenance

STORAGE AND TRANSPORTATION

Storing for Two Months or Less (or when freezing temperatures are expected).

1. Fill fuel tank per the OPERATING CHECKLIST section of this manual then add a fuel

stabilizer per the manufacturer’s recommendations. NOTE: Using a fuel stabilizer (sold separately) when storing gasoline may help prevent problems related to alcohol blended fuels in outdoor power equipment engines. Always follow the instructions provided by the fuel stabilizer manufacturer to mix and use correctly.

5. Shut o󰀨 the water supply. Remove the water supply hose.

2. Complete the steps in the OPERATING CHECKLIST, CONNECTING HOSES, and

PURGING AIR FROM THE PUMP sections of this manual.

3. Start the engine per the STARTING section of this manual and run it for ten (10) minutes

to allow the stabilized fuel to circulate through the entire fuel system. Be sure to squeeze the trigger to keep water owing through the pump and spray gun to avoid overheating.

Turn the engine switch to the OFF position.

9. Store the pressure washer in a clean, dry area out of direct sunlight.

6. Squeeze the spray gun trigger to relieve the pressure in the hose and pump then drain

the high pressure hose. Disconnect the high-pressure hose from the pump and spray gun.

Allow the engine to cool completely.

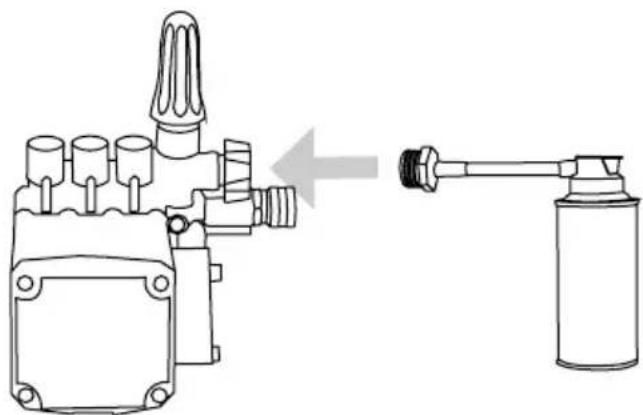

Protect the pump by using SIMPSON

1. Make sure the engine is completely cool.

2. Remove all the fuel from fuel tank, fuel lines, and carburetor by loosening the drain screw

at the bottom of the carburetor, and draining fuel into an appropriate container.

3. Change the engine oil.

4. Remove any dirt and debris from the area around the spark plug, then use a spark plug

socket or wrench to remove the spark plug.

5. Pour .5 ounces (15 ml) of new oil into the engine combustion chamber, then slowly crank

the engine by pulling the recoil two (2) times to distribute oil and lubricate the cylinder.

6. Install the spark plug.

7. Drain the high-pressure hose.

8. Using SIMPSON Pump Guard or an equivalent is recommended when storing the unit for

more than 30 days and/or when freezing temperatures are expected.

9. Store the pressure washer in a clean, dry area out of direct sunlight.

1. Turn the engine control switch to the OFF position.

2. To prevent fuel spillage when transporting, keep the pressure washer upright on a level

3. When loaded onto a vehicle, secure pressure washer with straps or tie downs to prevent

tip over and damage from sliding. Leaving the pressure washer in an enclosed space where temperatures can rise on a transport vehicle may cause fuel to vaporize and possibly explode. Fire and explosions can cause severe burns and/or death. To avoid leaking or vaporizing fuel, secure the pressure washer in a well ventilated area out of direct sunlight and other heat sources and do not transport the pressure washer on rough roads unless the fuel has been drained beforehand. TRANSPORTATION NOTE: Do not operate the pressure washer while it is on the transport vehicle.Page 36 USING SIMPSON

PUMP GUARD NOTICE Leaving water inside the pump during freezing weather will cause severe damage to the pump. To avoid costly damage, always treat the pump with SIMPSON

Pump Guard to remove the trapped water and to ll the pump with a lubricating, antifreeze solution. PUMP DAMAGE SIMPSON

Pump Guard (purchase separately) is formulated to protect your pump during long-term storage and from freezing damage. Pump Guard should be used throughout the season to keep the seals pliable and well lubricated. Before storing the unit for winter or for when there is a chance of freezing weather, use pump guard to remove all traces of water from the internal cavities while lling them with an antifreeze solution. Pump Guard is insurance for your investment, use it. Simply use Pump Guard by following these easy steps:

1. Screw the Pump Guard adapter into the garden hose input on the pump.

2. Press and hold down on the button until all the water and the Pump Guard starts to

come out of the high pressure port.

3. Unscrew the Pump Guard from the pump then prepare the pressure washer for

storage as outlined in STORAGE AND TRANSPORTATION.Page 37

COMMERCIAL LIMITED WARRANTY

WARRANTY COVERAGE TERMS: The manufacturer of this product agrees to repair or replace designated parts that prove defective within the warranty period listed below at the manufacturer’s sole discretion. Specic limitations / extensions and exclusions apply. This warranty covers defects in material and workmanship and not parts failure due to normal wear, depreciation, abuse, accidental damage, negligence, improper use, maintenance, water quality or storage. To make a claim under the terms of the warranty, all parts said to be defective must be retained and available for return upon request to a designated Warranty Service Center for warranty inspection. The judgments and decisions of the manufacturer concerning the validity of warranty claims are nal. These warranties pass through to the end user and are non-transferable. As a factory authorized and trained Warranty Service Center, the factory will honor the terms of all component warranties and satisfy claims of the appropriate warranty provisions. This warranty replaces all other warranties, express or implied, including without limitation and warranties of merchantability or tness for a particular purpose and all such warranties are hereby disclaimed and excluded by the manufacturer. The manufac

turer’s warranty obligation is limited to repair and replacement of defective products and provided herein and the manufacturer shall not be liable for any further loss, damages, or expenses - including damages from shipping, accident, abuse, acts of God, misuse, or neglect. Neither is damage from repairs using parts not purchases from the manufacturer or alterations performed by non-factory authorized personnel. Failure to install and operate equipment according to the guidelines put forth in the instruction manual shall void warranty. THIS WARRANTY DOES NOT COVER: Damage resulting from shipping (claims must be led with freighter), accident, abuse, act of God, misuse, or neglect. This warranty also does not cover damage from repairs or alterations performed by non-factory authorized personnel or failure to install and operate equipment according to the guidelines put forth in the instruction manual. The manufacturer will not be liable to any persons for consequential damage, for personal injury, or for commercial loss. RESPONSIBILITY OF ORIGINAL PURCHASER (INITIAL USER): To process a warranty claim on your SIMPSON® pressure washer, report the concern to 1-877-362-4271 or [e-mail] for authorization and direction to the nearest authorized service center in your area. Retain original cash register sales receipt as proof of purchase for warranty work. Use reasonable care in the operation and maintenance of the product as described in the Operator’s Manual(s). WHAT THE WARRANTY DOES NOT COVER:

• Damage due to chemical deterioration, salt water, rust or corrosion

• Damage caused by parts or accessories not obtained from an authorized dealer or not approved by the manufacturer

• Normal wear of moving parts or components a󰀨ected by moving parts

• Consumable parts such as: Fuel lter, air lter, spark plug(s), recoil starter rope, oil and lubricant(s)

• Normal periodic maintenance work such as carburetor cleaning and engine oil draining

• Freeze damage ENGINE AND EMISSIONS CONTROL SYSTEM: Covered by the engine manufacturer warranty. See engine manual for further details. HIGH-PRESSURE PUMP (DEFECTS IN MATERIAL AND WORKMANSHIP): Five (5) years from the date of purchase. FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP): Ten (10) years from the date of purchase. ACCESSORIES (DEFECTS IN MATERIAL AND WORKMANSHIP): Including nozzles, hoses, spray guns, wands, tires, feet Ninety (90) days from the date of purchase.Page 38 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANKPage 39Part Number 7110656 / ENGLISH REV F - 8/2023

PROBLÈME CAUSE POSSIBLE SOLUTION

PROBLÈME CAUSE POSSIBLE SOLUTION
