USER MANUAL WCW20R Waring Commercial

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

Important Safeguards ....2

Introduction 4

Grounding Instructions....4

Short Cord Instructions....5

Parts....6

Unpacking & Installation ....7

Operation 7

Cleaning 7

Troubleshooting 8

Warranty 8

IMPORTANT SAFEGUARDS

When using electrical appliances, especially when children are present, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.

2. Always unplug from outlet prior to handling or cleaning.

3. Do not touch hot surfaces. Use handles or knobs.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision or have been given instruction concerning use of the appliance by a person responsible for their safety.

5. T o protect against fire, electrical hazards, and/or personal injury, do not immerse cord, plugs or base in water or other liquids.

6. C lose supervision is necessary when any appliance is used by or near children.

7. D o not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest Waring Repair Center for examination, repair, and electrical or mechanical adjustment.

8. The use of accessory attachments not recommended by Waring may cause injuries.

9. This appliance is not intended for outdoor use.

10. D o not let cord hang over edge of table or counter or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Do not use appliance for other than its intended use.
13. These coffee warmers are equipped with 3-prong grounding plugs and must be plugged into a correctly polarized 3-prong grounding-type wall receptacle.
14. N o user-serviceable parts inside. Repair should be done by authorized service personnel only.
15. Do not clean with a water jet or use in an area where a water jet may be used.
16. To reduce risk of explosion or fire, do not use near combustibles.
17. Do not use with an extension cord.
18. F or safe and proper operation, the appliance must be placed in a stable, horizontal position.
19. T o reduce risk of serious burns or scalding, do not place hand or other body parts near warmers while heating.
20. Always unplug unit from power supply before servicing.
21. Surfaces are hot and can cause burns.

SAVE THESE INSTRUCTIONS FOR COMMERCIAL USE ONLY

INTRODUCTION

Thank you for purchasing this Waring™ Commercial Coffee Warmer.

Features & Benefits

• Keeps coffee fresh and hot!
• Low profile, simple design
• Self-regulating warmers to prevent overheating
• Stainless steel construction
  • Perfect for restaurants, cafes and diners

GROUNDING INSTRUCTIONS

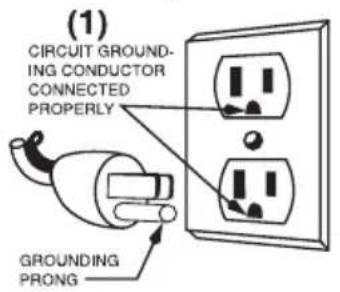

For your protection, the Waring™ Commercial Coffee Warmer is equipped with a 3-conductor cord set that has a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet, as shown in Figure 1. If a grounding-type outlet is not available, an adapter, shown in Figure 2, may be obtained so that a 2-slot wall outlet can be used with a 3-prong plug. Referring to Figure 3, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG

(2) ADAPTER GROUNDING LUG

(3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

SHORT CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

If a longer, detachable power-supply cord or extension cord is used, (1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and (2) the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

WARNING RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated, dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Model Electrical Plug Approval
WCW10 120V, 70W, 60Hz	5-15P 🌐	cTUVus, NSF
WCW20 120V, 140W, 60Hz	5-15P 🌐	cTUVus, NSF
WCW20R 120V, 140W, 60Hz	5-15P 🌐	cTUVus, NSF

PARTS

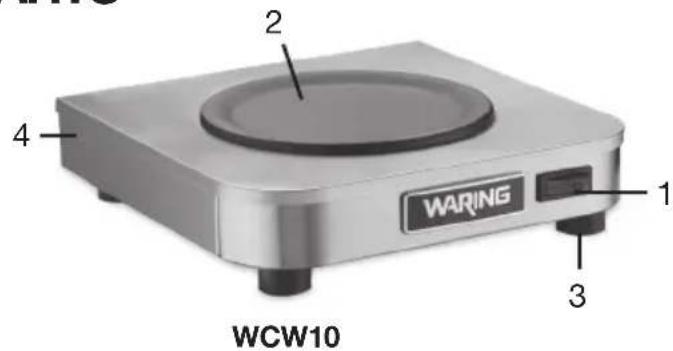

2 4 1 3 WCW10

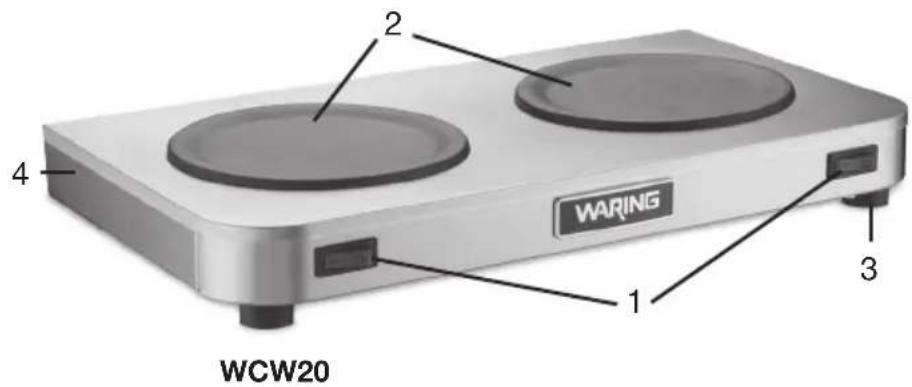

2 4 1 3 3 WARING WCW20

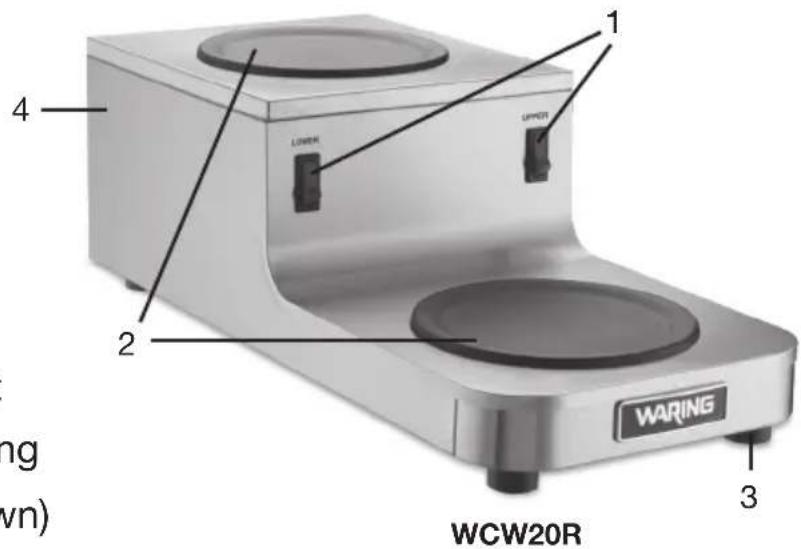

4 2 LOWER UPPOT 1 3 WCW20R WARING ng vn)

1. Rocker Switches
2. Warmer Plates
3. Rubber Anti-Slip Feet
4. Stainless Steel Housing
5. Power Cord (not shown)

WCW10/ WCW20

WCW20R

CONTROLS

RockerSwitches – heat up warmers

UNPACKING & INSTALLATION

ELECTRICAL HOOKUP

NOTE: This equipment must be installed in compliance with applicable federal, state and/or local electrical codes having jurisdiction. Do not use extension cords. Make sure that the outlet is properly grounded.

1. C heck rating marking on coffee warmer nameplate to be sure electric lines match voltage, phase, and amperage requirements of coffee warmer. Select the proper cord and cord grip for electrical rating of the coffee warmer.
2. For U.S., 120V coffee warmers are provided with a 120V/15A grounding plug.
3. Remove the COFFEE WARMER from the packaging, ensuring that all protective packaging, plastic and residue are cleaned from its surfaces. Place the product on a level platform, adjust the anti-slip rubber feet to place the product horizontally.

OPERATION

1. Connect the coffee warmer to the power source.
2. Turn power on and the warmer will begin to heat up.

CLEANING

NOTE: The power supply must be disconnected before cleaning.

The use of a damp cloth rinsed in any mild, nonabrasive detergent is recommended for cleaning all surfaces on Waring ^™ Coffee Warmers.

TROUBLESHOOTING

A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Waring Technical Service Department.

PROBLEM POSSIBLE CAUSES
Warmer not – The power cord is not plugged in.working	– The power switch is not on.– Heater damage.– The switch is damaged.

TROUBLESHOOTING (CONTINUED)

PROBLEM POS	SIBLE CAUSES
Switch is not – bright	The power cord is not plugged in.– The power switch is not on.– The switch is damaged.– Loose internal wire.
The heater is – not working	The power switch is not on.– The switch is damaged.– Heater damage.– Loose internal wire.

WARRANTY – 2 YEARS PARTS AND 1 YEAR LABOR (U.S. AND CANADA ONLY)

Waring warrants every new Waring ^™ Commercial Coffee Warmer to be free from defects in materials for a two-year period, and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semiliquids, providing it has not been subject to loads in excess of the indicated rating.

These warranty periods run from the date of installation. Waring warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not existing at the time of purchase or that, in Waring's judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, non-periodic cleaning and descaling, equipment failures related to poor water quality, damage or casualty including, but not limited to, excessive lime and chlorine. In addition, the warranty does not apply to replacement of items subject to normal use, including but not limited to user replaceable parts such as seals and gaskets.

Under this warranty, Waring will repair or replace any part that, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at 314 Ella T. Grasso Ave., Torrington, CT 06790, or any Factory Approved Service Center.

ÍNDICE

©2020 Waring Commercial

314 Ella T. Grasso Avenue

Torrington, CT 06790

www.waringcommercialproducts.com

Printed in China

Impreso en China

Imprimé en Chine

WCW10/WCW20/WCW20R IB

20WC072168
