Clean Smile Plus - Toothbrush Jordan - Free user manual and instructions

Product type	Electric toothbrush
Brand	Jordan
Model	Clean Smile Plus
Power supply	Rechargeable lithium-ion battery 3.7 V, charged by DC 5 V, 1 A via USB cable
Input voltage (adapter)	100-240 V AC (~)
Battery life	Approximately 180 minutes / 45 days
Charging time	2-3 hours
Brushing modes	2 (low and high)
Brush head	Softclean™
Charge indicator	White LED: flashes during charging, steady when battery is full
Pressure indicator	LED flashes quickly if excessive pressure is applied
On/off button	Single button, allows speed selection
Safety	Can be used by children and persons with reduced capabilities under supervision; consult a dentist if undergoing treatment
Maintenance	Clean the brush head after each use; replace the head every 3 months
Repairability	Built-in battery non-replaceable; recycle the device at end of life
Supplied accessories	USB cable, charging base, brush head
Usage	Fully charge before first use; the brush stops if turned on while charging
Environmental protection	Do not dispose with household waste; recycle according to local regulations
Compatibility	Children and adults

Frequently Asked Questions - Clean Smile Plus Jordan

How to recharge the Jordan Clean Smile Plus toothbrush?

Plug the provided USB cable into the charging base, then connect the adapter to a power outlet (100-240 V AC) or directly to a computer. The LED indicator flashes during charging and becomes steady when the battery is full (2-3 hours).

What is the battery life of the toothbrush?

The maximum battery life is approximately 180 minutes, or about 45 days of normal use (two 2-minute brushings per day).

How do I know when the battery is low?

The LED indicator flashes when the battery capacity drops below 20%. It is recommended to recharge promptly to preserve battery life.

What does the fast flashing of the LED during brushing mean?

The fast flashing indicates that too much pressure is being applied to the brush. Reduce pressure to avoid damaging gums.

Is the toothbrush waterproof?

It is splash-resistant during normal use, but should not be immersed in water. During charging, the brush and charger must remain dry.

How to clean the toothbrush?

Rinse the brush head after each use. Clean the handle with a damp cloth. Do not use abrasive products. Do not immerse the handle or charger.

How often should I change the brush head?

It is recommended to replace the brush head every 3 months, or sooner if bristles are worn.

Can I use the toothbrush if I have braces or implants?

Yes, but consult your dentist before first use for advice tailored to your situation.

Is the toothbrush suitable for children?

Yes, under adult supervision. Ensure the child understands how it works and does not use the device as a toy.

What to do if the toothbrush stops working?

First check the charge. If the battery is dead, recharge it. If the problem persists, contact Jordan or Wilfa customer service. Do not attempt to repair it yourself.

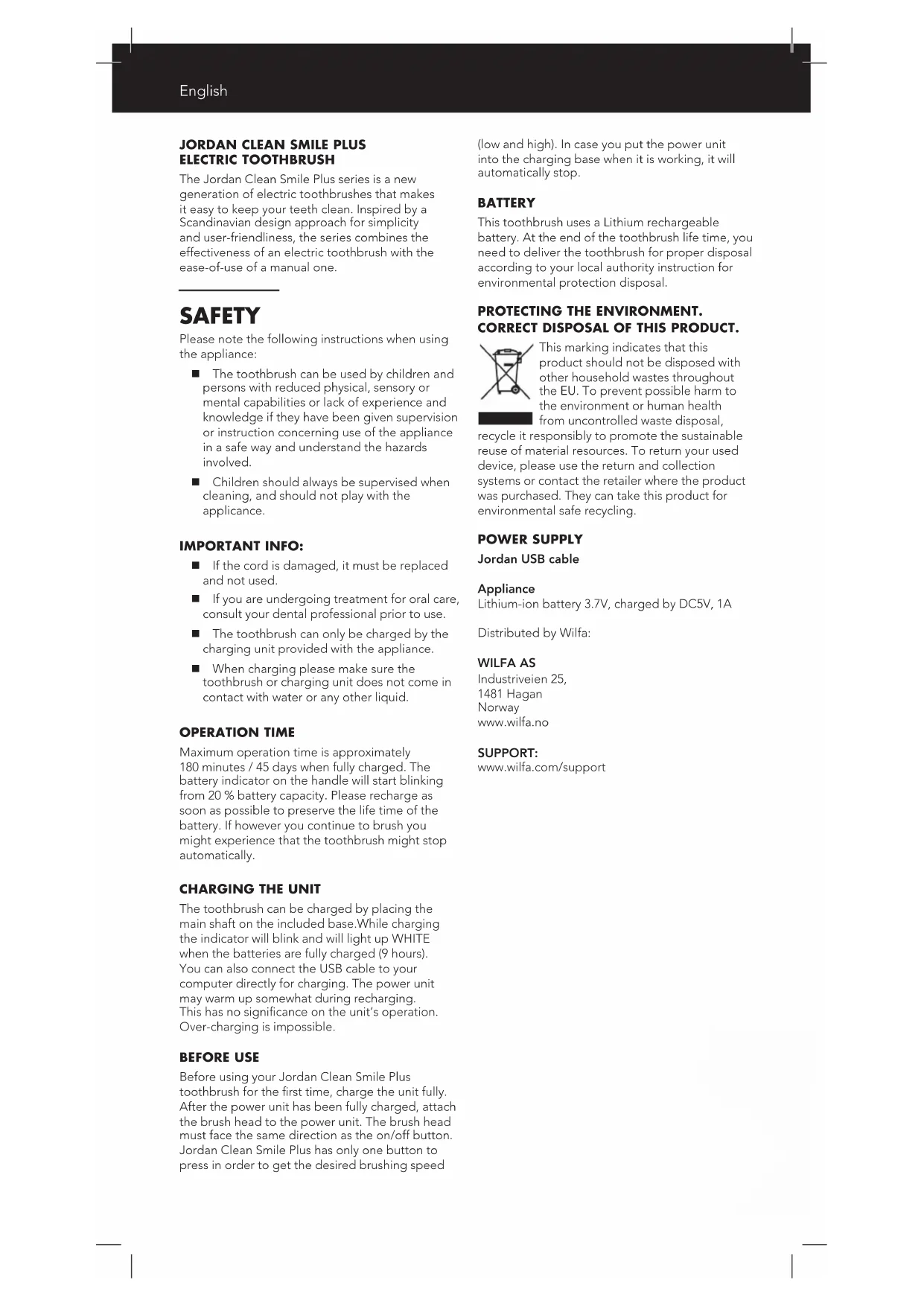

USER MANUAL Clean Smile Plus Jordan

The Jordan Clean Smile Plus series is a new generation of electric toothbrushes that makes it easy to keep your teeth clean. Inspired by a Scandinavian design approach for simplicity and user-friendliness, the series combines the effectiveness of an electric toothbrush with the ease-of-use of a manual one.

SAFETY

Please note the following instructions when using the appliance:

The toothbrush can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
■ Children should always be supervised when cleaning, and should not play with the appliance.

IMPORTANT INFO:

■ If the cord is damaged, it must be replaced and not used.
■ If you are undergoing treatment for oral care, consult your dental professional prior to use.
■ The toothbrush can only be charged by the charging unit provided with the appliance.
■ When charging please make sure the toothbrush or charging unit does not come in contact with water or any other liquid.

OPERATION TIME

Maximum operation time is approximately 180 minutes / 45 days when fully charged. The battery indicator on the handle will start blinking from 20 % battery capacity. Please recharge as soon as possible to preserve the life time of the battery. If however you continue to brush you might experience that the toothbrush might stop automatically.

CHARGING THE UNIT

The toothbrush can be charged by placing the main shaft on the included base. While charging the indicator will blink and will light up WHITE when the batteries are fully charged (9 hours). You can also connect the USB cable to your computer directly for charging. The power unit may warm up somewhat during recharging. This has no significance on the unit's operation. Over-charging is impossible.

BEFORE USE

Before using your Jordan Clean Smile Plus toothbrush for the first time, charge the unit fully. After the power unit has been fully charged, attach the brush head to the power unit. The brush head must face the same direction as the on/off button. Jordan Clean Smile Plus has only one button to press in order to get the desired brushing speed (low and high). In case you put the power unit into the charging base when it is working, it will automatically stop.

BATTERY

This toothbrush uses a Lithium rechargeable battery. At the end of the toothbrush life time, you need to deliver the toothbrush for proper disposal according to your local authority instruction for environmental protection disposal.

PROTECTING THE ENVIRONMENT. CORRECT DISPOSAL OF THIS PRODUCT.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

POWER SUPPLY

Jordan USB cable

Appliance

Lithium-ion battery 3.7V, charged by DC5V, 1A

Distributed by Wilfa:

WILFA AS

Industriveien 25,

1481 Hagan

Norway

www.wilfa.no

SUPPORT:

www.wilfa.com/support

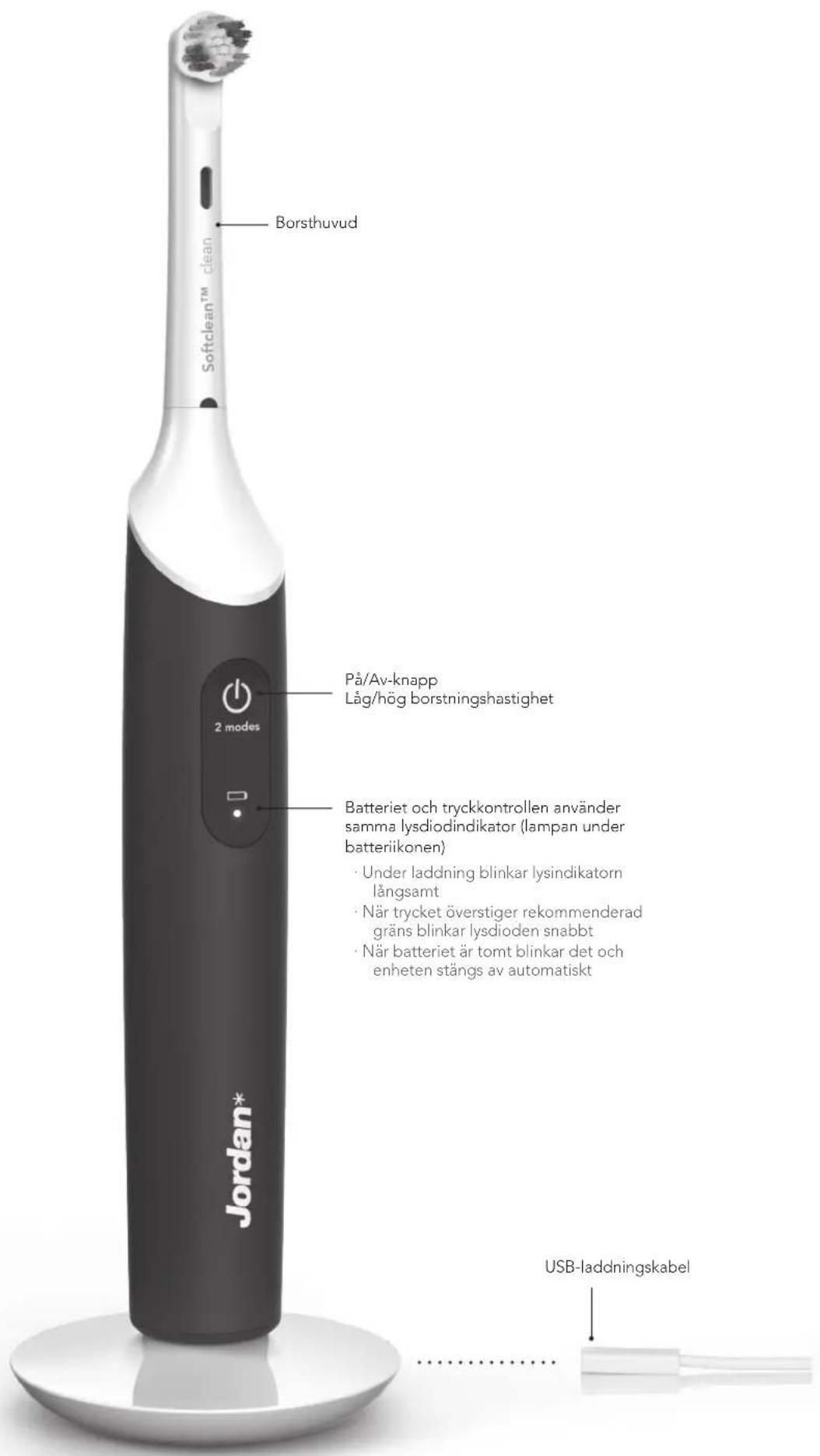

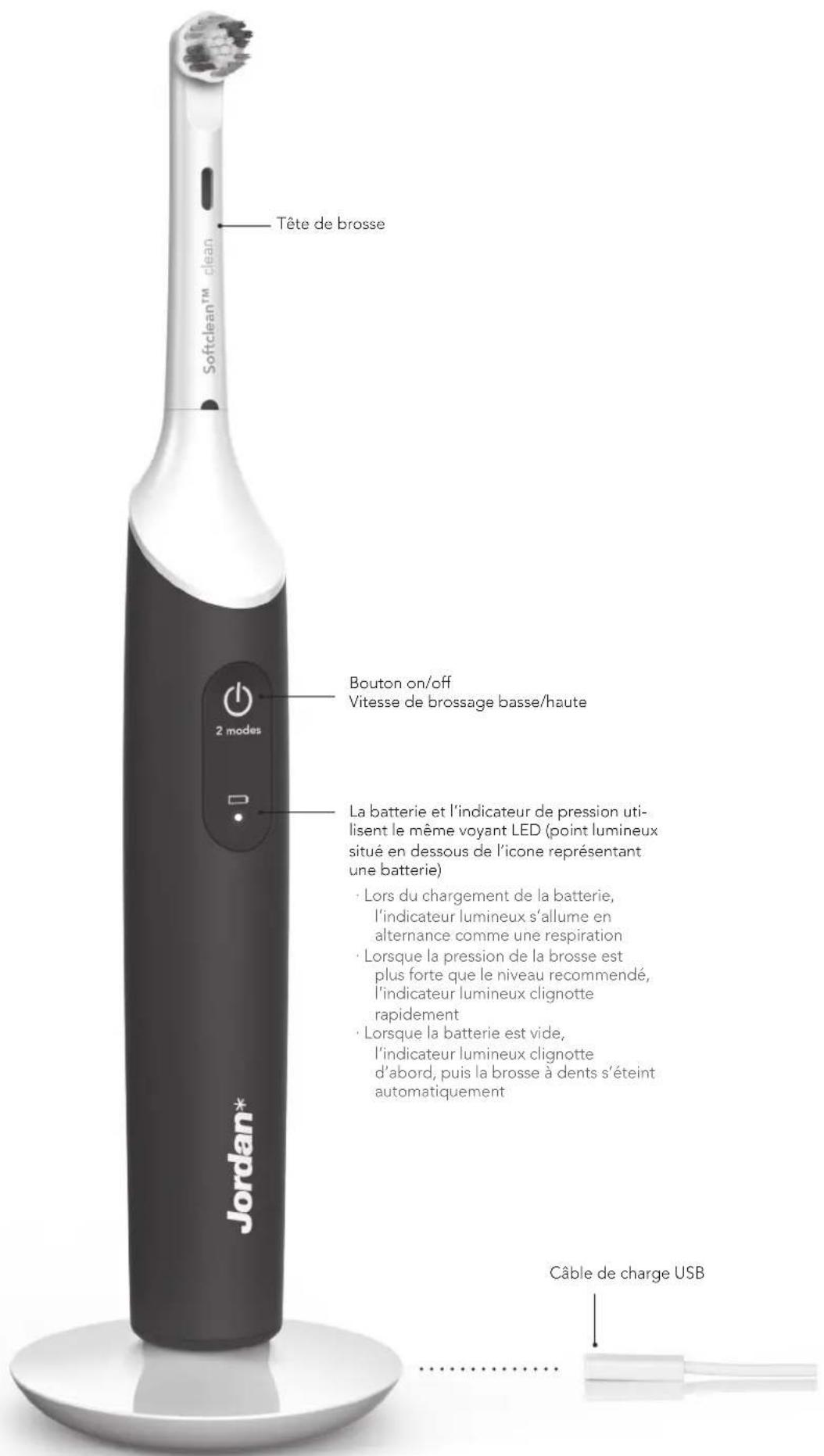

Brush head Softclean™ clean On/off switch Low/high brushing speed Battery and pressure sensor indicator use the same LED indicator( small dot under the battery icon) When charging, the LED will flash like breathing. When pressure is over the recommended limit, the LED will fast flash. When the battery is empty, it will flash and the device will automatically switch off. USB charging cable Jordan*
