USER MANUAL RS23CB7600QL SAMSUNG

Free Standing Appliance

Black and white illustration of ice cubes with bubbles rising, no text or symbols present

Abstract black-and-white photo of a cube partially submerged in ice with bubbles rising (no text or symbols)

SAMSUNG

Contents

Safety information 4

What you need to know about the safety instructions 4
Important safety symbols and precautions: 5
State of California Proposition 65 Warning 5
Important safety precautions 5
Severe warning signs for transportation and site 7
Critical installation warnings 7
Installation cautions 9
Critical usage warnings 9
Usage cautions 12
Cleaning cautions 13
Critical disposal warnings 14

Installation 15

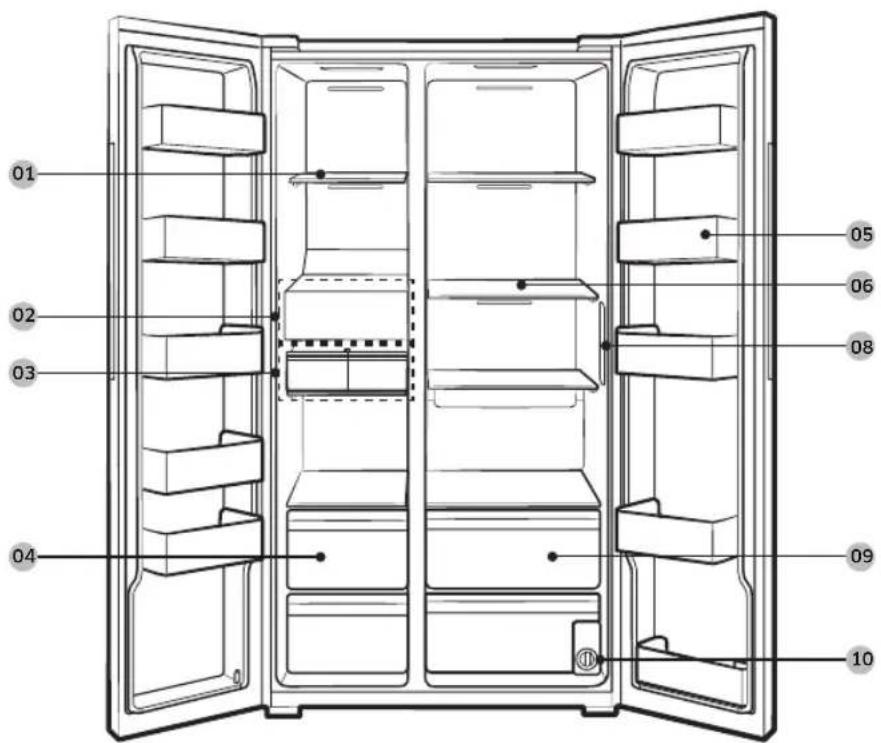

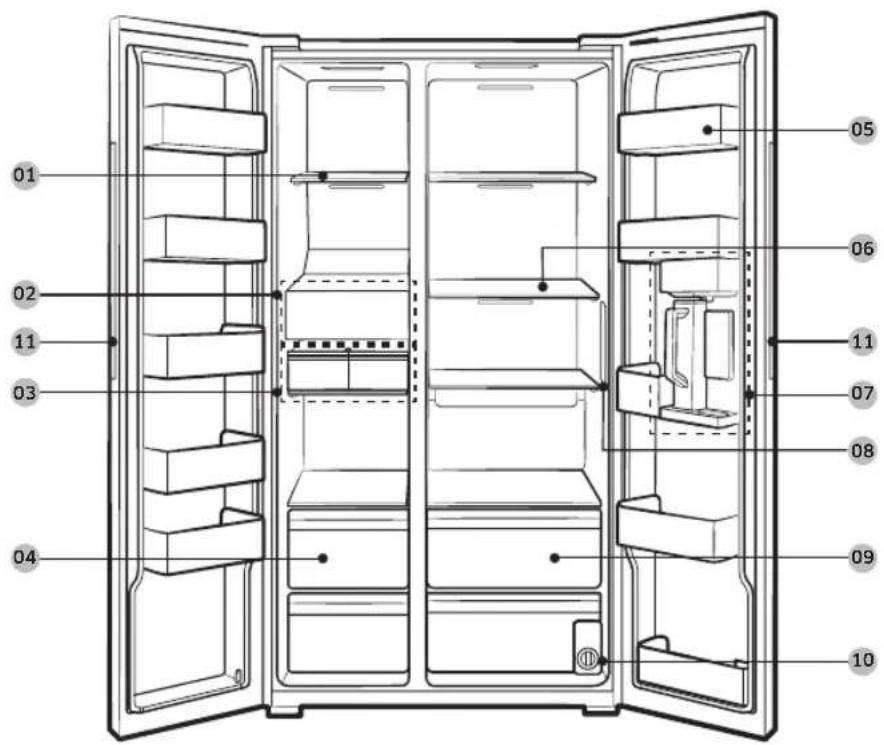

Refrigerator at a glance 15 Step-by-step installation 17

Operations 31

Main panel 31 SmartThings (applicable models only) 37 SMART GRID Function (Demand Response) (applicable models only) 40 Special features 44

Maintenance 52

Handle and care 52 Cleaning 56 Replacement 57

Troubleshooting 60

General 60

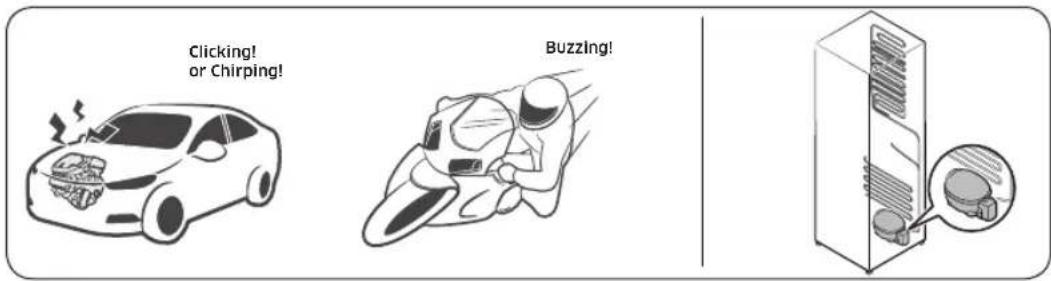

Do you hear abnormal sounds from the refrigerator? 64
SmartThings (applicable models only) 66
Smart Grid (applicable models only) 67

LIMITED WARRANTY (U.S.A.) 68

SAMSUNG REFRIGERATOR 68

English2

Warranty Information (CANADA) 71

If your refrigerator needs service 71 Limited Warranty for Original Purchaser 71 Obligation to the Original Owner 72 Exclusions of the Warranty 72

Regulatory Notice 73

FCC Notice 73 IC Notice 74

Open Source Announcement 75

Safety information

Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, contact us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.
• Failing to do so may result in fire or explosion.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

English4

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Important safety precautions

WARNING; Risk of fire / Flammable materials

WARNING

• R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft ^3 in size for every 8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.

Safety information

• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

• Fill with potable water only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.
• Connect to potable water supply only.

WARNING

- Risk of child entrapment. Before you throw away your old refrigerator or freezer:

- Take off the doors.

- Leave the shelves in place so that children may not easily climb inside.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

English6

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also flammable.

Critical installation warnings

WARNING

- Do not install the refrigerator in a damp location or place where it may come in contact with water.

- Deteriorated insulation on electrical parts may cause an electric shock or fire.

- Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

- Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.

- This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.

- If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock or fire.

- Do not use a power cord that has cracks or abrasion damage along its length or at either end.

- Do not bend the power cord excessively or place heavy objects on it.

- Do not pull or excessively bend the power cord.

- Do not twist or tie the power cord.

- Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

- When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or fire.

- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

- Do not install this appliance near a heater or flammable material.

- Do not install this appliance in a location where gas may leak.

- This may result in an electric shock or fire.

- This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

Safety information

• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
  There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.
• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• Current leakage may result in an electric shock, fire, explosion, or problems with the product.
• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.
• Failing to do so may result in an electric shock or personal injury.

English8

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
  • After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.
• It is strongly recommended you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
  • Overloading one door may make the refrigerator fall, causing physical injury.

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
• This refrigerator is for storing food only.
• This may result in fire or explosion.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
• Any sharp edges may cause personal injury.

Safety information

• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.
• Do not allow babies or children to go into a drawer.
• It can cause death from suffocation by entrapment or personal injury.
• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.
• It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).
• Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.
• If spilled, there is a risk of fire or electric shock.
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work.
• The glass shelf could fall and cause personal injury.
• Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

English10

- If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

• Do not touch the appliance or power cord.
• Do not use a ventilating fan.

A spark may result in an explosion or fire.

• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall over or out.
• This product is intended only for the storage of food in a domestic environment.
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

- This can cause a personal injury or material damage.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung service center.

- Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center.

- Failing to do so may result in an electric or fire hazards.

- Pull the power plug out of the socket before changing the interior lamps of the refrigerator.

- Otherwise, there is a risk of electric shock.

• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

- Contact a Samsung service center.

• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

Safety information

Usage cautions

CAUTION

• Do not re-freeze frozen foods that have thawed completely.

• Use only the ice maker provided with the refrigerator.
  • To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.

- Please observe maximum storage times and expiration dates of frozen goods.

• Do not put glass containers or bottles or carbonated beverages into the freezer.
• The container may freeze and break, and this may result in injury.
  • Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.
• Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Samsung service center.

- There is a risk of electric shock or fire.

- Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

English12

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside of the refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Do not spray cleaning products directly on the display.
• Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center.
• Failing to do so may result in an electric shock or fire.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.
• Otherwise, there is a risk of fire or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
• They may damage the surface of the appliance and may cause a fire.
• Never put fingers or any objects into the dispenser outlet.
• This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in an electric shock or fire.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.
• These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Safety information

Critical disposal warnings

WARNING

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.
- Please dispose of the packaging material from this product in an environmentally friendly manner.
- Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
- This product contains R-600a, a flammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.
- When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.
If trapped inside, the child could be injured or suffocate to death.
- Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
- Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.

English14

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.

Refrigerator at a glance

The actual appearance of your refrigerator may differ, depending on the model and the country.

Type A

01 02 03 04 05 06 08 09 10

Installation

Type B

01 02 11 03 04 05 06 11 07 08 09 10

01 Freezer shelf

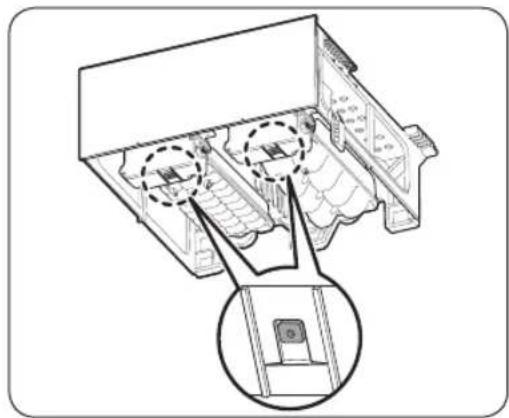

02 Auto Ice maker (Dual) *

03 Ice bucket *

04 Freezer drawer

05 Door bin

06 Foldable shelf *

07 Inner Beverage Center *

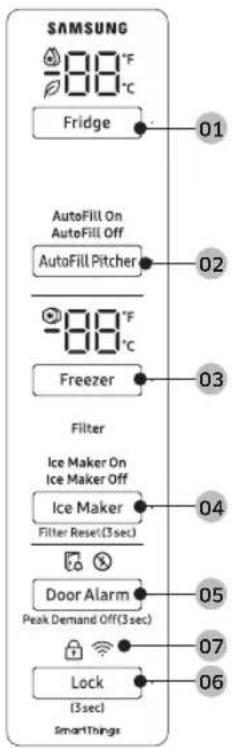

08 Main panel

09 Fridge drawer

10 Water filter * 11 Auto door open sensor *

* Applicable models only

NOTE

For some models, fridge shelves have different lengths. If you change the position of the shelves, they may bump into the items stored in the door bins. Make sure to put the shelves in their original position.

English16

Step-by-step installation

STEP 1 Select a site

Site requirements:

• Solid, level surface without carpeting or flooring that may obstruct ventilation
- Away from direct sunlight
- Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 50 °F (10 °C) and 109 °F (43 °C)

Clearance

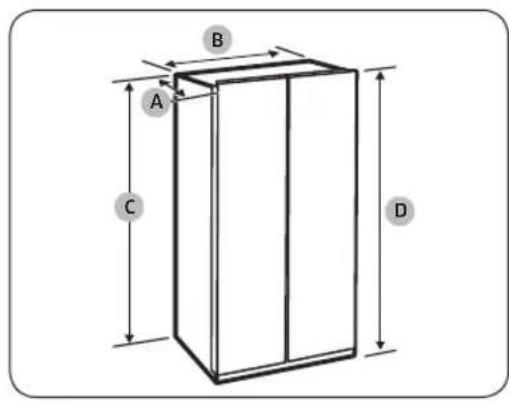

See the following figures and tables for space requirements for installation.

A B C D

Model RS23CB7***** RS28CB7*****
Depth "A"	28 7/8"(732 mm)	33 3/4"(857 mm)
Width "B"	35 7/8" (912 mm)
Height "C"	68 5/8" (1744 mm)
Overall Height "D"	70 5/8" (1782 mm)

Installation

01 04 05 0203 06 07 08

	RS23CB7***** R$28CB7*****

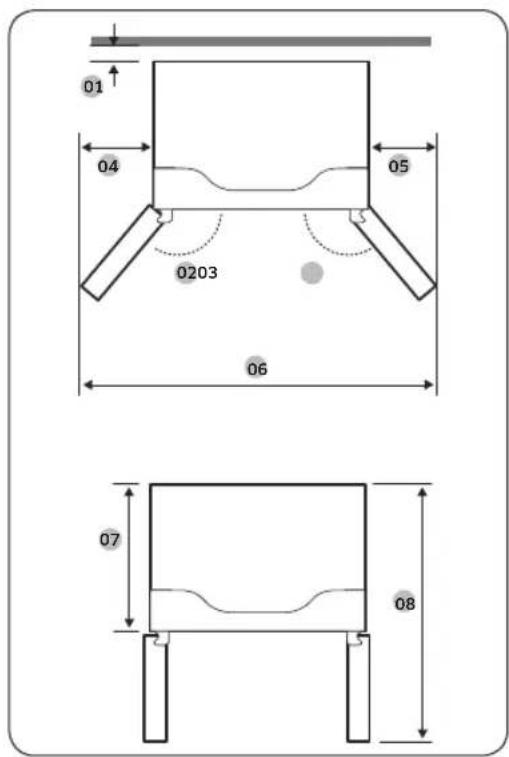

01	more than 2" (50 mm) recommended
02 165°
03 170°
04 14 1/4" (360 mm)
05 18 21/32" (474 mm)
06 50" (1269 mm)
07	24" (610 mm)	28 7/8" (735 mm)
08	46 3/8" (1179 mm)	51 3/8" (1304 mm)

NOTE

The measurements in the above table may differ, depending on the measuring method.

English18

STEP 2 Flooring

Diagram showing two rectangular blocks with directional arrows and a circle, no text or symbols present

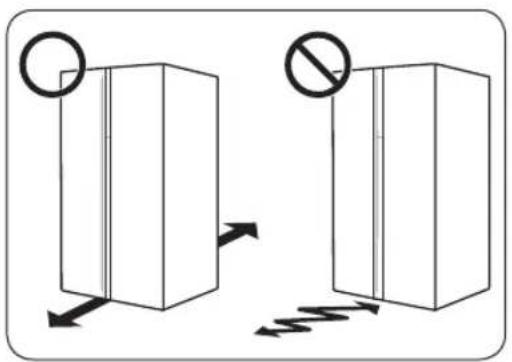

• The surface to install the refrigerator must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard on each leg of the refrigerator when you move it for installation.
• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to, use thick paper or cloth such as an old carpet along the movement path.

NOTE

If the refrigerator cannot pass through the entrance due to its size, see the Door removal for entrance section.

Installation

STEP 3 Door removal for entrance

If the refrigerator cannot pass through the entrance due to its size, follow these instructions:

Tools required (not provided)

These tools are used for removing the doors.

Simple line drawing of a screwdriver (no text or symbols)

Phillips screwdriver

WARNING

Unplug the power cord of the refrigerator before removing the doors.

Detach the doors

CAUTION

• The door may fall off or over and damage itself during any of these steps. To prevent an accident, use extreme caution when performing these steps.
• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.

Technical diagram of a mechanical bracket with multiple bolts and upward arrows indicating force or movement (no text or symbols present)

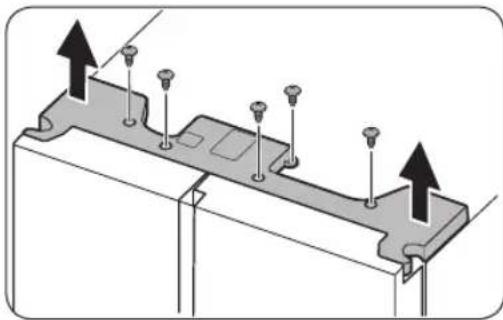

1. With the doors closed, use a Phillips screwdriver to remove the screws (x5) from the hinge cover. Pull up and remove the hinge cover with the connectors.

English20

Diagram showing pipe connection with arrows indicating direction, no text or symbols present

Mechanical lever diagram showing a turning mechanism with no text or symbols

Diagram of a hand gripping a piece of material, with a black arrow indicating downward motion (no text or symbols)

1. Disconnect the wire connector on the fridge door.

2. The position of the connectors differs with the model.

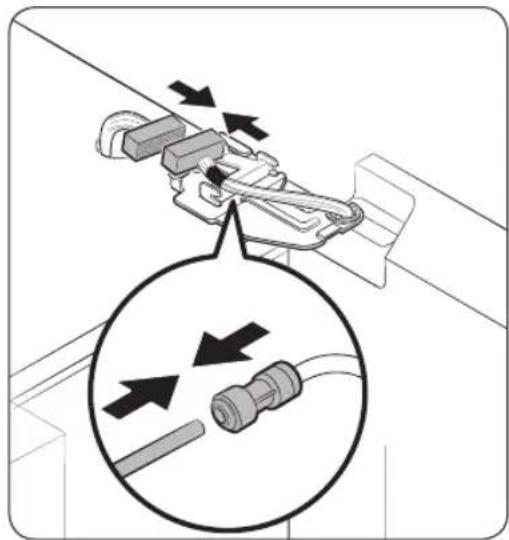

3. Disconnect the water tube from the coupler on the fridge door.

- This step only applies to the models that require a water supply (for features such as AutoFill Pitcher, water dispenser, and ice maker).

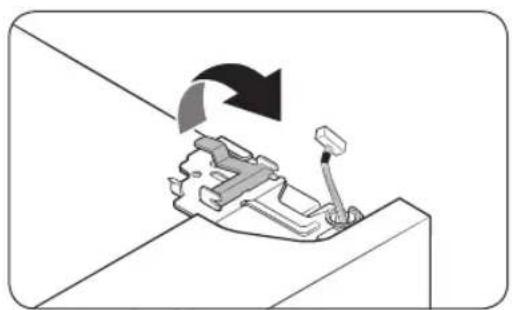

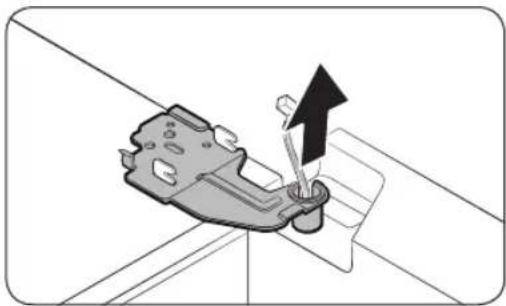

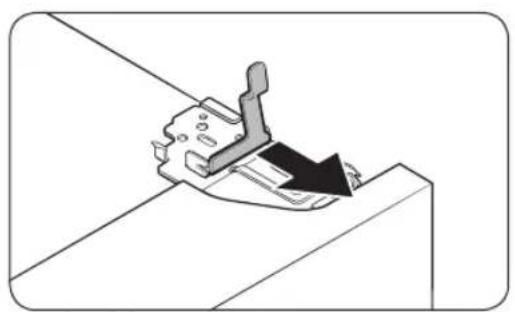

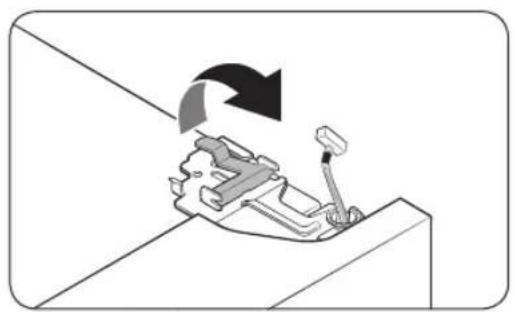

1. Gently lift the clamp.

NOTE

To prevent damage to the clamp or injuries, do not lift the clamp forcefully.

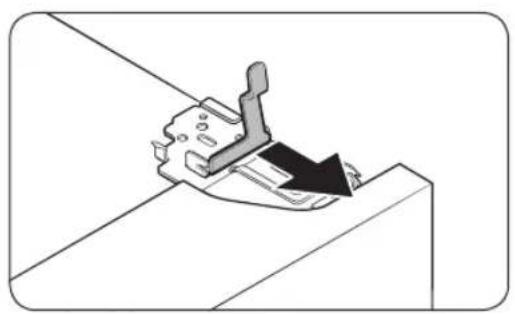

1. Pull the clamp to remove.

Installation

Mechanical component with a black arrow indicating direction, no visible text or symbols

1. Open the door by 90 degrees. While holding the door, remove the hinge. Be careful not to damage the wire connectors when you remove the hinge.

CAUTION

If you remove the hinge without holding the door, the door may fall and cause injury.

1. Repeat steps 2-6 for the other door, except for step 3.
2. There is no water tube on the freezer door.

Reattach the doors

CAUTION

• When you reattach the doors, make sure that you properly connect all the wire connectors.
• The freezer door must be reattached before the fridge door.

Line drawing of a person standing beside an open refrigerator (no text or symbols)

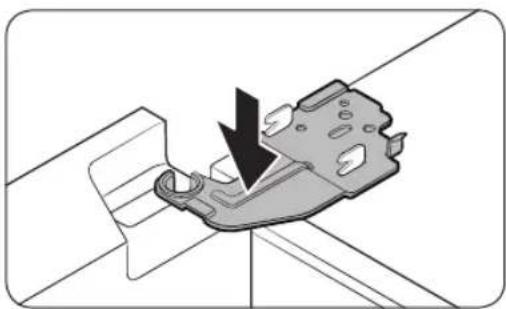

1. Hold the freezer door and hook to the hinge at the bottom of the refrigerator.

Mechanical component diagram showing a highlighted part with a black arrow indicating force or direction (no text or symbols present)

1. Put the hinge into its position, and then insert it into the hole on the door.

English22-

Mechanical assembly diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

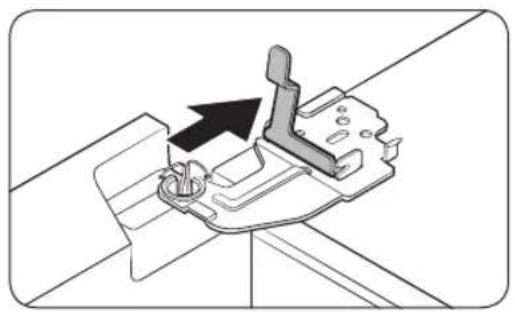

1. Insert the clamp in the arrow direction.

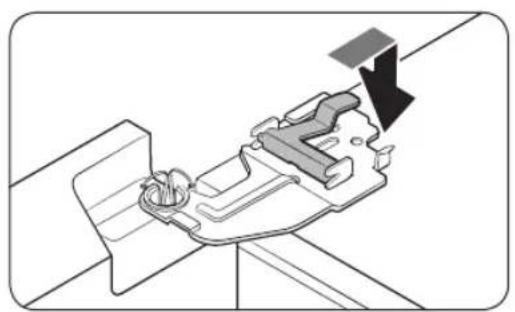

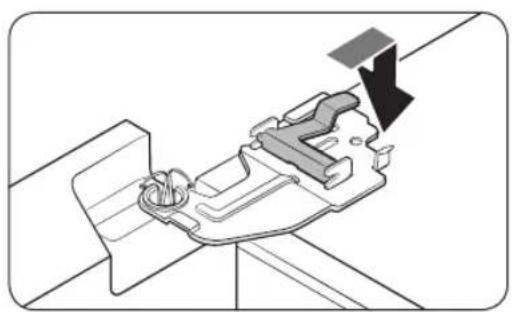

2. Press the clamp as shown.

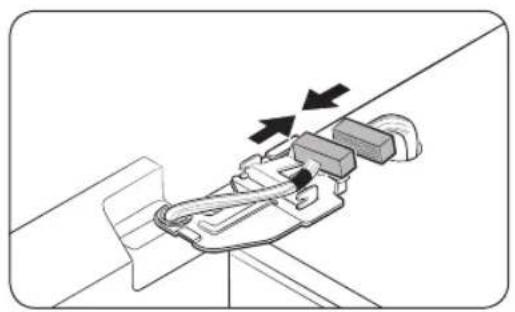

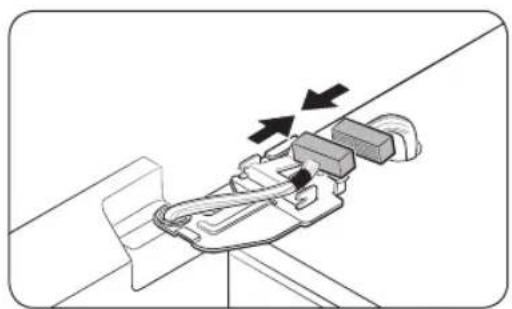

3. Connect the wire connectors.

CAUTION

Make sure the wire connectors are connected properly. Otherwise, the display (main panel) will not operate.

Installation

Installation

Diagram showing mechanical components with directional arrows, including a magnified inset of connected components (no text or symbols)

Diagram of two electrical connectors with a labeled connection point A (no text or symbols beyond label)

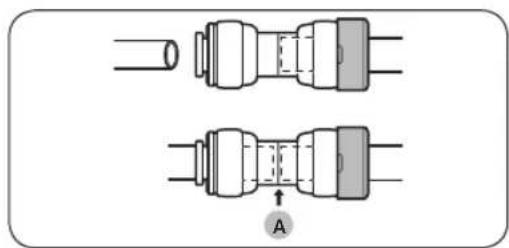

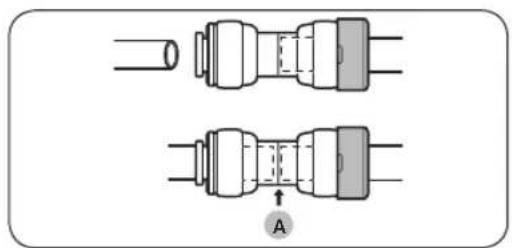

A. Centre of transparent coupler

Technical diagram of a mechanical bracket with multiple screw holes and mounting points (no text or symbols)

1. Repeat steps 1-5 for the other door.

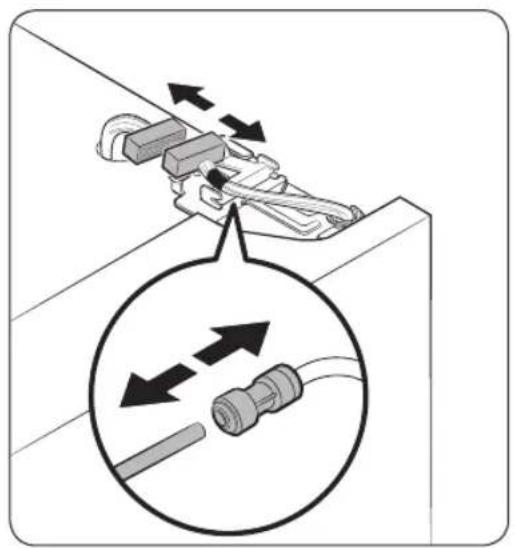

2. Connect the water tube. (Fridge door) - This step only applies to the models that require a water supply (for features such as AutoFill Pitcher, water dispenser, and ice maker).

CAUTION

To prevent water leaks, each water hose must be inserted fully into the center of the transparent coupler.

1. Attach the hinge cover with the front side first, and then press down on its back to get it into position. Then, tighten the screws (x5).

English24

STEP 4 Adjust the leveling feet

CAUTION

• The refrigerator must be leveled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
• Leveling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.
• For safety reasons, adjust the front side a little higher than the rear side.

The refrigerator can be leveled using the front legs that have a special screw (leveler) for leveling purposes. Use a flat-head screwdriver for leveling.

Diagram showing a tool interacting with a circular mechanical component, no text or symbols present

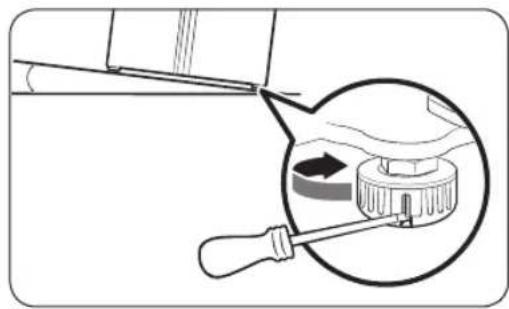

To adjust the height of the freezer side: Insert a flat-head screwdriver into the leveler of the freezer-side front leg. Turn the leveler clockwise to raise, or turn it counter clockwise to lower.

Diagram showing a tool interacting with a mechanical component, with an inset highlighting the motion direction (no text or symbols present)

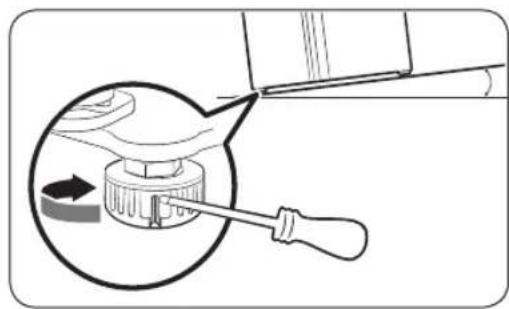

To adjust the height of the fridge side: Insert a flat-head screwdriver into the leveler of the fridge-side front leg. Turn the leveler clockwise to raise, or turn it counter clockwise to lower.

Installation

STEP 5 Adjust the door height

The height of the doors can be adjusted using the clamp nut and the height nut on the front bottom of each door.

Technical diagram showing a mechanical assembly with labeled parts A and B, including a magnified inset view.

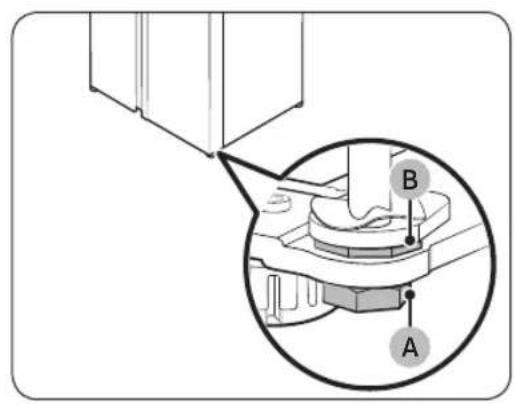

1. Open the door to adjust, and locate the two nuts (A) and (B) on the front bottom of the door.

Mechanical assembly diagram showing a gear and lever mechanism with labeled component A (no text or symbols beyond label)

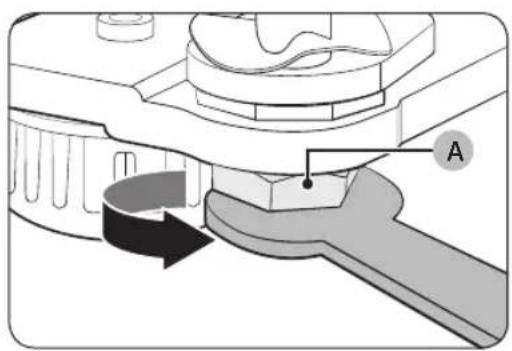

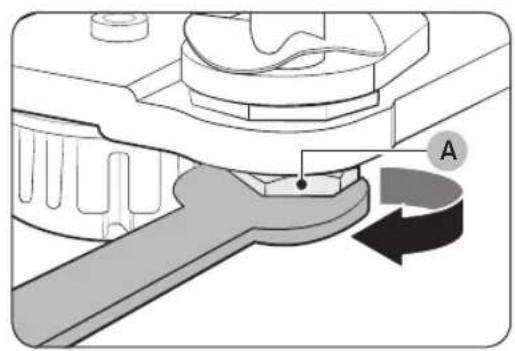

1. With a 19 mm spanner, turn the clamp nut (A) clockwise to loosen. Then, open the door, and do the following inside the door.

2. To raise the door, turn the height nut (B) counter clockwise.

3. To lower the door, turn the height nut (B) clockwise.

Mechanical component diagram showing a rotating shaft and adjustment knob (no text or symbols)

1. When complete, tighten the clamp nut (A) by turning it counter clockwise.

English26-

Installation

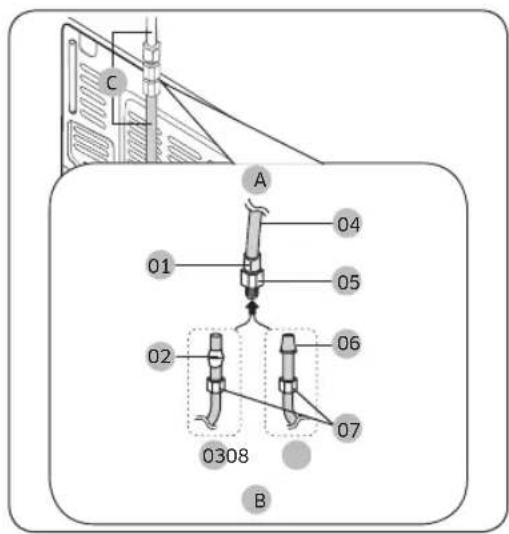

STEP 6 Connect the water dispenser line

A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that.

The water line also connects to the ice maker. For the ice maker to operate properly, water pressure of 30 - 125 psi (206 - 862 kPa) is required.

If the refrigerator is installed in an area with low water pressure (below 30 psi / 206 kPa), you can install a booster pump to compensate for the low pressure.

After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until water runs from the water outlet.

NOTE

- Water line installation kits are available at extra cost from your retailer. We recommend using a water line installation kit that contains copper tubing and a ^1/4 " (6 mm) compression nut.

A B C

1. Shut off the main water source.
2. Insert the pipe clamp (B) and the shutoff valve (C) into the cold water line (A).

Diagram showing a mechanical or electrical component with labeled parts A and B, including a directional arrow indicating movement.

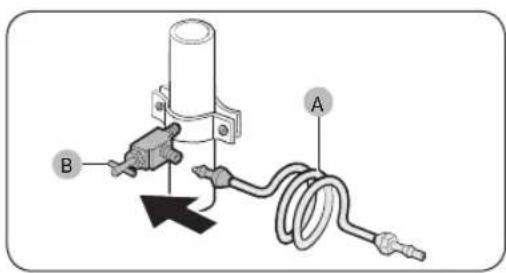

1. Connect the water line installation kit (A) to the shutoff valve (B).

Installation

Connect the water supply line to the refrigerator

There are several items you must purchase to complete this connection. You may find these items sold as a kit at your local hardware store.

Copper Tubing	^1/_4" copper tubing ^1/_4" compression nut (1 pc)Ferrule (2 pc)
Plastic Tubing	^1/_4" plastic tubing → Molded end (Bulb) ^1/_4" compression nut (1 pc)

C A 04 01 05 02 06 07 0308 B

A. Refrigerator
B. Household water supply line

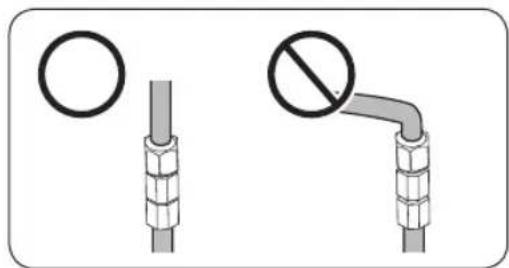

C. Water Line: must be kept straight.
01 Compression Nut ( ^1/_4 ) (Assembled)
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (B) (1/4") (Not supplied)
08 Plastic Tubing (A) (Not supplied)

Safety warning illustration showing a pipe with a circular symbol and a prohibition sign for no leakage.

NOTE

If you have to relocate the refrigerator after connecting the water line (C), make sure the joined section of the water line is straight.

English28

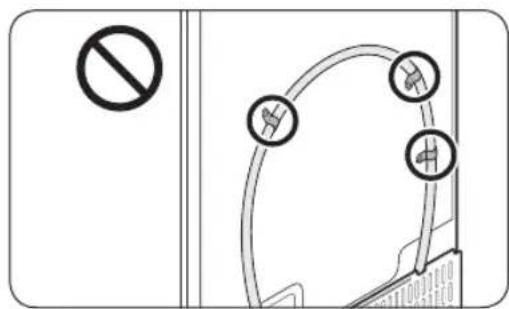

Diagram showing a prohibition symbol and three labeled circular elements with arrows, likely indicating a safety or installation mechanism.

CAUTION

Do not mount the water filter on any part of the refrigerator. This may damage the refrigerator.

1. Connect the household water line to the assembled compression fitting.

2. If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown.

3. If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing (A) into the compression fitting.

CAUTION

• If you use plastic tubing (A), do not use it without the molded end (Bulb).
- Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure that the ice making function is turned "OFF" and do not attempt to use the water dispenser.
2. Tighten the compression nut (B) onto the compression fitting. Do not over-tighten the compression nut (B).
3. Turn the water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.
4. Flush 1 gallon of water through the filter before drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it, and then repeat.
5. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line.

NOTE

Only connect the water line to a potable water source.

• If you have to repair or disassemble the water line, cut off 1/4 of the plastic tubing to make sure you get a snug, leak-free connection.
• You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can fill a 5^3/4 oz. (170 cc) cup in about 10 seconds.

Installation

STEP 7 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor will run smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

STEP 8 Final check

When the installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from the wall or the cabinet.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English30-

Operations

Main panel

SAMSUNG 88°F Fridge 01 AutoFill On AutoFill Off AutoFill Pitcher 88°F Freezer 02 03 Filter Ice Maker On Ice Maker Off Ice Maker Filter Reset(3sec) Door Alarm Peak Demand Off(3sec) Lock (3sec) SmartThings 04 05 06

01 Fridge / °F ↔ °C

02 AutoFill Pitcher

03 Freezer / Auto door open sound

04 Ice Maker / Filter Reset

05 Door Alarm / Peak Demand Off

06 Lock / Wi-Fi On or Off

07 Network connection

NOTE

- If the door is left open for 5 minutes, the interior light will blink for 5 minutes and turn off. It is to alert deaf and hard of hearing users that a door is open. Note that this function is normal.

- The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator. If this happens, the temperature display blinks until the refrigerator returns to the specified temperature settings.

- The on appears if you turn on the AI Energy Mode in the SmartThings app. (applicable models only)

English 31

Operations

01 Fridge / °F ↔ °C (3 sec)

Fridge

You can use theFridgebutton to set the fridge temperature.PressFridgerepeatedly to select a desired temperature between 34 °F (1 °C) and 44 °F (7 °C).- The temperature indicator displays the currently set or selected temperature.Power CoolPower Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.To activate Power Cool, select temperature 34 °F (1 °C), and then pressFridgeto select Power Cool. The corresponding indicator ( lights up, and the refrigerator will speed up the cooling process for you.To deactivate Power Cool, pressFridgeagain. Then, the temperature of the fridge will be set back to 44 °F (7 °C).NOTEUsing Power Cool increases energy consumption. Make sure you turn it off and return to the previous temperature if you don't intend to use it.

°F ↔°C

You can also use theFridgebutton to switch the temperature scale between Celsius and Fahrenheit. To switch the temperature scale, press and holdFridgefor 3 seconds to change the current temperature scale.

English32-

02 AutoFill Pitcher

Press AutoFill Pitcher to turn it on or off.

• You can set the AutoFill Pitcher mode from one of the following modes.
• AutoFill On (AutoFill On): Set to fill your water pitcher automatically.
• AutoFill Off (AutoFill Off): Set to turn off the function.

NOTE

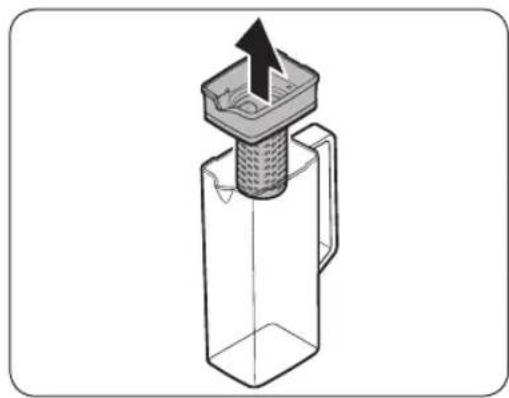

You can put tea or fruit into the infuser to make infused tea or water. If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off. (For more information, see the Water pitcher (AutoFill Pitcher) (applicable models only) section on page 45.)

03 Freezer / Auto door open sound (3 sec)

Freezer

You can use the Freezer button to set the freezer temperature.·Press Freezer repeatedly to select a desired temperature between 5 °F (-15 °C) and -8 °F (-23 °C).- The temperature indicator displays the currently set or selected temperature.Power FreezePower Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.To activate Power Freeze, select temperature -8 °F (-23 °C), and then press Freezer to select Power Freeze.The corresponding indicator ( lights up, and the refrigerator will speed up the freezing process for you.When the Power Freeze process is complete, the corresponding indicator turns off and the freezer returns to the previous temperature setting.To deactivate Power Freeze, press Freezer again.Then the temperature of the freezer will be set back to 5 °F (-15 °C).NOTEUsing Power Freeze increases energy consumption. Make sure you turn it off and return to the previous temperature if you do not intend to use it.

Auto door open sound

Press and hold Freezer for 3 seconds to turn on or off the sound that occurs when you use the Auto door open function.

Operations

04 Ice Maker / Filter Reset (3 sec)

Ice Maker

Press Ice Maker to turn the ice maker on or off.The ice maker has 2 indicators (Ice Maker On Ice Maker Off indicate its operating status.When the ice maker operates, the corresponding indicator (Ice Maker OnWhen the ice maker is turned off, the corresponding indicator (Ice Maker Off) turns on.

Filter Reset

After about 6 months (and typically, about 300 gallons (1200 L) of water), the Filter Reset indicator blinks red for several seconds when you open the door, reminding you that the filter needs to be replaced.When this happens, replace the filter, and then press and hold Ice Maker for 3 seconds. The filter lifecycle will be reset and the Filter Reset indicator turns off.NOTESome regions have relatively large amounts of minerals in their water. This can reduce the lifecycle of the filter. In these areas, you will have to replace the water filter more often than specified above.If water is not dispensing properly, the water filter is most likely clogged. Replace the water filter.

05 Door Alarm / Peak Demand Off (3 sec)

Door Alarm

If the door is left open for more than 2 minutes, an alarm will sound and the alarm indicator will blink. You can toggle the alarm on and off by pressing Door Alarm. The alarm is enabled by factory default.If the door is left open for 5 minutes, interior light (in the fridge, freezer) will blink for 5 minutes and turn off. It is to alert deaf and hard of hearing users that a door is open. Note that this function is normal.

Peak Demand Off

The Peak Demand Off function activates/deactivates Smart Grid. Press Door Alarm for 3 seconds to set/clear the Peak Demand Off function.When the function is enabled, the Peak Demand indicator ( Ⓧ turns on with a chime.For more information, see the SMART GRID Function (Demand Response) (applicable models only) section.

English34

06 Lock / Wi-Fi On or Off (10 sec)

Lock	To prevent accidental setting changes, press and hold Lock for 3 seconds. The main panel will be disabled and the Lock indicator ( ⏻) will turn on.When Lock is on, the indicator blinks if any button on the main panel is pressed. If you press and hold the button again for more than 3 seconds, Lock will be deactivated. However, Lock will be reactivated if no button is pressed within 1 minute.
Wi-Fi On or Off	To turn the Wi-Fi on or off, press Lock button for 10 seconds. The display shows the status of Wi-Fi for 5 seconds (as shown in the figure).WI-Fi On Wi-Fi Off NOTEYou must turn on the Wi-Fi to connect the refrigerator to the SmartThings app.For more information, see the SmartThings (applicable models only) section.

07 Network connection

This icon indicates that the refrigerator is connected to a network. If the Wi-Fi icon flashes, we recommend connecting your refrigerator with the SmartThings app. You can control and monitor your refrigerator on the SmartThings app. For more information, see the SmartThings (applicable models only) section.

Operations

Activating or deactivating the Sabbath mode

The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate, press and hold Door Alarm and Lock simultaneously for 5 seconds to enter Sabbath mode. Then the refrigerator operates in Sabbath mode where the buttons, the display, and the room lamps are all under control.
• To deactivate, press and hold the buttons again for 5 seconds to exit Sabbath mode.

NOTE

Even after the refrigerator powers off and restarts, the Sabbath mode remains active. To exit, you must deactivate it first.

Activating or deactivating the Cooling Off mode

Cooling Off mode (also called Shop mode) is designed for use by retailers when they are displaying refrigerators on a retail floor.

In Cooling Off mode, the refrigerator's fan motor and lights operate normally, but the compressors do not run so that neither the refrigerator nor the freezer run the cooling process.

• To enter or exit the Cooling Off mode, press and hold Fridge and AutoFill Pitcher simultaneously for 6 seconds. Then, when the display blinks, press Lock.
• When the Cooling Off mode is on, the refrigerator chime sounds, and the refrigerator shows "O" on the fridge temperature display and "FF" on the freezer temperature display.

English36

SmartThings (applicable models only)

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for "SmartThings". Download and install the SmartThings app provided by Samsung Electronics to your smart device.

NOTE

• The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons.
• The SmartThings app is subject to change without notice to improve usability or performance. As the mobile phone OS version is updated every year, the SmartThings is also updated continually according to the latest OS. If you have enquiries regarding the items mentioned above, please contact us at [e-mail]
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP (Router).
• Samsung Smart Refrigerators support IEEE 802.11 b/g/n (2.4 GHz) protocols. (IEEE 802.11 n is recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators.

Operations

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's on-screen instructions to create a free Samsung account.

Getting started

Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below.

If a pop-up appears saying that a new device has been found, tap ADD NOW.

If a pop-up doesn't appear, tap the + button, and then select the device you want to connect from the list of available devices.

If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specific device model.

Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen.

SmartThings functions

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.
• Check the operation status or notifications related to your refrigerator, and then change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

English38

Refrigerator settings

Category Item Description
Monitor & Control	Fridge temperature	You can set and monitor the desired temperature of the fridge.
	Power Cool	You can turn Power Cool on or off, and check the current settings.
	Freezer temperature	You can set and monitor the desired temperature of the freezer.
	Power Freeze	You can turn Power Freeze on or off, and check the current settings.
	Auto door open time *	You can set the time that the door remains slightly open by the Auto door open function.
	Auto door open sound *	You can turn on or off the sound that occurs when you use the Auto door open function.
	Ice maker You can	turn the ice maker on or off.
	AutoFill Pitcher *	You can turn the AutoFill Pitcher function on or off, and check the current settings of the function.
	Sabbath Mode You	can activate and deactivate the Sabbath mode.
Alarms	Abnormally high temperature	This alarm triggers when the temperature of the refrigerator is abnormally high.
	Door opening	This alarm triggers if the door is open for a specific time.
	AutoFill Pitcher overflowing *	If the AutoFill Pitcher function senses an overflow, it triggers this alarm to let you know the status of the overflow.
	Water filter replacement *	This alarm reminds you that the water filter must be replaced.
AI Energy Mode *	You can turn on or off the AI Energy Mode under the Energy menu in the SmartThings app.You can check the status of the AI Energy Mode on the SmartThings app.On some models, the con appears on the main panel to indicate that AI Energy Mode is on. (applicable models only)Turning on the AI Energy Mode decreases energy consumption, but it may also reduce the cooling performance.

* applicable models only

Operations

SMART GRID Function (Demand Response) (applicable models only)

When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy Management Refrigerator function can control energy usage or delay the operation of some functions to save money when energy prices or demand are the highest.

NOTE

• You can deactivate the SMART GRID (Demand Response) function at any time using the Peak Demand Off function.
• To use the SMART GRID (Demand Response) function, you need a separate contract with your electric utility company.

In addition, to use the Smart Grid (Demand Response) function, you must register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy profile).

Using the SMART GRID (Demand Response) Function

This feature monitors energy prices and demand information from your utility company and sends notifications to the refrigerator to run high energy consuming tasks during off-peak times when electricity costs and demand are lower.

If the refrigerator receives a control signal from the utility company, the refrigerator will display the DAL (L3) \~ TALR (L4) levels on the refrigerator display and control the power consumption according to the level.

[Exception condition] The DAL and TALR control signals from a utility company work as long as product performance is maintained.

If the refrigerator receives the SMART GRID (Demand Response) signal (DAL or TALR), the refrigerator will operate in Delay Appliance Load (Display:L3) or Temporary Appliance Load Reduction (Display:L4) mode.

• Delay Appliance Load (L3): The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period. This function controls functions that consume a lot of energy such as adjusting the Cooling system, running the defrost cycle, and making ice.
• When the refrigerator operates in DAL (L3) mode, "L3" is displayed on the refrigerator display.
• DAL mode is automatically deactivated after it lasts for the amount of time stipulated by the DAL signal (max. 4.5 hours) or when the Peak Demand Off key is pressed.
• Temporary Appliance Load Reduction (L4): The refrigerator responds to a TALR signal by aggressively reducing the load for a short time period. This function reduces energy consumption by stopping the compressor and controlling the functions that consume a lot of energy such as the defrost cycle and making ice.
• When the refrigerator operates in TALR (L4) mode, "L4" is displayed on the refrigerator display.
• TALR (L4) mode is automatically deactivated after it lasts for the received duration (max. 15 minutes), or when the Peak Demand Off key is pressed. The mode is immediately deactivated and the refrigerator returns to the normal state when the door is opened or closed, or the dispenser is used.

English40

To check the MAC address

1. In this mode, the MAC address appears on the temperature panel (on both the freezer and the fridge sections of the panel) sequentially for 1 minute. Press and hold both Fridge and Freezer for 6 seconds. The temperature panel blinks. Then, press Freezer again to display the MAC address. The fridge beeps.
2. For example, if the MAC address is "11-22-33-44-55-66", the temperature panel displays the address for 1 minute in this sequence: "-- / --" → "11 / 22" → "33 / 44" → "55 / 66" → "-- / --". After the 1 minute, the MAC address disappears and the temperature panel returns to the normal state.

NOTE

The temperature panel displays "-- / --" for an unknown MAC address or if a Wi-Fi connection is not established or is lost.

Peak Demand Off (Override mode)

When you want the refrigerator to ignore the SMART GRID (Demand Response) signal from the utility company, you can activate Peak Demand Off (Override mode).

When you activate Peak Demand Off (Override mode), the refrigerator ignores the SMART GRID (Demand Response) signal and is not controlled by the utility company.

Operations

Activating and deactivating Peak Demand Off (Override mode)

Override On Override Off

SAMSUNG 0F Fridge ON Freezer

SAMSUNG 0F Fridge oF Freezer

1. Press and hold Door Alarm for 3 seconds.
2. A buzzer sounds and 'Or' and 'on' is displayed in the fridge and freezer temperature displays for 5 seconds. Then the Peak Demand Off (Override mode) icon (☒ turns on.
3. If the refrigerator receives a SMART GRID (Demand Response) signal from the utility company, 'Or' is displayed in the fridge temperature display.
4. To deactivate Peak Demand Off (Override mode), press and hold Door Alarm for 3 seconds.
5. A buzzer sounds and 'Or' and 'oF' is displayed in the fridge and freezer temperature displays for 5 seconds. Then the Peak Demand Off (Override mode) icon (☒ turns off.

NOTE

- Alternatively, you can activate or deactivate Peak Demand Off (Override mode) using the SmartThings app and the Energy Management function. See the next page.

Using the Energy Management Function

The Energy Management function enables you to control and monitor your Energy Management refrigerator using the SmartThings app for your convenience.

NOTE

• To use the Energy Management refrigerator functions, you have to install the corresponding app first.
• Operational Status

- You can check the DR and Peak Demand Off (Override mode) status.

1. Energy Consumption Reporting

- Shows the accumulated power consumption. Power consumption data is updated every 10 minutes.

NOTE

The energy consumption report may differ from the power consumption specifications of the product depending on the operating environment and the stored food.

English42-

3. Delay Defrost Capability

• The Delay Defrost Capability function saves energy by delaying the defrost operation to a time specified by the user. You can configure the time. and this function will save energy during the specified period in a 24 hour cycle. If the time is not set, the function works with the default time settings. The default time settings are below:
• 6 am to 10 am: 1st. November \~ 30th. April
• 3 pm to 7 pm: 1st. May \~ 31th. October

To change the time setting for the Delay Defrost Capability

You can change the time setting for the Delay Defrost Capability on the app.

Provision for Open Access to the Connected Product Requirements

1. SGIP Open Standards (Smart Energy Profile 2.0 - http://www.csep.org/)

2. Energy Consumption Reporting

3. Demand Response

4. Samsung OPEN API

5. Operational Status, User Settings & Messages

6. ICE Maker Status: GET /icemaker/status/vs/0
7. Door Open Alarm: GET /doors/vs/0
8. DR Status: GET /drlc/vs/0
9. Delay Defrost Capability
10. Set Schedule of the Defrost Delay: POST /defrost/reservation/vs/0?op=add
11. Get Schedule of the Defrost Delay : GET /defrost/reservation/vs/0
12. Delete Schedule of the Defrost Delay: POST /defrost/reservation/vs/0?op=remove
13. Defrost Delay On/OFF: POST /defrost/delay/vs/0

Operations

Special features

Auto door open function (applicable models only)

Diagram of a 3D rectangular box with a vertical slot and an inset showing a small rectangular object (no text or symbols)

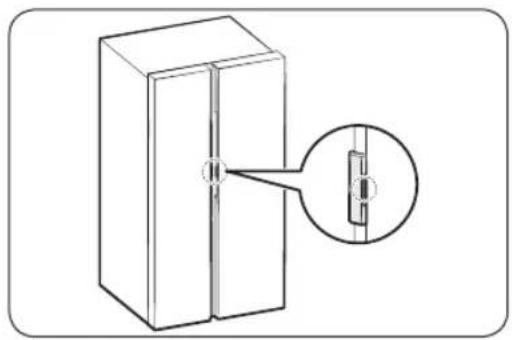

1. Touch where the auto door open sensor is. The door slightly opens.

NOTE

For your safety, the Auto door open function works only one door at a time.

1. When the door slightly opens, hold the handle and fully open the door.

- The door does not close automatically. Close the door manually after use.

CAUTION

• The Auto door open function may malfunction if you open and close the door repeatedly.
• Do not push or force stop the door while it is opening automatically. It may cause the product to malfunction.
• If the door resists opening after repeated door opening, wait for about a minute and then try again. (It may be hard to open the door immediately after closing it due to air pressure change inside the refrigerator which occurs when you open and close the door.)

NOTE

If the front side of the refrigerator is lower than the rear side, the door may not close properly after you open the door with the Auto door open function. Use the levelling feet to set the front side a little higher than the rear side.

English44

Inner Beverage Center (applicable models only)

Illustration of hands interacting with a glass container and a mug, showing mechanical components (no text or symbols)

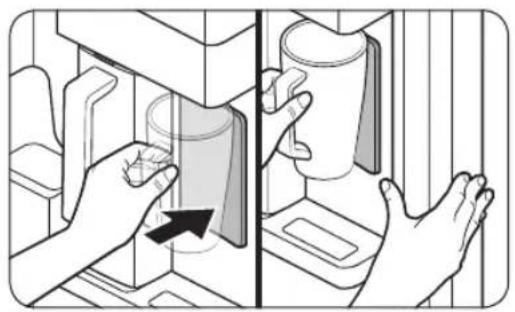

Open the fridge door. You will see the AutoFill Pitcher and the water dispenser available for use. Hold the fridge door still when you use the water dispenser or the AutoFill Pitcher.

Water pitcher (AutoFill Pitcher) (applicable models only)

Cold, purified water is always ready in the AutoFill Pitcher. You can put tea or fruits in the infuser to enjoy the various infused water you like.

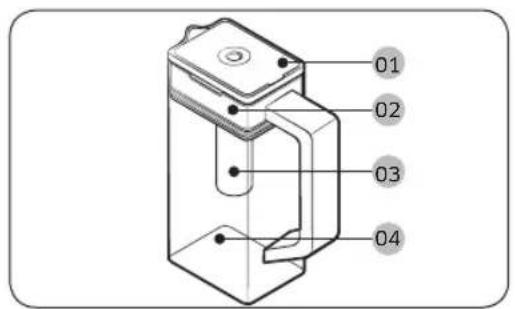

01 02 03 04

01 Lid

02 Infuser holder

03 Infuser

04 Body

To fill the Water pitcher

Diagram of a mechanical device with a top component and internal structure, showing an upward arrow (no text or symbols)

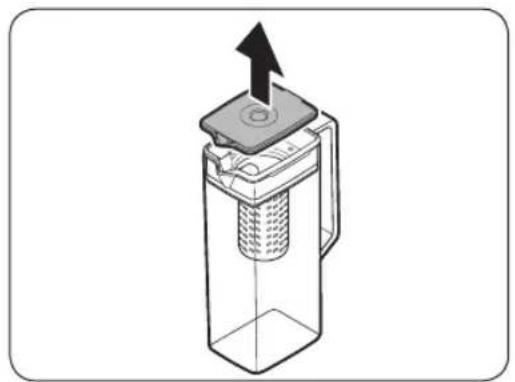

1. Grasp a handle groove of the lid, and then pull up to open the lid.
2. Put tea leaves or fruit to your taste into the infuser.

NOTE

If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off.

Operations

Diagram of a door panel with an arrow pointing to the opening (no text or symbols present)

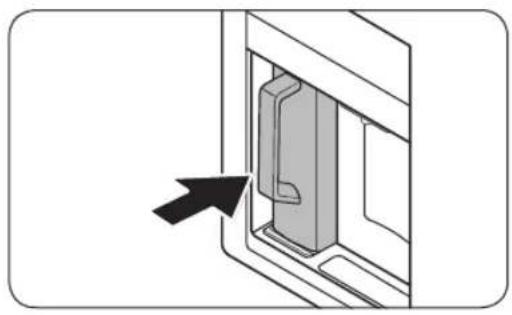

1. Enable the AutoFill Pitcher function on the main panel. Open the fridge door, and then mount the water pitcher onto the holder. Push it straight in as shown in the figure.

CAUTION

Make sure the water pitcher fits in the water pitcher holder.

1. Close the door. The water pitcher will start to fill with chilled water a short time later.

CAUTION

• We recommend consuming fruit-infused water within 24 hours. After that, the infused water can spoil.
- You must clean the water pitcher after you have consumed the infused water. Also, clean the water pitcher if you haven't used it for a long time.

Two technical diagrams showing a mechanical component with a circular hole and a prohibition symbol (no text or labels present)

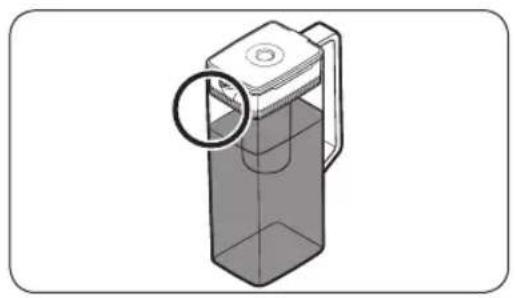

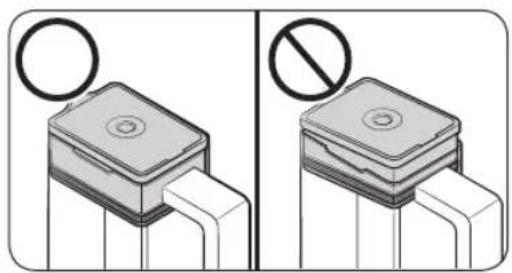

• To prevent the water pitcher from tipping over or leaking, make sure the water pitcher fits in the water pitcher holder.

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

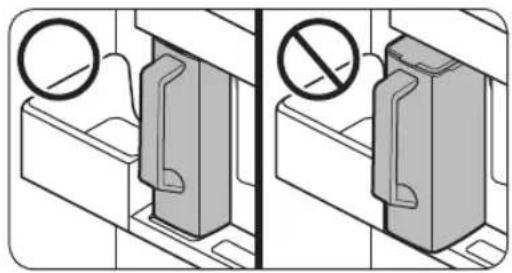

• To prevent the water pitcher from spilling over or leaking, make sure the infuser holder is properly inserted.

English46-

3D diagram of a mechanical device with a circular aperture and handle (no text or symbols)

Diagram of a mechanical component with a magnified inset showing a directional arrow (no text or symbols present)

NOTE

• If the front side (specifically marked area) of the water pitcher has too much moisture, the water pitcher may not fully fill. Remove the moisture, and then try again.

• AutoFill Pitcher function will stop supplying water to the water pitcher if the water pitcher does not fill after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water pitcher, and then try again.

• Wipe around the water pitcher holder if the water pitcher overflows or leaks.

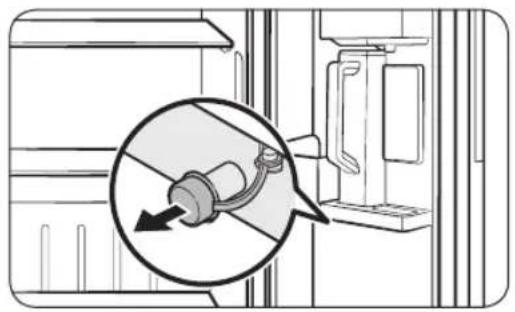

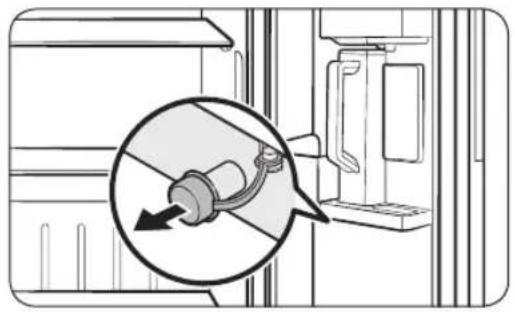

  • Water drops will fall if the rubber cap is opened.

• The AutoFill Pitcher indicator on the main panel will blink if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. If the indicator does not stop blinking after draining, there might be a system failure. Contact your local Samsung service center.

NOTE

• You must clean the water pitcher after you have consumed the infused water. You must also clean the water pitcher if you have not used it for a long time or left the pitcher full for more than three days.
• If the infuser is not properly cleaned, the scent of the tea or fruits you previously used in the infuser may remain. If you are not going to use the infuser, separate it from the pitcher and store it safely.
• If you have not used the water filter for a long time, dump out the first two pitchers of water. Then, clean the water pitcher thoroughly and use it.

Operations

Water dispenser (applicable models only)

Diagram of a door or cabinet with internal components and directional arrows (no text or symbols)

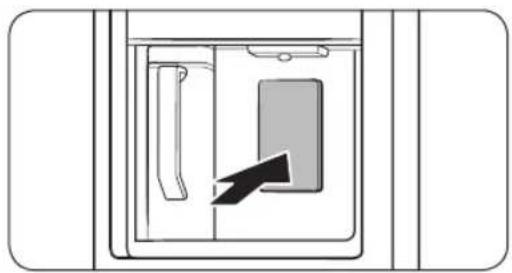

To dispense chilled water, open the fridge door and press the dispenser lever.

NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

Water clouding

Water supplied to the refrigerator flows through a core alkaline filter. During this filtering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds.

English48-

Ice maker (applicable models only)

The refrigerator has a built-in ice maker that automatically dispenses ice.

• The overall design and/or accessories may differ with the model.
  • The ice scoop is provided in the refrigerator.

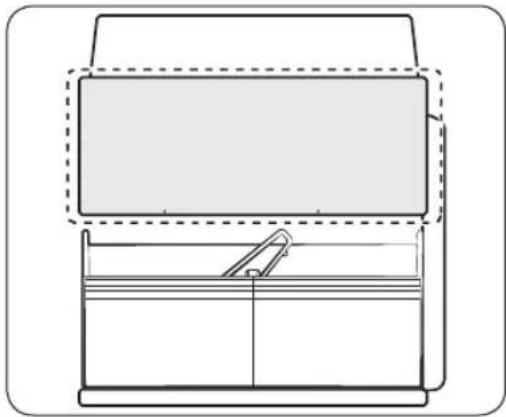

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

• This product has two types of ice makers.
• You can simply slide out the ice bucket tray to use ice, and then slide it back in after use.

WARNING

Choking hazard: Ice may cause choking in small children.

Where to keep the scoop

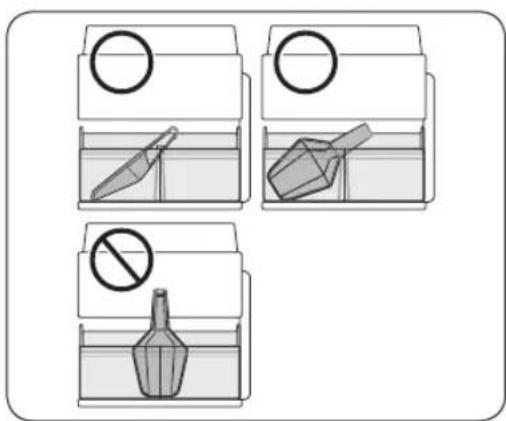

Diagram showing three containers with different symbols: a plastic bottle, a container with a pencil, and a prohibition sign.

Keep the scoop in the front part of the ice bucket. Place the scoop as shown in the figure, making sure it does not interfere with the ice dispenser when the ice bucket tray is inserted.

NOTE

If the ice bucket tray is not fully inserted, ice may drop behind (and outside) the ice bucket or the ice maker may stop making ice.

For first-time use

• Let the ice maker make ice for 1-2 days.
• Discard the first 1-2 buckets of ice to remove impurities in the water supply system.

Operations

Diagnosis

Technical diagram showing a device interior with labeled components and an inset view of a device with a highlighted component.

• The overall design and/or accessories may differ with the model.
• If ice does not dispense, first check the status of ice maker using the Test button on the bottom of the ice maker.
• Press the Test button on the bottom of the ice maker. You will hear a chime (ding-dong) when you press the button. You will hear another chime if the ice maker is operating properly.

Two-step diagram showing a container with packing and a side panel, both moving diagonally (no text or symbols)

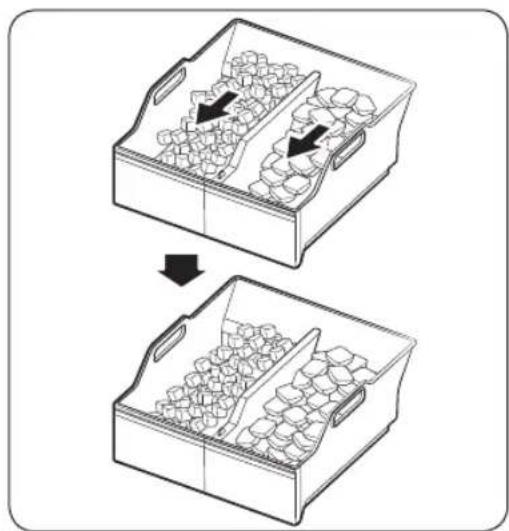

- Ice accumulating on one side of the tray is normal. Arrange the ice evenly in the tray to store more ice.

CAUTION

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure to turn the ice making function off.
- If the ice making chime rings repeatedly, contact the waterline installer or a local Samsung service center.
- Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.
- When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.

English50

• Do not put fingers or any objects into the ice maker. This can cause physical injury or property damage.
• Due to sublimation, ice stored in the freezer for a long time gets smaller and then forms large ice chunks. Therefore, if unused for a long period of time, turn the ice maker off and empty the ice bucket.

Twist ice maker (applicable models only)

Diagram of a container being inserted into a rack with a water dispenser, showing a magnified inset of the tray (no text or symbols present)

1. Open the freezer door, and slide open the ice tray.

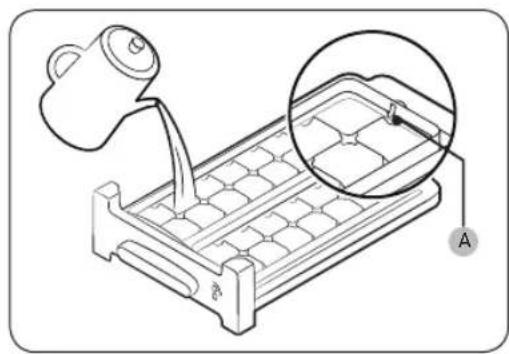

2. Fill the tray with water up to the maximum level (A) marked on the inner rear of the tray.
3. Slide the tray back into position.

NOTE

The ice making time depends on your temperature settings.

Diagram of a microwave oven with a rotary knob and cooling fan (no text or symbols)

NOTE

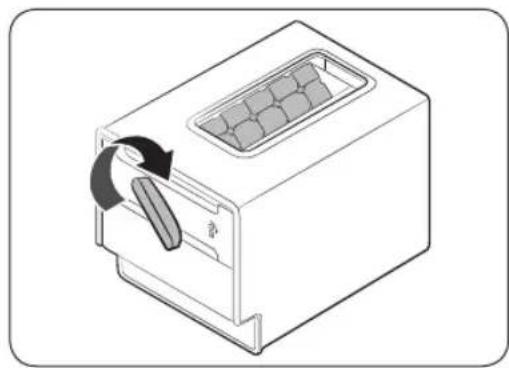

• Make sure the ice cube storage bin is in place under the ice tray.
  • To dispense the ice cubes, turn the handle of the bin to the right to empty half of the ice cubes into the bin. Then, turn it to the left to empty the other half.
  • Take out the bin by slightly twisting and pulling to the front.

Maintenance

Handle and care

Shelves (fridge/freezer)

Diagram showing a 3D object with an arrow pointing to it, placed between two metal shelving units (no text or symbols present)

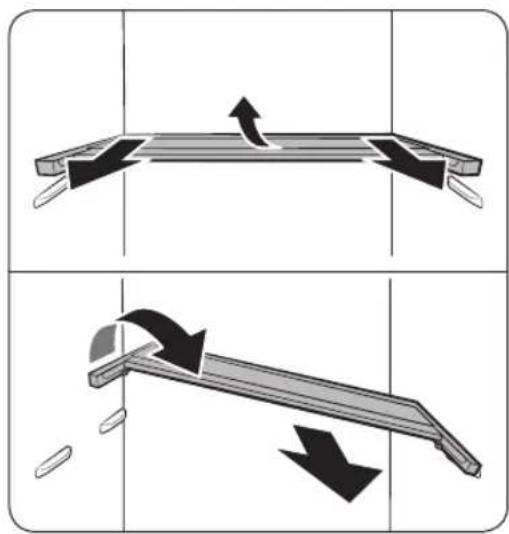

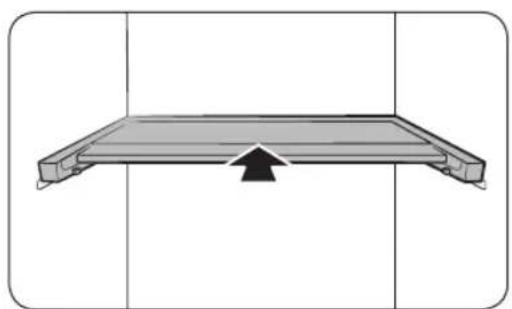

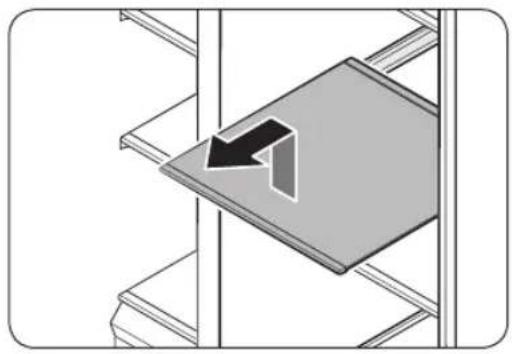

Pull the shelf out as far as it goes. Then lift it up and remove it.

Foldable shelf (applicable models only)

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

1. Slide the front half of the shelf.

English52-

Two-panel diagram showing a mechanical or structural change with arrows indicating direction (no text or symbols)

Door bins

1. Pull out the foldable shelf a little. Then, while lifting the rear side, pull out.
2. Twist the shelf diagonally to remove.

CAUTION

• The shelf must be inserted correctly. Do not insert upside down.
• When reinserting the shelf, make sure to push in the shelf to the end until it fits.
• Glass containers may scratch the surface of glass shelves.

Diagram of a mechanical device with a highlighted internal component and directional arrow (no text or symbols)

Drawers

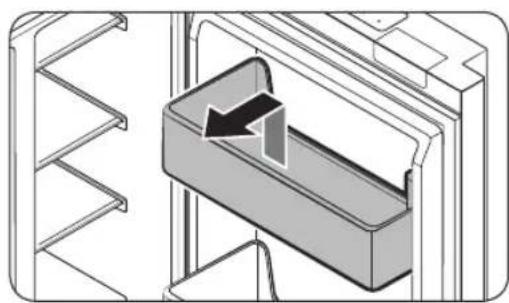

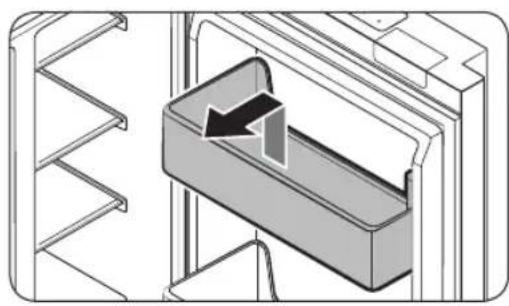

To remove a door bins, hold the front sides of the bin and gently lift up to remove.

Diagram of a drawer with an arrow indicating rotation or movement, no text or symbols present

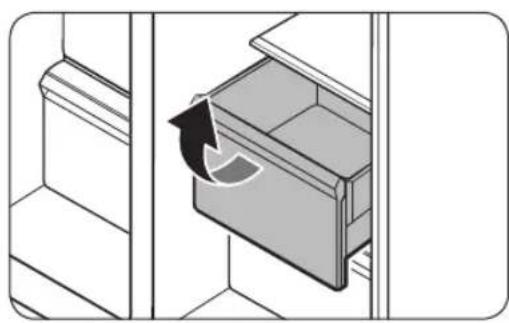

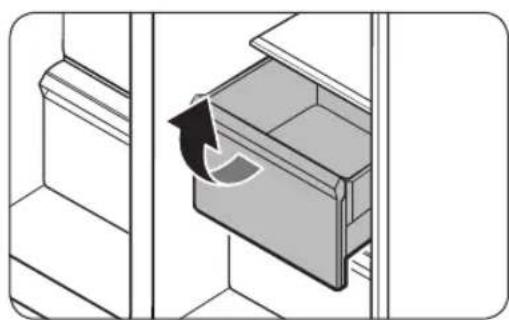

To remove, pull the drawers out as far as they go, and then lift up slightly and pull.

Maintenance

Drawer cover

Diagram of a structural support frame with internal loading and movement arrows (no text or symbols)

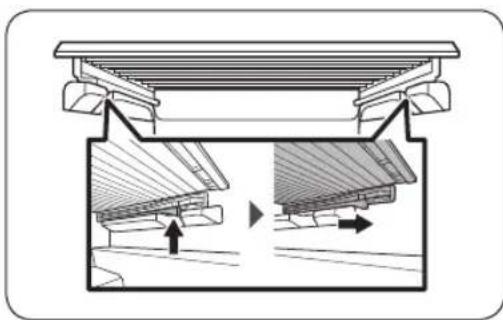

While pushing the left and right hooks underneath the drawer cover, pull the drawer cover to remove.

Ice maker bucket (applicable models only)

If you do not use ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

CAUTION

• To prevent injury, make sure to clean up any ice or water that has fallen on the floor.
- To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.
- Use only the provided ice bucket. Third-party ice buckets may cause a system failure.

NOTE

Noise from the ice maker as it produces ice during the ice making process is normal.

English54

AutoFill Pitcher (applicable models only)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

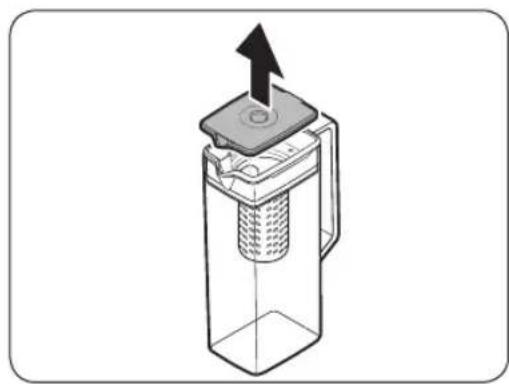

1. Grasp a handle groove of the lid, and then pull up to remove.

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

1. Grasp both sides of the infuser holder, and then lift to remove.

Diagram of a cylindrical device with an upward arrow, mounted on a base with a small mouth (no text or symbols)

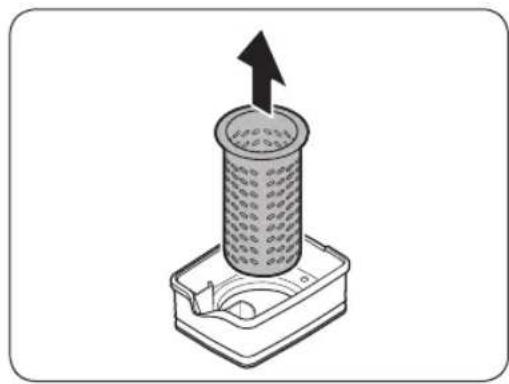

1. While slightly twisting the infuser, pull it out of the sealed mouth.
2. Clean the infuser with neutral agents and running water. Rinse and dry well.
3. Reassemble the AutoFill Pitcher in the reverse order of disassembly.

CAUTION

The water pitcher and lid are not microwave-safe and can melt or deform if exposed to heat (including hot water). Please hand wash in cool or warm water as needed.

Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

Dispenser nozzle (applicable models only)

Maintenance

Diagram of a door with a hanging weight and arrow indicating downward motion (no text or symbols)

Diagram of a door with an upward arrow indicating direction (no text or symbols)

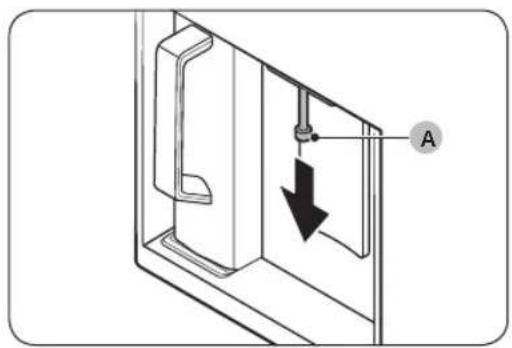

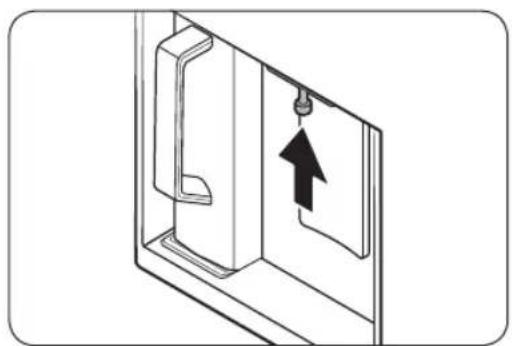

1. Hold the end of the dispenser nozzle (A).

2. While turning the dispenser nozzle (A) left, pull it down to remove it from the dispenser.

3. Clean the dispenser nozzle thoroughly, and then assemble it back.

CAUTION

• Fully insert the dispenser nozzle, so it is back to its original position.
• Do not use a sponge with rough textures for cleaning the dispenser nozzle.

English56-

Rubber seals

If the rubber seals of a door becomes dirty, the door may not close properly and can reduce refrigerator performance and efficiency. Use a mild detergent and damp cloth to clean the rubber seals. Then, dry well with a cloth.

Rear panel

Diagram of a computer monitor with ventilation slots and a pipe inserted, no text or symbols present

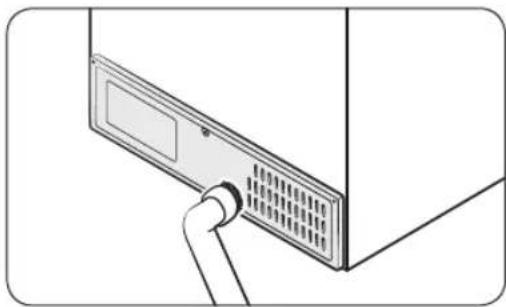

To keep cords and exposed parts of the rear panel free of dirt, vacuum the panel once or twice a year.

CAUTION

Do not remove the rear panel cover. Electric shock may occur.

Replacement

Water filter (applicable models only)

WARNING

- Do not use third-party water filters. Use only Samsung-provided or -approved filters.

- Unapproved filters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water filters.

The Filter Reset indicator (Filters red to let you know it is time to replace the water filter. Before replacing the filter, make sure the water supply line is shut off.

Maintenance

Diagram showing airflow around a device with arrows indicating direction (no text or symbols)

LOCK

1. Shut off the water supply line.

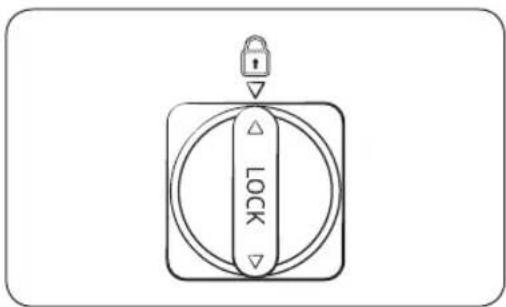

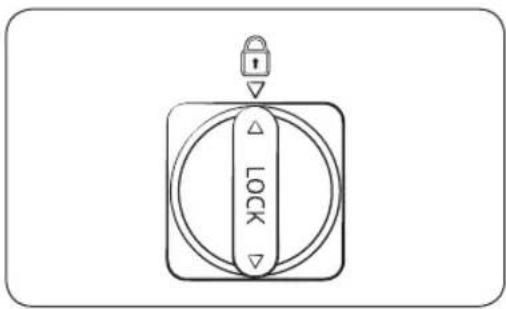

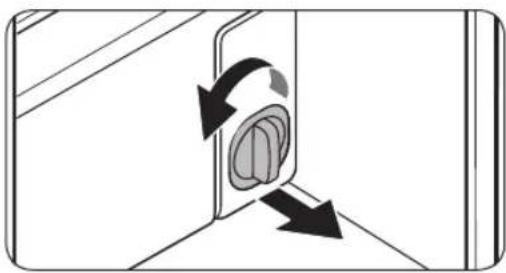

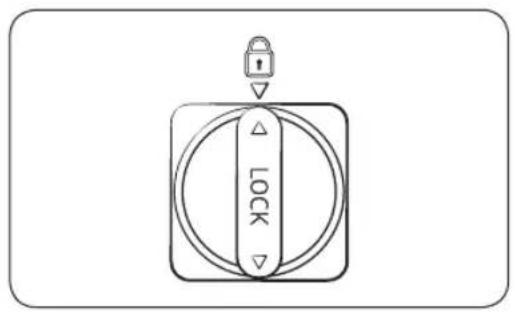

2. Turn the knob of the filter cartridge 90 degrees counterclockwise (1/4 turn). The filter cartridge unlocks.
3. Pull out to remove the cartridge.

- If the water filter is severely contaminated, the cartridge may not be easy to remove. If that is the case, use force to remove the cartridge. - To prevent water leaks from the filter opening, pull the cartridge straight out while removing it.

1. Insert a new filter cartridge. Use only Samsung-provided or approved filters.
2. Turn the cartridge knob clockwise to lock into place.
3. Press and hold Ice Maker on the main panel for 3 seconds to reset the life cycle detector. The Filter Reset indicator (Filters off.
4. When you are done replacing the filter, open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line.

NOTE

• A newly installed filter may cause the water dispenser to spurt water briefly. This is because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the floor with a dry towel.

Reverse osmosis water filtration system

The water pressure of the water supply system to a reverse osmosis water filtration system must be between 30 - 125 psi (206 - 862 kPa).

The water pressure of the reverse osmosis water filtration system to the refrigerator's cold water line must be at least 30 psi (206 kPa). If the water pressure is below these specifications:

• Check if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Refill the water tank in the reverse osmosis system with water.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.

For more information or servicing, contact a licensed plumbing professional.

English58-

Ordering a new filter

To purchase a new water filter, contact a local Samsung service center.

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service center.

WARNING

- The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

Door panel (applicable models only)

NOTE

You may not be able to purchase the Door panel separately in some countries.

You can select the door panel you prefer for your BESPOKE refrigerator. Purchase the door panel at a Samsung retail store and an authorized installer will install the panel for you.

CAUTION

• Disassembling or assembling the door panel on your own may result in product damage or personal injury. If you find any problems with the door panel, contact a Samsung service center
• A service fee may be charged for panel replacement even within the warranty period.

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.	Properly plug in the power cord.
	Temperature control is not set correctly.	Set the temperature lower.
	Refrigerator is located near a heat source or direct sunlight.	Keep the refrigerator away from direct sunlight or a heat source.
	Not enough clearance between refrigerator and nearby walls or cabinets.	We recommend that the gap between the refrigerator and nearby walls (or cabinets) is more than 2" (50 mm).
	The refrigerator is overloaded. Food is blocking the refrigerator vents.	Do not overload the refrigerator. Do not allow food to block vents.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Interior wall is hot.	Refrigerator has heat-proof piping in the interior wall.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

English60-

Odour

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	Food is blocking the vents.	Make sure no food blocks the refrigerator vents.
Frost on interior walls.	Door is not closed properly.	Make sure food does not block the door. Clean the door gasket.

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	·If door is left open, moisture enters the refrigerator.	·Remove the moisture and do not leave a door open for extended periods of time.
	·Food with high moisture content.	·Make sure food is wrapped airtight.

Low ice Production

Symptom Possible causes Solution
Low Ice production.	Freezer section is overloaded with frozen food. They are blocking the air duct.	Ensure the food doesn't block vents can obstruct free air circulation in the freezer.

Troubleshooting

Water/ice (dispenser models only)

Symptom Possible causes Solution
Water flow is weaker than normal.	·Water pressure is too low.	·Make sure the water pressure is between 30 - 125 psi (206 - 862 kPa).
Ice maker makes a buzzing sound.	·The ice maker function is activated, but the water supply to the refrigerator has not been connected.	·Activate the Ice Maker off.
Ice maker does not make ice.	·Ice maker has just been installed.	·You must wait for 12 hours for the refrigerator to make ice.
	·Freezer temperature is too high.	·Set the freezer temperature below 0 °F (-18 °C) or -4 °F (-20 °C) in warm ambient air.
	·Ice maker is off. ·Turn on the ice maker.
Ice does not dispense.	·Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).	·If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.
	·Ice bucket is not properly inserted.	·Make sure the ice bucket is properly inserted.
	·Water line is not connected properly or water supply is not on.	·Check the water installation conditions.

English62-

Symptom Possible causes Solution
Water does not dispense.	·Water line is not connected properly or water supply is not on.	·Check the water installation conditions.
	·A third-party water filter was installed.	·Use only Samsung-provided or approved filters.·Unapproved filters may leak and damage the refrigerator.
	·Filter Reset indicator turns on or blinks.	·Replace the water filter. After replacing, reset the Filter Reset indicator.

Troubleshooting

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

Clicking! or Chirping! Buzzing!

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

SSSRRR! Whir!

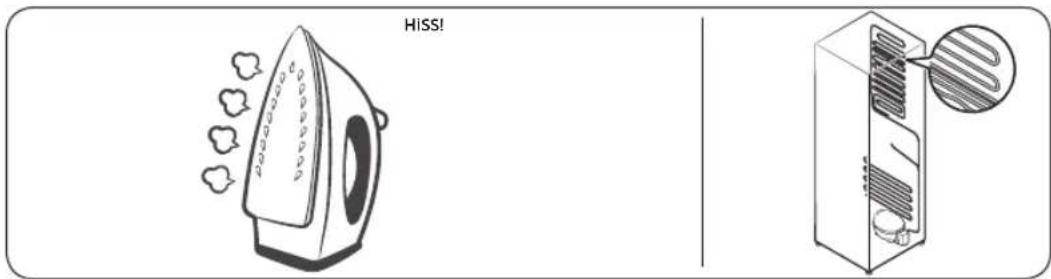

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

HISS!

English64

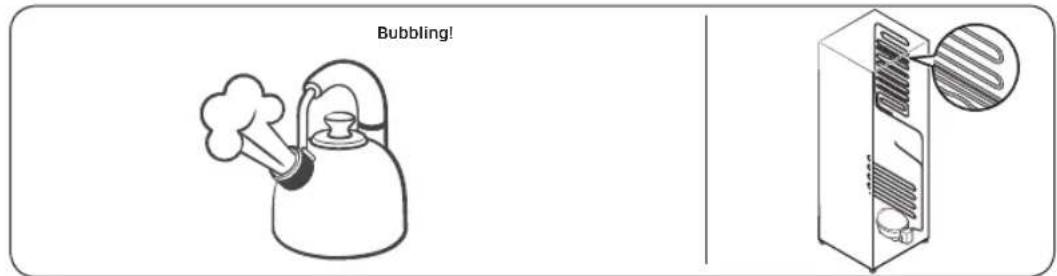

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

Bubbling!

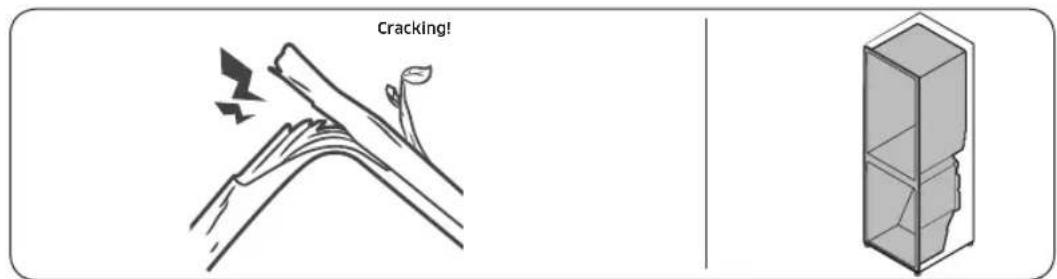

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Cracking!

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

Troubleshooting

SmartThings (applicable models only)

Symptom Action
Could not find “SmartThings” in the app market.	·The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons.
The SmartThings app fails to operate.	·The SmartThings app is available for applicable models only.·The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models.
The SmartThings app is installed but is not connected to my refrigerator.	·You must log into your Samsung account to use the app.·Make sure that your router is operating normally.·If you have not connected your refrigerator to the SmartThings App after the app was installed, you must make the connection using the device registration function of the app.
Could not log into the app.	·You must log into your Samsung account to use the app.·If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	·Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The SmartThings app is successfully connected to my refrigerator but does not run.	·Exit and restart the SmartThings app or disconnect and reconnect the router.·Unplug the power cord of the refrigerator, and then plug it in again after 1 minute.
The Wi-Fi icon is blinking. ( [IMAGE]	·Connect your refrigerator with the SmartThings app before use. When the connection is made successfully, the indicator stops blinking.- If you fail to make connection or don't want to use the app, press and hold theLockbutton for 10 seconds. The indicator stops blinking with "O FF" shown on the temperature display.

English66

Smart Grid (applicable models only)

Symptom Action
What Do I Need to use the Energy Management and Smart Grid functions?	To use the Smart Grid (Demand Response) and Energy Management functions on your refrigerator, you need the following:DevicesA wireless access point (router)A Samsung Energy Management-supported refrigeratorA smartphoneRegistrationConnect your refrigerator to your home Wi-Fi network.Register for the EMS service with your electric company. Your electric company must have an EMS (Energy Management System) supporting SEP (Smart Energy profile).AppDownload the SmartThings app from the Google Play Store, Apple App Store, or Samsung Galaxy Apps.Install and run the SmartThings app on your smartphone.
Why isn't the Energy Management function working normally?	Make sure that your home router is operating normally with proper Internet service and connection.Make sure that the refrigerator is connected to the AP (router). CheckpointsConnect your smartphone to the router (AP, Access Point), and then check if you can browse the Internet on the smartphone.
Why isn't the Delay Defrost Capability working normally?	Make sure that your home router is operating normally with proper Internet service and connection.

LIMITED WARRANTY (U.S.A.)

SAMSUNG REFRIGERATOR

LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period of:

One (1) year parts and labor

Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor, Evaporator, Condenser, Drier, and Connecting Tubing)

Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only

This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.

SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.

To receive in-home service, product must be unobstructed and accessible to the service agent.

During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.

English68

This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fluctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.

Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

LIMITED WARRANTY (U.S.A.)

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

If your refrigerator needs service

Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly.

Limited Warranty for Original Purchaser

This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods:

Labor: 1 year (in-home)

Parts: 1 year

Inverter Compressor: 10 years (Part only)

SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to find out if in-home service is currently available in your area by using the contact information at the back of this warranty.

All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To find the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca)

Warranty Information (CANADA)

Obligation to the Original Owner

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer.

Exclusions of the Warranty

This warranty does not cover damage due to accident, fire, flood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics Canada Inc.

2050 Derry Road West

Mississauga, Ontario L5N 0B9

Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

English72

Regulatory Notice

FCC Notice

FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contains Transmitter Module FCC ID: A3LCCAR210R

This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired operation.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment to an outlet that is on a different circuit than the receiver.
- Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

Regulatory Notice

IC Notice

Contains Transmitter Module IC: 649E-CCAR210R

The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTIONS

English74

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product.

QR code image containing encoded data, no visible human-readable text

SAMSUNG

Scan this with your smartphone

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

* Requires reader to be installed on your smartphone

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Contact Center Web Site
U.S.A	1-800-SAMSUNG (726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/us/support
CANADA	1-800-SAMSUNG(726-7864)1-844-SAM-PAYS (726-7297)	www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DA68-04562A-00

Black and white photo of water droplets in a flowing liquid (no text or symbols)

Refrigerador

Manual del usuario

Black and white illustration of ice cubes with bubbles rising, no text or symbols present

Abstract black-and-white photo of a cube with water droplets and bubbles, no text or symbols present

SAMSUNG

Contenido

Open Source Announcement 72

Español2

Diagram showing two rectangular blocks with directional arrows and a circle, one marked with a prohibition sign (no text or symbols present)

Simple line drawing of a screwdriver (no text or symbols)

Destornillador Phillips

ADVERTENCIA

Technical diagram of a mechanical component with multiple bolts and upward arrows indicating force or movement (no text or symbols present)

Diagram showing pipe connection with arrows indicating direction, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Diagram of a mechanical clamp or bracket with a black arrow indicating force or direction (no text or symbols)

Mechanical component with a black arrow indicating direction, no visible text or symbols

Line drawing of a person standing beside an open refrigerator (no text or symbols)

Mechanical component diagram showing a highlighted part with a black arrow indicating force or direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Diagram showing mechanical components with directional arrows, one highlighted in a circle (no text or symbols)

Diagram of two mechanical connectors with a labeled component 'A' (no text or symbols beyond label)

Technical diagram of a structural component with multiple bolts and downward arrows indicating force or assembly (no text or symbols present)

Illustration of a hand using a screwdriver to adjust a circular mechanical component (no text or symbols present)

Diagram showing a tool interacting with a mechanical component, with an inset highlighting the motion of the tool (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled parts A and B, including a magnified inset view.

Mechanical component diagram showing a lever mechanism with labeled point A (no text or symbols beyond label)

Mechanical component diagram showing a rotating lever and a wrench, with no visible text or symbols

Instalación

Diagram showing a mechanical or electrical component with labeled parts A and B, including a directional arrow indicating movement.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled safety symbols with arrows indicating movement or flow.

PRECAUCIÓN

Diagram of a 3D rectangular box with a vertical slot and an inset showing a small rectangular object (no text or symbols)

Illustration of hands using a device to interact with a cup, showing a black arrow indicating the process (no text or symbols present)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Diagram of a door or panel with an arrow pointing to a component, no text or symbols present

Diagram showing two mechanical assembly states with no visible text or symbols, one marked with a circle and the other with a prohibition sign (no text or symbols present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D diagram of a mechanical device with a magnified inset showing internal structure (no text or symbols)

NOTA

Technical diagram showing a mechanical component with an arrow indicating direction, enclosed in a magnified inset (no text or symbols present)

Diagram of a door with a black arrow indicating direction, showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Diagram showing three containers with different symbols: a plastic bottle, a container with a pencil, and a stop sign.

Technical diagram of a device interior with highlighted internal components and an inset showing a small electronic component (no text or symbols present)

Diagram showing two steps of packing or storage in a container, with arrows indicating direction (no text or symbols present)

Diagram of a container being poured into a rack with an inset showing a magnified view of the tray (no text or symbols present)

Diagram of a device with a scroll wheel and directional arrow indicating rotation (no text or symbols)

NOTA

Diagram showing a 3D object with an arrow pointing to it, placed on a vertical platform (no text or symbols present)

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

1. Deslice la parte delantera del estante.

Mantenimiento

Two-panel diagram showing a mechanical or structural change with arrows indicating direction (no text or symbols)

Diagram of a 3D mechanical component with an arrow indicating direction, no text or symbols present

Diagram of a drawer with an arrow indicating rotation or movement, no text or symbols present

Diagram of a roof structure with structural elements and airflow indicators (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with an upward arrow, mounted on a base with a small circular component (no text or symbols)

Diagram of a door with a downward arrow and labeled point A (no text or symbols beyond label)

Diagram of a door with an arrow indicating upward motion, no text or symbols present

PRECAUCIÓN

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram showing a device with a circular component and directional arrows indicating rotation or movement (no text or symbols)

LOCK

Aleteo Runrún

Ridgefield Park, NJ 07660

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product.

QR code image containing encoded data, no visible human-readable text

Español72-

Notas

Notas

Notas

SAMSUNG

Contacte a SAMSUNG WORLD WIDE

Black and white illustration of ice cubes with bubbles rising, no text or symbols present

Abstract black-and-white photo of a cube partially submerged in ice with bubbles rising (no text or symbols)

SAMSUNG

Sommaire

Open Source Announcement 72

Diagram showing two rectangular blocks with directional arrows and a circle, no text or symbols present

Simple line drawing of a screwdriver (no text or symbols)

Tournevis cruciforme

! AVERTISSEMENT

Technical diagram of a mechanical assembly with multiple bolt holes and upward arrows indicating force or movement (no text or symbols present)

Diagram showing pipe connection with arrows indicating direction, no text or symbols present

Mechanical lever diagram showing pivot point and gear shift (no text or symbols)

Diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating force or direction (no text or symbols present)

Line drawing of a person standing beside an open refrigerator (no text or symbols)

Mechanical component diagram showing a highlighted part with a black arrow indicating force or direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram showing mechanical components with directional arrows, including a magnified inset of connected cables (no text or symbols)

Diagram of two electrical connectors with labeled connection point A (no text or symbols beyond label)

Technical diagram of a mechanical assembly with multiple bolt holes and downward arrows indicating force or direction (no text or symbols present)

Diagram showing a tool interacting with a circular mechanical component, no text or symbols present

Diagram showing a tool interacting with a mechanical component, highlighting a curved arrow (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled parts A and B, including a magnified inset view.

Mechanical assembly diagram showing a tool interacting with a component, labeled A (no text or symbols present)

Mechanical component diagram showing a rotating lever and a wrench (no text or symbols)

Installation

Diagram showing a mechanical or electrical component with labeled parts A and B, including a directional arrow indicating movement.

Safety warning illustration showing a circular object and a prohibition sign on a pipe with segmented pipes.

REMARQUE

Diagram showing a prohibition symbol and three labeled circular icons with arrows, likely indicating safety or hazard zones.

ATTENTION

Diagram of a 3D rectangular box with a vertical slot and an inset showing a small rectangular object (no text or symbols)

Illustration of hands interacting with a glass container and a mug, showing mechanical components (no text or symbols)

Diagram of a mechanical device with a top component and internal structure, showing an upward arrow (no text or symbols)

Diagram of a door or shelf with an arrow pointing to a component, no text or symbols present

Two technical diagrams showing a mechanical component with circular and cross-sectional views, one marked with a prohibition symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D diagram of a mechanical device with a circular component and handle, no visible text or symbols

Diagram of a mechanical device inside a cabinet, showing a close-up of a shaft and valve (no text or symbols present)

REMARQUE

Diagram of a door or cabinet with internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Diagram showing three containers with plastic containers and a bottle, each containing a prohibition symbol

Technical diagram of a mechanical assembly with an inset showing a component detail (no text or symbols present)

Diagram showing two steps of packing or storage in a container, with arrows indicating direction (no text or symbols present)

Line drawing of a mechanical component with a cup pouring liquid into a grid-patterned tray, and an inset showing a magnified view of the tray structure (no text or symbols)

Diagram of a device with a scroll wheel and directional arrow indicating rotation (no text or symbols)

REMARQUE

Diagram showing a 3D object with an arrow pointing to it, placed between two metal shelving units (no text or symbols present)

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Two-panel diagram showing a mechanical or structural change with arrows indicating direction (no text or symbols)

Bacs de la porte

Diagram of a mechanical device with a highlighted internal component and directional arrow (no text or symbols)

Tiroirs

Diagram showing a door drawer with an arrow indicating rotation or movement (no text or symbols present)

Diagram of a structural support system with arrows indicating flow direction (no text or labels)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with an upward arrow, mounted on a base with a small hole (no text or symbols)

Diagram of a door handle assembly with a black arrow indicating direction, labeled 'A' (no text or symbols beyond label)

Diagram of a door with a hanging weight and an upward arrow, no text or symbols present

Diagram of a computer monitor with ventilation slots and a cable inserted, no text or symbols present

Diagram showing a device with a circular component and directional arrows indicating rotation or movement (no text or symbols)

LOCK

Illustration of a steam iron with steam bubbles (no text or symbols)

Diagram of a refrigerator interior showing heat exchanger and ventilation slots (no text or labels)

Simple line drawing of a kettle emitting smoke (no text or symbols)

Diagram of a refrigerator interior showing heat exchanger and ventilation slots (no text or labels)

Samsung Electronics Canada Inc.

2050 Derry Road West,

Mississauga, Ontario L5N 0B9

Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product.

QR code image containing encoded data, no visible human-readable text

Français72

Mémo

Mémo

Mémo

SAMSUNG
