Brand	Waring Commercial
Model	WGR140
Product Type	Electric Griddle Plate
Usage	Commercial
Power Supply	120 V, 1800 W
Plug Type	Nema 5-15P (WGR140X) or 5-20P (WGR140XC)
Dimensions (W x D x H)	438 x 552 x 247 mm
Housing Material	Stainless steel
Cooking Surface	Steel plate
Temperature Control	Yes, with adjustable thermostat
Preheat Indicator Light	Yes, "READY" indicator light
Grease Collection Tray	Removable, stainless steel
Handles	Yes, for transport
Grounding	Three-prong grounded plug
Safety	Automatic shut-off in case of overheating
Preparation before first use	Requires oil seasoning (1 to 1.5 hours)
Cleaning	Warm surface with warm water and detergent; removable tray washable
Cord Length	Short (for safety)
Included Accessories	User manual

Frequently Asked Questions - WGR140 Waring Commercial

How to prepare the griddle before first use?

It is essential to season the griddle. Scrub it with steel wool and detergent, then heat it fully. Apply oil (corn or peanut) in successive layers for 1 to 1.5 hours until the surface becomes smooth and non-stick.

What is the electrical power of the appliance?

The WGR140 operates on 120 V and consumes 1800 W. It is equipped with a three-prong grounded plug.

How to clean the griddle plate?

Clean the cooking surface while it is still warm with warm water and detergent. Never pour cold water on a hot surface. The removable grease tray is washed separately.

What to do if the appliance shuts off during use?

The appliance is equipped with a safety device that cuts off power in case of overheating. Turn it off, unplug it, and let it cool completely before plugging it back in.

Can I use an extension cord?

Yes, but it must have electrical ratings at least equal to those of the appliance (120 V, 1800 W). Avoid letting it hang and place it out of reach of children.

What are the dimensions of the WGR140?

The dimensions are 438 mm width, 552 mm depth, and 247 mm height.

Is the appliance suitable for domestic use?

No, this model is designed for commercial use only, as stated in the instructions.

How to know when the griddle has reached the desired temperature?

A preheat indicator light comes on when the set temperature is reached.

Is the grease tray removable?

Yes, the grease collection tray is removable for easy cleaning. Wash it with warm water and detergent.

Can I use metal utensils on the griddle?

It is not recommended to use metal utensils as they could scratch the surface. Prefer wooden or heat-resistant silicone utensils.

USER MANUAL WGR140 Waring Commercial

Exterior view of a Waring commercial grating appliance (no visible text or symbols on the device body)

WGWGRR114400XX//WGWGRR114400XXCC

Intertek

Intertek

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.

2. To protect against risk of electric shock, do not put appliance in water or other liquids.

3. Do not touch surfaces that may be hot. Use handles and knobs provided.

4. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.

5. Avoid coming into contact with moving parts.

6. Do not operate the Waring™ Professional Countertop Griddle or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions, or is dropped or damaged in any manner. Return it to the nearest Waring Authorized Service Center for examination, repair, and/or adjustment.

7. The use of attachments not recommended or sold by Waring ^™ Commercial may cause fi re, electric shock, or injury.

8. Do not use outdoors.

9. Always check that the power switch is in the OFF position and the temperature dial is in the MIN position before plugging cord into wall outlet. To disconnect, turn the temperature dial to MIN, turn the switch to the OFF position, then remove plug from wall.

10. Do not place near a hot gas or electric burner or heated oven.

11. Do not let cord hang over edge of table or counter, or touch hot surfaces.

12. When in the ON position, the Waring ^™ Professional Countertop Griddle should always be on a stable countertop or table.

13. Do not use appliance for other than its intended use.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS. FOR COMMERCIAL USE ONLY.

GROUNDING INSTRUCTIONS

This appliance must be grounded while in use to protect the operator from electric shock. The appliance is equipped with a 3-conductor cord and 3-prong grounding-type plug to fi t the proper grounding-type receptacle. The appliance has a plug that looks like the plug in Figure 1. An adapter, as in Figure 2, should be used for connecting the appliance plug to two-prong receptacles. The grounding tab which extends from the adapter must be connected to a permanent ground, such as a properly grounded outlet box as shown in Figure 3, using a metal screw.

GROUNDING METHOD

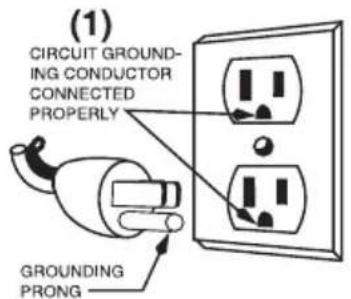

(1) CIRCUIT GROUND- ING CONDUCTOR CONNECTED PROPERLY GROUNDING PRONG

(2) ADAPTER GROUNDING LUG

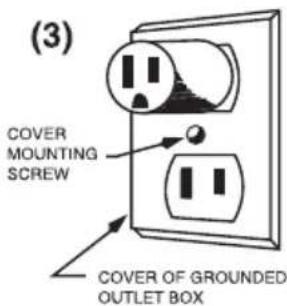

(3) COVER MOUNTING SCREW COVER OF GROUNDED OUTLET BOX

NOTE: Use of an adapter is not permitted in Canada.

WARNING

RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated, dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a long cord.

An extension cord may be used with this product provided that care is exercised in its use. If a long extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating on the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

EVERY GRIDDLE NEEDS TO BE SEASONED BEFORE FIRST USE

The seasoning process will last about 1 to 1 12 hours.

Seasoning is an important step to prepare the surface for a natural nonstick fi nish.

1. Pre-clean surface with steel wool and detergent.
2. Plug unit into outlet in a well-ventilated area.
3. Switch on the appliance and set to HIGH. Allow to heat until green READY light is lit.
4. Pour about a tablespoon of corn or peanut oil suitable for frying in the center of the cooking surface. Using a cotton cloth or paper towel (synthetic materials will adhere to the surface), spread the oil evenly and let heat for 5 to 10 minutes, until the surface loses its initial sheen and appears dry.
5. Repeat step 4 eight times, burnishing the surface with the towel and decreasing the amount of oil used each time until a smooth, non-tacky surface has developed.

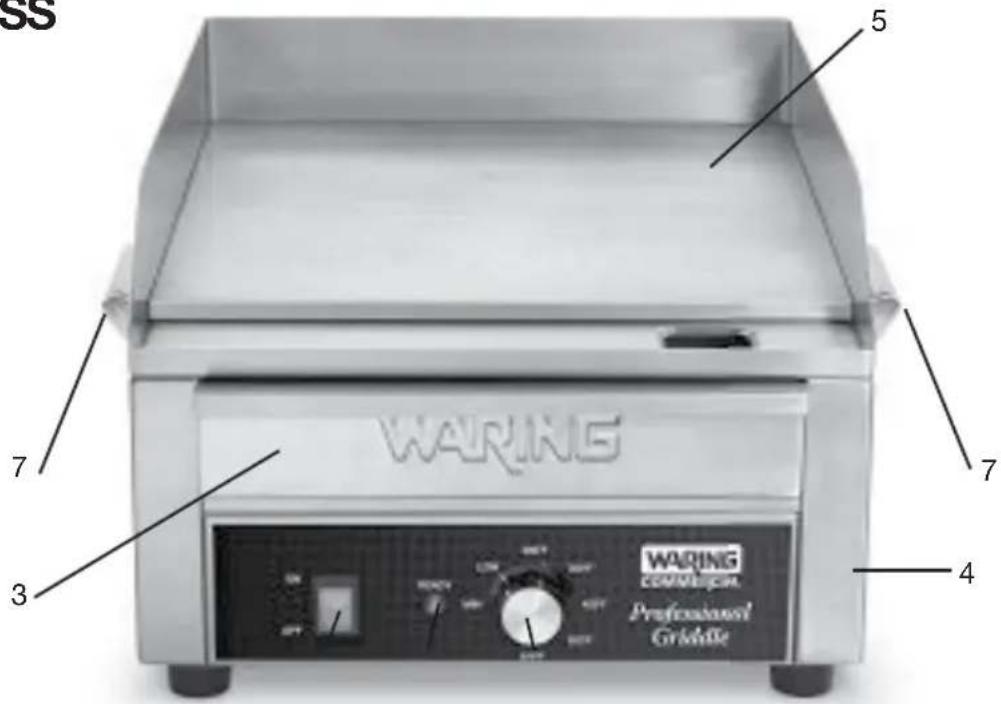

PARTSS

WARING WARING COMMERCIAL Professional Griddie 4 3 7 5 7

6

1. Temperature dial
2. Lighted ON/OFF power switch
3. Removable drip tray
4. Stainless steel housing
5. Griddle surface
6. Ready indicator light
7. Handles
8. Power cord (not shown)

MODEL DESCRIPTION VOLTAGE POWER				PLUG TYPE	DIMENSIONS (INCHES)
WGR140X	Countertop Griddle	120V	1800W	5-15P Nema	1724" (W) x 21.73" (D) x 9.72" (H)
WGR140XC	Countertop Griddle	120V	1800W	5-20P Nema	1724" (W) x 21.73" (D) x 9.72" (H)

INSTRUCTIONS FOR USE

1. Remove the Waring ^™ Professional Countertop Griddle from packaging.
2. Place on a firm and stable surface.
3. Remove all packaging and the instruction book.
4. Please read all instructions before you begin to grill.
5. Keep this instruction book in a safe location for future reference.
6. It is highly recommended that you clean and season the griddle before first use.
7. After cleaning and seasoning, the Waring™ Professional Countertop Griddle is ready for use.
8. Turn unit on. Allow cooking surface to warm up. The Ready indicator light will illuminate once temperature is reached.
9. Carefully place food on cooking surface.

SAFETY AND TROUBLESHOOTING

Please note that the Waring ^™ Professional Countertop Griddle will be too hot to handle immediately after use.

The griddle has a thermal cutoff safety device to avoid overheating. If griddle shuts off automatically, turn off the unit, unplug it and allow it to cool. Plug back in and continue use.

CLEANING AND MAINTENANCE

The Waring™ Professional Countertop Griddle should be cleaned after each use. Clean griddle surface while the unit is warm, using warm, soapy water. DO NOT USE COLD WATER ON WARM SURFACE.

The exterior of unit may be cleaned by carefully wiping with a damp cloth.

To clean drip tray, carefully remove tray, wash with warm, soapy water and dry. Tray must be completely dry before putting back into the unit.

IMPORTANTES CONSIGNES DE SÉCURITÉ

RISQUE D'INCENDIE OU D'ÉLECTROCUTION—NE PAS OUVRIR

AVERTISSEMENT : AFIN DE RÉDUIRE LE RISQUE D'INCENDIE OU D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER. CET APPAREIL NE CONTIENT AUCUNE PIÈCE POUVANT ÊTRE RÉPARÉE PAR L'UTILISATEUR. TOUTE RÉPARATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN AUTORISÉ.

PIÈCESS WARING WARING COMMERCIAL Professional Griddle

6

WARING WARING COMMERCIAL Professional GrMilk 4 3 7 5 7

6

Trademarks or service marks of third parties used herein are the trademarks or service marks of their respective owners.

©2017 Waring Commercial

314 Ella T. Grasso Avenue

Torrington, CT 06790

waringcommercialproducts.com

Printed in China

Imprimé en Chine

Impreso en la China

WGR140X /WGR140XC IB

17WC027663
