WGR240 - Grill plate Waring Commercial - Free user manual and instructions

Product Type	Commercial Griddle Plate
Brand	Waring Commercial
Model	WGR240
Body Material	Stainless Steel
Cooking Surface	Stainless Steel
Temperature Control	Yes, with control knob
Power Indicator	Yes
Preheat Indicator	Yes, lights up at desired temperature
Grease Collection Tray	Removable and washable
Height Adjustable Legs	Yes, 4 legs with mounting screws
Handles	Yes, two handles
Power	1800 W (estimate)
Automatic Safety Shut-off	Yes, in case of overheating
Cleaning	Warm surface with warm water and detergent; removable tray washable
Usage	Commercial use allowed; indoor only
Warranty	See manual (not specified)
Country of Origin	China

Frequently Asked Questions - WGR240 Waring Commercial

How to clean the griddle plate?

Clean the cooking surface while it is still warm with warm water and detergent. Never pour cold water on a hot griddle. The grease collection tray is removable and can be washed separately.

How to adjust the height of the legs?

Each leg is height adjustable by turning its base. Make sure all four legs are at the same height and the griddle is level before use.

What to do in case of overheating?

The appliance automatically shuts off in case of overheating. Turn it off, unplug it, and let it cool down. Plug it back in after cooling.

Can I use the appliance outdoors?

No, the appliance is designed for indoor commercial use only. Do not use it outdoors.

How to install the legs?

Turn the griddle over, insert the leg screw into the hole at each corner and tighten clockwise. Install all four legs the same way.

Is the grease collection tray dishwasher safe?

The manual recommends washing it with warm water and detergent. It is not specified if it is dishwasher safe; hand wash it to preserve its longevity.

What type of power cord is provided?

The appliance is equipped with a short power cord for safety reasons. An extension cord may be used if necessary, but with precautions.

Is there a preheat indicator?

Yes, a preheat indicator lights up when the temperature has reached the set level.

What are the important safety precautions?

Read all instructions, do not immerse in water, avoid contact with hot surfaces, unplug after use, and do not use if the cord is damaged.

Where can I find spare parts?

Contact the authorized after-sales service of Waring Commercial. The grease collection tray is the only removable part mentioned.

USER MANUAL WGR240 Waring Commercial

WARING COMMERCIAL Professional Griddle WGR240

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

2. To protect against risk of electric shock, do not put appliance in water or other liquids.

3. Do not touch surfaces that may be hot. Use handles and knobs provided.

4. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.

5. Avoid contact with moving parts.

6. Do not operate the Waring Commercial Griddle or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions, or is dropped or damaged in any manner. Return it to the nearest Waring Authorized Service Center for examination, repair, and/or adjustment.

7. The use of attachments not recommended or sold by Waring may cause fire, electric shock, or injury.

8. Do not use outdoors.

9. Always check that the temperature dial is in the OFF position before plugging cord into wall outlet. To disconnect, turn the temperature dial to OFF, then remove plug from wall.

10. Do not place near a hot gas or electric burner or heated oven.

11. Do not let cord hang over edge of table or counter, or touch hot surfaces.

12. When in ON position, the Waring Commercial Griddle should always be on a stable countertop or table.

13. Do not use appliance for other than intended use.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
15. Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS APPROVED FOR COMMERCIAL USE

Warning sign depicting a lightning bolt symbol inside a triangle

WARNING

RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN

Warning symbol image with exclamation mark inside triangle

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a long cord.

Longer extension cords are available and may be used if care is exercised in their use. If a long extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating on the appliance, and the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

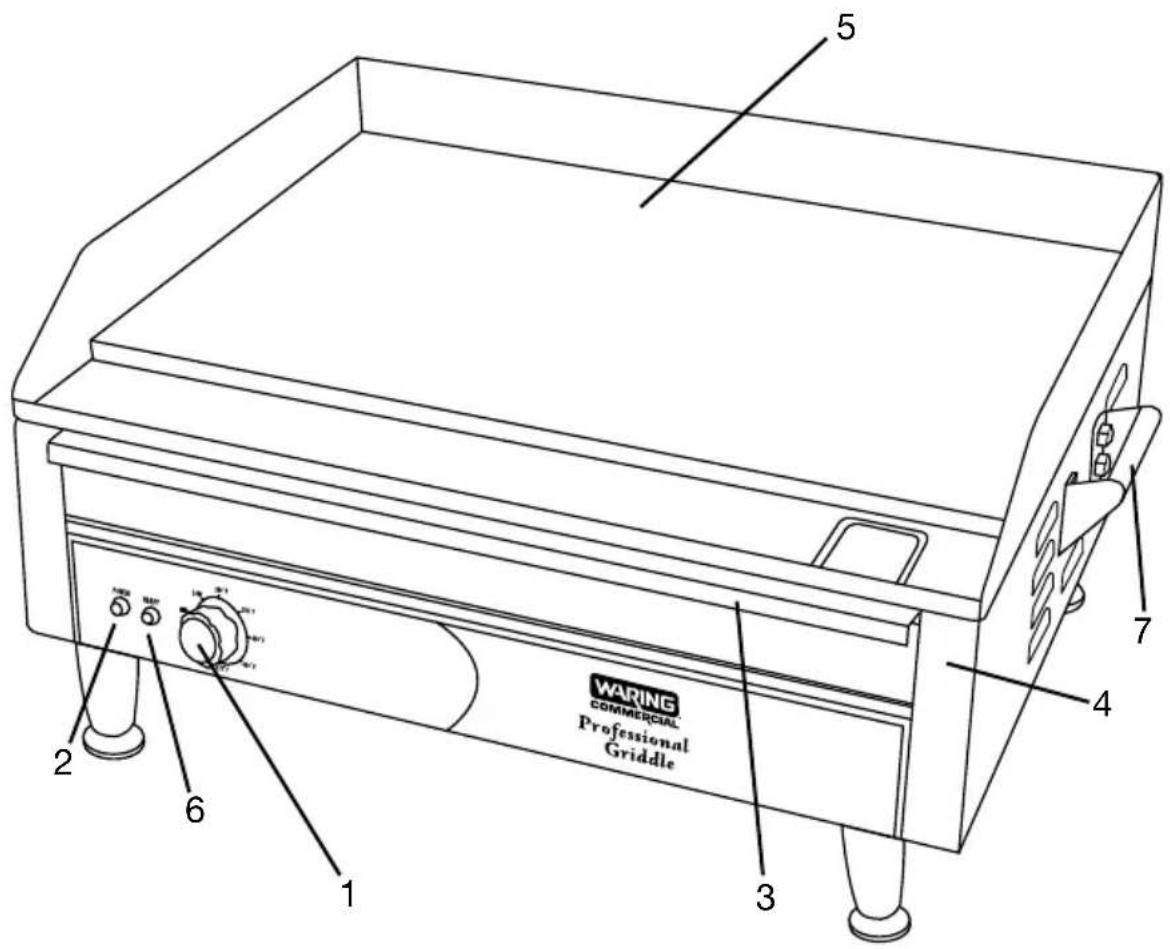

PARTS

WARING COMMERCIAL Professional Griddle 1 2 3 4 5 6 7

1. Temperature dial
2. Power indicator light
3. Removable drip tray
4. Stainless steel housing
5. Griddle surface
6. Ready indicator light
7. Handles (only one shown)
8. Power cord (not shown)

MODEL	DESCRIPTION	VOLTAGE	POWER	DIMENSIONS (mm)
WGR240	Countertop Griddle	240V 3300 W		685 (W) x 572 (D) x 323 (H)

ADjUSTAbLE FEET INSTALLATION

Ensure that all feet are installed correctly before operation of this griddle.

Your griddle includes four adjustable feet, that are packaged unattached. Each foot has a screw protruding from the top for assembly. Locate the four screw holes at each corner of the bottom housing of the griddle. Insert the screw and turn foot clockwise until snug.

Repeat for all four feet. The height of the feet can be adjusted by rotating the bottom of the foot. Ensure that all four feet are adjusted to the same height to make a level cooking surface.

INSTRUCTIONS FOR USE

1. Remove Waring Commercial Griddle from packaging.
2. Place on a firm and stable surface.
3. Remove all packaging and instruction book.
4. Please read all instructions before you begin to cook.
5. Keep this instruction book in a safe location for future reference.
6. It is highly recommended that you clean the griddle before first use.
7. Warm up unit for 10 minutes. This will allow all oils and other sediment to burn off.

8. After cleaning, the Waring Commercial Griddle is ready for use.

9. Turn unit on. Allow cooking surface to warm up. The Ready indicator light will illuminate once temperature is reached.

10. Carefully place food on cooking surface.

SAFETY AND TROUBLESHOOTING

Please note that the Waring Commercial Griddle will be too hot to handle immediately after use.

The griddle has a thermal cutoff safety device to avoid overheating. If griddle shuts off automatically, unplug it and allow it to cool. Plug back in and continue use.

CLEANING AND MAINTENANCE

The Waring Commercial Griddle should be cleaned after each use with warm soapy water.

The exterior of unit may be cleaned by carefully wiping with a damp cloth.

Clean griddle surface while the unit is warm, using warm soapy water. DO NOT USE COLD WATER ON WARM SURFACE.

To clean drip tray, carefully remove tray, wash with warm soapy water and dry. Tray must be completely dry before putting back into the unit.

IMPORTANTES CONSIGNES DE SÉCURITÉ

Warning symbol depicting a lightning bolt inside a triangle, indicating electrical hazard or current risk.

AVERTISSEMENT

RISQUE D'INCENDIE OU DE CHOC ÉLECTRIQUE – NE PAS OUVRIR

Warning symbol with exclamation mark inside triangle

AVERTISSEMENT: AFIN D'ÉVITER LES RISQUES D'INCENDIE OU D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER DE L'APPAREIL. CET APPAREIL NE CONTIENT AUCUNE PIÈCE POUVANT ÊTRE RÉPARÉE PAR L'UTILISATEUR. TOUTE RÉPARATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN AUTORISÉ.

WARING COMMERCIAL Professional Griddle 1 2 3 4 5 6 7

MODELE	DESCRIPTION	TENSION	PUISSANCE	DIMENSIONS (mm)
WGR240 Gril	240V 3300 W			685 (L) x572 (L) x323 (H)

Warning symbol image showing a lightning bolt inside a triangle with a downward arrow

ADVERTENCIA

Warning symbol with exclamation mark inside triangle

WARING COMMERCIAL Professional Griddle 1 2 3 4 5 6 7

©2010 Conair Corporation
