Never place flammable objects on the hob Do not keep flammable items or aerosols in the drawers beneath the hob.

physical, sensory or mental disability, Wet hotplates and pan bases

or lack of experience or knowledge, Risk of injury!! are not capable of using this appliance, should not do so without the supervision of a responsible adult. Children must be supervised to ensure that they do not play with the appliance. Liquid between the bottom of the pan and the hob can produce steam pressure. Which may cause the pan to jump. Always ensure that the hotplate and the base of the pan are kept dry. Cracks in the hob Oil and fat too hot Risk of electric shock!! Risk of fire!! Disconnect the appliance from the mains if the hob is broken or cracked. Contact the Technical Assistance Service. Oil or fat that is too hot quickly catches fire. Do not leave overheated oil or fat unwatched. If the oil or fat catches fire, never use water to put it out. Extinguish the flames with a lid or a plate. Switch off the hotplate.

performed by qualified personnel from the Technical Assistance Service. The hotplate heats up, but the display does not work Risk of burns!! Turn off the hotplate if the indicator does not work. Contact the Technical Assistance Service. Caution! If the hob switches off automatically and cannot be used, it can subsequently switch on by itself. To avoid this the hob must be disconnected from the mains. Please contact the Technical Assistance Service. This appliance complies with safety and electromagnetic compatibility standards. However, people with pacemakers must refrain from approaching the appliance when in use. It is impossible to ensure that all of these devices available on the market comply with current electromagnetic compatibility standards, and that interference which may prevent the device from working correctly will not occur. It is also possible that people with other types of devices, such as a hearing aids, could experience some discomfort. Do not place metal objects on the induction hotplate Switching off the hob Risk of burns!! Do not leave knives, forks, spoons, lids or other metal objects that can heat up very quickly on the hob. After each use, always turn off the hob at the main switch. Do not wait until the hob turns off automatically after the pan is removed. Fan care Elements that may damage the appliance Malfunction risk! Caution! The bottom of the hob is equipped with a fan. If there is a drawer under the hob it should not be used to store small objects or paper, since they could damage the fan or interfere with the cooling if they are sucked into it.

The hob switches off Risk of fire!!

Caution! There should be a minimum distance of 2 cm between the drawer and the fan entrance.

Incorrect repairs Rough pan bases may scratch the hob. Avoid leaving empty pots and pans on the hotplate. Doing so may cause damage. Do not place hot pans on the control panel, the indicator area, or the hob frame. Doing so may cause damage. Hard or pointed objects dropped on the hob may damage it. Aluminium foil and plastic containers will melt if placed on the hotplate while it is hot. The use of laminated sheeting is not recommended on the hob. Risk of electric shock!! Poor repairs are dangerous. Switch off the appliance if it is faulty. Contact the Technical Assistance Service. Repairs and the replacement of faulty connection cables may only be Overview The following table presents the most common damage caused: Damage Cause Measure Stains Food spillage Immediately remove spilt food using a glass scraper. Unsuitable cleaning products Only use cleaning products specifically designed for glass-ceramic hobs. Salt, sugar and sand Do not use the hob as a tray or working surface. Scratches Pans with rough bottoms may scratch Check pans. the glass ceramic Fading Chips Unsuitable cleaning products Only use cleaning products specifically produced for glass-ceramic hobs. Contact with pans Lift pots and pans before moving them around. Sugar, substances with a high sugar Immediately remove spilt food using a glass scraper. content Protecting the environment Unpack the appliance and dispose of its packaging in such a way that no damage is caused to the environment.

Environmentally-friendly disposal of waste products This appliance conforms to the Waste Electrical and Electronic Equipment Directive WEEE 2002/96/EC. This directive defines the framework for recycling used appliances within European territory

Energy-saving advice

Always place the correct lid on the pan. Cooking with an uncovered pan will result in a four-fold increase in energy use.

Use pans equipped with a solid, flat bottom. Curved pan bases increase energy consumption. The diameter of the pan base must coincide with the diameter of the hotplate. This generally means the pan base diameter is greater than that of the hotplate. If the diameter of the pan is not the same as the diameter of the hotplate, it is preferable to use a pan with a bottom that is larger in diameter than the hotplate, otherwise half the energy will be wasted. Please note: Whether the cookware manufacturer has indicated the diameter of the top of the pan. Choose pans of a size suited to the amount of food you are going to cook. A large pan that is only half full will use a great amount of energy. Use a small amount of water when cooking. This saves energy, and vegetables retain their vitamins and minerals. Select a lower power level.

Induction cooking Advantages of induction cooking Characteristics of the pan base Induction cooking represents a radical change from the traditional method of heating; the heat is generated directly in the pan. It therefore offers a number of advantages: The characteristics of the pan base may affect the uniformity of the cooking results. Pans made from materials which help diffuse heat, such as stainless steel sandwich pans, distribute heat uniformly, saving time and energy.

Time savings for cooking and frying; since the pan is heated directly. Energy is saved. Care and cleaning are simpler. Foods that have spilt do not burn as quickly. Heat and safety control; the hob supplies or cuts off power immediately when the control knob is turned on. The induction hotplate stops supplying heat if the pan is removed without having previously switched it off. Suitable pans Ferromagnetic pans Only ferromagnetic pans are suitable for induction cooking, these may be made from: Absence of pan or unsuitable size If no pan is placed on the selected hotplate, or if it is made of unsuitable material or is not the correct size, the power level displayed on the hotplate indicator will flash. Place a suitable pan on the hotplate to stop the flashing. If this takes more than 90 seconds, the hotplate will switch off automatically. Empty pans or those with a thin base Do not heat empty pans, nor use pans with a thin base. The hob is equipped with an internal safety system. However, an empty pan may heat up so quickly that the "automatic switch off" function may not have time to react and the pan may reach very high temperatures. The base of the pan could melt and damage the glass on the hob. In this case, do not touch the pan and switch the hotplate off. If it fails to work after it has cooled down, please contact the Technical Assistance Service.

cast iron Pan detection

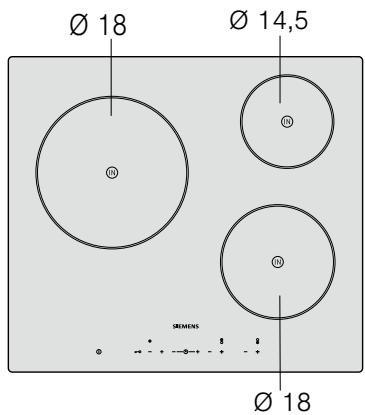

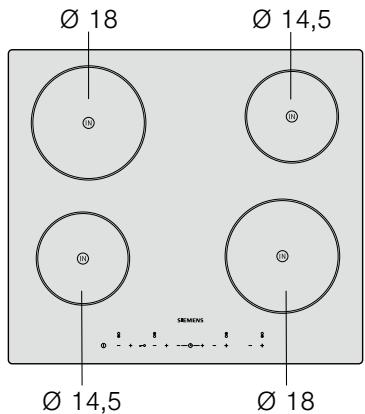

special cutlery for stainless steel induction pan To determine whether a pan is suitable, check to see if a magnet will stick to it. Each hotplate has a minimum limit for detecting pans, which varies depending on the material of the pan being used. You should therefore use the hotplate that is most suitable for the diameter of your pan. Special induction pans Double or triple hotplate There is another type of pan specially made for induction, the base of which is not entirely ferromagnetic. Check the diameter, since this could affect detection of the pan, as well as the cooking results. These hotplates can detect pans of different sizes. Depending on the material and properties of the pan, the hotplate will adapt automatically, switching on part or all of the hotplate and supplying sufficient power to obtain good cooking results. Unsuitable pans Never use pans made from:

• Activating the hotplate: The corresponding indicator lights up. ** The residual heat warning light comes on. Use only cookware suitable for induction cooking; see the section on suitable cookware.

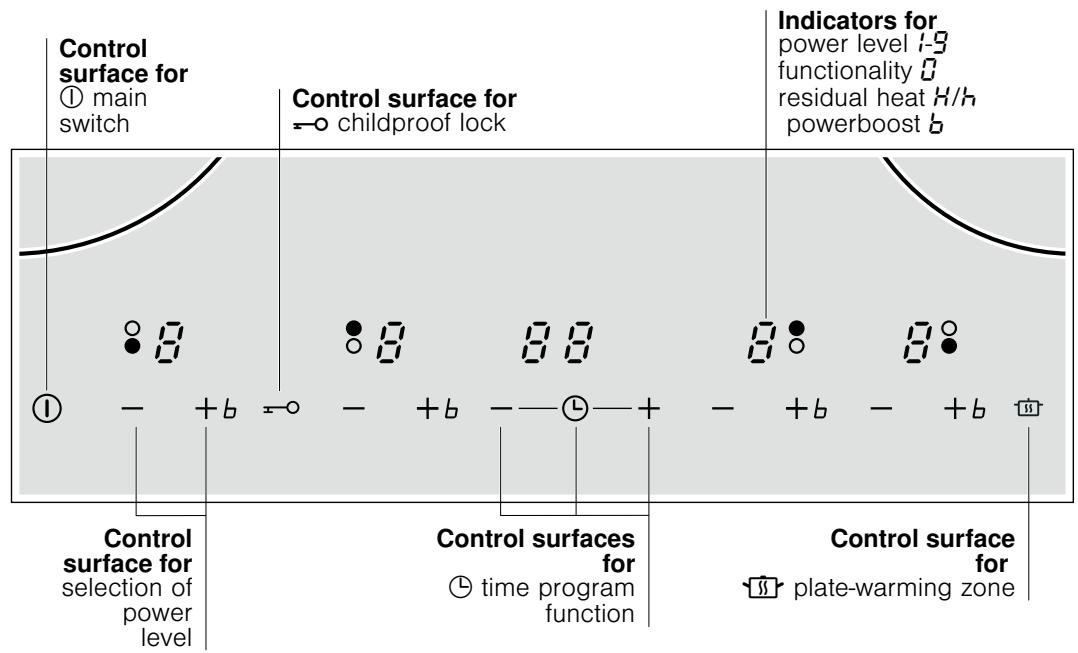

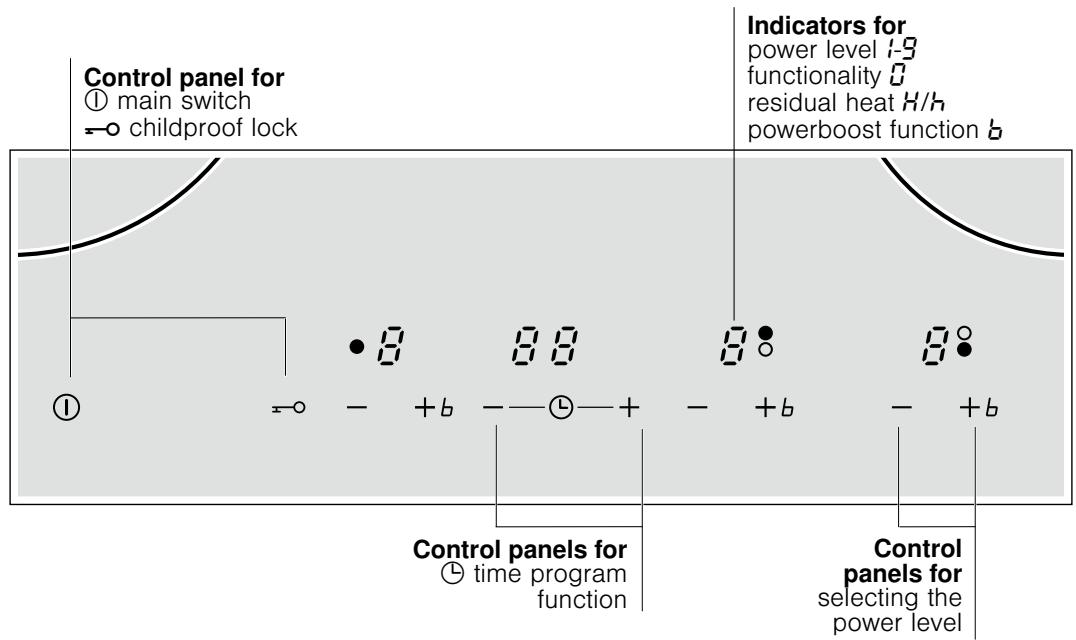

Residual heat indicator The hob has a residual heat indicator for each hotplate to show those which are still hot. Avoid touching a hotplate that displays this. Even when switched off, the œ/• light will remain on as long as the hotplate remains hot. If the pan is removed before the hotplate is turned off the œ/ • indicators and the selected power level will appear alternately. Programming the hob This section will show you how to program the hotplates. The table contains power levels and cooking times for several dishes. Switching the hob on and off The hob is turned on and off with the main switch.

2. Press the + or - symbol within the following 10 seconds. The

basic setting will appear. The + symbol = power level 9. The - symbol = power level 4.

To switch on: press the # symbol. The indicator above the main switch lights up. The hob is ready for use. To switch off: press the # symbol until the indicator above the main switch disappears. All hotplates are off. The residual heat indicator stays on until the hotplates have cooled down completely. Note: The hob switches off automatically when all the hotplates are switched off for more than 20 seconds. Set the hotplate Select the required power level with the + and - symbols. Power level 1 = minimum power. Power level 9 = maximum power. Each power level has an intermediate setting. This is marked with a dot.

3. Changing the power level: Press the + or - symbol until the

desired power level appears. Turning off the hotplate Press the + or - symbol until ‹ appears. The hotplate turns off and the residual heat indicator appears. The hob must be switched on. Note: If no pan has been placed on the induction hotplate, the selected power level flashes. After a certain time, the hotplate switches off.

1. Press the + or - symbol of the desired hotplate. The ‹ symbol

Cooking guidelines table Selecting the power level: lights up on the display. The table below contains some examples. Power level Melt Chocolate, chocolate coating, butter, honey 1-1. Gelatine 1-1. Heating and warming Stew (e.g., lentils) 1-2 Milk** 1.-2. Sausages heated in water** 3-4 Defrosting and heating Frozen spinach 2.-3. Frozen goulash 2.-3. Slow cooking, simmering Potato dumplings 4.-5.* Fish 4-5* White sauces (e.g., bechamel) 1-2 Whipped sauces (e.g., Bearnaise, Hollandaise) 3-4

• Uncovered cooking ** Uncovered

Power level Boiling, steaming, roasting Rice (with a double amount of water) 2-3 Rice pudding 1.-2. Potatoes 4-5 Pasta 6-7* Soups 3.-4. Vegetables 2.-3. Greens, frozen foods 3.-4. Cooked in a pressure cooker 4.-5. Roasting Meat roll 4-5 Roast 4-5 Goulash 3.-4. Broil** Steaks, chops (plain or breaded) 6-7 Beefsteak (3 cm thick) 7-8 Chicken breast (2 cm thick) 5-6 Fish and fish fillet without breading 5-6 Fish and fish fillet with breading 6-7 Prawns and shrimps 7-8 Frozen meals (e.g., stir-fries) 6-7 Pancakes 6-7 Omelette 3.-4. Frying** (150-200g per serving with 1-2 l. of oil) Frozen foods (e.g., French fries, chicken nuggets) 8-9 Frozen croquettes 7-8 Meatballs 7-8 Meat (e.g., chicken pieces) 6-7 Fish, vegetables, breaded or battered, e.g., mushrooms 6-7 Confectionary products (e.g., fritters, fruit in batter) 4-5

• Uncovered cooking ** Uncovered Childproof lock The hob can be protected against being accidentally turned on, to ensure that children do not switch on the hotplates. Activating and deactivating the childproof lock. To turn off: press and hold the @ symbol for approx. 4 seconds. The lock is now deactivated. Activating and deactivating the childproof lock The range must be turned off. With this function, the childproof lock automatically activates when a hob is switched off. To turn on: press and hold the @ symbol for approx. 4 seconds. The @ indicator lights up for 10 seconds. The range is locked. Activating and deactivating See the “Basic Settings" section. Powerboost function The Powerboost function can be used to heat food more quickly than using the power level Š. All the hotplates have this function. To activate The hob must be switched on, but no hotplate should be working.

1. Select the required hotplate.

2. Select the power level Š.

The › symbol lights up in the display. The powerboost function has been activated. Note: If any hotplate is switched on when the Powerboost function is working, › and Š will flash on the hotplate display; the power level Š will then be set. The Powerboost function will be deactivated. To turn off Select the hotplate and press the - symbol. The › indicator will no longer be displayed and the hotplate will return to the power level Š. The Powerboost function has been deactivated. Note: In certain circumstances, the Powerboost function may turn off automatically in order to protect the electronic components inside the hob. Time programming function This function may be used in two different ways:

as a timer. Notes ■ If a cooking time has been programmed in several zones, it can be set to display all time values. To do this, press the 0 symbol several times until the x indicator for the required hotplate lights up. Switching a hotplate off automatically

Enter the cooking time for the desired hotplate. The hotplate will switch off automatically once this time has elapsed. Automatic timer How to program

1. Select the cooking power required.

2. Press the 0 symbol. The x indicator lights up on the

selected hotplate. In the time program function display ‹‹ appears. To select another hotplate, press the 0 symbol several times, until the x indicator of the required hotplate lights up.

3. Press the + or - symbol on the time program function. The

basic setting appears: + symbol: 30 minutes. - symbol: 10 minutes.

Cooking times of up to 99 minutes can be programmed. With this function you may select a cooking time for all hotplates. Once a hotplate is switched on, the selected time will begin to count down. The hotplate will automatically switch off when the cooking time has elapsed. Instructions on activating the timer are found in the chapter entitled "Basic settings". Note: The cooking time of a zone may be cancelled or changed: Press the 0 symbol several times until the required x indicator lights up. Change the cooking time using the + or symbols, or set to ‹‹. The timer The timer can be set for periods of up to 99 minutes. It is independent of the other settings. This function does not automatically switch off a hotplate. How to program

1. Press the 0 symbol several times until the W indicator lights

up. ‹‹ appears in the time program function display.

2. Press the + or - symbol on the time program function. The

4. Press the + or - symbol until the required cooking time

appears. After a few seconds, the cooking time will start to count down. Once the time has elapsed The hotplate switches off. The warning signal sounds, and the in the time program function visual display ‹‹ appears for 10 seconds. The x indicator lights up on the hotplate display. Pressing the 0 symbol turns off the indicators and stops the beep. Changing or cancelling the time Press the 0 symbol several times until the required x indicator lights up. Change the cooking time using the + or symbols, or set to ‹‹.

basic setting will appear. + symbol: 10 minutes. - symbol: 05 minutes.

3. Set the time required using the + or - symbols.

After a few seconds, the timer will start to count down. Once the time has elapsed A warning beep sounds. In the time program function display ‹‹ is shown, and the W indicator comes on. After 10 seconds the indicators turn off. Pressing the 0 symbol turns off the indicators and stops the beep. Changing or cancelling the time Press the 0 symbol several times until the W indicator lights up. Change the cooking time or set to ‹‹ with the symbols + or

Automatic time limitation If the hotplate remains in use for a long time and no changes are made in the settings, the automatic time limitation function is triggered. The hotplate stops heating. On the hotplate display, ”and ‰ flash alternately. The indicator goes out when any symbol is pressed. The hotplate can now be reset. When the automatic time function is used, it is governed by the selected power level (from 1 to 10 hours). Basic settings The device has several basic settings. These settings may be adapted to the user's individual needs. Indicator Function

Audible signals ‹)Confirmation signal and error signal switched off. ‚ Only error signal switched on. ƒ Confirmation signal and error signal switched on.*

Automatic time limitation. ‹ Switched off.* ‚ - 99 Automatic shut-off time.

Duration of the time program function warning signal ‚ 10 seconds.* ƒ 30 seconds. „ 1 minute.

Power-Management function ‹ = Deactivated.* ‚ = 1,000 W. minimum power. ‚ = 1,500 W. ƒ = 2,000 W. etc. Š or Š. = maximum power of hob.**

Return to basic settings ‹ Personal settings.* ‚ Return to factory settings. *Factory settings **The hob's maximum power depends on the configuration of the installation's connection intensity. To not exceed this maximum value, the hob includes a series of components that automatically control the power, distributing it between the hotplates in use as required. Accessing the basic settings The hotplate must be off.

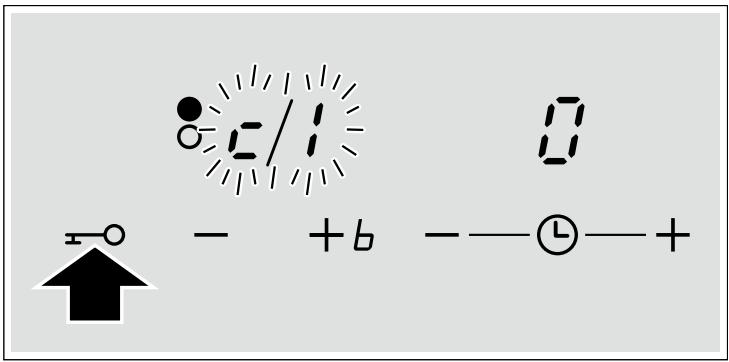

1. Switch on the hob.

2. In the following 10 seconds, press the @ symbol and hold it

for 4 seconds. ™‚ appears on the left side of the screen, and ‹ on the right.

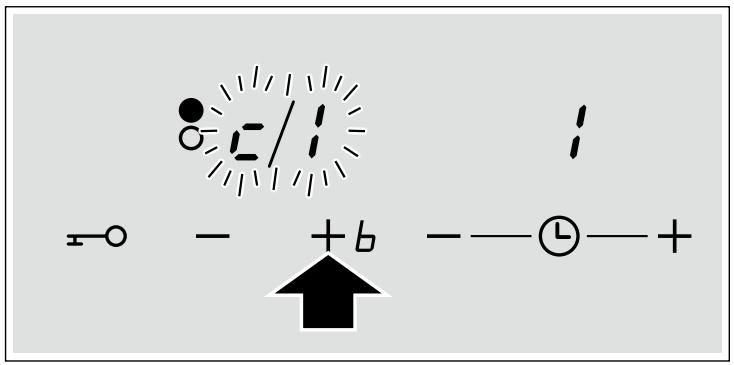

3. Press the @ symbol several times until the required

5. Press the @ symbol again and hold it for more than 4

4. Then select the required setting using the + and - symbols.

The settings will have been correctly stored. function appears. seconds. Quit To leave the basic settings, turn off the hob at the main switch. Care and cleaning The advice and warnings contained in this section aim to guide you in cleaning and maintaining the hob, so that it is kept in the best possible condition Hob

1. Release the scraper safety catch

2. Use the blade to clean the hob surface

Do not attempt to clean the hob surface with the base of the scraper. This could result in scratching. ã=Risk of injury!! Cleaning Clean the hob after each use. This prevents food remains left on the surface from burning. Wait until the hob is cold enough before attempting to clean it. Care of the appliance Only use cleaning products specifically designed for glassceramic hobs. Follow the instructions provided on the packaging. Apply an additive to protect and preserve the hob. Follow the advice and warnings provided with the product. Do not use:

heavy-duty cleaners, like oven sprays and stain removers

Pads that may scratch

High-pressure or steam cleaners The blade is extremely sharp. Risk of cuts. Protect the blade when not in use. Replace the blade immediately when any imperfections are found. Hob frame In order to avoid damage to the hob frame, follow the indications below: Glass scraper

Use only slightly soapy hot water

Do not use sharp or abrasive products

Do not use a glass scraper Remove dried-on food remains using a glass scraper. Fixing malfunctions Malfunctions are commonly due to small details. Before calling the Technical Assistance Service, you should consider the following advice and warnings. Indicator Malfunction Solution none The electric power supply has been interrupted. Use other electrical appliances to check whether there has been a power cut. The appliance has not been correctly connected according to the connection diagram. Check that the appliance has been connected correctly according to the connection diagram. Electronic system malfunction. If the above checks do not resolve the malfunction, contact the Technical Assistance Service. The control panel is damp or an object is resting on it. Dry the control panel area or remove the object. “ flashes “§ + number / Electronic system malfunction. š + number / ¡ + number / Turn the hob off from the mains. Wait 30 seconds or so and switch it back on.*

• If the indication persists, call the Technical Assistance Service. Do not rest hot pans on the control panel.

Indicator Malfunction Solution ”‹/”Š There is an internal error in the operation. Turn the hob off from the mains. Wait 30 seconds or so and switch it back on.*

The electronic system has overheated and Wait for the electronic system to cool down. Then push any symbol the corresponding hotplate has been on the hob.* switched off.

The electronic system has overheated and all the hotplates have been switched off.

The hotplate has been working non-stop too long at a high power level. The automatic time stop has been activated. Press any symbol on the control panel. The indicator goes out. The hob may now be switched back on.

Incorrect supply voltage, outside normal operating limits. Please contact the local electricity board. —ƒ/—„ Wait until the electronic system has cooled down sufficiently before The hotplate has overheated and has switched off in order to protect its cooking switching the hotplate back on. surface.

• If the indication persists, call the Technical Assistance Service. Do not rest hot pans on the control panel. Normal noise while the appliance is working A high-pitched whistling sound Induction heating technology is based on the creation of electromagnetic fields that generate heat directly at the base of the pan. Depending on how the pan has been manufactured, certain noises or vibrations may be produced such as those described below: This noise is produced mainly in pans made from different materials superimposed on one another, and it occurs when such pans are heated at maximum power on two hotplates at the same time. The whistling disappears or becomes fainter as soon as the power level is lowered. A deep humming sound as in a transformer Noise from the fan This noise is produced when cooking on a high power level. It is caused by the amount of energy transferred from the hob to the pan. The noise disappears or becomes faint when the power level is lowered. A low whistling sound This noise is produced when the pan is empty. It disappears when water or food is added to the pan. A crackling sound This noise occurs in pans which are made from different materials superimposed on one another. It is caused by the vibrations that occur in the ajoining surfaces of the different superimposed materials. The noise comes from the pan. The amount of food and cooking method can vary. For proper use of the electronic system, the temperature of the hob must be controlled. For this purpose, the hob has a fan that starts working when detecting excess temperatures at different power levels. The fan may also work due to inertia after the hob has been switched off, if the temperature detected is still too high. Rhythmic sounds similar to a clock's hands This noise is only produced when 3 or more hotplates are working and disappears or is reduced when one of the hotplates is switched off. The noises described are normal, they are part of induction heating technology and not a sign of malfunction. After-sales service Our after-sales service is there for you if your appliance should need to be repaired. We are committed fo find the best solution also in order to avoid an unnecessary call-out. E number and FD number: Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate. Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice
