MX38 - Blender GIRMI - Free user manual and instructions

Product type	Blender
Brand	Girmi
Model	MX38
Power supply	AC 230V~50-60Hz - 800W
Power	800 W
Number of speeds	2
Container capacity	Approximately 1.5 L (estimate)
Jug material	Stainless steel
Blade material	Stainless steel
Dimensions (Height x Width x Depth)	Approximately 38 x 15 x 15 cm
Weight	Approximately 1.8 kg
Power cord length	Approximately 1 m
Functions	Blend, emulsify, prepare soups, sauces, milkshakes, juices, cocktails
Maximum continuous use time	30 seconds, then 5 minutes of rest
Care	Wash the jug and blades with warm water, do not immerse the motor unit
Safety	Sharp blades, unplug before cleaning, do not use by children under 8 years
Included accessories	Motor unit, stainless steel jug, blades
Repairability	Repairs by authorized service center only

Frequently Asked Questions - MX38 GIRMI

How to assemble the jug of the Girmi MX38 blender?

Insert the jug into the motor unit and turn counterclockwise until it locks. To remove, turn clockwise.

What foods can I blend with this blender?

The blender is ideal for preparing purees, milkshakes, sauces, juices, cocktails, soups, and vegetables. It is not suitable for hard foods or ice.

Can I blend ice cubes or hard foods?

No, this appliance is not designed for cutting hard foods or ice. Use it only for soft or liquid preparations.

How to clean the blender after use?

Unplug the appliance. Wash the jug, blades, and accessories with warm water and a non-abrasive detergent. Never immerse the motor unit in water; clean it with a damp cloth.

Is the blender dishwasher safe?

Yes, the jug, blades, and accessories can be washed in the dishwasher like normal dishes. Dry them completely before reassembling.

Why does the motor stop after a few seconds?

The blender is equipped with overheat protection. Do not use for more than 30 seconds continuously. Let it rest 5 minutes before reusing.

What to do if the blender does not work?

Check that the plug is connected and the jug is correctly assembled. If the problem persists, contact an authorized service center. Do not attempt to repair it yourself.

What safety precautions should be taken?

Do not touch the sharp blades. Always unplug the appliance before cleaning. Do not let children use it. Do not immerse the motor unit in water.

How to adjust the cutting speed?

Use the low speed button (1) to start, then the high speed button (2) to finish. Perform circular movements in the container for a homogeneous result.

Where can I find spare parts?

Use only original Girmi accessories. Contact customer service or an authorized dealer to purchase spare parts.

USER MANUAL MX38 GIRMI

Exterior view of a modern stainless steel robotic brush (no text or symbols visible)

Mixer ad immersione

Hand blender

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 6

General information.... p. 8

MX38 p. 9

Operating.... p. 9

Speed setting p. 9

Cleaning.... p. 10

Technical features.... p. 10

Waste of electric and electronic equipment (WEEE

Directive).... p. 26

PORTUGUES:....p. 10

ESPAÑOL ......p. 14

DEUTSCH p. 17

FRANCAIS ......p. 21

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized

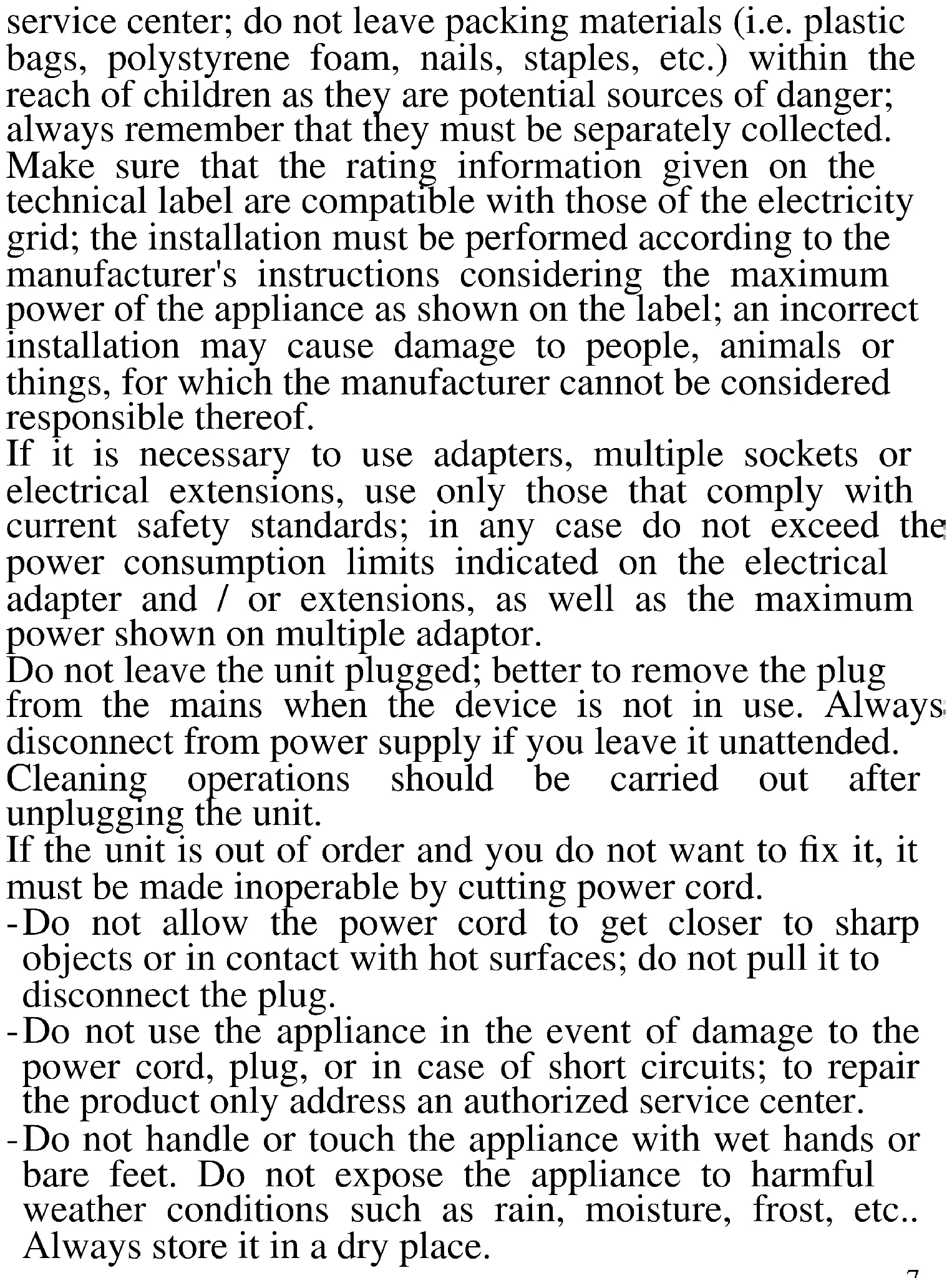

service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• This appliance cannot be used by children, even if they're more than 8 years old.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

- Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

The blades of the hand blender are very sharp to chop: Be careful not to cut yourself during cleaning operations and/or when removing the attachments.

Before using for the first time, carefully wash the parts

that will be in touch with food: shaft and blades.

To avoid the overheating of the motor, do not use the appliance continuously for more than 30 sec, then make at least 5 minutes rest. Do not use the product without food. Do not insert your fingers inside the bowl while the mixer is running. Before operating the appliance, check that all the parts are correctly installed.

Never leave the appliance unattended while it is running.

CAUTION! Unplug the unit from the socket before touching the blades for any reason, such as running or foods removing. CAUTION! Always plug unit from electrical outlet each after use /or before touching blades and/or before installing removing any accessory or attachment.

To clean shaft and accessories, it is recommended using warm tap water and containing the use of detergents. When cleaning with detergents, rinse thoroughly.

Do not immerse the top of the mixer in water or other liquids, clean it with a damp cloth.

PARTS MX38

1. Function lights

2. Cup

3. Switch low speed

4. Switch high speed

5. Motor body

6. Stainless steel immersion shaft

7. Blades

OPERATING

Assemble motor housing to the immersion stainless-steel shaft as described in the "Assembling the shaft" section. Plug the unit to the electrical outlet. Insert the mixer in the bowl with the food to blend (ensure to immerse the entire blade to avoid any splashing). Press the button (speed I or II) to start operating. For best results, follow the instructions in "Setting processing speed" section.

CAUTION! Do not insert your fingers inside the bowl containing food

- Unplug the hand blender from the electrical outlet, once finished working,

This appliance is not suitable for chopping hard foods or ice. It is suitable for making baby food, milk shakes, sauces, juices, cocktails, soups, vegetable soup, etc. ... When processing fruits or vegetables, add also a small quantity of water to allow the device to operate in a homogeneous way.

Assembling the shaft

Insert motor body (4) in the shaft (6). Rotate anticlockwise until it blocks. For unblocking, rotate clockwise.

SETTING THE WORKING SPEED

The unit features two working speeds (2 and 3 button). For best results and to avoid overheating, it is recommended to use the unit for short and regular intervals, then for a long time, always making circular movements inside the container of food. It is also recommended to start processing food from the first speed, ending up using the faster speed.

CLEANING - Unplug the unit from the electrical outlet.

Do not immerse the motor body in water or other liquids, but wash it with a damp cloth and non-abrasive detergent. Avoid any infiltration of water inside the motor housing. Shaft, blades and accessories can be washed like normal dishes, with a non-abrasive sponge and mild detergent. Dry them thoroughly before assembling them to the main body. For a quick cleaning of the blades of the shaft during different processes, insert the hand blender into a cup filled with water and operate for a few seconds.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. 800W DC Motor
- 2 working speeds
- Detachable stainless-steel shaft

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
