BL03 - Kettle GIRMI - Free user manual and instructions

Product type	Electric kettle
Brand	Girmi
Model	BL03
Maximum capacity	0.6 L (600 ml)
Minimum capacity	0.2 L (200 ml)
Power	600 W
Power supply	AC 220-240 V ~ 50-60 Hz
Container material	Silicone (foldable)
Body material	Plastic
Dimensions (unfolded)	Approximately 25 x 15 x 20 cm
Dimensions (folded)	Approximately 15 x 10 x 10 cm
Weight	Approximately 0.5 kg
Color	Not specified
Main functions	Heats and boils water, automatic shut-off when boiling, overheat protection
Safety device	Automatic shut-off in case of dry operation
Control type	ON/OFF button
Base	Fixed base with power cord
Handle	Foldable handle with lock button
Lid	Removable lid with locking
Maintenance and cleaning	Clean the inside with warm water, descale periodically with lemon juice. Do not immerse the kettle
Included accessories	Silicone container, power base
Usage	Household use only
Warranty	Manufacturer's warranty (according to conditions)

Frequently Asked Questions - BL03 GIRMI

What is the maximum capacity of the Girmi BL03 kettle?

The maximum capacity is 0.6 liter (600 ml), with a minimum level of 0.2 liter.

How to use the kettle for the first time?

Before first use, clean the inside of the kettle. Then, boil water 2 to 3 times (600 ml) and discard the water each time to remove residues.

Does the kettle shut off automatically?

Yes, a thermostat automatically turns off the appliance as soon as the water reaches boiling. In case of dry operation, a safety device also cuts off the power.

Can you fold the Girmi BL03 kettle?

Yes, the silicone container is foldable to reduce the size of the appliance. To open, pull on the upper body and base; to fold, press on the upper part.

How to clean the kettle?

Unplug and let cool. Rinse the inside with warm water. Never immerse the kettle in water. Wipe the outside with a damp cloth.

How to descale the kettle?

Fill half the capacity with water and add a little lemon juice. Boil 3 times, then rinse by boiling plain water 2 to 3 times.

What to do if the kettle does not turn on?

Check that the kettle is properly plugged in and that the ON button is pressed. If it has operated dry, wait for the heating element to cool completely before reusing.

Is the kettle suitable for anything other than water?

No, this appliance is designed only for heating or boiling water. Do not use other liquids.

What is the power of the kettle?

The power is 600 W under an alternating voltage of 220-240 V ~ 50-60 Hz.

How to open the kettle handle?

To open the handle, remove it from the lid and turn it until you hear a click. To close it, press the lock button.

USER MANUAL BL03 GIRMI

Technical model: HF031AD

Two Girmi brand smart cookers with open doors, one emitting a black lid (no visible text or symbols on device body)

Safety instructions.... p. 7

General information.... p. 9

BL03 p. 10

Mounting.... p. 10

Main functions.... p. 10

Operating.... p. 10

Cleaning.... p. 11

Descaling.... p. 11

Safety switch off.... p. 11

Technical features.... p. 11

Waste of electric and electronic equipment (WEEE

Directive) p. 17

FRANCAIS p. 11

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Diagram of a portable water heater with numbered parts labeled 1 through 7

Illustration of two hands adjusting a cylindrical object, labeled Fig.1 (no text or symbols on the objects)

Fig.2

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum

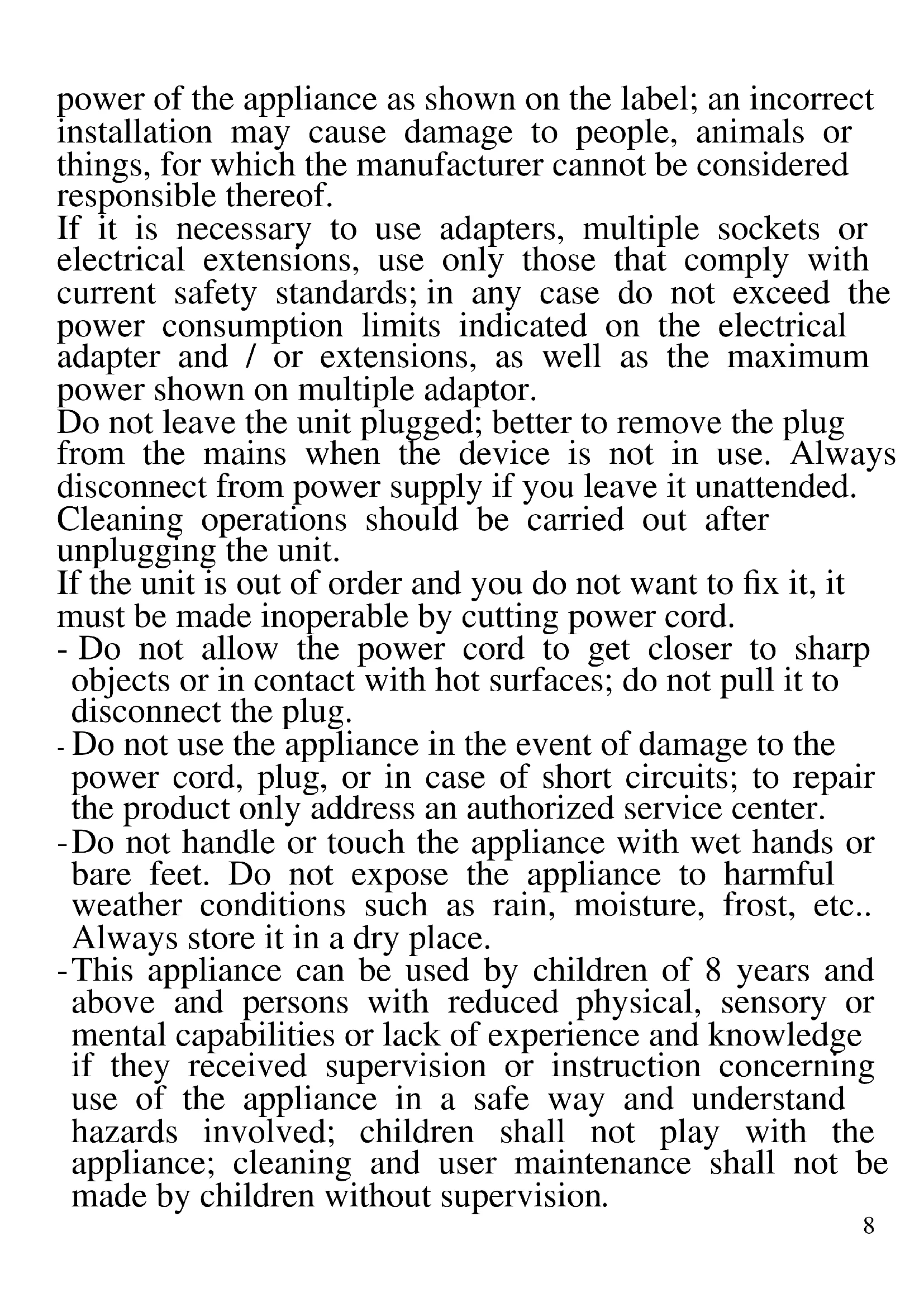

power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

Before using for the first time, carefully wash all the parts that will come in touch with food such as the container. Always close the lid before every use.

- Never leave the appliance unattended while it is running.

- Use the kettle only to heat or boil water.

• Fill the kettle with cold water, being careful to stay within the limits indicated on the capacity of the storage tank (maximum 0.6 L, 0.2 L minimum).
• Always pour the water before turning on the kettle. Never pour liquids after switching on.
• If the kettle operates when it's empty, the safety device shuts down automatically to prevent any damage. It won't be possible to operate until the complete cooling of the resistance.
• After having boiled the water, remove the plug and drain completely to avoid the scaling of the electric resistance. Once finished, unplug the unit and wait for the complete cooling of each part before storing or cleaning.
• Do not immerse the appliance in water or other liquids. In any case, avoid splashing of water or other liquids.

Put the kettle on stable shelves and floors.

DESCRIPTION BL03

1 Nozzle

2 Lid

3 Handle lock button

4 Handle

5 Silicone Container

6 Kettle body

7 Power on button

MOUNTING

This kettle is equipped with a silicone container (5) that can be folded to reduce the dimension and store it well.

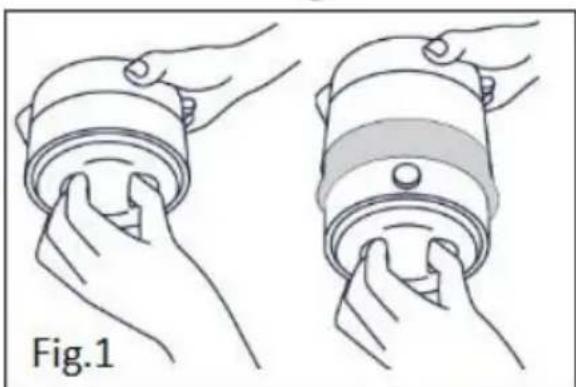

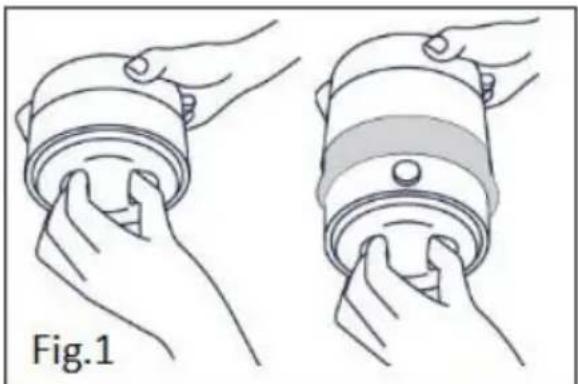

To open the kettle and use it, take the upper housing with an hand (6), the handle below the base with the other hand, and pull opening completely (Fig. 1).

To fold the kettle after use Press the upper part and the base, collapsing the container.

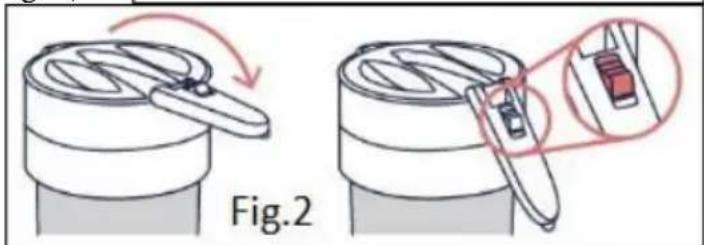

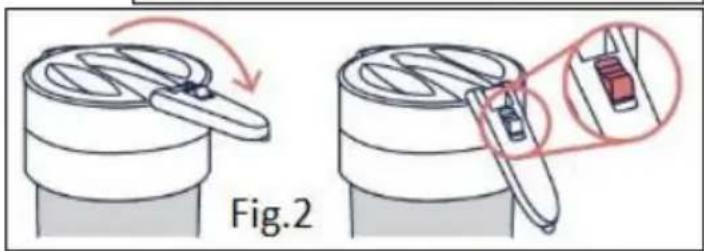

To open the handle (4), take it out of the lid and rotate until you ear a click. To close the handle press the lock button (3, Fig. 2).

MAIN FUNCTIONS

Before using, operate the kettle 2 or 3 times and boil the maximum amount of water (600cc) by replacing each time hot water with cold water.

• Pour in the kettle the desired amount of water, never exceeding the limits indicated (MAX: 0.6 L, MIN: 0.2 L). Close the lid until it locks in position.
• Insert the power cable into the socket on the back of unit (6) and plug it into the main electrical outlet (AC 230V \~ 50Hz) to start the appliance.
• Operate the kettle by pressing the power ON button (7).
• When the liquid is boiling, the thermostat automatically turns off the unit.

Illustration of two hands holding a cylindrical object, labeled Fig.1 (no text or symbols on the objects)

Fig.2

- Use hot water as you wish, making sure to completely empty the kettle to prevent limescale on the internal electric resistance.

CLEANING

Unplug the unit and wait until the complete cooling down of each part before starting cleaning operations.

• Do not immerse the kettle in water. In any case, prevent splashes of water or other liquids from reaching it.
• To clean the inside of the kettle, let it cool down and rinse with warm water to remove residues and impurities. In any case, it will be necessary to periodically descaling the unit.
• Clean the base and the kettle with a damp cloth.

DESCALING THE BOILER

To prevent the formation of lime scale, it is recommended to make periodic special cleaning, following the instructions below:

Pour water in the kettle until it reaches half the maximum capacity and add some lemon juice.

Boil water mixed with lemon 3 times.

Empty the kettle and rinse by boiling normal water for 2-3 times.

SAFETY SWITCH-OFF

The safety device is triggered if the kettle operates without water inside. To avoid overheating, the appliance is automatically turned off and cannot be activated until the complete cooling of the electric resistance.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. Power 600W
- Silicone container: 600cc
- Control light
- Safety device

FRANÇAIS: ADVERTISSEMENT

Illustration of two hands holding a cylindrical object, labeled Fig.1 (no text or symbols on the objects)

FONCTIONS PRINCIPALES

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RÉSIDUS D'APPAREILS ELÉCTRIQUES ET ELÉCTRONIQUES

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
