USER MANUAL HO4CETEW186K HOOVER

PRODUCT DESCRIPTION....2

Space requirements....2

USE 3

Use....3

Customized temperature....3

Fine Tuning....4

Super Cool function .... 4

Super Freeze function....4

Eco mode....5

Holiday function....5

Defrosting....5

Demo mode....5

Error codes 5

APP CONNECTION (Content only) 6

IN APP PAIRING PROCEDURE 6

Step 1....6

Step 2....6

Step 3....6

WiFi Use 7

DOOR REVERSIBILITY 8

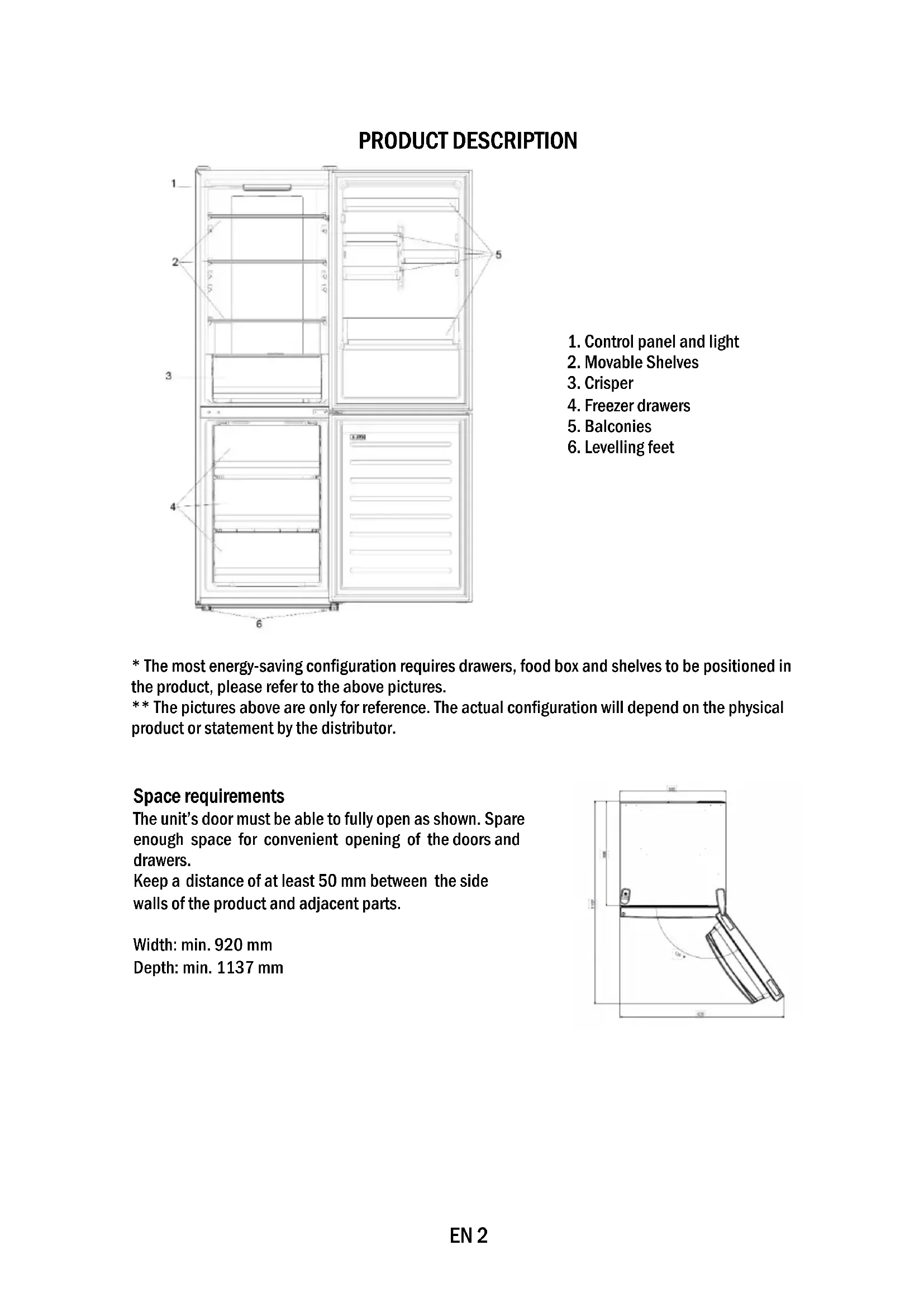

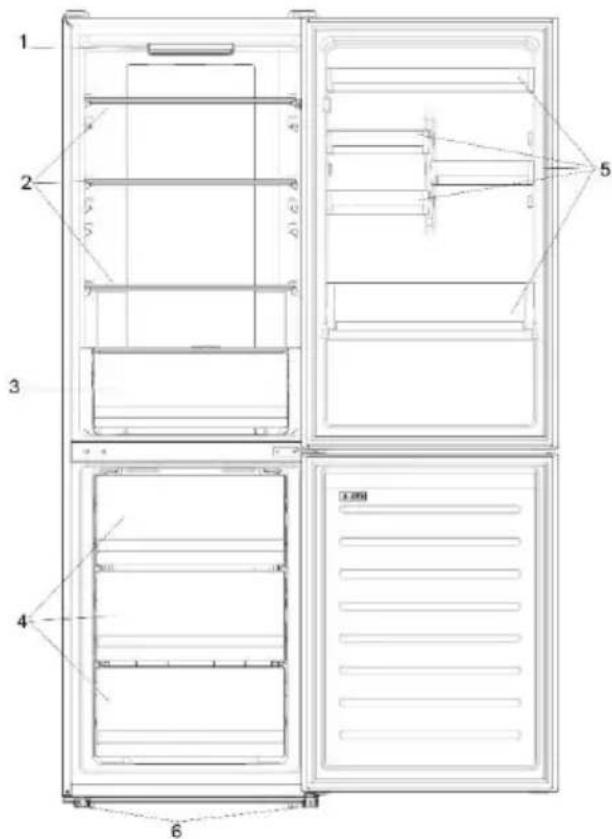

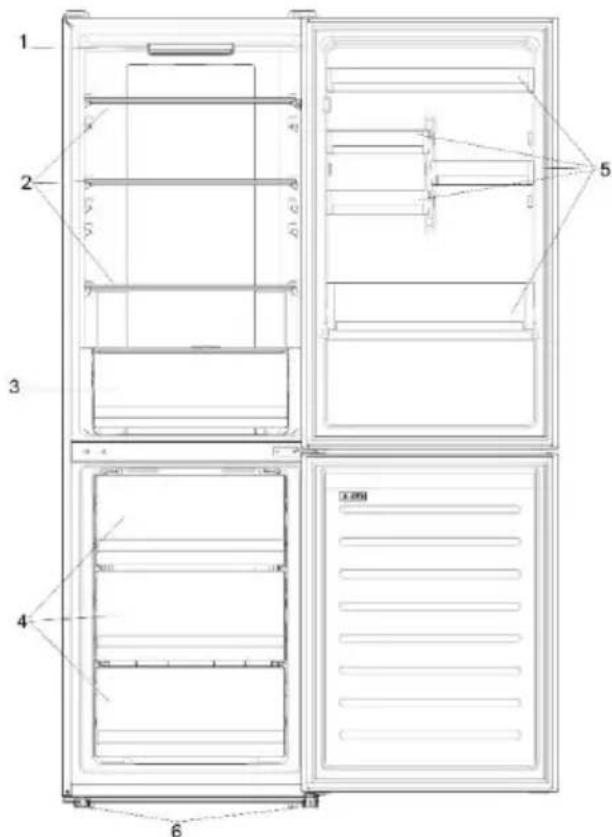

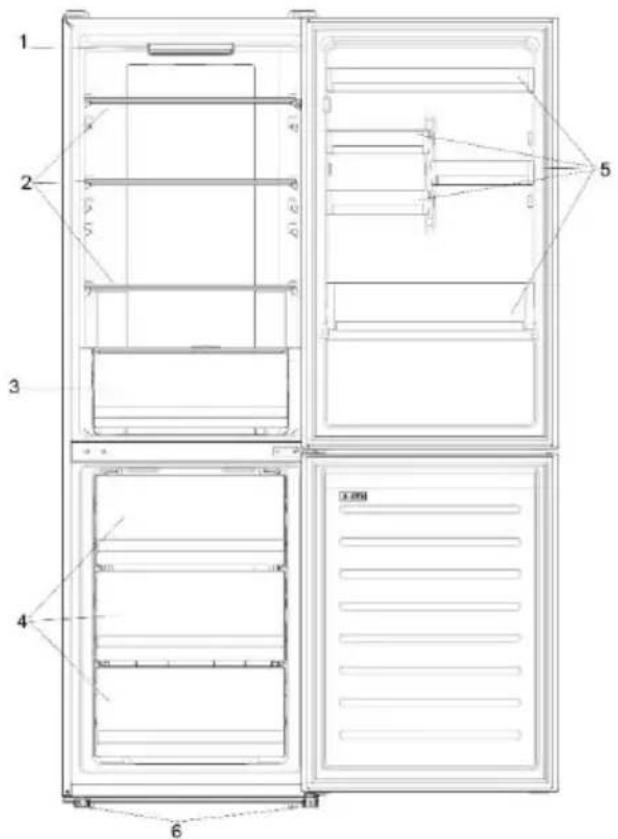

PRODUCT DESCRIPTION

1 2 3 4 5 6

1. Control panel and light
2. Movable Shelves
3. Crisper
4. Freezer drawers
5. Balconies
6. Levelling feet

* The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

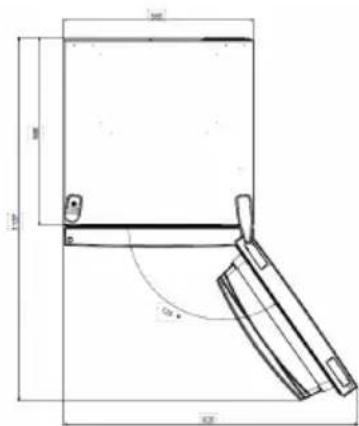

Space requirements

The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm

USE

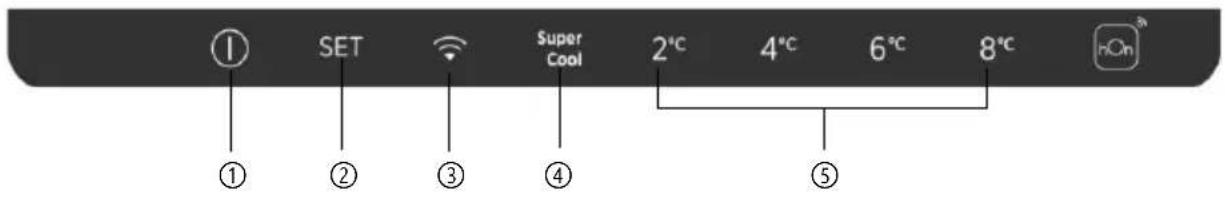

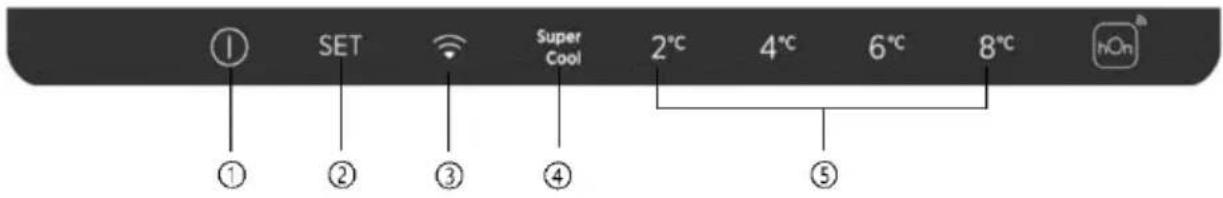

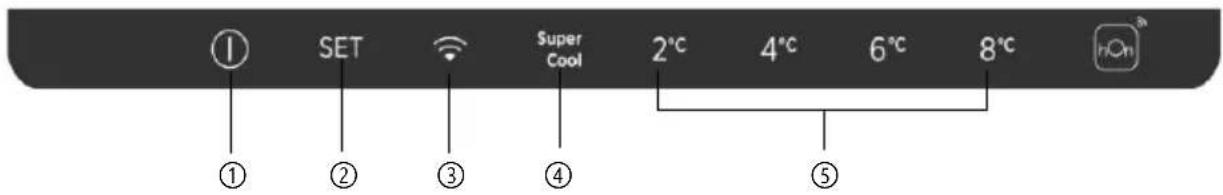

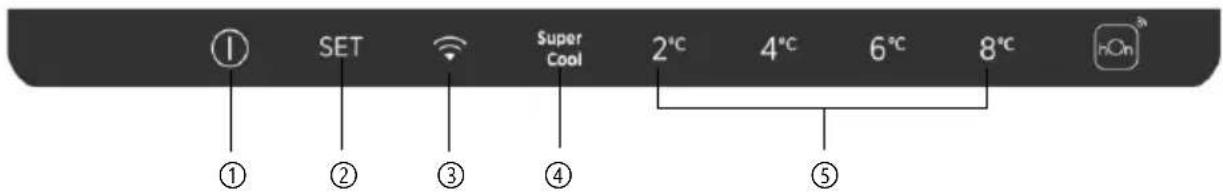

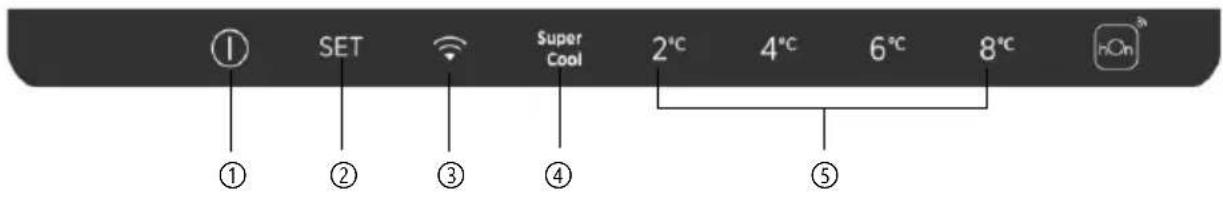

① SET ② ③ ④ Super Cool 2°C 4°C 6°C 8°C ① ② ③ ④ ⑤

① ON/OFF key, used to switch on/off the appliance.
② SET key, used to select the fridge temperature or the special functions like.
③ WiFi Icon, shows if the appliance is connected to the app.
④ Super Cool Icon, shows if the function is activated.
⑤ Temperature levels, show which is the selected temperature.

Use

• Plug on the appliance. The appliance will turn on automatically.
• The temperature will automatically set at 4 °C in the fridge and -18 °C in the freezer.
• To change the temperature, with the fridge door open, press the SET key. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the SET key is pressed and the temperature is changed.
  • In case of power loss, the last cooling level set will be restored.
• To restore the default setting, at the screen lit, keep pressed the TEMP button, and then press ON/OFF button 5 times in 5 seconds.
• Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer when the ambient temperature is high, it is recommended to set temperature at 6\~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 2\~4 °C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app, it is possible to customize the temperature of the fridge compartment. The temperature can be set with 1 °C sensitivity and it is possible to select a temperature from 2 °C to 8 °C in the fridge. An acoustic signal is made every time the temperature is changed. When the temperature is selected by the app, there is no indication on the control panel, all the temperature LED lights are turned off, while only the WiFi icon is turned on.

Fine Tuning

The fine tuning selection SET gives to possibility to set the temperatures by sublevels; each temperature level has three sublevels.

How to use the fine tuning function:

• Press the SET key for 8 seconds to enter fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of currently selected cooling level blinks.
• By short pressing the SET key within 5 seconds, the fine tuning setting increases and, at each pressing, an acoustic signal is made.
• During fine tuning, the LED of the selected cooling level is fixed, while the LED of the selected sublevel blinks.
• If no key is pressed for 5 seconds, the system automatically exits from fine tuning selection mode. The fine tuning setting is saved and the LED of the selected fridge temperature is fixed.
• If the fine tuning is activated again, the setting will start from the previously stored level.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2 °C.

How to use the Super Cool function:

• The function can be activated by pressing many times the SET key until the Super Cool LED is turned ON or by selecting it from the app. If the function is activated, the corresponding icon on the control panel will be turned on.
  • To exit the Super Cool function, press the SET key again.
  • The Super Cool function automatically ends after 30 hours running.
• When the Super Cool ends, the corresponding icon of the control panel turns off and the previously set cooling level is restored.

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -25 °C.

How to use the Super Freeze function:

• The function can be launched only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
  • To exit the Super Freeze function, turn it off from the app.
• The Super Freeze function automatically ends when the function has lasted for more than 50 hours.

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. When the function is activated, the temperature is automatically set at 5 °C in the fridge, and at -18 °C in the freezer.

How to use the Eco mode:

• The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
• To exit the Eco mode, turn it off from the app; the previously selected temperature will be restored.
• The Eco mode automatically ends when another function is chosen from the control panel.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the LED lights will be off (even if the door is open) and the fridge will work on low power consumption mode, whereas the freezer will keep working normally. How to use the Holiday function:

• The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
• To exit the Holiday function, turn it off from the app; the previously selected temperature will be restored.
• The Holiday function automatically ends when another function is chosen from the control panel.

Defrosting

The defrosting of the refrigerator and freezer compartment are done automatically: no manual operation is needed.

Slider

Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.

Demo mode

Keep the refrigerated door open, press and hold the on / off key, and click the set key five times. The refrigerator will enter the Demo mode. To exit the mode, keep pressed the door switch and press again the mode key for 5s.

Error codes

If - 6 °C LED light is flashing, it means there has been a fan error. Please, contact the technical assistance to help solve the problem

APP CONNECTION (Content only)

IN APP PAIRING PROCEDURE

Step 1

• Download the hOn app on the stores

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

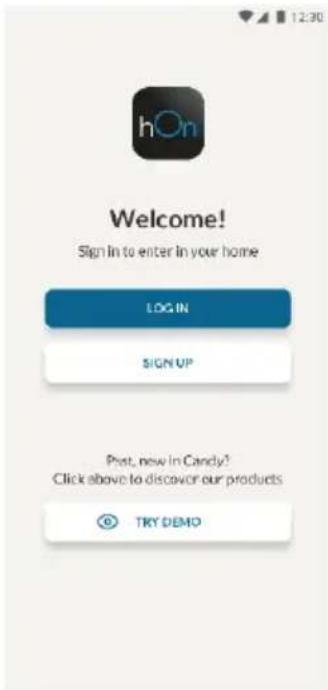

Step 2

- Create your account on the hOn App or log in if you already have an account

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

Step 3

- Follow pairing instructions in the hOn App

WiFi Use

To activate the Wi-Fi, long press the set key for 2 seconds, the Wi-Fi icon will turn on and an acoustic signal is made.

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. To use the configuration mode:

• Press the set key for 2s but less than 8s, the refrigerator enters the Wi-Fi configuration mode and an acoustic signal is made. The Wi-Fi icon starts blinking.
• Follow in app instructions to configure the Wi-Fi (see above).
• Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed.
• After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode.
• If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.

Radio-module - Technical data

Frequency rate (OFR)	2400 MHz-2843.5 MHz
Channel frequencies	2412...2472 MHz(step size 5 MHz)
Maximum power(EIRP)	100 mW

Radio equipment type is in compliance with Directive 2014/53/EU.

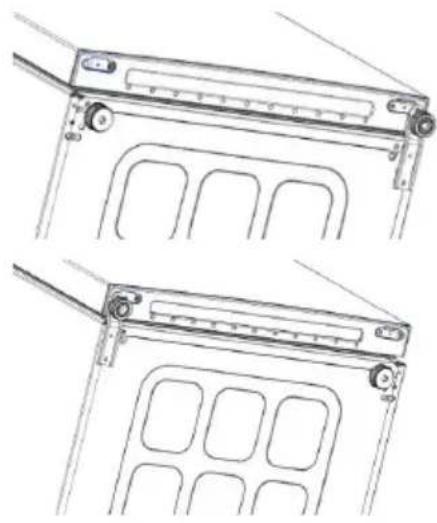

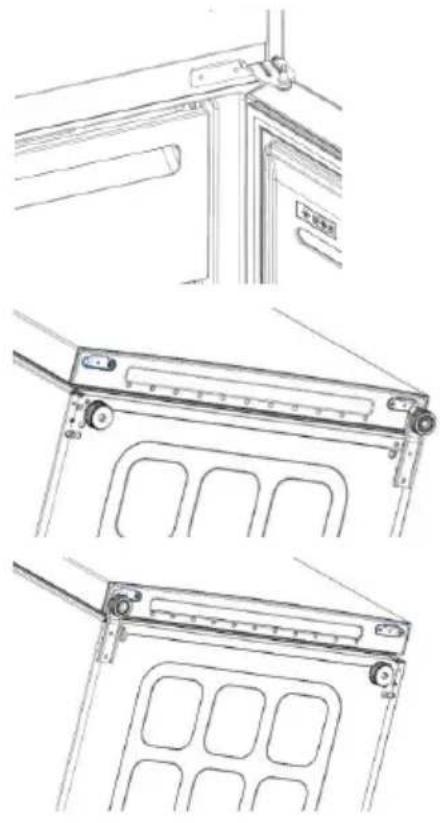

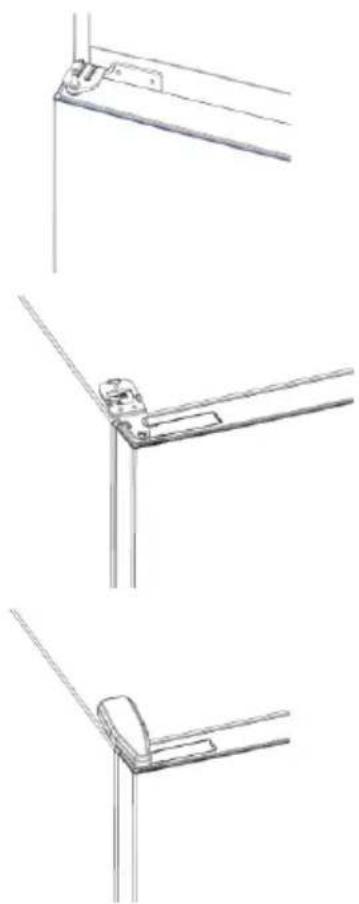

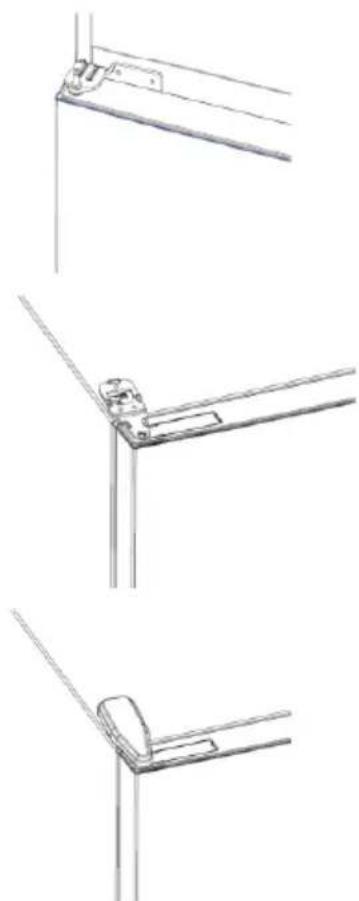

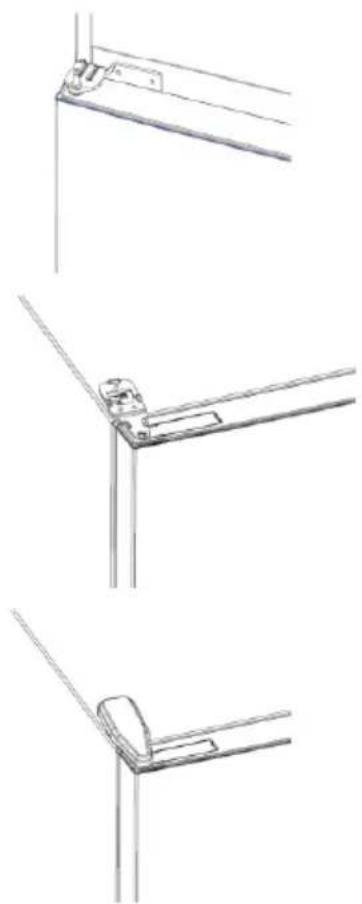

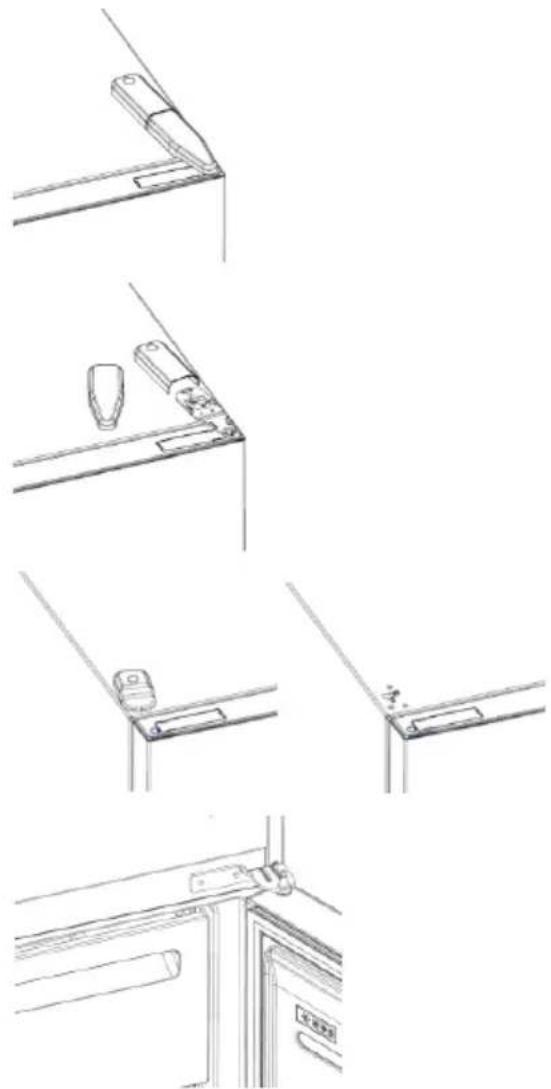

DOOR REVERSIBILITY

Tools needed: screwdriver

1. Remove the top hinge cover
2. Unscrew the top hinge
3. Remove the top hinge cover (left)
4. Remove middle hinge

Line drawings of kitchen appliances and fixtures (no text or symbols)

1. Remove lower hinge
2. Mount hinge foot
3. Mount middle hinge
4. Mount the upper hinge plate
5. Mount the upper hinge cover

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)
