Product type	Decorative portable convector
Model	THCVT2000DT
Power	800 W / 1200 W / 2000 W (3 levels)
Supply voltage	220-240 V ~ 50-60 Hz
Electrical class	Class I (with grounding)
Dimensions (W x D x H)	Not specified in the manual
Weight	Not specified in the manual
Body material	Not specified (probably metal and plastic)
Color	Not specified (probably white or black)
Heating type	Natural convection
Temperature adjustment	Rotating mechanical thermostat
Operation indicator light	Yes (indicator light)
Overheat protection	Yes (thermal cut-off)
Safety distance	At least 90 cm from walls, furniture and curtains
Recommended use	Well-insulated rooms or occasional use
Installation type	On feet (assembly required)
Number of feet	2 (with locking screws)
Carrying handle	Yes (integrated)
Cleaning	Slightly damp cloth, then dry
Maintenance	Unplug before cleaning; do not use detergents
Warranty	Does not cover normal wear, damage due to improper use or incorrect voltage
Brand	THOMSON (under license from Schneider Consumer Group)
Customer service	SCHNEIDER CONSUMER GROUP, 12 rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

Frequently Asked Questions - THCVT2000DT THOMSON

How to install the feet of the THCVT2000DT heater?

Turn the heater over, attach the 2 feet under the base by pushing firmly until they lock, then insert the screw inside each foot. Then straighten the device.

What are the essential safety precautions?

Never cover the appliance to avoid overheating. Place it at least 90 cm from walls, furniture and curtains. Unplug it before any cleaning or moving. Use a grounded outlet.

How to adjust the temperature?

Turn the thermostat knob clockwise to increase the temperature, and counterclockwise to decrease it. When the indicator light turns off, the ambient temperature is reached.

What are the available power levels?

The switch allows 3 levels: position 1 = 800 W, position 2 = 1200 W, position 3 = 2000 W.

What to do if the appliance suddenly turns off?

This is probably due to overheat protection. Turn off the appliance, unplug it and let it cool for at least 10 minutes. Plug it back in and turn it on again.

Can I use this heater in a bathroom?

No, the appliance should not be used near a bathtub, shower or swimming pool. It is intended for indoor domestic use only.

How to clean the heater?

Always unplug it first. Use a slightly damp cloth to clean the exterior surface, then dry with a soft dry cloth. Never use detergents or chemicals.

The power cord is damaged, what to do?

The cable must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any hazard. Do not use the appliance in the meantime.

What is the required voltage?

The appliance operates on a voltage of 220-240 V ~ 50-60 Hz. Check that your wall outlet matches before plugging in.

How to store the heater in summer?

Make sure it is unplugged, clean it as indicated, then store it in its original packaging in a dry and dust-free place.

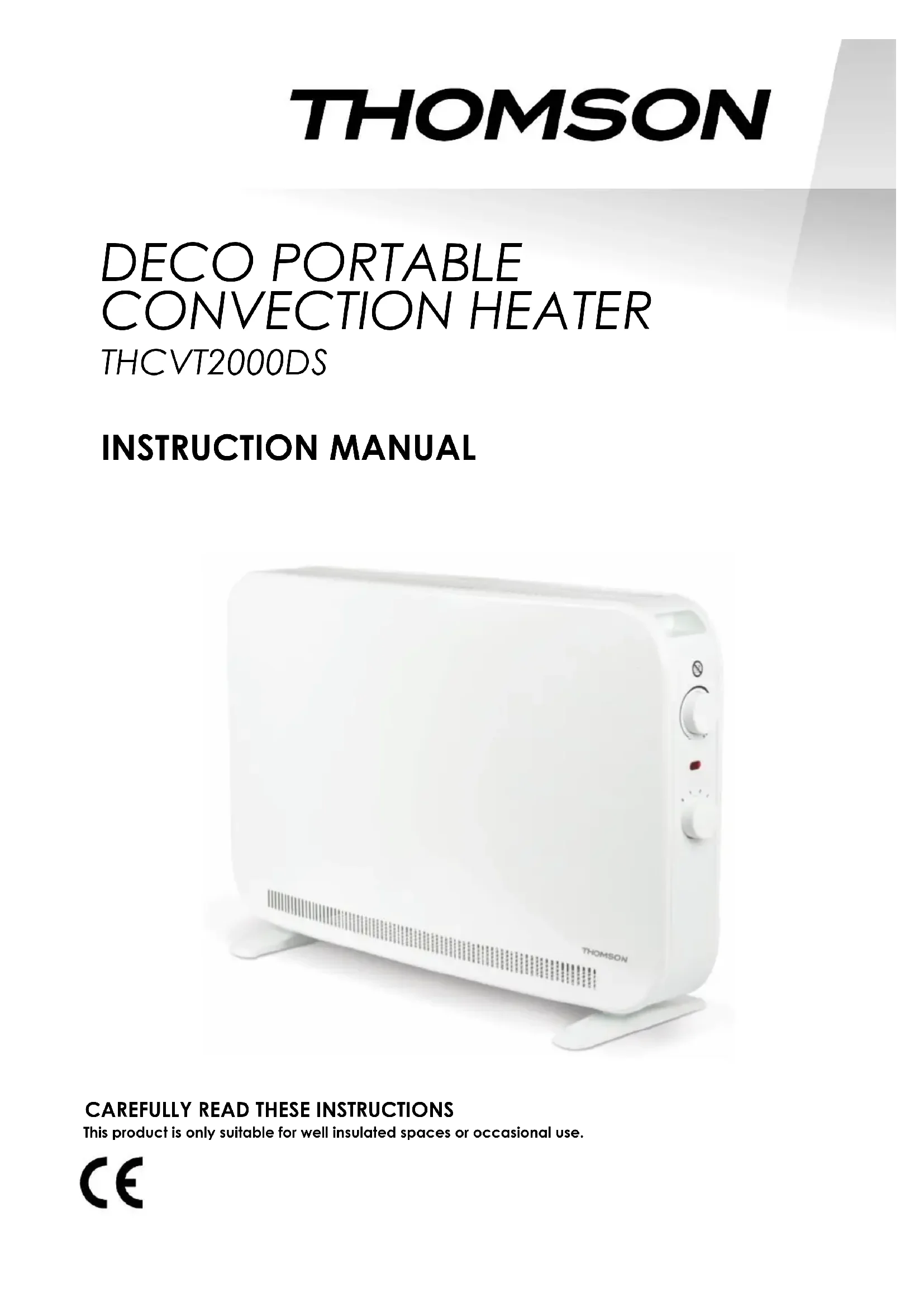

USER MANUAL THCVT2000DT THOMSON

White electric heater with control panel and 'THOMSON' branding (no visible text beyond branding)

LIRE ATTENTIVEMENT LES INSTRUCTIONS

MISE EN GARDE:NE PAS COUVRIR

Line drawing of a plug with two terminals and a side port (no text or symbols)

Diagram showing a device connected to its electrical terminal, with three views of the switch mechanism and their corresponding screw placements.

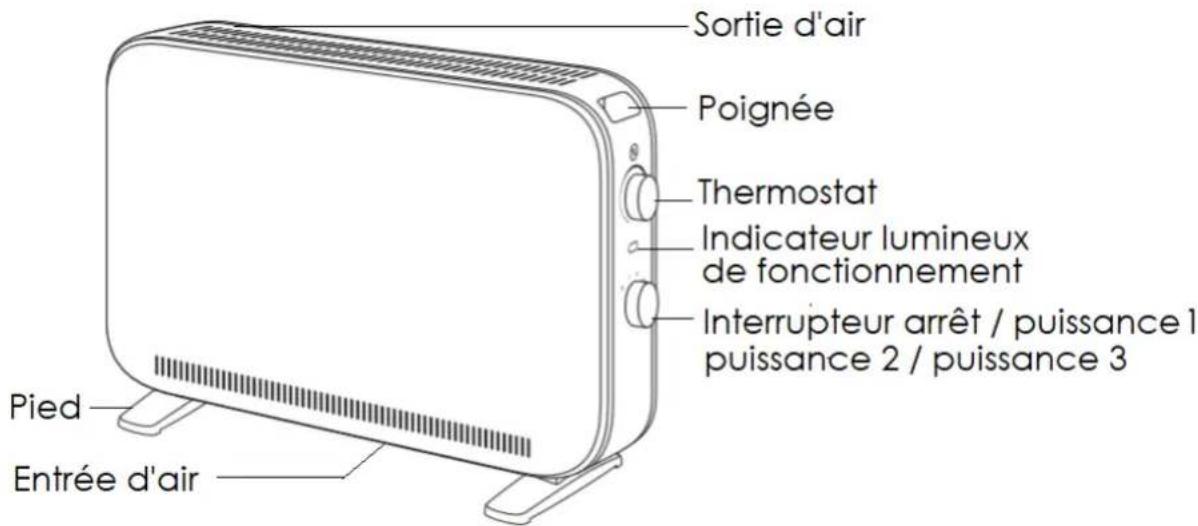

DESCRIPTION:

White horizontal solar heater with control knobs and a 'THOMSON' label (no additional text or symbols visible)

CAREFULLY READ THESE INSTRUCTIONS

This product is only suitable for well insulated spaces or occasional use.

SAFETY RECOMMENDATIONS:

Caution! The heater should be switched on only when the feet are fully secured.

1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close by.
4. This appliance is only designed for domestic and indoor use. Do not use outdoors. Use the heater only as indicated in the instructions. Any other use that does not conform to the supplier's instructions may cause material damage or personal injury
5. Any other use not in accordance with manufacturer's instructions may result in property damage or personal injury. Do not use this appliance for other purposes than intended by the manufacturer.
6. Use this appliance in a well aerated and ventilated room. Do not cover the appliance or air flow.

7. Never try to remove the control knobs, push objects into the ventilation. The manufacturer cannot be held responsible.

8. Do not leave this appliance unsupervised while it is on. When not being used, always ensure that the product is securely in the 'Off' position (O) and unplugged from the socket.

9. Great care must be taken when being used by or in the presence of children of older persons.

10. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.

11. Do not place the cable under a carpet or any heavy object, and do not cover.

12. To avoid accidents, keep away from areas where people may trip. Do not place on unstable surfaces

13. To avoid any risk of fire or electric shock, it is essential that the appliance not be exposed to rain or moisture, and not be opened. The appliance contains electric parts that may electrocute or burn you.

14. Do not place this appliance close to flammable fabrics, surfaces or liquids in order to avoid any risk of fire. Keep it well away from any source at risk of causing hazards and maintain it at a safe distance (whether this is the front, rear or sides). Do not use this appliance in locations such as garages, warehouses etc. where dangerous or flammable

products are stored (paint, fuel, alcohol etc.).

1. The appliance must not be placed just underneath an electric socket.

2. This product is hot when it is on. To avoid any injuries or burns, do not touch it directly and use gloves or other means.

3. Do not use this heating appliance close to a bath, shower or swimming pool

4. Check that the voltage corresponds to that of the power supply (230v mains socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted correctly into the socket.

5. In the event that you need an extension cable, ensure that it is suitable for the appliance's power level.

6. While the appliance remains plugged into the socket (wall socket) it is not disconnected from the power supply, even if it is switched off. The appliance must be completely unplugged before cleaning, services, maintenance or even moving from one place to another.

7. The power socket must always be equipped with an earth connection. If your domestic electrical installation is not earthed, you should not connect the appliance.

8. WARNING: To avoid overheating, do not cover the heater.

9. Appliances are not designed to be used in conjunction with a separate timer or with a control system used at a distance.

10. This device can be used by children with at least 8 years old and people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored (s) or given to them instructions for using the machine safely and if the risks were apprehended. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unattended.
11. Children of less than 3 years should be kept away unless continuously supervised.
12. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
13. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where

children and vulnerable people are present.

1. For domestic & indoor use only. Do not use it outdoor. Use the heater as per the instruction manual. Any other use that does not comply with the supplier's instructions could result in property damage or personal injury.

2. WARNING: To avoid overheating, do not cover the heater.

This symbol means: WARNING: DO NOT COVER

1. Regarding detailed information on how to attach the feet to the heater, refer to the section "ASSEMBLY"

2. Regarding detailed information on how to clean and maintain the heater, refer to the section "CLEANING AND MAINTENANCE".

Warning: Plug the appliance in correctly and do not leave within reach of children without supervision.

EARTHING

This appliance must be earthed.

This appliance is equipped with an earthed plug.

It must be plugged into a

correctly installed and earthed wall socket.

WARNING: Incorrect use of the earth connection can lead to the risk of electric shock.

Notes: If you have any questions regarding earthing or connecting to a power supply, please consult a qualified person.

In the event of short-circuit, earthing reduces the risk of electric shock by enabling the current to escape through the earth cable.

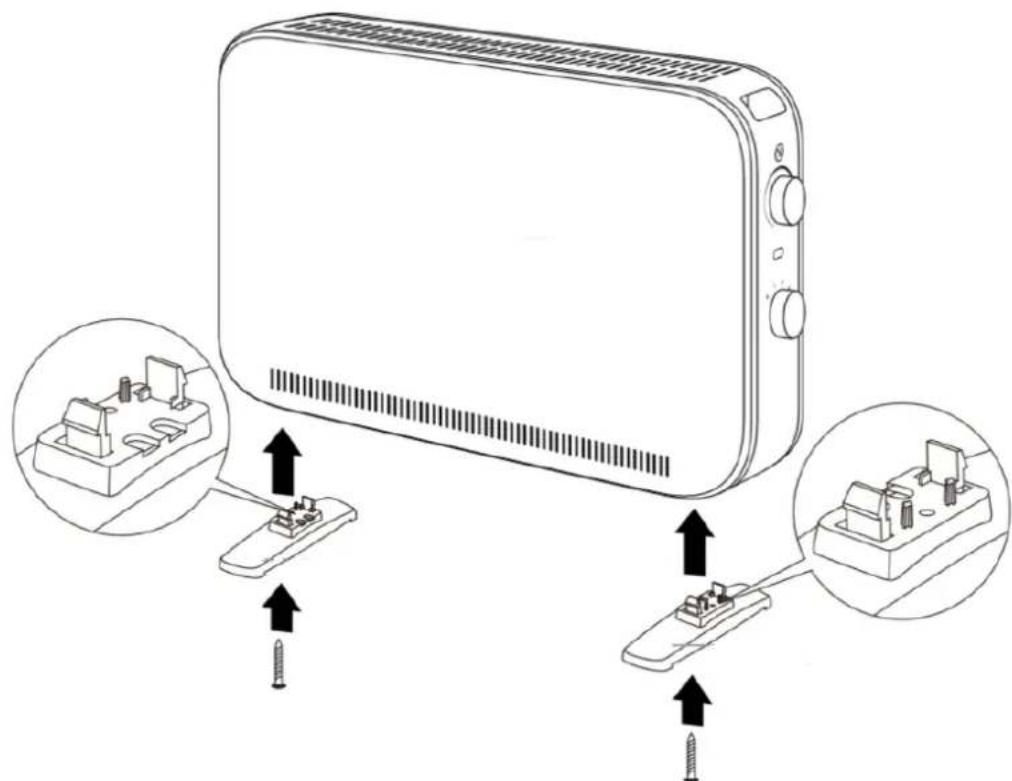

ASSEMBLY :

Unpack the radiator and accessories. Turn the convector upside-down.

Attach the 2 feet under the base according to the diagram below, push the foot firmly until it locks in place.

Insert the screw inside each foot.

Turn back the convector to the upright position

Diagram showing a device connected to two hardware components with arrows indicating assembly or connection points.

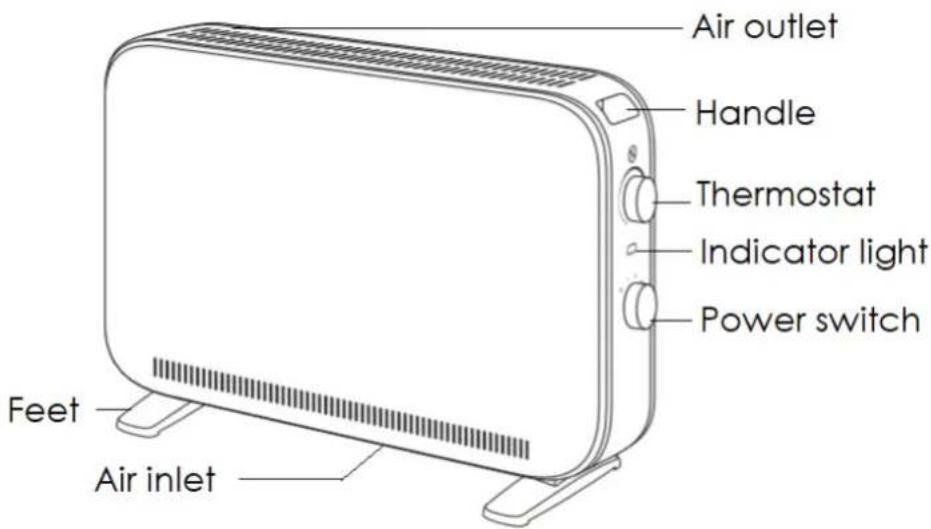

DESCRIPTION:

Air outlet Handle Thermostat Indicator light Power switch Feet Air inlet

TECHNICAL SPECIFICATIONS :

Model N° :	THCVT2000DS	Power 1	800 W
Description :	Deco portable convection heater	Power 2	1200 W
Voltage :	220-240V~50-60Hz	Power 3	2000 W

CLASS 1

This product conforms to the requirements set by directives 2014/35/EC (repealing directive 73/23/EEC amended by directive 93/68/EEC) and 2014/30/EC (repealing directive 89/336/EEC)

OPERATING:

PRECAUTIONS FOR USE

1. Before using this appliance, ensure that it is placed on a flat, stable surface.
2. Never cover or put any product on the convector when it is heating.
3. Place the heater at least 90cm from the wall, furniture or curtains.
4. Check that the voltage corresponds to that of the power supply (230v mains socket)
5. Let the heater to cool and unplug it before moving it, and use the handles to move it.

USING THE HEATER

1. The switches control the thermostat and power selection should be on OFF position, connect the radiator to the socket.

2. Switch on the heater on one of the following positions:

3. Turn the switch to 1:800 W

4. Turn the switch to 2: 1200 W

5. Turn the switch to 3: 2000 W

6. The power indicator will illuminate when the heater is operating.

7. The ambient temperature can be set by the thermostat. Turn the thermostat knob in the direction of clockwise to increase the temperature, or counterclockwise to decrease, until the desired temperature.

8. After reached the desired temperature, to maintain the temperature: turn the thermostat knob counterclockwise until the light turns off. The desired temperature will be kept constant by the thermostat function.

9. When not using this heater, return the 2 switches to their original position: 0 « OFF » and -- "MIN", and then unplug it.

10. If overheating occurs, a system limits the temperature inside the heater will automatically shut off the power supply to reduce the risk of fire.

Turn off the unit, unplug the unit from the AC outlet, and allow it to cool for at least 10 minutes. Then reconnect the heater to the power outlet and turn on the heater again.

Note: When not using the heater, please switch off the appliance and unplug it from the wall outlet.

CLEANING AND MAINTENANCE:

1. Always unplug the appliance and keep it away from any socket before cleaning.
2. To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly with a soft, dry cloth before using again.
3. Do not use any cleaning or chemical products of any kind. Do not let water enter the openings on the heater. Do not use wax or products that create a shine as they can react to heat and cause discoloration.
4. When the appliance is not being used for prolonged periods, ensure that it is fully unplugged from the socket and store in its packaging for simple storage and later use. Clean your radiator as mentioned above.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product:
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects:
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage:
(5) any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Information requirements for electric local space heaters

Model identifier: THCVT2000DS
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2,015	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output(indicative)	P_min	0	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2,015	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	eI_max	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	0	kW		single stage heat output and no room temperature control	no
In standby mode	eI_SB	0	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP12 Rue Jules Ferry, 93110 Rosny sous Bois, France

KEEP THESE INSTRUCTIONS

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.
