Brand	Blaupunkt
Model	BP1002
Category	Electric heating
Product type	Electric radiator
Power supply	220-240 V ~ 50 Hz, 16 A
Plug	Grounded plug required
Power	Variable with selector (2 levels)
Thermostat	Yes (on certain models)
Main functions	Resistance heating, on/off switch, power adjustment
Dimensions (approximate)	Approximately 40 x 30 x 20 cm
Weight (approximate)	Approximately 3 kg
Material	Metal and plastic
Safety distance	70 cm from flammable materials
Overheat protection	Yes (automatic shut-off)
Usage	Indoor only, stable surface
Children	Supervision required for under 3 years
Maintenance and cleaning	Soft cloth with non-flammable cleaner, appliance switched off and unplugged
Spare parts and repairability	Power cord replaceable by approved after-sales service
Warranty	2 years (depending on conditions)
General information	Made in China, EU compliant

Frequently Asked Questions - BP1002 BLAUPUNKT

How to properly connect the radiator?

Make sure the wall socket is grounded and the fuse is at least 16 A. Plug in the cord when the switch is in the off position.

Why is there a smell and smoke during first use?

This is normal. A smell and slight smoke may appear during the first ignition due to burning of manufacturing residues. It disappears after a few minutes.

Can I use the radiator in a bathroom?

No, it must not be used near a shower, bathtub or swimming pool. Risk of electrocution.

How to clean the appliance?

Turn off and unplug the appliance. Clean the surface with a soft cloth and non-flammable cleaner. Never use alcohol or flammable products.

What to do if the power cord is damaged?

Do not use it. Contact the approved after-sales service for replacement. Do not repair yourself.

Can the radiator be used in a child's room?

Yes, but with constant supervision. Children under 3 years must not be near. Children aged 3 to 8 can turn on/off under supervision.

How to adjust the temperature?

On models with thermostat, turn the knob to set the desired room temperature. The appliance stops automatically once reached.

Can I cover the radiator to dry laundry?

No, never cover the radiator while in operation. This can cause overheating and fire hazard.

How to store the radiator in summer?

Unplug, coil the cord, and store the appliance horizontally in a dry place.

What to do in case of breakdown?

Contact the after-sales service. Do not attempt to repair yourself. Repairs by unauthorized persons void the warranty.

USER MANUAL BP1002 BLAUPUNKT

Exterior view of a black BLAUPUNKT solar heater with visible internal grid and heat sink (no text or symbols on body)

Enjoy it.

INTRODUCCIÓN

ES

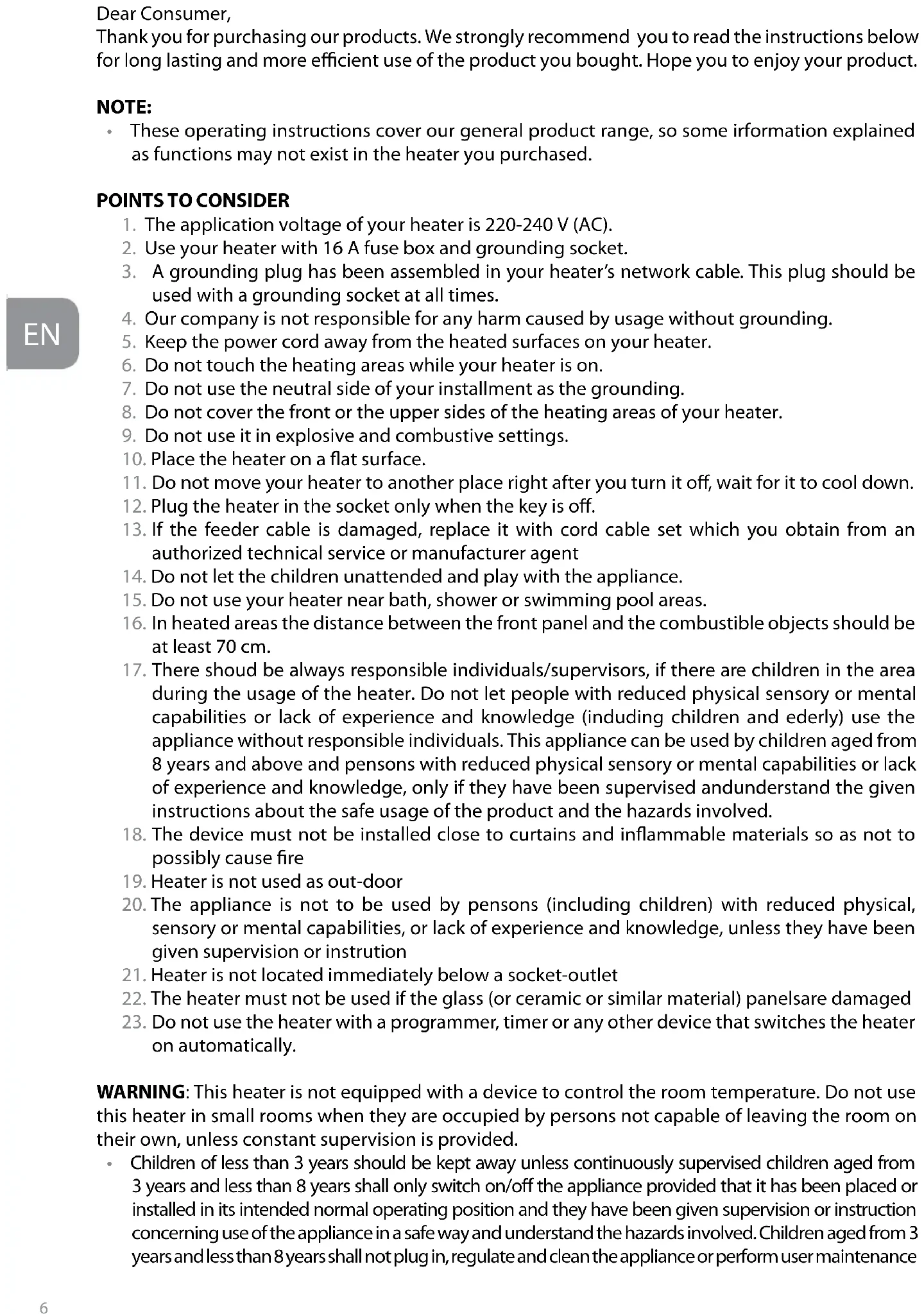

Thank you for purchasing our products. We strongly recommend you to read the instructions below for long lasting and more efficient use of the product you bought. Hope you to enjoy your product.

NOTE:

- These operating instructions cover our general product range, so some information explained as functions may not exist in the heater you purchased.

POINTS TO CONSIDER

1. The application voltage of your heater is 220-240 V (AC).
2. Use your heater with 16 A fuse box and grounding socket.
3. A grounding plug has been assembled in your heater's network cable. This plug should be used with a grounding socket at all times.
4. Our company is not responsible for any harm caused by usage without grounding.
5. Keep the power cord away from the heated surfaces on your heater.
6. Do not touch the heating areas while your heater is on.
7. Do not use the neutral side of your installment as the grounding.
8. Do not cover the front or the upper sides of the heating areas of your heater.

9. Do not use it in explosive and combustive settings.

10. Place the heater on a flat surface.

11. Do not move your heater to another place right after you turn it off, wait for it to cool down.

12. Plug the heater in the socket only when the key is off.

13. If the feeder cable is damaged, replace it with cord cable set which you obtain from an authorized technical service or manufacturer agent

14. Do not let the children unattended and play with the appliance.

15. Do not use your heater near bath, shower or swimming pool areas.

16. In heated areas the distance between the front panel and the combustible objects should be at least 70 cm.

17. There should be always responsible individuals/supervisors, if there are children in the area during the usage of the heater. Do not let people with reduced physical sensory or mental capabilities or lack of experience and knowledge (including children and elderly) use the appliance without responsible individuals. This appliance can be used by children aged from 8 years and above and pensons with reduced physical sensory or mental capabilities or lack of experience and knowledge, only if they have been supervised and understand the given instructions about the safe usage of the product and the hazards involved.

18. The device must not be installed close to curtains and inflammable materials so as not to possibly cause fire

19. Heater is not used as out-door

20. The appliance is not to be used by pensons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

21. Heater is not located immediately below a socket-outlet

22. The heater must not be used if the glass (or ceramic or similar material) panels are damaged

23. Do not use the heater with a programmer, timer or any other device that switches the heater on automatically.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- Children of less than 3 years should be kept away unless continuously supervised children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance

CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

DO NOT COVER

OPERATING

• After placing the heater on a flat surface, plug it in a grounding socket.
- There might be smoke and smell due to the first usage, but there will not be any smoke and smell the next times.
- The power switch of your heater allows it to operate in different heating powers.
- If the appliance has a thermostat, the room temperature can be adjusted according to the required thermostat degree. Do not use it without water, if the heater has steam feature.

OPERATION AND MAINTENANCE OF THE APPLIANCE

• Read the safety instructions for long lasting usage of your appliance.
• Do not switch on your heater in vertical position, do not move it while it's on.
• Please contact our authorized technical service, if there is cord damage or any other problem with the heater.
• Do not repair the heater by yourself or get unauthorized persons to fix it.
• The malfunctions that occur due to the interference of unauthorized persons or due to the misusages are not covered by the guarantee. Our company is not responsible for this kind of malfunctions. In these cases, the guarantee will be regarded as invalid even if the guarantee period has not expired. In accordance with the amount of dust and dirt, we recommend you to clean the reflective part of the appliance with a long-stemmed fine dusting brush.
• In case it is disassembled by an authorized technical service for any purpose, the appliance can be cleaned with a damp cloth that doesn't leave any dust residue. Do not use combustible and inflammable materials to clean the heater.
• Do not cover the heater when it's on. This may cause fire hazard due to the overheating of your device.
• If the heater will not be used for a long time, it is recommended to unplug the cable, wrap the appliance carefully and store it horizontally and in an appropriate dry and flat surface.
• The small heaters with double power keys: The right button is the power switch of the heater. The left button is to operate the heater in two different power types.

TO USE THE ENERGY EFFICIENTLY

Dear Customers: Please follow the recommendations below to use the heater you purchased efficiently in terms of energy consumption and in order to contribute to the energy saving of the country.

1. If possible, use your heater for heating purpose and to heat up the setting. Do not use it for other purposes (Drying Up Objects, Cooking).
2. Do not put any objects in front of the heater that block its operation and/or causes overheating.
3. In case of power blackouts, the necessary safety arrangements should be made.
4. The present electric installation of your building should be checked to ensure that it matches the electricity consumption power of the purchased appliance.
5. The power cable should be insulated and the appliance should always be plugged into grounding sockets.
6. Do not leave any combustive, inflammable, explosive materials near the heater.
7. The ampere of the fuse connected to the socket that the heater is plugged in, should be higher than appliance's ampere. If a short circuit occurs in the heater, the fuse the appliance is connected should open the circuit automatically.

CLEANING YOUR APPLIANCE

Before cleaning your make sure that the heater is off and the power cord is disconnected from the socket. If required, the surface of the appliance can be cleaned with a soft damp cloth with some remover. Never use any chemicals like alcohol and similar inflammable, combustive, explosive etc. materials for cleaning purposes.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: QUARTZ HEATER

Model: BP1002

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date:

Signature:

10 de June 2020

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
