BP1011 - Heating BLAUPUNKT - Free user manual and instructions

Product type	Oil-filled electric radiator
Brand	Blaupunkt
Model	BP1011
Power supply	220-240 V ~ 50 Hz
Power	3 levels: 1000 W, 1500 W, 2500 W
Adjustable thermostat	Yes
Number of heating elements	11 (estimated from description)
Casters for mobility	Yes, with brackets and wing nuts
Cable storage	Yes
Electrical insulation class	Requires grounded outlet
Overheat protection	Yes, do not cover the appliance
Splash water protection	Do not use near water sources
Indoor use only	Yes
Safety distance	At least 1 meter from flammable materials
Cleaning	Damp cloth, do not use chemical products
Wheel maintenance	Check the tightening of wing nuts
Repairability	Sealed oil tank, repair by authorized professional
Warranty	2 years
Country of manufacture	China for Blaupunkt
Certifications	CE, compliant with LVD and EMC directives

Frequently Asked Questions - BP1011 BLAUPUNKT

Why does my radiator emit smoke during first use?

This is normal. During first use, the appliance may emit a little smoke due to evaporation of manufacturing residues. Ensure the room is well ventilated and wait for it to stop.

How do I set the temperature?

Use the thermostat (2) to select the desired temperature. Turn the rotary selector (3) to position 1, 2, or 3 to choose the heating power. The indicator light (1) turns on when the appliance is heating.

Can I use the radiator in a bathroom?

No, it is prohibited to use this appliance near water, such as under a shower, in a bathtub, or in a filled washbasin. High humidity can cause an electric shock hazard.

What should I do if there is an oil leak?

The radiator contains sealed oil. In case of a leak, immediately contact the manufacturer or an authorized service. Do not attempt to repair it yourself.

How do I clean the radiator?

Unplug the appliance and let it cool down. Wipe with a slightly damp cloth on the surface, then dry with a dry cloth. Never use waxes, polishes, or chemical products.

Can I cover the radiator with a cloth to dry clothes?

No, never cover the radiator. This can cause overheating, damage the appliance, or cause a fire.

What distance should I keep around the radiator?

Place the radiator at least 1 meter away from flammable materials such as curtains, furniture, wallpaper, etc.

How do I mount the casters?

Turn the radiator upside down. Place the brackets with wheels between the heating elements, use the U-brackets and secure with the wing nuts. Wait at least one hour before plugging in.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by an authorized repair service to avoid any hazard.

The appliance makes noise, is that normal?

A slight clicking noise may occur when the thermostat turns on or off, this is normal. If the noise is abnormal, check that the casters are securely fastened and that the appliance is on a flat surface.

USER MANUAL BP1011 BLAUPUNKT

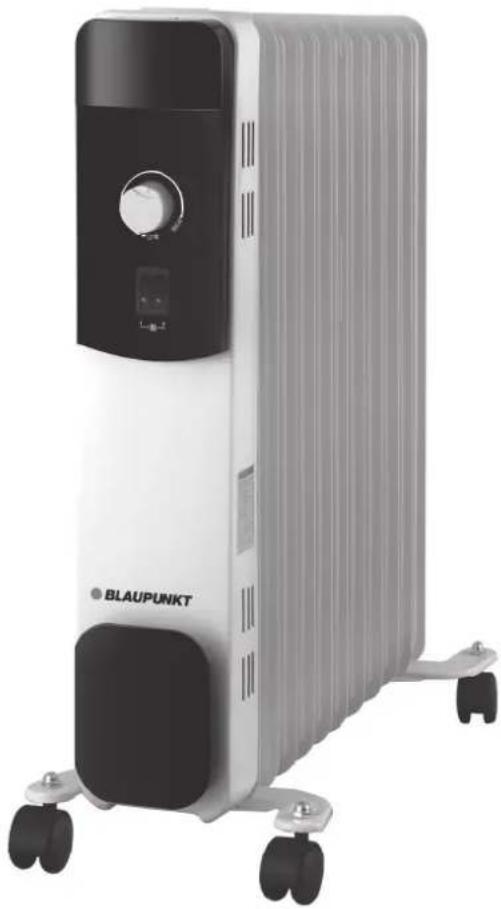

Exterior view of a BLAUPUNKT solar oil heater with black and white casing (no visible text or symbols on body)

Enjoy it.

Diagram showing a curved arrow pointing from a row of vertical bars, with no text or symbols present.

Illustration of a hand holding a pen with an upward arrow, next to a pair of eyeglasses (no text or symbols)

Illustration of a hand holding a pen, pointing to a device with circular components (no text or symbols)

Illustration of a computer monitor with a keyboard and mouse (no text or symbols)

Diagram of a mechanical device with a downward force arrow, showing internal components (no text or symbols)

ATENCIÓN:

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

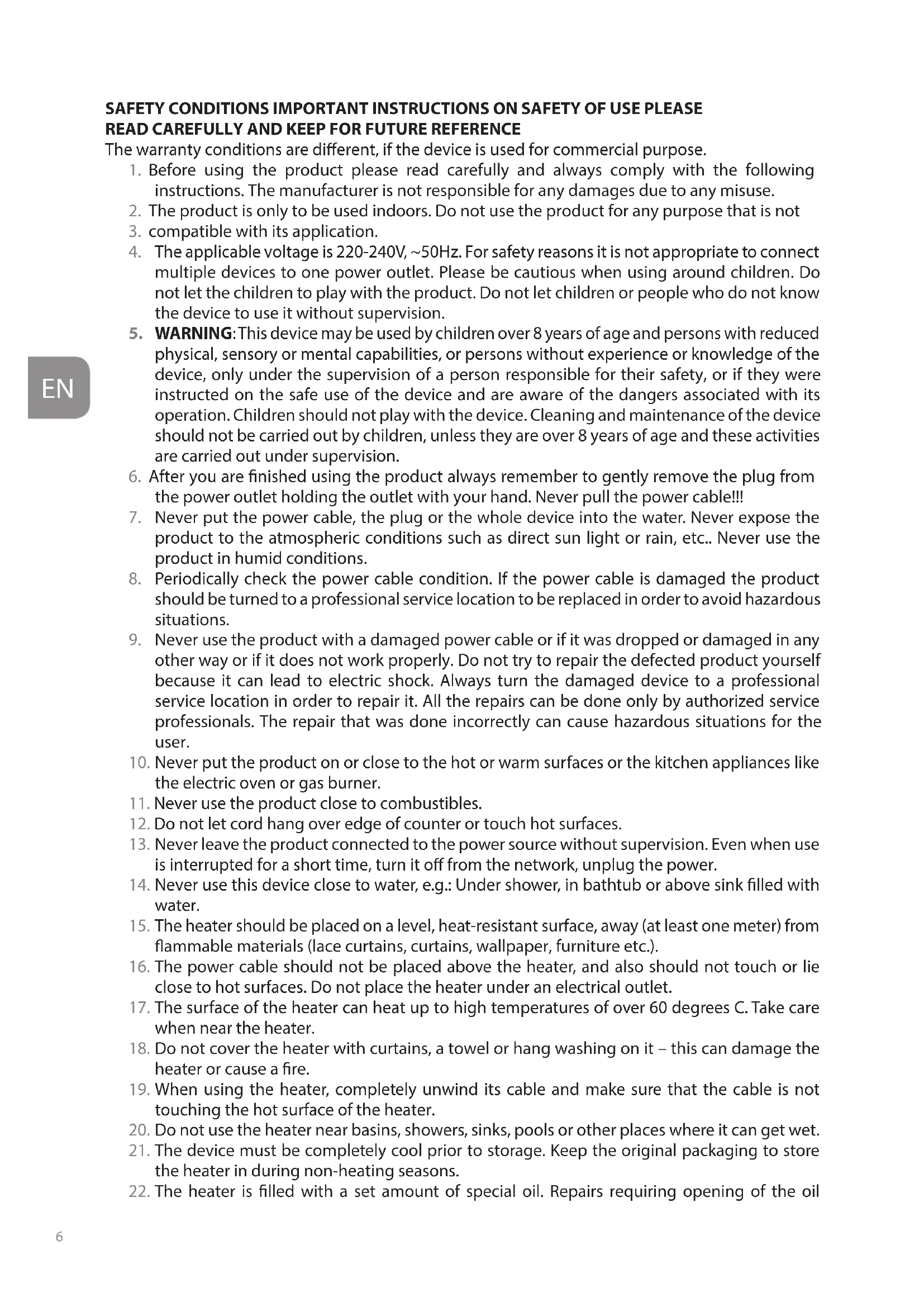

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not

3. compatible with its application.

4. The applicable voltage is 220-240V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

8. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

11. Never use the product close to combustibles.

12. Do not let cord hang over edge of counter or touch hot surfaces.

13. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

14. Never use this device close to water, e.g.: Under shower, in bathtub or above sink filled with water.

15. The heater should be placed on a level, heat-resistant surface, away (at least one meter) from flammable materials (lace curtains, curtains, wallpaper, furniture etc.).

16. The power cable should not be placed above the heater, and also should not touch or lie close to hot surfaces. Do not place the heater under an electrical outlet.

17. The surface of the heater can heat up to high temperatures of over 60 degrees C. Take care when near the heater.

18. Do not cover the heater with curtains, a towel or hang washing on it – this can damage the heater or cause a fire.

19. When using the heater, completely unwind its cable and make sure that the cable is not touching the hot surface of the heater.

20. Do not use the heater near basins, showers, sinks, pools or other places where it can get wet.

21. The device must be completely cool prior to storage. Keep the original packaging to store the heater in during non-heating seasons.

22. The heater is filled with a set amount of special oil. Repairs requiring opening of the oil

container must be carried out only by the manufacturer or authorized representative, who should be contacted if oil leaks from the heater.

1. If disposing of the heater please follow rules of oil disposal.

WARNING: To avoid overheating do not cover the heater.

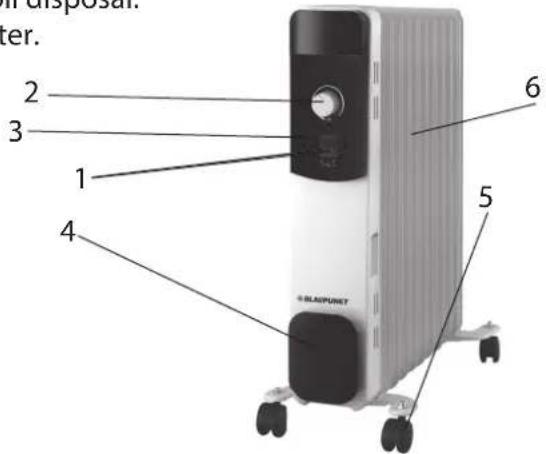

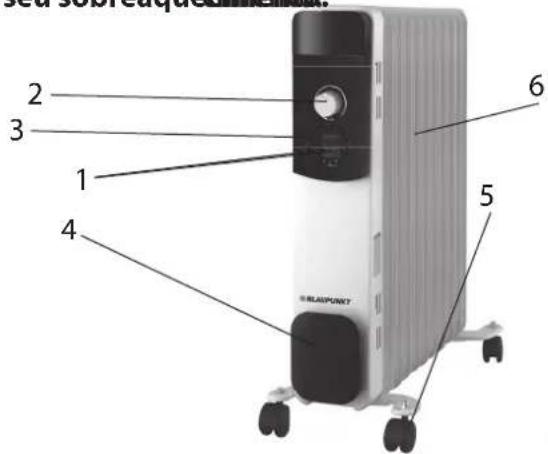

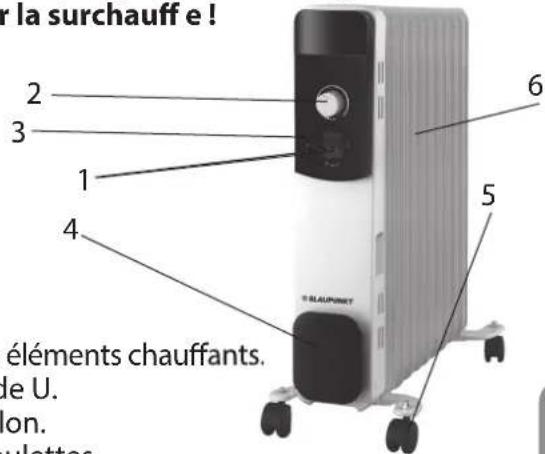

DESCRIPTION OF THE DEVICE (Fig. 1)

1. Diode indicating operation of the device
2. Thermostat control knob
3. On-switch control knob
4. Cable storage
5. Wheels
6. Ribs

ASSEMBLY (Fig. 2)

1. Turn the heater upside down.
2. Place the wheel bases between the last ribs.
3. Use the U-shaped clamp to hook the bases.
4. Block the clamp by screwing on the butterfly nut.
5. Place the heater on the wheels.

Diagram showing a hand moving through a curved arrow on a vertical structure (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, next to a pair of eyeglasses (no text or symbols)

Illustration of a hand holding a pen, pointing to a device with circular components (no text or symbols)

Illustration of a closed book with books and decorative elements (no text or symbols)

Diagram of a mechanical assembly with a tool and gear (no text or symbols)

CAUTION: After turning the heater, wait at least one hour before connecting it to a power outlet. USING THE DEVICE

CAUTION: During first use of the heater a small amount of smoke may appear. This is normal.

1. Place the oil heater a minimum of 100 cm from walls, furniture, curtains, plants etc.
2. Make sure that the on-switch control knob (3) and thermostat control knob (2) are set to '0'. Connect the oil heater to mains power.
3. Turn the heater on by turning the on-switch control knob (3) to position 1 (low heating power) or 2,3 (high heating power). Set a comfortable oil heater temperature by turning the thermostat control knob.
4. After you finish using the heater, turn it off by turning the on-switch control knob and thermostat control knob to '0' and disconnect the power cable from mains power.

CLEANING THE DEVICE

1. Prior to cleaning always remove the plug from the electrical outlet.
2. Prior to cleaning allow the heater to cool. Make sure that it is cool.

3. Wipe the heater with a damp cloth, then wipe dry.

4. Never use wax, shining agents or chemical agents to clean the heater. They may react with the device and cause discoloration or even damage.

TECHNICAL DATA

Power source: 220-240 V\~50 Hz

Power: BP1011 - 1: 1: 1000 W 2: 1500 W 3: 2500W

Device is made in class I of insulation and has to be connected only to power outlet with ground circuit.

Device is compliant with EU directives:

• Low voltage directive (LVD)
  • Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

We declare under our responsibility that the product:

Product Description: ELECTRIC OIL FILLED

RADIATOR

Model: BP1011

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position :

Date:

Signature:

Ramsons, S.A,

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certifi cate.

To receive assistance under the conditions set forth in this certifi cate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BP 1011

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

CONSIGNES DE SECURITE.

INSTRUCTIONS IMPORTANTES CONCERNANT LA SECURITE D'UTILISATION. LISEZ-LES ATTENTIVEMENT ET CONSERVEZ-LES POUR L'AVENIR"

Diagram showing a hand holding a stack of books with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Illustration of a hand holding a pen, pointing to a device with circular components (no text or symbols visible)

Simple line drawing of a computer monitor with a keyboard and mouse (no text or symbols)

Diagram of a mechanical device with a suspended component and a hanging part (no text or symbols)

DÉCLARATION DE CONFORMITÉ

Nom du fabricant: RAMSONS, S.A.

MANUAL DE INSTRUÇÕES

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

CONDIÇÕES GERAIS DE SEGURANÇA AS INSTRUÇÕES IMPORTANTES RELATIVAS À SEGURANÇA DE UTILIZAÇÃO DEVEM SER LIDAS COM ATENÇÃO E GUARDADAS PARA A POSTERIOR UTILIZAÇÃO

Diagram showing a hand moving through a curved arrow on a stepped surface (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Illustration of a hand holding a tool with an arrow pointing to a device component (no text or symbols visible)

Illustration of a closed book with a circular design on top, no visible text or symbols

Diagram of a mechanical assembly with a tool and component, no visible text or symbols

Name: Vivek Sadhwani
