Product type	Oil-filled electric radiator
Brand	Blaupunkt
Model	BP1010
Power supply	220-240 V ~ 50 Hz
Max power	2000 W (3 levels: 800 W, 1200 W, 2000 W)
Thermostat	Adjustable
Power selector	Rotary, positions 1, 2, 3
Indicator light	Indicates operation
Number of heating elements	Not specified
Castors	Yes, mounted on U-shaped brackets
Oil	Special oil, sealed filling
Insulation class	Class I (earth connection required)
Intended use	Domestic, indoor
Safety distance	At least 1 m from flammable materials
Overheating protection	Do not cover the appliance
Cleaning	Slightly damp cloth, then dry
Warranty	2 years
Manufacturing	China for Blaupunkt
Standards	CE, LVD, EMC

Frequently Asked Questions - BP1010 BLAUPUNKT

How to assemble the castors of the BP1010 radiator?

Place the radiator upside down, insert the brackets with castors between the last heating elements, use the U-shaped loops and lock with the wing nuts. Wait at least one hour before plugging in after turning it upright.

What to do if smoke comes out at first use?

This is normal. The radiator may emit a little smoke during first use. Ventilate the room and wait a few minutes.

What are the available power levels?

The BP1010 offers 3 levels: position 1 = 800 W, position 2 = 1200 W, position 3 = 2000 W. Set the rotary selector to the desired power.

How to adjust the temperature?

Turn the thermostat knob (2) to choose the temperature. The radiator will switch off automatically when the room temperature reaches the setting.

Can I use the radiator in a bathroom?

No, the radiator must not be used in damp places like the bathroom, shower, or near a sink. It is designed for indoor dry use.

Can the radiator be covered with laundry to dry?

No, never cover the radiator (curtains, towels, laundry). This could cause overheating and fire.

How to clean the radiator?

Unplug and let cool. Clean with a slightly damp cloth, then dry. Do not use chemicals, waxes, or polishes.

What to do in case of oil leakage?

Do not repair yourself. Contact the manufacturer or an approved service. Repairs to the oil tank must be done by a professional.

What safety distance should be kept?

Place the radiator at least 1 meter from walls, furniture, curtains, and other flammable materials.

How to store the radiator off-season?

Let it cool completely, clean it, then store it in its original packaging in a dry place.

USER MANUAL BP1010 BLAUPUNKT

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

Diagram showing a curved arrow pointing from a row of vertical lines, with no text or symbols present.

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Illustration of a hand holding a tool with an arrow pointing to a component (no text or symbols present)

Simple line drawing of a computer monitor with a mouse on top (no text or symbols)

Diagram of a mechanical assembly with a tool and component, no visible text or symbols

ATENCIÓN:

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

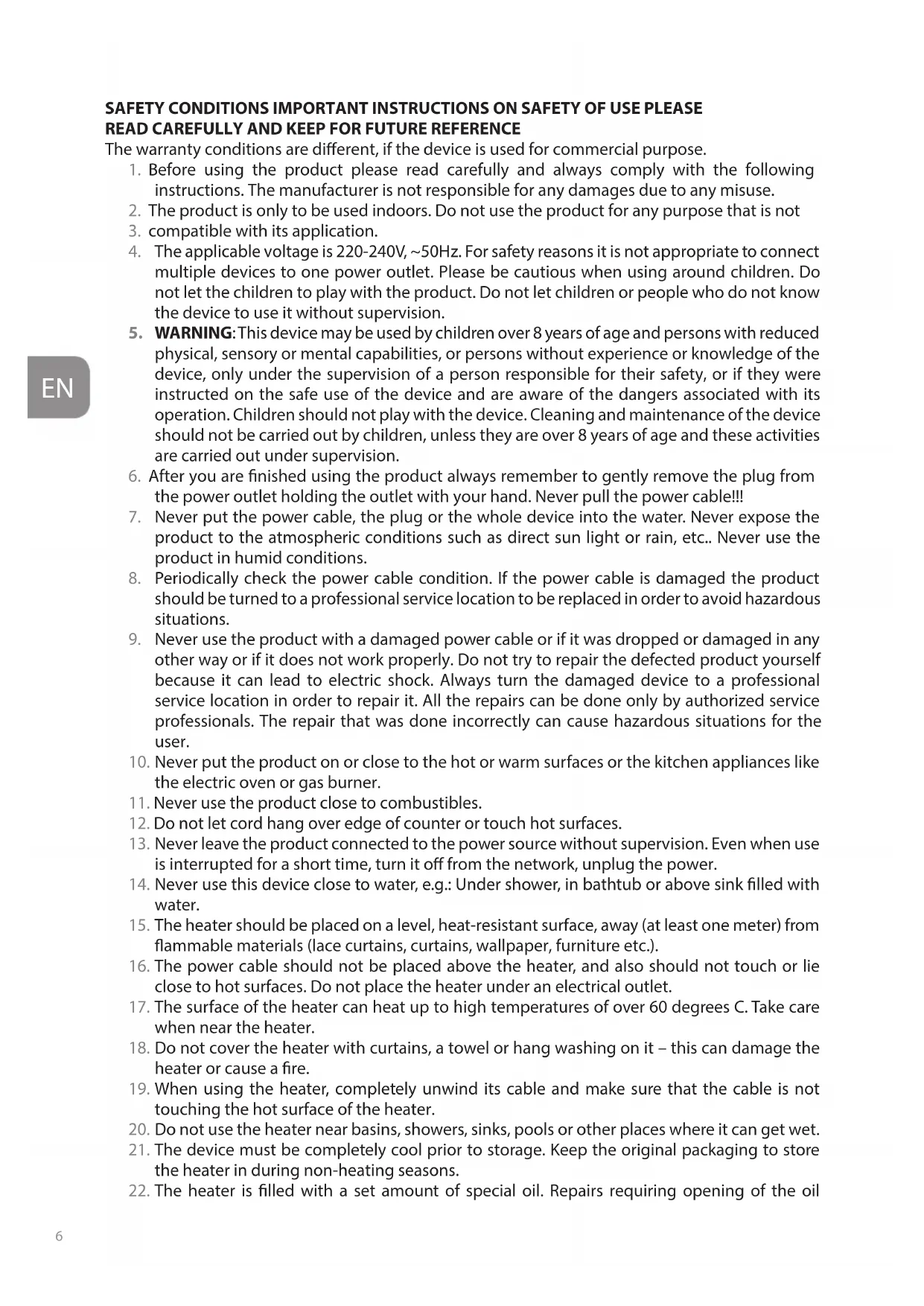

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not

3. compatible with its application.

4. The applicable voltage is 220-240V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

8. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

11. Never use the product close to combustibles.

12. Do not let cord hang over edge of counter or touch hot surfaces.

13. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

14. Never use this device close to water, e.g.: Under shower, in bathtub or above sink filled with water.

15. The heater should be placed on a level, heat-resistant surface, away (at least one meter) from flammable materials (lace curtains, curtains, wallpaper, furniture etc.).

16. The power cable should not be placed above the heater, and also should not touch or lie close to hot surfaces. Do not place the heater under an electrical outlet.

17. The surface of the heater can heat up to high temperatures of over 60 degrees C. Take care when near the heater.

18. Do not cover the heater with curtains, a towel or hang washing on it – this can damage the heater or cause a fire.

19. When using the heater, completely unwind its cable and make sure that the cable is not touching the hot surface of the heater.

20. Do not use the heater near basins, showers, sinks, pools or other places where it can get wet.

21. The device must be completely cool prior to storage. Keep the original packaging to store the heater in during non-heating seasons.

22. The heater is filled with a set amount of special oil. Repairs requiring opening of the oil

container must be carried out only by the manufacturer or authorized representative, who should be contacted if oil leaks from the heater.

1. If disposing of the heater please follow rules of oil disposal.

WARNING: To avoid overheating do not cover the heater.

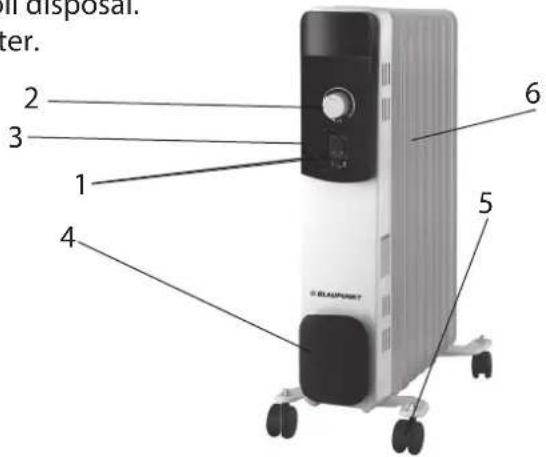

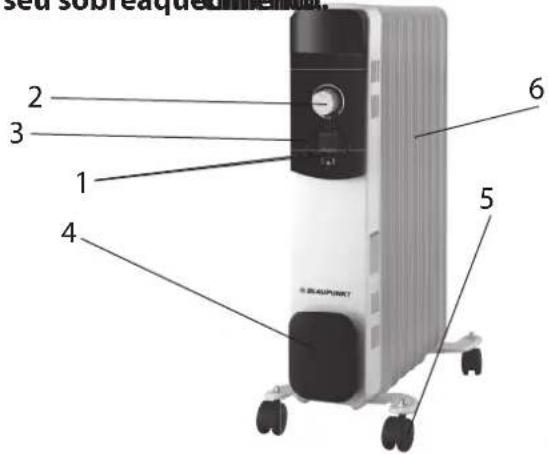

DESCRIPTION OF THE DEVICE (Fig. 1)

1. Diode indicating operation of the device
2. Thermostat control knob
3. On-switch control knob
4. Cable storage
5. Wheels
6. Ribs

ASSEMBLY (Fig. 2)

1. Turn the heater upside down.
2. Place the wheel bases between the last ribs.
3. Use the U-shaped clamp to hook the bases.
4. Block the clamp by screwing on the butterfly nut.
5. Place the heater on the wheels.

Diagram showing a hand holding a curved arrow over a grid of vertical bars (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Illustration of a hand holding a pen, pointing to a rolled document or scroll (no text or symbols visible)

Illustration of a computer monitor with a mouse on top (no text or symbols visible)

Diagram of a mechanical assembly with a tool and gear (no text or symbols)

CAUTION: After turning the heater, wait at least one hour before connecting it to a power outlet. USING THE DEVICE

CAUTION: During first use of the heater a small amount of smoke may appear. This is normal.

1. Place the oil heater a minimum of 100 cm from walls, furniture, curtains, plants etc.
2. Make sure that the on-switch control knob (3) and thermostat control knob (2) are set to '0'. Connect the oil heater to mains power.
3. Turn the heater on by turning the on-switch control knob (3) to position 1 (low heating power) or 2,3 (high heating power). Set a comfortable oil heater temperature by turning the thermostat control knob.
4. After you finish using the heater, turn it off by turning the on-switch control knob and thermostat control knob to '0' and disconnect the power cable from mains power.

CLEANING THE DEVICE

1. Prior to cleaning always remove the plug from the electrical outlet.
2. Prior to cleaning allow the heater to cool. Make sure that it is cool.

3. Wipe the heater with a damp cloth, then wipe dry.

4. Never use wax, shining agents or chemical agents to clean the heater. They may react with the device and cause discoloration or even damage.

TECHNICAL DATA

Power source: 220-240 V\~50 Hz

Power: BP1010 - 1:800 W 2:1200 W 3:2000W

Device is made in class I of insulation and has to be connected only to power outlet with ground circuit.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
Device marked CE mark on rating label

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

We declare under our responsibility that the product:

Product Description: ELECTRIC OIL FILLED

RADIATOR

Model: BP1010

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position :

Date:

Signature:

Ramsons, S.A,

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certifi cate.

To receive assistance under the conditions set forth in this certifi cate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BP 1010

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

CONSIGNES DE SECURITE.

INSTRUCTIONS IMPORTANTES CONCERNANT LA SECURITE D'UTILISATION. LISEZ-LES ATTENTIVEMENT ET CONSERVEZ-LES POUR L'AVENIR"

Diagram showing a hand holding a curved arrow over a grid of vertical lines, no text or symbols present

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Illustration of a computer monitor with a keyboard and mouse (no text or symbols)

Diagram of a mechanical device with a tool and gear assembly (no text or symbols)

DÉCLARATION DE CONFORMITÉ

Nom du fabricant: RAMSONS, S.A.

MANUAL DE INSTRUÇÕES

Exterior view of a BLAUPUNKT air conditioner unit with control panel and wheels (no visible text or symbols on body)

Enjoy it.

CONDIÇÕES GERAIS DE SEGURANÇA AS INSTRUÇÕES IMPORTANTES RELATIVAS À SEGURANÇA DE UTILIZAÇÃO DEVEM SER LIDAS COM ATENÇÃO E GUARDADAS PARA A POSTERIOR UTILIZAÇÃO

Diagram showing a hand holding a stack of books with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Illustration of a hand holding a pen, pointing to a device with a magnified view (no text or symbols)

Illustration of a computer monitor with a keyboard and mouse (no text or symbols)

Diagram of a mechanical assembly with a tool and component, no visible text or symbols
