USER MANUAL BP1007 BLAUPUNKT

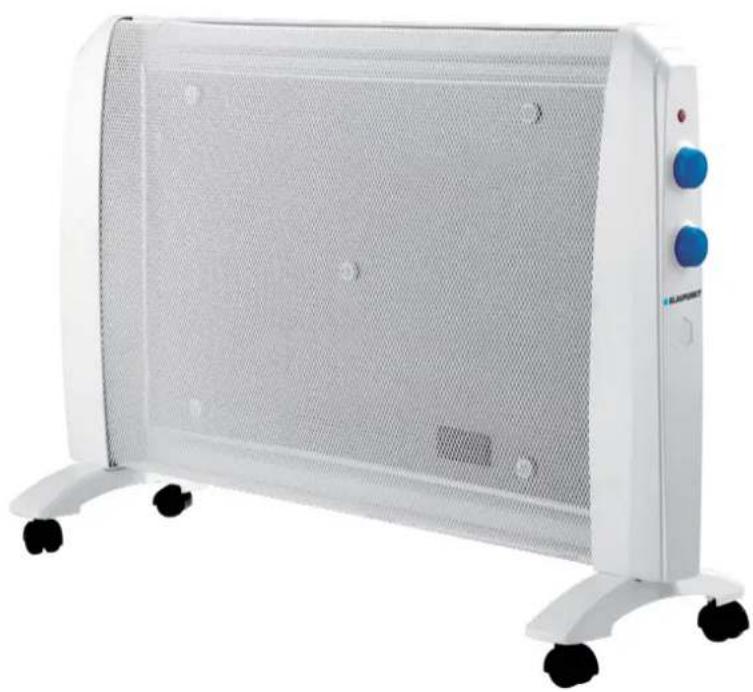

White electric heater with mesh grille and control buttons, no visible text or symbols on the device body

Enjoy it.

Pure mechanical diagram showing two connected components with no text or symbols

Simple line drawing of a mechanical lever or support structure (no text or symbols)

INSTRUCCIONES DE USO

White electric heater with gray insulation and black wheels, no visible text or symbols

Enjoy it.

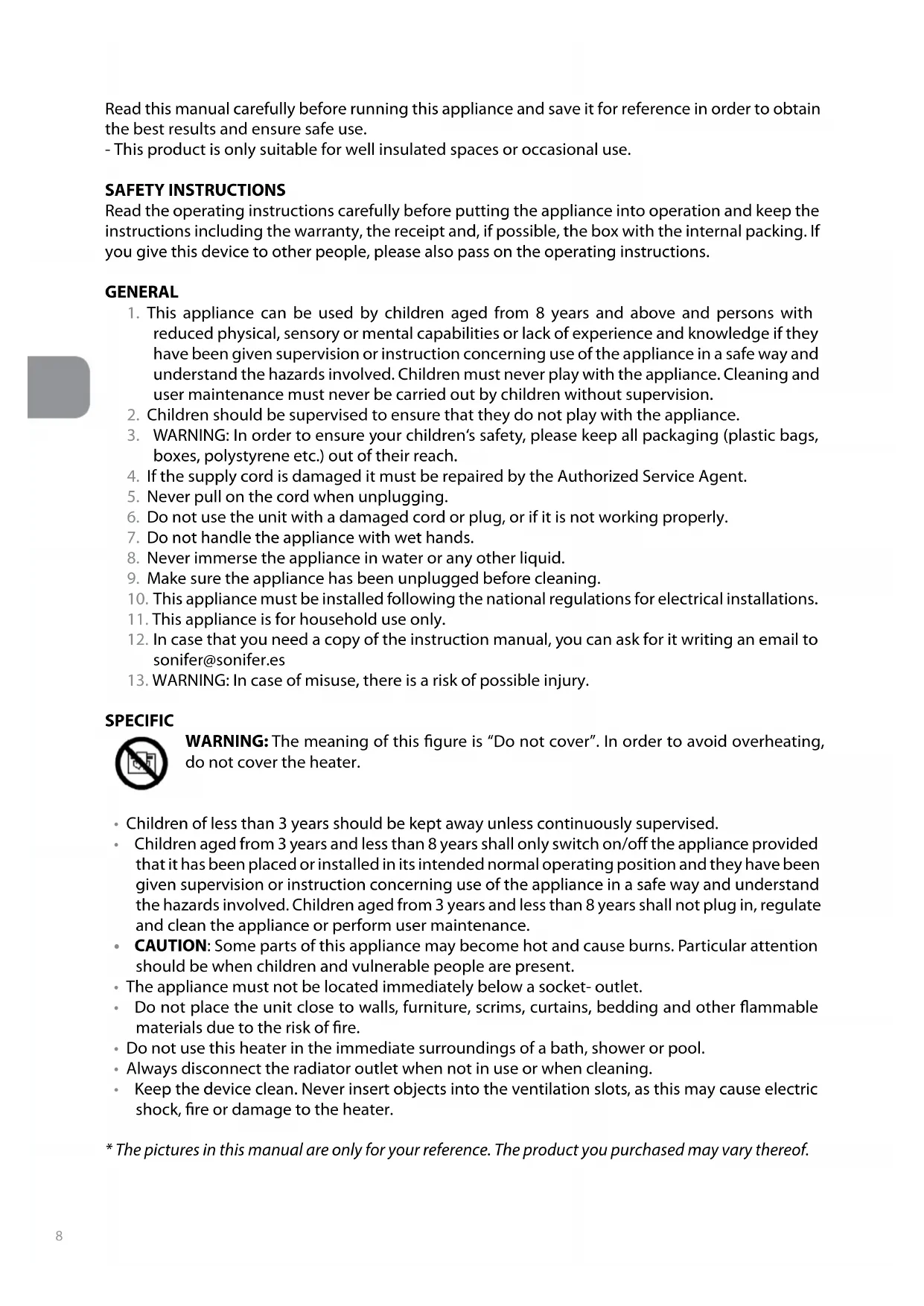

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

- This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
13. WARNING: In case of misuse, there is a risk of possible injury.

SPECIFIC

WARNING: The meaning of this figure is "Do not cover". In order to avoid overheating, do not cover the heater.

• Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- CAUTION: Some parts of this appliance may become hot and cause burns. Particular attention should be when children and vulnerable people are present.
- The appliance must not be located immediately below a socket- outlet.
- Do not place the unit close to walls, furniture, scrims, curtains, bedding and other flammable materials due to the risk of fire.
- Do not use this heater in the immediate surroundings of a bath, shower or pool.
• Always disconnect the radiator outlet when not in use or when cleaning.
- Keep the device clean. Never insert objects into the ventilation slots, as this may cause electric shock, fire or damage to the heater.

* The pictures in this manual are only for your reference. The product you purchased may vary thereof.

MOUNTING LEGS

1. Place the wheels on the brackets and click them together.
2. Place the brackets with wheels on the ends of the bottom of the unit and screw.

Technical line drawing of a mechanical component with two cylindrical parts and mounting holes (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

MANUAL

• Connect the device to the network.
• Turn the thermostat control knob in the direction of clockwise into position maximum.

• Turn the power selector to the desired position. The indicator light will illuminate.

• Position "I": Minimum power.

• Position "II": Maximum power.
• Position "0": Off.

POWERS

- When the room temperature is the desired one, turn the thermostat control counter clockwise to clockwise until the indicator light turns off. Leave the command in that position, and the thermostat will automatically maintain the selected temperature, initiating a series of connections and disconnections.

- When not using the unit, turn the power switch to "0" (OFF) and disconnect the network device.

MAINTENANCE AND CLEANING

• Before cleaning, make sure the appliance is disconnected from the network and completely cold.
• It is important to keep the grille clean. Remove any lint, dust or strange elements that hinder a correct air evacuation
  • Use a dry cloth for cleaning.
• Do not use chemical or abrasive cleaners, steel scourers, etc, which can damage the device's surfaces.

BP1007
This product is only suitable for well insulated spaces or occasional use

ITEM SYMBOL VALUE UNIT ITEM UNIT
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1000/2000 W		manual heat charge control, with integrated thermostat	YES
Minimum heat output (indicative)	P_min	1000 KW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max.c	2000 KW		electronic heat charge control with room and/or outdoor temperature feedback	NO
				Auxiliary electricity consumption
At nominal heat output	el_max	0 KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_minx	0 KW		single stage heat output and no room temperature control	YES
In standby mode	el_sb	0	W	Two or more manual stages, no room temperature control	YES
				with mechanic thermostat room temperature control	YES
				with electronic room temperature control	NO
				electronic room temperature control plus day timer	NO
				electronic room temperature control plus week timer	NO
				Other control options (multiple selections possible)
				room temperature control, with presence detection	NO
				room temperature control, with open window detection	NO
				with distance control option	NO

with adaptive start control NO
with working timelimitation	NO
with black bulb sensor NO

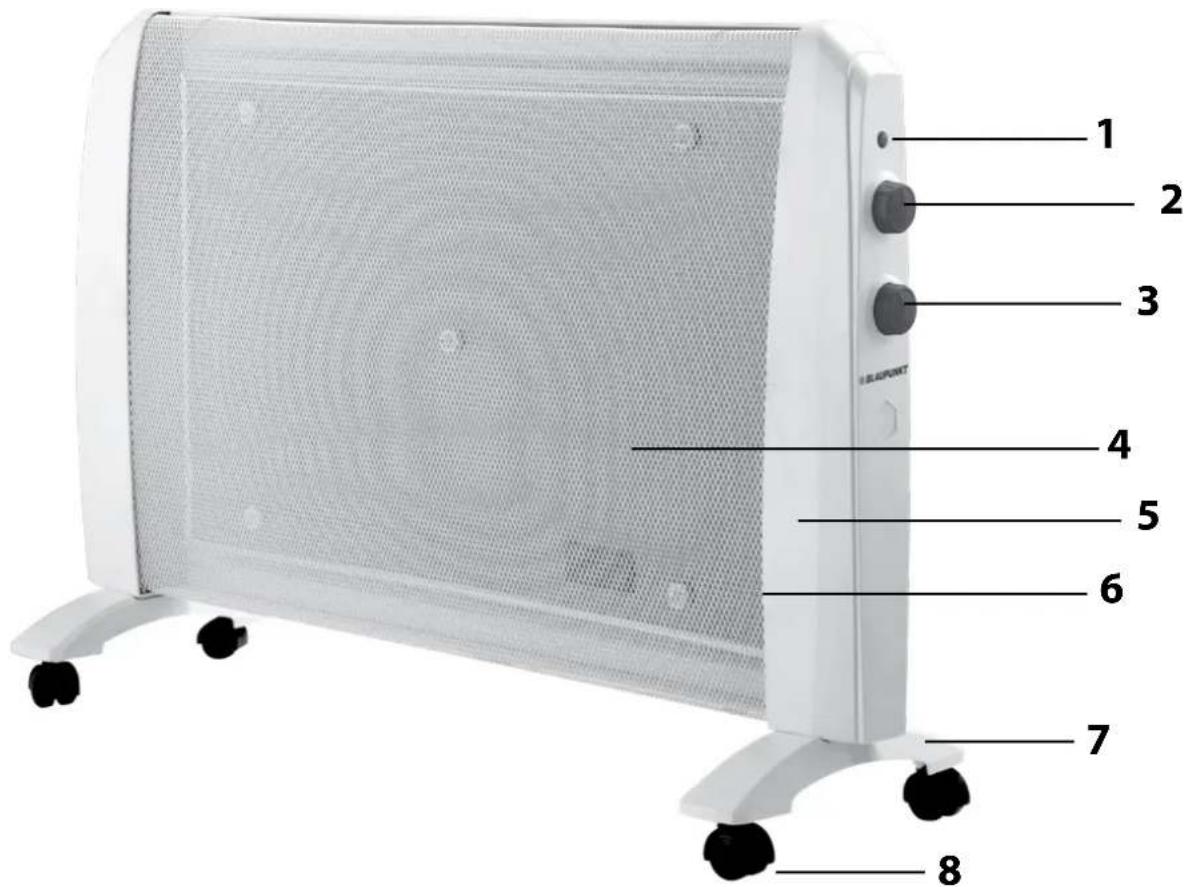

PARTS DECRIPTION

EN

1. Power light
2. Power switch
3. Thermostat
4. Mica element
5. Side panel
6. Net
7. Supporting leg
8. Wheels

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: HEATER WITH MICA PANEL

Model: BP1007

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date:

Signature:

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
