BP1004 - Heating BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	BP1004
Product type	Quartz electric heater
Total power	800 W (2 x 400 W)
Power supply	220-240 V ~ 50/60 Hz
Number of heating tubes	2
Controls	2 independent switches (upper tube and lower tube)
Reflector	Yes
Protection grille	Yes
Portable	Yes
Installation	No installation required (portable unit)
Bathroom use	Not recommended
Safety	Mandatory grounding; do not cover; do not use near water; automatic shutdown via switches
Maintenance and cleaning	Soft damp cloth with neutral detergent; do not touch quartz heating elements
Warranty	2 years
Manufacturer	Ramsons, S.A. (made in China for Blaupunkt)
Standards	EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3; complies with directives 89/336/EEC
Recycling	Do not discard with household waste; follow WEEE directive 2002/96/EC

Frequently Asked Questions - BP1004 BLAUPUNKT

How to turn on the Blaupunkt BP1004 heater?

Plug in the appliance, then press switch (1) for the upper tube and/or switch (2) for the lower tube. Each switch controls a tube independently.

Can I use this heater in the bathroom?

No, this portable electric heater is not recommended for use in the bathroom. Respect safety zones and avoid any proximity to water.

What is the total power of the BP1004?

The total power is 800 W, divided into two tubes of 400 W each. You can use one or two tubes according to your needs.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by a special cord or assembly provided by the manufacturer or its after-sales service. Do not use the appliance with a damaged cord.

How to clean the heater?

Before any cleaning, unplug the appliance. Use a soft damp cloth with a little neutral detergent. Do not use abrasive products and avoid touching the quartz heating elements.

Is the heater portable?

Yes, it is a portable unit that does not require fixed installation. Place it on a flat, clear surface, then plug it in.

What is the warranty for the Blaupunkt BP1004?

The warranty is 2 years from the date of purchase, in accordance with legislation. It covers repairs (labor and parts) in case of defect. Keep the invoice and the duly completed warranty certificate.

Can I leave the appliance on unattended?

It is not recommended to leave the appliance on unattended. Always set all switches to OFF and unplug it after use. Never cover the appliance.

How to recycle this product at end of life?

In accordance with the WEEE directive 2002/96/EC, do not discard the appliance with household waste. Take it to a collection point for recycling of electrical and electronic equipment.

What to do if the appliance does not heat?

Check that the switches are in the ON position and that the appliance is properly plugged in. If a tube does not work, it may be defective. Contact an authorized service center for repairs.

USER MANUAL BP1004 BLAUPUNKT

Exterior view of a BLAUPUNKT portable heater with mesh grille and heat screen (no visible text or symbols on device body)

Enjoy it.

INFORMACIÓN GENERAL

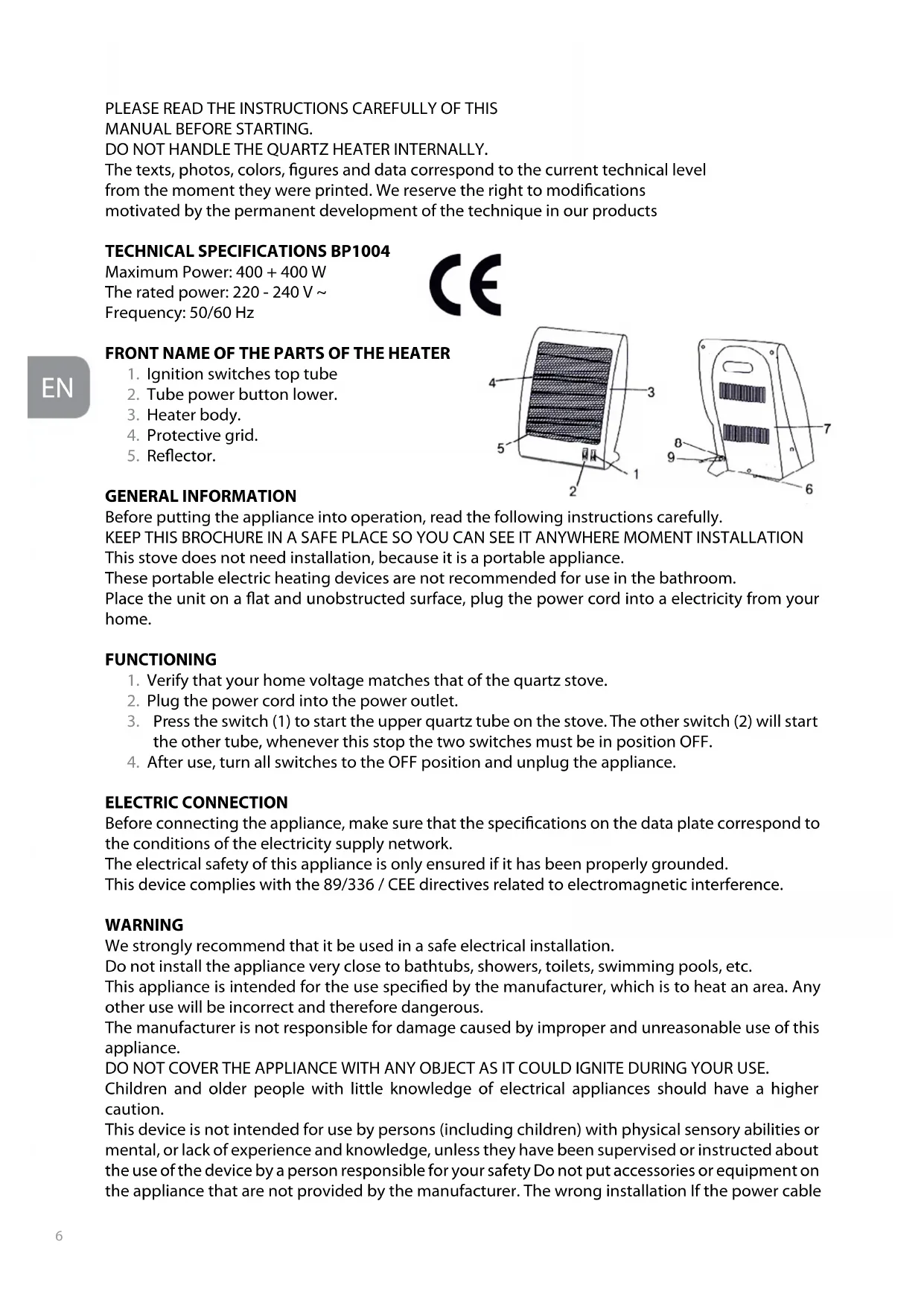

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS

MANUAL BEFORE STARTING.

DO NOT HANDLE THE QUARTZ HEATER INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they were printed. We reserve the right to modifications motivated by the permanent development of the technique in our products

TECHNICAL SPECIFICATIONS BP1004

Maximum Power: 400 + 400 W

The rated power: 220 - 240 V \~

Frequency: 50/60 Hz

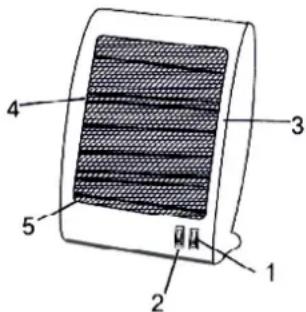

FRONT NAME OF THE PARTS OF THE HEATER

1. Ignition switches top tube
2. Tube power button lower.
3. Heater body.
4. Protective grid.
5. Reflector.

GENERAL INFORMATION

Before putting the appliance into operation, read the following instructions carefully.

KEEP THIS BROCHURE IN A SAFE PLACE SO YOU CAN SEE IT ANYWHERE MOMENT INSTALLATION

This stove does not need installation, because it is a portable appliance.

These portable electric heating devices are not recommended for use in the bathroom.

Place the unit on a flat and unobstructed surface, plug the power cord into a electricity from your home.

FUNCTIONING

1. Verify that your home voltage matches that of the quartz stove.
2. Plug the power cord into the power outlet.
3. Press the switch (1) to start the upper quartz tube on the stove. The other switch (2) will start the other tube, whenever this stop the two switches must be in position OFF.
4. After use, turn all switches to the OFF position and unplug the appliance.

ELECTRIC CONNECTION

Before connecting the appliance, make sure that the specifications on the data plate correspond to the conditions of the electricity supply network.

The electrical safety of this appliance is only ensured if it has been properly grounded.

This device complies with the 89/336 / CEE directives related to electromagnetic interference.

WARNING

We strongly recommend that it be used in a safe electrical installation.

Do not install the appliance very close to bathtubs, showers, toilets, swimming pools, etc.

This appliance is intended for the use specified by the manufacturer, which is to heat an area. Any other use will be incorrect and therefore dangerous.

The manufacturer is not responsible for damage caused by improper and unreasonable use of this appliance.

DO NOT COVER THE APPLIANCE WITH ANY OBJECT AS IT COULD IGNITE DURING YOUR USE.

Children and older people with little knowledge of electrical appliances should have a higher caution.

This device is not intended for use by persons (including children) with physical sensory abilities or mental, or lack of experience and knowledge, unless they have been supervised or instructed about the use of the device by a person responsible for your safety. Do not put accessories or equipment on the appliance that are not provided by the manufacturer. The wrong installation If the power cable

is damaged, it must be replaced by a special cable or assembly to be supplied by the manufacturer or its after-sales service, can cause damage to people or animals or damage objects.

Do not install the appliance under a light or a fixed electrical outlet.

Avoid installation behind a door.

INSTALLATION

Keep a reasonable distance between the appliance and the wall and objects. Minimum distances. Whenever the appliance is installed in a bathroom, it will be necessary to respect the safety zone required by around it.

Do not install the appliance in such a way that heat rays directly hit the wall or adjacent objects.

ELECTRIC CONNECTION

THIS APPLIANCE MUST BE EARTHED.

This appliance is intended for fixed installation, that is, with a permanent electrical connection. The power cable must have electricity consumption. Material: PVC NR, 3 wires (neutral, live, ground). Section: 1mm (minimum), Tube / Sheath: 10mm (maximum diameter).

INSTRUCTIONS FOR USE

Do not worry if you notice slight vibrations when turning on the appliance, which will gradually disappear.

It is normal in the operation of the device.

CLEANING AND MAINTENANCE

Before undertaking any maintenance, disconnect the appliance from the outlet.

This appliance does not require special maintenance. For cleaning it is recommended to use a soft cloth and moistened with a little neutral detergent. Do not use abrasive products or other means that could alter the external appearance of the device. Check that the parts exposed to heat rays do not contain dust or dirt.

During cleaning, avoid touching the quartz heating elements.

This appliance should not be used by children from 0 to 8 years old. This appliance can be used by children from 8 years. and above if they are continuously supervised. This appliance can be used by people with physical, sensory, or mental impairment or lack of experience and knowledge if given supervision or instruction on the use of the ventilator in a safe way and understand the risks involved. Keep the appliance and its cord out of the reach of children. children under 8 years. Cleaning and user maintenance must not be carried out by children.

Children should be supervised to ensure that they play with the device.

In the event of breakage and / or malfunction of the appliance, disconnect it from the socket and contact your authorized center. Always ask for replacement original parts.

If the user does not read these instructions, both the safety of the device and its guarantee will be voided.

Before undertaking any maintenance, disconnect the appliance from the outlet.

Never touch quartz tubes with your hands or attempt to clean them as they break.

Never immerse the halogen stove in water or any other liquid.

This appliance does not require special maintenance.

For cleaning, the use of a soft, damp cloth is recommended.

with a little neutral detergent. Do not use abrasive products or other means that can alter the external appearance of the device.

Check that the parts exposed to heat rays do not contain dust or dirt. During cleaning, avoid touching the quartz heating elements.

In the event of breakage and / or malfunction of the appliance, disconnect it from the socket and contact your authorized center.

Failure to follow these instructions may compromise the safety of the appliance and void the warranty.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: QUARTZ HEATER

Model: BP1004

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date:

Signature:

10 de June 2020

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
