USER MANUAL BP1003 BLAUPUNKT

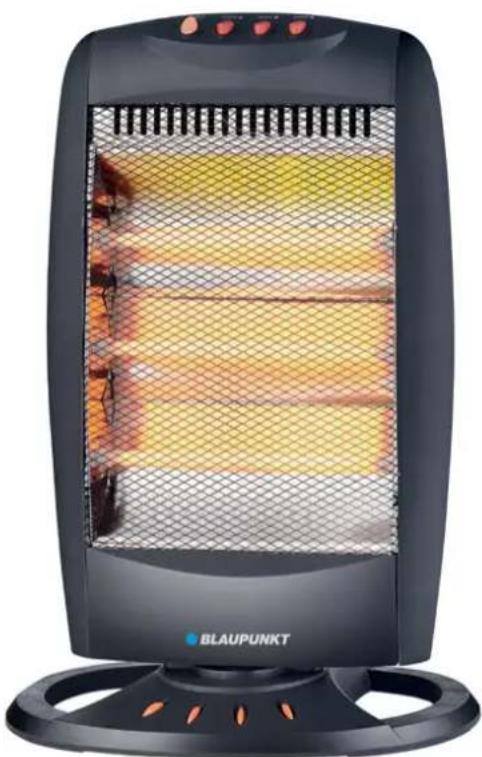

Exterior view of a black horizontal solar thermal heater with visible heat dissipation (no text or symbols)

Enjoy it.

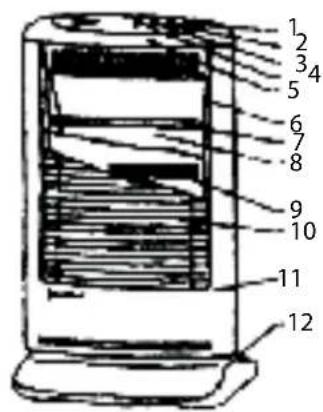

Labeled diagram of a mechanical or electronic component with numbered parts from 1 to 12

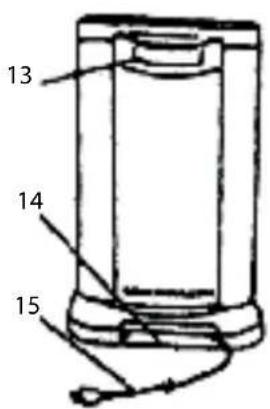

13 14 15

Illustration of a portable electronic device with a fan and cable, labeled '16' (no text or symbols on the device itself)

INSTRUCCIONES DE MONTAJE

Black horizontal thermal heater with heat dissipation panel, labeled 'BLAUPUNKT' (no other text or symbols visible)

Enjoy it.

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING.

DO NOT HANDLE THE QUARTZ HEATER INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they were printed. We reserve the right to modifications motivated by the permanent development of the technique in our products.

TECHNICAL SPECIFICATIONS BP1003

Potencia: 1200 W

Voltaje: 220 - 240 V \~

Frecuencia: 50 Hz

EN

PARTS DECRIPCIÓN

1. Middle tube switch

2. Switch

3. Switch

4. Switch

5. Oscillation switch

6. Tapa superior

7. Grill

8. Tube

9. Reflector

10. Grill

11. Grill

12. Body

13. Base

14. Handle

15. Cable

16. Cable

Technical diagram of a device with numbered components, likely a control or storage unit.

13 14 15

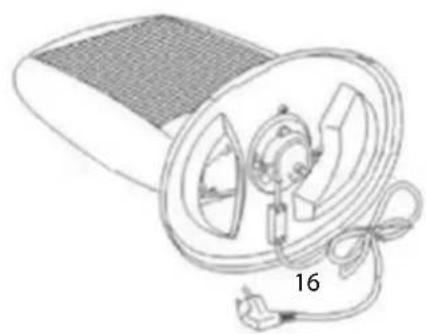

Line drawing of a portable electronic device with a coiled cable and plug, labeled '16' (no text or symbols on the device itself)

INTRODUCTION

• Before using your new heater, please carefully read through the following instructions. KEEP THIS BOOKLET IN A SAFE PLACE SO THAT YOU MAY CONSULT IT LATER.
  • After removing the packaging, make sure that the appliance is in good condition.
• The packaging materials may contain plastic, nails etc., which may be hazardous and therefore should not be left within the reach of children.

IMPORTANT SAFETY INFORMATION

• Avoid installation behind a door.
• Use only the voltage specified on the rating plate of the heater.
• Do not cover or restrict airflow to the inlet or exhaust grilles in any manner as the appliance may overheat and become a fire risk (for Heaters).
• Do not cover grilles, block entry or exhaust of airflow by placing appliance against any surface. Keep all objects at least 1 metre from the front, sides and rear of the appliance. With exception of appliances designed for wall-mounting, maintain a 1 metre gap from the rear of the unit as well.

WARNING: FIRE RISK EXISTS IF THE HEATER IS COVERED BY OR POSITIONED CLOSE TO CURTAINS OR OTHER COMBUSTIBLE MATERIALS

• Do not place appliance close to a radiant heat source.
• Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
• This appliance heats up when in use. To avoid burns, do not let bare skin touch hot surfaces. Switch off and use handles where provided when moving.

- Do not use the appliance to dry clothes.

- Do not leave the appliance unattended whilst in use.

- Do not insert or allow foreign objects enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.

- Do not immerse in liquid or allow liquid to run into the interior of the appliance, as this could create an electrical shock hazard.

- Do not use this appliance on a wet surface, or where it can fall or be pushed into water.

- Do not reach for an appliance that has fallen into water. Switch off at supply and unplug immediately.

- Do not operate any appliance with a damaged cord, plug or after the appliance malfunction or has been dropped or damaged in any manner. Return to a qualified electrical person for examination, electrical or mechanical adjustment, service or repair before further use.

- Do not operate appliance with wet hands.

- This appliance is intended for household use only and not for commercial or industrial use.

- Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.

- A common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum-cleaning air vents and grilles, where available.

- Do not use this appliance in a window as rain may cause electric shock.

- Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.

- Do not connect the appliance to the mains source until it has been installed in its final location

and adjusted to the position it will be used in.

- This appliance is not intended for use in bathrooms, laundry or similar locations which may be exposed to water, moisture or humidity.

• Always operate on a flat horizontal surface.

- Switch off the appliance, then use handles (where provided) to change its position.

- Do not operate with the cord coiled up as this could cause a build up of heat, which could pose a hazard.

- The use of an extension cord with this appliance is not recommended.

- Do not remove the power plug from the socket by pulling the cord - grip the plug instead.

• Always unplug appliance when not in use.

- Do not allow cord to come in contact with heated surfaces during operation.

- Do not run cord under carpeting, throw rugs or runners etc. Arrange cord away from areas where it is likely to be tripped over.

- Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that the cord has been fully removed from any cord storage area before use.

- Do not store appliance in a box or closed space until it has cooled down sufficiently.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Young children should be supervised to ensure they do not play with the appliance.

- The appliance must not be located immediately below a socket-outlet.

- Do not use this appliance with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the appliance is covered or positioned incorrectly.

- If the supply cord is damaged, it must be replaced by a qualified electrical person in order to avoid a hazard.

- Do not use this appliance outdoors, or on wet surfaces. Avoid spilling liquid on the appliance.

- In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- For additional protection, the use of a Residual Current Device (RCD) with a tripping current not exceeding 30mA is recommended.

ASSEMBLY

1. Assemble the body frame and the base plate together as follows.

2. Remove the mounting screws from the base.

3. Insert the power cord through the slot placed in the middle of the base and then assemble the body frame to the base plate.

4. Secure the body frame to the base plate by means of the two mounting screws previously removed. Insert the power cord through the suitable slots and then clamp shut.

OPERATION

1. Place the product in an upright position on a flat, steady, stable, heat-resistant surface. Make sure there is nothing flammable or heat sensitive nearby (within 1 metre all around).

2. Select the desired power setting by turning on one or more of the heat switches (400W each). Press the Turn switch to start oscillation. Press it again to switch off the oscillation of the appliance.

TIP-OVER PROTECTION

This heater is protected with a safety switch that turns off the appliance automatically when the heater falls over, or is at an excessive angle from the horizontal. This helps prevent accidents, and the heater will resume operation when it is put back upright.

MAINTENANCE

1. This heater should be cleaned regularly.
2. First, disconnect the power plug and allow the heater to cool, then wipe it with a soft cloth lightly dampened with water (not dripping wet). Do not use detergent or abrasives.
3. Do not scrape the surfaces with sharp hard tools.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: QUARTZ HEATER

Model: BP1003

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date:

Signature:

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol “container with wheels” crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BP 1003

CHAUFFAGE À QUARTZ

MANUEL D'UTILISATEUR

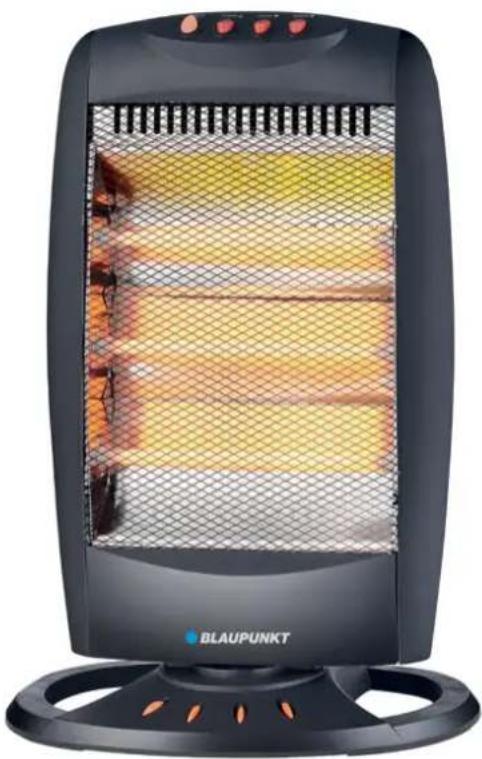

Black rectangular solar thermal heater with heat dissipation panel, no visible text or symbols on the device itself.

Enjoy it.

MERCI DE LIRE ATTENTIVEMENT LES INSTRUCTIONS DE CE MANUEL AVANT DE METTRE EN ROUTE L'APPAREIL. NE TOUCHEZ PAS L'INTÉRIEUR DU CHAUFFAGE.

Technical diagram of a device with numbered components, likely a mechanical or electrical component.

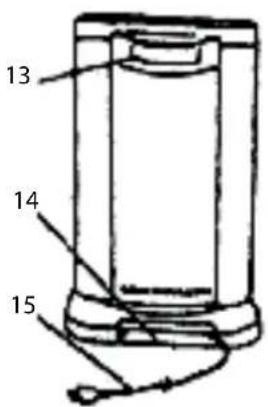

13 14 15

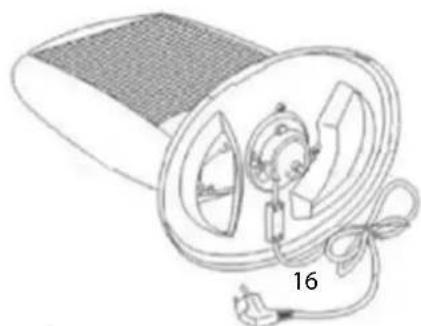

Line drawing of a portable electronic device with a coiled cable and plug, labeled '16' (no text or symbols on the device itself)

INTRODUCTION

DÉCLARATION DE CONFORMITÉ

Nom du fabricant: RAMSONS, S.A.

MANUAL DE INSTRUÇÕES

Black horizontal portable solar heating unit with visible heat dissipation and red indicator lights (no text or symbols on main body)

Enjoy it.

PT

Labeled diagram of a device interior with numbered components for identification

13 14 15

Line drawing of a portable air conditioner unit with attached cables and a grid panel (no text or symbols)

Name: Vivek Sadhwani
