USER MANUAL WIFILRW10E27 NEDIS

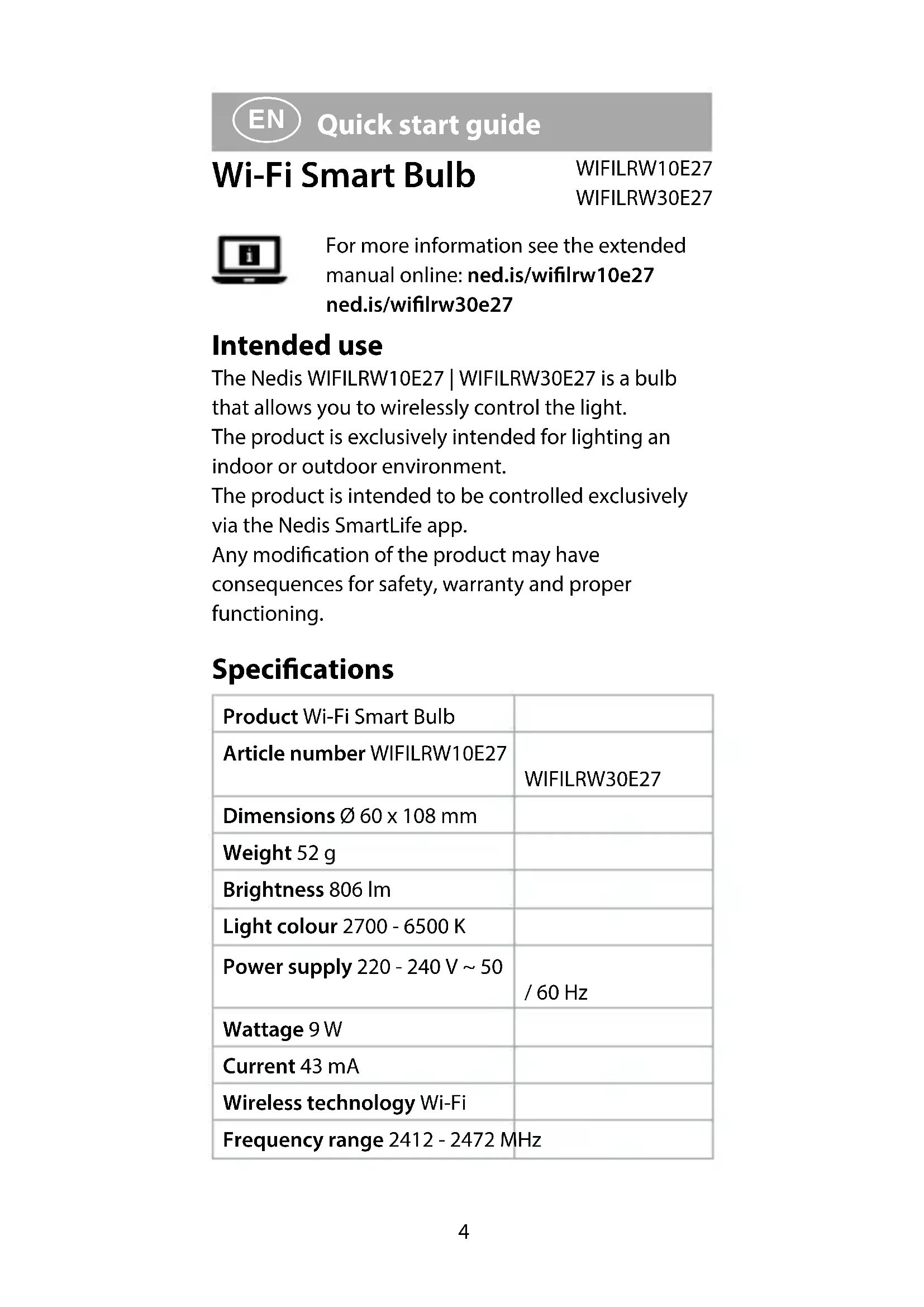

Quick start guide Wi-Fi Smart Bulb WIFILRW10E27 WIFILRW30E27 For more information see the extended manual online: ned.is/wilrw10e27 ned.is/wilrw30e27 Intended use The Nedis WIFILRW10E27 | WIFILRW30E27 is a bulb that allows you to wirelessly control the light. The product is exclusively intended for lighting an indoor or outdoor environment. The product is intended to be controlled exclusively via the Nedis SmartLife app. Any modication of the product may have consequences for safety, warranty and proper functioning. Specications Product Wi-Fi Smart Bulb Article number WIFILRW10E27 WIFILRW30E27 Dimensions Ø 60 x 108 mm Weight 52 g Brightness 806 lm Light colour 2700 - 6500 K Power supply 220 - 240 V ~ 50 / 60 Hz Wattage 9 W Current 43 mA Wireless technology Wi-Fi Frequency range 2412 - 2472 MHz5 Max. radio transmit power 16 dBm Fitting E27 Material Plastic Main parts (image A) 1 Bulb 2 Electric contact Safety instructions

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

• Only use the product as described in this document.

• Do not use a damaged product.

• Do not expose the product to water or moisture.

• Do not drop the product and avoid bumping. Installation of the Nedis SmartLife app

1. Download the Nedis SmartLife app for Android or

iOS on your phone via Google Play or the Apple App Store.

2. Open the Nedis SmartLife app on your phone.

3. Create an account with your mobile phone number

or your e-mail address and tap Continue.

4. Enter the received verication code.

5. Create a password and tap Done.

6. Tap Add Home to create a SmartLife Home.

7. Set your location, choose the rooms you want to

connect with and tap Done. Installing the product (image B) 1 Control tile 2 Common functions 3 Add product 4 On / o button6

1. Screw the lamp into an E27 tting.

2. Turn on the lamp.

4. Under Search Device, select the lamp from the list

of available devices.

5. Check if the lamp is blinking. If so, tap to conrm.

If the lamp does not blink, turn the lamp o and on 3 times and check again.

6. Enter the password of the 2,4 GHz Wi-Fi network to

which your phone is connected and tap Conrm. The Nedis SmartLife app will now search for the lamp.

7. Rename the lamp after it has been found and

If the regular connection method fails, the lamp can be connected using AP mode: a. Tap + B

b. Select the lamp from the list of available devices. c. Select AP Mode in the top right corner. d. Turn the lamp o and on 3 times and check that the light starts blinking slowly. e. Follow the steps in the application. Using the product The product can be controlled from any distance using the Nedis SmartLife app. The home menu of the Nedis SmartLife app shows a control tile for each connected lamp and/or group.

The product can be connected to Google Home or Amazon Alexa to enable speech control.

The product can be connected to IFTTT to enable external conditions to trigger the lamp.

See our support webpage to discover all possibilities of this Nedis® product.7 Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product WIFILRW10E27 | WIFILRW30E27 from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:nedis.com/wilrw10e27#supportnedis.com/wilrw30e27#supportFor additional information regarding the compliance, contact the customer service:Web: www.nedis.comE-mail: [e-mail] B.V., de Tweeling 285215 MC ’s-Hertogenbosch, the Netherlands

4. Under Search Device, select the lamp from the list of available devices.5. Check if the lamp is blinking. If so, tap to conrm. If the lamp does not blink, turn the lamp o and on 3 times and check again.6. Enter the password of the 2,4 GHz Wi-Fi network to which your phone is connected and tap Conrm. The Nedis SmartLife app will now search for the lamp.7. Rename the lamp after it has been found and added. If the regular connection method fails, the lamp can be connected using AP mode:a. Tap + B
