Product type	Smart Wi-Fi bulb
Brand	Nedis
Model	WIFILRC10E14
Dimensions	∅ 37 x 106 mm
Weight	30 g
Brightness	470 lm
Color temperature	RGB + 2700 - 6500 K
Base	E14
Power supply	220 - 240 V ~ 50/60 Hz, 5 W
Current	43 mA
Wireless technology	Wi-Fi 2.4 GHz (2412 - 2472 MHz)
Transmission range	Up to 30 m (indoor)
Material	Plastic
Control app	Nedis SmartLife (iOS/Android)
Compatible voice assistants	Google Home, Amazon Alexa
Automation	Compatible IFTTT
Installation	Screw into an E14 base, pair via the app
Safety	Do not expose to water or humidity
Care and cleaning	Wipe with a dry, non-abrasive cloth
Spare parts and repairability	Not applicable - non-repairable product

Frequently Asked Questions - WIFILRC10E14 NEDIS

How to install the Nedis WIFILRC10E14 bulb?

Screw the bulb into an E14 base, turn it on, then open the Nedis SmartLife app. Press the + button and follow the instructions to connect the bulb to your 2.4 GHz Wi-Fi network.

The bulb does not blink during setup, what to do?

Turn the bulb off and on three times in a row. It should then blink. If not, switch to AP mode in the app: press +, select the bulb, then choose AP mode at the top right and repeat the procedure.

Can I use the bulb with Amazon Alexa or Google Home?

Yes, the bulb is compatible with Google Home and Amazon Alexa. After connecting it to the Nedis SmartLife app, link your account in the voice assistant and sync your devices.

What is the color temperature of the bulb?

The bulb offers a range of RGB colors and an adjustable white temperature from 2700 K (warm white) to 6500 K (cool white).

Can I control the bulb remotely?

Yes, thanks to the Wi-Fi connection, you can control the bulb from anywhere via the Nedis SmartLife app, provided your phone and the bulb are connected to the Internet.

How to reset the bulb to factory settings?

To reset the bulb, turn it off and on three times quickly. It will blink to indicate it is in pairing mode. You can then reconnect it via the app.

What type of base is required?

The bulb uses an E14 base (small screw). Make sure your fixture is compatible with this type of base.

What is the equivalent wattage of this LED bulb?

With a consumption of only 5 W, the bulb offers a luminous flux of 470 lumens, which corresponds approximately to a 40 W incandescent bulb.

Can I create routines with the bulb?

Yes, via the Nedis SmartLife app or IFTTT, you can create routines (automatic turn on at sunset, timer, etc.). The bulb is also compatible with Google Home and Alexa scenes.

Does the bulb require a hub or gateway?

No, the bulb connects directly to your 2.4 GHz Wi-Fi network. No additional hub is needed. Just make sure you have a Wi-Fi router operating at 2.4 GHz.

USER MANUAL WIFILRC10E14 NEDIS

full colour and warm

to cool white

WIFILRC10E14

WIFILRW10E14

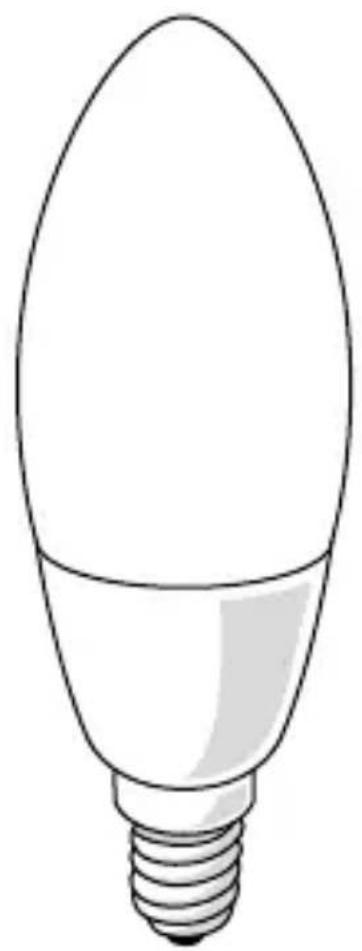

Line drawing of a standard incandescent light bulb with a pointed tip and screw base (no text or symbols)

Quick start guide 4

Kurzanleitung 8

For more information see the extended

manual online: ned.is/wifilrc10e14

ned.is/wifilrw10e14

Intended use

The Nedis WIFILRC10E14 | WIFILRW10E14 is a bulb that allows you to wirelessly control the light.

The product is exclusively intended for lighting an indoor or outdoor environment.

The product is intended to be controlled exclusively via the Nedis SmartLife app.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Wi-Fi Smart Bulb
Dimensions ∅ 37 x 106 mm
Weight 30 g
Brightness 470 lm
Power supply 220 - 240 V ~ 50	/ 60 Hz
Wattage 5 W
Current 43 mA
Wireless technology Wi-Fi
Frequency range 2412 - 2472 MHz
Max. radio transmit power 17.87 dBm
Fitting E14
Material Plastic
Article number Light colour
WIFILRC10E14 RGB +	2700 - 6500 K
WIFILRW10E14 2700 - 6500 K

Main parts (image A)

1 Bulb

2 Electric contact

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use a damaged product.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.

Installation of the Nedis SmartLife app

1. Download the Nedis SmartLife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis SmartLife app on your phone.
3. Create an account with your mobile phone number or your e-mail address and tap Continue.
4. Enter the received verification code.
5. Create a password and tap Done.
6. Tap Add Home to create a SmartLife Home.
7. Set your location, choose the rooms you want to connect with and tap Done.

Installing the product (image B)

1 Control tile

3 Add product

2 Common functions

4 On / off button

1. Screw the lamp into an E14 fitting.
2. Turn on the lamp.
3. In the Nedis SmartLife app, tap + B3.

4. Under Search Device, select the lamp from the list of available devices.

5. Check if the lamp is blinking. If so, tap to confirm.

If the lamp does not blink, turn the lamp off and on 3 times and check again.

1. Enter the password of the 2,4 GHz Wi-Fi network to which your phone is connected and tap Confirm. The Nedis SmartLife app will now search for the lamp.

2. Rename the lamp after it has been found and added.

If the regular connection method fails, the lamp can be connected using AP mode:

a. Tap + B 3.
b. Select the lamp from the list of available devices.
c. Select AP Mode in the top right corner.
d. Turn the lamp off and on 3 times and check that the light starts blinking slowly.
e. Follow the steps in the application.

Using the product

The product can be controlled from any distance using the Nedis SmartLife app.

The home menu of the Nedis SmartLife app shows a control tile for each connected lamp and/or group.

The product can be connected to Google Home or Amazon Alexa to enable speech control.

The product can be connected to IFTTT to enable external conditions to trigger the lamp.
See our support webpage to discover all possibilities of this Nedis® product.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFILRC10E14 | WIFILRW10E14 from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/wifilrc10e14#support

nedis.com/wifilrw10e14#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
