DAB34E - Blender MOULINEX - Free user manual and instructions

Brand	Moulinex
Model	DAB34E
Type	Blender
Blender jar capacity	1.5 L
Functions	On/Off, Pulse, Auto Clean
Included accessories	Blender jar, multi-position pourer lid, measuring cap, herb mill (H), grater (I), coffee mill (J), filter (K)
Grinding accessory capacity	80 g maximum
Speed	1 speed + pulse
Power supply	Check the power supply voltage (electrical outlet)
Maintenance	Jar and accessories are dishwasher safe; motor unit clean with damp cloth
Safety	Safety lid on accessories; do not operate without ingredients; do not pour boiling liquids
Spare parts	Herb mill accessory 5927600, Grater 5927601, Coffee mill 5927602, Filter 5927603
Repairability	Contact an authorized Moulinex service center for any repairs
Warranty	Void in case of non-compliant use

Frequently Asked Questions - DAB34E MOULINEX

How to easily clean the blender?

Use the Auto Clean function: pour warm soapy water into the jar, close the lid, give a few pulses on the Auto Clean position, then rinse. The jar and accessories are dishwasher safe.

Can I blend hot liquids?

No, never pour boiling liquids into the blender jar. Use ingredients at room temperature or cold.

How to use the herb mill?

Place ingredients (garlic, herbs, etc.) in the mill bowl (H), lock the safety lid (L), then place the assembly on the motor unit. Operate by pulses or speed 1. Max capacity: 80 g.

The blender does not start, what to do?

Check that the plug is plugged in, that the jar or accessory is correctly positioned on the motor unit, and that the lid is properly locked by turning clockwise.

How to prevent lid leaks?

Do not exceed the maximum level (1.5 L) and make sure the pourer lid is in the closed position (not open).

Can I grate cheese with this appliance?

Yes, use the grating accessory (I) to reduce hard cheeses like Parmesan, nutmeg, or coconut to powder, previously cut into cubes. Max capacity: 80 g.

How to use the filter?

Place the filter (K) in the blender jar aligning the slots with the inner ridges. Close the pourer lid. Introduce food or liquids through the measuring cap opening, then blend. The filter retains seeds and skins.

What is the maximum capacity of the blender jar?

The maximum capacity is 1.5 liters. Do not exceed this level to avoid overflow.

How to maintain the motor unit?

Clean the motor unit (A) with a damp cloth and dry it thoroughly. Never immerse it in water or under running water.

Where to find spare parts?

You can obtain accessories from your usual retailer or an authorized Moulinex service center. References: herb mill 5927600, grater 5927601, coffee mill 5927602, filter 5927603.

USER MANUAL DAB34E MOULINEX

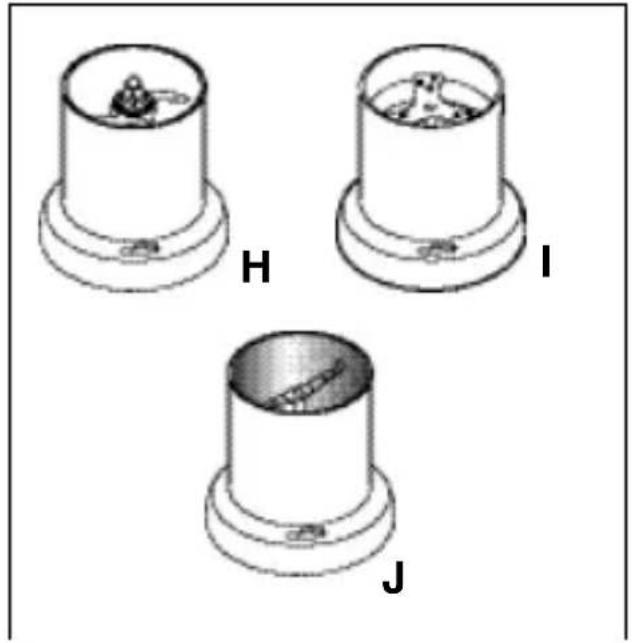

Three identical mechanical component diagrams labeled H, I, and J, showing different housing or mounting features (no text or symbols on the components themselves)

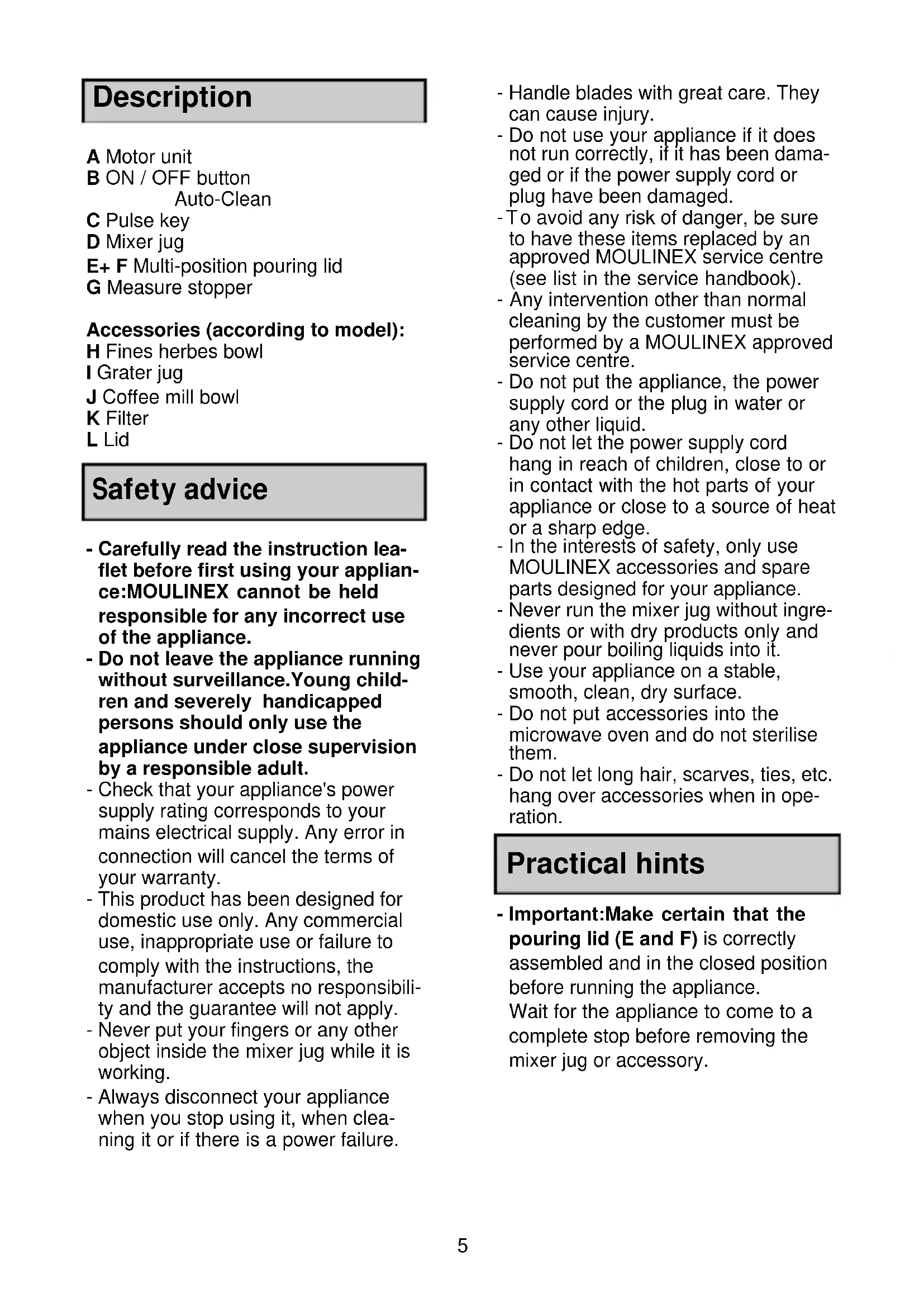

Description

Accessories (according to model):

H Fines herbes bowl

I Grater jug
J Coffee mill bowl
K Filter
L Lid

Safety advice

• Carefully read the instruction leaflet before first using your appliance:MOULINEX cannot be held responsible for any incorrect use of the appliance.
• Do not leave the appliance running without surveillance. Young children and severely handicapped persons should only use the appliance under close supervision by a responsible adult.
• Check that your appliance's power supply rating corresponds to your mains electrical supply. Any error in connection will cancel the terms of your warranty.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Never put your fingers or any other object inside the mixer jug while it is working.

• Always disconnect your appliance when you stop using it, when cleaning it or if there is a power failure.

• Handle blades with great care. They can cause injury.

• Do not use your appliance if it does not run correctly, if it has been damaged or if the power supply cord or plug have been damaged.
• To avoid any risk of danger, be sure to have these items replaced by an approved MOULINEX service centre (see list in the service handbook).
• Any intervention other than normal cleaning by the customer must be performed by a MOULINEX approved service centre.
• Do not put the appliance, the power supply cord or the plug in water or any other liquid.
• Do not let the power supply cord hang in reach of children, close to or in contact with the hot parts of your appliance or close to a source of heat or a sharp edge.
• In the interests of safety, only use MOULINEX accessories and spare parts designed for your appliance.
• Never run the mixer jug without ingredients or with dry products only and never pour boiling liquids into it.
• Use your appliance on a stable, smooth, clean, dry surface.
• Do not put accessories into the microwave oven and do not sterilise them.
• Do not let long hair, scarves, ties, etc. hang over accessories when in operation.

Practical hints

- Important: Make certain that the pouring lid (E and F) is correctly assembled and in the closed position before running the appliance.

Wait for the appliance to come to a complete stop before removing the mixer jug or accessory.

Bringing into service

- Before first use, clean the mixer jug and accessories in hot, soapy water.

Important:

- Set selector switch (B) to position "0" before placing the mixer jug or accessories on the motor unit (A).

1. MIXER JUG

• Place the mixer jug (D) on the motor unit (A); there are 4 possible positions.
• Introduce the food to be mixed into the jug (D) without going over the maximum level (1.5 L).
• Place the pouring lid (E+F) on the mixer jug (D) and lock in position.
• Connect the appliance and start up by turning button (B) to position "1" or giving a few bursts by pressing the "pulse" key (C).
• To stop the appliance, bring the selector (B) back to position "0".
• Select the appropriate filtering position to pour your preparation without removing the lid:
  * wide open for thick preparations,
  * filter position for frothy preparations, with pulp.

2. ACCESSORIES (according to model)

Grinding accessories (H,I or J):

• Use the fines herbes mill (H) to chop the following in a few seconds: garlic cloves, fines herbes, parsley, dried fruit, rusks for breadcrumbs, etc. and prepare purées for baby.
• The grater (I) grates hard cheeses (e.g., parmesan, etc.), nutmeg and coco-nut (first cut into cubes).
• The coffee mill (J) can mill coffee, spices (e.g., coriander, etc.).
• The maximum capacity of these accessories is 80 gr.

• These accessories are equipped with a safety lid (L) that prevents access to the moving blades.

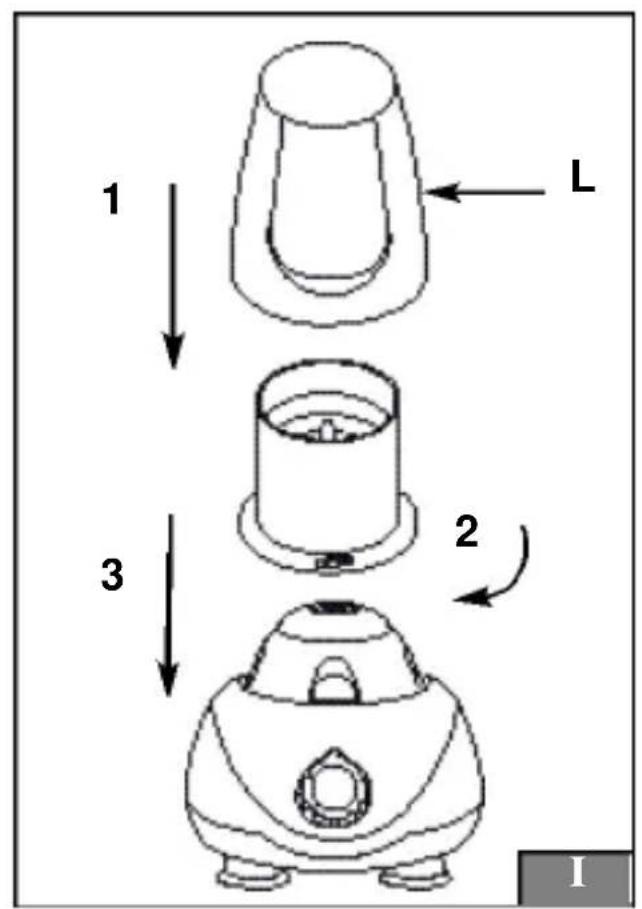

• Put the ingredients into the jug (H, I or J). Lock the lid (L) to the accessory jug, then place the assembly on the body of the appliance (A) (see diagram I).

• Connect the appliance and turn the speed selector (B) to position "1" or give a few bursts by pressing the "pulse" key (C).
• To stop the appliance, bring the selector (B) back to position "0".
• Return the complete accessory to the work surface before unlocking the lid (L).
• You can then recover the preparation directly in the lid, using it as a recipient.

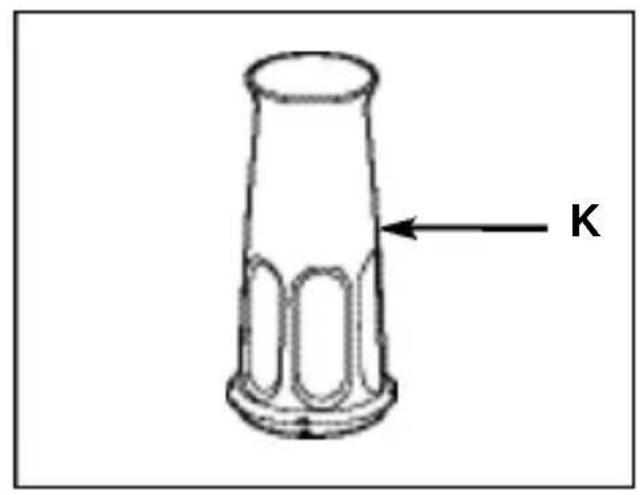

• Use the filter (K) to remove the pips and skin and obtain smoother sauces, soya milk, fruit juices or cocktails.
• Position the filter in the mixer jug (D), making certain that you place the filter slots on the inner ridges of the jug.
• Place the pouring lid (E+F) on the mixer jug to secure the filter.
• Put the food or liquids into the filter through the opening of the measure-stopper.
• Replace the measure-stopper and turn the selector (B) to position "1" or give a few bursts by pressing the "pulse" key (C).

Recipes	Quantities	Running time
Apricots	80 g	6 s
Breadcrumbs	2 rusks	30 s
Onions	80 g	by pulses
Skinned hazelnuts	80 g	by pulses
Parsley	10g	by pulses
Coffee beans	60g	20 s

Cleaning

Use the Auto Clean position to clean the jug and blades easily and safely.

• Pour hot water with a few drops of washing up liquid into the mixer jug (D). Close the lid.
• Give a few pulses by turning the selector (B) to the "Auto Clean" position.
• Disconnect the appliance.

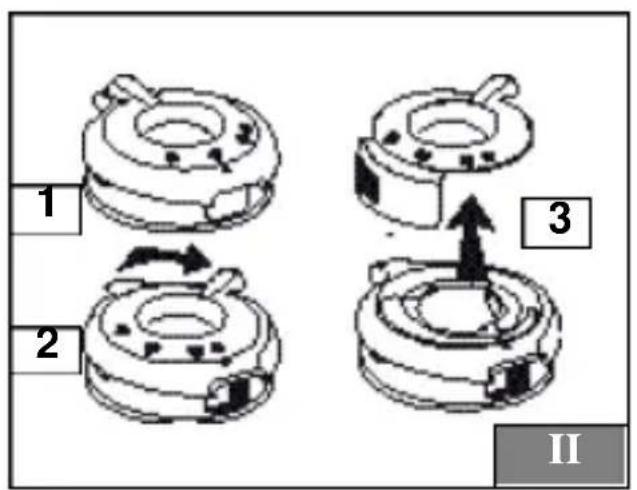

• Remove the jug and rinse it and its lid under running water. For more effective cleaning, you can separate the two elements of the pouring lid (E and F) by turning the lid to position (see diagram II).

• You can put the mixer jug and accessories in the dishwasher

• Clean the motor unit (A) with a damp cloth. Dry carefully.
• Never immerse the motor unit (A) in water or under running water.

What to do if your appliance does not work?

Get in touch with a MOULINEX approved service centre (see list in service handbook).

You can customise your appliance and get the following accessories from your usual retailer of a MOULINEX approved centre:

Fines herbes accessories, grater accessory, coffee mill accessories, filter.

PROBLEMS	POSSIBLE CAUSES	SOLUTIONS
Product does not operate.	Plug is not connected	Connect the appliance to a socket with the same voltage.
	Accesory jug is not correctly fitted to motor unit.	Check for correct positioning of the jug or accessory.
	The lid of the jug or the accessory is not correctly locked.	First position the lid on the jug or the accessory and then turn it clockwise.
Excessive vibration.	The product is not set on a level surface.	Place the product on a level surface.
	The mixer jug or accessory is incorrectly positioned on the motor unit.	Check for correct positioning of the jug or accessory.
Leaks from lid.	Too great a volume of ingredients.	Do not exceed maximum level of jug (1.5l)
	Pouring lid in open position	Place pouring lid in closed position.
Blade does not turn easily.	Pieces of food too big or too hard.	Reduce size or quantity of food.Add liquid.

Recipes

Fruit cocktail

4 oranges, 2 mangoes, 1 kiwi fruit, 1/2 lemon, 8 ice cubes

Peel the mangoes and the kiwi fruit.

Remove the stones from the mangoes.

Put them into the mixer jug with the orange and lemon juice.

Run for 10 seconds.

Add the ice cubes and run the appliance for 30 seconds

Serve chilled.

Griddle cake batter

3 eggs, 1/2 l milk, 250 g flour, 150 g sugar, 1 packet of baker's yeast, 125 g butter.

Put all the ingredients except the flour into the blender. Add the flour through the hole of the measure-stopper during operation.

Mix for 2 min.

Pancake batter

3 eggs, 1/2 l milk, 300 g flour, 75 g butter

Put all the ingredients except the flour into the blender. Add the flour through the hole of the measure-stopper during operation.

Mix for 2 min.

Humus

400 g cooked chick peas, 1/2 glass lemon juice, 4 garlic cloves A few strands of parsley, 4 tblsp oil, 50ml water. A few pinches of chilli powder.

Salt, pepper

Put half the chick peas and all the other ingredients (except the parsley) into the blender and mix for 10 seconds, then add the rest of the chick peas through the hole of the measure-stopper on the lid and mix for a further 30 seconds. Garnish with parsley.

Guacamole

2 ripe avocado pears, 1 peeled and pipped tomato, 1 small onion, 3 tblsps fresh coriander, 2 small chilli peppers, 50ml water and 3 tblsp lemon juice.

Salt, pepper.

Remove the stones from the avocado pears and peel them. Put half the avocado pears with all the other ingredients into the blender and mix for 20 seconds, then add the rest of the avocado pears through the hole of the measure-stopper and mix for a further 30 seconds.
