USER MANUAL TEFT 40 A1 Topmove

Black and white photo of a small outdoor shopping cart with wheels and handle (no visible text or symbols)

SHOPPING TROLLEY TETF 40 A1 /6 EINKAUFSTROLLEY TETF 40 A1 /6 CHARIOT DE COURSES TETF 40 A1 /6

DE AT

EINKAUFSTROLLEY

Operating instructions and safety instructions

NL BE

BOODSCHAPPENTROLLEY

By purchasing the Topmove TETF 40 A1 /6 shopping trolley you have opted for a quality, long-lasting product.

Before using the shopping trolley, study the operating instructions carefully and only use it in the areas described and for the purposes described. If you sell the shopping trolley or give it away, make sure you provide these operating instructions with it. The operating instructions are an integral part of the product.

Intended use

This shopping trolley is designed to transports items with a total weight of max. 25 kg / 55 lbs. Use the shopping trolley for private purposes only. Any use other than that mentioned above does not correspond to the intended use.

Package contents (Fig. A)

• Shopping cart chip (1)
• Shoulder strap (4)
  • These operating instructions

Frame (2)
• 2 wheels (5)

• 2 guard plates (3)
- Bag (6)

Technical specifications

Capacity: approx. 40 litres

Maximum carrying load: 25 kg / 55 lbs

Dimensions (W x H x D): approx. 470 x 925 x 400 mm

Weight: approx. 2640 g

The technical data and design may be changed without prior notice.

Safety instructions

General safety instructions

Keep the packaging materials out of the reach of children. There is a risk of suffocation.
Do not use the shopping trolley to transport persons or animals.
⚠️ Beware of your fingers when folding or unfolding. There is a risk of crushing!
Risk of injury! Do not allow anybody to sit or stand on the shopping trolley.
Do not modify the shopping trolley in any way to avoid any risks.
Be careful when using the product on smooth surfaces such as tiles, laminate, parquet, vinyl flooring, etc. The wheels could slip away and lose their grip.
Caution! Do not place unwrapped food in the shopping trolley.
Be considerate of other people when using the shopping trolley.
Before using it, check the shopping trolley for wear and damage. The shopping trolley should only be used in perfect condition.

Avoiding damage to equipment

Do not transport sharp-edged, pointed, hot or dangerous objects.

Do not exceed the maximum carrying load of 25 kg / 55 lbs.

Avoid potholes and contact with water, oil and very rough surfaces.

Mounting

• Remove the two protective caps (1a) from the axle (1b) (Fig. B).
• Push the wheels (5) onto the axle (1b) until you hear them click in place (Fig. C). Press the button in the centre of the wheel if you want to remove the wheels (5) from the axle (1b).
• Fold down the transport surface (1c) and fold up the bag holder (1d) (Fig. D).
• Press the two lower buttons and unfold the frame (1e) (Fig. E).
• Press the two upper buttons and adjust the handle (1f) to the desired position (Fig. E).
• Attach the bag to the frame using the Velcro fasteners (1g) (Fig. F).
• Insert the two guard plates (3) over the wheels to the holder (1h) of the frame. Make sure that the longer side of the guard plates (3) faces towards the bag (Fig. F).

Use

The shopping trolley has the following features:

• removable cooler bag,
• thanks to the Velcro fastener, the bag (6) can be quickly removed from the frame (2) and be used as a carrying bag with the shoulder strap (4),
  • frame (2) with solid transport surface,
• shopping cart chip (1) (Fig. A) in the bag,
• two hooks (1i) (Fig. F) for hanging the empty shopping trolley on the shopping cart,
  • holder for umbrella or walking stick (on the outside of the bag).

Cleaning and storage

To clean the shopping trolley, use a slightly damp cloth. Never use any solvents or cleaners that may damage the plastic. For stubborn dirt, add a little detergent to the damp cloth. Then dry the shopping trolley with a dry cloth.

If you do not wish to use the shopping trolley for an extended period, remove all contents. Store the shopping trolley in a clean, dry place out of direct sunlight.

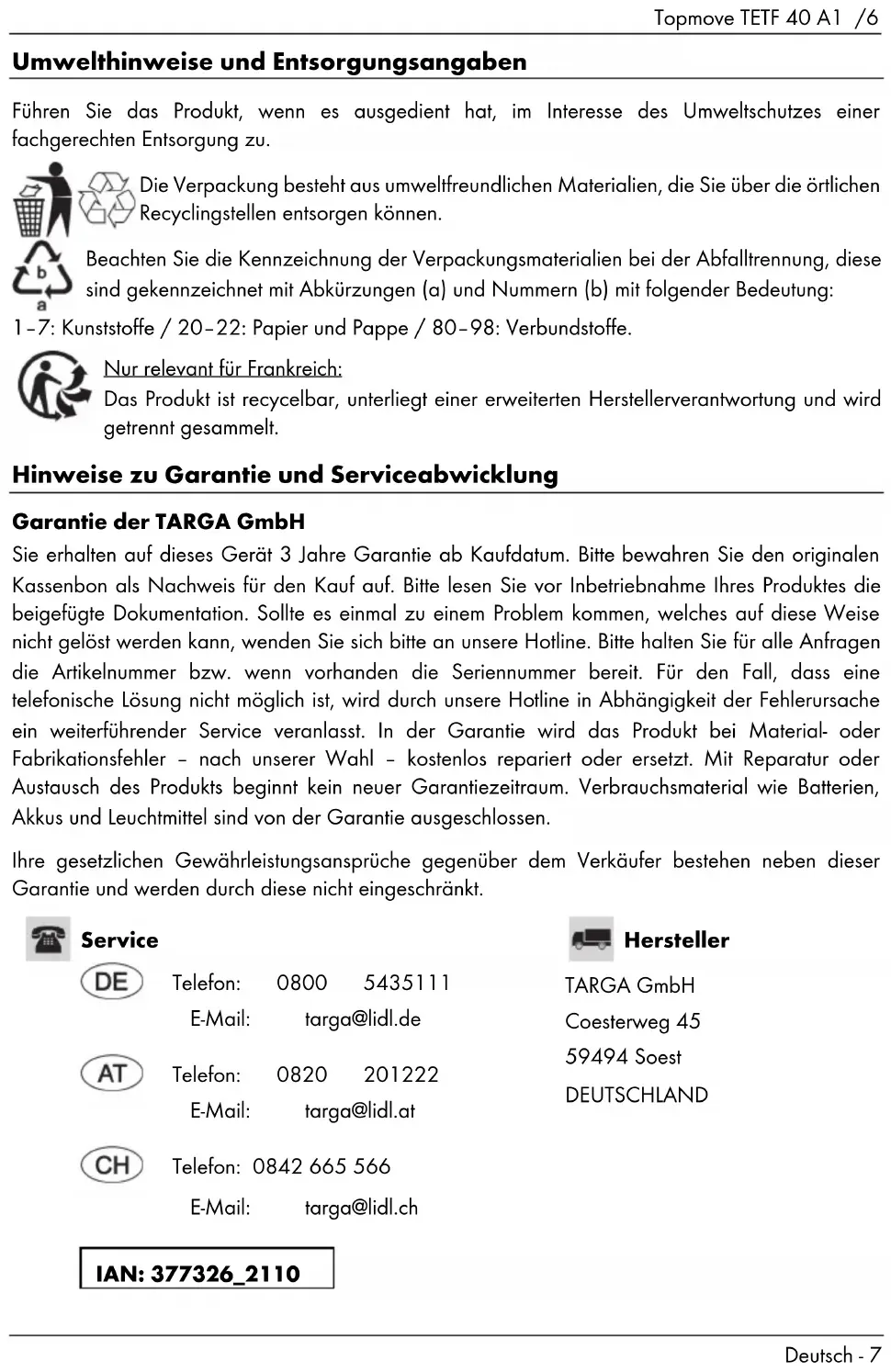

Environmental regulations and disposal information

When it reaches the end of its service life, for the sake of the environment, dispose of the product properly.

The packaging is made of environmentally-friendly materials which can be disposed of at your local recycling centre.

Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:

1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials.

Only relevant for France:

The product can be recycled, is subject to an extended producer responsibility and is collected separately.

Warranty and Service Information

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 377326_2110

Manufacturer

TARGA GmbH

Coesterweg 45

59494 Soest

GERMANY

Félicitations !

Dimensioni (L x H x P): circa 470 x 925 x 400 mm

Peso: circa 2640 g
