Product type	Personal blender
Brand	Euro Cuisine
Model	MM1R
Package contents	Motor base, 280 ml bottle, blade assembly, lid, registration card, user guide
Power supply	120 V AC, 60 Hz
Power consumption	150 Watts
Rotational speed	Approximately 20,000 RPM
Bottle capacity	280 ml (10 oz)
Bottle material	Tritan plastic (based on common usage)
Blade material	Stainless steel
Functions	Pulse or continuous blending, making smoothies, juices, and shakes
Instructions	Press the bottle to activate; release to stop. Do not exceed 30 seconds continuously.
Maximum ingredient temperature	40°C (104°F)
Maximum duty cycle	2 cycles of 30 seconds, then 5 minutes rest
Cleaning motor base	Damp soft cloth; do not immerse
Cleaning bottle	Dishwasher (top rack) or hand wash
Cleaning blade assembly	Hand wash with warm soapy water; do not put in dishwasher
Safety	Pressure sensor for activation; automatic shut-off in case of overload; non-slip suction feet
Warranty	3-year limited warranty
Country of origin	China (based on Euro Cuisine products)
Dimensions (approx.)	Height with bottle: 20 cm; base diameter: 10 cm
Weight (approx.)	0.5 kg

Frequently Asked Questions - MM1R Euro Cuisine

How to use the MM1R blender?

Prepare ingredients (cut into pieces < 2 cm). Add ingredients in order: ice cubes, low-water-content ingredients, green vegetables, high-water-content ingredients, liquid. Screw on the blade assembly, place the bottle upside down on the motor base, plug in, then press the bottle to blend using pulses (recommended) or continuously (max 30 seconds). Release to stop.

What foods can I blend?

This appliance is designed to make smoothies, juices, and drinks with fruits, vegetables, ice, and liquids (water, milk, juice). It is not suitable for chopping meat, kneading dough, or crushing ice alone.

Can I blend hot ingredients?

No, the ingredient temperature must not exceed 40°C (104°F). Hot ingredients can create dangerous internal pressure in the sealed bottle.

How to clean the blender?

Always unplug before cleaning. The motor base can be cleaned with a damp cloth. The bottles are dishwasher safe (top rack) or can be hand washed. The blade assembly must be hand washed with warm soapy water; do not put in dishwasher. Dry immediately.

What to do if the appliance does not work?

Check that the bottle is properly screwed on and correctly positioned on the base. Make sure the plug is connected and the voltage matches (120 V). If the appliance overheats, it may shut off automatically: unplug and let it cool for 30 minutes before using again.

Can I use the blender without liquid?

No, the blender must always contain liquid (water, milk, juice) to avoid damaging the blades and motor. Do not use the appliance empty.

How to avoid leaks?

Make sure the transparent sealing ring is properly placed around the blade assembly and that the threaded base unit is tightly screwed onto the bottle before each use.

Can I blend carbonated drinks?

No, do not blend carbonated drinks. The accumulated pressure can cause the bottle to burst and cause injury.

How to change the blades?

The blades are not individually replaceable. If the blade assembly is damaged, contact Euro Cuisine customer service for replacement parts.

Is the appliance under warranty?

Yes, the Euro Cuisine MM1R blender has a 3-year limited warranty from the date of purchase, covering manufacturing defects and materials under normal household use.

USER MANUAL MM1R Euro Cuisine

MINI MIXX

BY EURO CUISINE

10 oz Personal Blender Mélangeur personnel 280 ml Licuadora personal 280 ml

Shakes, smoothies, juices and more

Two MiniMeas blender containers, one red and one green, filled with fresh salad (no text or symbols visible on the main objects)

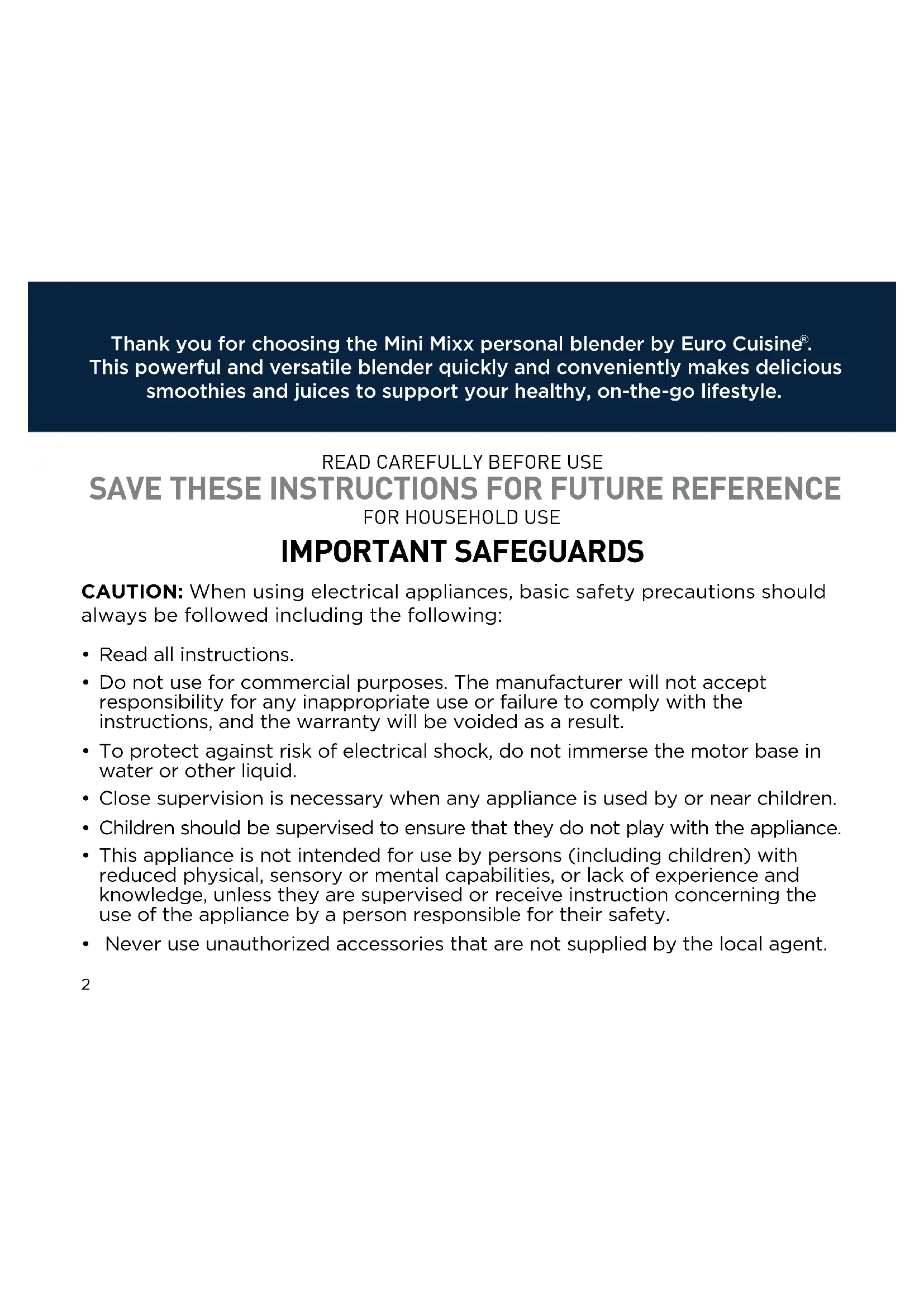

Thank you for choosing the Mini Mixx personal blender by Euro Cuisine®. This powerful and versatile blender quickly and conveniently makes delicious smoothies and juices to support your healthy, on-the-go lifestyle.

READ CAREFULLY BEFORE USE

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

FOR HOUSEHOLD USE

IMPORTANT SAFEGUARDS

CAUTION: When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
• Do not use for commercial purposes. The manufacturer will not accept responsibility for any inappropriate use or failure to comply with the instructions, and the warranty will be voided as a result.
• To protect against risk of electrical shock, do not immerse the motor base in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
  • Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or receive instruction concerning the use of the appliance by a person responsible for their safety.
• Never use unauthorized accessories that are not supplied by the local agent.

Colorful assortment of fresh fruits including kiwi, lime, orange, and berries (no text or symbols visible)

• Do not leave the appliance running unattended.
• Before connecting the appliance, check if the voltage indicated on the appliance (AC120V) corresponds to the local voltage.
  • Always unplug the appliance when not in use or before cleaning.
  • Always unplug the appliance before you assemble, disassemble or move the blender or its accessories.
  • Always unplug the appliance if the blades get stuck.
  • Always place the appliance on a flat and stable work surface.
• Do not move the appliance during operation.
• Avoid contacting moving parts.
• Do not operate any appliance that has a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner.
• Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
• The use of attachments, including canning jars, is not recommended by the manufacturer and may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter.
• Do not use to stir hot liquids.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

Polarization:

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

WARNING

• Do not blend non-food items.
• Do not use the blender to blend hard food, like bones, as this could damage the blades.
• Do not add hot ingredients over 40^ / 104^ .
  • Always properly fasten the blade unit into the bottle before blending.
• To reduce the risk of injury, never place the blade unit on the motor base without the bottle securely fastened.
• Do not exceed the maximum level indicated on the bottle.
• Do not use the appliance for prolonged periods of time.
• Do not put the bottle, blade unit, lid, motor base, or any of the parts in a microwave oven.
• Do not touch any moving parts during operation.
• To reduce the risk of severe personal injury or damage to the device, keep hands and utensils away from the cutting blades while blending food. A scraper may be used, but only when the blender is not running.
• Do not leave the unit unattended while in use.
• Do not use the unit in the presence of children without adult supervision.

WARNING

• This device must not be used by children. Make sure the device and the power cord are out of reach of children.
• This unit can be used by individuals with mental, physical and / or sensory-affected abilities, as long as they have been trained on its use and are fully aware of the risks involved in its use.
• To prevent overheating, do not operate the unit continuously for more than 2 cycles of 30 continuous seconds each. Allow it to rest for 5 minutes before using it again. After two cycles, allow the unit to cool completely before using it again.
• To reduce the risk of injury and leakage, make sure the blade unit is securely screwed onto the bottle before placing it onto the motor base and operating the appliance.
• Do not use the unit outdoors if exposed to inclement weather, such as rain or other wet conditions.
• Blades are sharp; handle carefully.
• Check that the clear sealing ring is placed properly around the blade assembly and that the blade assembly is completely placed inside the threaded base unit before each use.
• Bottles, motor base and all accessories are not suitable for use in the microwave and may result in damage to the appliance.
• Do not mix or blend carbonated beverages. Built-up pressure from released gases can cause container to burst, resulting in possible injury.
• Do not put hot liquids or hot food in any of the blending bottles before blending. Start with cool or room temperature ingredients. Due to the friction of the blades, heated ingredients can create internal pressure in a sealed blending bottle, which may erupt upon opening and cause thermal injury.

WARNING

• Do not run the unit with empty bottles, since this can damage the unit.
• Friction from rotating blades can cause ingredients to heat and generate internal pressure in the sealed bottle. Do not operate continuously for more than 30 seconds. If the bottle is warm to the touch, allow it to cool before carefully opening it, pointed away from your body.
• Never permit any blended mixture to sit inside a sealed bottle without first releasing the internal pressure. Do not allow blended mixtures to sit for long periods in a sealed container. Sugars in fruits and vegetables can ferment, causing pressure to build up and expand in the bottle which, in turn, can cause ingredients to burst and spray out when the bottle is moved or opened.
• Never use the blade unit to blend without liquid. The blades will get damaged.
• The unit is not intended to be used as an ice crusher, or without liquids. To mix a delicious cold smoothie, we recommend you to use frozen fruit and chilled liquids.
• Never remove the bottle/blade unit from the motor base before the motor comes to a complete stop. Removing the bottle/blade unit while the motor base is still running may cause damage to the blade coupling or motor gear.
• To stop the motor, stop pressing the bottle. For more safety, unplug the unit and then lift the bottle to unscrew the threaded base unit by turning it counterclockwise.

Specifications:

Power supply: AC120 Volts, 60Hz

Power consumption: 150 Watts

Rotation per minute (approx.): 20000 RPM

Volume of the bottle: 10 oz - 280 ml

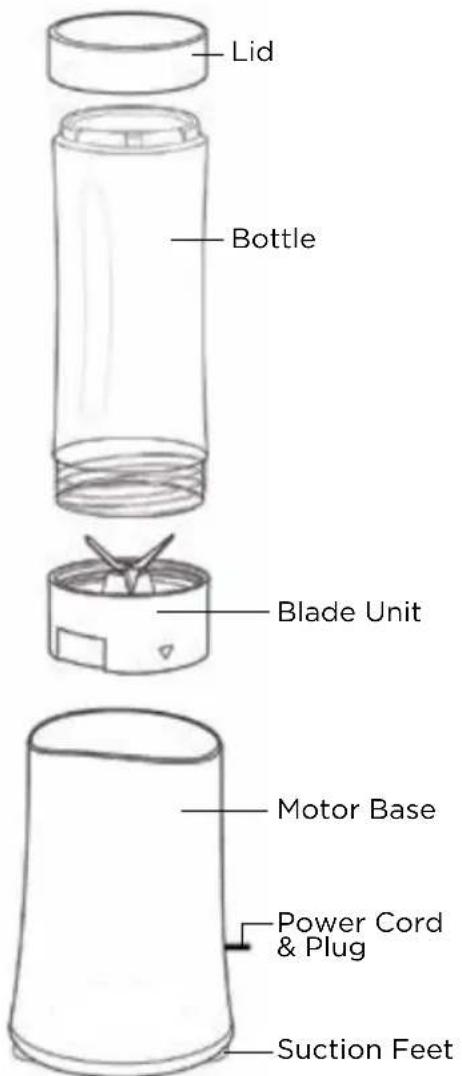

PARTS ASSEMBLY

Lid Bottle Blade Unit Motor Base Power Cord & Plug Suction Feet

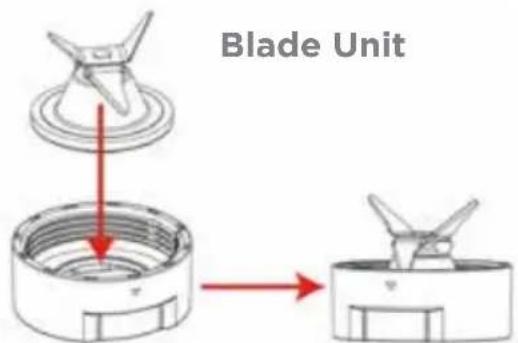

The blade unit comes assembled when you first receive the blender; however, on occasion you might need to deep clean and disassemble the blade unit as per the instructions in the following page. This is how you would assemble it back.

- Place the clear sealing ring around the blade assembly.

- Ensure the clear sealing ring is fully and evenly tucked in place.

- Place the blade assembly into the threaded base unit.

- Press in the middle of the blades, and the blade assembly will snap inside the threaded base unit.

- Ensure that the blade assembly is fully and evenly tucked in place and held firmly to the threaded base unit.

Blade Unit

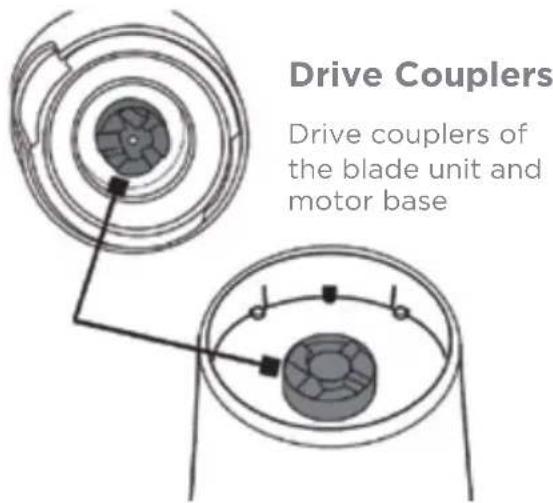

Caution: BEFORE THE FIRST USE:

The drive couplers are made of rubber and could look slightly worn and covered with some black powder during daily use. This is not product damage. If the bottle is not set up properly on the motor base during use, or if you are blending abnormal volumes of food, the drive couplers could wear out quickly. If this happens, please contact Euro Cuisine Inc at 562-659-7810 or email us at [e-mail]

Drive Couplers Drive couplers of the blade unit and motor base

Prior to using your personal blender for the first time, please read all safety and operating instructions thoroughly. Please make sure to follow the steps below before using this appliance.

1. Remove all packaging material and ensure that the power cord is unplugged.
2. Wipe the motor base of the personal blender with a soft cloth. Do not immerse in water or other liquids.
3. Remove the blade unit from the bottles and wash the bottles, lids, and blade unit with warm, soapy water.
4. Make sure the sealing ring is properly placed around the blades to avoid any leakage and damage to the unit during operation.

The Mini Mixx personal blender is designed to blend smoothies and juice. It is only suitable for blending ingredients with liquid (water, milk, juice...). The appliance is not intended for fine chopping or slicing. Do not use this appliance to blend non-food items.

NON-RECOMMENDED INGREDIENTS

Ice cubes only	Your personal blender is not an ice crusher, and it is not intended to crush ice without water or juice.
	Recommended ice cube size is around 2 cm / 3/4 inch or around 30 gr / 1oz max.
Meat / Fish only	It is not meant for chopping or grinding meat or fish.
Bread Dough - Egg whites	Do not use the personal blender to beat egg whites or kneading bread dough.

INGREDIENTS TO BLEND WITH WATER / JUICE

Sticky Ingredients	Example: red beans and boiled potatoes...
Dry Ingredients	Example: cheese, dry seaweed, ginseng, sesame, coffee beans, almonds.

Caution:

Overloading the personal blender could activate the protection device to stop the appliance. If this happens, stop and follow these procedures.

• Unplug the base unit from the wall electrical outlet.
• Let the unit cool down for 30 minutes, then you may blend again.

HOW TO USE:

1 - Prepare the ingredients according to the recipe.

We suggest ingredients be cut into small pieces, no larger than 3/4 inch. For best results, use a proportion of 40% liquid and 60% fruit, vegetable, ice...

Add the ingredients to the bottle in the following order:

A. Ice cubes
B. Ingredients with little water content (apples, carrots, bananas...)
C. Green vegetables
D. Ingredients with more water content (oranges, grapefruit...)
E. Liquid (water - milk - juice...)

2 - Screw the blade unit, making sure it is screwed properly onto the bottle.

Simple line drawing of a jar with a lid and an arrow pointing to the lid (no text or symbols)

3 - Place the motor base on a flat surface where the suction feet can attach firmly.

4 - Turn the bottle upside down and place it onto the motor base.

Illustration of a glass jar containing a pile of round objects, with a small plant growing from the top (no text or symbols)

Diagram illustrating a mechanical process with rotating components and a magnified view of the final component.

Illustration showing a hand holding a wrapped item with a black 'X' symbol and an arrow indicating direction, likely illustrating a medical or safety hazard.

5 - Plug-in the motor base into an electrical outlet.
6 - Capable of 2 function modes: One-touch pulse mode or press down for continuous blending operation. We recommend the pulse action for better results.

Hand holding a cylindrical object with a downward arrow, no visible text or symbols

Caution:

• Continuous blending for a period of more than 30 seconds is not recommended.
  • We recommend blending by PULSE actions several times for best results.
• Do not move the motor base during the blending process. Make sure the suction feet are well attached to a surface.
• Do not tilt the bottle during blending.
• If the ingredients are stuck at the top of the bottle, lift up the bottle and shake it to mix the ingredients.

7 - Stop pressing the bottle to stop the blending process.

Hand holding a cylindrical container with liquid, no text or symbols visible

8 - Lift up the bottle and turn it upside down.

Caution:

• Lift up the bottle only when the motor rotation has stopped. The blades could continue in motion for a few seconds, even when the motor base has stopped.
• Do not touch the blades with bare hands. Store the blade unit in a safe place.
• Unplug from power supply after use.

Illustration of a test tube being compressed and tilted upward, showing fluid flow direction (no text or symbols)

9 - Unscrew the blade unit and remove it, then screw the lid onto the bottle for storage or drinking on the go.

Lid

CLEANING SAFEGUARDS

• Always unplug the personal blender when cleaning or assembling.
- Immediately after use, rinse the threaded base unit with the blade assembly and the bottles to prevent debris from drying and sticking to the bottles – if necessary, use a dish brush to loosen any debris.
- Hand wash the threaded base unit with the blade assembly only with mild dish soap and warm water (not hot).
- Dry immediately.
- For tough debris, fill the bottles 1/2 full with warm (not hot) and mild soapy water. Then, simply twist-on the blade unit and give it a shake for 30-45 seconds. Follow up with a quick brushing.
- Do not put the threaded base unit and the blade assembly in the dishwasher as high temperature can damage the gaskets. Simply hand wash with warm, mild soapy water.
- The blender bottles may be washed on the top rack of the dishwasher only in the normal cycle.

CLEANING SAFEGUARDS

• The blender bottles and threaded base unit should not be immersed in boiling water for any reason, as this will warp the plastic and damage the gaskets.
• The blade unit (threaded base unit and blade assembly) can be disassembled on occasion for deep cleaning. To remove the blade assembly from the threaded base unit, simply hold the threaded base unit with both hands and push hard on the drive coupler with both thumbs, and the blade assembly will snap out of the threaded base unit. Be careful, as the blades are sharp (fig 1).
• Remove the clear sealing ring from around the blade assembly for cleaning (fig 2).
• Wash the blade assembly only under running water. Do not place in dishwasher (fig 3 & fig 4).
  • Air dry the threaded base unit, the clear sealing ring, and the blade assembly.
• Once air dried, reassemble as per above assembly instructions.

Technical line drawings of mechanical components and a laboratory test tube setup (no text or symbols)

CLEANING SAFEGUARDS

For the most part the motor base doesn't really get dirty, but if you neglect to twist the blade unit onto the bottle tightly, liquids can leak out and get into the base and activator buttons.

Here's how to clean it up.

Step 1: The most important thing is to first unplug the motor base.

Step 2: Use a soft damp cloth with mild detergent to clean the motor base. Do not use bleach or strong chemical detergents.

Line drawing of a hand cleaning a cylindrical object (no text or symbols)

• Never immerse the motor base in water or place it in the dishwasher or under running water.
• Handle the blades with extreme care, as the sharp blades could cut your fingers. Never use your fingers or other objects to press the activator buttons down while the motor base is plugged-in.

MINI MIXX

BY EURO CUISINE

REGISTRATION CARD

Congratulations on your selection of a quality household appliance from Euro-Cuisine. Please complete this product registration and return it to Euro-Cuisine to activate the product warranty. Mail with proof of purchase from the box (the UPC code) or a copy of the sales receipt to:

Euro-Cuisine, Inc.

P.O. box 351208, Los Angeles, CA 90035

888-343-5554 www.eurocuisine.net

Last Name: First Name:

Address ____ Male Female ____ □

City, State, Zip: Age:

Email: Phone:

EuroCuisine Product Purchased: Model #:

Purchase Date: Purchase Price:

Purchased At: Specialty Store Online Department Store

Mail Order Other Gift

Please remember to mail Proof of Purchase from the box (the UPC code) or a copy of the sales receipt

MINI MIXX

BY EURO CUISINE

10 oz Personal Blender

MINI MIXX

BY EURO CUISINE

LIMITED 3-YEAR WARRANTY

Euro Cuisine is proud to back this appliance with a limited 3-year warranty. Euro-Cuisine warrants that this product will be free from defects in workmanship or materials under normal home use for three years from the date of the original purchase.

It is suggested that you complete and return the enclosed product registration promptly to facilitate verification of the date of original purchase.

Should you experience any defects as described above in this three-year period, contact Euro-Cuisine at: 888-343-5554, or write us at P.O. box 351208, Los Angeles, CA 90035. When you call, please have the following information available:

• Product Name
  • Product Model Number
• Purchase Date
  • Proof of Purchase
  • Description of Defect

This warranty excludes:

• Damage caused by accident, misuse, or shipment
• Any defects or damages caused by accessories, replacement parts or repair service other than those authorized by Euro-Cuisine
  • Retailers or other use for commercial purposes
• Damages caused by failure to follow safeguards section of instruction book

Close-up of assorted fresh fruits including kiwi, orange slices, and blueberries arranged on ice (no text or symbols visible)

Simple line drawing of a jar with a lid and an arrow pointing to the lid (no text or symbols)

Illustration of a glass jar containing small plant material, with a small sprouting plant above it (no text or symbols)

Diagram illustrating a mechanical or fluidic process with labeled components and directional arrows indicating motion.

Diagram showing a hand holding a rolled document with a 'X' symbol and an arrow indicating direction or change.

Hand holding a cylindrical object with a downward arrow, no visible text or symbols

Hand holding a container with liquid, showing a hand reaching upward (no text or symbols)

Illustration of a laboratory setup with a vial and a beaker, showing fluid flow direction (no text or symbols)

Technical line drawings of mechanical components and a laboratory apparatus (no text or symbols)

NETTOYAGE DE LA BASE MOTEUR DU MÉLANGEUR

Line drawing of a hand cleaning a cylindrical object (no text or symbols)

MINI MIXX

MINI MIXX

BY EURO CUISINE

10 oz Personal Blender

MINI MIXX

BY EURO CUISINE EURO CUISINE ITALIAN INSPIRED DESIGN

Close-up of assorted fresh fruits including kiwi, orange slices, and blueberries arranged on ice (no text or symbols visible)

Pure diagram of concentric circular layers with a central dark region, no text or symbols present

Illustration of a glass jar containing a cluster of small objects, with a small sprouting plant above it (no text or symbols)

Simple line drawing of a container with a lid and an arrow pointing to it, containing granular material (no text or symbols)

Diagram illustrating a mechanical process with rotating components and a magnified view of the final component.

Diagram showing a hand holding a card with a black 'X' symbol and an arrow pointing to it, indicating a warning or rejection.

Hand holding a cylindrical object with a downward arrow, no visible text or symbols

Precaución

Hand holding a container with liquid, showing a hand reaching upward (no text or symbols)

8 - Levante la botella y volteela.

Precaución

Diagram showing a bottle being compressed into a container with an arrow indicating motion (no text or symbols)

Technical line drawings of mechanical components and a laboratory apparatus (no text or symbols)

LIMPIEZA DE LA BASE MOTORIZADA DE LA LICUADORA

Line drawing of a hand cleaning a cylindrical object with a cloth (no text or symbols)

MINI MIXX

BY EURO CUISINE

TARJETA DE REGISTRO

MINI MIXX

BY EURO CUISINE

10 oz Personal Blender

MINI MIXX

BY EURO CUISINE EURO CUISINE ITALIAN INSPIRED DESIGN

GARANTÍA LIMITADA DE 3 AÑOS

This warranty excludes:

MINI MIXX

BY EURO CUISINE

10 oz Personal Blender

The Euro Cuisine name and logo are registered trademarks of Euro-Cuisine, Inc.

©2018 All rights reserved.

The artwork and design of this package are protected by US copyright law and may not be reproduced, distributed, displayed, published or used for any purpose without prior written permission. It is not permitted to alter, remove or reproduce any trademarks or copyright notice from this package.
