FTB20 - Milk frother Euro Cuisine - Free user manual and instructions

Product Type	Milk Frother
Brand	Euro Cuisine
Model	FTB20
Power Supply	2 AA batteries (1.5 V each)
Battery Type	AA 1.5 V (not included)
Whisk Material	Stainless steel
Main Function	Froth cold or hot milk (max 60 °C)
Recommended Capacity	Fill container to one-third full maximum
Recommended Milk Type	Whole milk for best froth
Indicator Light	LED ring during operation
Cleaning	Whisk washable under running water; do not immerse handle
Safety	Do not use if damaged; avoid heat, moisture, children
Warranty	3-year limited warranty
Intended Use	Household use only
Spare Parts	Removable whisk, protective cover
Compatibility	Works with any suitable container

Frequently Asked Questions - FTB20 Euro Cuisine

The device does not work, what should I do?

First check the batteries: replace them with new AA 1.5 V batteries and make sure to insert them correctly (respect polarity). If the problem persists, clean the whisk and battery contacts.

What type of milk should I use for best froth?

Choose whole milk, as it contains more fat. Skim milk, soy milk, or lactose-free milk produce less froth. The milk should be cold (refrigerated).

Can I froth hot milk?

Yes, but the milk temperature must not exceed 60 °C (140 °F). Beyond that, the froth does not form properly. For best results, use cold milk.

How to clean the milk frother?

Never immerse the handle in water. Remove the protective cover, clean the housing with a damp cloth. For the whisk, dip it in clean water and briefly activate the device to rinse it, then dry it.

Why is the froth too runny?

After preparing the froth, let it sit for about 30 seconds: the liquid milk settles and the froth becomes thicker. Use a spoon to scoop the froth.

What container should I use to froth milk?

A sufficiently large container (e.g., a bowl or a tall cup). Fill it to one-third full maximum, as the volume increases significantly during frothing.

Does the whisk run continuously?

No, the whisk only runs when you hold down the On/Off button. Release it to stop. The LED ring lights up during operation.

Can I use the device for anything other than milk?

The device is designed exclusively for frothing milk. Do not use it for other liquids or foods to avoid damage.

How to replace the batteries?

The battery compartment is located under the On/Off button. Turn the cover counterclockwise, insert two AA 1.5 V batteries respecting polarity (+/-), then close by turning clockwise.

Is the device under warranty?

Yes, Euro Cuisine offers a 3-year limited warranty from the date of purchase. Keep the proof of purchase and register your product online or by mail.

USER MANUAL FTB20 Euro Cuisine

Glass of creamy beverage with red curly straw and a small stand on a wooden surface (no text or symbols visible)

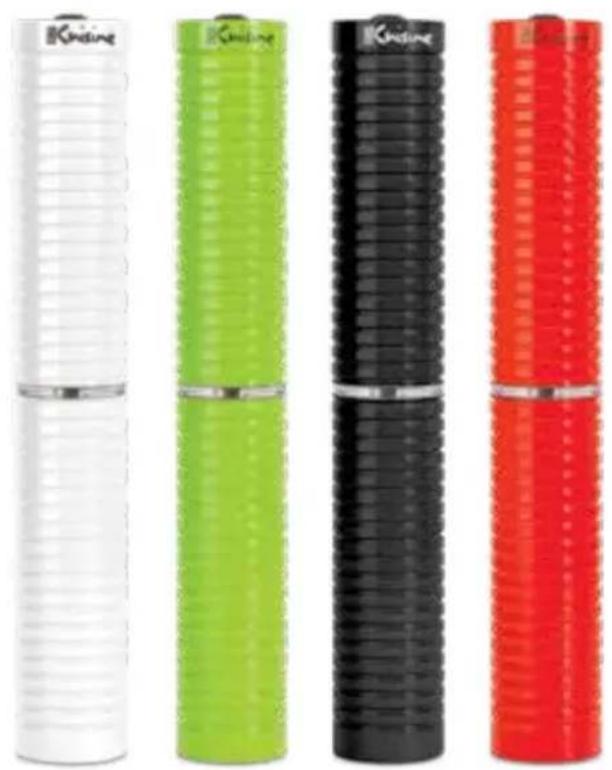

Items: FTR10, FTB20, FTW30, FTG40

Four cylindrical electronic devices with different colors and patterns, arranged side by side (no visible text or symbols)

Thank you for choosing our product. We hope you will enjoy using it.

READ CAREFULLY BEFORE USE

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

FOR HOUSEHOLD USE

IMPORTANT SAFEGUARDS

CAUTION:

When using appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
• Do not use for commercial purposes. The manufacturer will not accept responsibility for any inappropriate use or failure to comply with the instructions, and the warranty will be voided as a result.
• Do not use the appliance if it is damaged.
• Do not repair the appliance yourself, but rather consult an authorized service person.
• Use the appliance only for the intended purpose.
• Keep away from heat, direct sunlight, dampness (never immerse the motor part in fluids).
• Store the appliance out of reach of children. Children may not play with the appliance.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.

WARNING:

• Caution! Do not allow small children to play with the plastic bag, as there is danger of suffocation!
• Children should be supervised at all times in order to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS • FOR HOUSEHOLD USE ONLY

Specifications:

Power supply: 2 x 1.5 V Battery type: 2 x AA 1.5 V

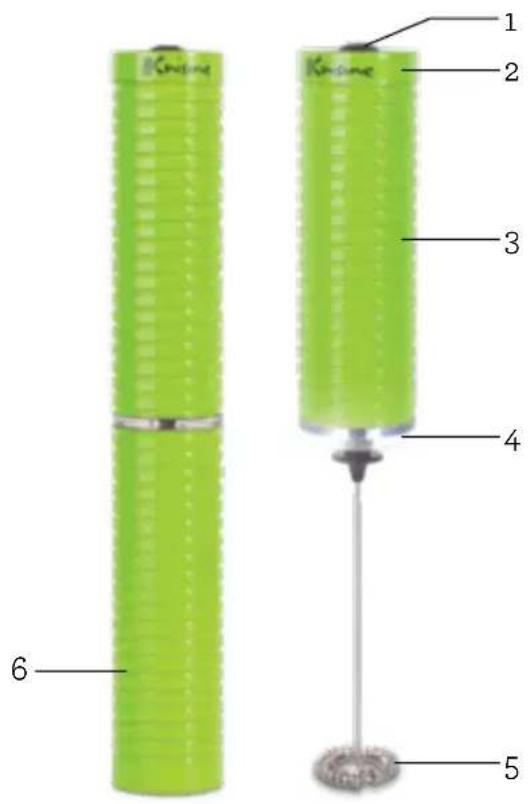

PARTS:

1. On/off button
2. Battery Compartment
3. Handle
4. LED Ring
5. Stainless Steel Whisk
6. Protective Cover

1 2 3 4 5 6

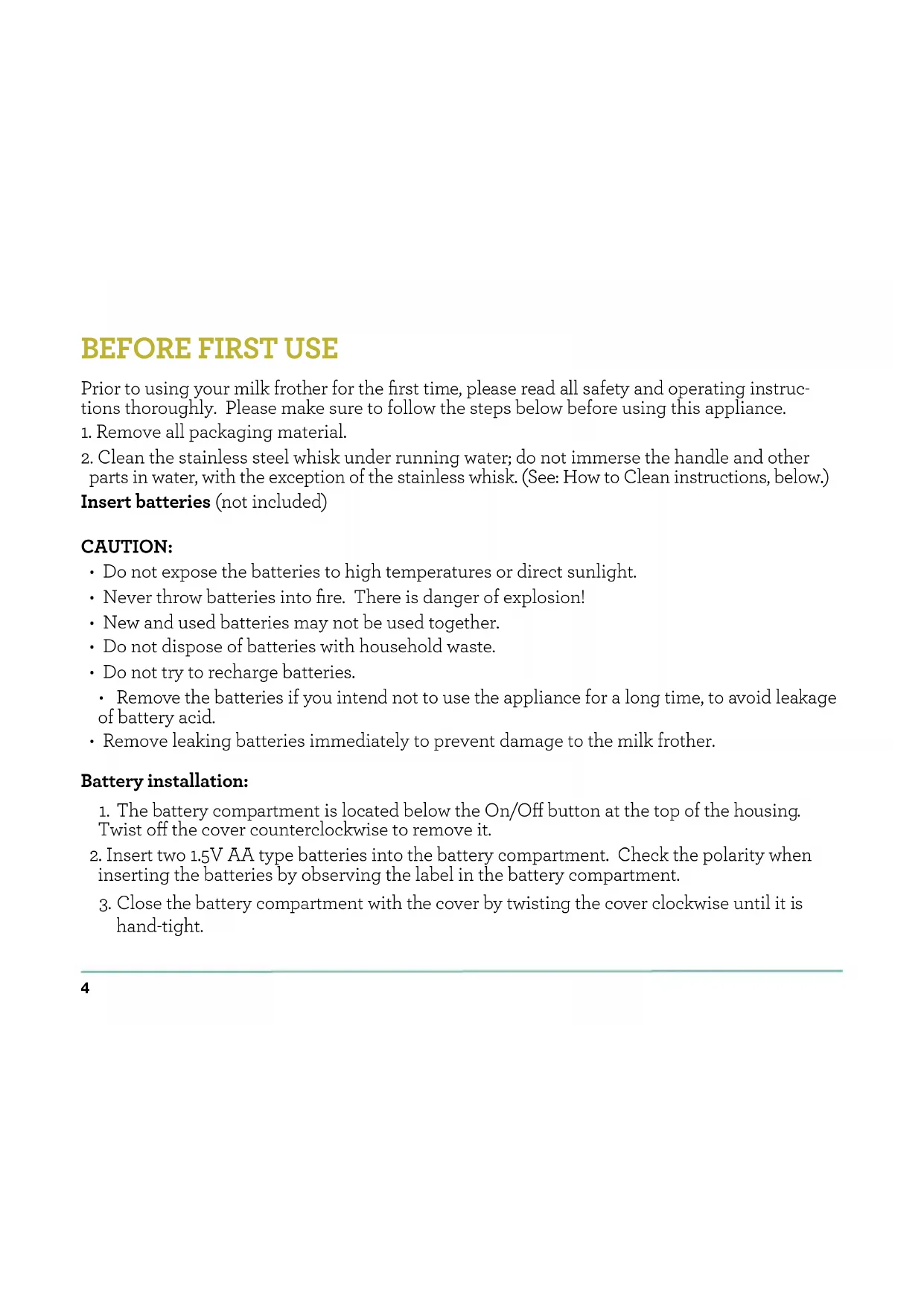

BEFORE FIRST USE

Prior to using your milk frother for the first time, please read all safety and operating instructions thoroughly. Please make sure to follow the steps below before using this appliance.

1. Remove all packaging material.
2. Clean the stainless steel whisk under running water; do not immerse the handle and other parts in water, with the exception of the stainless whisk. (See: How to Clean instructions, below.)

Insert batteries (not included)

CAUTION:

• Do not expose the batteries to high temperatures or direct sunlight.
• Never throw batteries into fire. There is danger of explosion!
• New and used batteries may not be used together.
• Do not dispose of batteries with household waste.
• Do not try to recharge batteries.

- Remove the batteries if you intend not to use the appliance for a long time, to avoid leakage of battery acid.

- Remove leaking batteries immediately to prevent damage to the milk frother.

Battery installation:

1. The battery compartment is located below the On/Off button at the top of the housing. Twist off the cover counterclockwise to remove it.
2. Insert two 1.5V AA type batteries into the battery compartment. Check the polarity when inserting the batteries by observing the label in the battery compartment.
3. Close the battery compartment with the cover by twisting the cover clockwise until it is hand-tight.

HOW TO USE

1. Fill a tall container with the milk you want to froth. Make sure that you fill no more than one third of the container.
2. Pull off the protective cover (6).
3. Dip the whisk (5) into the milk until it is slightly above the base of the container.
4. Press down on the on/off button (1). The whisk (5) will rotate. The LED ring (4) lights up during operation.
5. Swirl in a circular motion until you create the desired volume of foam. While swirling, slowly and steadily raise the whisk (5). The whisk (5) must always remain within the milk.
6. Let go of the on/off button (1) in order to switch off the milk frother. The LED ring (4) will turn off.
7. Take the whisk (5) out of the milk as soon as it stops rotating.
8. Use a spoon to remove the milk foam.
9. Clean the whisk.

NOTE:

• For best results, use whole milk. Milk with less fat content, as well as soy milk or lactose-free milk, will produce less froth.
• Fill the container to just one third with milk, as the volume increases considerably during frothing.
  • The milk should be cool.
• If you want to make warm milk froth, the milk should not exceed 60^ / 140^ , otherwise the milk will not froth.
• If you find the milk froth to be too liquidy, we recommend leaving it to rest for around 30 seconds. During this time, the liquid milk will sink down and the milk froth will achieve a better consistency.

Cleaning:

WARNING:

- Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Otherwise the milk frother may be damaged.

- Do not clean the milk frother and its accessories in the dishwasher, as this may cause irreparable damage.

- Never immerse the handle (3) in water or any other liquid. No liquid may enter the handle (3).

- Ideally, clean the appliance immediately after using it. This way, any milk residues won't dry.

How to Clean:

• Pull off the protective cover (6).

- Clean the housing of the milk frother with a soft, damp cloth, using a mild detergent for stubborn stains.

- Place the whisk (5) in rinse water to clean it. Press down on the on/off button (1) for a few seconds so that the whisk (5) rotates. Take the whisk (5) out of the rinse water as soon as it stops rotating. Rinse the whisk (5) with clear water.

• Dry all of the parts thoroughly.

- Place the protective cover (6) on the appliance.

FAQs: Why is the milk frother not working?

- Replace batteries with new ones.

- Check and make sure that the batteries are inserted properly.

Recipe:

You can use your freshly made milk froth in many beverages.

We have included some recipes for you.

Viennese Blend

• Freshly brewed coffee
• Hot milk
• Milk froth

Place the same amount of freshly brewed black coffee and hot milk in a large cup until about one centimeter / 12 inch below the rim of the cup. Pour in the freshly made milk froth.

Latte Macchiato

• 150 ml / 5 oz milk to make milk froth
• 1 portion of espresso (25-30 ml) (1oz)

Use the milk to make fresh milk froth and pour the froth into a latte macchiato glass until the glass is three quarters full. Next, slowly and carefully pour the espresso into the milk froth.

Those who like strong coffee can add an extra portion of espresso at this stage. Ideally, the espresso has now collected in the center. The liquid milk is at the bottom and the top of the drink is crowned by a thick layer of froth. If there is any leftover milk froth and space in the glass, you can carefully add it to the rest of the milk froth.

Recipe:

You can use your freshly made milk froth in many beverages.

We have included some recipes for you.

Carajillo – A Spanish drink combining coffee with a shot

• 1 cup of espresso
- 1 cl brandy or rum
• 1-2 cl egg liqueur
• 1 heaped teaspoon of fine cane sugar
- Milk froth

Stir the espresso with the brandy and dissolve the cane sugar in it. Put the egg liqueur into a large glass and then very slowly slide the espresso over a spoon onto the egg liqueur. This creates two layers in the glass. Fill the glass with the freshly made milk froth.

Coffee with nut nougat cream

• 1 cup of freshly brewed coffee
• 2 teaspoons of nut nougat cream
- Milk froth

Stir the nut nougat cream directly into the freshly brewed coffee, provided it is still very hot. Pour-in the freshly made milk froth. If you like, you can stir some chili powder into your coffee and sprinkle a little bit on the milk froth.

REGISTRATION CARD

Congratulations on your selection of a quality household appliance from Euro-Cuisine. Please complete this product registration and return it to Euro-Cuisine to activate the product warranty. Mail with proof of purchase from the box (the UPC code) or a copy of the sales receipt to:

Euro-Cuisine, Inc.

P.O. box 351208, Los Angeles, CA 90035

888-343-5554 www.eurocuisine.net

Last Name: First Name:

Address ____ □ Male Female

City, State, Zip:

Email: Phone:

EuroCuisine Product Purchased: Model #:

Purchase Date: Purchase Price:

Purchased At: □ Specialty Store Online

□Mail Order □ Other Gif

Please remember to mail Proof of Purchase from the box (the UPC code) or a copy of the sales receipt

Four cylindrical electronic components with different colors and patterns, arranged side by side (no visible text or symbols)

EURO Cuisine

Items: FTR10, FTB20, FTW30, FTG40

LIMITED 3-YEAR WARRANTY

Euro Cuisine is proud to back this appliance with a limited 3-year warranty. Euro-Cuisine warrants that this product will be free from defects in workmanship or materials under normal home use for three years from the date of the original purchase.

It is suggested that you complete and return the enclosed product registration promptly to facilitate verification of the date of original purchase.

Should you experience any defects as described above in this three-year period, contact Euro-Cuisine at: 888-343-5554, or write us at P.O. box 351208, Los Angeles, CA 90035. When you call, please have the following information available:

• Product Name
  • Product Model Number
  • Purchase Date
  • Proof of Purchase
  • Description of Defect

This warranty excludes:

• Damage caused by accident, misuse, or shipment
- Any defects or damages caused by accessories, replacement parts or repair service other than those authorized by Euro-Cuisine
• Retailers or other use for commercial purposes
- Damages caused by failure to follow safeguards section of instruction book

Four cylindrical electronic devices with different colors and patterns, arranged side by side (no visible text or symbols)

EURO Cuisine ITALIAN INSPIRED DESIGN

Items: FTR10, FTB20, FTW30, FTG40

Four cylindrical electronic devices with different colors and patterns, arranged side by side (no visible text or symbols)

EURO Cuisine

Items: FTR10, FTB20, FTW30, FTG40

This warranty excludes:

Close-up of a glass jar with a jar of coffee and a red silicone cookie, placed on a wooden cutting board (no text or symbols visible)

Milk Frother

Mousseur à lait

Espumadora de leche

www.eurocuisine.net

Euro-Cuisine, Inc P.O. Box 351208 Los Angeles, CA 90035

Tel [phone] Fax [phone] [e-mail]

The Euro Cuisine name and logo are registered trademarks of Euro-Cuisine, Inc. ©2018 All rights reserved.

The artwork and design of this package are protected by US copyright law and may not be reproduced, distributed, displayed, published or used for any purpose without prior written permission. It is not permitted to alter, remove or reproduce any trademarks or copyright notice from this package.

Items: FTR10, FTB20, FTW30, FTG40
